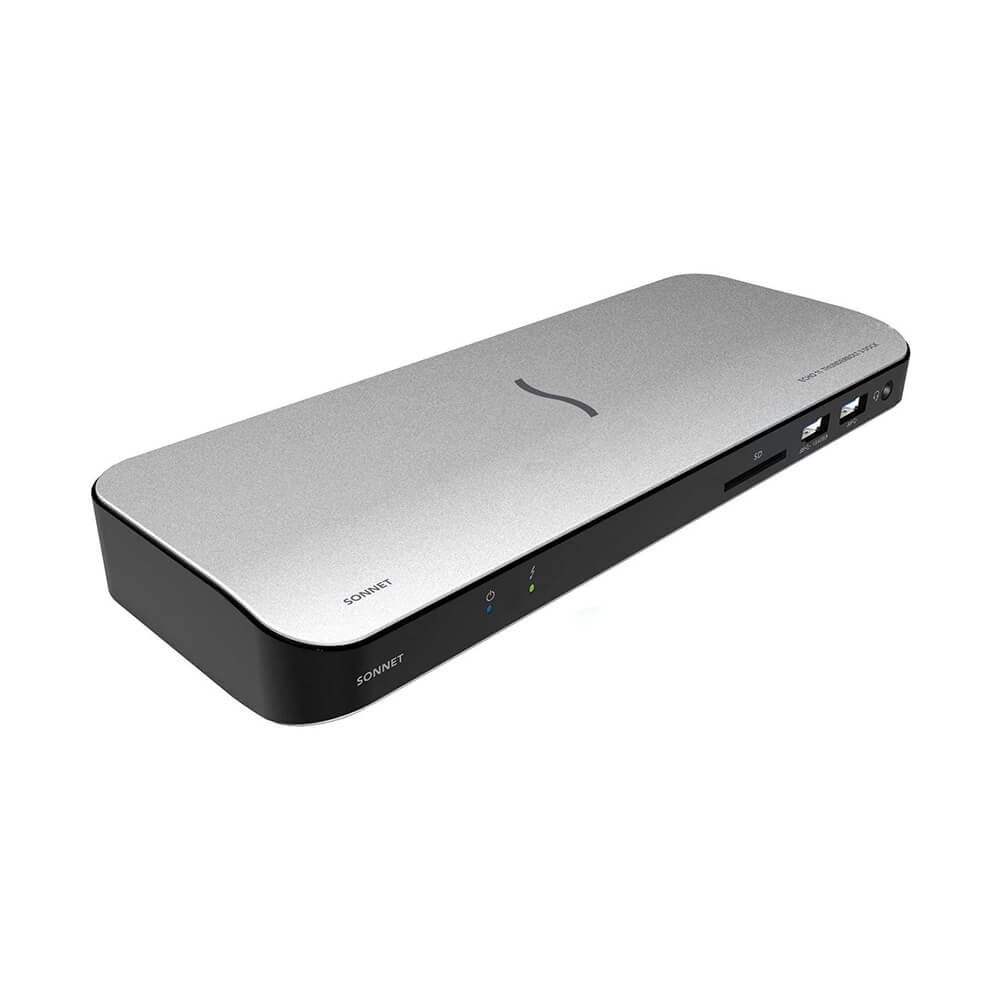

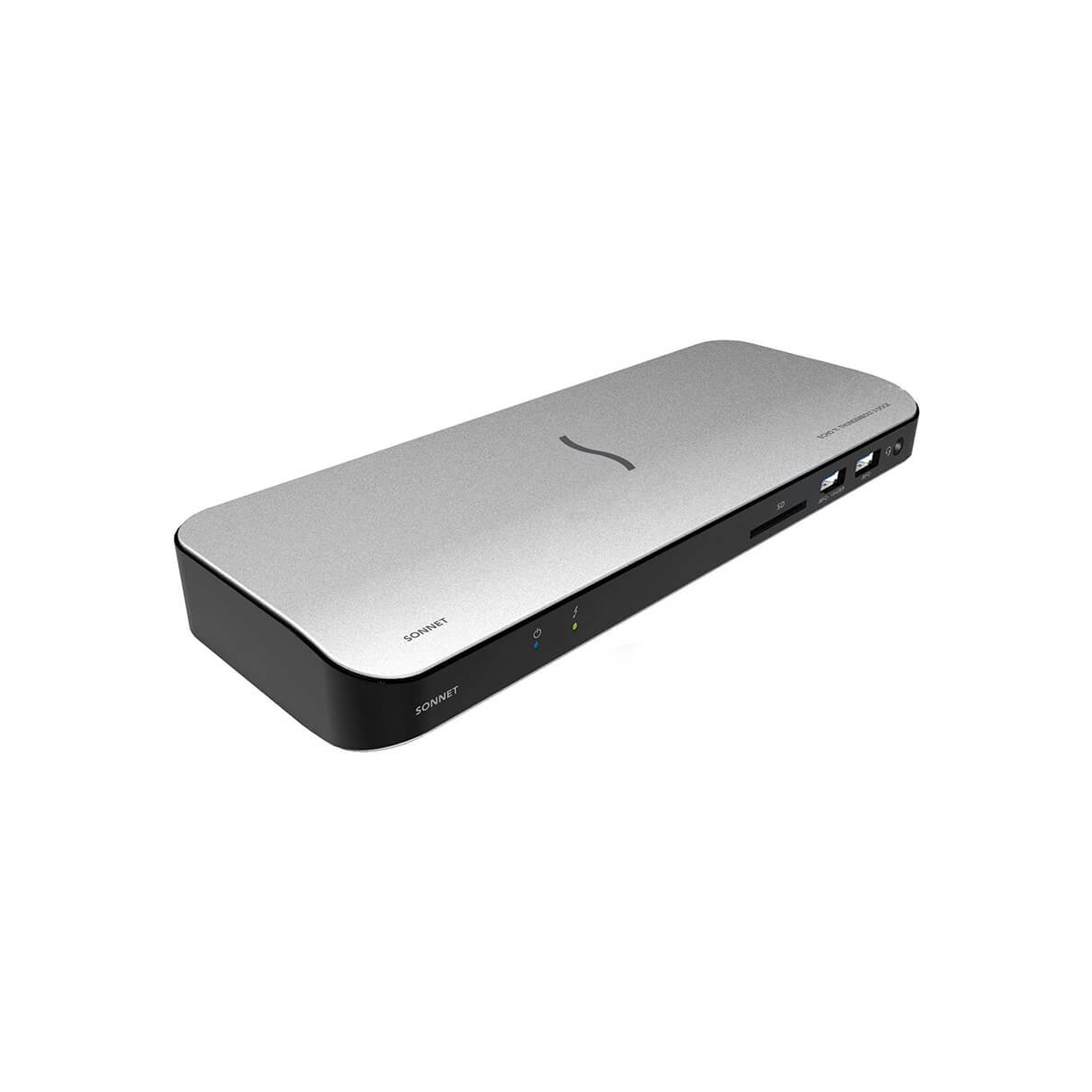

Connect To Your Peripherals and Power Your Computer With One Cable
Sonnet’s Echo 11 Thunderbolt 3 Dock connects your peripherals to your computer through a single cable. Simply plug in your devices—such as a printer, keyboard, mouse, cable modem, hard drive, optical drive, USB license dongle, headphones or powered speakers, phone, tablet, and (up to) two 4K displays—to the dock with their supplied cables, and then connect your computer with the included Thunderbolt 3 (40Gbps) cable. The Echo 11 dock even charges compatible computers(5) through the same cable. When it's time to take your computer and go, just unplug the Thunderbolt cable to disconnect from everything at once!
Leave Your Charger In the Backpack
For users whose notebooks and laptops accept charging over Thunderbolt(5), the Echo 11 dock also provides up to 87W of Power Delivery through the included Thunderbolt 3 cable(3) used to connect the dock to the computer. These computers fall into four power requirement categories: 30W (example: Dell XPS 12), 45W (example: Dell XPS 13), 60W (example: MacBook Pro® 13-inch), and 87W (example: MacBook Pro 15-inch)—the Echo 11 charges them at the maximum power they will accept so you can leave your computer’s power adapter packed away!
40Gbps Thunderbolt 3—The USB-C That Does It All
The Echo 11 Dock includes two Thunderbolt 3 ports; one for connection to your computer, the other to daisy chain up five additional Thunderbolt peripheral devices(1) to your computer! The Echo 11 includes 10Gbps USB 3.1 Gen 2 support, meaning you can connect another USB device to the second Thunderbolt port using the proper cable or adapter. The Dock’s Thunderbolt 3 peripheral port can also provide up to 15 watts of bus power to devices requiring extra power for even the most demanding bus-powered USB 3.1 or Thunderbolt devices.
Connect a 4K Display or Two
The Echo 11 dock features an HDMI 2.0 port that supports a 4K @ 60Hz (or lower resolution) monitor. To connect an additional display(6), you can plug in a Thunderbolt 3 monitor to the dock’s second Thunderbolt 3 port or at the end of a Thunderbolt 3 device daisy chain. Or, you may connect other display types (HDMI, DisplayPort, etc.) by using a Thunderbolt 3 or USB-C video adapter (sold separately).
Connect one HDMI display to the Echo 11 dock’s HDMI port, and another(6) display to its second Thunderbolt 3 port. Display interface types that can be connected to the dock via the second Thunderbolt 3 port include:
Display Connection
• Thunderbolt 3 – Thunderbolt 3 cable
• USB-C – USB-C to USB-C Gen 2 video cable (USB0C charging cable will not work)
• DisplayPort – USB-C to DisplayPort cable or adapter (Thunderbolt 3 compatible)
• mini DisplayPort– USB-C to mini DisplayPort cable or adapter (Thunderbolt 3 compatible)
• HDMI – USB-C to HDMI cable or adapter (Thunderbolt 3 compatible)
• VGA – USB-C to VGA cable or adapter (Thunderbolt 3 compatible)
• DVI-D – USB-C to DVI cable or adapter (Thunderbolt 3 compatible)
Connect a 5K Thunderbolt 3 Display
As an alternative to connecting one or two 4K @ 60Hz displays, the Echo 11 dock also supports the connection of a 5K @ 60Hz Thunderbolt 3 display. Simply plug in a Thunderbolt 3 (40Gbps) cable between the dock’s second Thunderbolt 3 port and the display, no adapters necessary.
Backward-Compatible with Older Mac
The Echo 11 Thunderbolt 3 Dock is also compatible with Macs with Thunderbolt 2 or Thunderbolt ports(7) when used with the bi-directional Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter and a Thunderbolt cable (both sold separately).
Connection Condenser
With its eleven ports, the Echo 11 Thunderbolt 3 Dock is a handy hub to plug in your peripherals and connect them all to your computer through a single Thunderbolt 3 cable. Through that same cable, the Dock provides enough power (87W) to charge any compatible computer at maximum power. You can even connect two 4K @ 60Hz displays to expand your view and productivity!
Sonnet Technologies Echo 11 Thunderbolt 3 Dock Specification |
|
Mac Compatibility |
Mac (M1) [supports only one monitor]
Mac (Intel®) with Thunderbolt 3 ports
Mac with a Thunderbolt 2 or Thunderbolt 1 port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt cable
macOS® 10.12.6+
macOS Big Sur compatible
|
iPad Compatibility |
iPad Pro with Thunderbolt port (supports only one mirrored monitor)
|
Windows Compatibility |
PC with Thunderbolt 4 or Thunderbolt 3 ports
Windows 11, 10
|
Form Factor | Thunderbolt 3 dock |

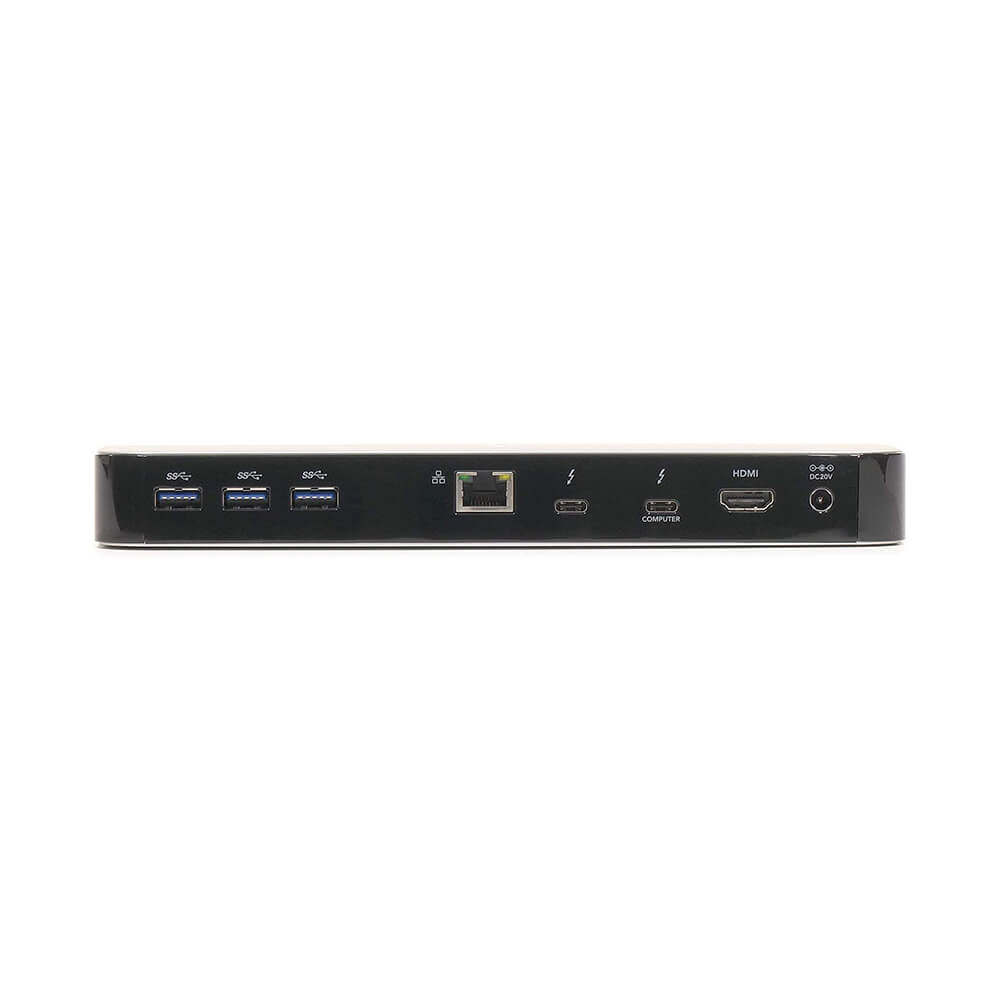

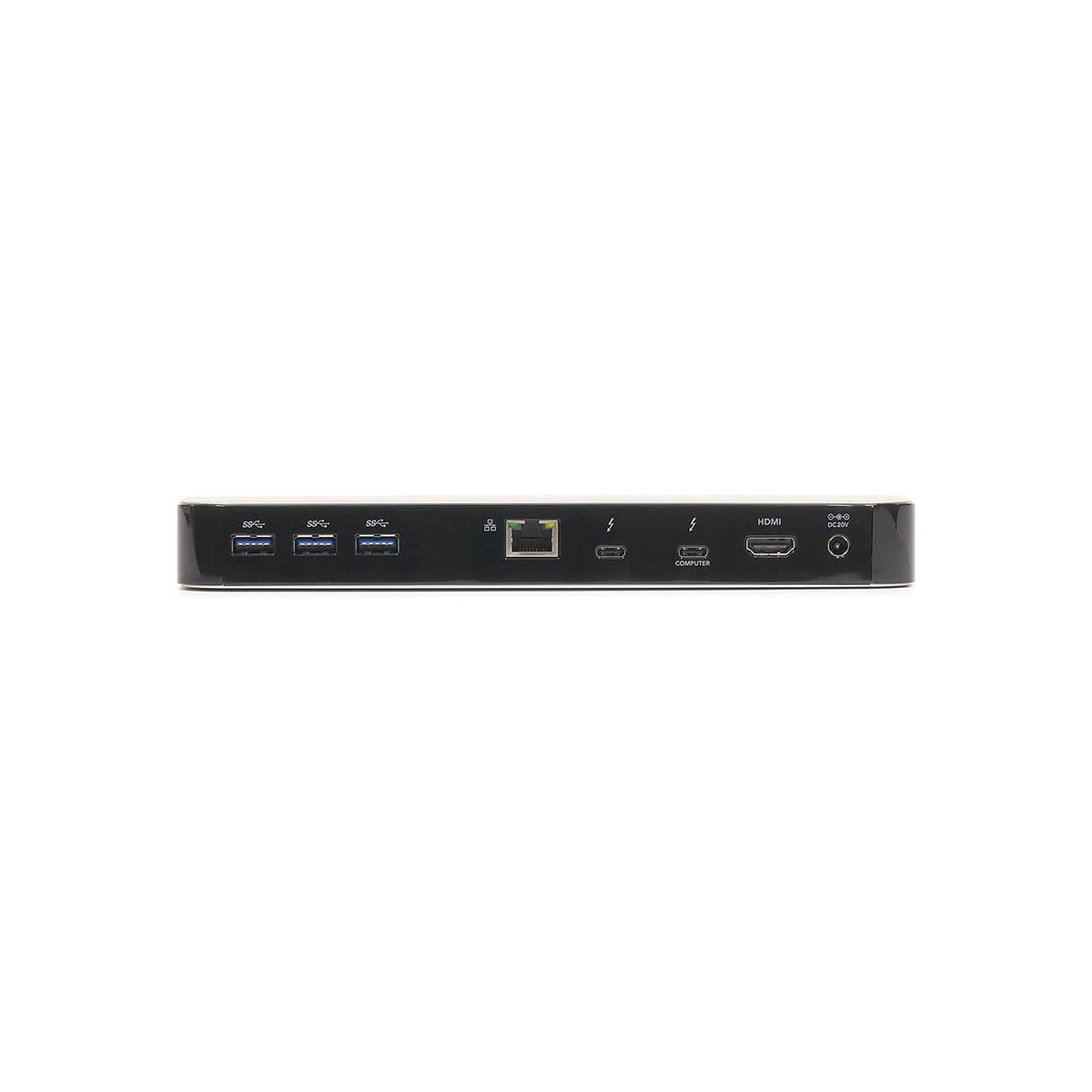

External Connectors | Two Thunderbolt 3 Five USB 3.0 One RJ45 (Gigabit Ethernet) One HDMI 2.0 One 3.5 mm combination audio headphone/microphone One SD card slot One power |
Power Adapter | Universal 180W, 100-240V, 50-60 Hz |
Operating Temperature | 0º C to 35º C (32º F to 95º F) |
Dimensions (WxDxH) | 9.1 x 3.44 x 1.09 in. (23 x 8.73 x 2.77 cm) |
RoHS Compliant | Yes |
HDMI |
|
Standard |
HDMI 2.0 and HDCP 2.2
|
Supported Resolutions | 3840 x 2160 2560 x 1440 1920 x 1080 1920 x 1440 1920 x 1200 1856 x 1392 1792 x 1344 1680 x 1050 1600 x 1200 1440 x 990 1400 x 1050 1360 x 768 1280 x 1024 1280 x 960 1280 x 720 1152 x 768 1024 x 768 |
Gigabit Ethernet |
|
Network Connector |
One RJ45 connector supports 1000 Mb/s, 100 Mb/s, and 10 Mb/s network speeds and Auto-MDI/MDI-X
|
Standard | Compliant with 10/100/1000 IEEE 802.2 Specification |
Network | Gigabit Ethernet (1000BaseT, 100BaseTX, 10BaseT) |
Packets | Maximum packet size: 9000 bytes (Jumbo packets) |
Wake-on-LAN | Supported |
Netboot | Supported |
Chipset | Intel i210 |
Thunderbolt 3 |
|
Connectivity |
Thunderbolt 3
|
Peripherals Supported | Supports all industry standard Thunderbolt devices |
Daisy Chain | Up to six devices 5K@60Hz Thunderbolt monitor 4K@60Hz monitor |
Hot Plug | Supports hot-pluggable device connection |
Power Delivery | Supports all Thunderbolt-charged laptops at maximum draw (30W, 45W, 60W or 87W) |
USB 3.0 |
|
Ports |
Two in front plus three in rear
|
Cables Supported | With standard male USB-A connector |
Peripherals Supported | Supports all industry standard USB 3.0, 2.0 and 1.1 devices |
Data Transfer Rate | USB 3.0: 5 Gb/s |
Number of Devices Supported | Up to 30 |
Hot Plug | Supports hot-pluggable device connection |
Charging | One front panel port with 7.5W capacity to charge iPad, iPhone, iPod, or other USB Battery Charging 1.2–compliant device Supports charging while sleeping or disconnected from computer Supports simultaneous charging and synching |
Video Support (via Thunderbolt 3 Port) |
|
Thunderbolt 3 |
Thunderbolt 3 cable
|
DisplayPort | USB-C to DisplayPort cable or adapter |
mini DisplayPort | USB-C to mini DisplayPort cable or adapter |
HDMI | USB-C to HDMI cable or adapter (with Thunderbolt 3 support) |
DVI | USB-C to DVI cable or adapter (with Thunderbolt 3 support) |
Dual-Link DVI | USB-C to HDMI adapter + HDMI to Dual-Link DVI adapter |
VGA | USB-C to VGA cable or adapter (with Thunderbolt 3 support) |
USB-C/DisplayPort | USB-C cable with 4K video support |
Resolution |
Dependent on computer video controller specification
|
Audio Connector |
|
Combination |
One 3.5 mm jack for stereo headphones, or stereo headphones with monaural analog microphone, or powered speakers
|

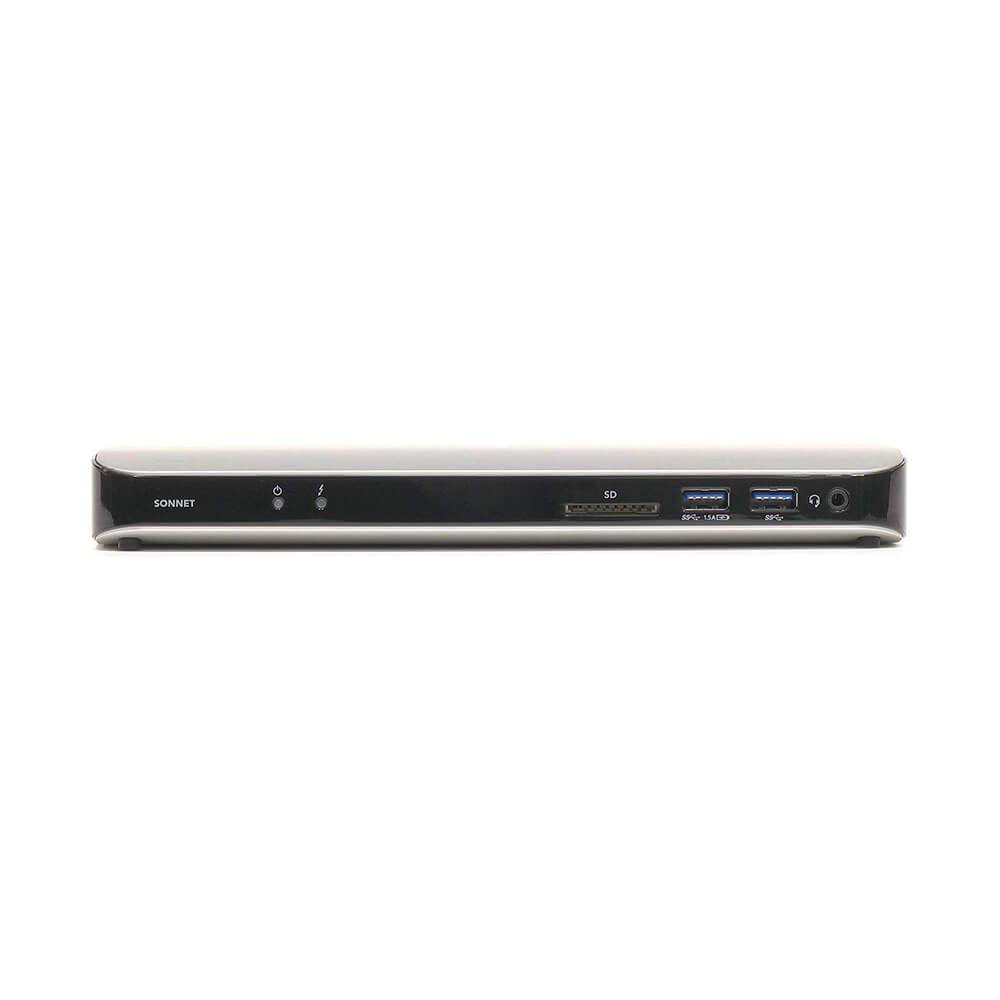

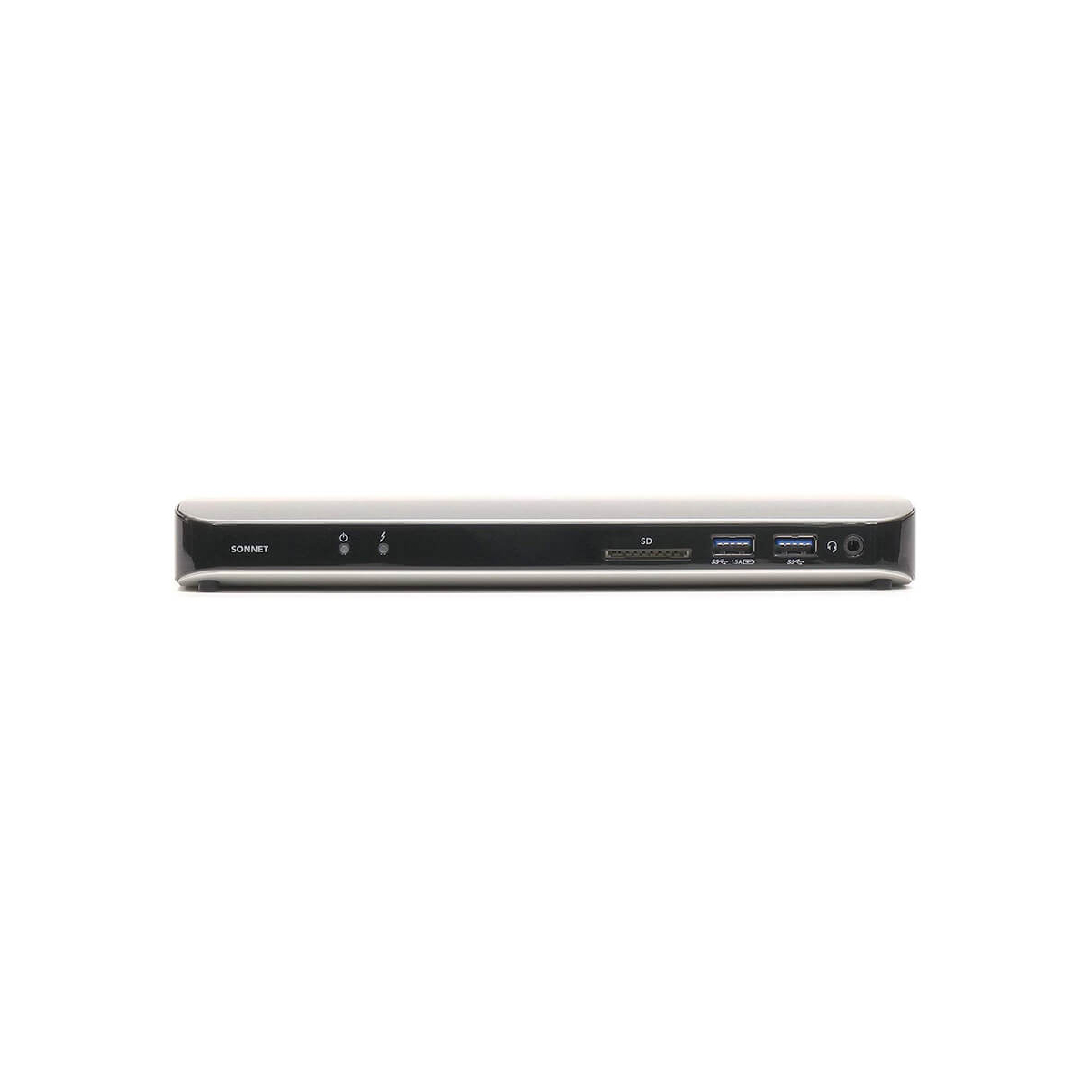

Front Panel Indicators |
|
Power |
Power LED indicator lights when dock is powered
|
Thunderbolt 3 Connection |
LED indicator lights when computer connected to the dock is powered on, and turns off when the computer is sleeping or disconnected.
|
- Sonnet Technologies Echo 11 Thunderbolt 3 Dock
- 0.5m Thunderbolt 3 cable
- Power adapter
- Power cord
- 2-years Limited Manufacturer's Warranty
