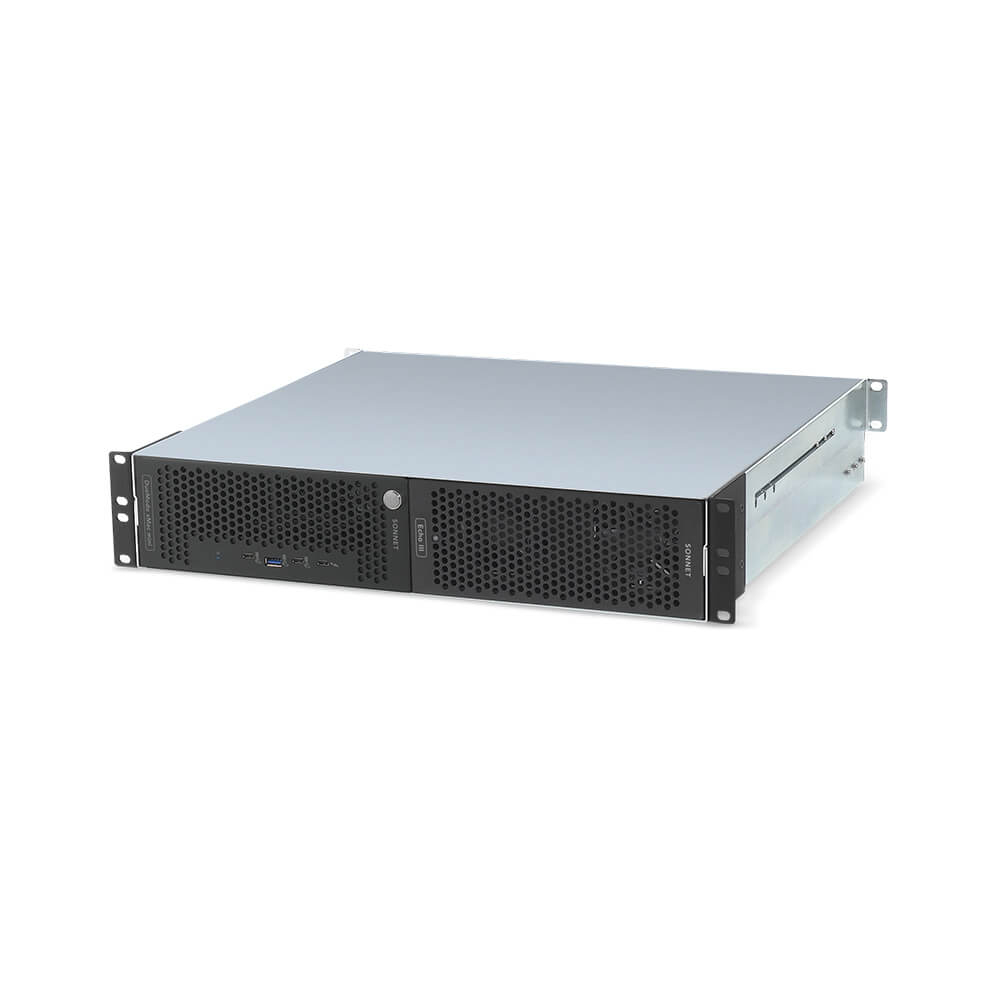

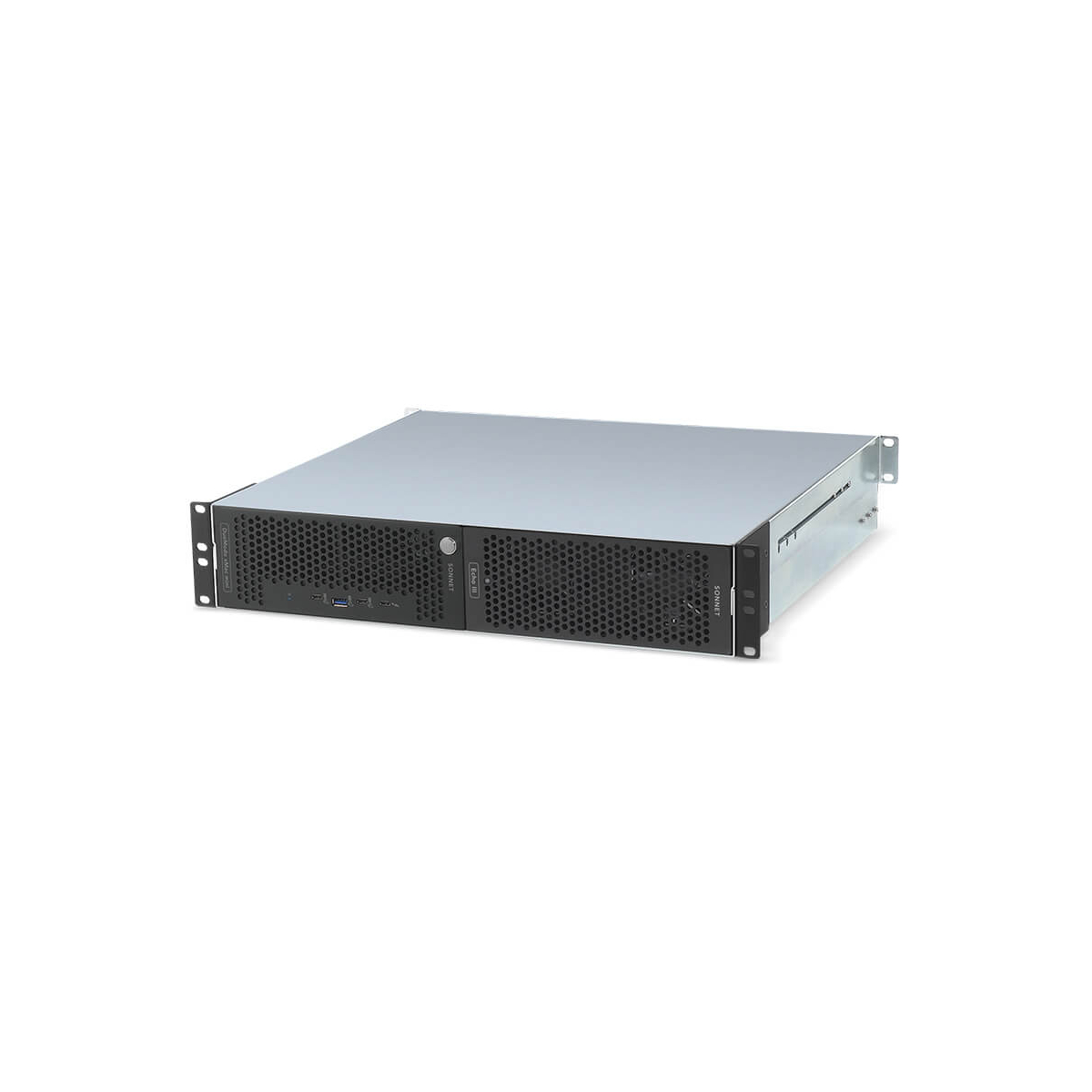

The Sonnet DuoModo xMac mini/Echo III Rackmount System integrates a Dual-Module Rackmount Enclosure with one xMac mini module and one Echo III module. The Dual-Module Rackmount Enclosure is made of rugged steel and includes rails for racks 16 to 24" deep.
The xMac mini module is designed for an Intel or M1 Apple Mac mini to be mounted in its rugged steel frame. It has four front panel ports, which are a Thunderbolt 3 port, two USB 3.2 Gen 2 Type-C ports, and a USB 3.2 Gen 2 Type-A port. There are also two internal M.2 NVMe SSD slots so you can add up to 16TB (sold separately). There is a temperature-controlled, variable-speed fan to keep things cool while also being quiet.

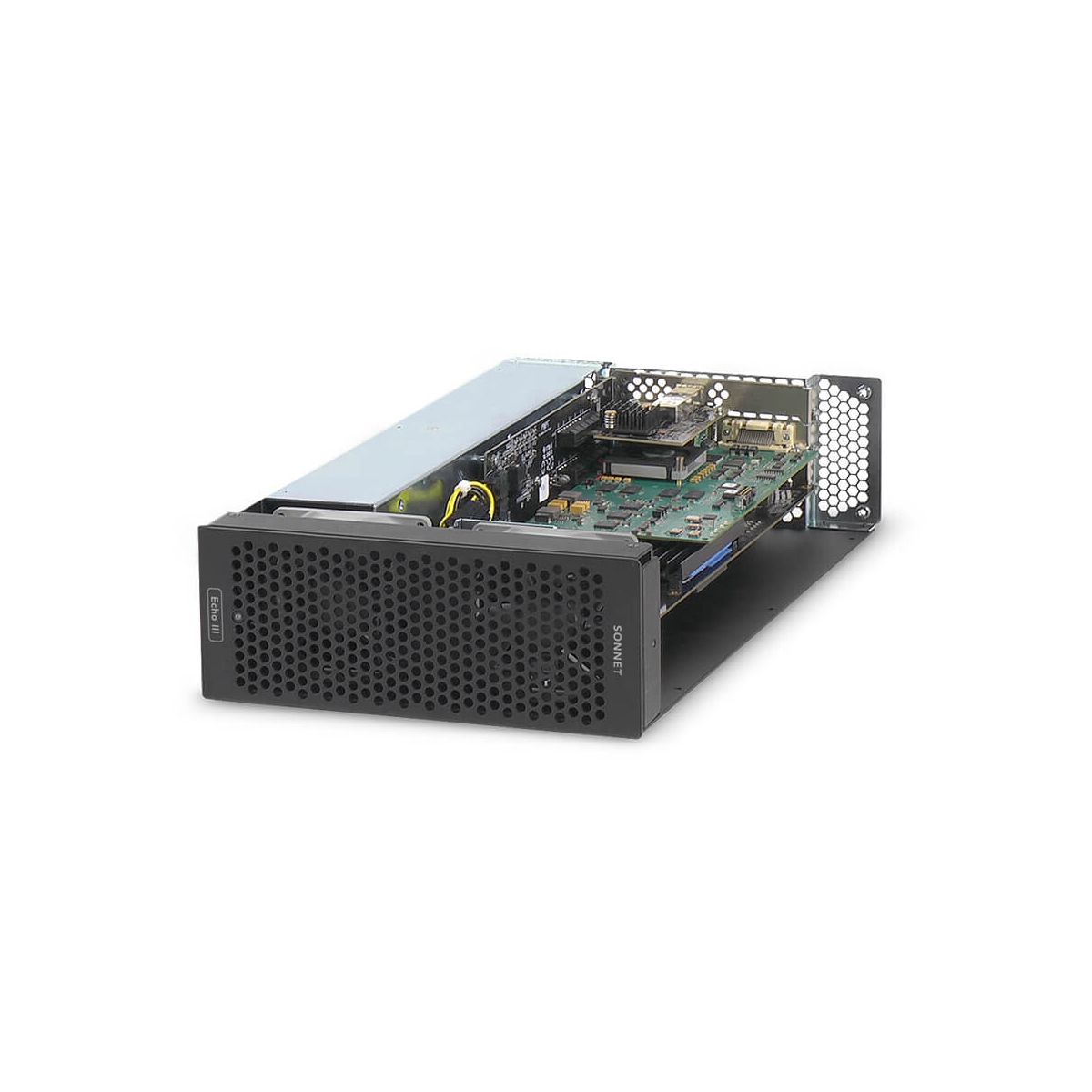

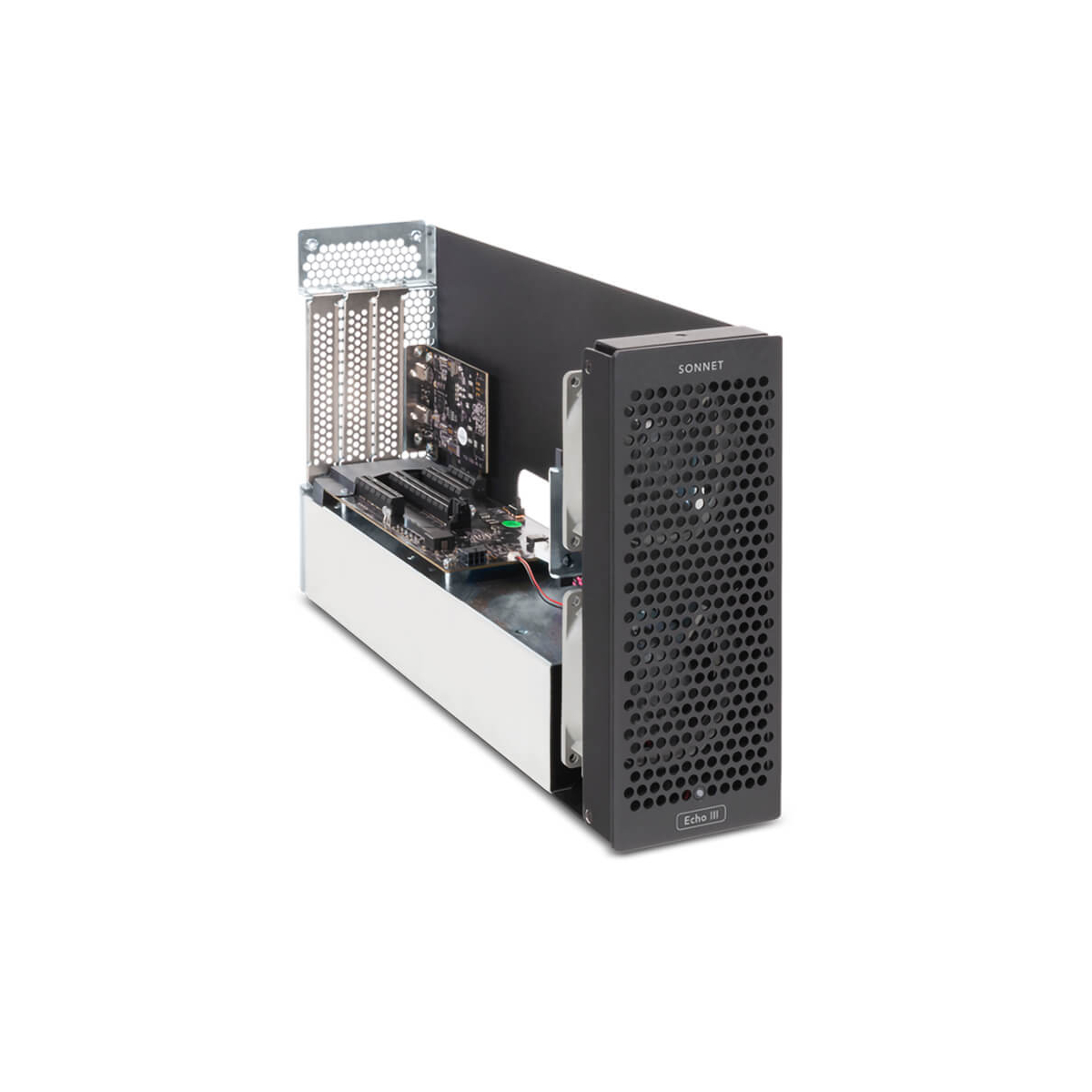

The Echo III module provides three PCIe slots, one that is x16 and two that are x8. This means the Echo III module can support up to three full-height, full-length Thunderbolt 3-compatible, non-GPU PCIe cards. The Echo III module is also AVID qualified, supporting up to three AVID Pro Tools | HDX PCIe cards. This module powers on and off automatically when connected to a PC and has its own 400W power supply with a 75W auxiliary power cable. Two Thunderbolt 3 ports can be found on the module as well as dual Noctua fans, each rated at 17 dbA.
This product is designed and made in the USA.
System Configuration
- For Intel or M1 Mac mini
Dual-Module Rackmount Enclosure
- Rugged steel construction
- Same enclosure used in the Echo III Rackmount
- 19 x 16.5 x 3.5" dimensions
- Included rack rails support installation in racks 16 to 24" deep

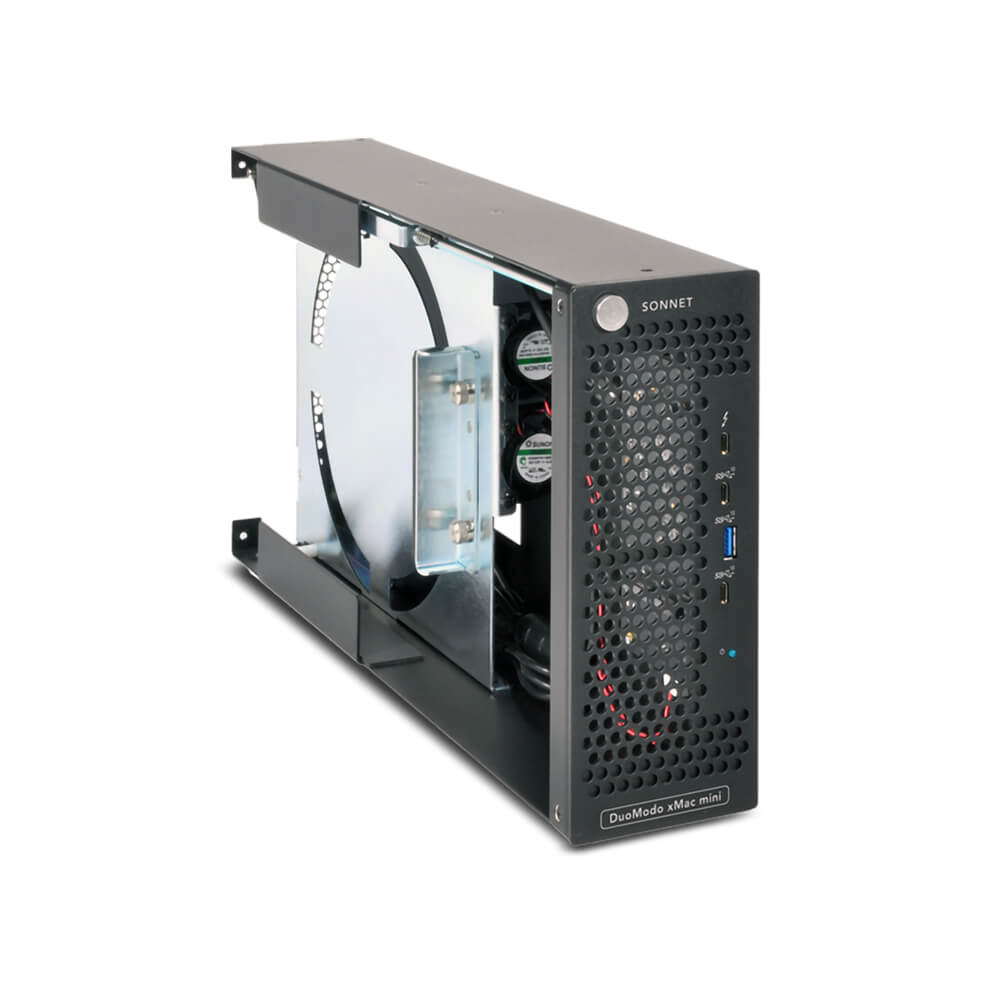

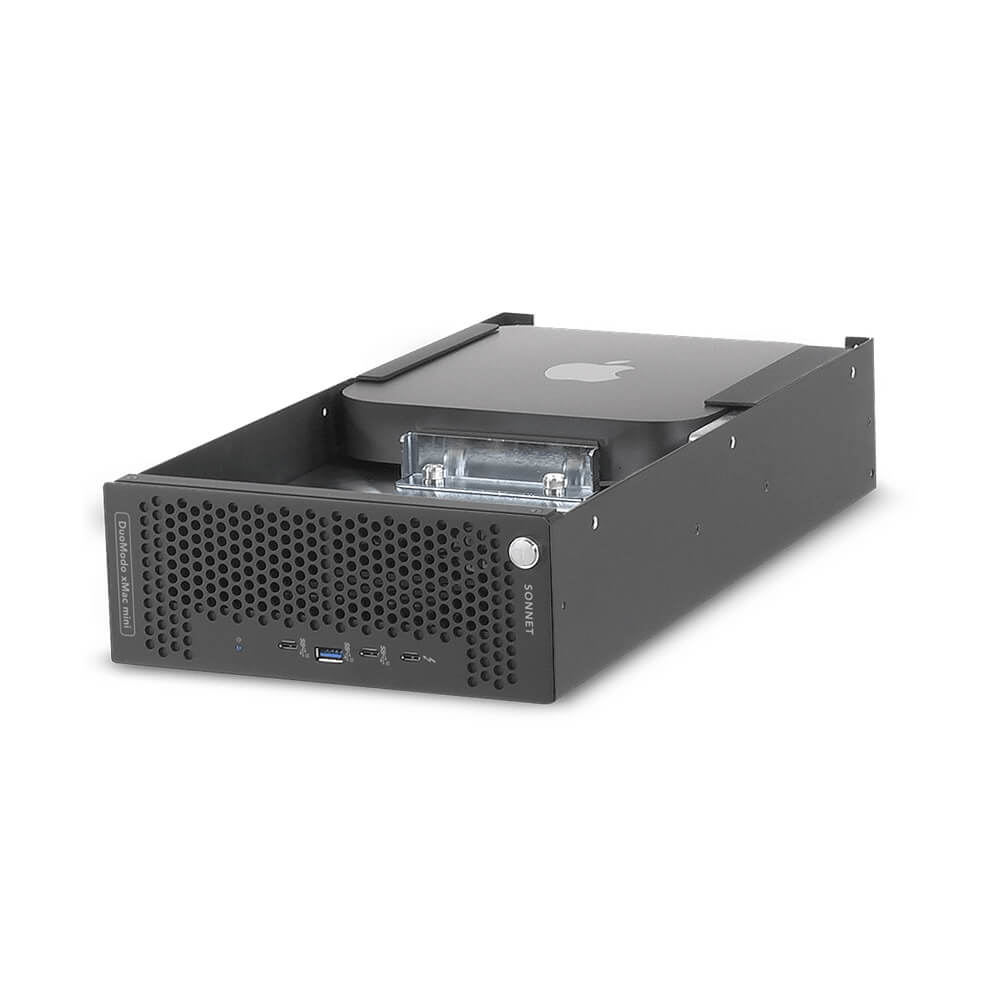

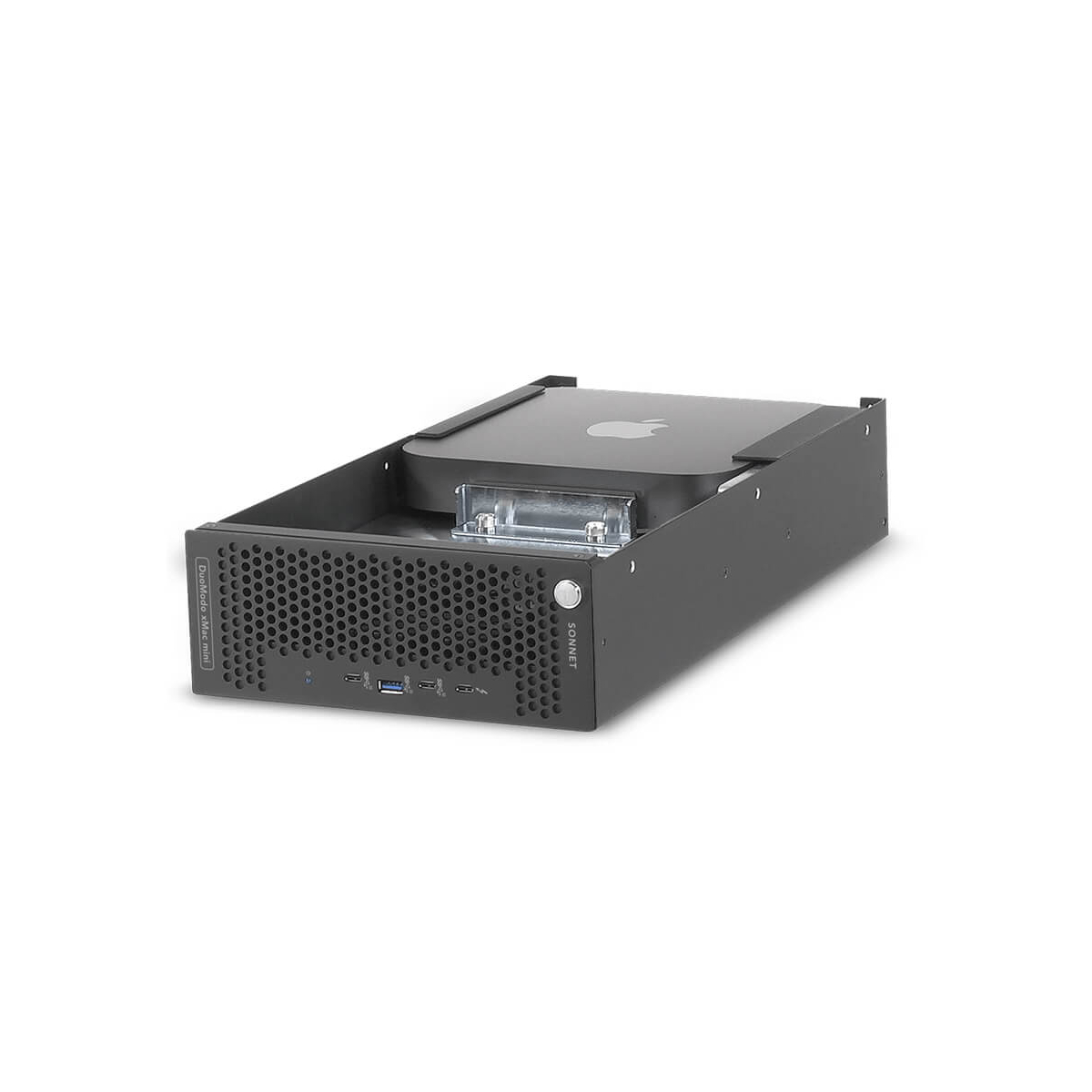

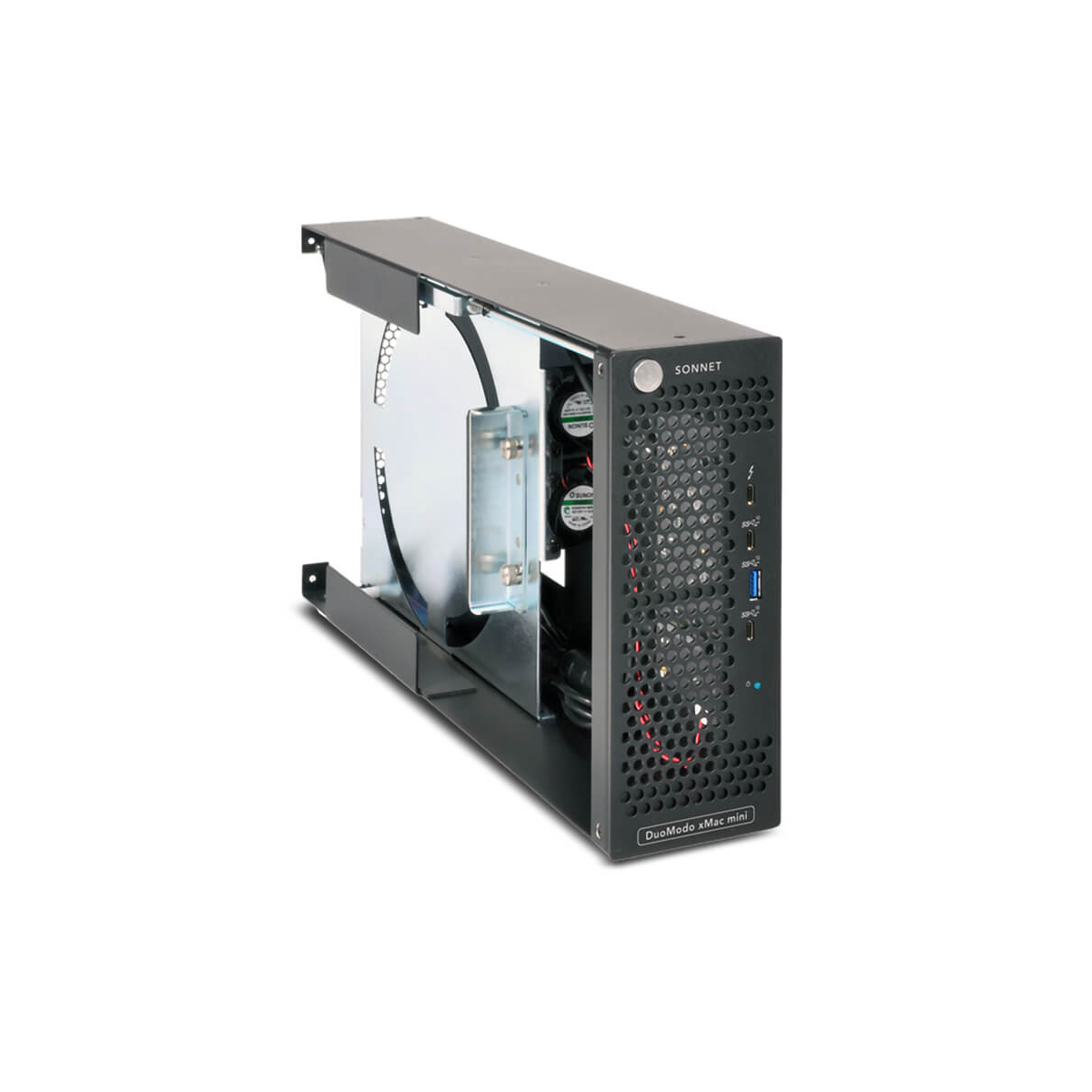

xMac mini Module
- Securely holds an Intel or M1 Mac mini (sold separately) in a rugged steel frame
- Open access to the computer's ports in the back
- Built-in Thunderbolt dock
- One Thunderbolt 3 port (40 Gb/s)
- Two USB 3.2 Gen 2 Type-C ports (10 Gb/s)
- One USB 3.2 Gen 2 Type-A port (10 Gb/s)
- Two internal M.2 NVMe SSD sockets (add up to 16TB, sold separately)
- One internal USB 3.2 Gen 2 Type-A port (10 Gb/s) for securely connecting an iLOK USB-A, thumb drive, or bus-powered USB storage drive
- Internal Thunderbolt 3 port (40 Gb/s) to connect dock to the Mac mini
- Temperature-controlled, variable-speed fan that offers quiet operation
- Power cable included
- Thunderbolt 3 cable included

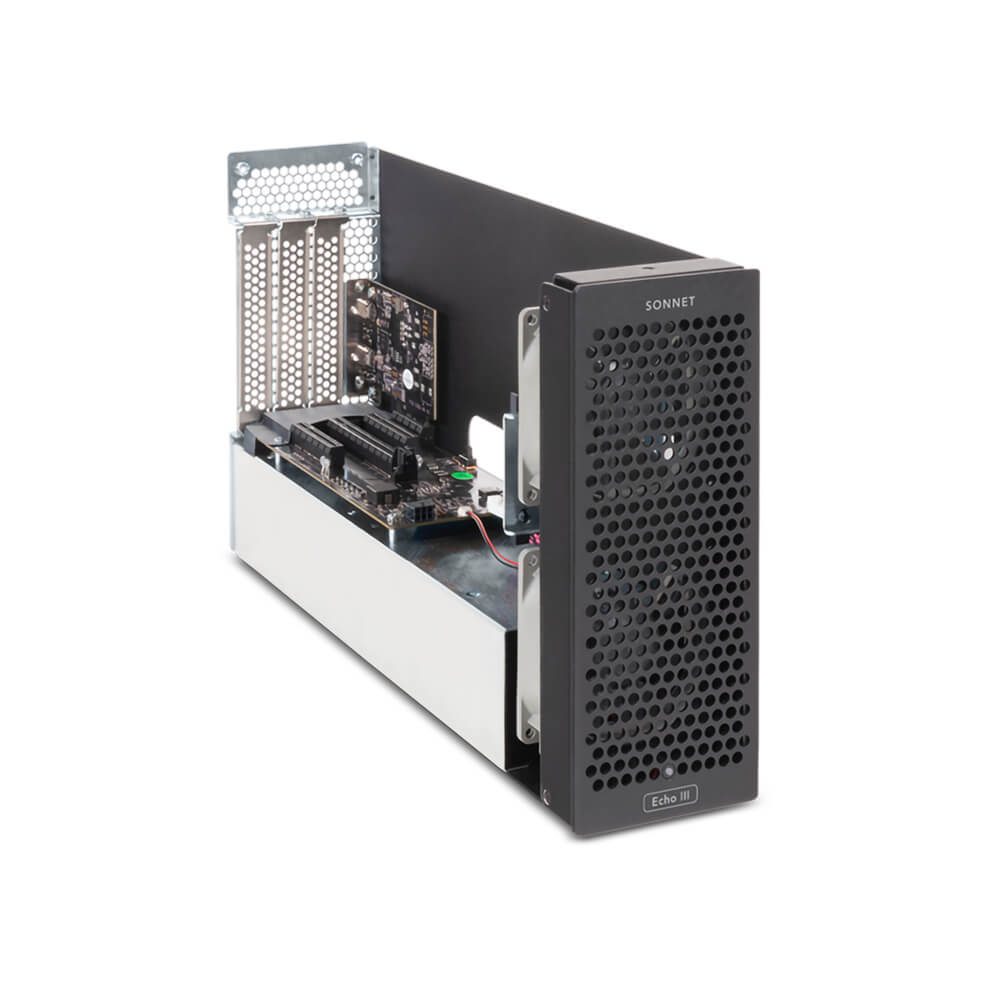

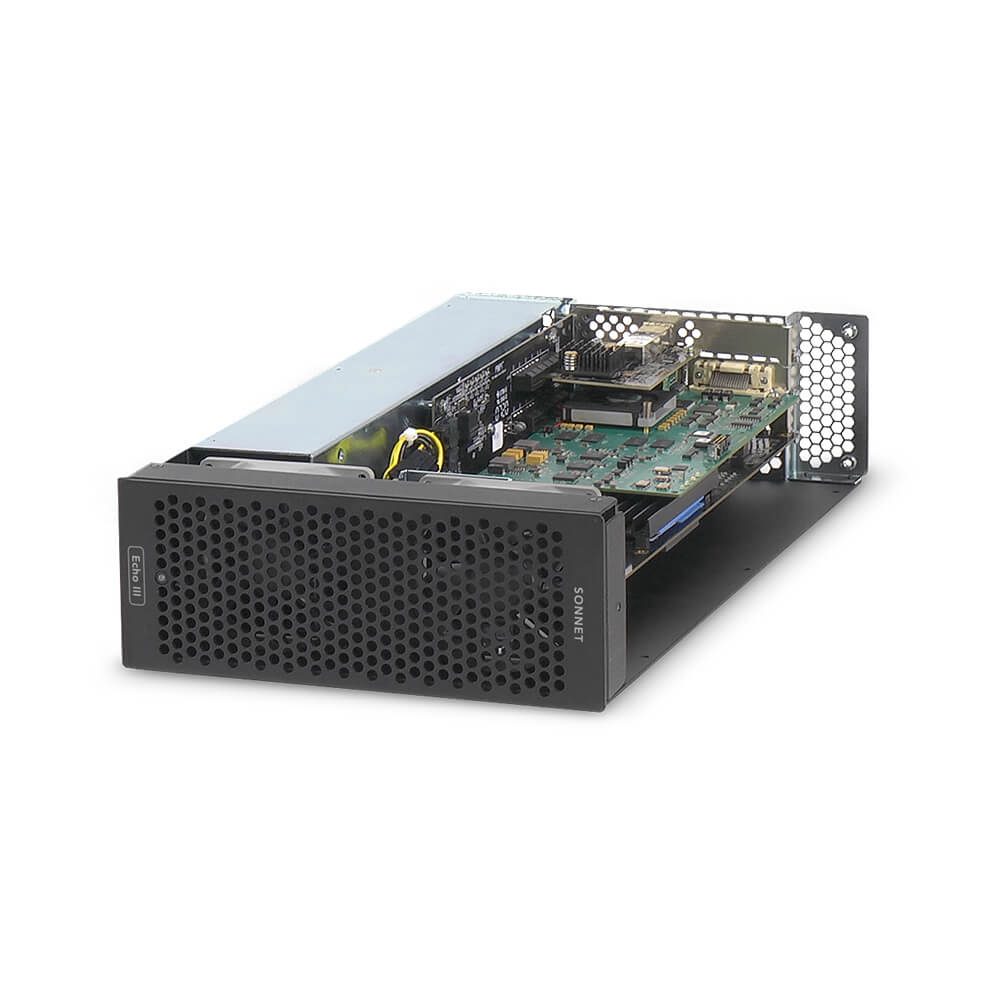

Echo III Module
- One PCIe x16 slot
- Two PCIe x8 slots
- Supports three full-height, full-length Thunderbolt-compatible, non-GPU PCIe cards
- AVID Qualified - Supports up to Three AVID Pro Tools | HDX PCIe cards
- Built-in 400W power supply with 75W auxiliary power connector
- Dual temperature-controlled, variable-speed Noctua fans, rated at 17 dbA
- Two Thunderbolt 3 ports
- 40 Gb/s Thunderbolt 3 Interface offers 2750 MB/s of PCIe bandwidth to the installed PCIe cards
- Power cable included
- Thunderbolt 3 (40 Gb/s) Cable included
- ThunderLok 3 Thunderbolt Connector Retainer Clip included
Sonnet DuoModo XMac Mini Specification |
|
Compatibility | Intel or M1 Apple Mac mini |
External Ports |
xMac mini Module 1 x Thunderbolt 3 (40 Gb/s)2 x USB 3.2 Gen 2 Type-C (10 Gb/s) 1 x USB 3.2 Gen 2 Type-A (10 Gb/s) |
Internal Ports |
xMac mini Module 1 x USB 3.2 Gen 2 Type-A (10 Gb/s) 1 x Thunderbolt 3 (40 Gb/s) |
Fans |
xMac mini Module 1 x Temperature-Controlled, Variable-Speed Echo III Module |
PCIe Slots |
Echo III Module 1 x PCIe x16 |
Power |
Echo III Module 400 W Power Supply 75 W Auxiliary Power Connector |
Dimensions | 19 x 16.5 x 3.5" / 48.26 x 41.91 x 8.89 cm |
- Sonnet DuoModo Rackmount System with xMac mini and Echo III Modules
- Power Cable
- Lifetime Customer Technical Support
- Limited 2-Year Manufacturer Warranty
