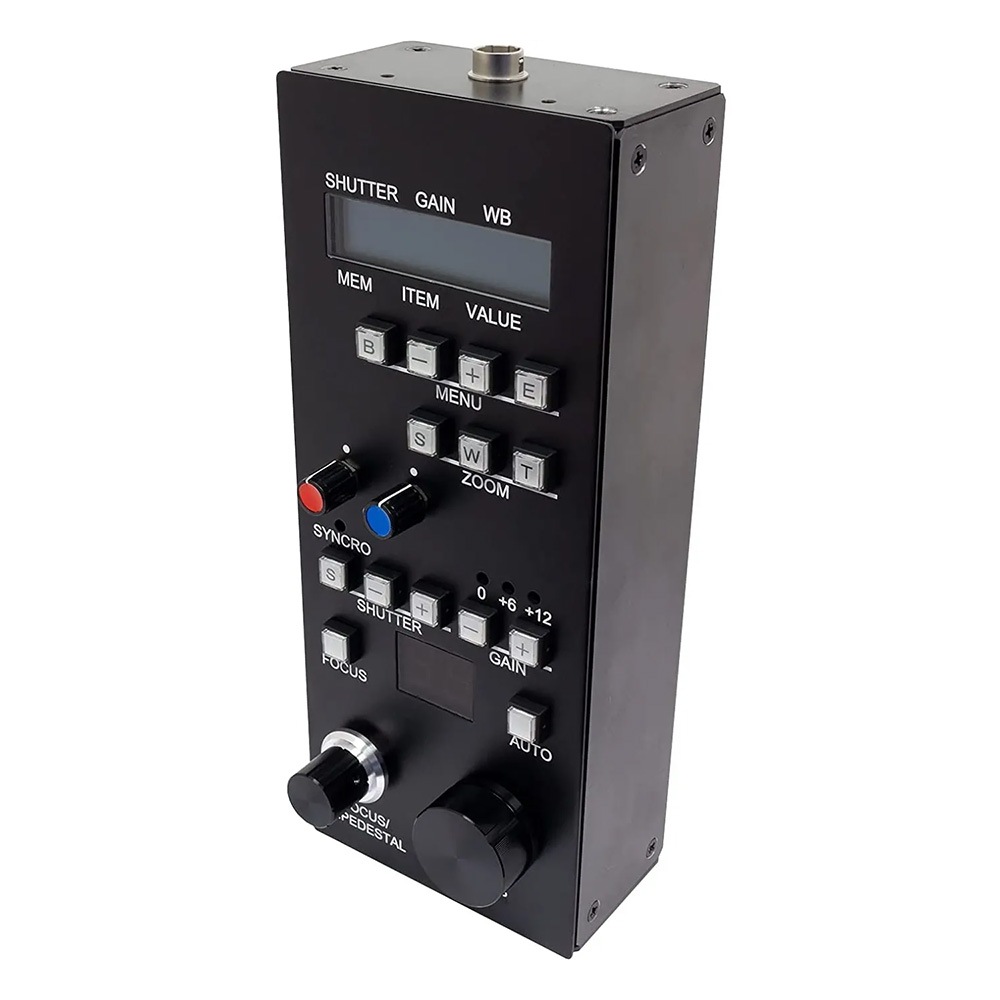

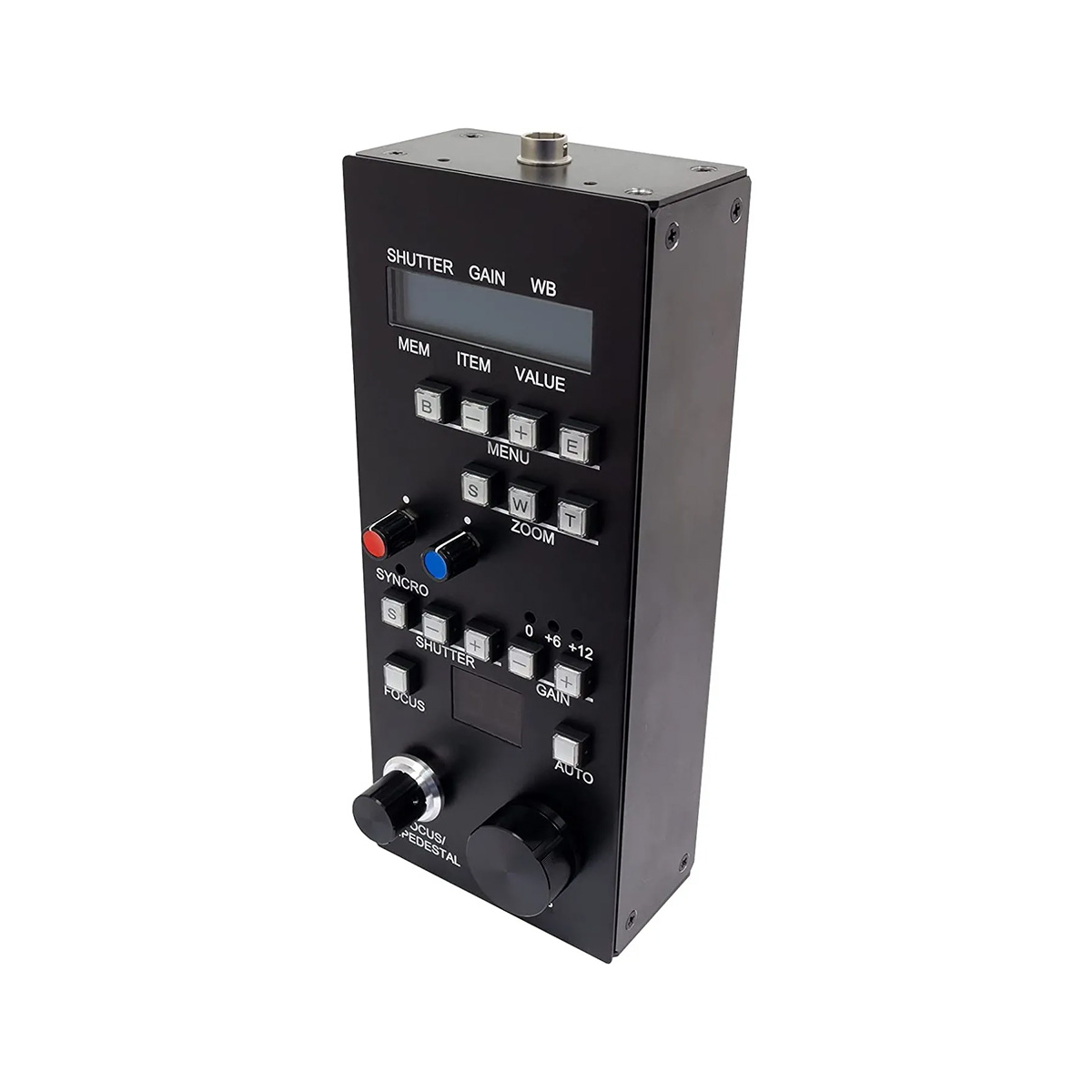

MEDIAEDGE ME-BXC-RC100 is a camera remote control unit for the QDCAM high-speed box camera. This control unit allows you to remotely adjust the camera's iris and focus.
Features:
- Remote control unit for QDCAM high-speed box camera
- RS-422 interface (using 10-pin communication cable)
- Includes cable, connector, and mounting bracket
|
Specification |
|
| Communication Interface: | RS-422 (using 10-pin communication cable) |
| Operating Temperature: | 0 to 40°C (32 to 104°F) |
| Operating Humidity: | 20 to 80% RH (Must be no condensation.) |
| Weight: | 1.87 lb (850 g) |
| Dimensions (L x W x H): | 8.89 x 3.62 x H: 1.41" (226 x 92 x 36mm) - excluding protrusions |
| Power Voltage: | DC 13.8V (DC 11.8 to 16.8V) * Power is supplied through the communication cable |
| Power Consumption: | 1W |
| Accessories: | 16.4ft (5m) communication cable, cable connector, mounting bracket |
