Rackmount contribution encoder for vehicles and fixed locations
The LU610S is LiveU’s professional 1U HEVC rackmount encoder for vehicles and fixed locations, combining unparalleled video performance with extreme bandwidth efficiency.
Professional REMI contribution encoder for production trucks and fixed locations, combining unparalleled video performance with extreme bandwidth efficiency. The LU610S supports wired as well as 5G/4G bonded transmission for superior reliability.
Versatile vehicle contribution solution
The LU610S serves as a key element in your production van, transmitting live video from the vehicle to your on-site or remote production facility. Equipped with two external 5G/4G modems and optional upgradable to six internal 4G/5G modems, it lets you flexibly adapt to your location needs, switching between cellular, wired & satellite connectivity to achieve the highest quality transmission in any scenario. Transmission quality and costs can be further optimized using LiveU's least cost bonding feature.
Cost-effective, fixed point-to-point solution
The LU610S can be used as an alternative for fiber and satellite-based productions, supporting broadcast-grade, low-delay video transmission between stations or from venues/stadiums to your remote production center. As a fixed location encoder, the LU610S allows you to significantly cut your production costs, ensuring resilient live video transmission over the public internet.
LRT™ (LiveU Reliable Transport)
LiveU’s unique Reliable Transport protocol (LRT™) is at the heart of LiveU products to deliver optimized video performance. LRT™ enables reliable, low delay live video streaming over non-guaranteed IP networks and ensures reliable transport over the most unreliable of networks, including cellular networks - allowing you to acquire exciting live content in even the most remote locations.
PACKET ORDERING
LRT uses numbered packets so that the packets can be re-ordered when they arrive out of order. Packet Ordering is an absolute requirement with connection bonding, where data usually arrives in a different order than intended.
DYNAMIC FORWARD ERROR CORRECTION
Forward Error Correction (FEC) adds some overhead to the stream to recover lost data faster. LRT automatically varies the FEC parameters based on monitored network conditions.
ACKNOWLEDGE AND RESEND
LRT can acknowledge large groups of packets if they all arrived. If some did not arrive, it can inform the streaming engine to resend needed data. By acknowledging large groups of packets at a time, LRT uses less overhead and latency. Unlike UDP, LRT gives complete feedback loop so the user knows that the data is arriving correctly.
ADAPTIVE BIT RATE ENCODING
As the bandwidth condition changes, LRT automatically recognizes this and informs the video encoder to allow it to adapt the bit rate of video it is delivering and keep the best possible stream within the available bandwidth at any given moment.
LiveU LU610S Specification |
|
VIDEO RESOLUTIONS | 4Kp50/60/25/30/24, 1080p50/60/25/30/24, 1080i50/60, 720p50/60, PAL, NTSC full A/V auto detection |
VIDEO INTERFACES | 12G/3G/HD/SD-SDI, HDMI 2.0, auto input detection |
VIDEO ENCODER | HEVC/H.265, H.264 |
AUDIO ENCODER | AAC-HE/LC, 2 audio channels |
HW CONFIGURATION | Single encoder in a 1U standard rackmount configuration |
SIMULTANEOUS BONDING | 2x Ethernet ports for connection to LAN and satellite (BGAN/KA/KU over IP) 2x WiFi, 2x USB for connection to 4G/5G cellular modems 6 external cellular network connections (when used with LiveU Xtender) |
OPERATIONAL MODES |
Live: ultra-low latency mode |
MULTI-DESTINATION OUTPUT | Diverse A/V output through SDI and H.264 streams including connectivity for CDNs (server side); RTMP, RTSP, SRT, MPEG-TS and NDI options for IP streams |
AUTO POWER UP | Power-on feature suitable for automatic vehicle operation (power on with vehicle) |

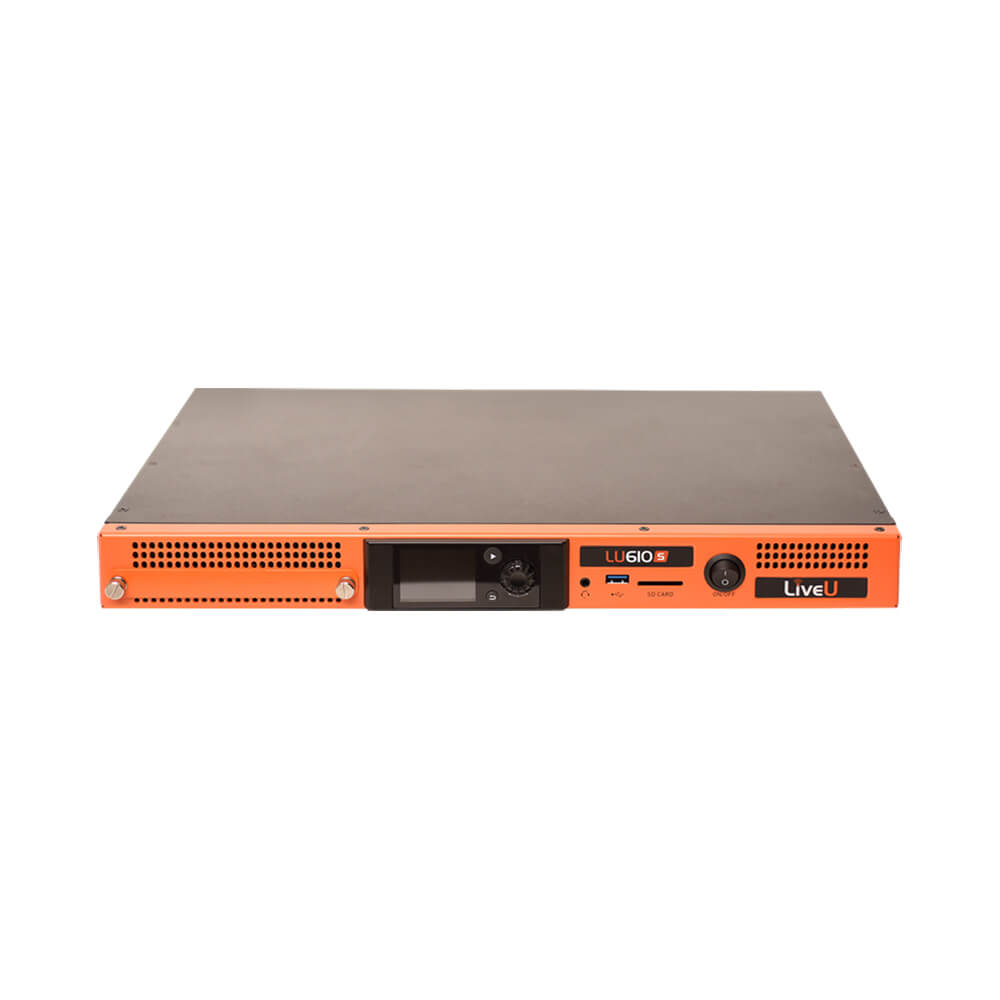

LOCAL CONTROL | Full monitoring and control using local 2.2" display and user friendly rotating jog |
REMOTE CONTROL | Full web-based remote control using LiveU Central management system or LiveU Control mobile app |
DISPLAY INFORMATION | Video previewl per-network cellular connectivity status incl. throughput, network delay etc. |
RESILIENCY AND QUALITY |
Includes LiveU Reliable Transport (LRT™ ), featuring proprietary algorithms such as automatic Adaptive Bit Rate (ABR), automatic Forward Error Correction (FEC) and other lost packet recovery algorithms |
NETWORK INTERFACES | 2x RJ-45 Ethernet ports and 2.4/5GHz Wi-Fi (802.11 a/b/g/n/ac) |

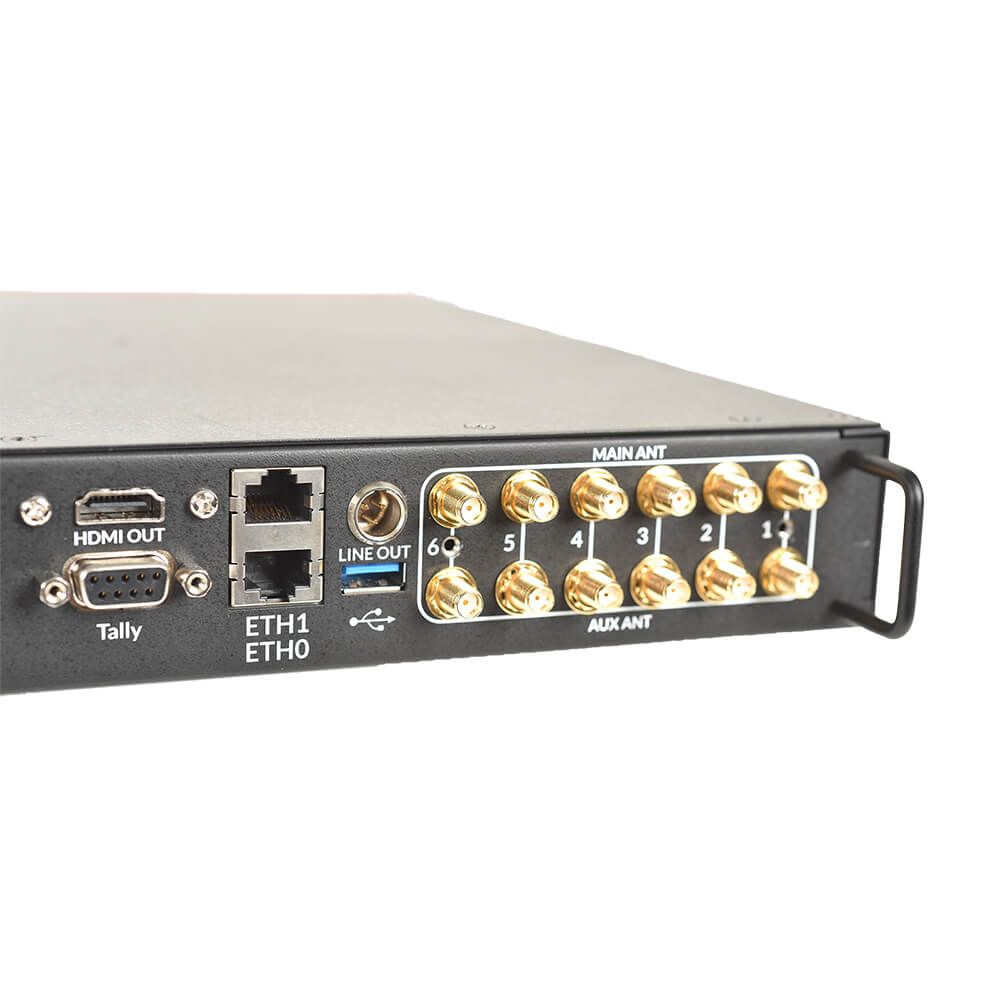

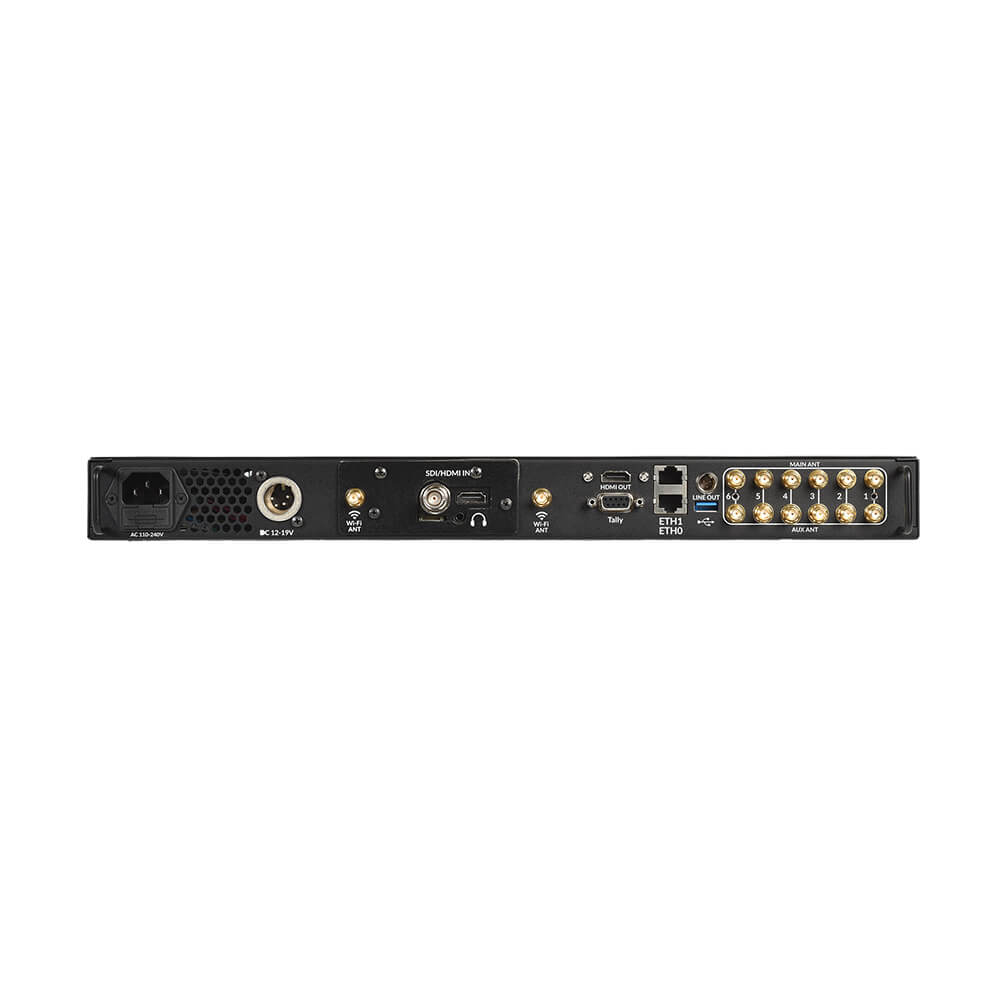

OTHER INTERFACES | 2x USB 2.0, 3.5mm audio jack, mini-XLR audio out, Full-size SD card slot, 2x RP-SMA Wi-Fi, Full-size HDMI out. Antenna ports: 2x RP-SMA Wi-Fi + 12x SMA for cellular |
DIMENSIONS | Industry-standard 1U rackmount server: 436mm x 44mm x 280mm / 17.17" x 1.73" x 11.02" (W x H x D) |
WEIGHT | 5kg (176oz) |
VIBRATION | MIL-STD-810G method 514.6 | Category 4 |
TEMPERATURE | Operating: -5C to +45C (23F to 113F) |
POWER | Dual power support: 100VAC to 240VAC ~0.8A 50/60Hz DC: 12V to 19V @4A Power consumption: <32W |

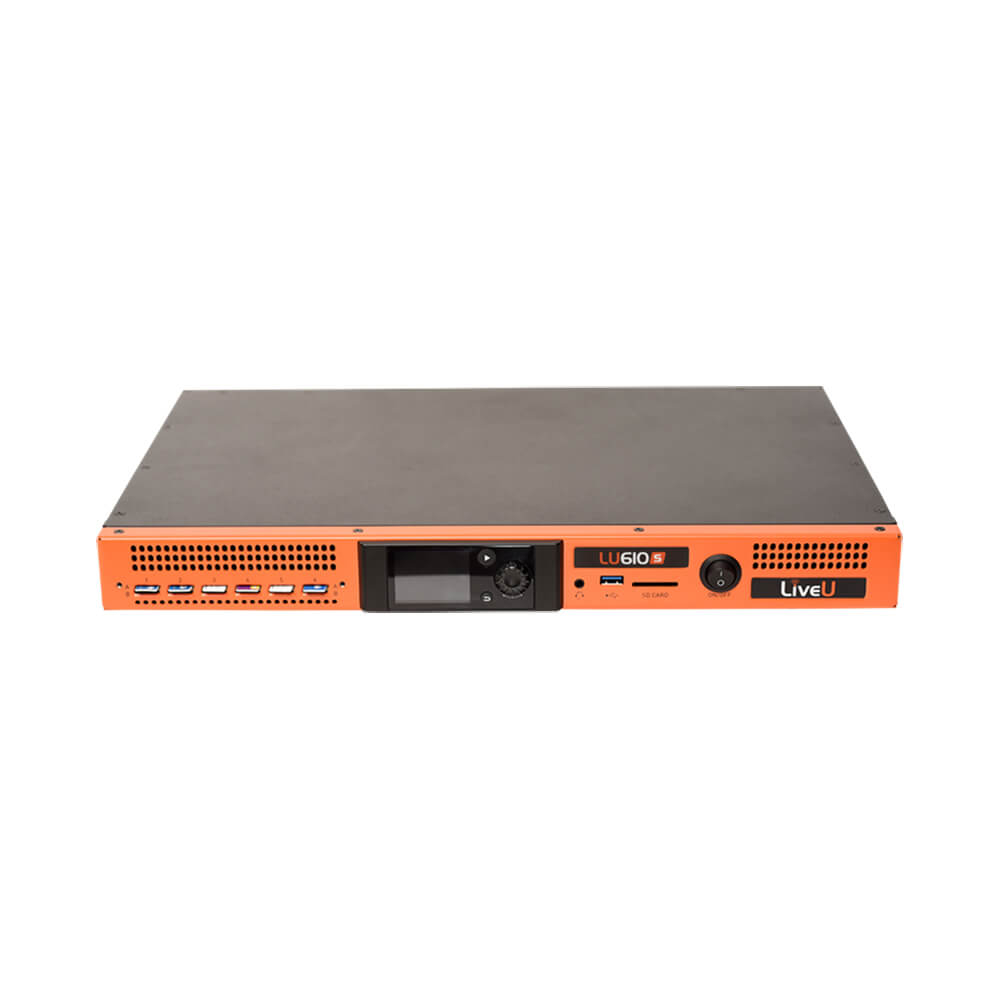

Upgrade to LU610S-M Add-on Features | |
CELLULAR MODEMS | 6 internal 4G/5G cellular modems |
LU610S PRO LICENSE Add-on Features | |
HIGH QUALITY MODE | Up to 20 Mbps Live Streaming |
STORE & FORWARD | Additional super-high quality level |
LIVE & STORE | Perfect-quality encoding to local storage in parallel to live transmission |
AUDIO CHANNELS | Up to 8 audio channels |
LU610S PRO 4K LICENSE Add-on Features | |
VIDEO RESOLUTIONS | Up to 4Kp60/50/25/30/24 |
HIGH QUALITY MODE | Up to 50 Mbps Live Streaming |
VIDEO ENCODER | 10-bit/HDR Encoding |
STORE & FORWARD | Additional super-high quality level |
LIVE & STORE | Perfect-quality encoding to local storage in parallel to live transmission |
AUDIO CHANNELS | Up to 8 audio channels |
Databridge License Add-on Features | |
OPERATIONAL MODES | High-speed mobile broadband connectivity from the unit |
Video Return License Add-on Features | |
OPERATIONAL MODES | Sub-second video return over an external HDMI |
- LiveU LU610S Rackmount Contribution Encoder Unit
- 2 x External Wi-Fi Antenna (two-way, tri-band RP-SMA)
- C14 Power Cord
- Rackmount Installation Kit
