For The Ultimate Video Performance In Live Streaming

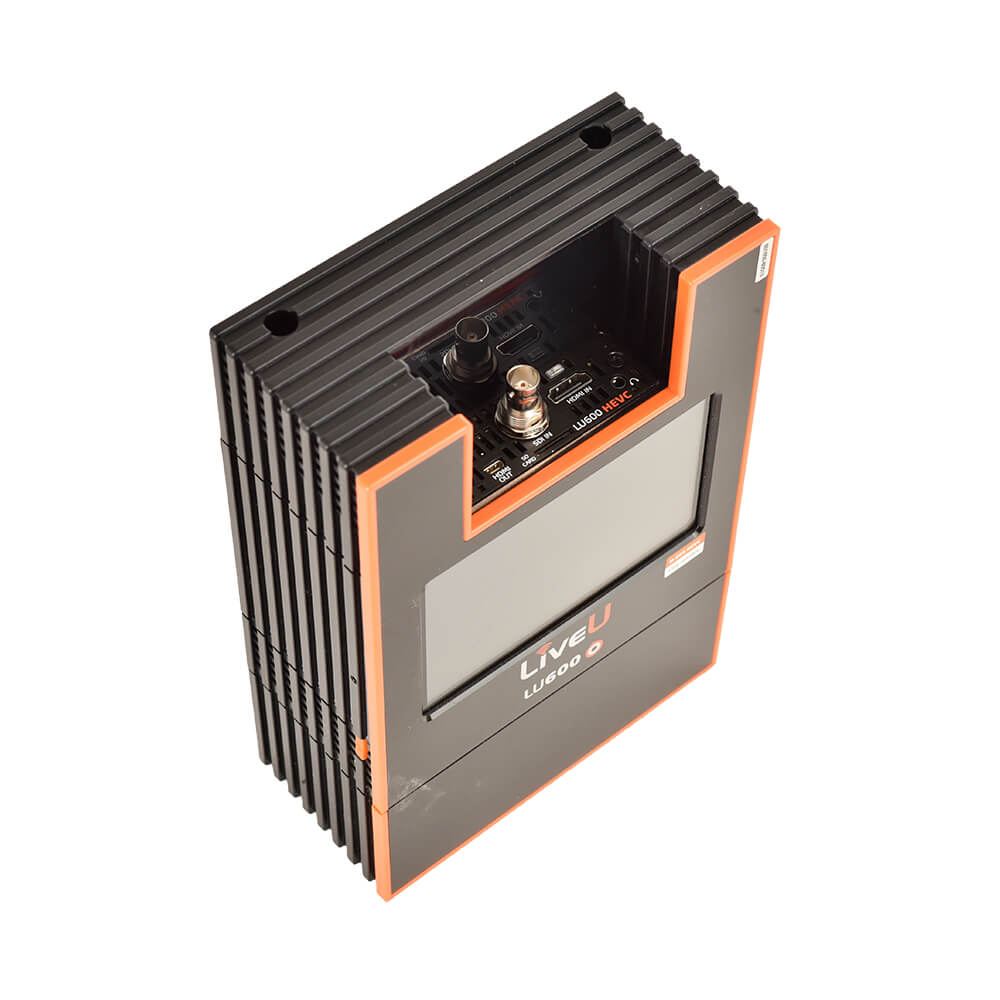

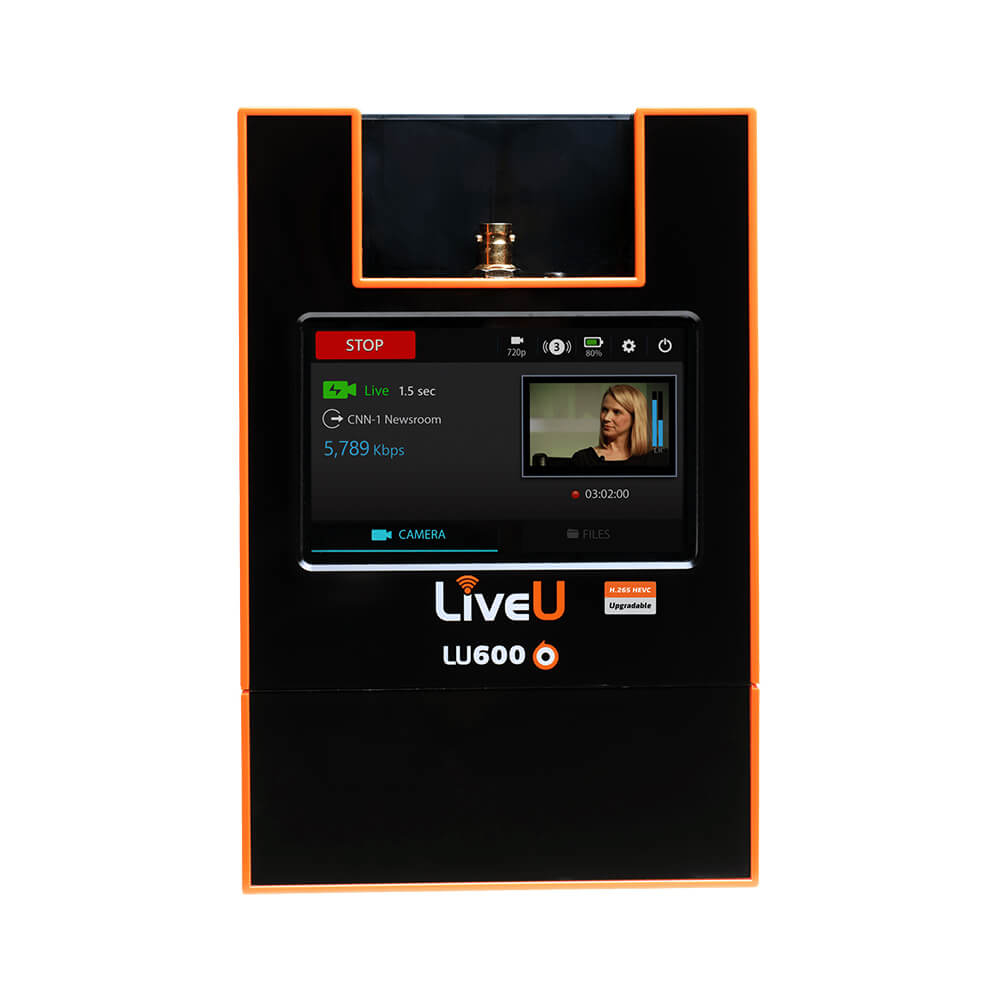

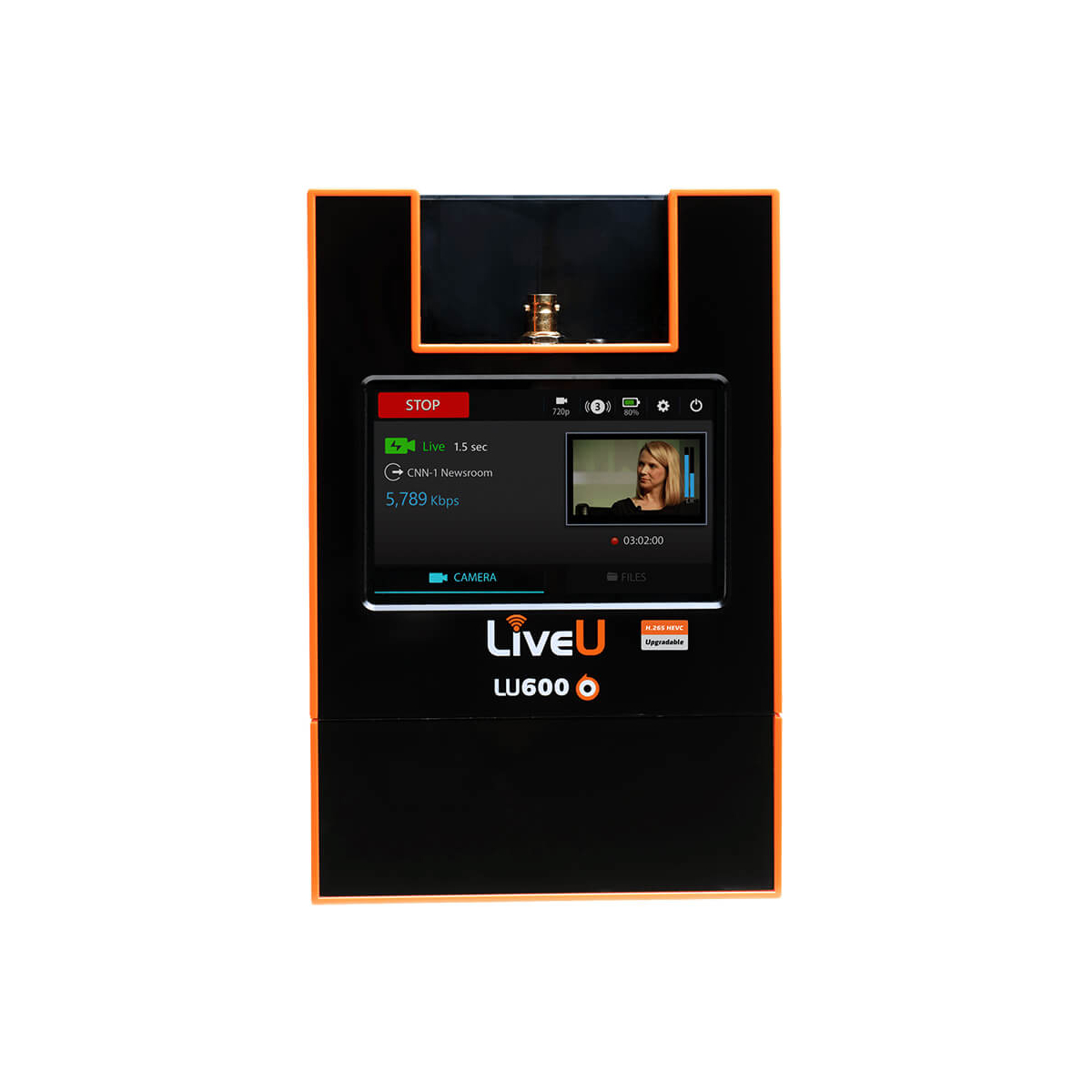

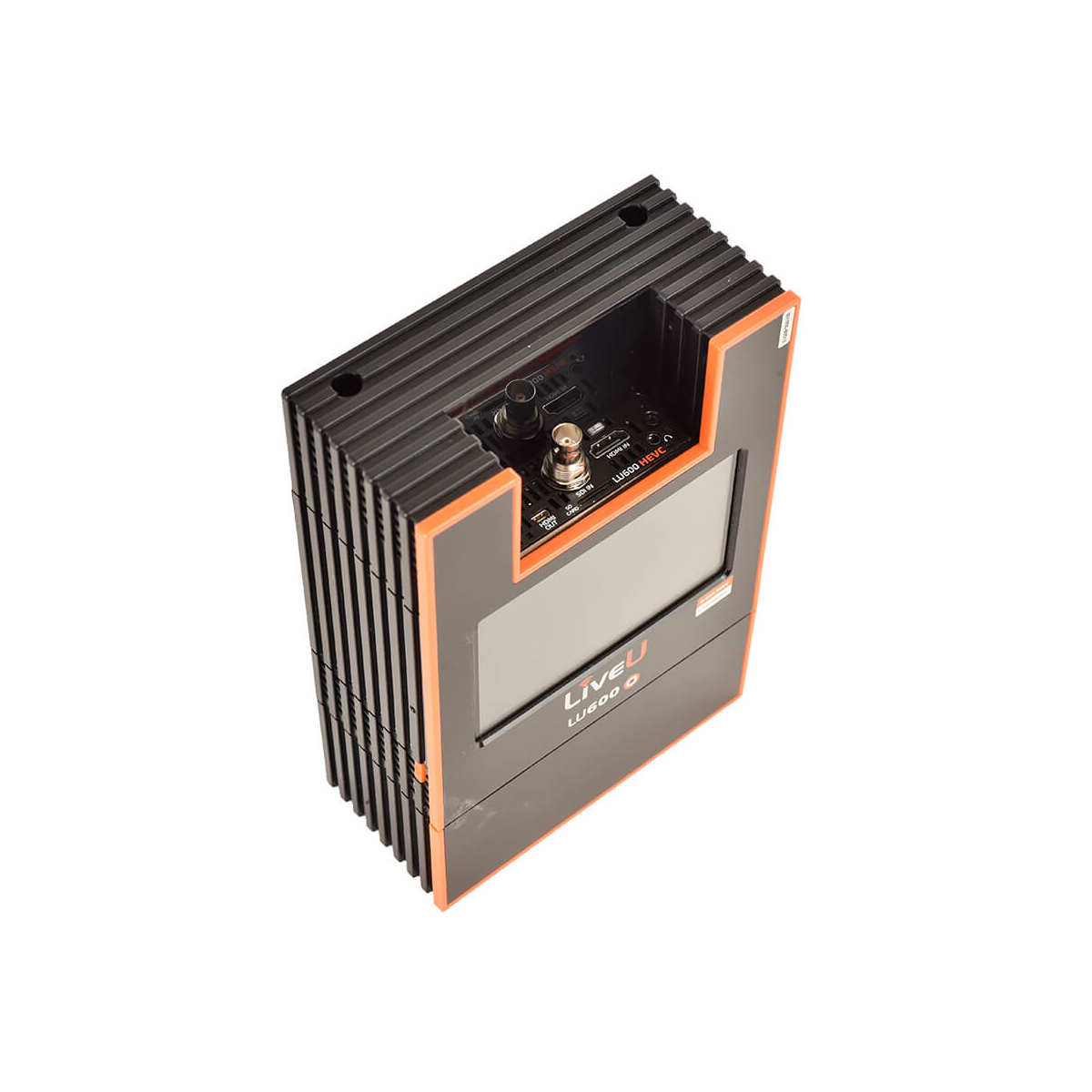

The LU600 is LiveU's sixth-generation portable unit for global newsgathering, live sports and events coverage. Setting the standard again for IP bonding, the LU600 delivers the highest video quality and bitrate in the market, fastest file transfer and lowest delay. This is offered over a new streamlined user interface, with an ultra-responsive 5.0" capacitive touchscreen.
Ultimate Video Quality
Combined with the HEVC Pro Card, the LU600 allows professional broadcasters and content creators to benefit from unparalleled video performance with extreme bandwidth efficiency - using one of the smallest portable cellular bonding units in the markets. Broadcasters can provide the same video quality as H.264 while using about half the bandwidth. In cases where original H.264 bitrate is maintained, the HEVC Pro Card offers greatly improved video quality.
Dual-purpose local/roaming unit
The LU600 includes dual SIM support, simplifying pre-paid SIM card management and allowing you to turn your unit into a dual-purpose local/roaming unit.
LRT™ (LiveU Reliable Transport)
LiveU’s unique Reliable Transport protocol (LRT™) is at the heart of LiveU products to deliver optimized video performance. LRT™ enables reliable, low delay live video streaming over non-guaranteed IP networks and ensures reliable transport over the most unreliable of networks, including cellular networks - allowing you to acquire exciting live content in even the most remote locations.
PACKET ORDERING
LRT uses numbered packets so that the packets can be re-ordered when they arrive out of order. Packet Ordering is an absolute requirement with connection bonding, where data usually arrives in a different order than intended.
DYNAMIC FORWARD ERROR CORRECTION
Forward Error Correction (FEC) adds some overhead to the stream to recover lost data faster. LRT automatically varies the FEC parameters based on monitored network conditions.
ACKNOWLEDGE AND RESEND
LRT can acknowledge large groups of packets if they all arrived. If some did not arrive, it can inform the streaming engine to resend needed data. By acknowledging large groups of packets at a time, LRT uses less overhead and latency. Unlike UDP, LRT gives complete feedback loop so the user knows that the data is arriving correctly.
ADAPTIVE BIT RATE ENCODING
As the bandwidth condition changes, LRT automatically recognizes this and informs the video encoder to allow it to adapt the bit rate of video it is delivering and keep the best possible stream within the available bandwidth at any given moment.
LiveU LU600-HEVC-HD Specification |
|
VIDEO RESOLUTIONS | 1080p50/60/25/30/24, 1080i50/60, 720p50/60, PAL, NTSC full A/V auto detection |
VIDEO INTERFACES | 3G/HD/SD-SDI, HDMI 1.4, auto input detection |
VIDEO ENCODER | HEVC/H.265, H.264 |
AUDIO ENCODER | AAC-HE/LC, 2/4 audio channels |
INTEGRATED UNIT | Video/Audio integrated encoder |
PORTABILITY | Professional-grade backpack |
SIMULTANEOUS BONDING | Up to 12 network links: 6-8 x integrated +1 external modems (4G/5G) + internal WiFi and 2 Ethernet ports |
SUPPORTED TECHNOLOGIES | 4G LTE/LTE-Advanced, HSPA+, UMTS, CDMA EVDO Rev 0/A/B, and internal Wi-Fi 802.11a,b,g,n support, IP Satellite (KA/BGAN) |
ANTENNA ARRAYS | Benefits in video quality, resiliency, coverage, operation in areas of poor coverage, on-the-move, and even in crowded areas. Enhanced support for all common wireless frequencies including LTE |
MULTI-PROFILE SELECTION | Live: Low latency or maximum quality modes Store and Forward: Three quality-levels (for optimal quality vs speed) FTP: Bonded file transfer |
VIDEO RETURN | Sub-second video return on the LU600 screen or over an external HDMI |
MULTI-TARGET OUTPUT | Diverse A/V output through SDI and H.264 streams including connectivity for CDNs (server side); RTMP, RTSP, SRT, MPEG-TS and NDI options for IP streams |
POWER SOURCES | Integral battery: 4 hours AC: 100V to 240V Vehicle Lighter input: 12VDC (optional adapter) |
LOCAL CONTROL | Full monitoring and control using local 5" sensitive capacitive touch-screen |
REMOTE CONTROL | Full web-based remote control using LiveU Central management system or LiveU Control mobile app |
DISPLAY INFORMATION | Video previewl per-network cellular connectivity status incl. throughput, network delay etc. |
RESILIENCY AND QUALITY | Includes LiveU Reliable Transport (LRT™ ), featuring proprietary algorithms such as automatic Adaptive Bit Rate (ABR), automatic Forward Error Correction (FEC) and other lost packet recovery algorithms |
INTERFACES | Micro SD Card Slot, Micro HDMI out, Type-A USB, mini USB, 2x RJ45 Ethernet, Audio jack (in + out) |
DIMENSIONS | with 4hrs battery: 150mm x 225mm x 70mm / 5.9" x 8.8" x 2.7" (W x H x D) |
WEIGHT | 1.08kg (38oz) without battery, 1.68kg (59oz) with battery |
TEMPERATURE | Operating: -5C to +45C (23F to 113F) |
Databridge License Add-on Features |
|
OPERATIONAL MODES | High-speed mobile broadband connectivity from the unit |
Video Return License Add-on Features |
|
OPERATIONAL MODES | Sub-second video return over an external HDMI |
IP Pipe License Add-on Features |
|
OPERATIONAL MODES | Remotely control your IP-based gear: robotic/PTZ cameras, CCUs, intercom and more |
- LiveU LU600-HEVC-HD Portable Video Uplink Unit

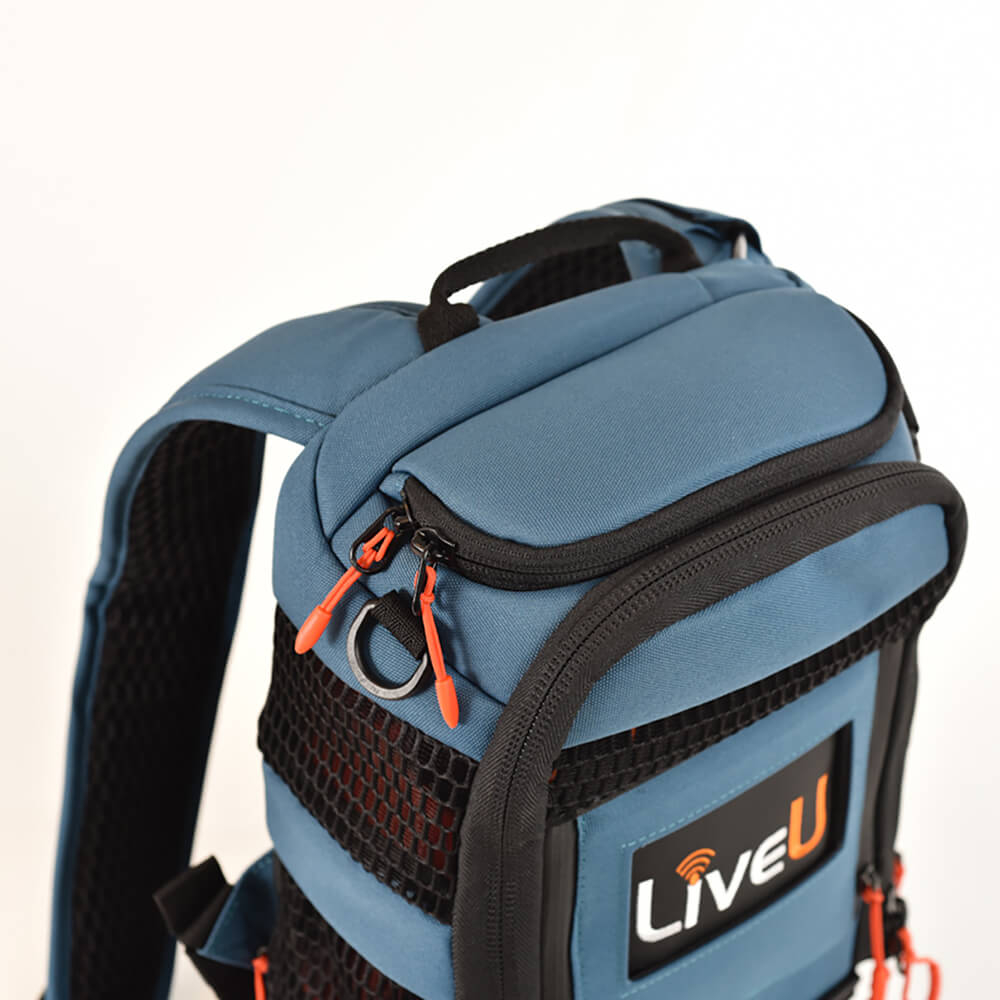

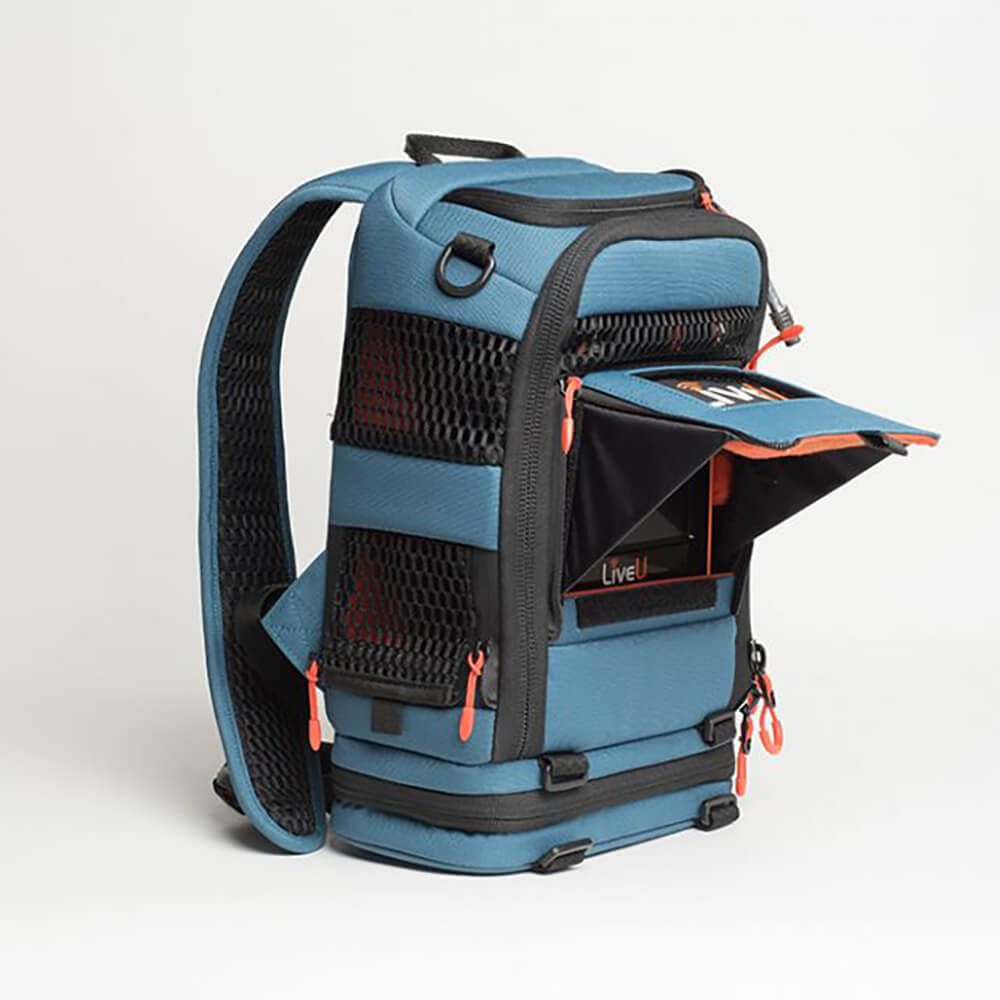

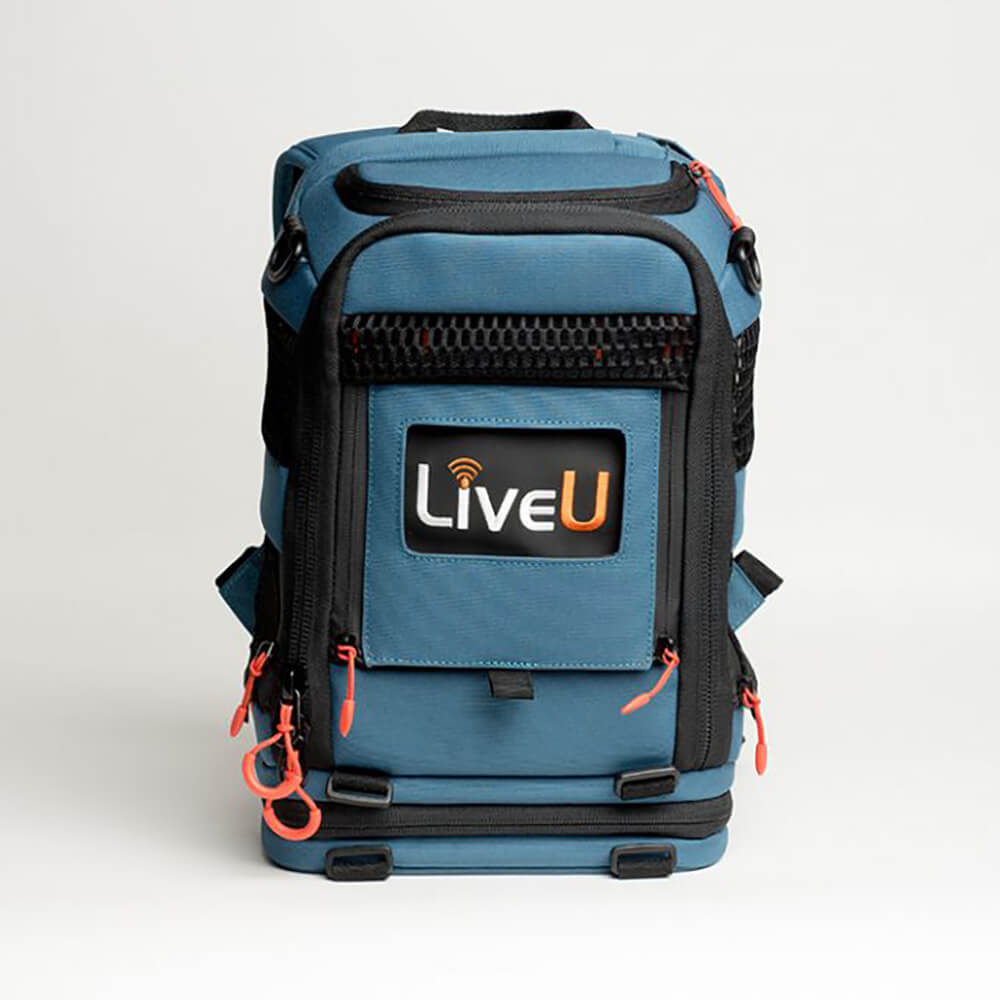

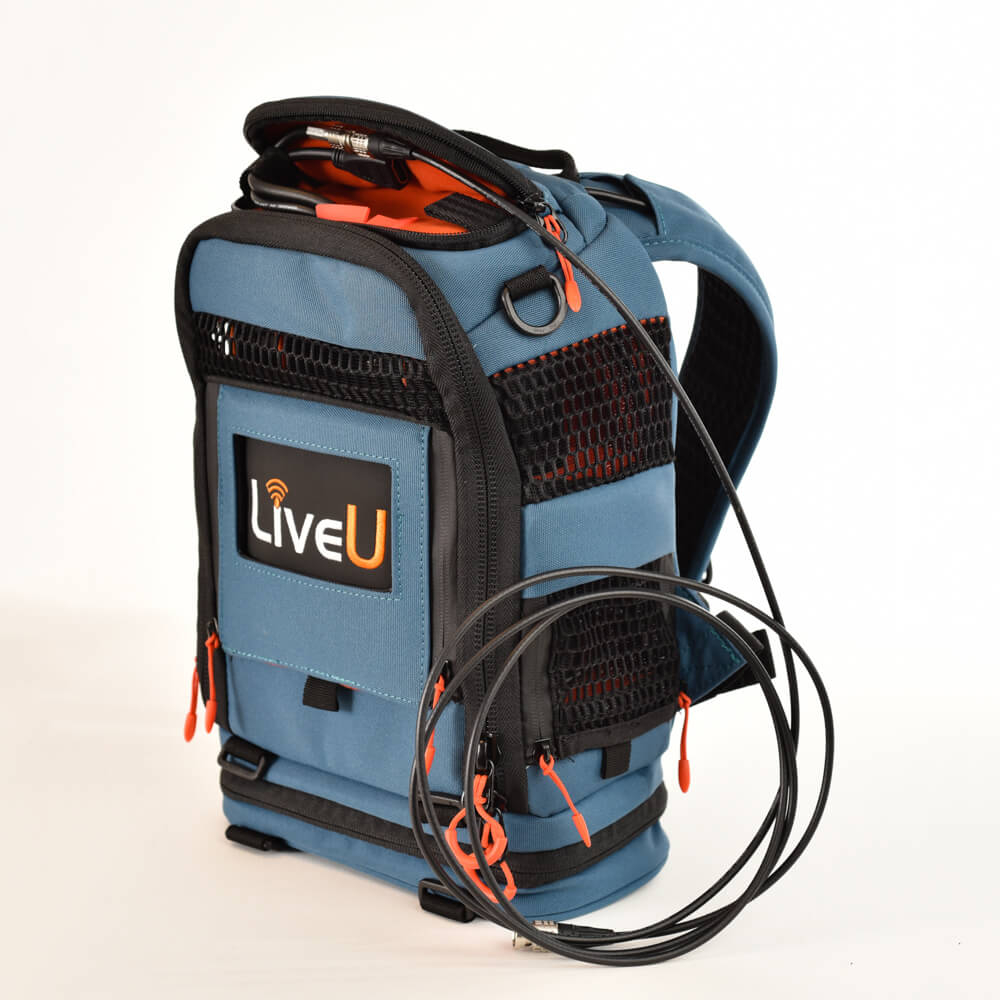

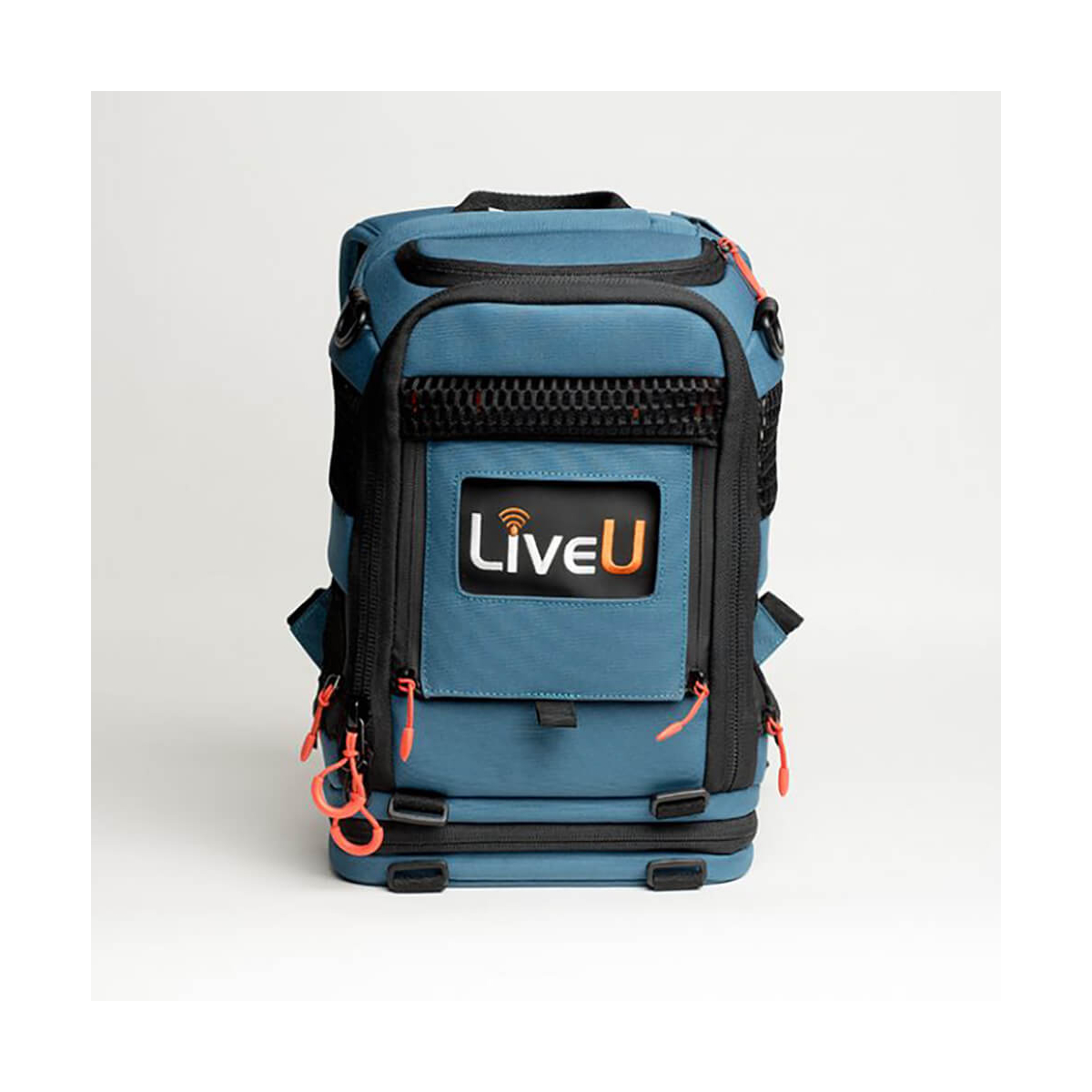

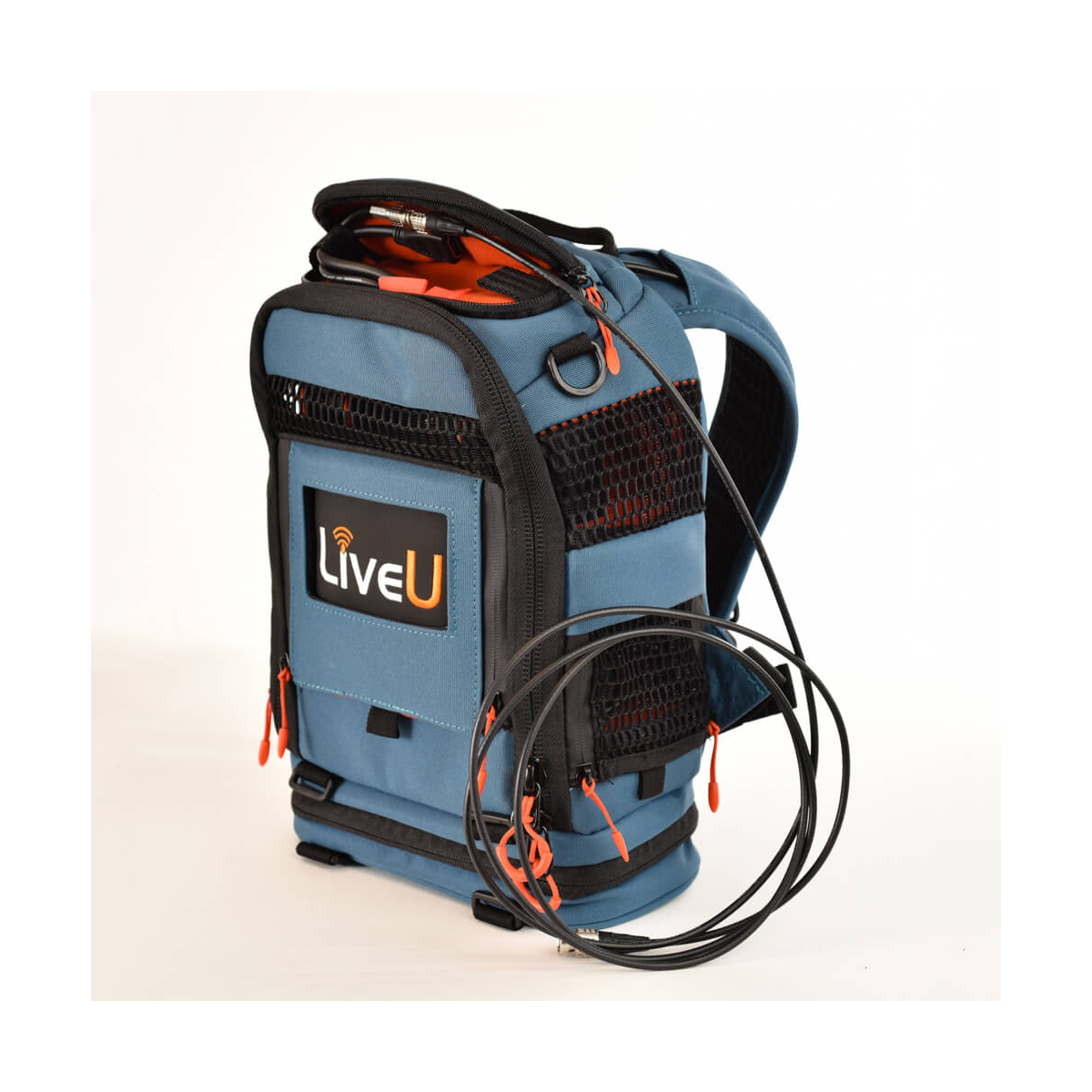

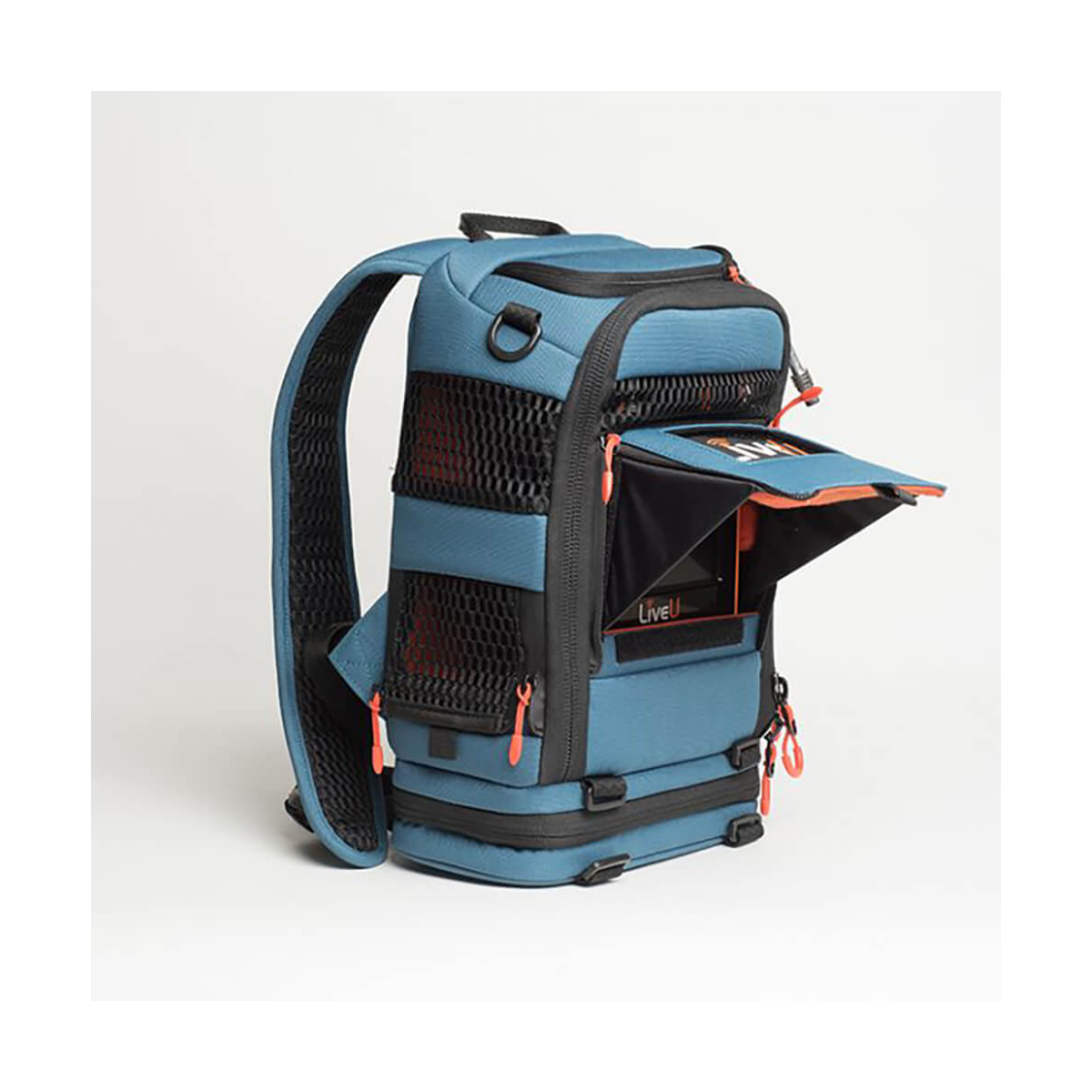

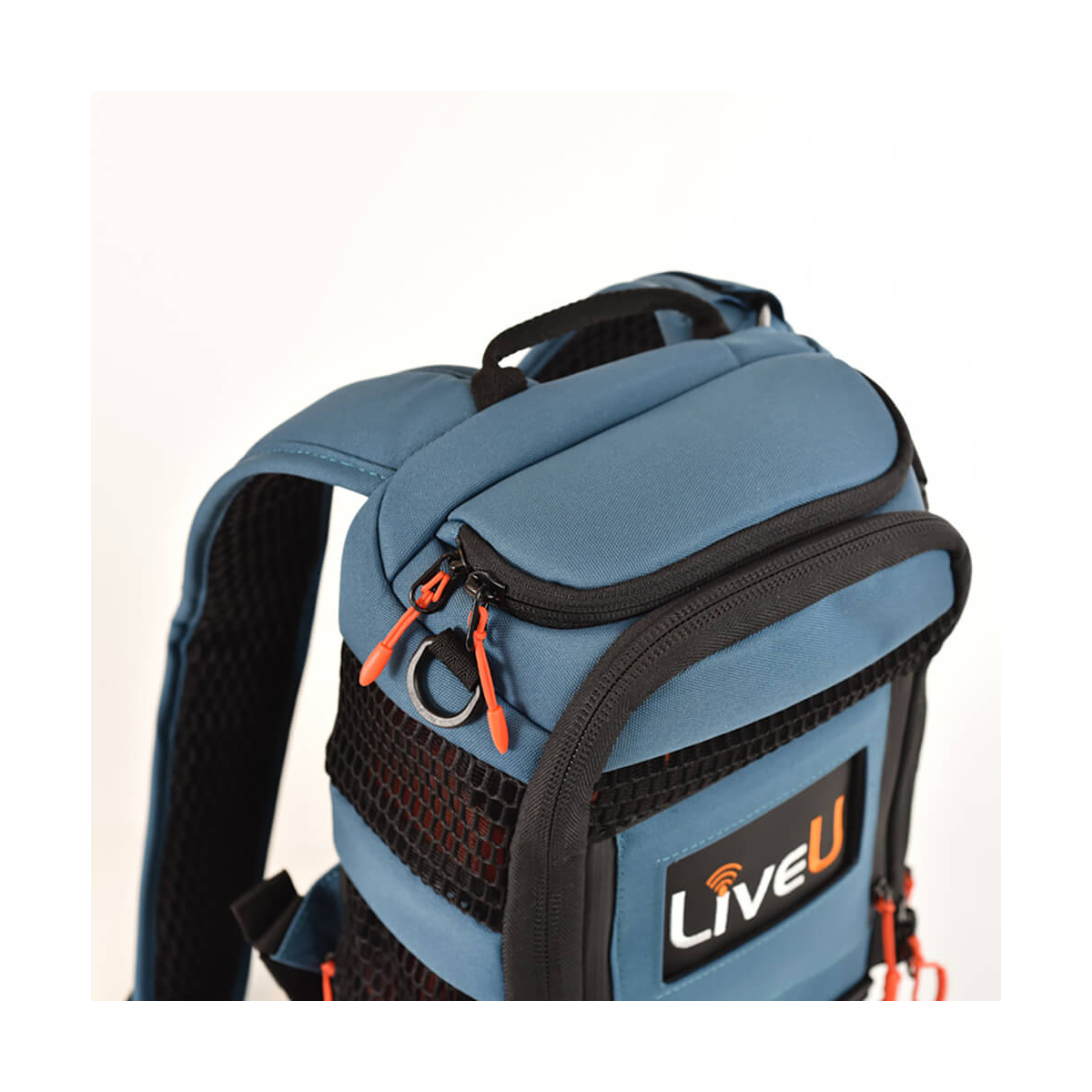

- LU600 backpack
- Wired remote control
- AC Adapter with Power Cord
- SDI (BNC) to SDI (BNC) Cable (1.5m)
- HDMI to Mini HDMI Cable (0.25m)
