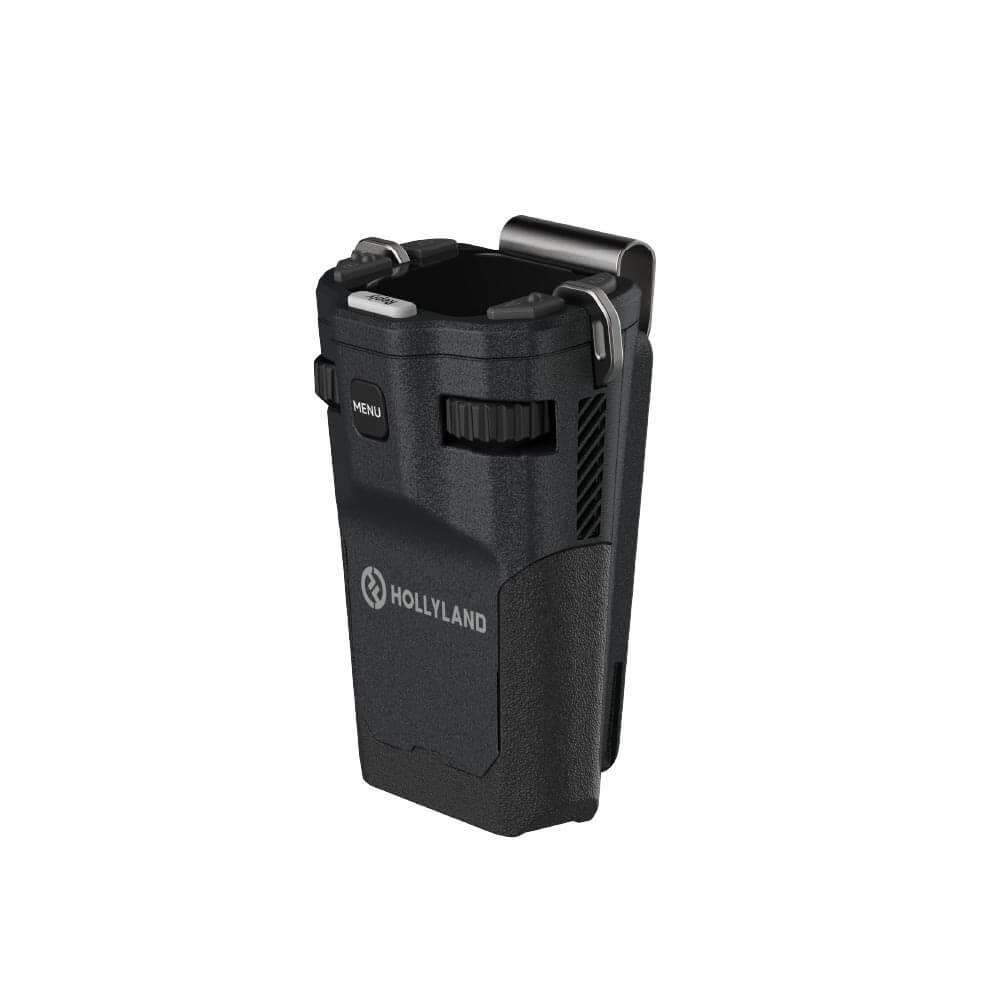

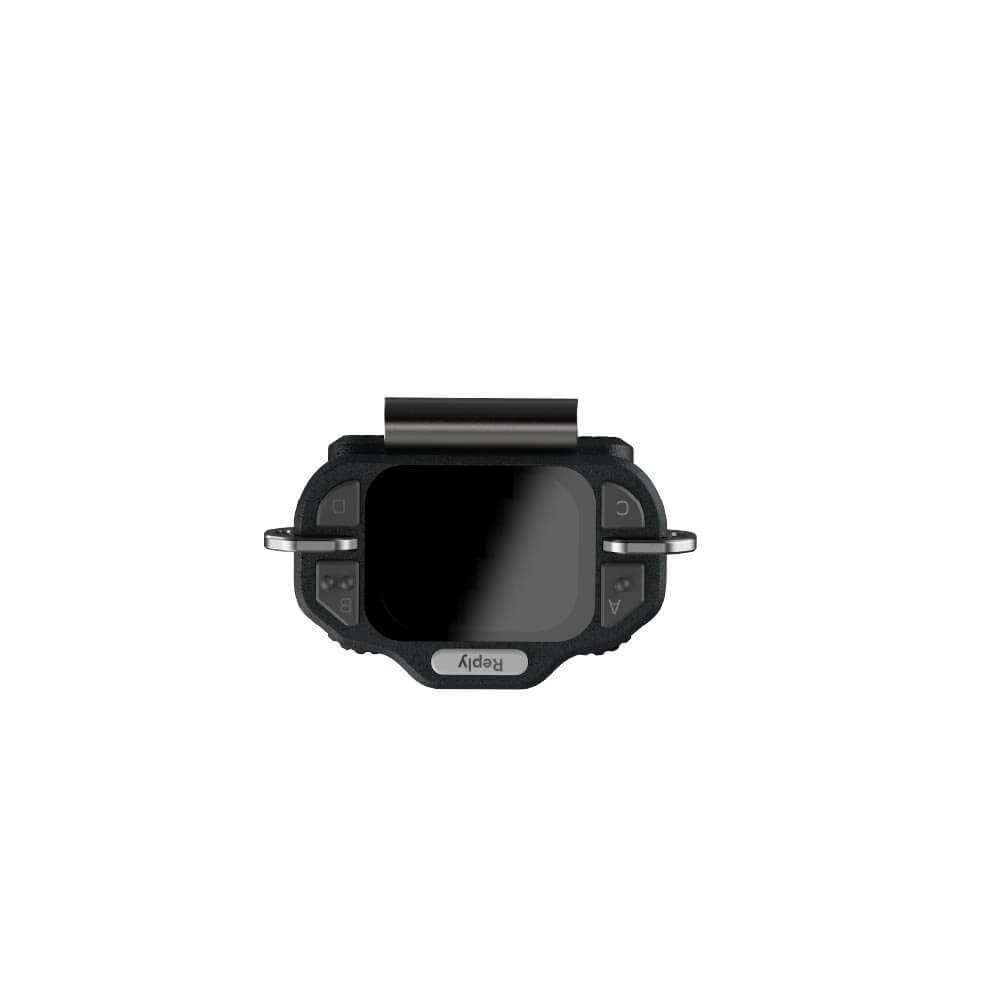

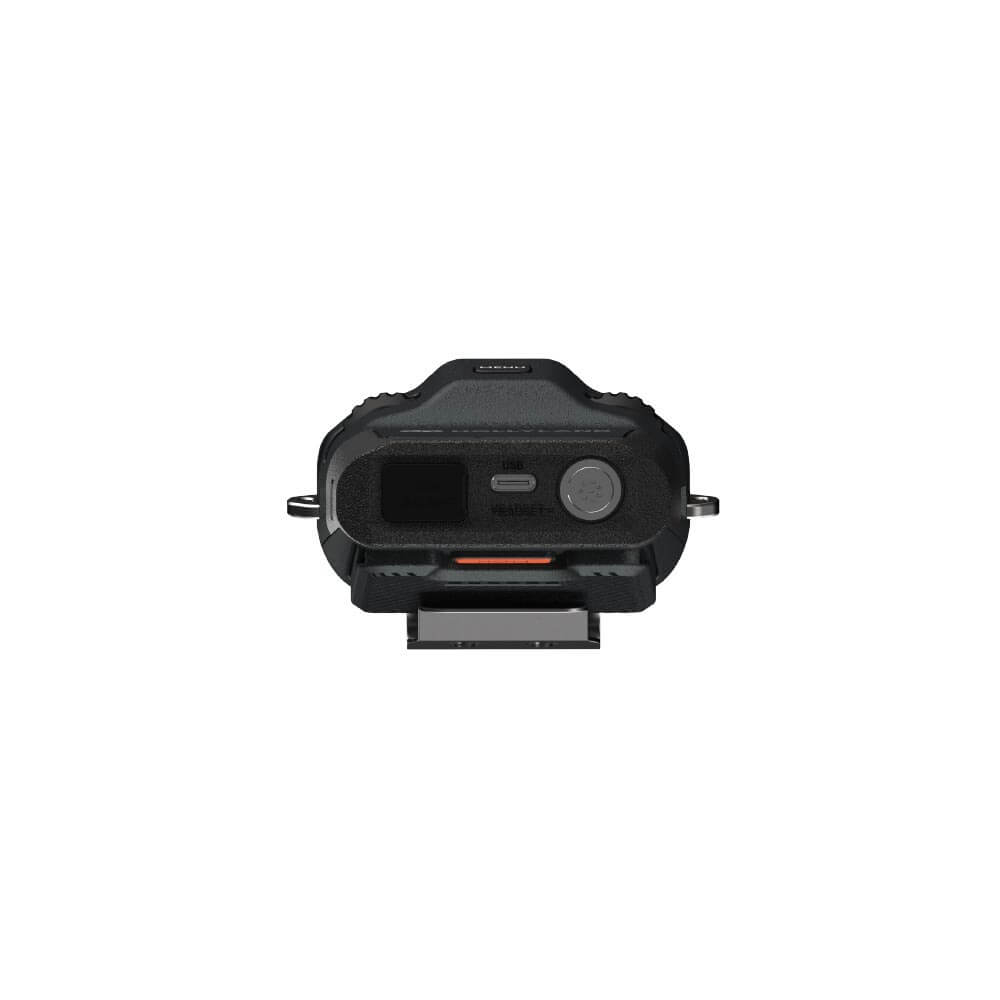

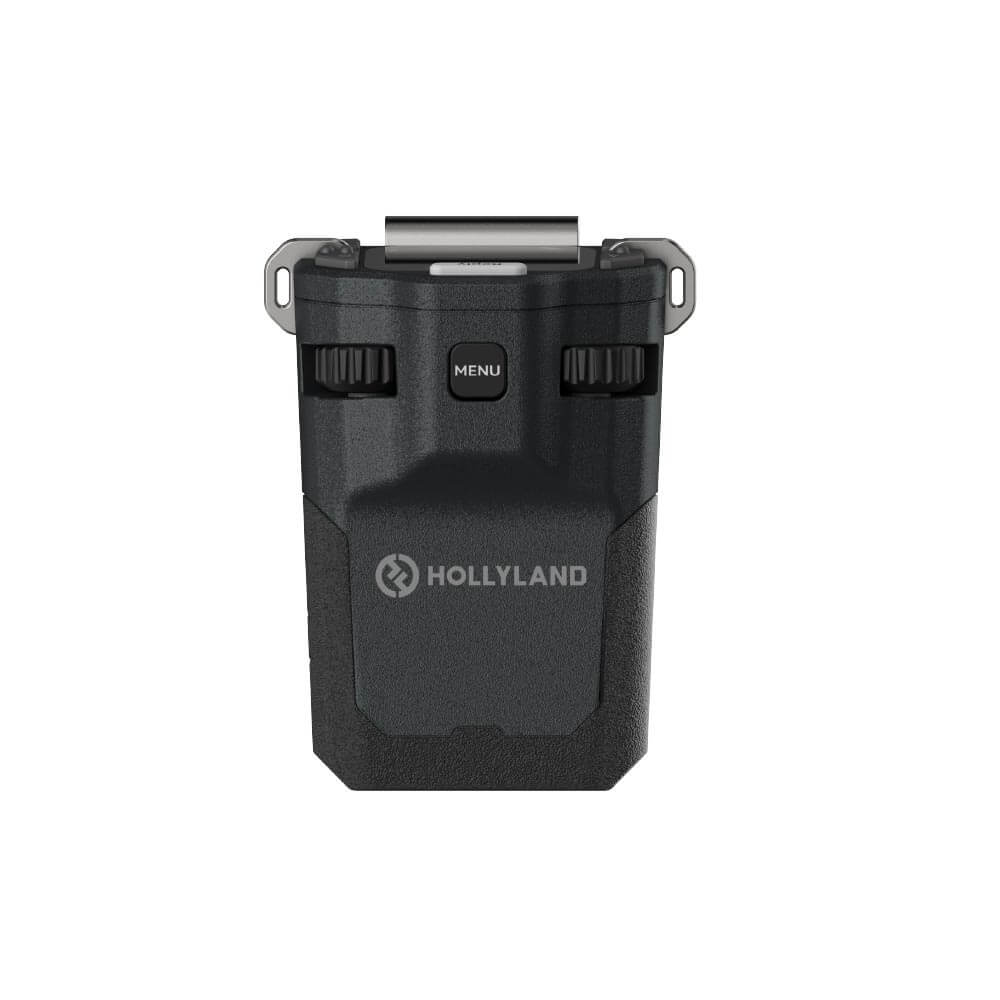

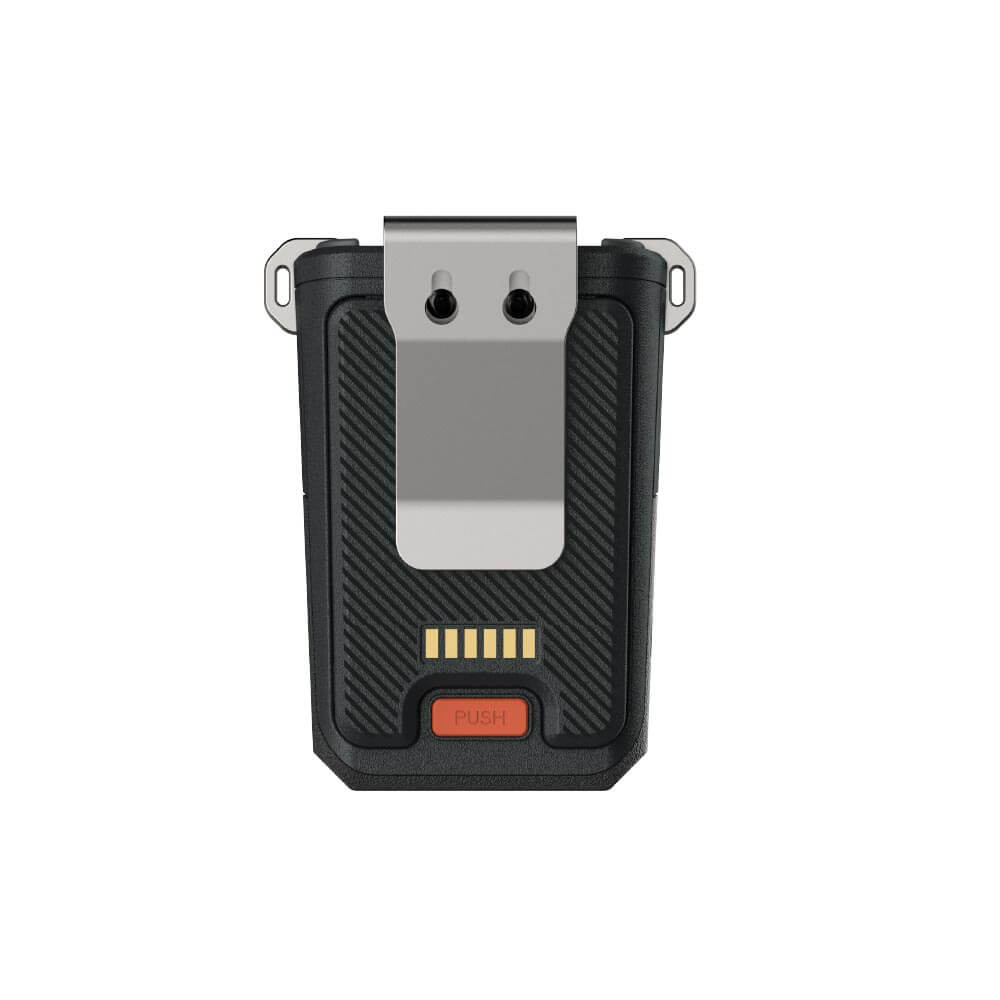

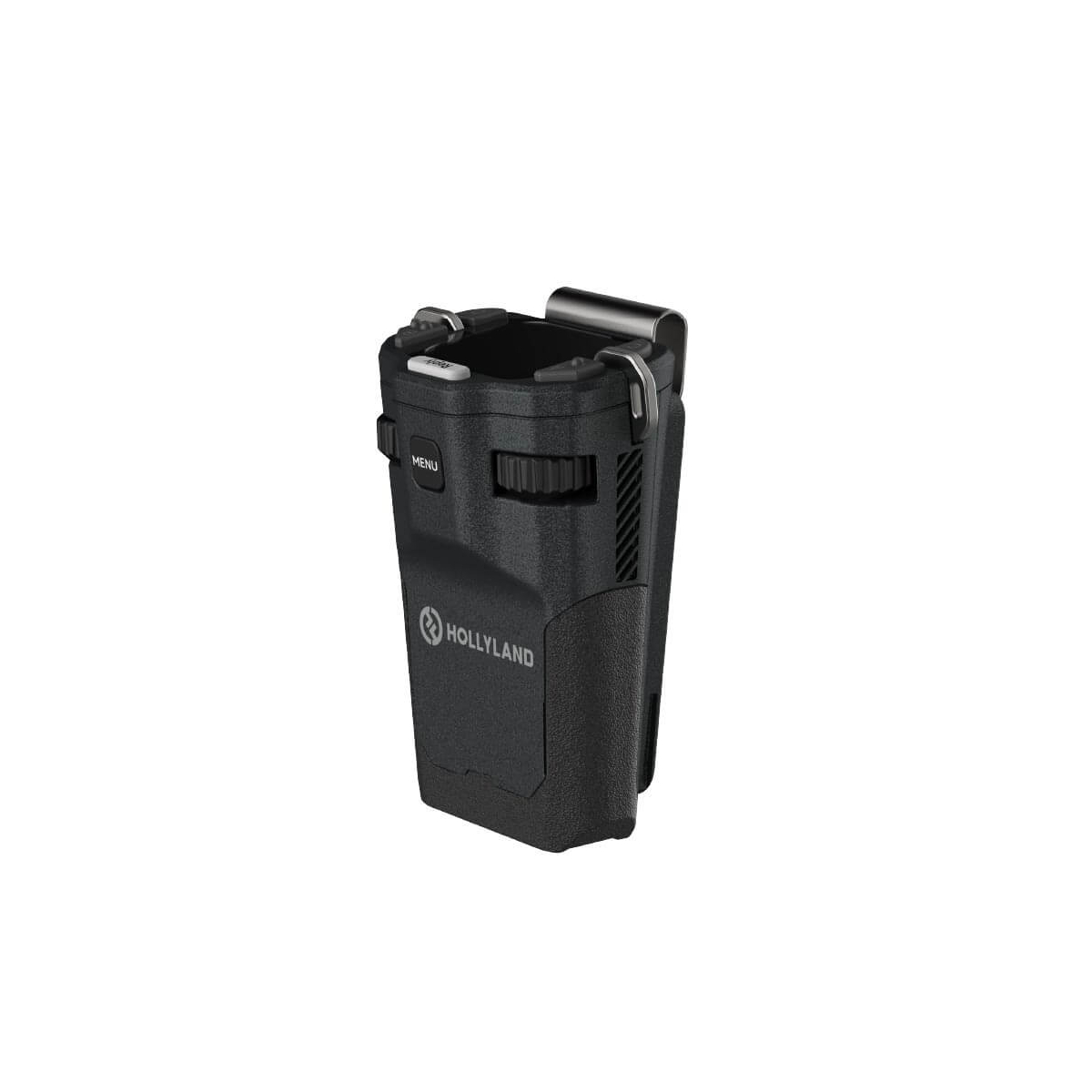

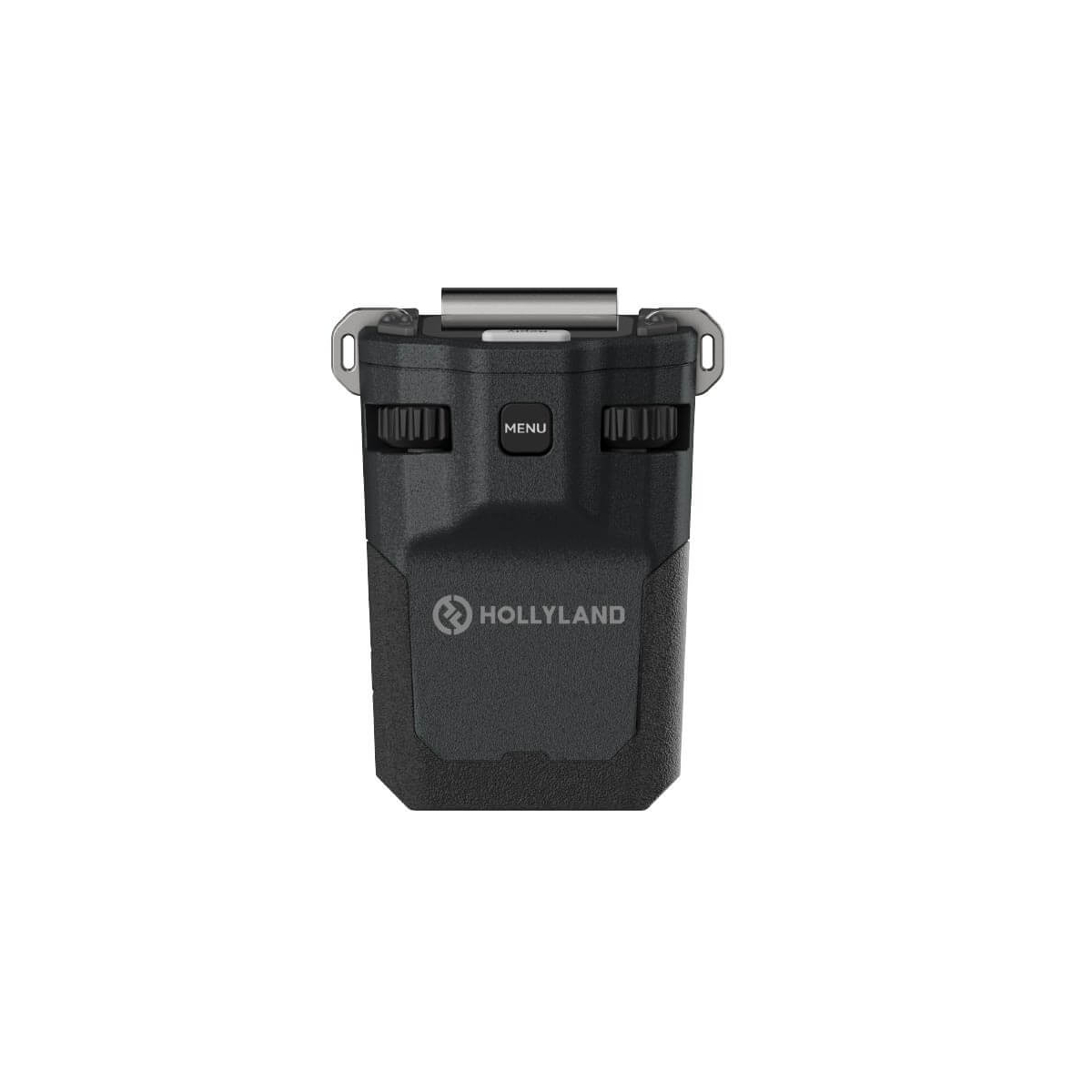

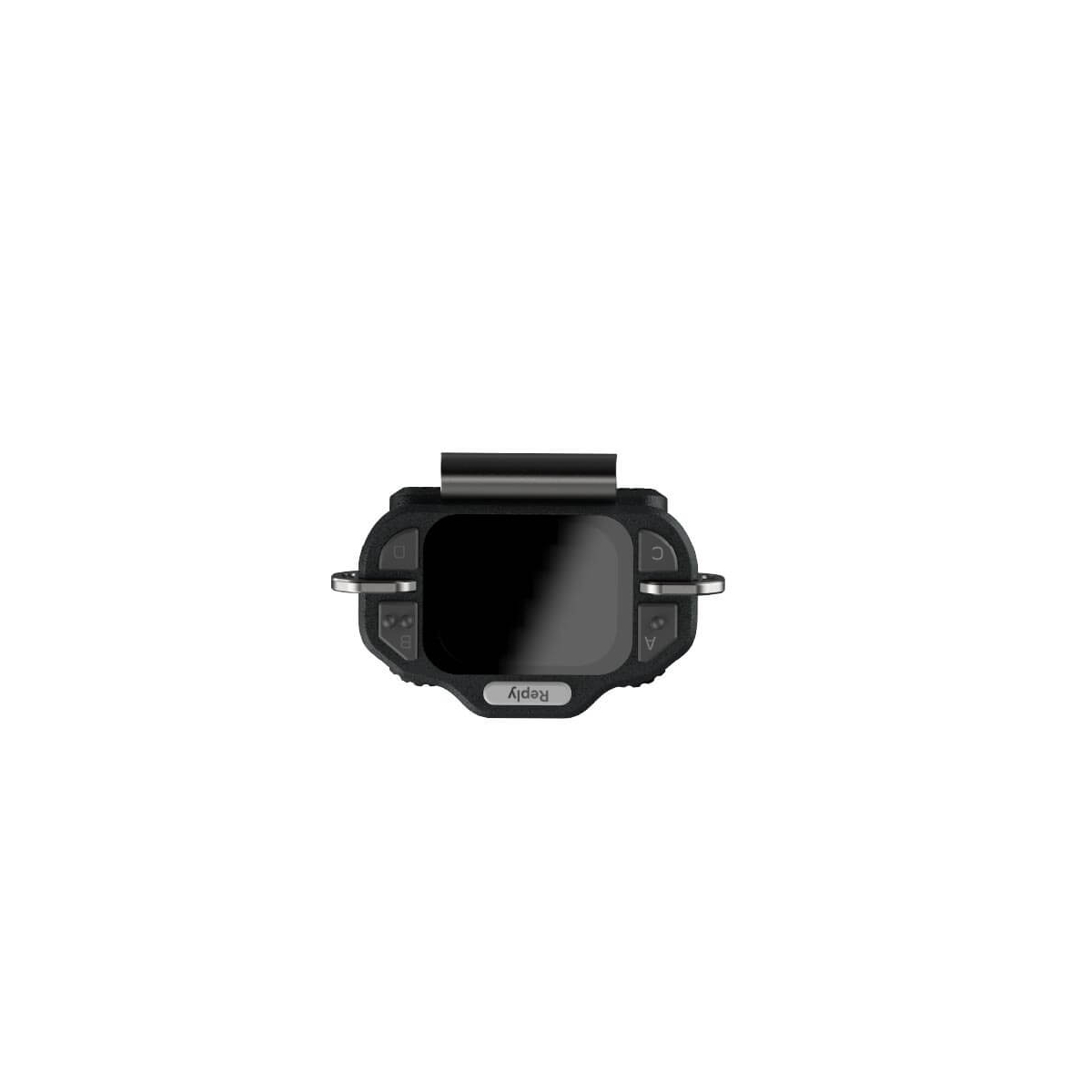

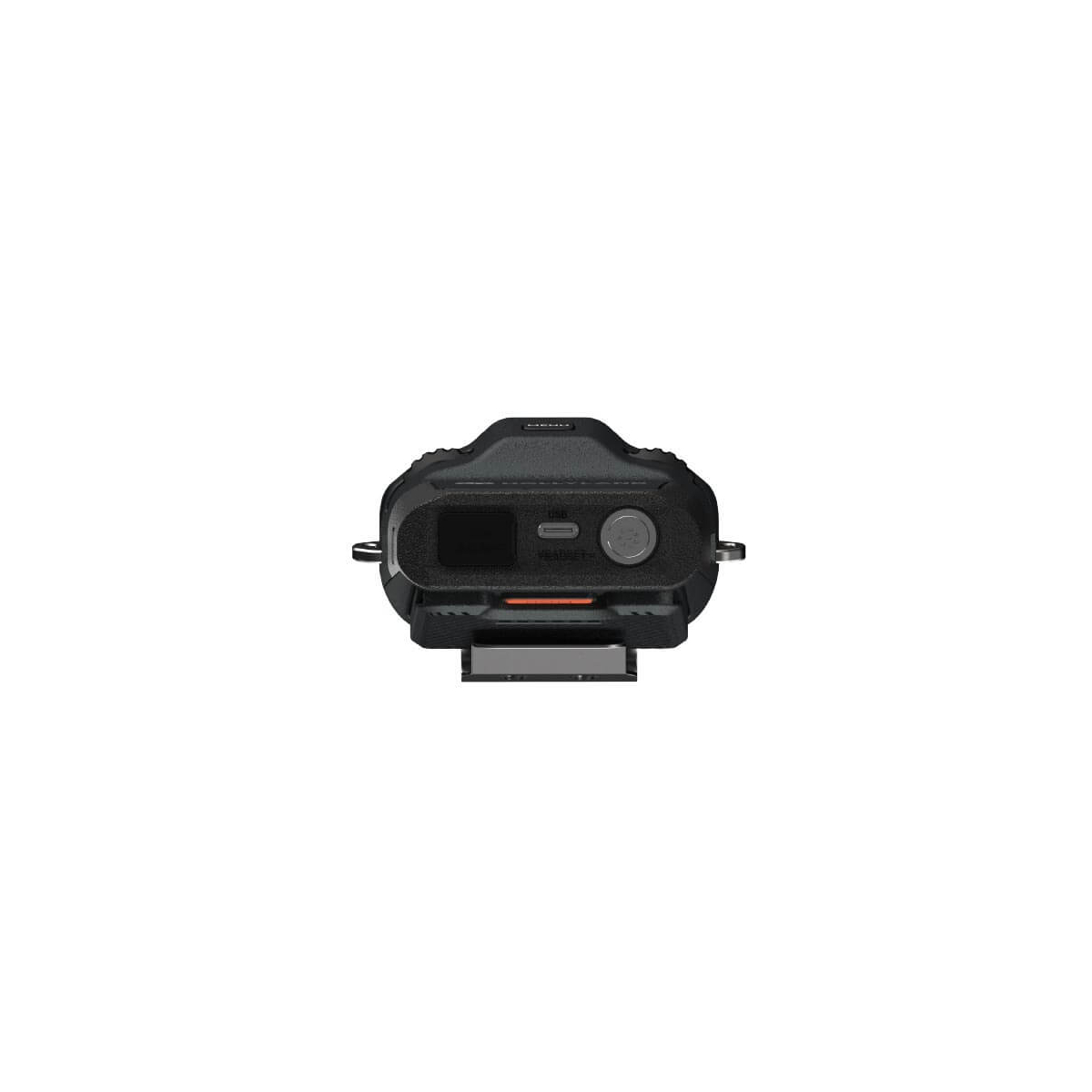

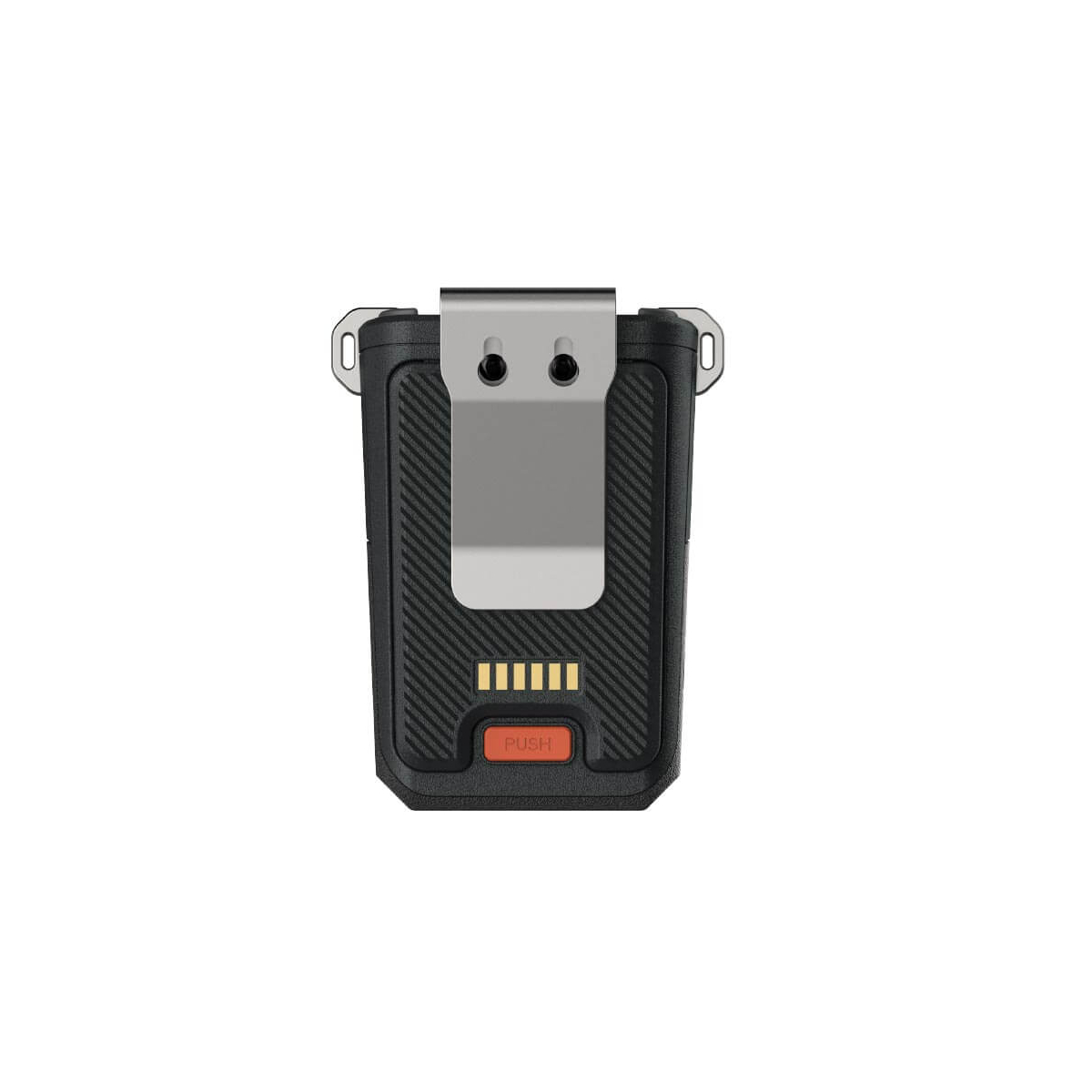

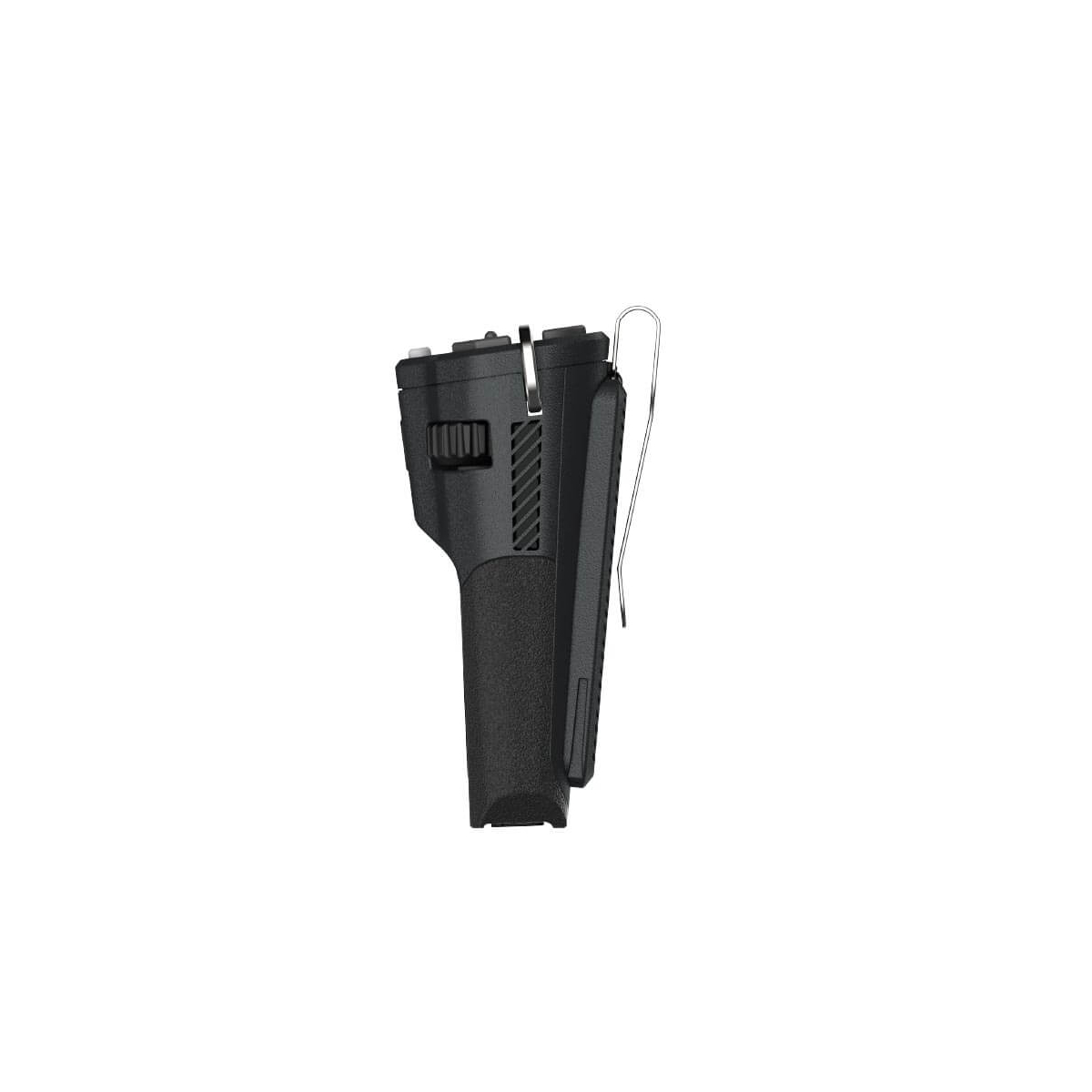

The Solidcom H1 BPK01 Beltpack is the core of Hollyland’s H1 wireless intercom system. Designed for productions of every scale, the H1 system supports up to 30 beltpacks on its own - or up to 80 when paired with the Geo Central Station. No license fees are required, making deployment simple and cost-effective for crews large and small.
Clear Audio, Massive Coverage
With a 1640-foot line-of-sight range and seamless roaming, the BPK01 keeps every team member connected, even across large venues or dynamic shooting environments. Each beltpack delivers up to 15 hours of battery life, ensuring uninterrupted operation throughout long event days or production shoots.
Smarter Team Coordination
Organize communication the way your production needs it. Create up to 12 independent groups without a central station, or expand to 100 groups with the Geo Central Station. Built-in smart app control, cloud communication, and Dante integration provide advanced flexibility for managing crews both on-site and remotely.
Details
- Complete system supports 20 to 80 beltpacks
- 1640' line-of-sight coverage range
- Seamless roaming across zones
- 12 groups standard, 100 with GEO station
- Smart app control for easy management
- Cloud communication support
- Comprehensive interfaces including Dante
- IP65-rated dust and water resistant
- 15-hour battery life
|
Solidcom BPK01 Specification |
|
| LOS Range | 500m |
| Operating Frequency |
CE: FCC: |
| Transmit Power |
CE: FCC: |
| Bandwidth | DECT: 1.728 MHz BT: 1 MHz |
| Modulation Mode | DECT: GFSK BT: GFSK/π/4 – DQQPSK/8DSK |
| Receiver Sensitivity | -90 dBm |
| Battery Life | > 15h |
| Dimensions | 114.65mm x 89.2mm x 61.8mm |
| Weight | 305g |
| Operation Temperature | -10 ℃ – 45 ℃ |
| Storage Temperature | -20 ℃ – 60 ℃ |
| LEMO Audio | |
| Input Frequency Response | 150 Hz – 7 kHz |
| Maximum Input SPL | 115dB SPL |
| Noise Cancellation Depth | 20dB |
| Distortion | < 1% |
| Signal-to-noise Ratio (SNR) | 67dB |
| Output SPL Level | 113dB SPL Max |
- Solidcom BPK01
- Solidcom BPK01 Battery
- Tempered Glass Screen Protector
- 10-Pin to 4-Pin XLR Adapter Cable
- Quick Guide
- Warranty Card
