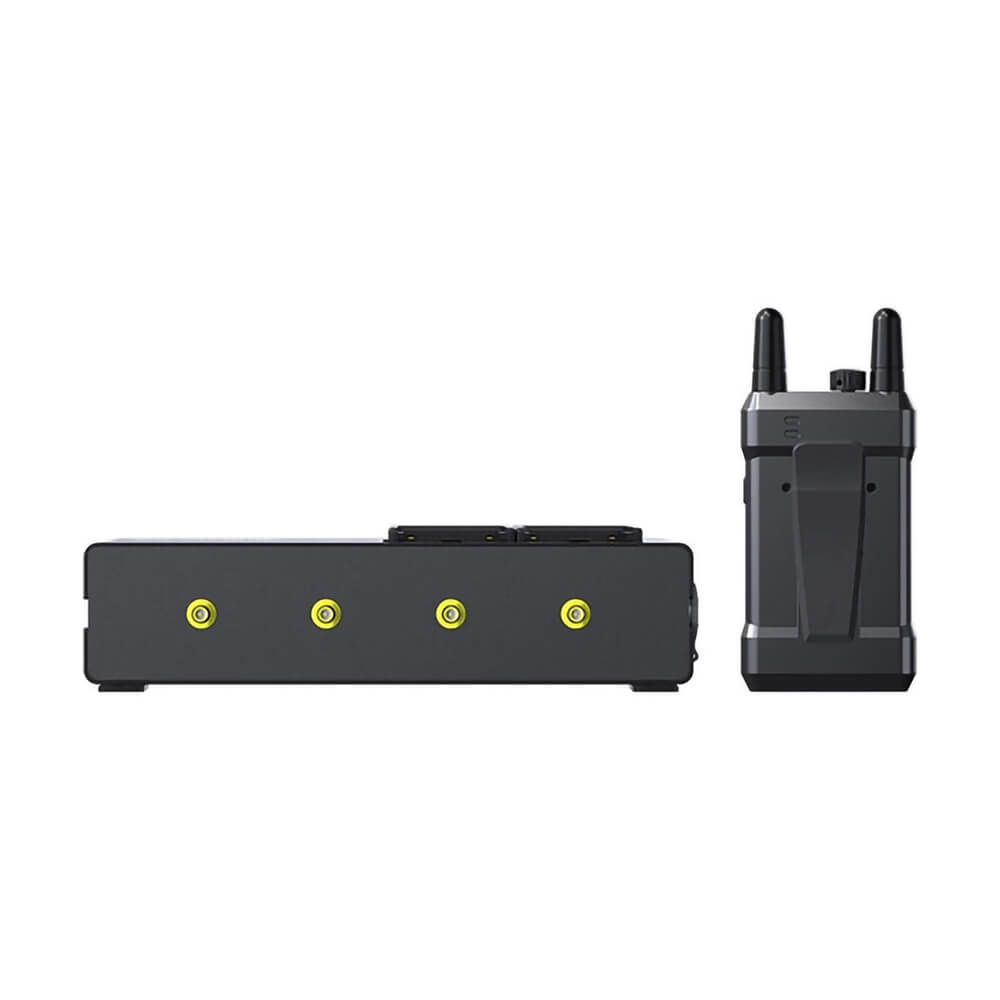

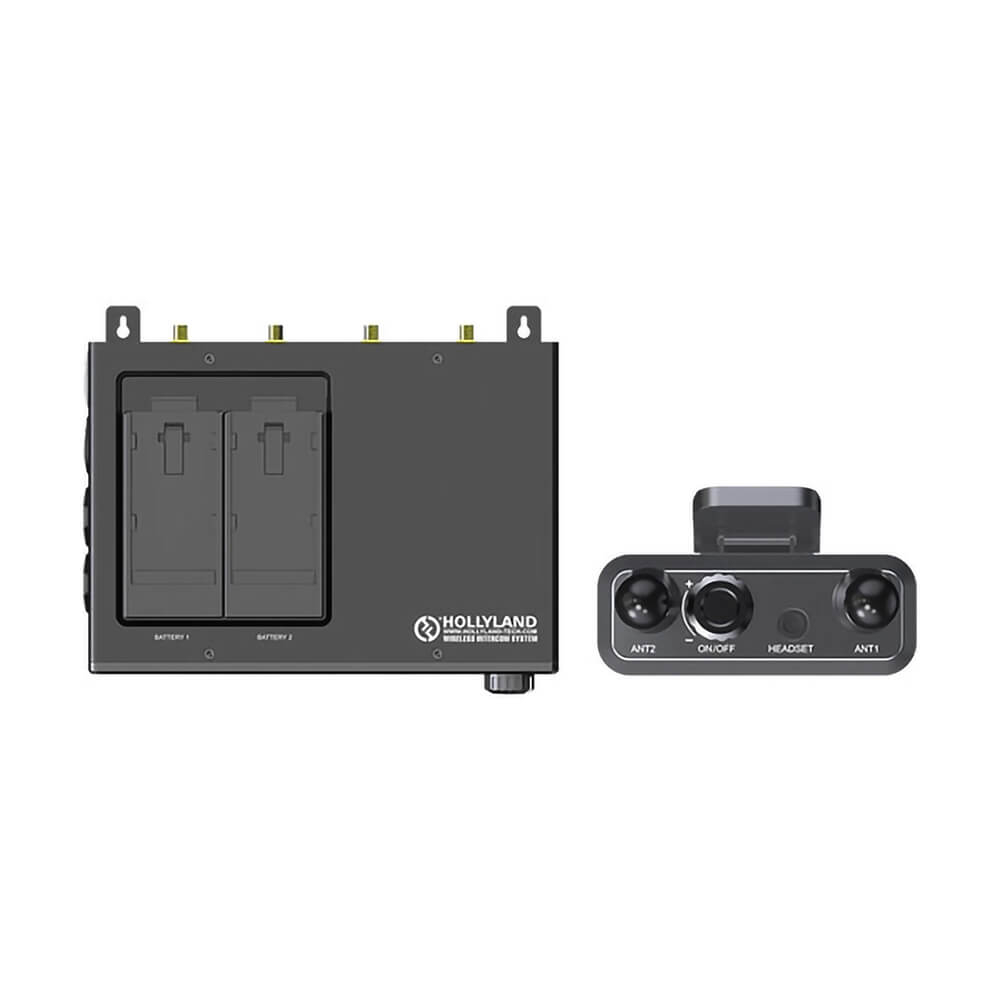

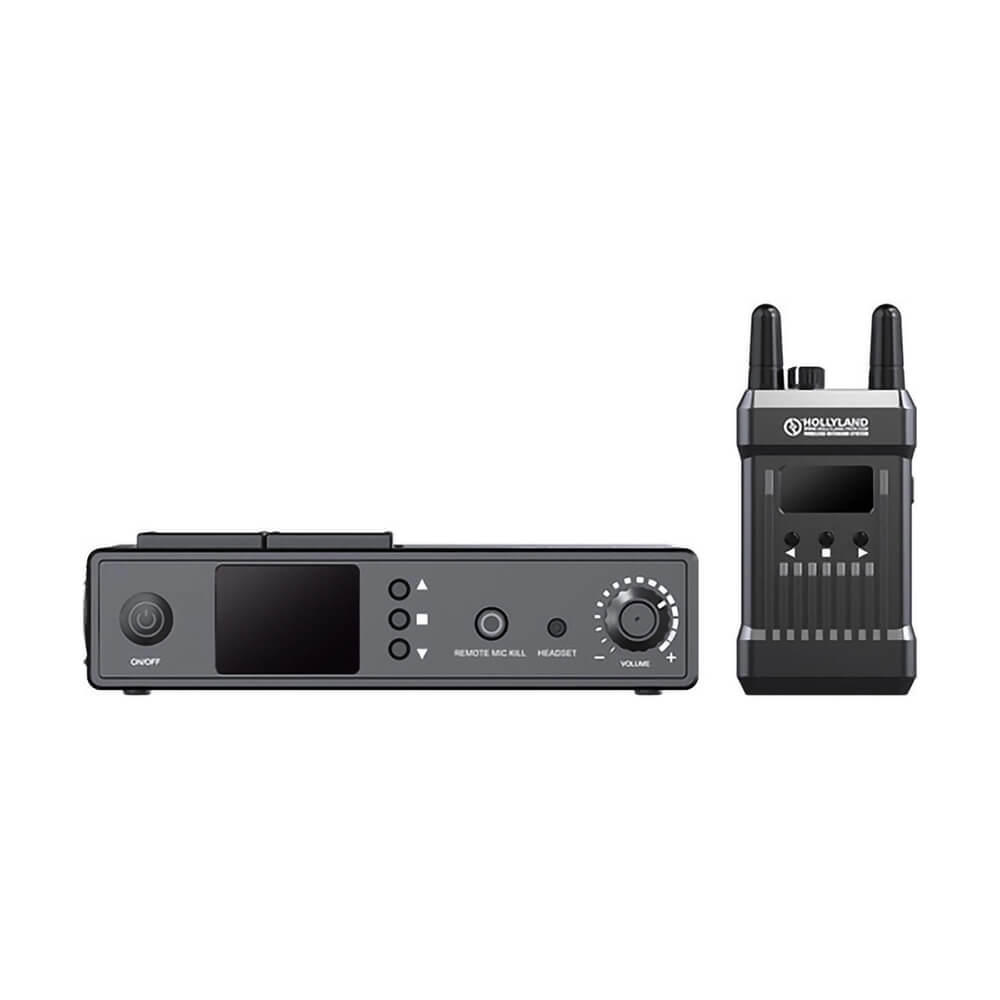

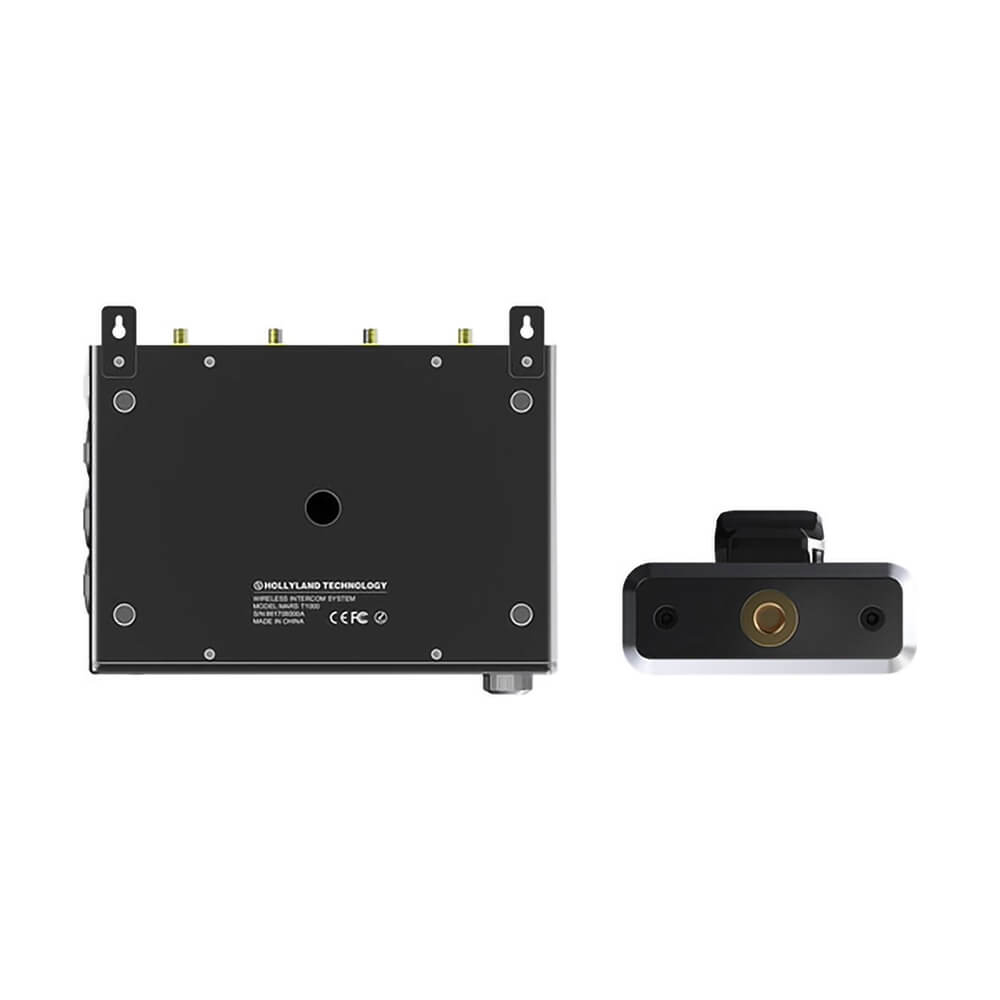

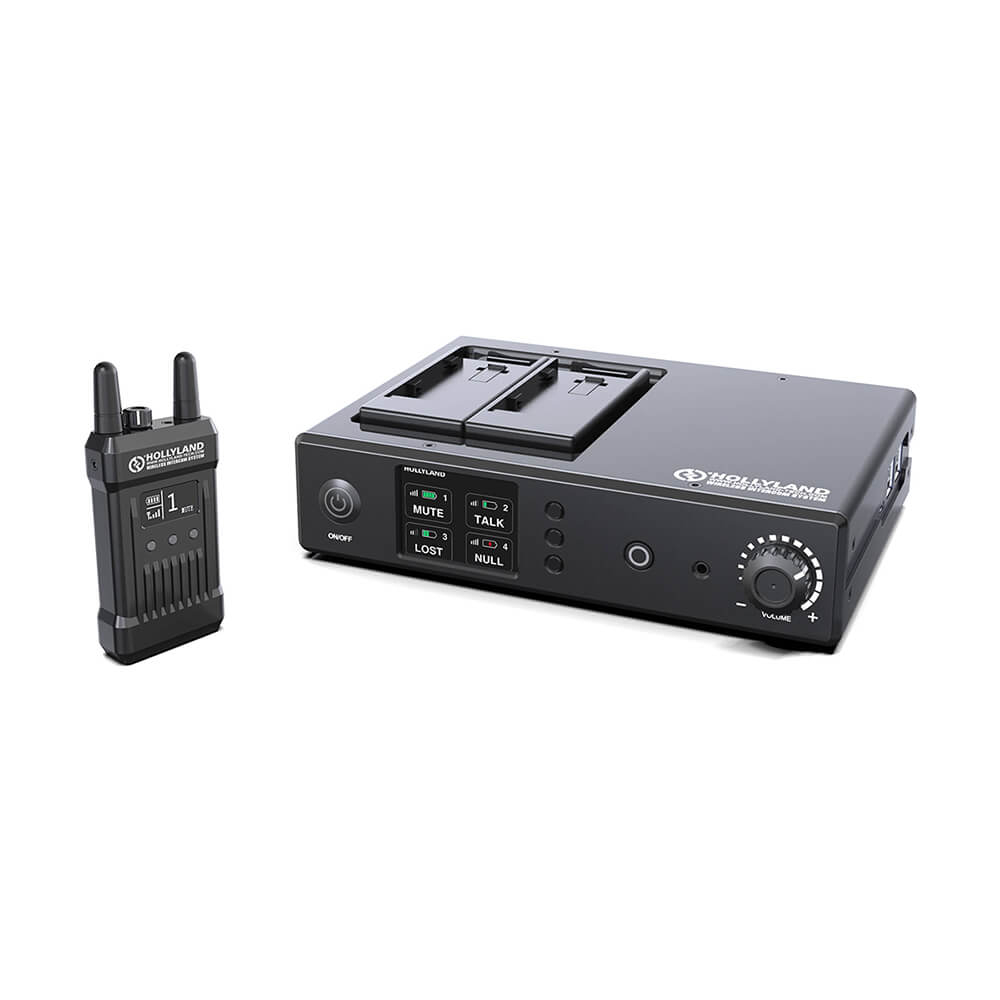

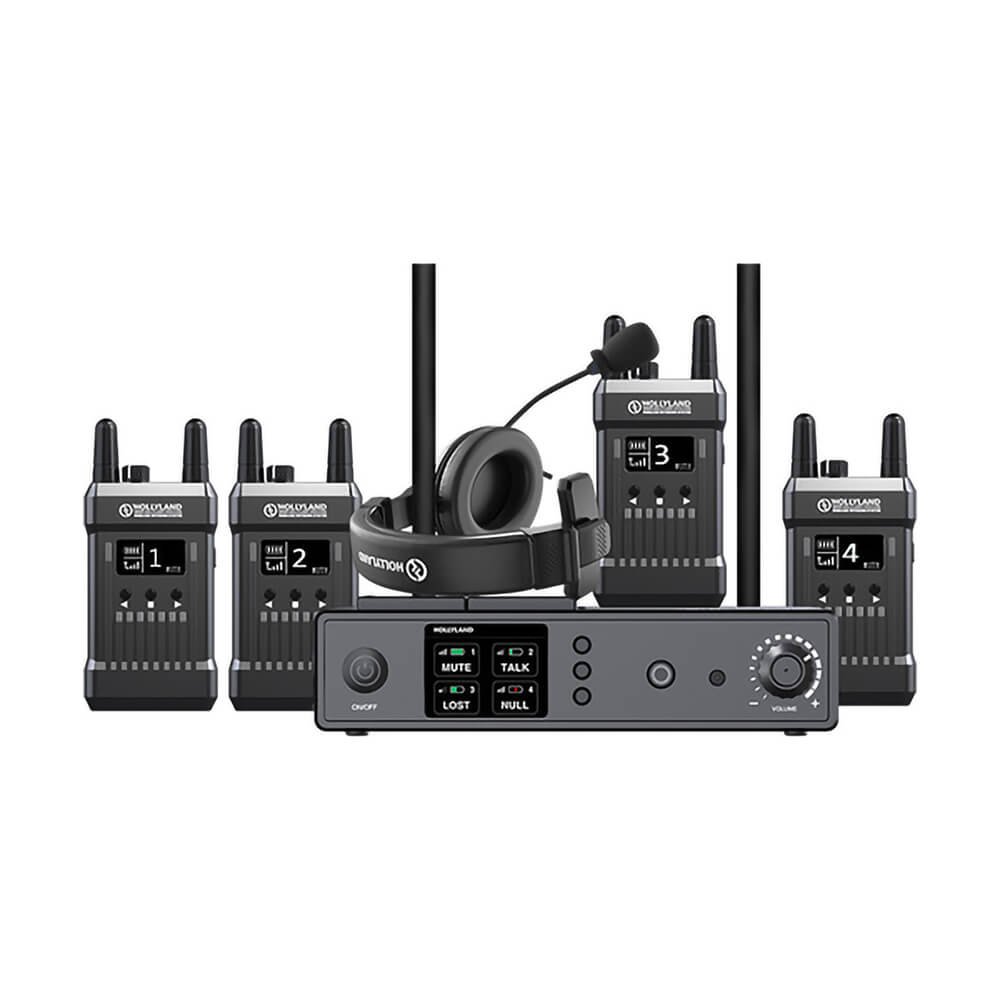

Ideal for broadcasting, training, and meetings, the Hollyland Full-Duplex Intercom System with Four Beltpack Transceivers allows two-way communication at a range of up to 1000'. It includes a base station, four beltpack transceivers, and five headsets. The base station powers from an included AC power adapter with 4-pin XLR connector or from optional L-series batteries via the dual-battery plate built into the top of the station.
The base station supports wireless tally, and it has a built-in OLED screen that displays the status of each beltpack. It also has a 3.5mm jack for the included headset and a button that mutes the mics on the beltpacks. The base station has four USB ports for charging the included beltpacks as well as for paired data connection. The included beltpacks each have an integrated lithium-ion battery for 8 hours of operating time and support charging via a USB port. Each beltpack has a 3.5mm port for a headset/mic combination and a individual mute/call button. A large OLED screen displays the beltpack's battery status and wireless signal strength as well as beltpack number and mic-mute status.
General Features
- Ideal for broadcasting, forum meetings, business activities, education, and training
- 1000' full-duplex wireless communication for simultaneous two-way audio signal transmission without latency
- Wireless tally function allows accurate communication by seeing beltpack screen colors
- Includes five single-sided headsets
Base Station Features
- Base station supports up to four rechargeable beltpack transceivers
- Remote mic kill via base station
- Adjustable volume control on front panel

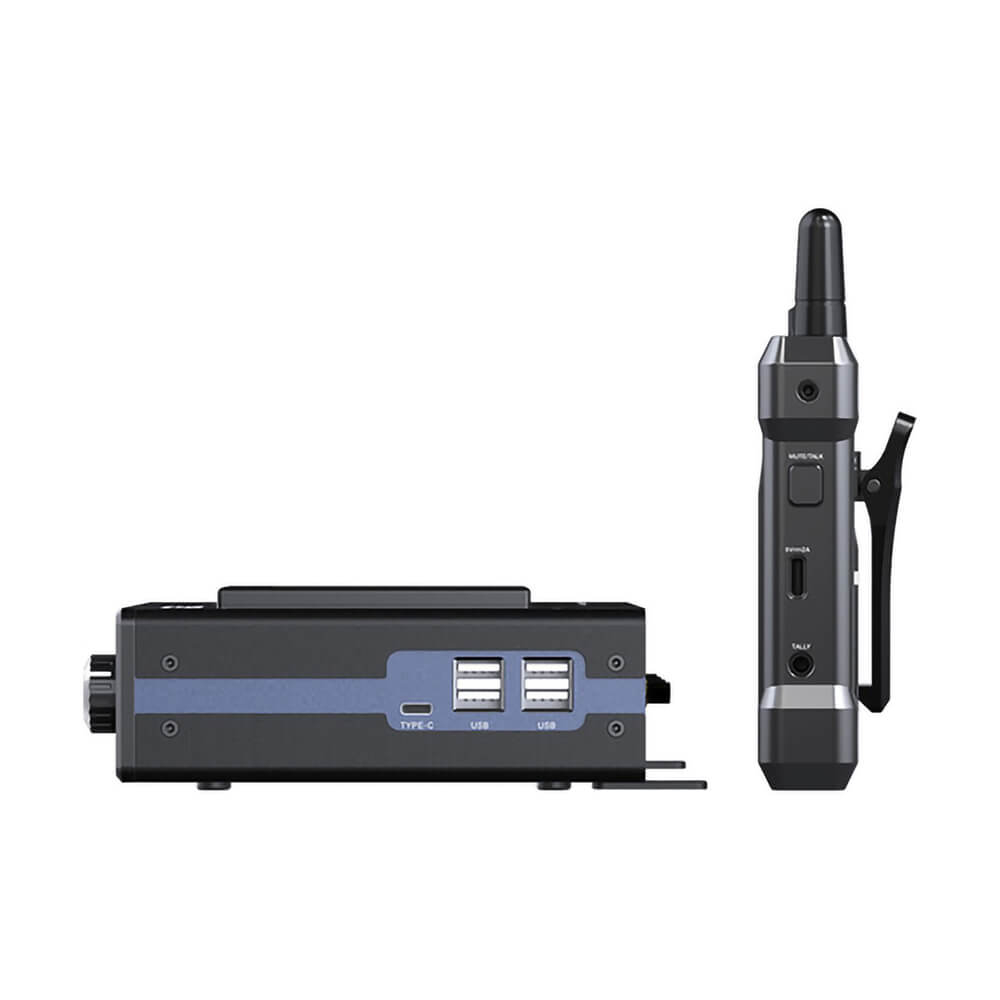

- USB Type-C and four USB Type-A ports
- Integrated dual L-series battery plates
Beltpack Transceiver Features
- Built-in lithium battery provides up to eight hours of operating time
- Power switch, volume control, and mute/call button
- Easy operation via OLED screen and menu navigation buttons
- USB Type-C charging port
- Industrial metal shell with belt clip
Solidcom M1 Spec | ||
Base Station | Beltpack | |
INTERFACES | 2 Antenna Interfaces(SMA-K Female Connector)4-pin XLR Male Connector DC Input; 3.5mm Headphone Port;RJ45 Network port 4 Channels Audio Interface; TYPE-C USB 2.0; 4USB 2.0 |
2AntennaInterfaces(SMA-K Female Connector ) ; 3.5mm Headphone Port; 3.5mmTally output; TYPE -CUSB2.0 Interface |
POWER SUPPLY | 7-36V DC Input,F970 Battery | 1600mAh Polymer Lithium Battery |
FREQUENCY RESPONSE | 300Hz to 5KHz | |
SIGNAL-TO-NOISE RATIO | >50dB | |
DISTORTION | <2% | |
WORKING RANGE | <2% | |
FREQUENCY BAND | 1.9GHz | |
MODULATION MODE | GFSK | |
RECEIVING SENSITIVITY | ≤-93dBm | |
FREQUENCY BANDWIDTH | 1.728MHz | |
DIMENSION | (L×W×H) : 220×170×50mm | (L×W×H) :100×58×22mm |
WEIGHT | About 1560g | About 200g |
WORKING TEMPERATURE | 0-40°C(Operation condition);-20-60°C(Storage Mode) |
- Base Station
- AC Power Adapter with 4-Pin XLR
- 3 x 1.9 GHz High-Gain Base Station Antennas
- 5 x Single-Sided Headsets
- 4 x Beltpack Transceivers
- 4 x USB Type-C to USB Type-A Cables
- Multi-Interface USB Charger
- 4-Wire Cascade Dedicated Network Cable
- Network Cable Connector
- Limited 1-Year Manufacturer Warranty
