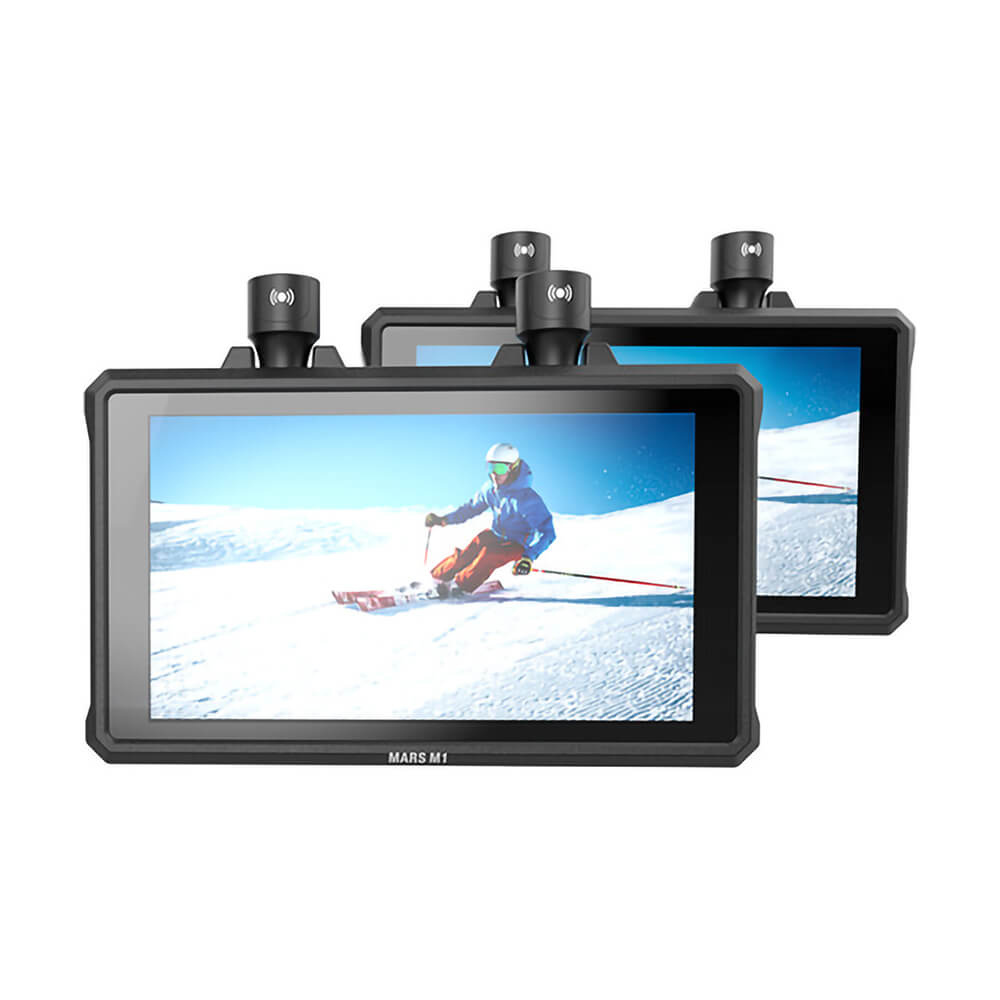

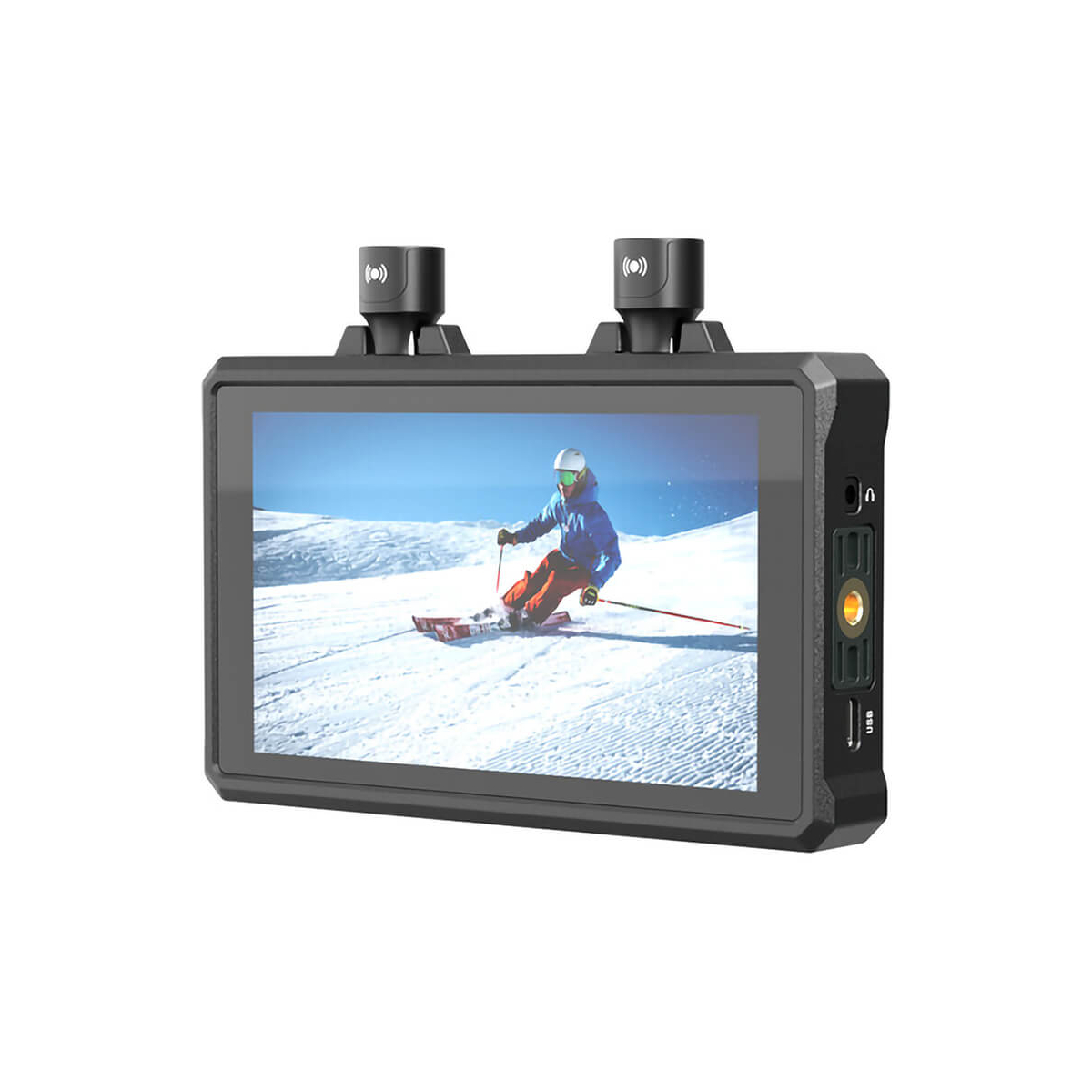

Transmit, receive, and monitor high-quality wireless video transmissions using this Mars M1 5.5" Wireless Transceiver Monitor Kit from Hollyland. This kit includes two Mars M1 5.5" monitors that can be used as either a transmitter or a receiver. Each Mars M1 features a 5.5" touchscreen display that provides a sharp resolution and 1000 cd/m² brightness for follow focus and director's monitoring applications. The built-in wireless transmitter and receiver allow you to send and receive video between M1 units as well as to/from the Mars 400S Pro, Mars 300 Pro, and Mars 4K wireless transmitters/receivers at a distance of up to 450'. You can also monitor video from the M1 on smartphones and tablets running the companion Hollyview app.
Each monitor supports up to UHD 4K30 video input via its HDMI input, and it features an HDMI loop output and an SDI input that supports multiple broadcast drop-frame frame rates. Multiple imaging tools are available using the built-in firmware, including scopes, peaking, and storage of 3D LUTs on the monitor. Each can be powered using a built-in L-series battery plate or via its DC input. They also feature a DC power output so you can power your camera or other gear.
Display

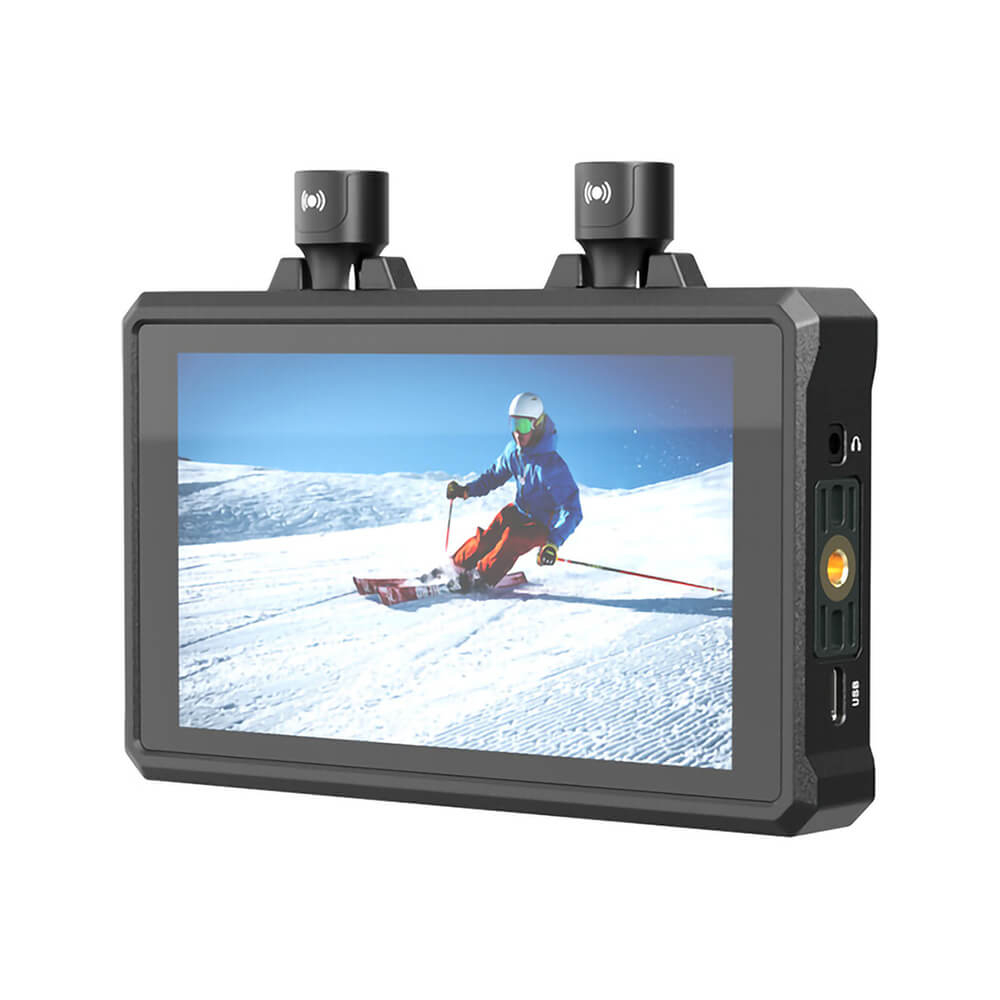

5.5" touchscreen LCD screen with 1000 cd/m² brightness
Compatibility
As well as transmitting between the two M1 units, the M1 can also transmit and receive from all Mars 300 Pro, Mars 400S Pro, and Mars 4K models.
Input/Output

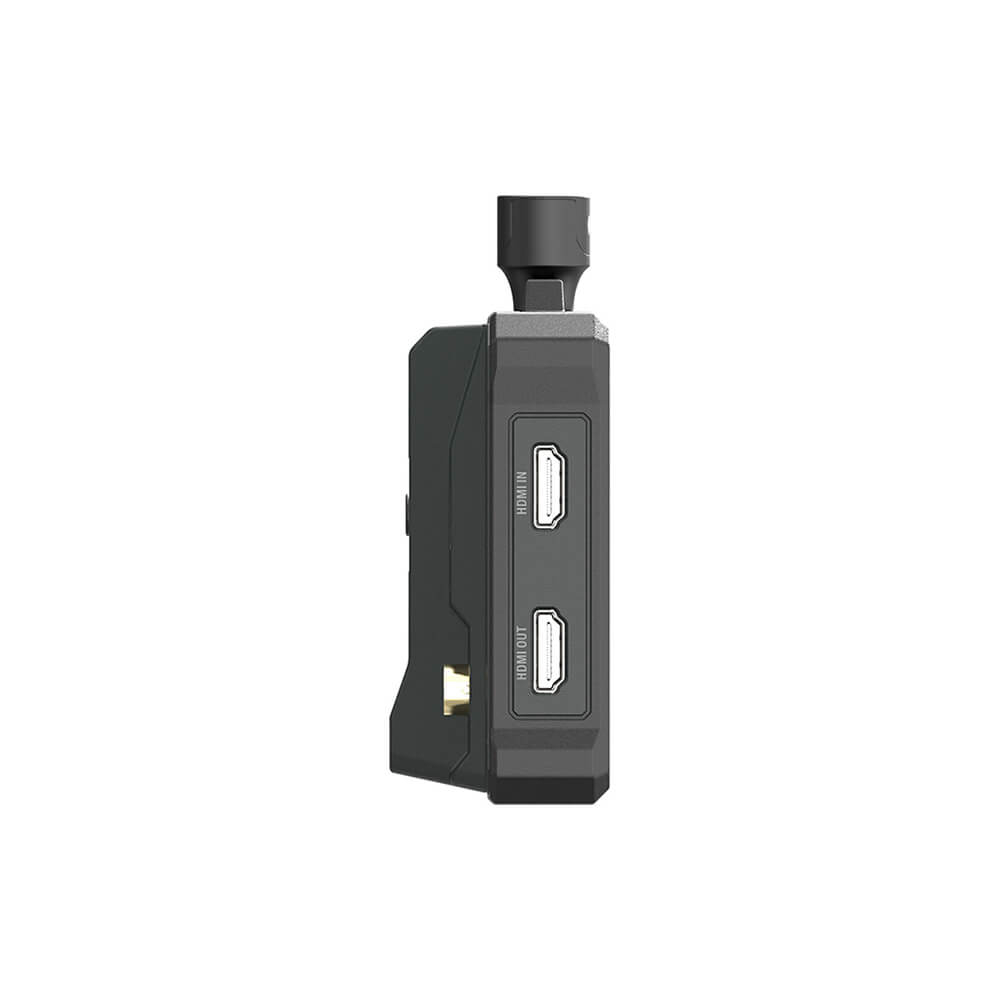

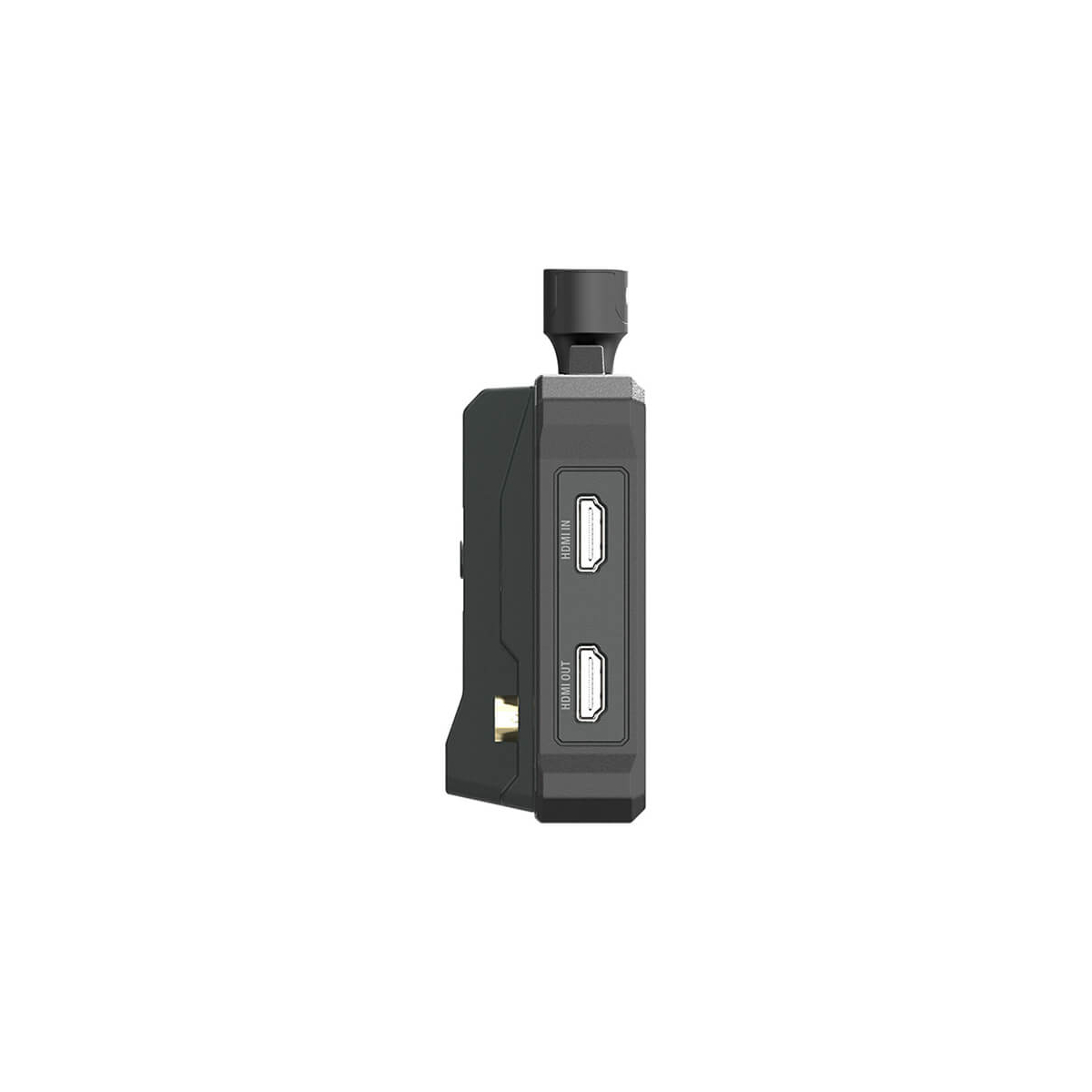

The Mars M1 features HDMI input and HDMI loop output, one 3G-SDI input, as well as a 3.5mm headphone output
Wirelessly Transmit and Receive Video
The Mars M1 supports UHD 4K30 HDMI input and output for expanded connectivity and compatibility. The SDI provides expanded frame rate flexibility for both broadcast and production frame rate standards and compatibility through production and postproduction.
Smart Channel Scan
Smart Channel Scan enables you to find the interference-free option for a stable connection experience. The optimum channel is selected automatically upon startup.
Image Functions
The Mars M1 features multiple built-in functions such as 4x zoom, focus assist, and waveform display.
Wireless Range
Transmission distance up to 450'.

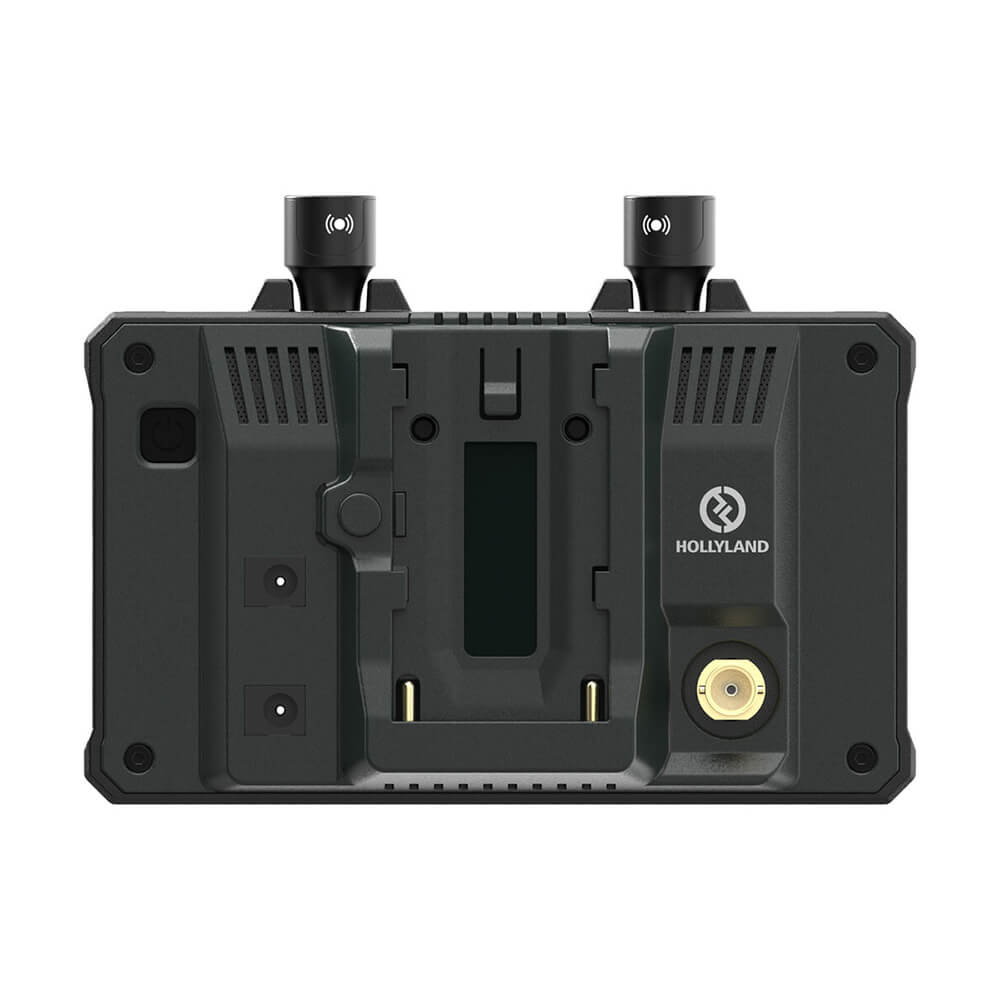

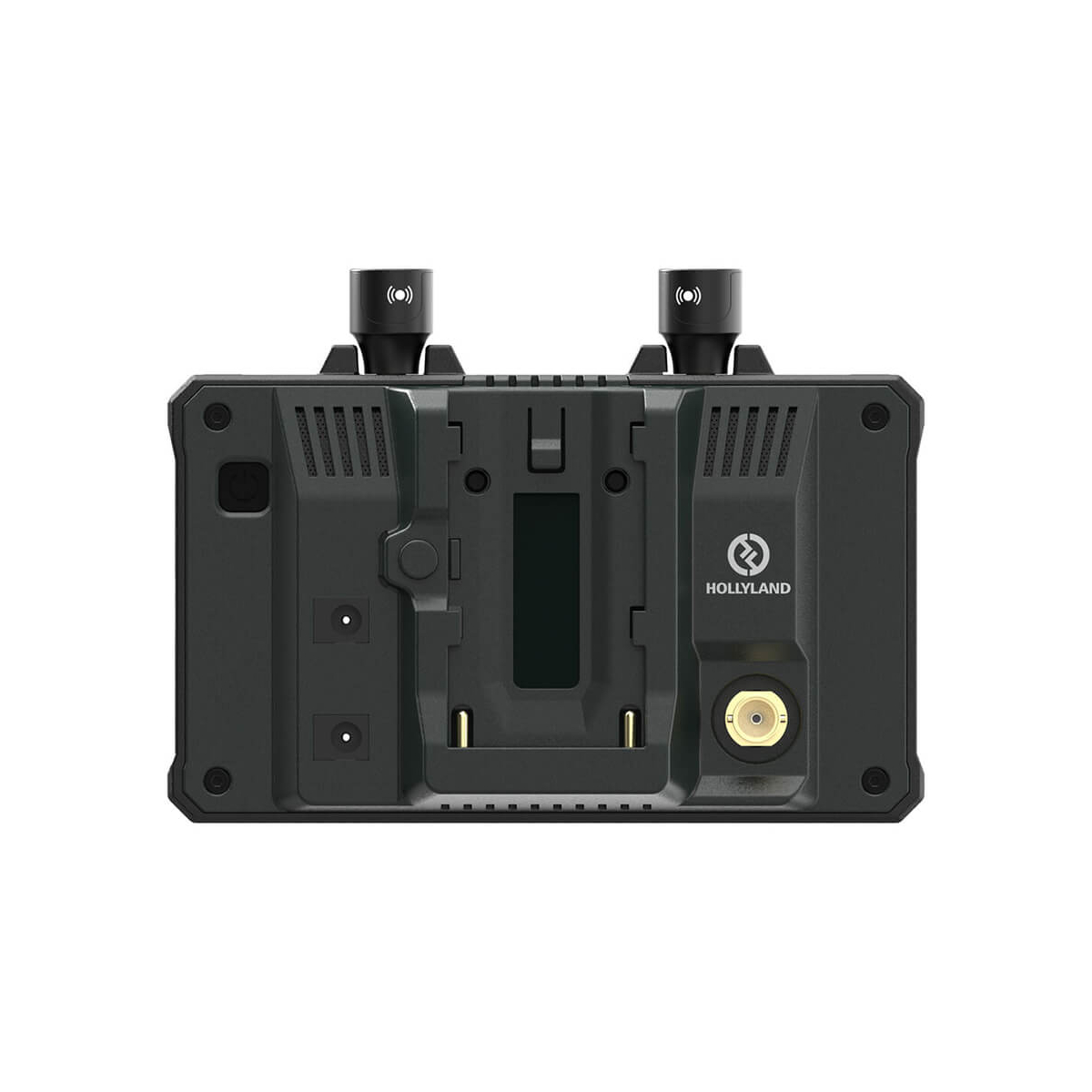

BatteryBuilt-in NP-F/L-series battery plate.
App Monitoring
The Hollyview app for Android and iOS allows you to monitor your transmission on a smartphone or tablet. It allows you to transmit to apps and receivers and receive from transmitters such as the Mars 400S Pro or Mars 4K in the following configurations:M1 TX to 2 M1 RX
- M1 to M1 RX + 2 apps
- M1 to 4 apps
- M1 TX to 2 Mars 400S Pro or Mars 4K receivers
- Mars 400S Pro or Mars 4K transmitter to M1 + 2 apps
Mars M1 5.5" Wireless Transceiver Monitor Spec | ||
Transmitter Mode | Receiver Mode | |
Video Input Interface | SDI input (BNC female) HDMI input (Type-A female) |
|
Video Output Interface | HDMI output (Type-A female) | |
Antenna Interface | Two RP-SMA male interfaces | |
Power Input Interface | DC power input | |
Power Output Interface | DC power output | |
Headphone Jack | 3.5mm jack | |
Firmware Upgrade Interface | USB Type-C | |
Screen Size | 5.5" touch screen | |
Screen Resolution | 1920x1080 pixels | |
Pixel Density | 403 PPI | |
Aspect Ratio | 16 : 9 | |
Brightness | 1000 nits | |
Contrast Ratio | 1000 : 1 | |
Supply Voltage Range | 7–16V DC, nominal 12V | |
Power Consumption | <14.5W (without DC output) |
<10W (without DC output) |
Net Weight | 13.5oz (380g) (antennas excluded) |
13.5oz (380g) (antennas excluded) |
Dimension | (LxWxH): 152x96x40mm (5.98"x3.78"x1.57") (antennas excluded) |
(LxWxH): 152x96x40mm (5.98"x3.78"x1.57") (antennas excluded) |
Parameters | ||
Operating Frequency | 5.1–5.8GHz | 5.1–5.8GHz |
Codec Technology | H.264 | H.264 |
Bit Rate | 12Mbps | 12Mbps |
TX Power | Max. 22dBm | Max. 22dBm |
RX Sensitivity | -80dBm | -80dBm |
Transmission Latency | <0.08s | <0.08s |
Display Latency | 5 frames | 5 frames |
Bandwidth | 20MHz | 20MHz |

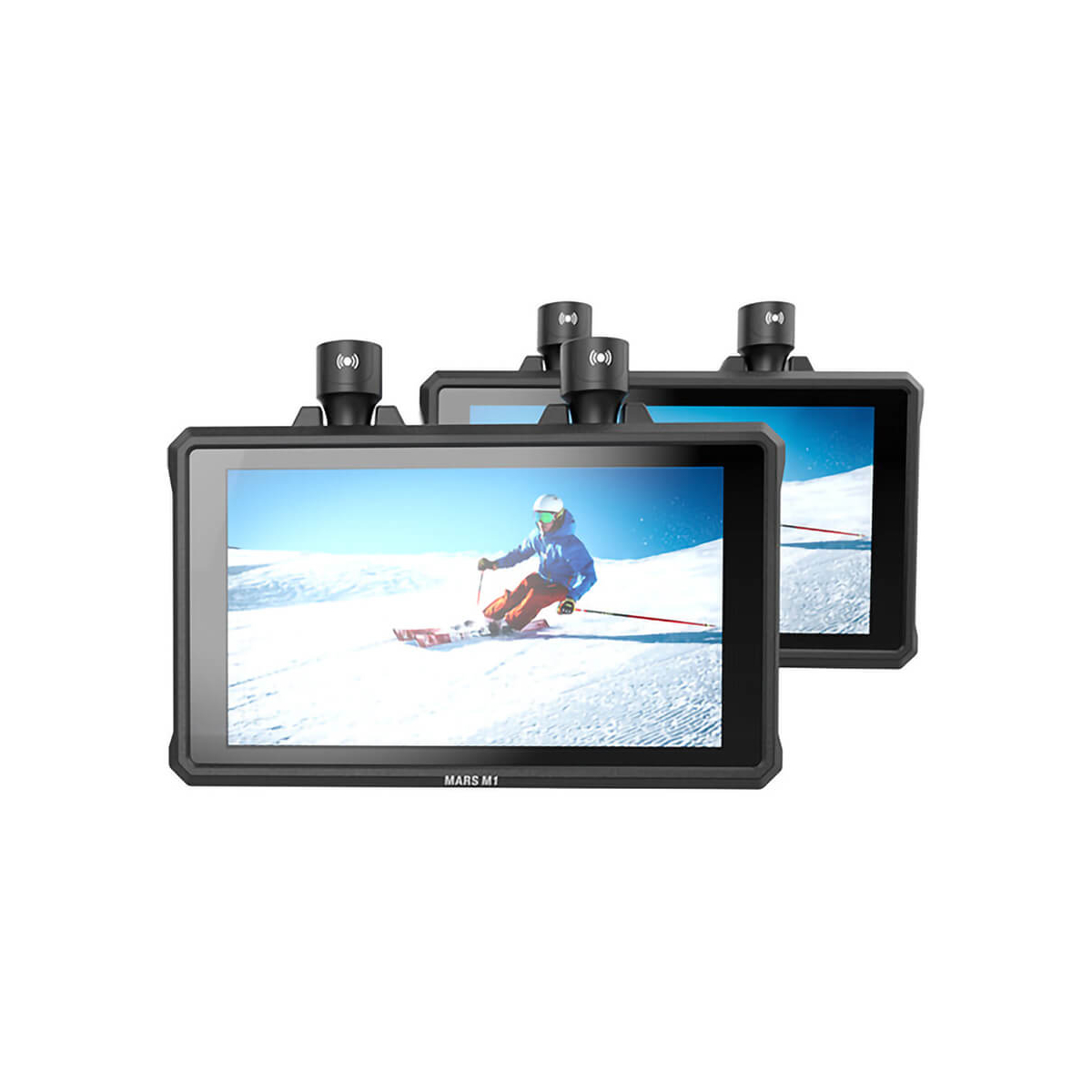

- Hollyland Mars M1 5.5" Wireless Transceiver Monitor Kit (Set of 2)
- 2 x Hollyland Mars M1 5.5" Wireless Transceiver Monitor
- 2 x Tempered Glass Film
- 2 x OTG Adapter
- Limited 1-Year Manufacturer Warranty
