【Hollyland】Mars M1 5.5" Wireless Transceiver Monitor

  • Wirelessly Monitor Video from up to 450'
  • Transmitter & Receiver Mode Switching
  • 5.5" Touchscreen Display
  • Transmit/Receive up to 4K30 Video
  • SDI Input, HDMI Input & Output
  • Presets & USB Type-C 3D LUT Import
  • High 1000 cd/m² Brightness
  • Low 0.08s Latency, Smart Channel Scan
  • DC Power Input & Output
  • Built-In L-Series Battery Plate

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
HL-MARS M1
Write Your Own Review
You're reviewing:【Hollyland】Mars M1 5.5" Wireless Transceiver Monitor
Your Rating

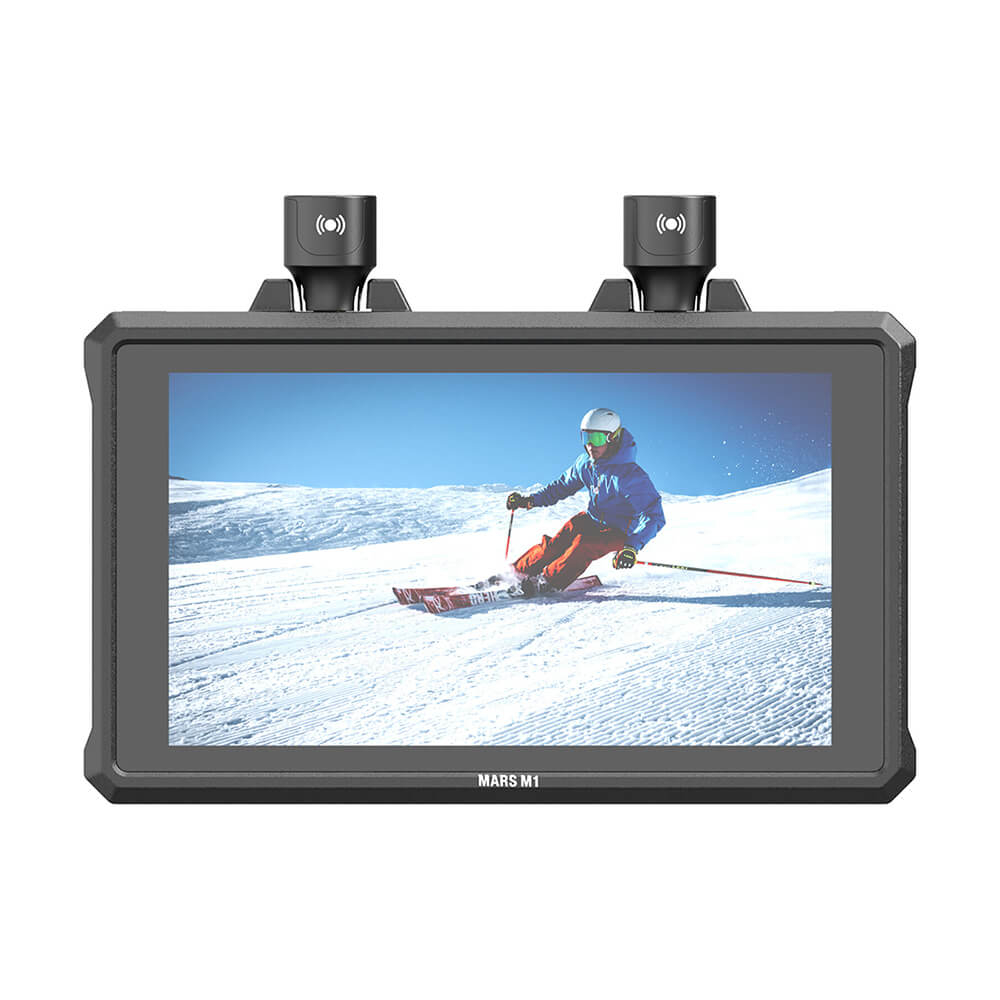

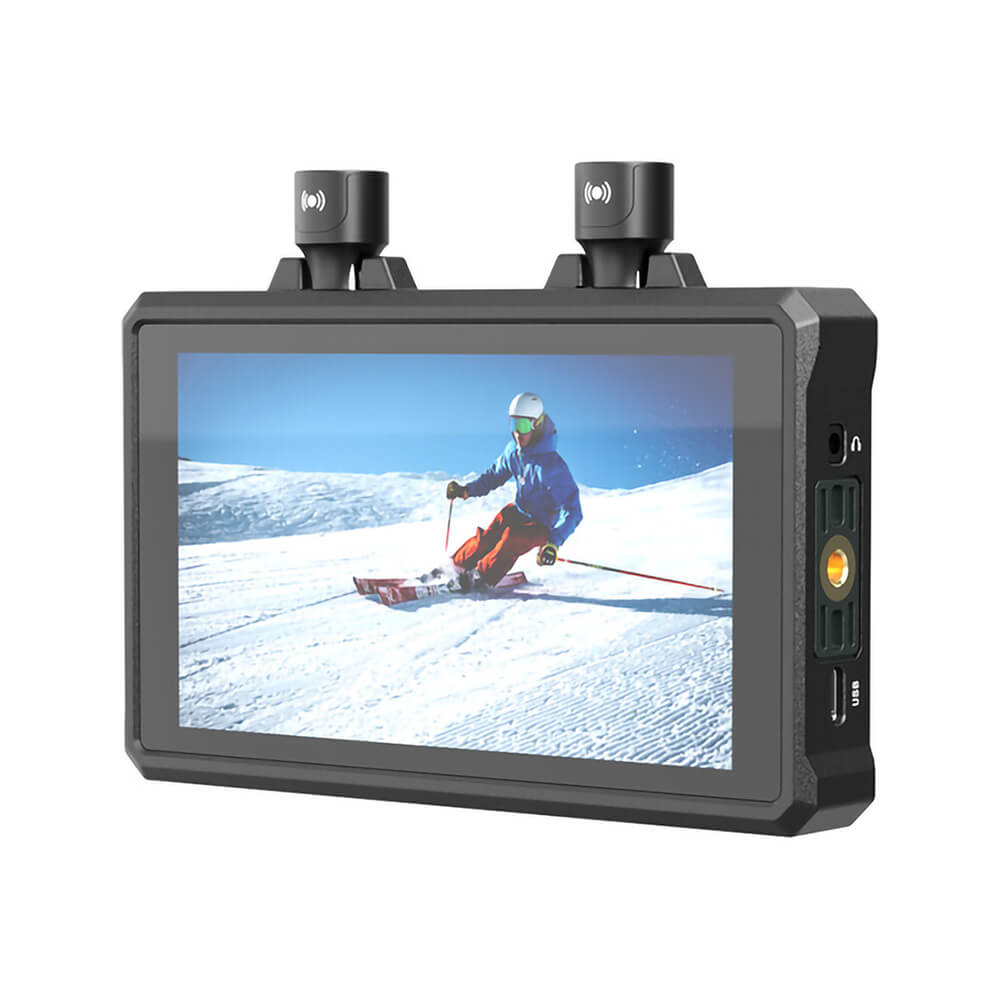

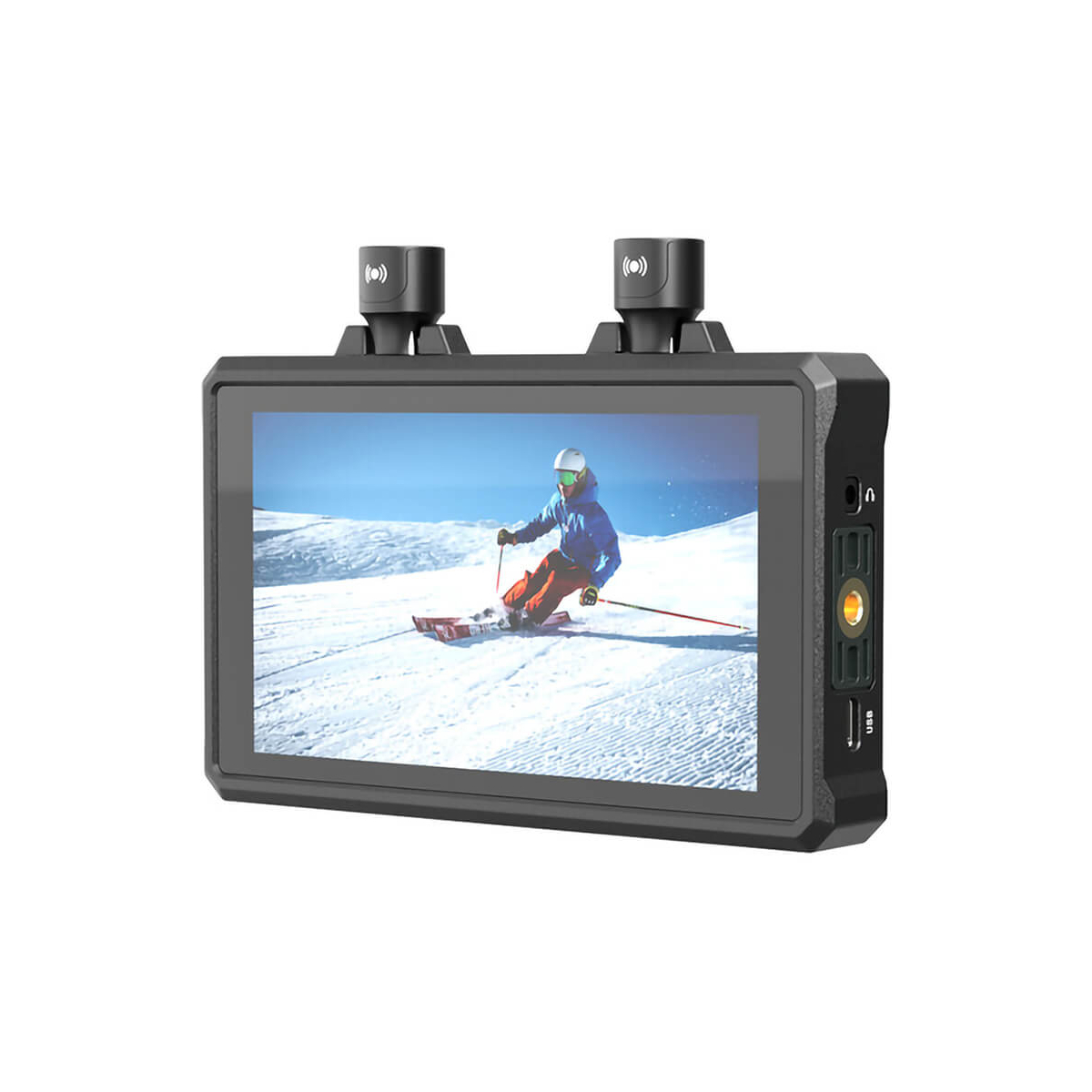

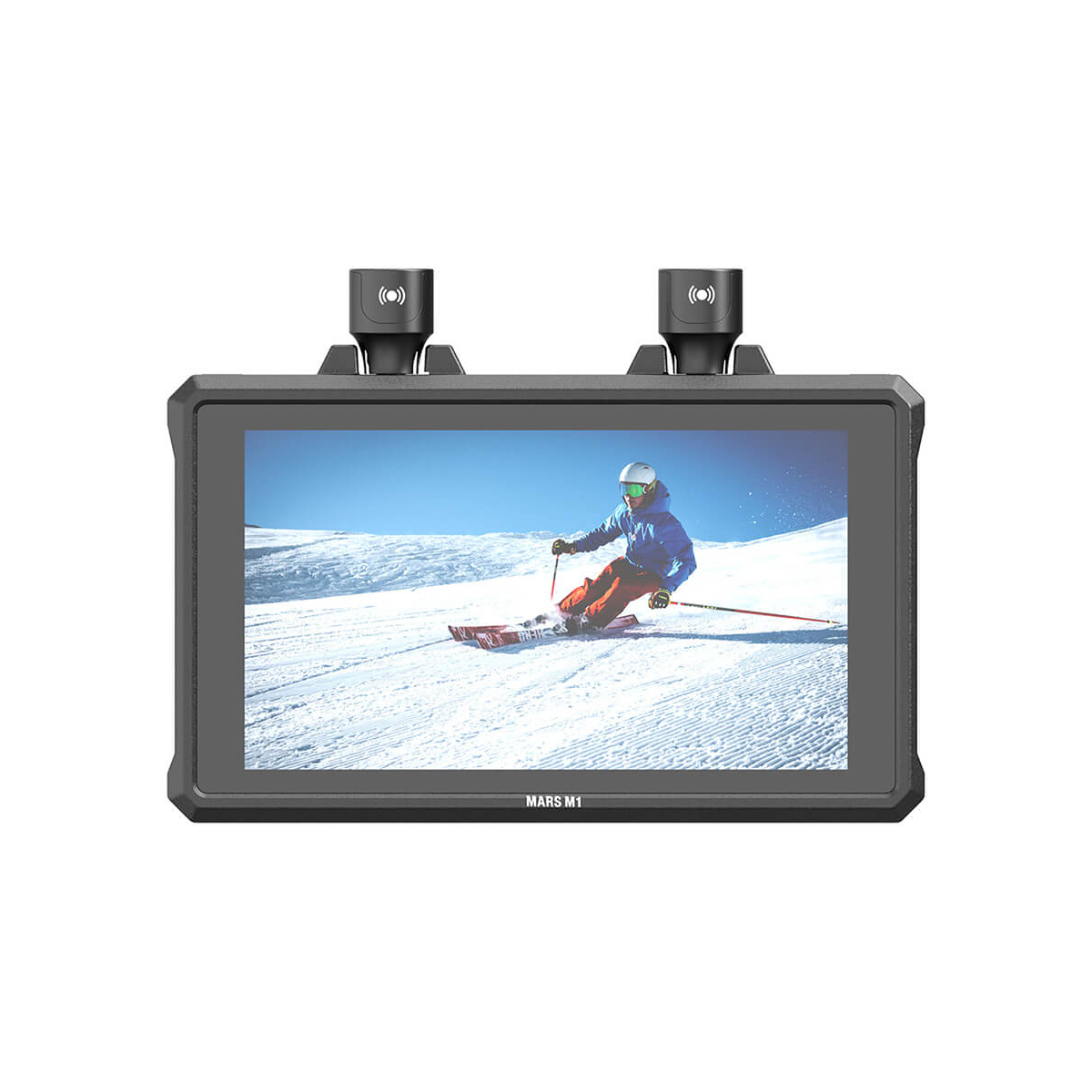

Transmit, receive, and monitor high-quality wireless video transmissions using this Mars M1 5.5" Wireless Transceiver Monitor Kit from Hollyland. This kit includes two Mars M1 5.5" monitors that can be used as either a transmitter or a receiver. Each Mars M1 features a 5.5" touchscreen display that provides a sharp resolution and 1000 cd/m² brightness for follow focus and director's monitoring applications. The built-in wireless transmitter and receiver allow you to send and receive video between M1 units as well as to/from the Mars 400S Pro, Mars 300 Pro, and Mars 4K wireless transmitters/receivers at a distance of up to 450'. You can also monitor video from the M1 on smartphones and tablets running the companion Hollyview app.

Each monitor supports up to UHD 4K30 video input via its HDMI input, and it features an HDMI loop output and an SDI input that supports multiple broadcast drop-frame frame rates. Multiple imaging tools are available using the built-in firmware, including scopes, peaking, and storage of 3D LUTs on the monitor. Each can be powered using a built-in L-series battery plate or via its DC input. They also feature a DC power output so you can power your camera or other gear.


Display
5.5" touchscreen LCD screen with 1000 cd/m² brightness


Compatibility
As well as transmitting between the two M1 units, the M1 can also transmit and receive from all Mars 300 Pro, Mars 400S Pro, and Mars 4K models.


Input/Output

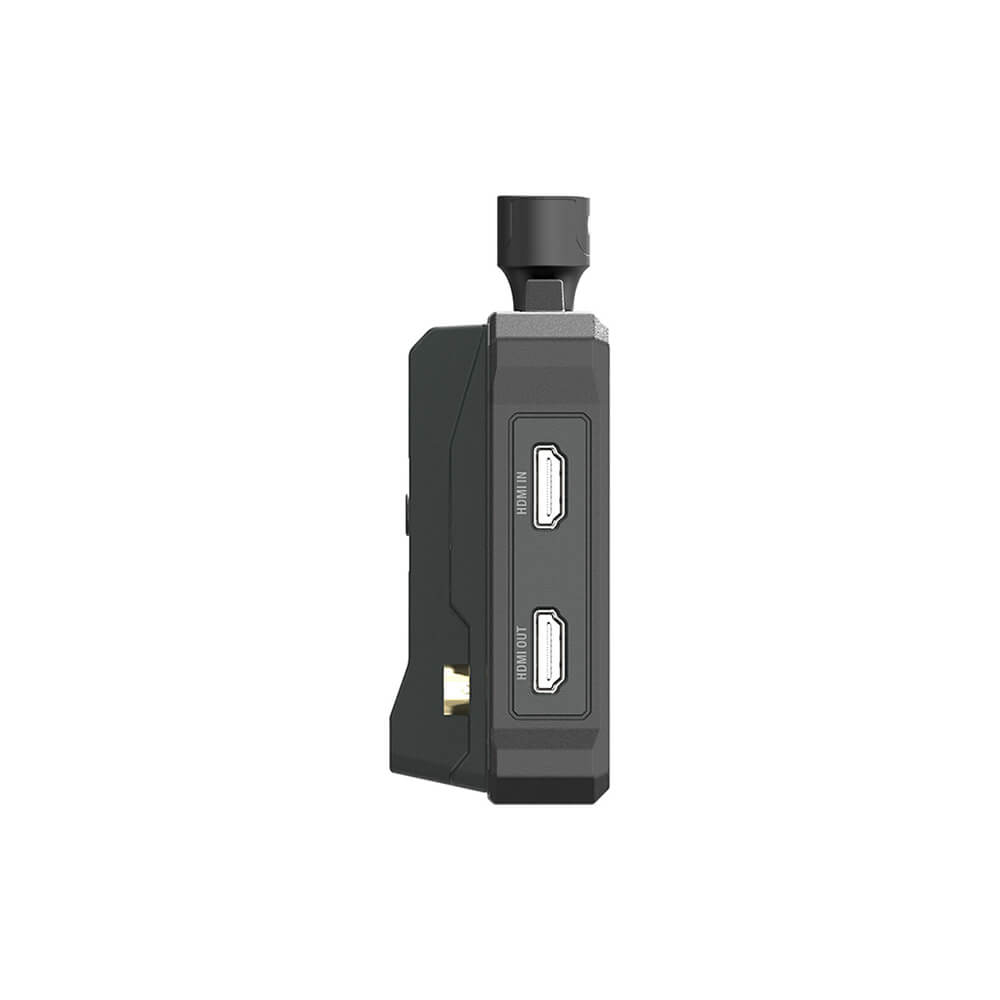

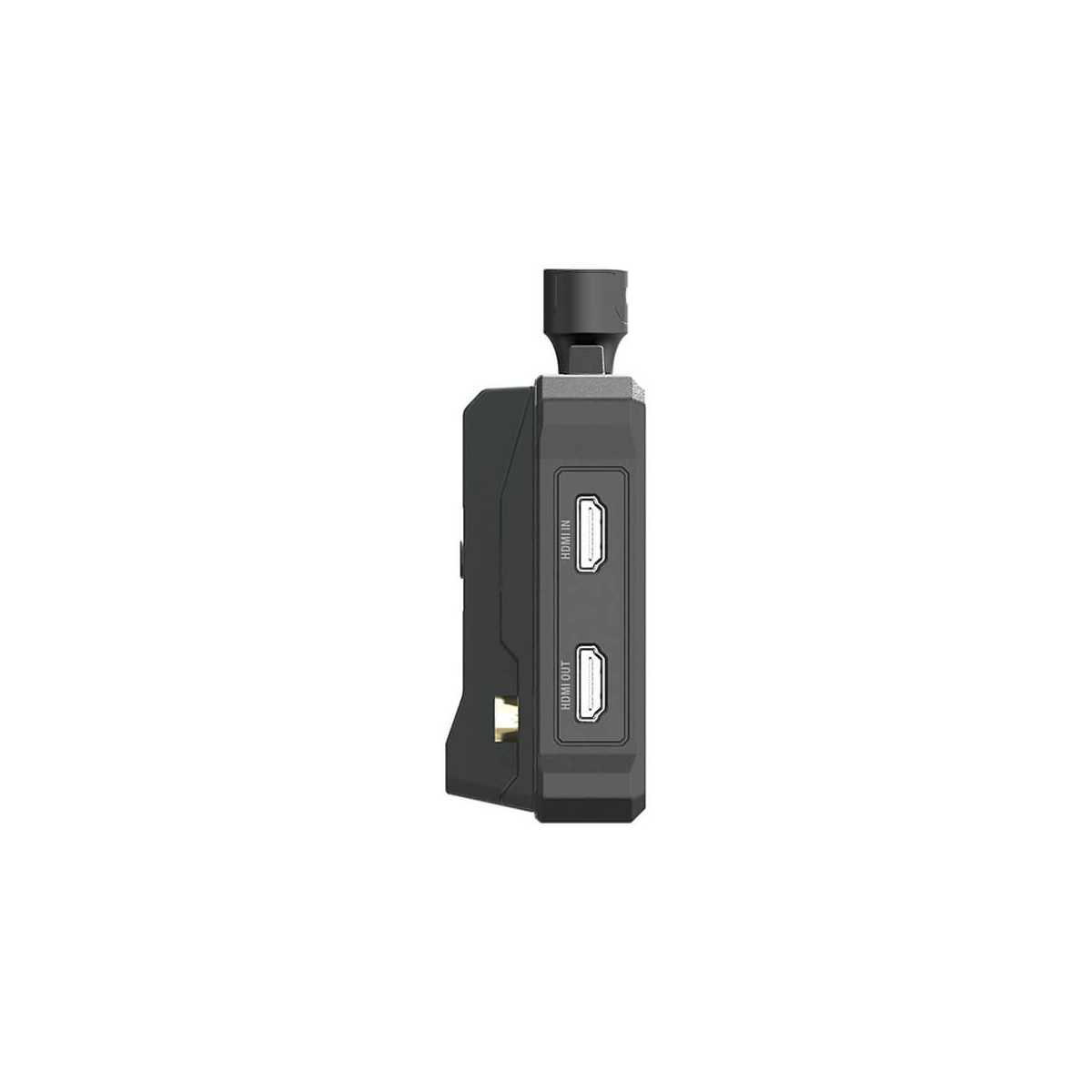

The Mars M1 features HDMI input and HDMI loop output, one 3G-SDI input, as well as a 3.5mm headphone output


Wirelessly Transmit and Receive Video
The Mars M1 supports UHD 4K30 HDMI input and output for expanded connectivity and compatibility. The SDI provides expanded frame rate flexibility for both broadcast and production frame rate standards and compatibility through production and postproduction.


Smart Channel Scan
Smart Channel Scan enables you to find the interference-free option for a stable connection experience. The optimum channel is selected automatically upon startup.


Image Functions
The Mars M1 features multiple built-in functions such as 4x zoom, focus assist, and waveform display.


Wireless Range

Transmission distance up to 450'.

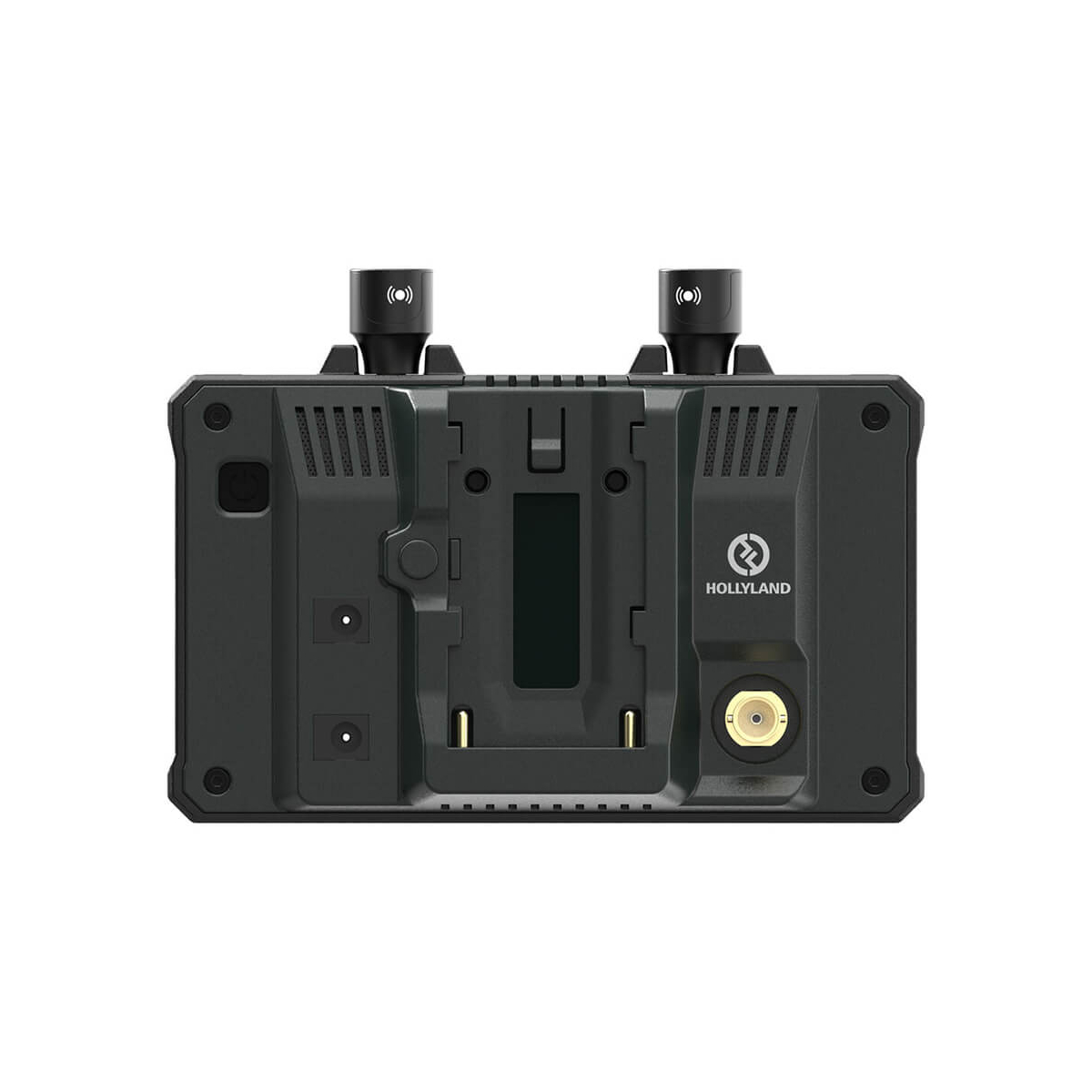

Battery

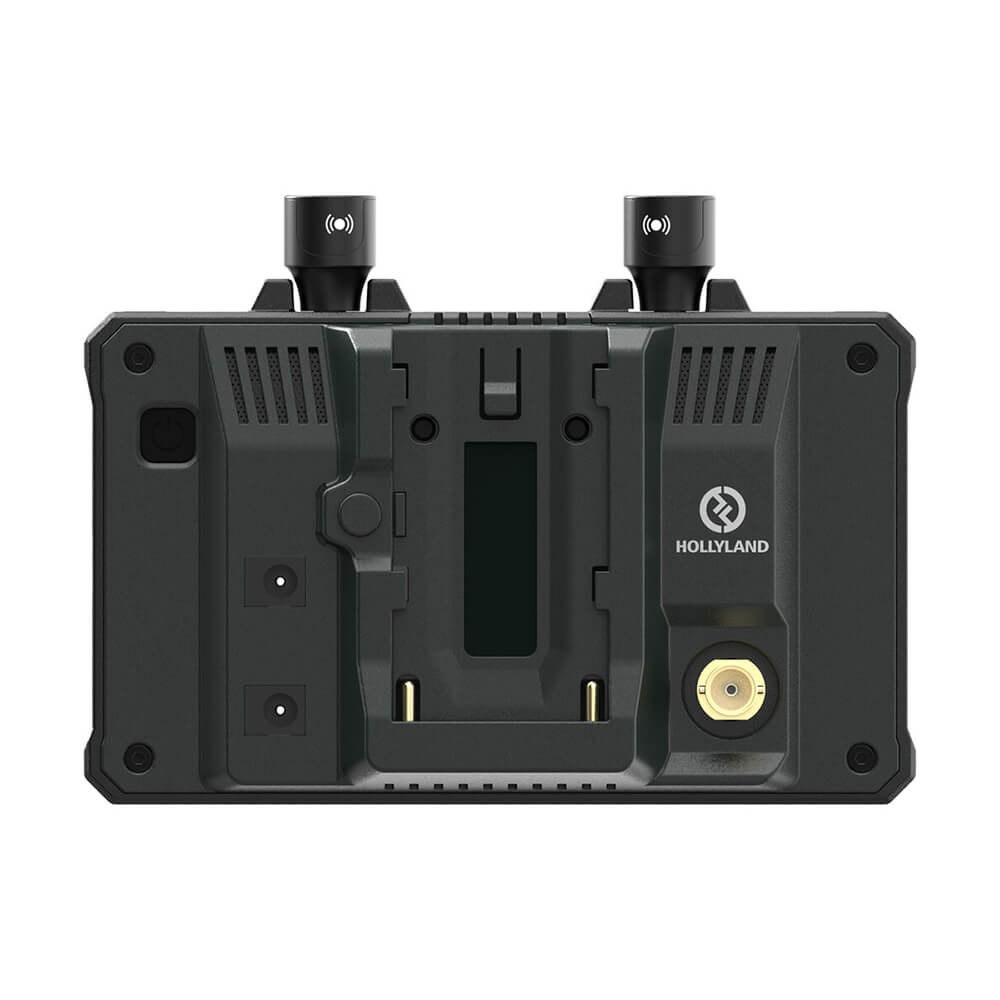

Built-in NP-F/L-series battery plate.


App Monitoring
The Hollyview app for Android and iOS allows you to monitor your transmission on a smartphone or tablet. It allows you to transmit to apps and receivers and receive from transmitters such as the Mars 400S Pro or Mars 4K in the following configurations:M1 TX to 2 M1 RX

  • M1 to M1 RX + 2 apps
  • M1 to 4 apps
  • M1 TX to 2 Mars 400S Pro or Mars 4K receivers
  • Mars 400S Pro or Mars 4K transmitter to M1 + 2 apps



  • Hollyland Mars M1 5.5" Wireless Transceiver Monitor Kit (Set of 2)
  • 2 x Hollyland Mars M1 5.5" Wireless Transceiver Monitor
  • 2 x Tempered Glass Film
  • 2 x OTG Adapter
  • Limited 1-Year Manufacturer Warranty
Mars M1 5.5" Wireless Transceiver Monitor Spec
  Transmitter Mode Receiver Mode
Video Input Interface SDI input (BNC female)
HDMI input (Type-A female)

Video Output Interface HDMI output (Type-A female)
Antenna Interface Two RP-SMA male interfaces
Power Input Interface DC power input
Power Output Interface DC power output
Headphone Jack 3.5mm jack
Firmware Upgrade Interface USB Type-C
Screen Size 5.5" touch screen
Screen Resolution 1920x1080 pixels
Pixel Density 403 PPI
Aspect Ratio 16 : 9
Brightness 1000 nits
Contrast Ratio 1000 : 1
Supply Voltage Range 7–16V DC, nominal 12V
Power Consumption <14.5W
(without DC output)
<10W
(without DC output)
Net Weight 13.5oz (380g)
(antennas excluded)
13.5oz (380g)
(antennas excluded)
Dimension (LxWxH): 152x96x40mm
(5.98"x3.78"x1.57") (antennas excluded)
(LxWxH): 152x96x40mm
(5.98"x3.78"x1.57") (antennas excluded)
Parameters
Operating Frequency 5.1–5.8GHz 5.1–5.8GHz
Codec Technology H.264 H.264
Bit Rate 12Mbps 12Mbps
TX Power Max. 22dBm Max. 22dBm
RX Sensitivity -80dBm -80dBm
Transmission Latency <0.08s <0.08s
Display Latency 5 frames 5 frames
Bandwidth 20MHz 20MHz
  • Hollyland Mars M1 5.5" Wireless Transceiver Monitor
  • 2 x Antenna
  • Limited 1-Year Manufacturer Warranty
