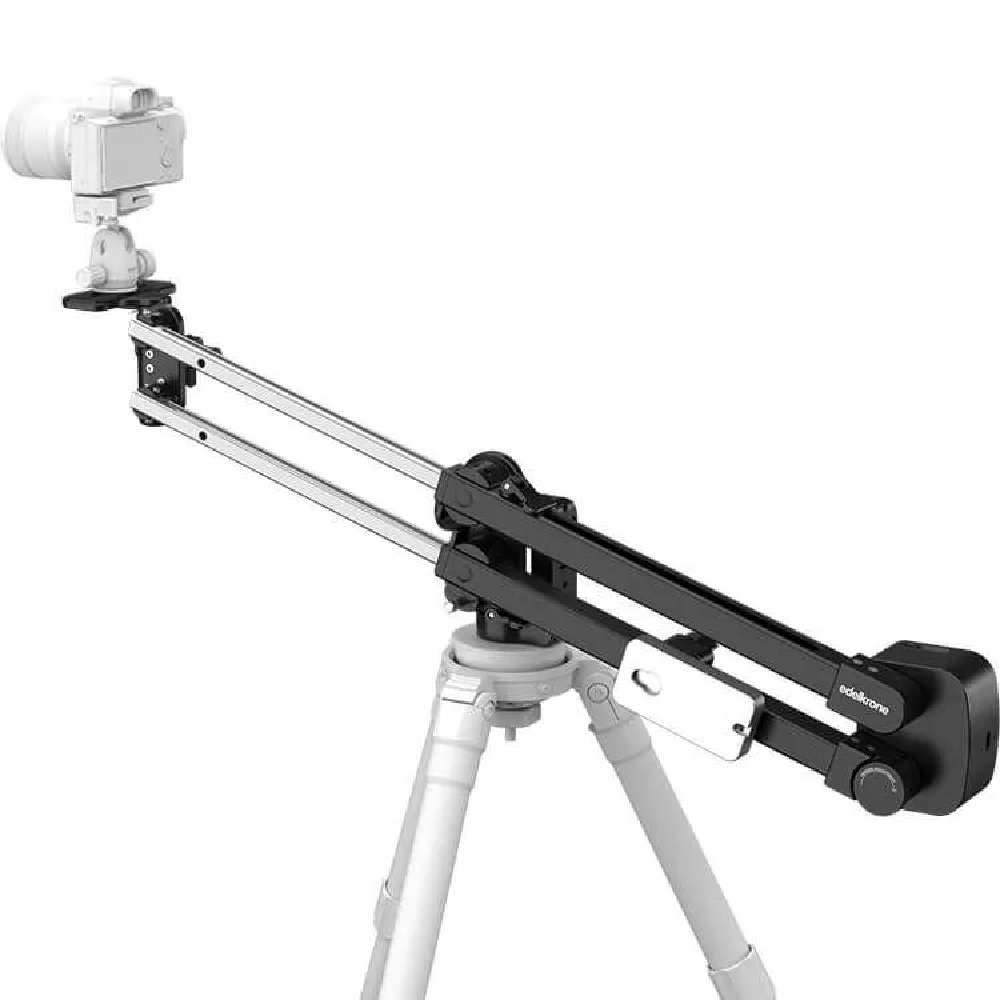

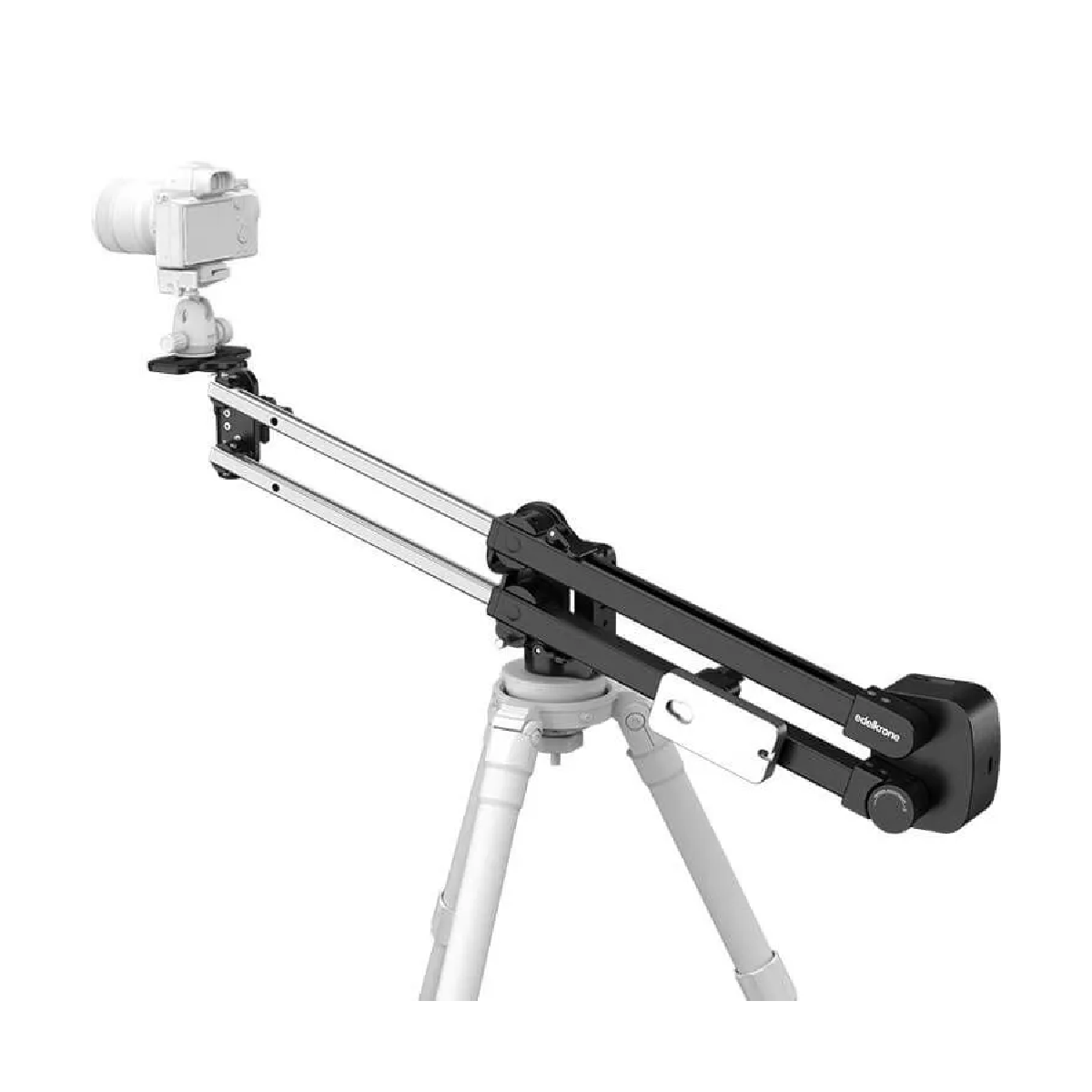

Choreograph dynamic, sweeping pan, tilt, and diagonal moves using the JibONE v2 Motion Control Jib Arm from edelkrone and your DSLR, mirrorless, or video camera. The tripod-mounted JibONE v2 provides improved wireless connections with a longer range and an OLED screen for instant feedback. Updated power functions include a physical power button and power-saving and auto-off modes to help stretch your battery power. This durable aluminum jib arm provides motorized tilt and pan functions for camera rigs up to 11 lb and can be operated manually or in fully wired mode using Link Port.
JibONE v2 Features
The JibONE v2 offers an improved wireless connection and longer range, a physical power switch, and power-saving and automatic-off modes to help conserve your battery power.
OLED Screen
An OLED screen provides instant feedback for an improved user experience.
Ultracompact Camera Jib
Constructed from CNC-machined aluminum, this ultracompact jib arm supports up to 11 lb total and has a camera travel range of 20". It folds down to just 24" and fits in the edelkrone Backpack so you can take it almost anywhere.
Motorized and Manual Control
Create quiet, backlash-free motorized jib moves using your smartphone and the Bluetooth LE iOS and Android-compatible app, or simply operate the jib manually. A fully wired option is available using the Link Port.
Versatile Power Options
The JibONE v2 does not include a power supply but rather is designed to work with a variety of popular batteries you may already have in your kit. Separately available power options include an AC adapter and Canon LP-E6 and Sony L-Series battery brackets.
Maintains Camera Level
Use the JibONE v2 to keep your camera level, even during horizontal, vertical, and diagonal moves. The pan and tilt axes of the JibONE v2 are coupled and can be set at 22.5° increments.
Compatibility
Use the JibONE v2 with the separately available HeadONE, Pan PRO, HeadPLUS v1/v2, or HeadPLUS PRO v1/v2 for even greater control and advanced moves with target tracking, target switching, sequencing, and target learning. You can also connect select cameras to the 2.5mm shutter trigger port to control shutter and run/stop functions.
Edelkrone JibONE V2 Specification Display |
|
Panel Type | OLED |
Size | Not Specified by Manufacturer |
Touchscreen | No |
Wireless |
|
Wi-Fi | 802.11a/b/g; Single-Band (2.4 GHz) |
Bluetooth | Yes |
Battery Chemistry | Lithium-Ion |
Battery Capacity | 28.8 Wh |
Maximum Battery Life | 2 Hours |
Power |
|
DC Input Power | 9 VDC at 2.2 |
Physical |
|
Mounting | Top: 1 x 3/8"-16 Screw Bottom: 1 x 3/8"-16 Thread |
Material of Construction | CNC-Machined Aluminum, Stainless Steel |
Dimensions | 24 x 6.7 x 5.9" / 61 x 17 x 15 cm (Folded) |
Weight | 12.1 lb / 5.5 kg (with 2.2 lb Counterweight) |
- edelkrone JibONE v2 Motion Control Jib Arm
- Main Counterweight
- 3 x Counterweight (2.2 lb)
- Shutter Extension Cable
- Limited 1-Year Manufacturer Warranty
