Horizontal and/or Vertical image flipping via the built in scaler.
4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2
Horizontal and/or Vertical image flipping via the built in scaler.
Features the following 14 modes:
- SDI IN to HDMI and SDI OUT
- SDI IN to SDI OUT and HDMI IN to HDMI OUT
- SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
- SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
- HDMI IN to SDI OUT and SDI IN to HDMI OUT
- HDMI IN to HDMI and SDI OUT
- HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
- HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
- Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
- Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
- Scaled SDI IN to HDMI and SDI OUT
- Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
- Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
- Scaled HDMI IN to HDMI and SDI OUT
Professional 3G/HD/SD Test Pattern Generator featuring:
- 26 Selectable Output Formats
- 54 Test Patterns including Luma and Chroma Zone-plates
Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.

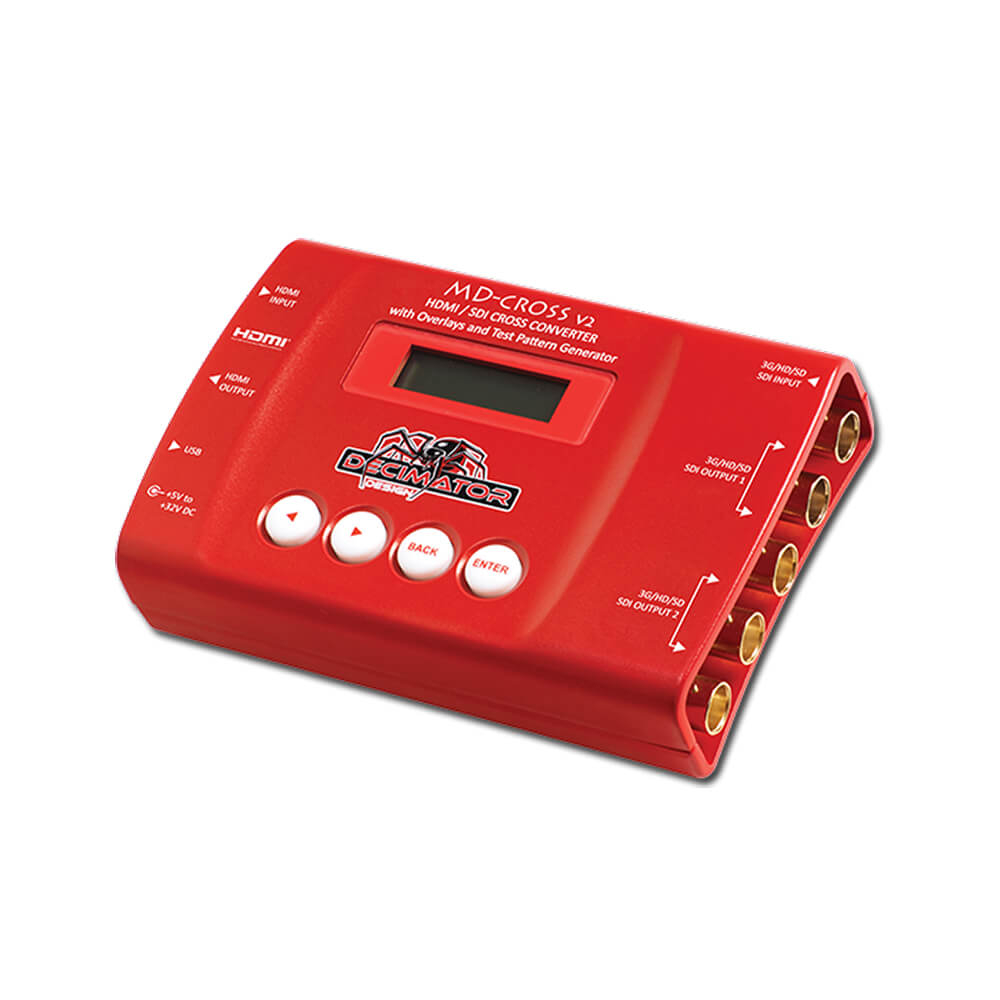

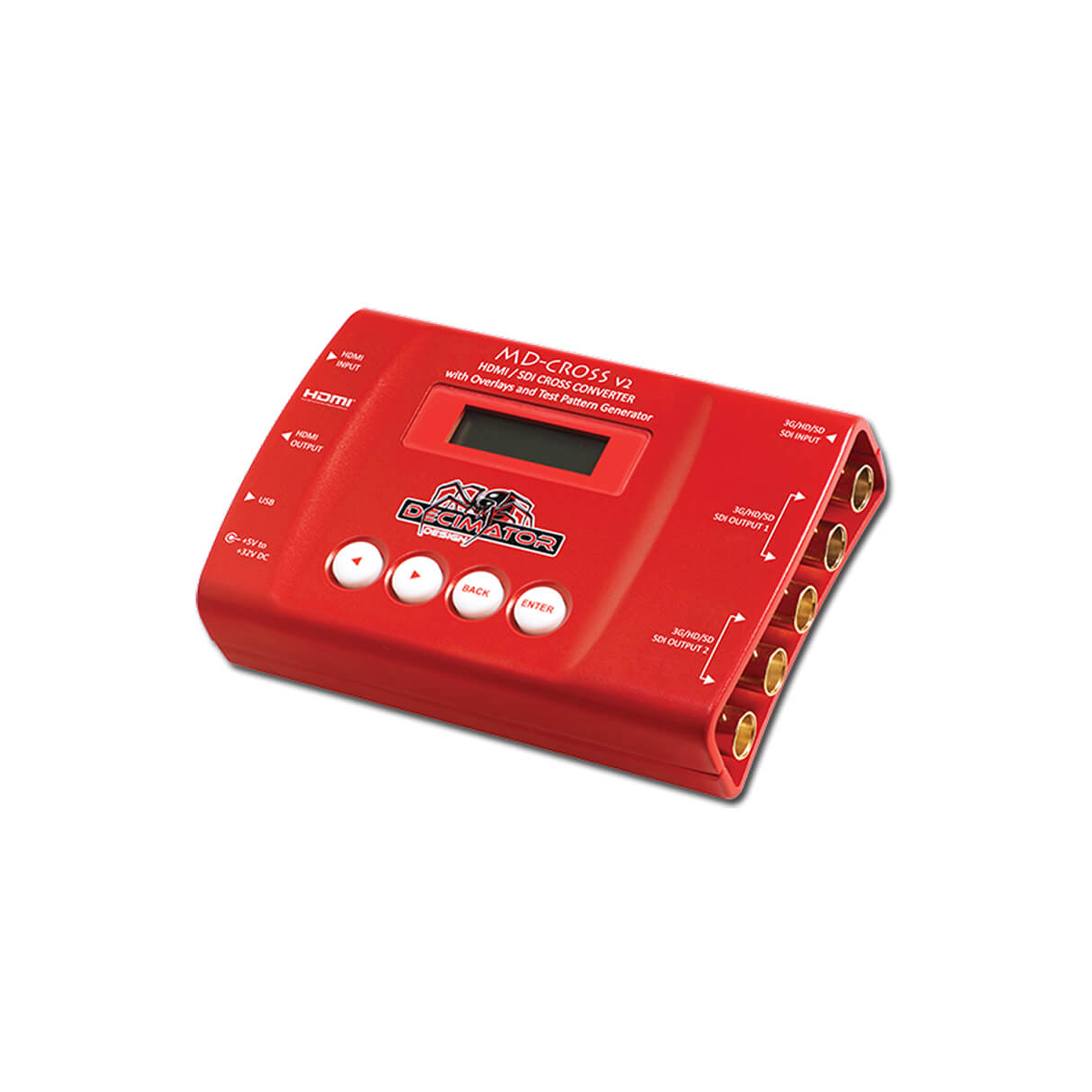

The MD-CROSS is a truly portable converter, that incorporates a new easy to use LCD and button control system. This gives you easy access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with annoying dip switches or having to carry around a computer to change a simple setting are gone.
- (3G/HD/SD)-SDI Active Loop-Through Output
- Full 16-Channel Audio Metering Overlays
- Adjustable Safe Title and Safe Action Overlays and static Center Cross
- Text Overlays
- USB port for control and firmware updates
- New Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
Specification |
|
SDI FORMATS |
3G:SMPTE 424M @ 2.97 and 2.967Gb/s
HD:SMPTE 292M / 274M / 296M @ 1.485 and 1.435Gb/s
SD:SMPTE 259M@270Mb/s
|
INPUTS |
|
POWER |
|
LCD / BUTTON MENU OPTIONS |
|
OUTPUTS |
|
DIMENSIONS | 79.5mm x 123mm x 29.5mm (3.1” x 4.8” x 1.2”) |
- MD-Cross V2 Converter
- (3G/HD/SD)-SDI Active Loop-Through Output
- Full 16-Channel Audio Metering Overlays
- Adjustable Safe Title and Safe Action Overlays and static Center Cross
- Text Overlays
- USB port for control and firmware updates
- New Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
- 3-years Limited Manufacturer's Warranty
