- Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
- Low cost miniature (3G/HD/SD)-SDI 1 to 4 MultiViewer or 4 to 1 input multiplexer
- Custom Layouts with various standard layouts
- 16 Character UMD overlay per window with individual enables, custom positioning and size
- 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
- Audio ID overlay
- 3 pin connector on the DR1-10B1G rear module allows for Dynamic UMD and Tallies via RS422/485 using the industry standard TSL protocol
- Tallies can be applied to either Tally Boxes (Default) or Border
- Tally boxes allows for up to 4 Tallies per window
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen MultiViewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- 4 x (3G/HD/SD)-SDI inputs with auto detection (29 Formats supported in total)
- Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per quadrant
- In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI outputs
- USB Mini B port for control and firmware updates
- Supports openGear DashBoard for control
- The DR1-10B1G rear is sold seperately and has 10 BNC connectors and a 3 pin connector for RS422/485.
Specification |
|
SDI INPUT & OUTPUT FORMATS |
3G : SMPTE 424M @ 2.97 and 2.967Gb/s
HD : SMPTE 292M / 274M / 296M @ 1.485 and 1.435Gb/s
SD : SMPTE 259M @ 270Mb/s
|
LED STATUS |
|
INPUTS |
|
OUTPUTS |
|
POWER |
|

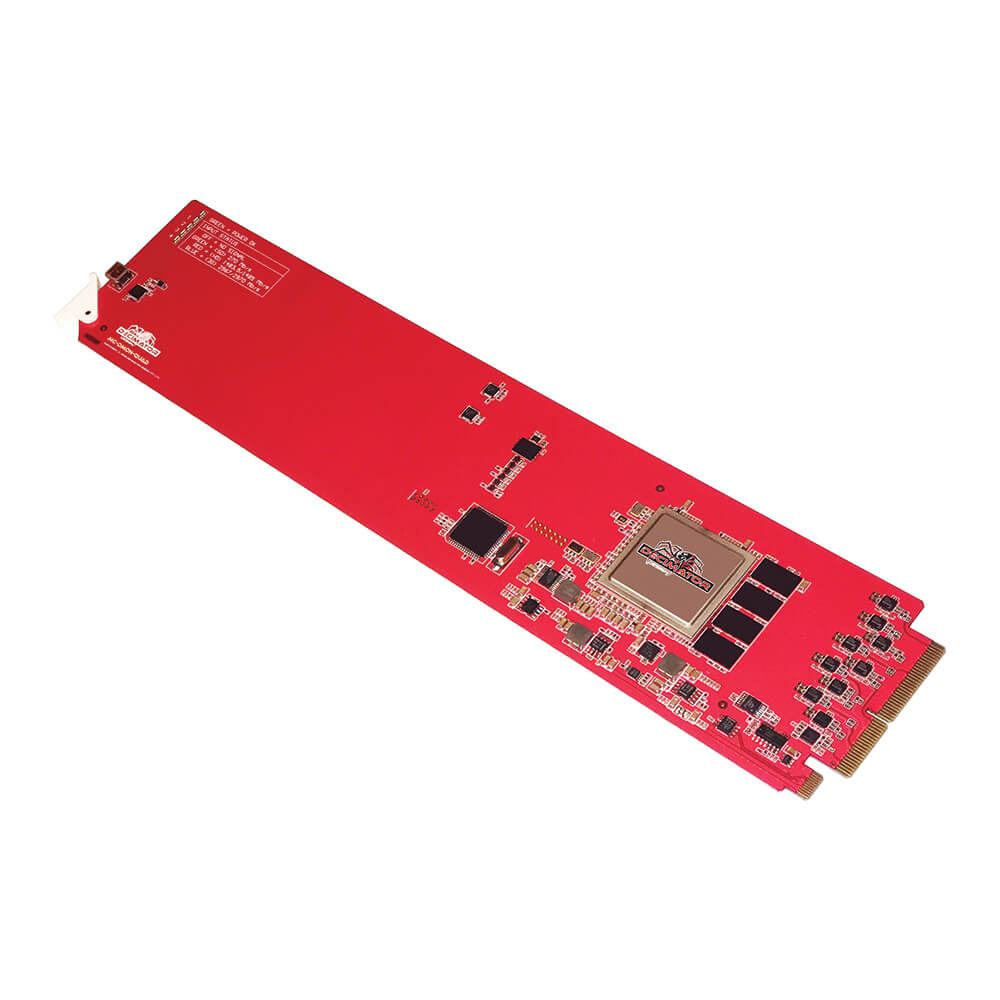

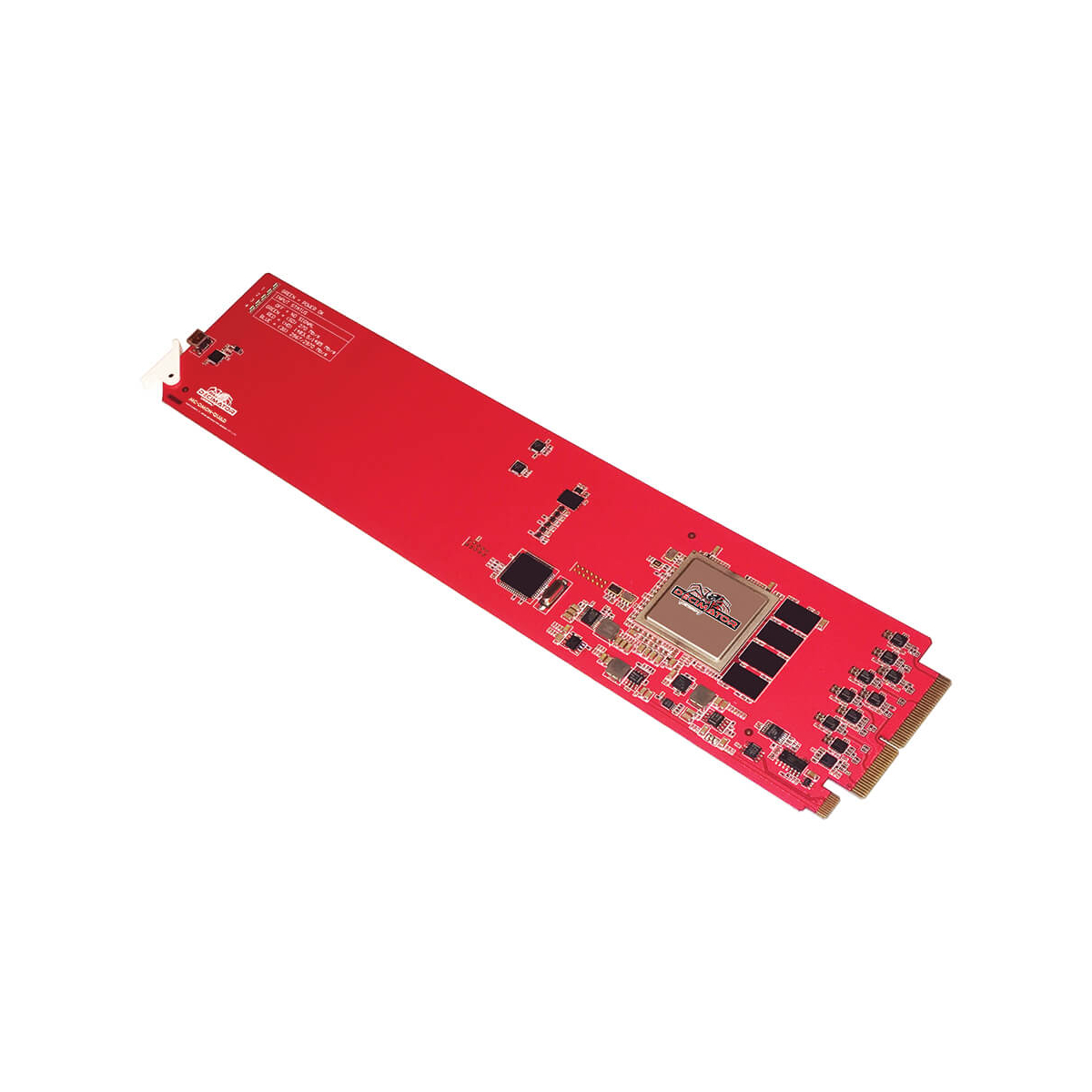

- MC-DMON-QUAD SDI MultiViewer
- (DR1-10B1G rear sold separately)
- 3-years Limited Manufacturer's Warranty
