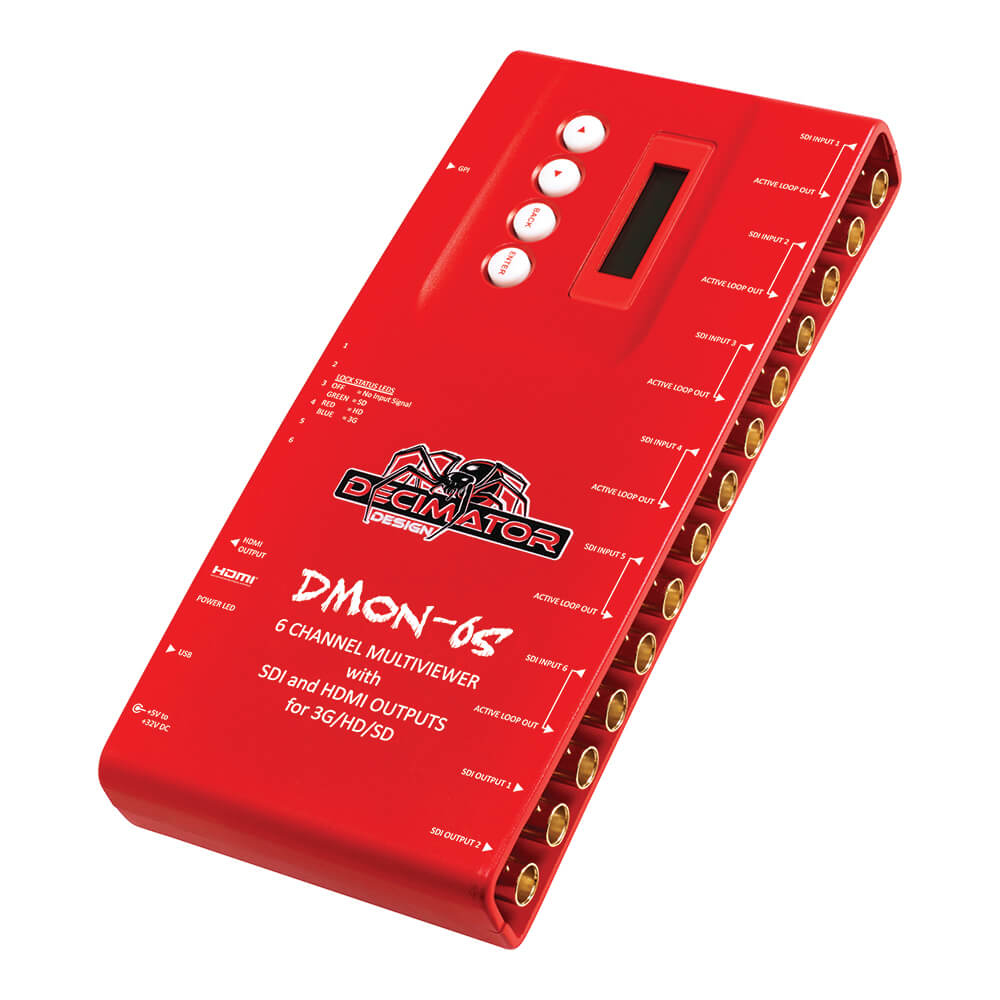

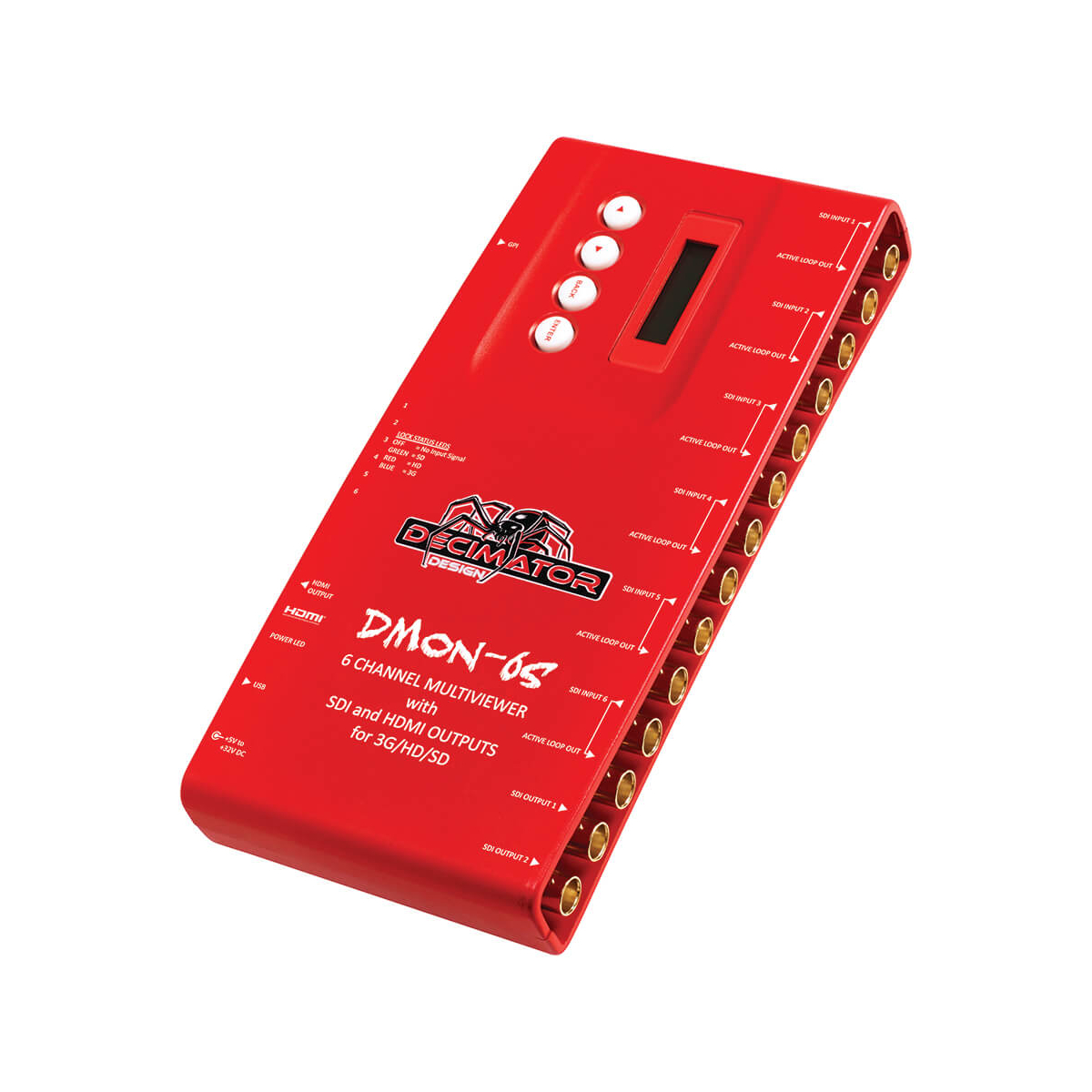

【Decimator Design】DMON-6S 6-Channel MultiViewer

  • 1 to 6 Channel Multi-Viewer/Multiplexer
  • 6x SD/HD/3G-SDI Active Loop Through
  • Supports Embedded Audio
  • Tally Display Selections
  • RS422/485 for Dynamic UMD & Tallies
  • LCD Info Panel with Button Control
  • Independent Simultaneous Format Display
  • Selectable Output Format
  • Premade and Custom Layouts
  • 32 GPI (General Purpose Input)

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
DMON-6S
Write Your Own Review
You're reviewing:【Decimator Design】DMON-6S 6-Channel MultiViewer
Your Rating
  •  Low cost (3G/HD/SD)-SDI 1 to 6 Multi-Viewer or 6 to 1 input multiplexer
  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Safe Action and Safe Title overlay per window with individual enables and adjustment
  • Centre Cross overlay per window with individual enable
  • Audio ID overlay
  • Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
  • Tally boxes allows for up to 4 Tallies per window
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 6 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • 6 x (3G/HD/SD)-SDI active loop copies of each input
  • Each quadrant is independent of the others, allowing any 3G/HD/SD format  of any frame rate to be displayed simultaneously
  • Variable aspect ratios per quadrant
  • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
  • The DMON-6S is a truly portable converter, that incorporates  our new easy to use LCD and button control system.  This gives you easy access to most of the amazing features without using  complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.



Specification

SDI INPUT & OUTPUT FORMATS

3G : SMPTE 424M @ 2.97 and 2.967Gb/s

  • 1080p@ 60 / 59.94 / 50Hz

HD : SMPTE 292M / 274M / 296M @ 1.485 and 1.435Gb/s

  • 1080i@ 60 / 59.94/ 50Hz
  • 1080p / psf@30 / 29.97 / 25 / 24 / 23.98Hz
  • 720p@ 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98Hz

SD:SMPTE 259M @ 270Mb/s

  • 625i50
  • 525i59.94
HDMI OUTPUT FORMATS
  • 1080p@ 60 / 59.94 / 50Hz
  • 1080i@ 60 / 59.94 / 50Hz
  • 1080p@ 30 / 29.97 / 25 / 24 / 23.98Hz
  • 720p@ 60 / 59.94 / 50 / 30 / 29.97 / 25
  • 625i50 / 525i59.94
LED STATUS
  • Power
  • 6 x Signal lock and rate
POWER
  • +5V to +32V DC
  • Positive Centre Pin
LCD / BUTTON MENU OPTIONS
  • HDMI output type
  • Output Select
  • Multi-Viewer Output Format
  • Multi-Viewer Number of Windows
  • Multi-Viewer Layout
  • Multi-Viewer Audio Source
  • Multi-Viewer Reference
  • Full Screen is Scaled
  • Input Routing
  • GPI mode
  • Setup
INPUTS
  • 6 x (3G / HD / SD) - SDI
  • Input Equalization > 100M using Belden 1694A
  • USB for control and updates
OUTPUTS
  • 6 x SDI ( 3G / HD / SD ) - SDI Active Loop - throughs
  • 2 x SDI (3G / HD / SD) - SDI
  • HDMI Type A
DIMENSIONS 220mm x 103.7mm x 29.5mm (8.7” x 4.1” x 1.2”)



  • DMON-6S Multi-Viewer
  • 32 GPI on 37-pin D-SUB for Tallies and Remote Switching
  • RS422/485 on 37-pin D-SUB for Dynamic UMD and Tallies
  • USB port for control and firmware updates
  • Robust Aluminium box
  • Metal Thread Locking DC Power Socket
  • Power Supply
  • HDMI Cable
  • USB Cable
  • 3-years Limited Manufacturer's Warranty

View

DMON-6S Brochure

View

DMON-6S Hardware Manual

Download

USB Control Panel for Mac OS X | Version 3.0.0

Download

USB Control Panel for Windows 64-bit | Version 3.0.0

Download

USB Control Panel for Windows 32-bit | Version 3.0.0

【Decimator Design】DMON-6S 6-Channel MultiViewer

HK$5,150.00
