- Low cost miniature (3G/HD/SD)-SDI 1 to 16 Multi-Viewer
- Custom Layouts with various standard layouts
- Fixed Identifier overlay per window with individual enables, custom positioning and size
- Audio ID overlay
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- HDMI output
- 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per window
- In Pass-Through mode the selected input is passed through to the HDMI output

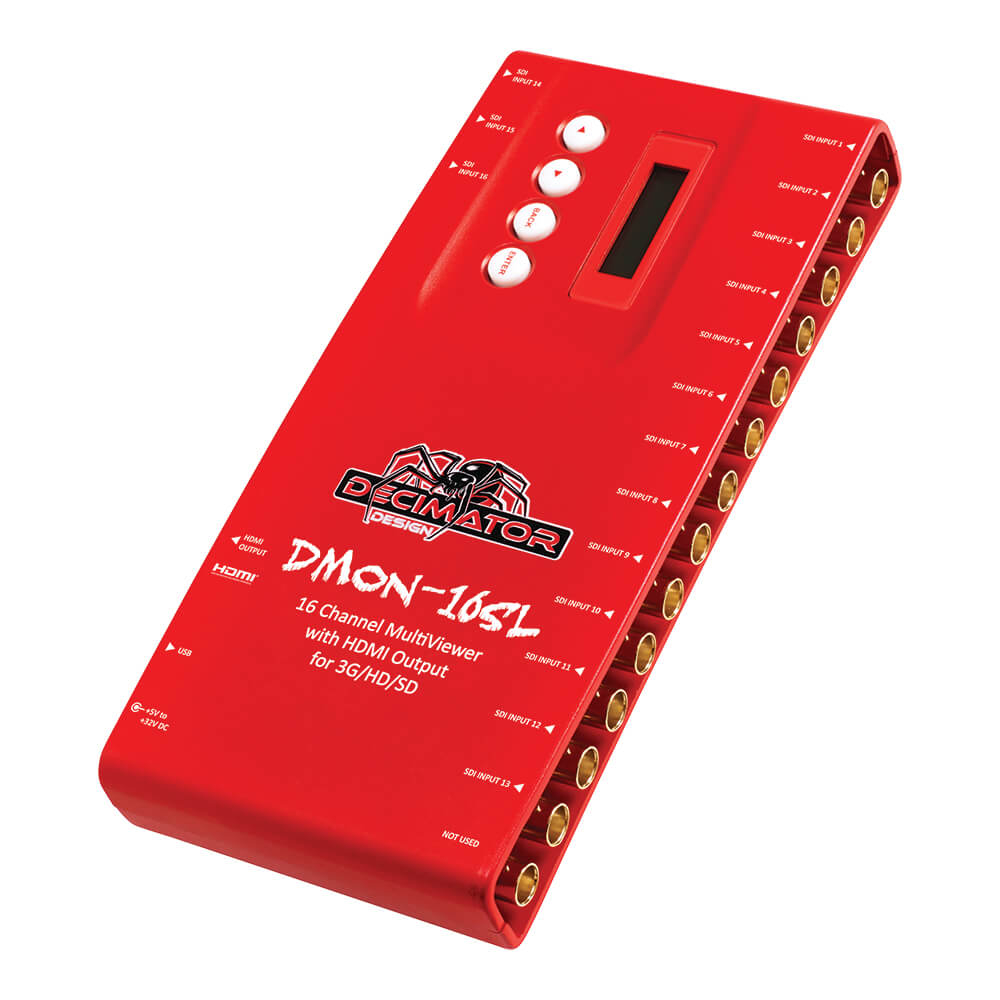

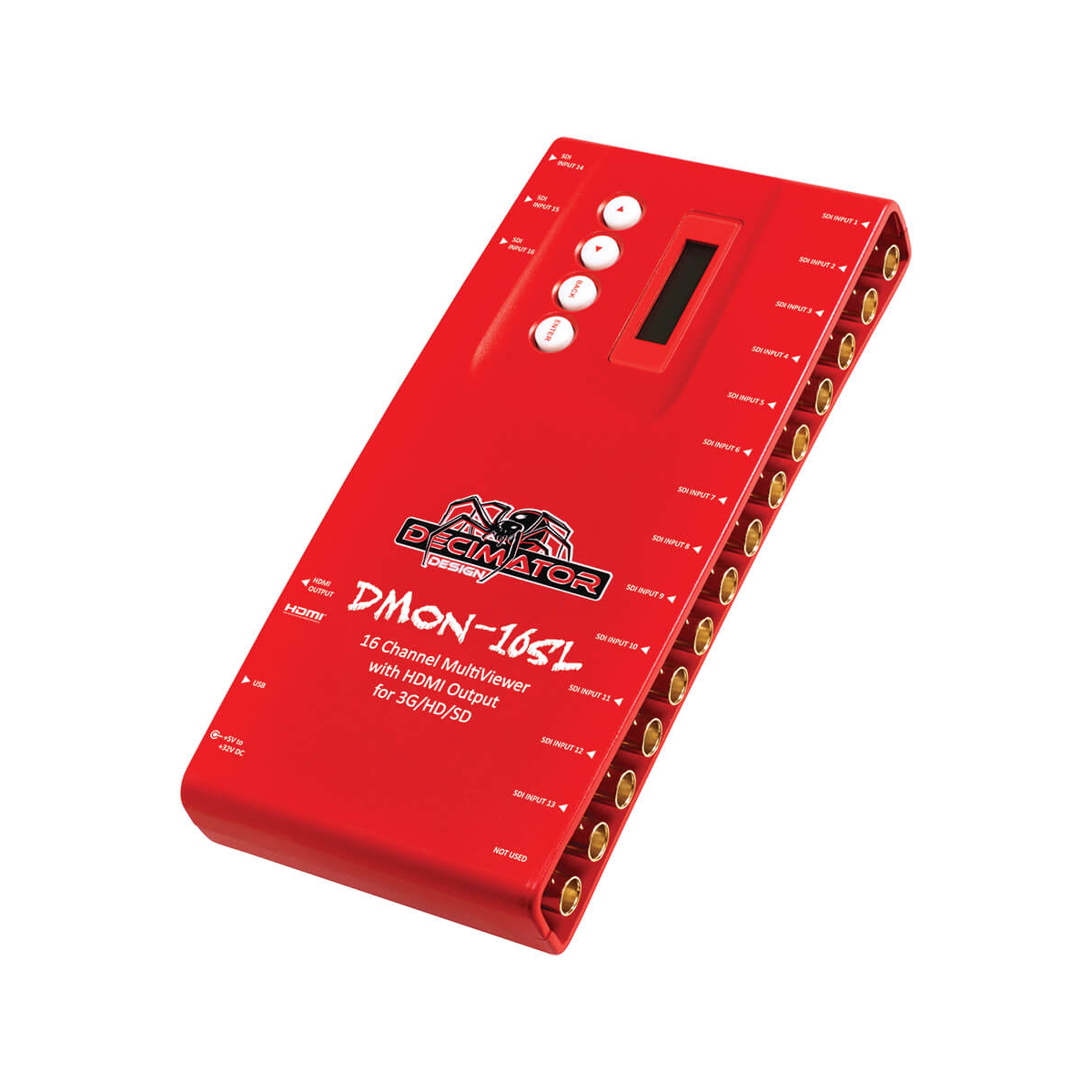

- The DMON-16SL is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
Specification |
|
SDI INPUT FORMATS |
3G : SMPTE 424M @ 2.97 and 2.967Gb/s
HD : SMPTE 292M / 274M / 296M@1.485 and 1.435Gb/s
SD:SMPTE 259M@ 270Mb/s
|
HDMI OUTPUT FORMATS |
|
POWER |
|
LCD / BUTTON MENU OPTIONS |
|
INPUTS |
|
OUTPUTS |
|
DIMENSIONS | 220mm x 103.7mm x 29.5mm (8.7” x 4.1” x 1.2”) |
- DMON-16SL Multi-Viewer
- USB port for control and firmware updates
- Robust Aluminium box
- Metal Thread Locking DC Power Socket
- Power Supply
- HDMI Cable
- USB Cable
- 3-years Limited Manufacturer's Warranty
