- Low cost miniature (3G/HD/SD)-SDI 1 to 16 Multi-Viewer or 16 to 1 input multiplexer
- Custom Layouts with various standard layouts
- 16 Character UMD overlay per window with individual enables, custom positioning and size
- 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
- Safe Action and Safe Title overlay per window with individual enables and adjustment
- Centre Cross overlay per window with individual enable
- Audio ID overlay
- Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
- Tally boxes allows for up to 4 Tallies per window
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- Linked (3G/HD/SD)-SDI and HDMI outputs
- 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per window
- In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
- The DMON-16S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting
Specification |
|
SDI INPUT & OUTPUT FORMATS |
3G : SMPTE 424M@ 2.97 and 2.967Gb/s
HD : SMPTE 292M / 274M / 296M @ 1.485 and 1.435Gb/s
SD:SMPTE 259M @ 270Mb/s
|
HDMI OUTPUT FORMATS |
|
POWER |
|
LCD / BUTTON MENU OPTIONS |
|
INPUTS |
|
OUTPUTS |
|
DIMENSIONS | 220mm x 103.7mm x 29.5mm (8.7” x 4.1” x 1.2”) |

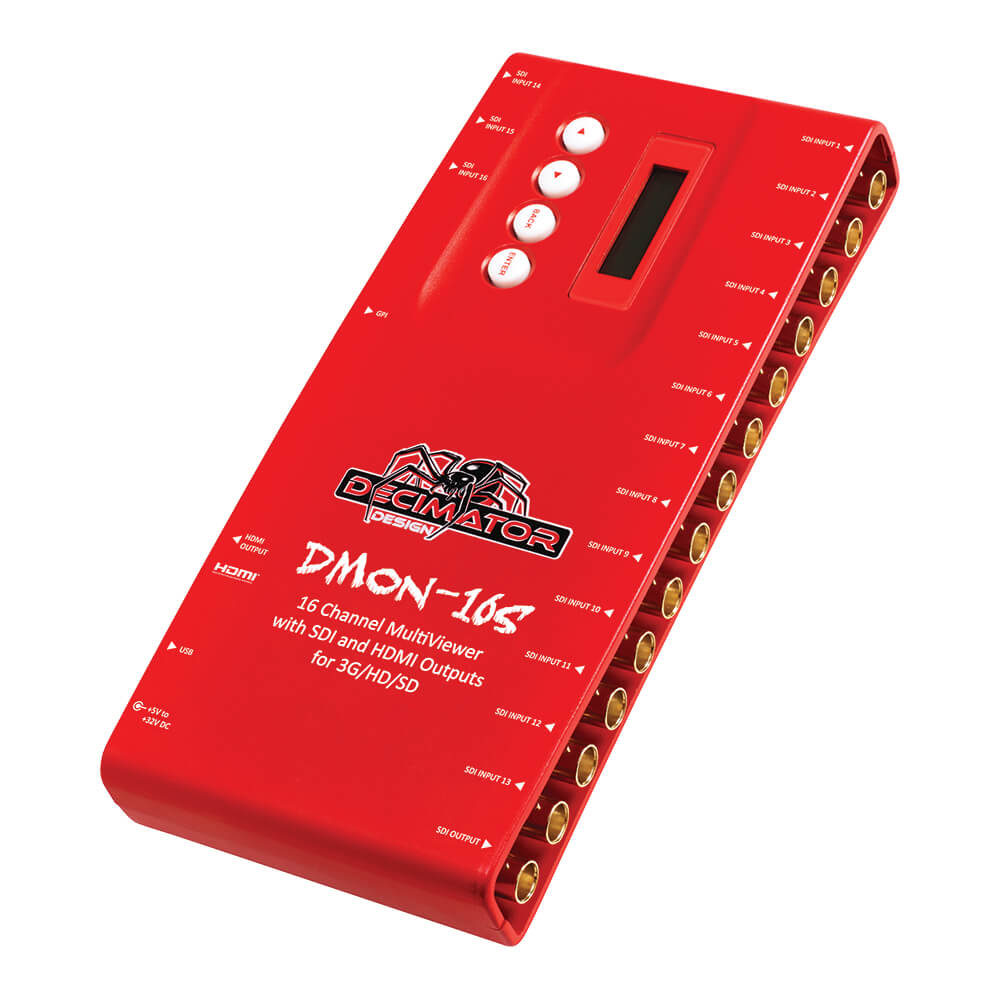

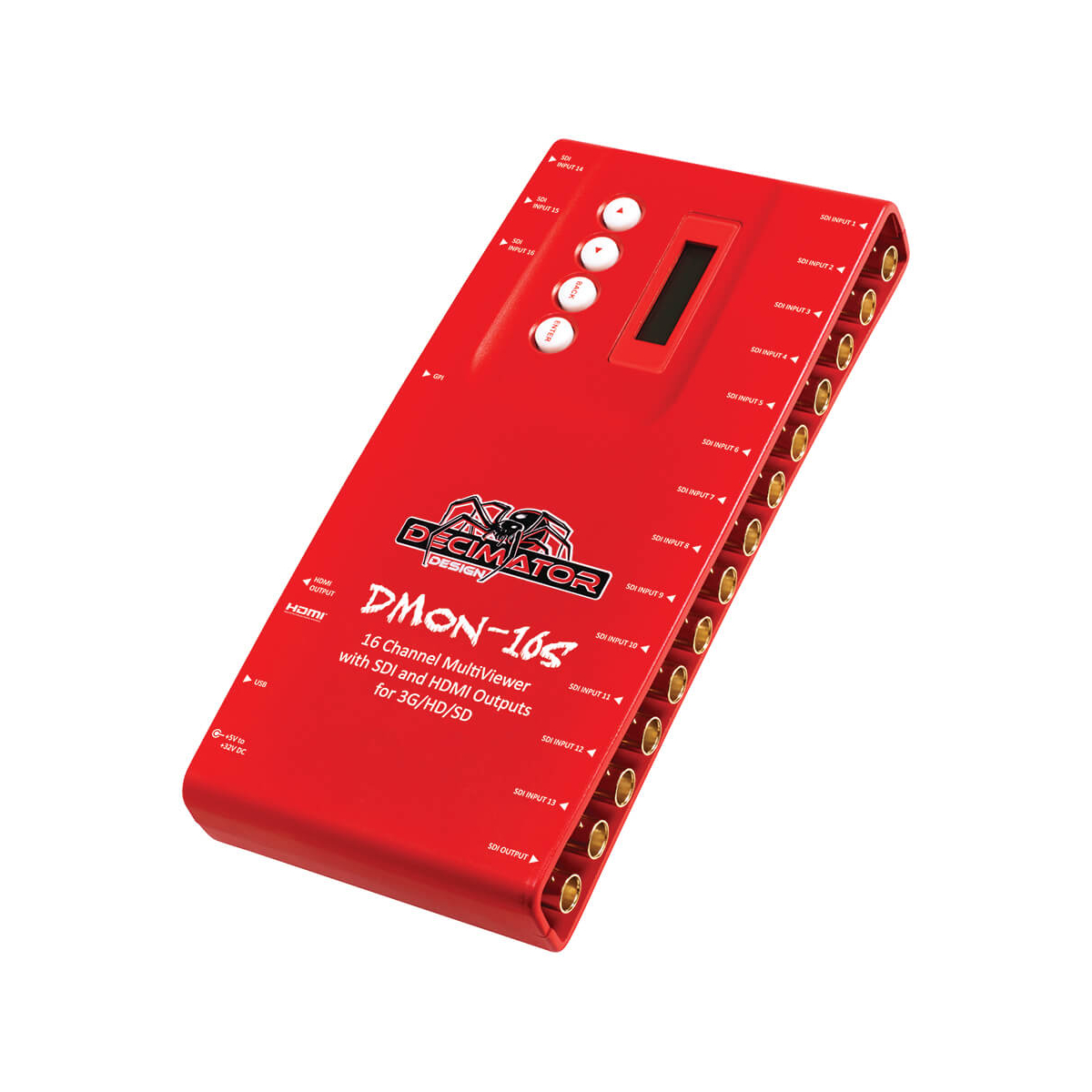

- DMON-16S Multi-Viewer
- 32 GPI on 37-pin D-SUB for Tallies and Remote Switching
- RS422/485 on 37-pin D-SUB for Dynamic UMD and Tallies using TSL protocol
- USB port for control and firmware updates
- Robust Aluminium box
- Metal Thread Locking DC Power Socket
- Power Supply
- HDMI Cable
- USB Cable
- 3-years Limited Manufacturer's Warranty
