【Decimator Design】DECIMATOR-QUAD SDI Quad-Split MultiViewer

  • 1 to 4 Channel Multi-Viewer/Multiplexer
  • 4x SD/HD/3G-SDI Auto Detecting Inputs
  • SD-SDI & Composite Outputs
  • Down-Converter to NTSC or PAL
  • Low Latency Input Buffering
  • Independent Simultaneous Format Display
  • Supports Variable Aspect Ratios
  • Rotary Encoder & Push Button Selection
  • Selectable Output Format
  • Locking Power Socket

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
DECIMATOR-QUAD
Write Your Own Review
You're reviewing:【Decimator Design】DECIMATOR-QUAD SDI Quad-Split MultiViewer
Your Rating

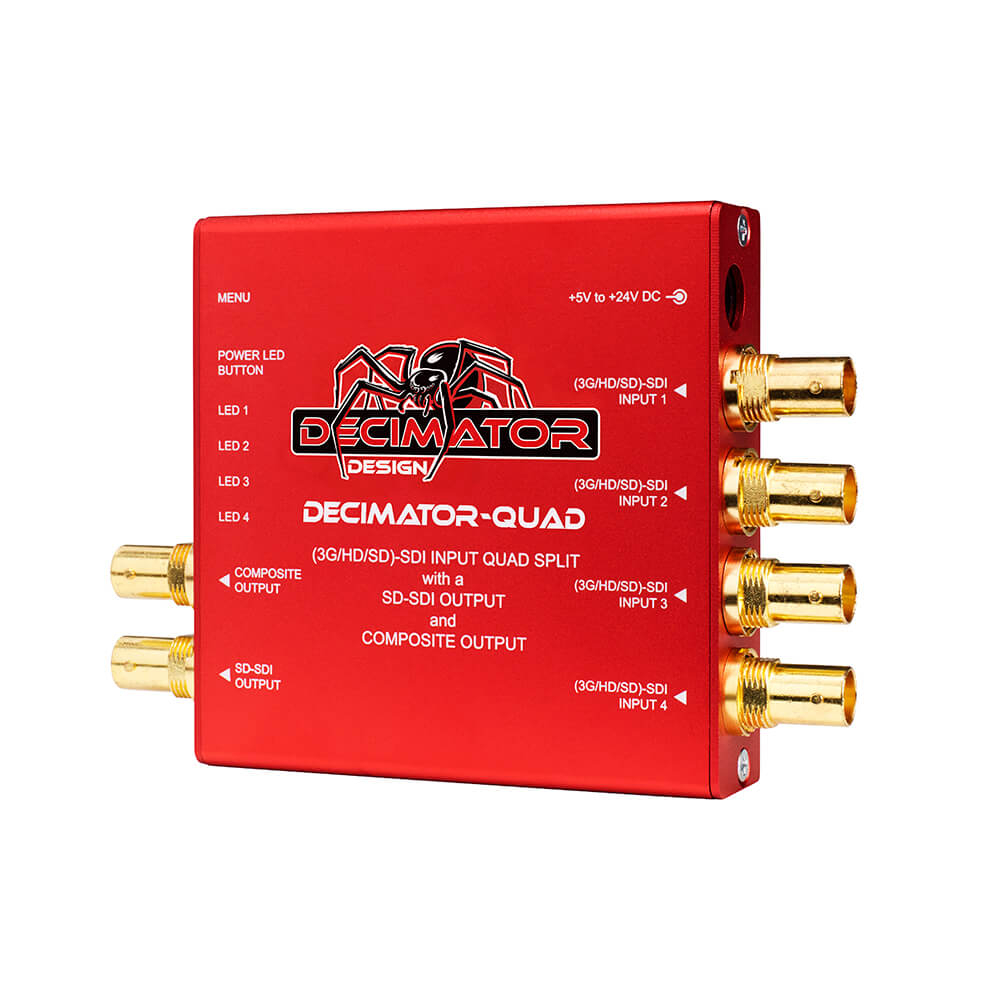

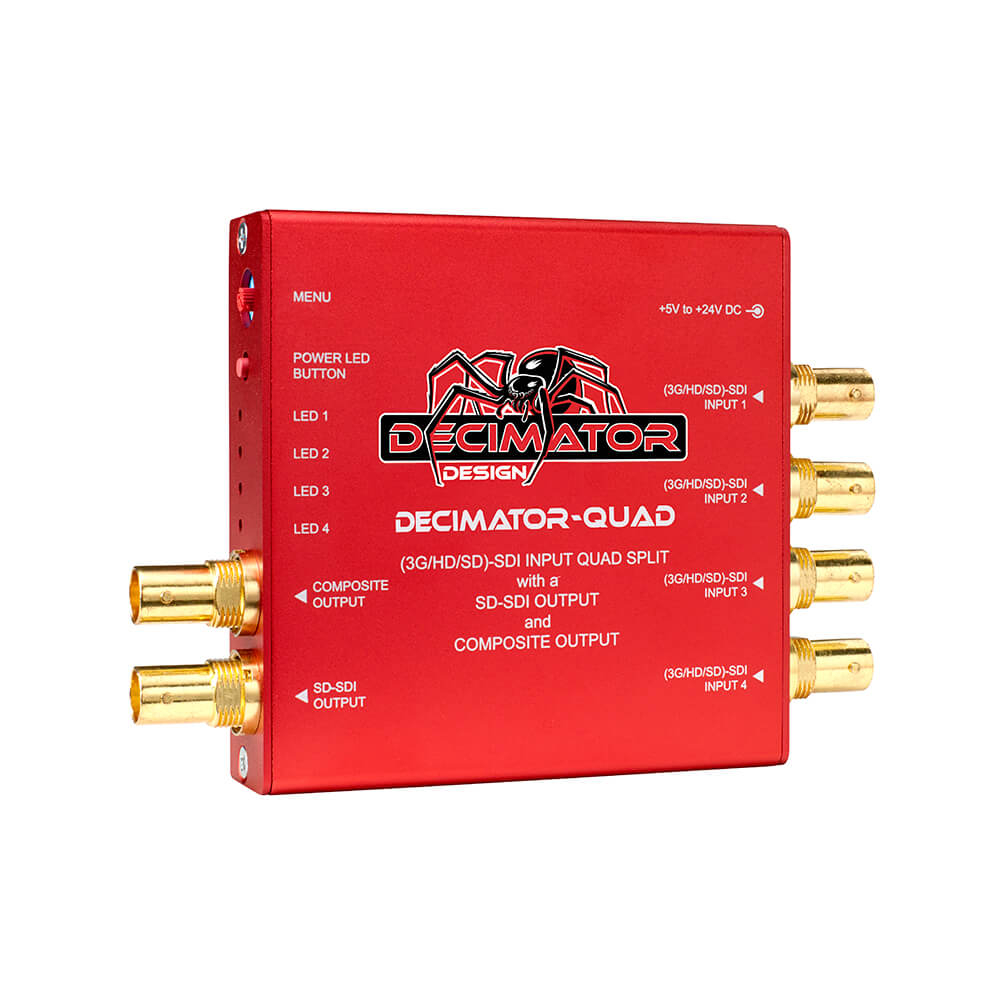

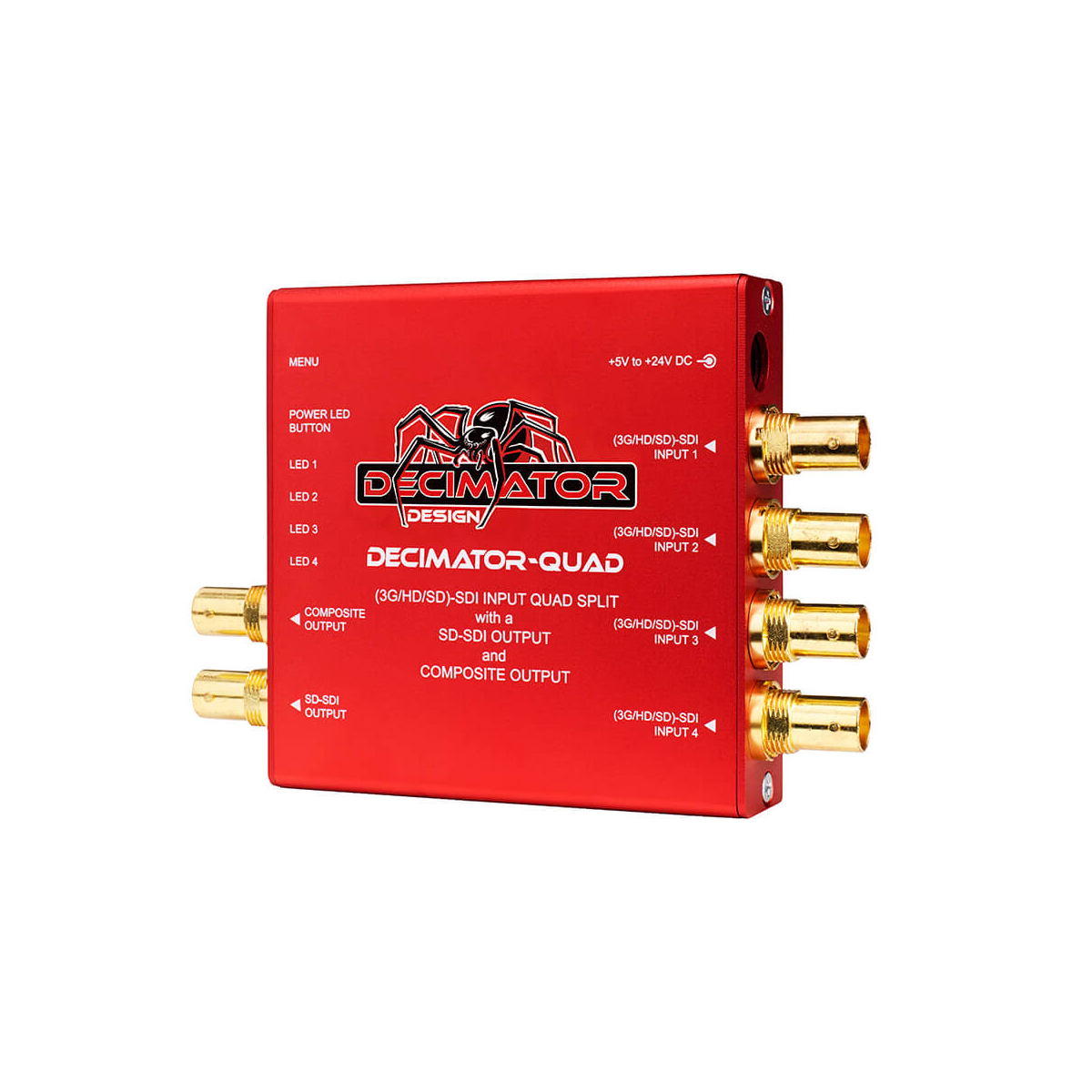

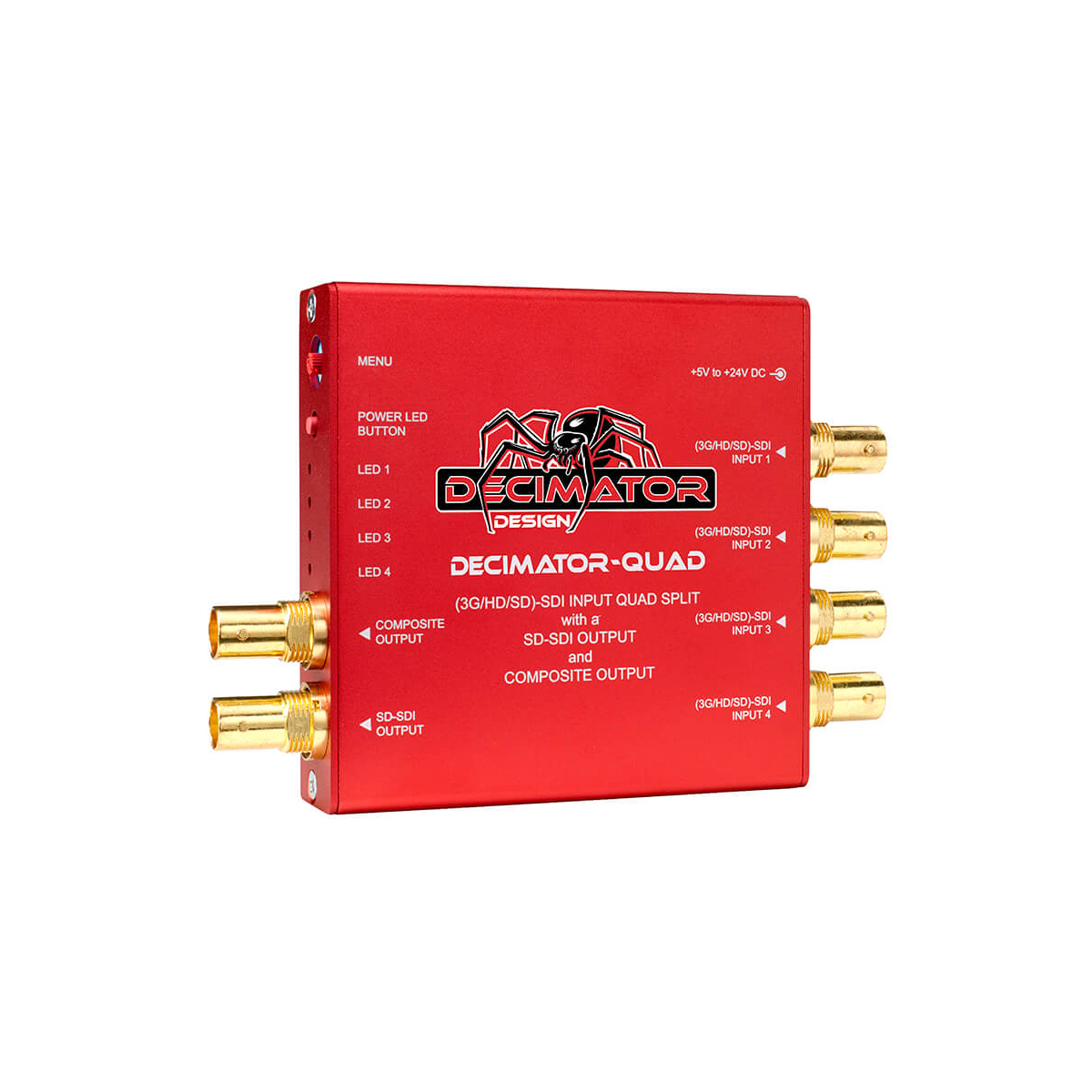

  • Low cost miniature 3G/HD/SD-SDI 4 to 1 Quad Split or  Down-converter with 4 to 1 input multiplexer.
  • Your choice of either a NTSC or PAL output
  • Linked SD-SDI and Composite outputs
  • 4 x 3G/HD/SD-SDI inputs with auto detection (26 Formats supported in total)
  • Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per quadrant
  • All 4 inputs can be displayed simultaneously on a single output.
  • Full-screen mode allowing any of the 4 inputs to be selected  for output.
  • In Full-screen mode the selected 3G/HD-SDI input is down-converted to either NTSC or PAL and a SD-SDI input is passed through untouched.
  • An extensive selection of user controllable functions via an  easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control
  • Locking DC Power Socket

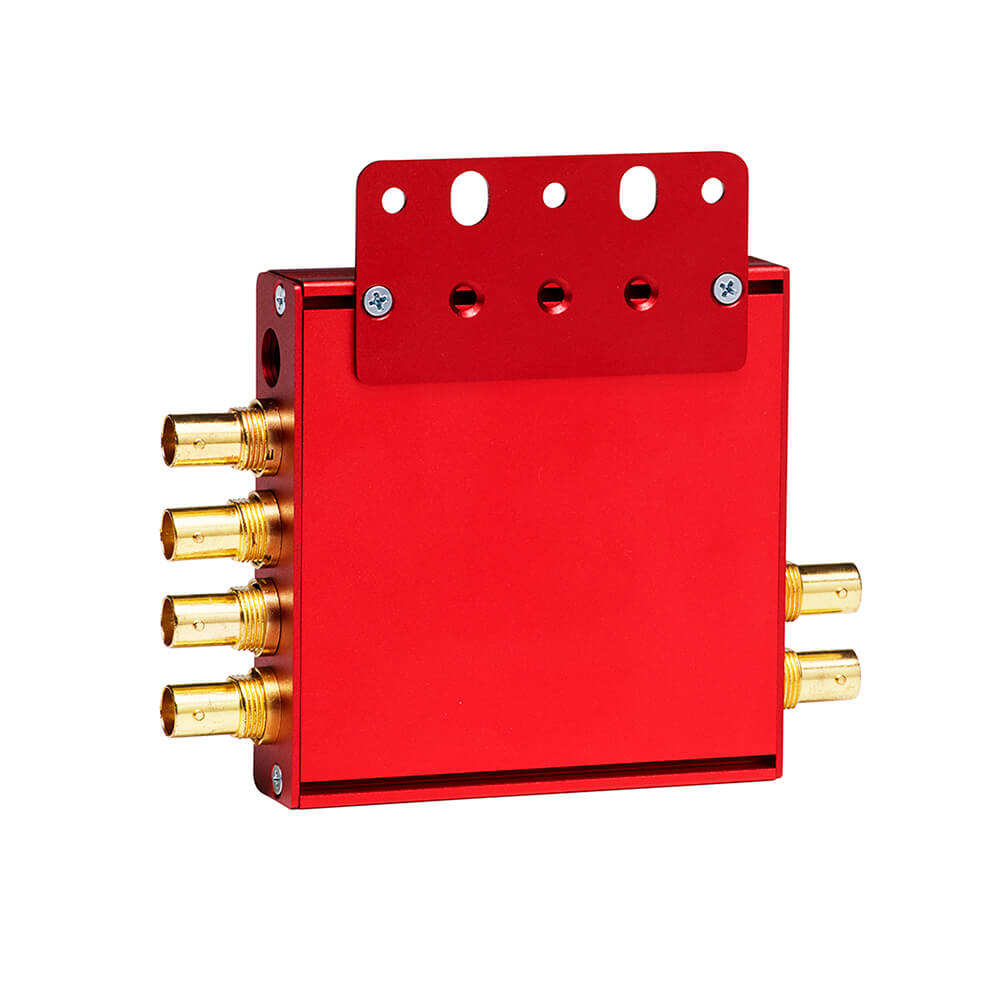

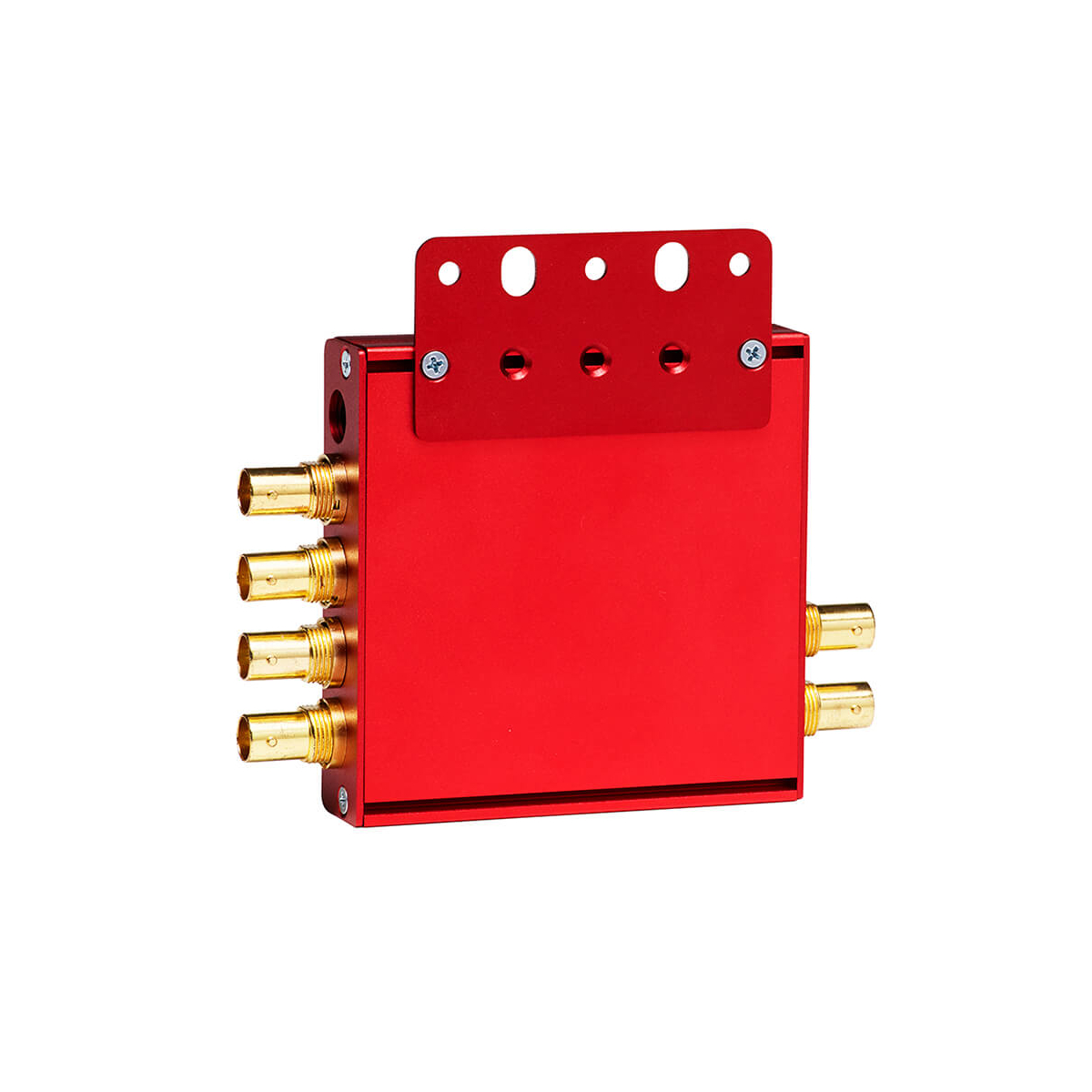

  • Mounting Bracket included



Specification

VIDEO FORMATS

3G : SMPTE 424M @ 2.97 and 2.967Gb/s

  •  1080p@ 60 / 59.94 / 50Hz

HD : SMPTE 292M / 274M / 296M @ 1.485 and 1.435Gb/s

  •  1080i@60 / 59.94 / 50Hz
  •  1080p / psf@30 / 29.97 / 25 / 24 / 23.98Hz
  •   720p@ 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98Hz

SD : SMPTE 259M @ 270Mb/s

  •  625i50
  •  525i59.94
MENU OPTIONS
  • Input status for all 4 inputs
  • Output format
  • Full screen enable
  • Full screen input select
  • Output aspect and type of 16 : 9 or 4 : 3 at either 90 or 100% of screen size
  • Individual aspect format for each input of Same as output, Letter - box or Pillar - box
  • Border Enable
  • Quad split mode reference of either Free - run or input 1
LED STATUS
  • Power
  • 4 x Signal lock and rate
INPUTS
  • 4 x 3G / HD / SD - SDI
  • Input Equalization > 200M for SDI, > 200M for HD - SDI  or > 100M 3G - SDI using Belden 1694A
OUTPUTS
  • 1 x 10 - bit SD - SDI Re - clocked
  • Composite (PAL or NTSC)
POWER
  • +5V to +20V DC, 5 Watts
  • Positive Centre Pin
DIMENSIONS

94mm x 94mm x 23mm (3.7” x 3.7” x 0.9“)

  • Decimator-QUAD
  • 3-years Limited Manufacturer's Warranty

View

DECIMATOR-QUAD Brochure

View

DECIMATOR-QUAD Hardware Manual

Download

USB Control Panel for Mac OS X | Version 3.0.0

Download

USB Control Panel for Windows 64-bit | Version 3.0.0

Download

USB Control Panel for Windows 32-bit | Version 3.0.0

【Decimator Design】DECIMATOR-QUAD SDI Quad-Split MultiViewer

HK$6,880.00
