- Auto detects 3G, HD or SD (26 Formats in total) and can handle switching of synchronous sources
- Simultaneous scaling on both the HDMI and Composite outputs with a maximum delay of 1 input frame
- HDMI output with optional full scaling and aspect ratio conversion.
- Down-converted Composite output
- NTSC or PAL is selectable for 3G/HD inputs
- SD will be passed unchanged
- Low latency 3G/HD to SD Down-conversion with ARC (Aspect Ratio Conversion) of either:
i) 16:9 to 16:9 Anamorphic
ii) 16:9 to 4:3 Letterbox
iii) 16:9 to 4:3 Centre Cut (Crop to 4:3)
- Full 10-bit data path and multipoint interpolation
- 16 times over-sampling for Composite Output
- Passes EIA-708/608 Closed Captions to the Composite Output
- Full 16-Channel Audio metering displayed on the HDMI output with:
- Any of the 4 audio groups individually selectable
- Vertical or Horizontal Bars
- AES/EBU, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
- Bar & Float, Bar only or Float only
- Transparency adjustment
- Separate Bar and Float Ballistics control
- Adjustable Reference level
- Red, Yellow and Green Range adjustment
- Bar thickness adjustment
- Margin adjustment
- De-Embedded Analogue Audio is output on 2 x RCA connectors at -10dBu = -20dBFS.
- 3G/HD/SD-SDI Active Loop-Through Output
- Adjustable Graticules Generator displayed on the HDMI output with:
- Separate enables for Safe Action, Safe Title and Centre Cross
- Adjustable position for either Safe Action or Safe Title
- Adjustable colours for Safe Action, Safe Title and Centre Cross
- Text Overlays displayed on the HDMI output with:
- Adjustable Foreground and Background colours
- Adjustable 16 character text
- Current input format status
- External Dipswitch Configuration
- USB port for control and firmware updates
- Locking DC Power Socket
|
|
VIDEO FORMATS |
3G-A or 3G-B:SMPTE 424M @ 2.97 and 2.967Gb/s
HD:SMPTE 292M / 274M / 296M@1.485 and 1.435Gb/s
SD:SMPTE 259M@270Mb/s
|
INPUTS |
|
LED STATUS |
|
POWER |
|
DIP SWITCH CONTROLS |
|
OUTPUTS |
|
DIMENSIONS | 90mm x 71mm x 23mm (3.5” x 2.8” x 0.9”) |
- Decimator 2 Converter
- Power Supply
- HDMI Cable

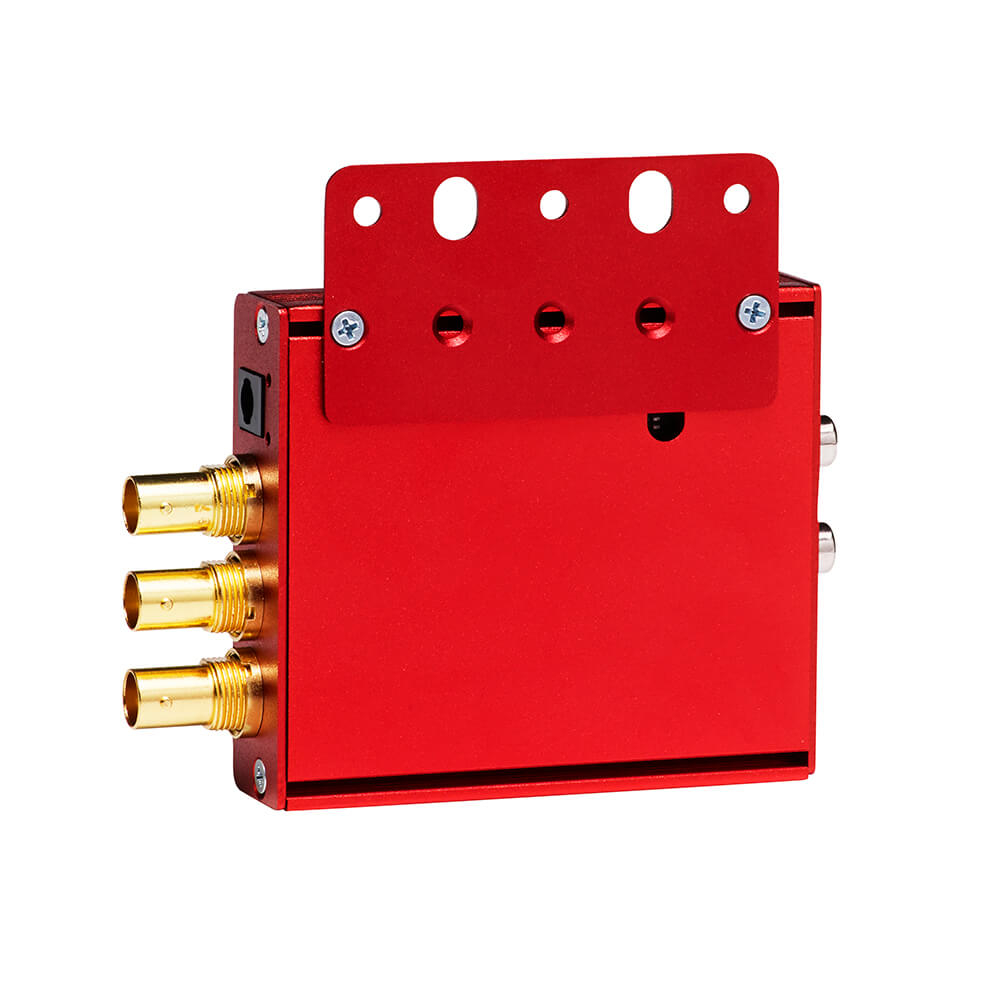

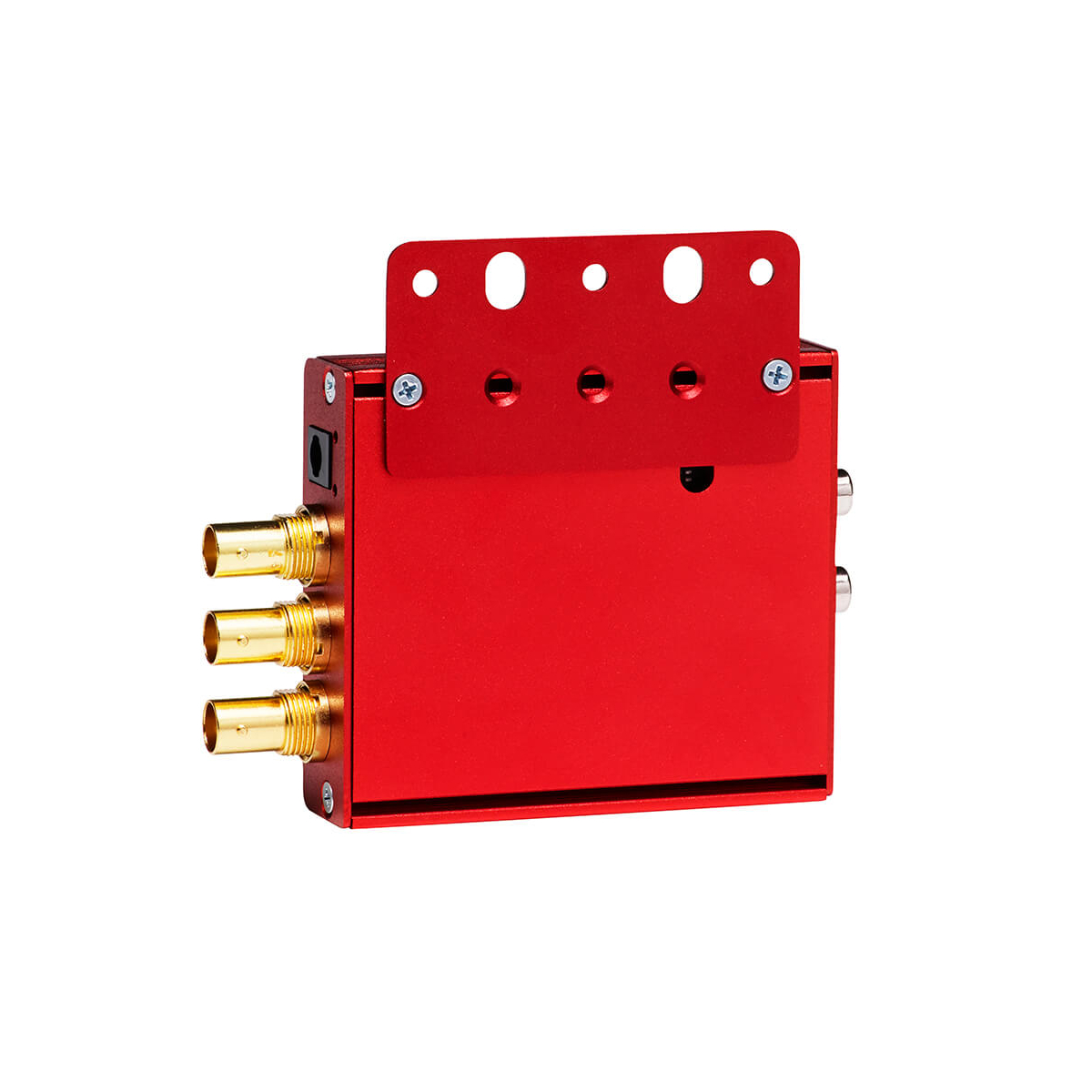

- USB Cable and Mounting Bracket
- 3-years Limited Manufacturer's Warranty
