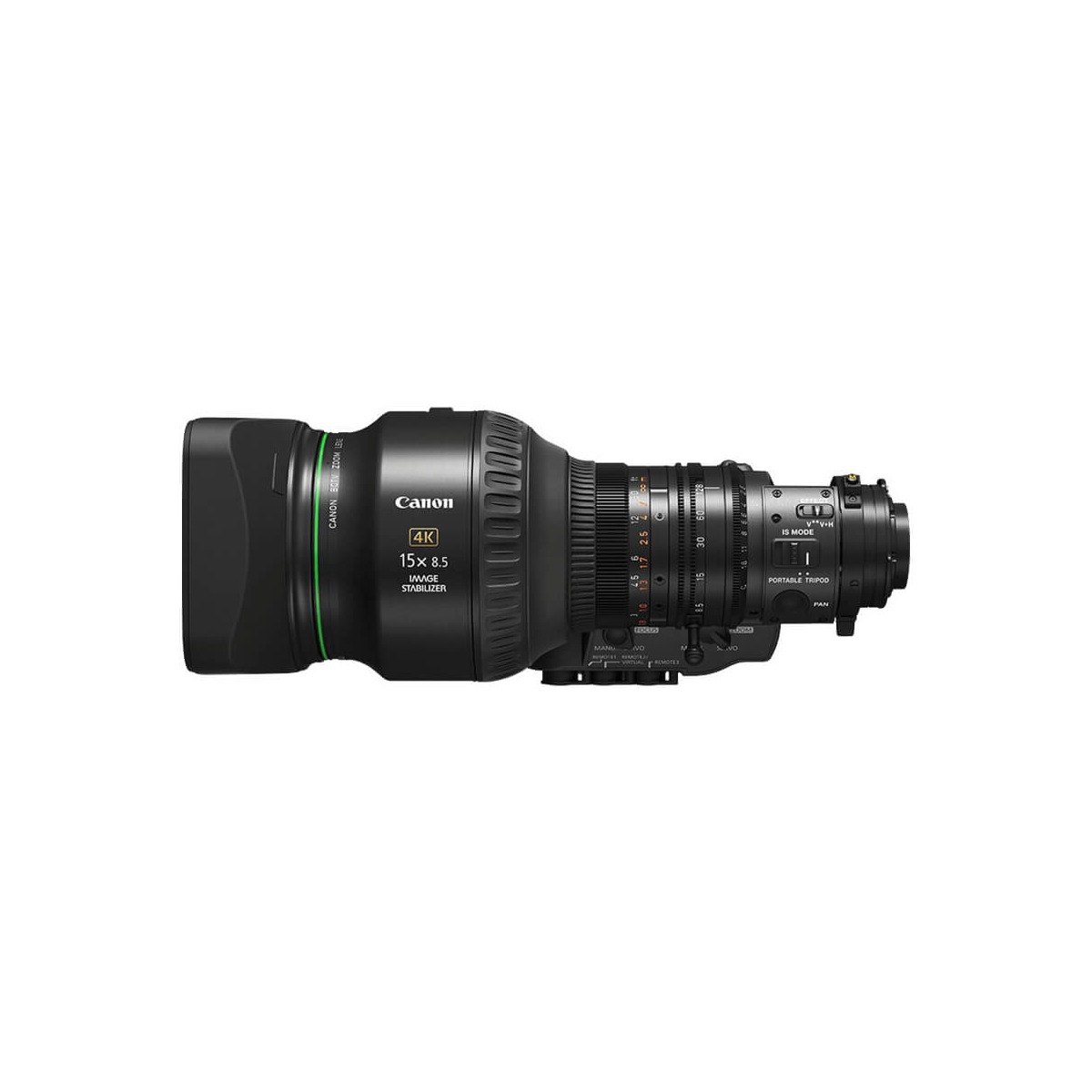

The Canon CJ15ex8.5B 15x UHD 4K 2/3" Portable Zoom Lens is a compact, lightweight lens with image stabilization that is ideal for sports and other field-based productions. It has a focal length range of 8.5 to 128mm and uses Canon's Vari-Angle Prism (VAP) technology to maintain optimal image quality throughout its zoom range, even while using the OIS feature. Its dynamic range supports HDR imaging and the wider color gamut of the ITU-R BT.202 standard.
Compact and lightweight, this zoom lens uses 16-bit encoders compatible with existing HD controllers, and its three 20-pin connectors enable interfacing with virtual systems, even when using both focus and zoom servos.
4K Optical Performance
- 4K optical performance with high-index optical glass, high contrast, and minimal chromatic aberration and distortion
- Multilayer optical coatings help ensure deep blacks critical to HDR imaging
- Reduced ghosting and flaring
Vari-Angle Prism (VAP) Stabilization
- VAP-IS stabilization uses a flexible prism to remove image blur due to vibration frequencies
- Maintains 4K-compatible performance, even when using the OIS (optical image stabilization)
- Mechanical IS switch on lens body is easy to access
Compact Design
- Compact, lightweight design is similar in size to comparable Canon 2/3" HD lenses
- Ergonomic form with weight balanced close to the lens mount to reduce operator fatigue
Wide Color Gamut Support
- Supports the wider color gamut of BT.2020
- Maintains excellent color reproduction across your images
Advanced Digital Drive
- The digital drive unit and 16-bit encoder work with compatible 2/3" HDTV/UHD TV cameras to correct aberrations without having to initialize the lens
- Quick start-up without initialization enables rapid data output for virtual, live-action, and composite imaging
- Digital aberration correction and digital positional data
- Three 20-pin connectors on the drive unit enable data output even while using both zoom and focus servo controllers
- Digital display unit on the drive unit
Digital Functions
- Shuttle Shot: Select and save in and out focal points for repeatable zooms
- Frame Preset: Preset two angles of view and zoom in and out at your preferred speed
- Speed Preset: Save and repeat zooms at slow, stable speeds
Control Compatibility
- Compatible with existing HD zoom and focus accessories like the ZSD-300D and FPD-400D
Canon CJ15EX8.5 Specification |
|
Sensor Compatibility | 2/3" (16:9) |
Focal Length | 8.5 to 128mm |
Built-In Extender | None |
Zoom Ratio | 15x (Servo) |
Angle of View | 16:9 Wide: 58.9 x 35.2° (H x V) Tele: 4.3 x 4.8° (H x V) |
Maximum Aperture | f/2.5 to 4.7 |
Focus Type | Servo |
Iris Type | Servo |
Macro | No |
Minimum Object Distance | 31.5" / 0.8 m |
Optical Image Stabilization | Yes |
Dimensions | 9.4 x 6.7 x 4.6" / 23.9 x 17.0 x 11.7 cm (L x W x H) |
Weight | 4.48 lb / 2.03 kg |
- Canon CJ15ex8.5B 15x UHD 4K 2/3" Portable Zoom Lens with Image Stabilization
- Lens Hood
- Front Cap
- Rear Cap
- Limited 1-Year Manufacturer Warranty
