Vivid 4K and HDR imaging

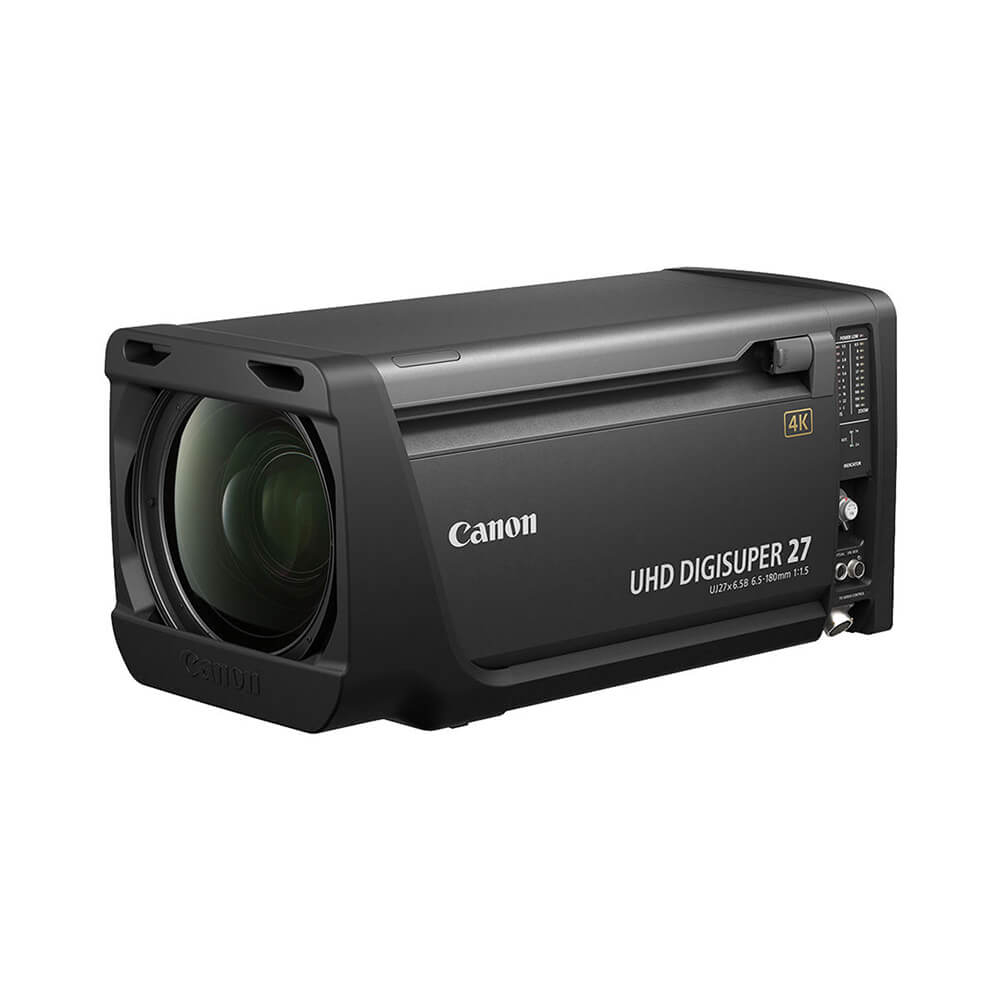

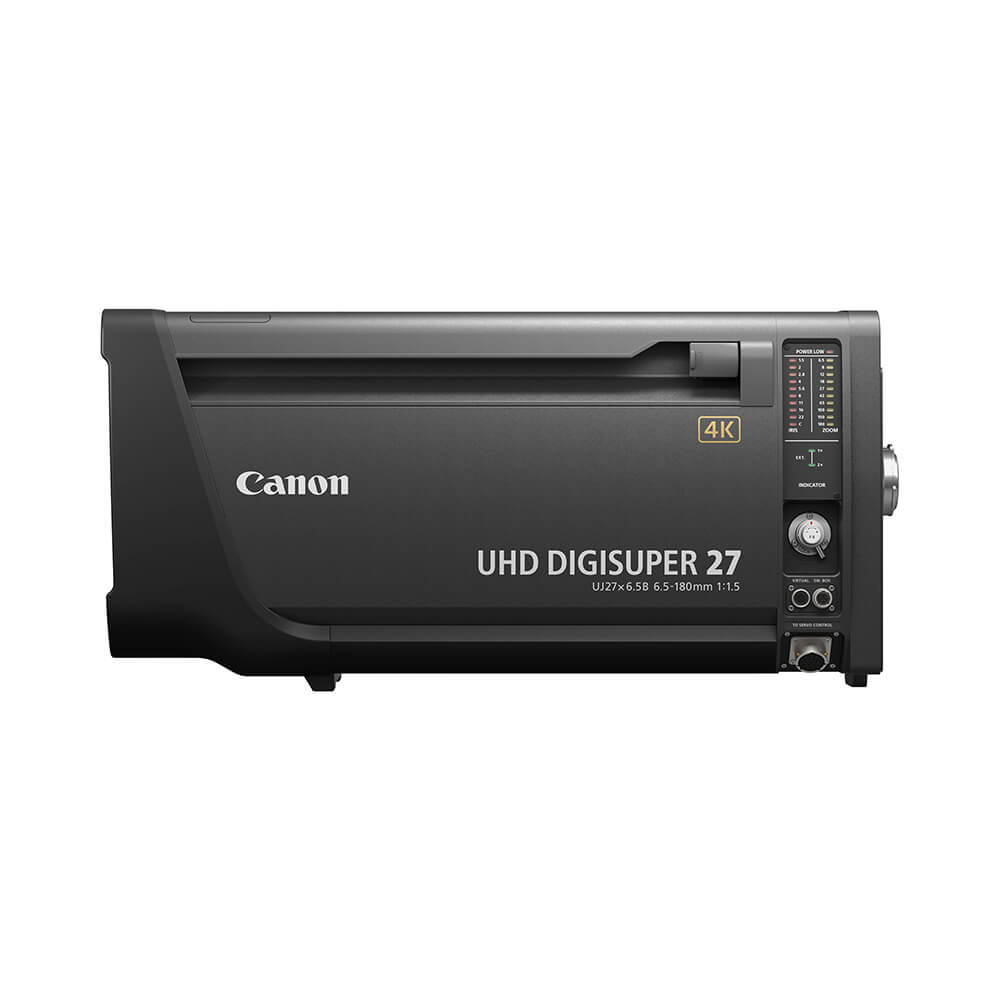

The Canon UJ27×6.5B IESD is a 2/3” B4 mount studio and field broadcast lens designed for 4K and HDR shooting. Its Canon optics deliver incredible image quality across the frame, from centre to edge. With HDR becoming mainstream, the UJ27 is ready, accurately resolving RGB tones and producing crisp, high contrast images.
Exceptional optics
The UJ27 box lens employs the latest combination of ultra-low dispersion and fluorite glass, plus an enhanced polishing process that produces even smoother, optically true glass. The result is reduced internal reflections, ghosting and chromatic aberration, producing crisp images ready for 4K, UHD and beyond.
Minimal focus breathing
Constant Angle Focusing System (CAFS) uses a 32-bit CPU to eliminate focus breathing – the unwanted distortion that occurs when shifting focus or zoom. CAFS calculates focus changes and synchronises the zoom to counteract the picture size and angle of view, leaving a pin-sharp, distortion-free image.
Powerful 27x optical zoom
The UJ27 box lens is built for studio and heavy-duty field shooting, offering a versatile standard focal length of 6.5–180 mm, and 13–360 mm using the built in 2.0x extender. A premium lens, it offers superior brightness levels of T1.5 at 6.5–123 mm and T2.2 at 180 mm ¬– all while maintaining sharp 4K and UHD images.
Made to work hard
The UJ27 is built to fit any studio or field shooting workflow. Operators will find it easy to work with, from its small size, to its smooth servo performance, 20-pin connector support for virtual studio systems and on-screen information display. A range of accessories is also available, including a prompter cover for studio use.
L-Progress design language
Canon’s new L-Progress design makes the UJ27 easy to handle and great to look at. A slick black-grey styling is combined with convenient carry handles, meaning the 21.5 kg lens is simple to operate and manoeuvre. What’s more, all contemporary Canon lens systems are free of lead and other environmentally harmful substances.
UHD DIGISUPER 27 (UJ27x6.5B) Specification |
|
Mount | B4 |
Image Coverage |
9.6×5.4mm |
Built-in extender |
2.0× |
Range of Focal Length |
6.5-180mm |
(with Extender) |
13-360mm |
Zoom Ratio |
27× |
Maximum Relative Aperture |
1:1.5 [at 6.5-123mm] 1:2.2 [at 180mm] |
(with Extender) |
1:3.0 [at 13-246mm] 1:4.4 [at 360mm] |
Angular Field of View |
72.9°× 45.1°at 6.5mm 3.1°× 1.7°at 180mm |
(with Extender) |
40.5°× 23.5°at 13mm 1.5°× 0.9°at 360mm |
M.O.D. from Lens Front |
0.6m |
Object Dimensions at M.O.D. |
106.1×59.7cm [at 6.5mm] 3.8×2.1cm [at 180mm] |
(with Extender) |
53.1×29.9cm [at 13mm] 1.9×1.1cm [at 360mm] |
Approx. Size (WxHxL) |
250.6 × 255.5 × 550mm |
Approx. Mass |
21.5kg |
