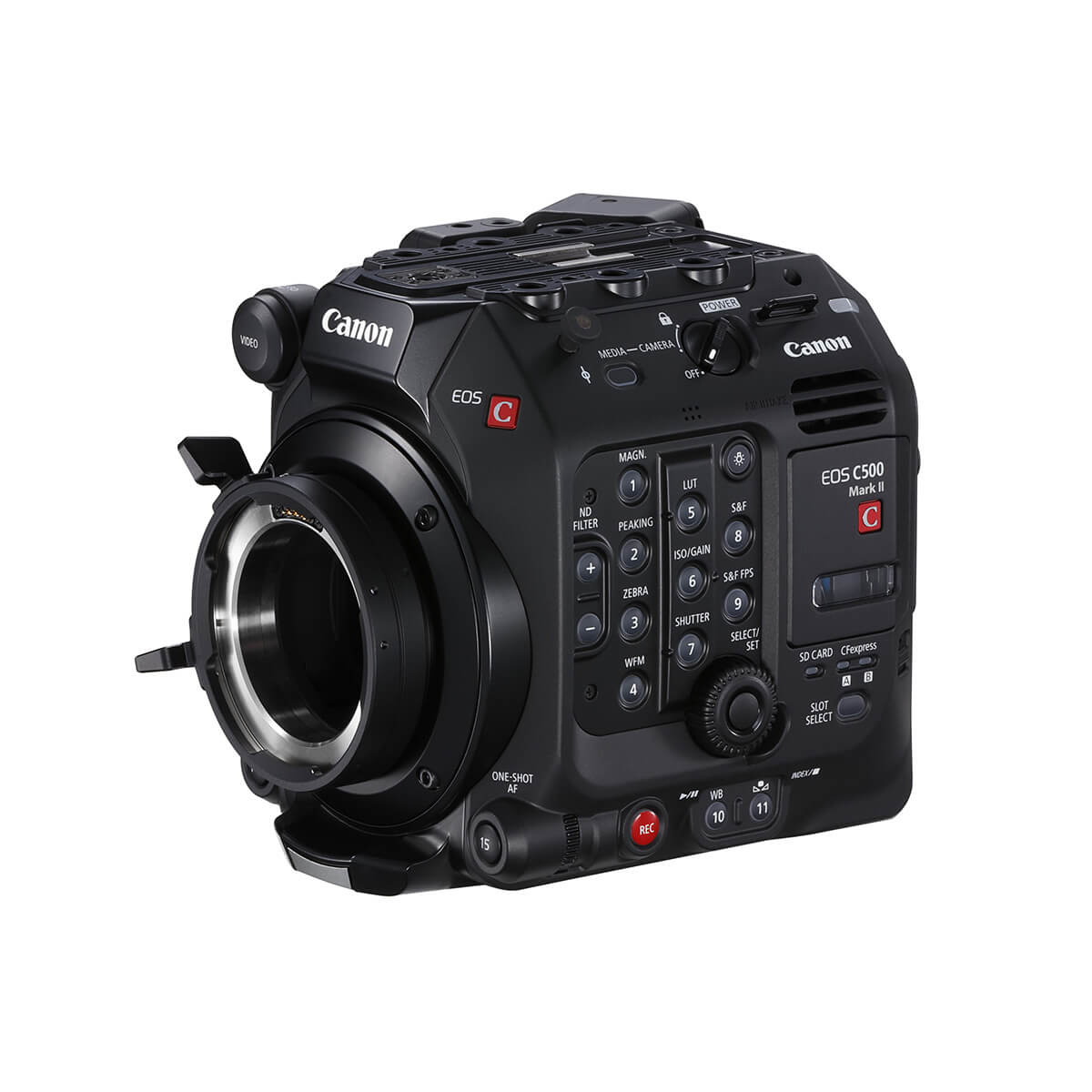

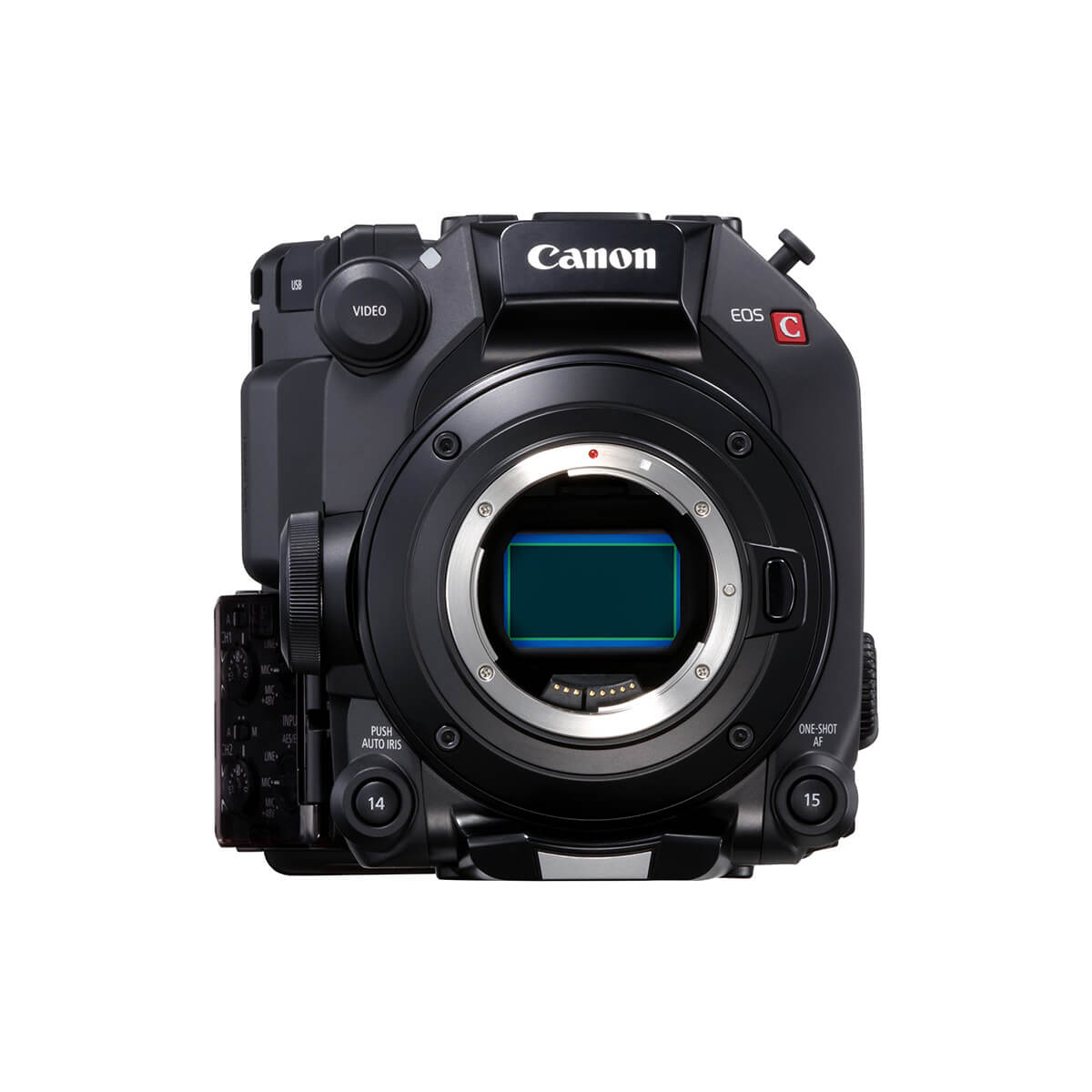

The Canon EOS C500 Mark II 5.9K Full-Frame Camera Body is part of the Cinema EOS lineup of cameras, and it features a full-frame CMOS sensor with an effective 18.69MP resolution. This allows it to feature a 5.9K output in full frame, and crop (window) the sensor for Super 35 and Super 16 frame sizes while maintaining a high resolution. The C500 Mark II comes with a Canon EF mount and features an interchangeable lens mount system, allowing you to swap out the mount in the field for an optional Cinema Locking EF or PL mount, thus greatly expanding the amount of glass you can use with the camera. The sensor features over 15 stops of dynamic range and Dual Pixel autofocus support, and the camera uses a DIG!C DV 7 chip for image processing.
The camera internally records raw using the Canon Cinema RAW Light codec in 12- or 10-bit, or you can capture using the XF-AVC codec in 10-bit. Internal recording is done to CFexpress cards via two CFexpress card slots. 8-bit proxy recording in the XF-AVC codes, as well as JPEGs, can be captured onto an SD card via the built-in SD card slot. Supporting a variety of gamma settings including Canon Log 2 and Log 3, as well as supporting a variety of color gamuts including Cinema BT.2020, DCI-P3, and legacy BT.709. LUT importing is supported of course. The camera supports four channels of 24-bit, 48 kHz linear PCM audio recording.
Canon C500 Mark II Specification Imaging |
|
Lens Mount | Canon EF |
Lens Communication | Yes, with Autofocus Support |
Sensor Resolution | Actual: 20.8 Megapixel (6062 x 3432) Effective: 18.69 Megapixel (5952 x 3140) |
Image Sensor | Full-Frame CMOS |
Built-In ND Filter | Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64), 8-Stop (1/256), 10-Stop (1/1024) ND Filters |
Internal Filter Holder | No |
Capture Type | Stills & Video |
Exposure Control |
|
Shutter Type | Electronic Rolling Shutter |
ISO Sensitivity | 160 to 25,600 (Extended: 100 to 102,400) |
Advertised Dynamic Range | 15 Stops |
White Balance | 2000 to 15,000K |
Video Capture |
|
Internal Recording Modes | Cinema RAW Light 10/12-Bit 5952 x 3140 from 12 to 59.94 fps 4096 x 2160 from 12 to 59.94 fps 3840 x 2160 from 12 to 59.94 fps XF-AVC 4:2:2 10-Bit 4096 x 2160 from 12 to 59.94 fps [160 to 810 Mb/s] 3840 x 2160 from 12 to 59.94 fps [160 to 810 Mb/s] 2048 x 1080 from 12 to 120 fps [160 to 810 Mb/s] 1920 x 1080p from 12 to 120 fps [160 to 810 Mb/s] XF-AVC 4:2:0 8-Bit 2048 x 1080 from 12 to 120 fps [24 to 35 Mb/s] |
Sensor Crop Modes |
Super35 / APS-C Super16 |
Sensor Crop While Recording | 5K (5952 x 3140) in 17:9 When Recording in Raw 4K (4096 x 2160) in 17:9 When Recording in Raw 2K (2048 x 1080) in 17:9 When Recording in Raw |
Fast-/Slow-Motion Support | Yes |
Gamma Curve | Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Normal 1, Wide DR |
Built-In Microphone Type | Mono |
Audio Recording | 4-Channel 24-Bit 48 kHz LPCM Audio |
IP Streaming | Yes |
Still Image Capture |
|
Aspect Ratio | 16:9 |
Interface |
|
Media/Memory Card Slot | Dual Slot: CFexpress Type B Single Slot: SD/SDHC/SDXC (UHS-II) |

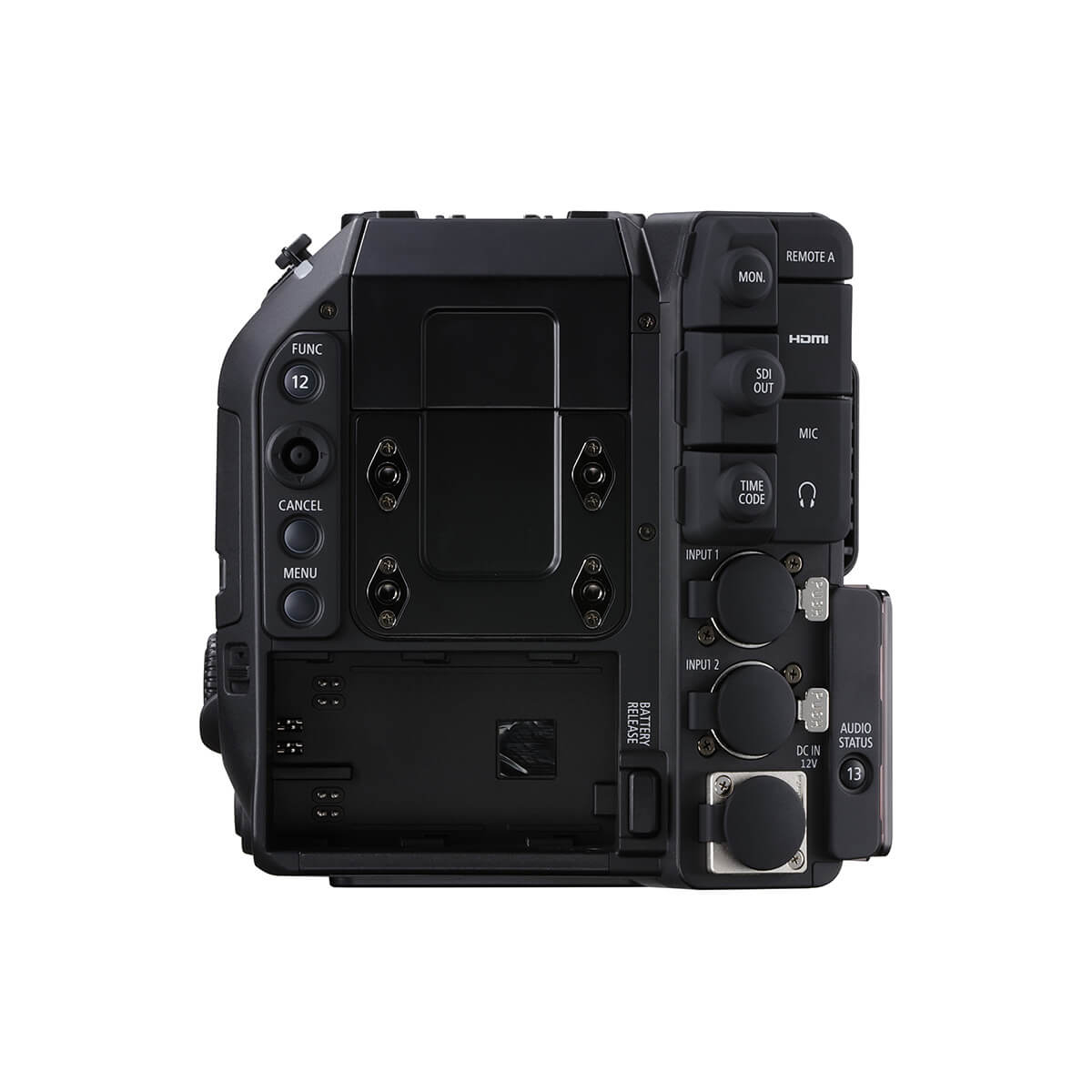

Video I/O | 1 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Output 1 x HDMI Output |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input 2 x XLR 3-Pin Mic/Line Input 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
Power I/O | 1 x XLR 4-Pin (11.5 to 20VDC) Input |
Other I/O | 1 x BNC (Timecode) Input/Output |
Wireless | None |
Global Positioning (GPS, GLONASS, etc.) | GPS *Adapter Required |
Monitor |
|
Size | 4.3" |
Resolution | 2,760,000 Dot |
Display Type | Included External Touchscreen LCD |
Viewfinder |
|
Type | Optional, Not Included |
Focus |
|
Focus Type | Auto and Manual Focus |
Focus Mode | Automatic, Continuous-Servo AF, Manual Focus |
General |
|
Power Consumption | ≤63 W |
Battery Type | Canon BP-A Series |
Netflix Approved | Yes |
Dimensions (W x H x D) | 6.6 x 6 x 5.8" / 16.8 x 15.2 x 14.7 cm |
Weight | 3.9 lb / 1.77 kg |

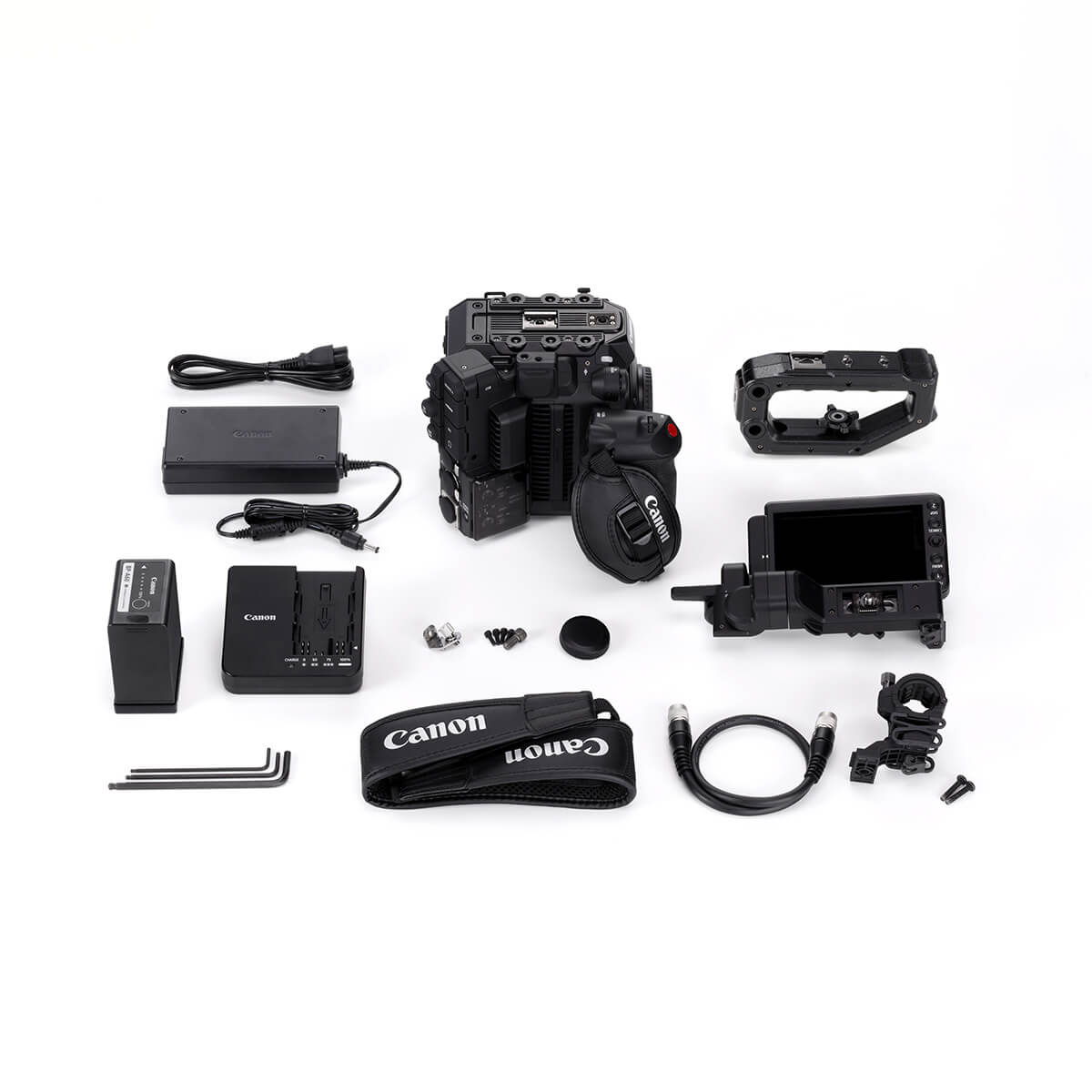

- Canon EOS C500 Mark II 5.9K Full-Frame Camera Body (EF Mount, No CFexpress Card)
- Canon GR-V1 Camera Grip for EOS C200
- Canon LM-V2 4.3" LCD Monitor
- Canon LA-V2 LCD Attachment Unit
- Handle Unit
- Shoulder Strap
- Battery Charger
- Compact Power Adapter for Battery Charger
- AC Power Cable US for Battery Charger
- Canon BP-A60 Battery Pack for EOS C300 Mark II, C200, and C200B
- Extension Unit Attachment Bracket
- Canon UN-5 Unit Cable for Select Canon EOS Cameras & XC15 (20")
- 1/4" Hex Wrench
- M3 Hex Wrench
- M4 Hex Wrench
- 1/4" Hex Socket Head Bolt
- M3 Hex Socket Head Bolt
- Bolt Stopper
- Limited 1-Year Warranty
