Wide angle to telephoto
A 95x zoom ratio and the widest focal length (8.6mm) of any field lens in the industry, allows the XJ95x to offer an enormous range of imaging possibilities that are impossible with conventional field lenses, For example the lens can dramatically capture every possible on-site sensation, from the emotion of an entire crowded stadium to the facial expression of an individual player.
Incomparable optical performance
Canon's mastery of computer-based 3D optical design techniques and use of the most contemporary optical technologies allow the XJ95x lens to provide a wider angle of view, a higher zoom ratio and unparalleled overall optical performance. Canon's proprietary large-diameter aspherical lens technology and exotic glass materials effectively counter lateral chromatic aberration, monochromatic aberrations, and geometric distortion. This enhances resolution and contrast enabling the capture of images with superb picture sharpness across the 16:9 HD image plane.
Constant Angle Focusing System (CAFS)
CAFS uses a 32-bit CPU to counteract focus "breathing" and give an almost zero zoom effect. It calculates focus changes and synchronises the zoom to virtually eliminate picture size/ angle of view changes when focusing.
Advanced Image Stabilization system
The XJ95x has an improved optical shift-type image stabilizer to counteract camera vibrations and minimise image blurring at long focal lengths. The system incorporates a next generation sensor inside the lens. When this detects a vibration, the compensating optics are shifted at high-speed to instantly deflect the light rays in a direction that cancels out the vibration's effect on the image.
Excellent operability
The XJ95x offers outstanding tracking capability due to its high-resolution encoders that faithfully reproduce the camera operator's intended movements, whether a slow zoom or a preset sequence. Despite its powerful specification, its size and weight make it suitable for panning and tilting.
Virtual system support
The XJ95x is equipped with high-performance zoom, focus, and iris encoders. With multiple support for encoder outputs, analogue outputs and serial outputs, the XJ95x can work with many kinds of virtual systems. It is equipped with 20-pin lens interface, so easily adapts to existing virtual systems.

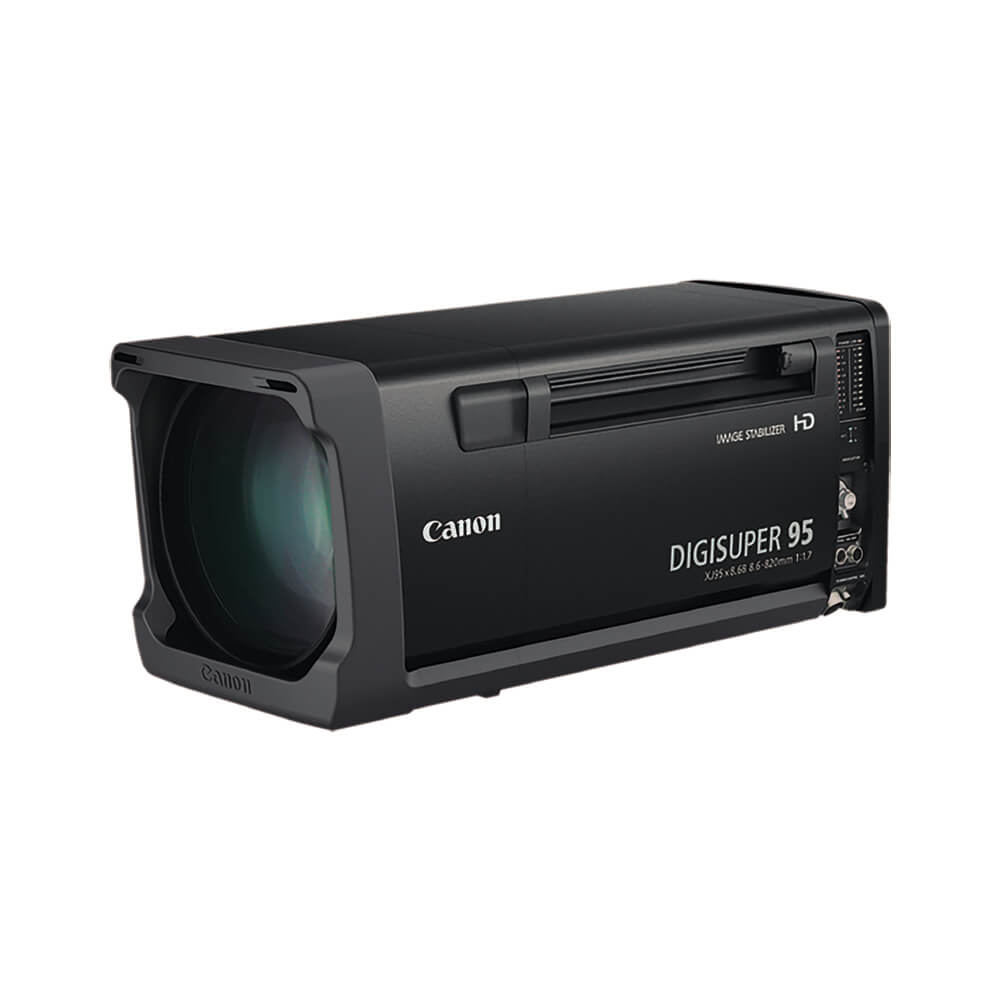

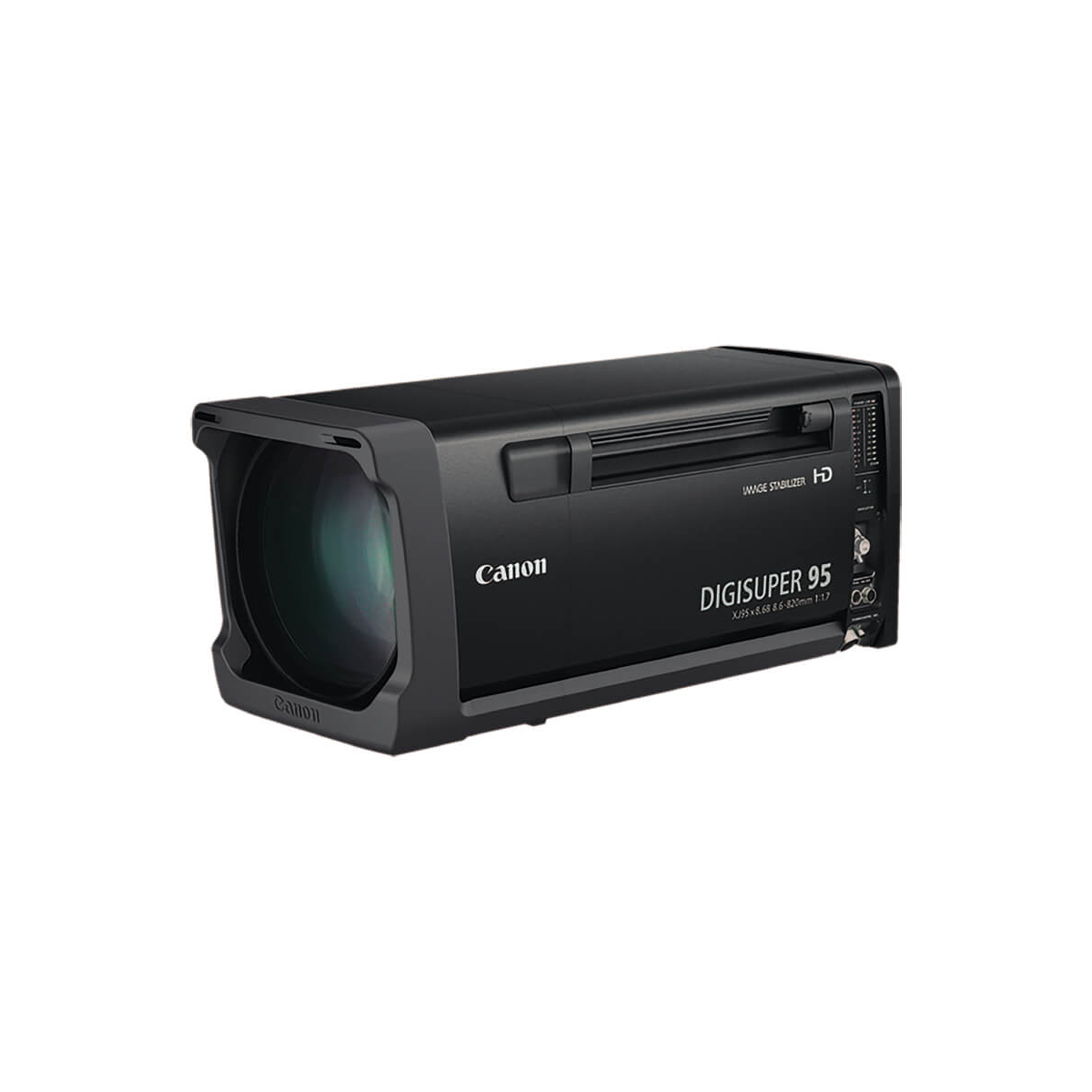

Canon DIGISUPER 95 Specification |
|
Zoom Ratio | 95x |
Image size |
2/3'' |
Build-in Extender |
2.0x |
Focal Length Range |
8.6 - 820mm |
Focal Length Range (with extender) |
17.2 - 1640mm |
Maximum Relative Aperture (F-Number) |
1:1.7 at 8.6mm~340mm 1:4.1 at 820mm (Ramping Characteristic) |
Max. Relative Aperture (F-number) w/ext. |
1:3.4 at 17.2mm~680mm 1:8.2 at 1640mm (Ramping Characteristic) |
Angular Field of View |
58.3° (H) x 34.9° (V) at 8.6mm 0.67° (H) x 0.38° (V) at 820mm |
Angular Field of View with Extender |
31.2° (H) x 17.8° (V) at 17.2mm 0.34° (H) x 0.19° (V) at 1640mm |
MOD From Front of Lens |
3.0 Meters |
Scene Object Dimensions at MOD |
298.1 x 167.7cm at 8.6mm 3.2 x 1.8cm at 820mm |
Scene Obj. Dim at MOD w/ ext |
149.1 x 83.9cm at 17.2mm 1.6 x 0.9cm at 1640mm |
Protection Filter | Option |
Build-in Optical Image Stabilizer | Yes |
Approx. Size (WxHxL) |
250.6x255.5x610mm |
Approx. Mass |
23.2kg (51.1lbs) |
