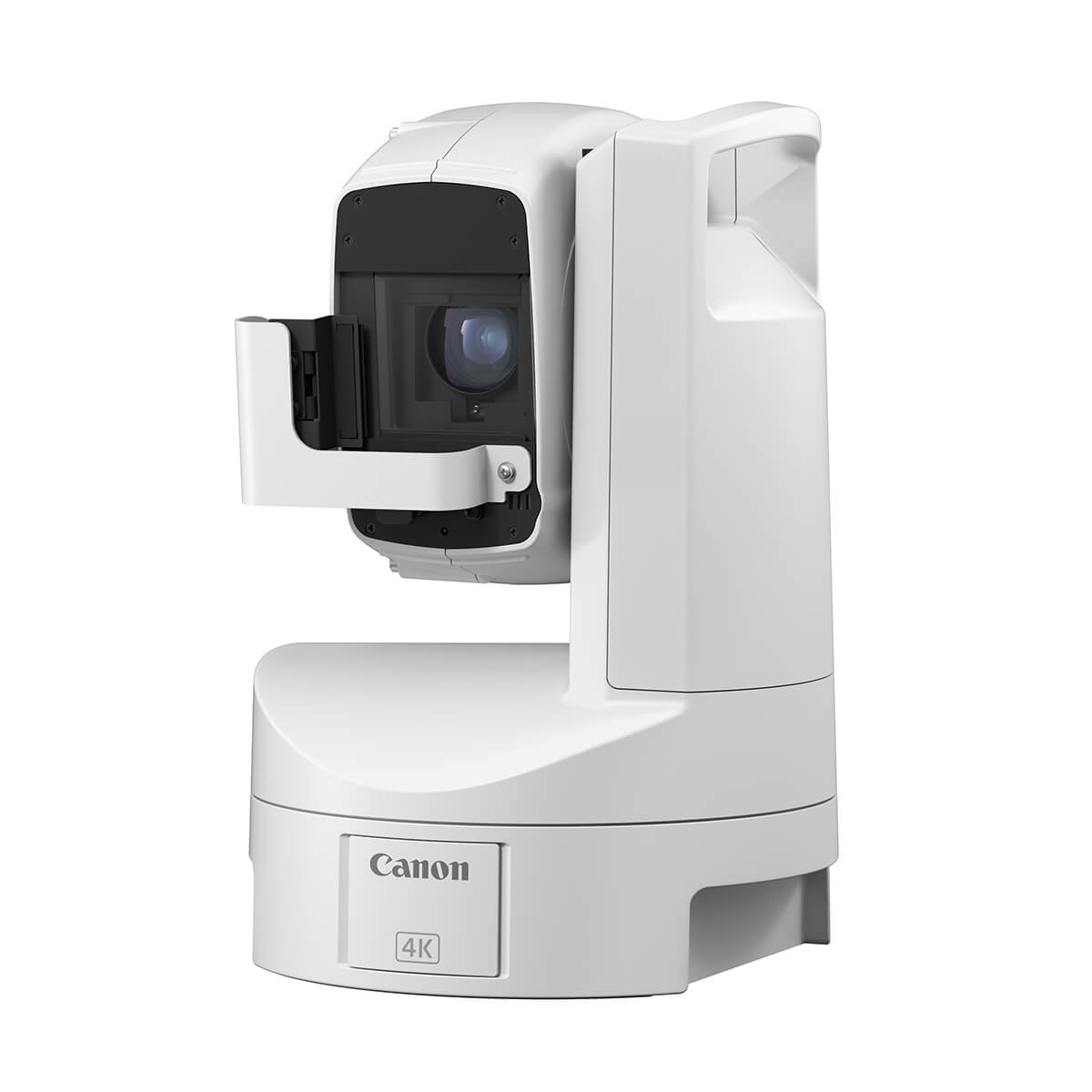

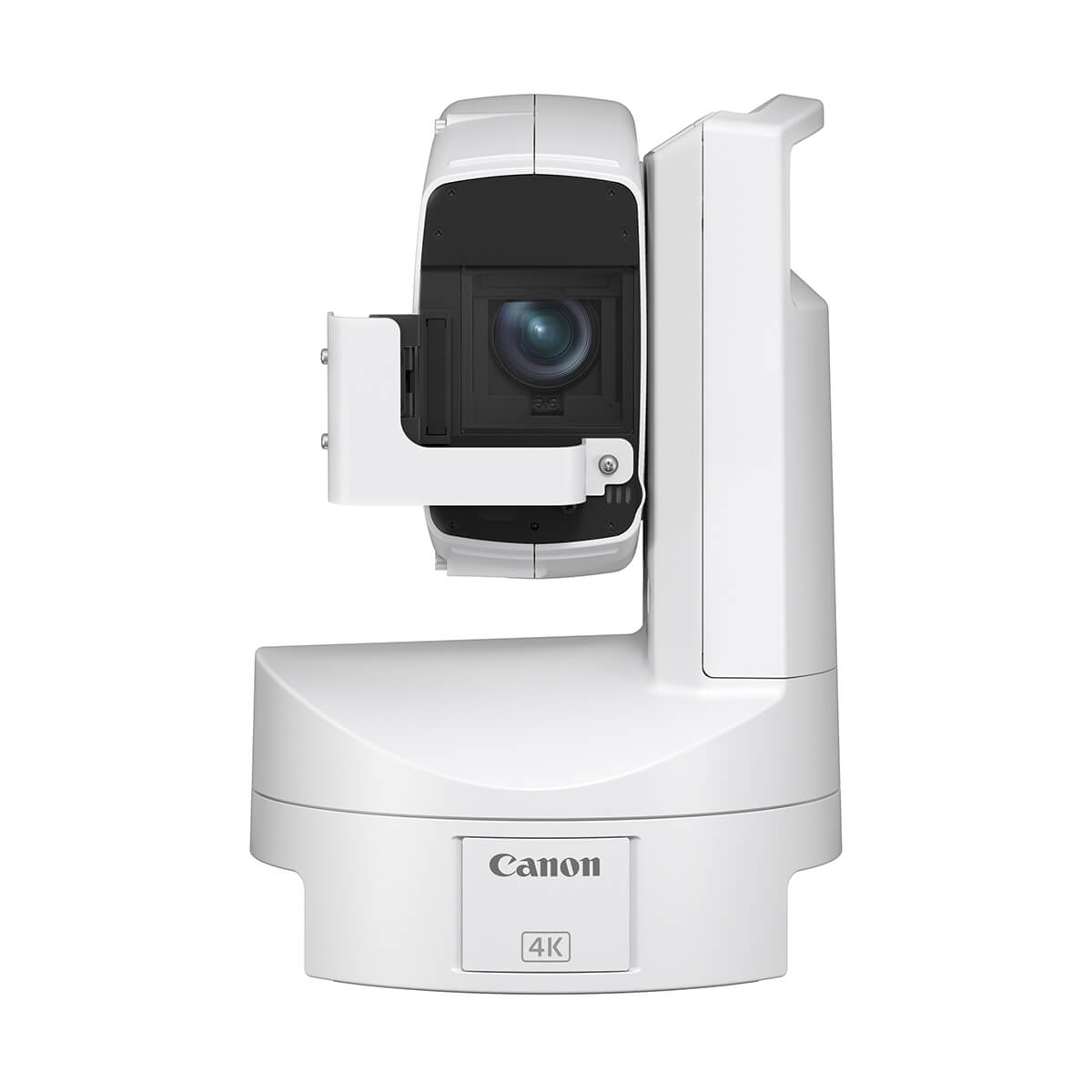

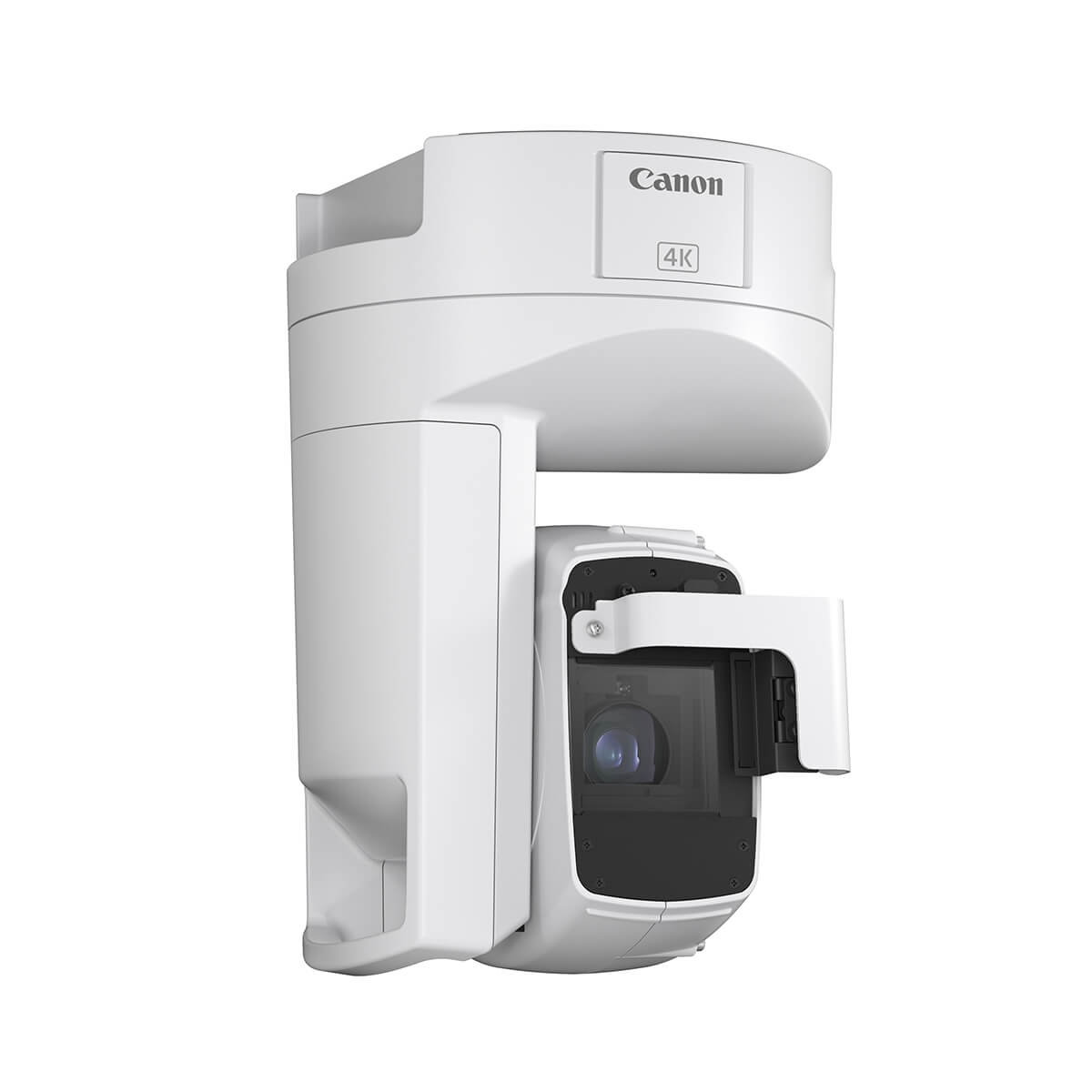

If you have a professional production or outdoor environment that requires remotely controlled cameras with minimal crew and a high-resolution output, the titanium white CR-X300 Outdoor 4K PTZ Camera with 20x Zoom from Canon will fit right into your house of worship, corporate conference room, government application, courtroom, broadcast streaming production, event space, or even add an extra camera to your documentary shoot. With its weather-resistant exterior paint, durable aluminum body, interior fan, IP65 waterproof rating, and built-in lens wiper, it can also be used for outdoor surveillance and security.
The CR-X300 sports many features of a Canon camcorder such as a 1/2.3" dual-pixel CMOS sensor, Hybrid AF, the Canon DIG!C DV6 image processor, scene modes, IR (infrared) mode, 20x optical zoom, 20x digital zoom, built-in waterproof microphone, and video capture and output up to UHD 4K. The camera also includes NDI|HX support without requiring a separate license, allowing you to drop the camera into your existing NDI network with minimal configuration.
Where the PTZ camera diverges from the camcorders is in its remote resources such as control via IP and RS-422 serial as well as HDMI, 6G-SDI, and IP streaming outputs, and compatibility with the Canon RC-IP100 IP PTZ remote controller. It can perform smooth, precision pan, tilt, and zoom movements with a speed range of 0.3 to 60° per second.
The camera can also be powered using PoE++ (Power-over-Ethernet) using its LAN port, so it can fit right into your existing PoE+ network without requiring the use of local power to save cabling. The camera supports a wide dynamic range, minimum illumination of 3 lux, and its lens features a 35mm equivalent focal length of 30.5 to 627mm.
The camera can utilize an external controller via RS-422/VISCA or Canon's proprietary XC IP protocol on a private, secure LAN, using the optional RC-IP100 PTZ controller. Or, if you'd prefer to use Canon's camera control software, the free-to-download application can work on Windows OS, so you can control all the camera functions from a laptop or tablet. The software provides a 9x9 live view, control of up to 100 cameras, settings loading and configuration, and tally functions.
Canon CR-X300 Specification Imaging |
|
Image Sensor | 1/2.3"-Type CMOS |
Sensor Resolution | Actual: 21.14 Megapixel Effective: 8.29 Megapixel (3840 x 2160) |
IR Cut Filter | Yes |
Built-In ND Filter | Mechanical Filter Wheel with 3-Stop (1/8), 5-Stop (1/32) ND Filters |
Image Stabilization | Optical in Integrated Lens |
Focus Control | Autofocus Manual Focus |
Exposure Control |
|
Shutter Type | Electronic Rolling Shutter |
Shutter Speed | 1/2000 to 1/6 Second |
Gain | 0 to 36 dB |
Precise Scan Rate Control | No |
Minimum Illumination | 3 Lux at 1/60 Shutter Speed |
Flip / Mirror Support | Image Flip |
White Balance | 2000 to 15,000K Presets: AWB, Manual, Set A, Set B |
Lens |
|
Focal Length | 3.7 to 73.4mm (35mm Equivalent: 30.5 to 627mm) |
Optical Zoom Ratio | 20x |
Max Digital Zoom | 20x |
Field of View | Horizontal: 65.6 to 3.6° Vertical: 39.8 to 2° |
Maximum Aperture | f/1.8 to 2.8 |
Minimum Focus Distance | Wide: 0.4" / 1.0 cm Telephoto: 23.6" / 60.0 cm |
Video Capture |
|
External Recording Modes | 4:2:2 10-Bit via HDMI 3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:2 10-Bit via SDI/BNC 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:0 8-Bit via RJ45 3840 x 2160 at 5/6/12/12.50/15/23.98/25/29.97 fps 1920 x 1080p at 5/6/12/12.50/15/23.98/25/29.97/50/59.94 fps 1280 x 720 at 5/6/12/12.50/15/23.98/25/29.97/50/59.94 fps 640 x 360 at 5/6/12/12.50/15/23.98/25/29.97/50/59.94 fps |
Embedded Audio | SDI |
Broadcast Output | NTSC/PAL |
Gamma Curve | Rec709, Rec2020 |
IP Streaming | NDI|HX, RTMP, RTMPS, RTP, RTSP 3840 x 2160 1920 x 1080 1280 x 720 640 x 360 |
Control |
|
Presets | 100 via IP, VISCA |
Move Speed | Pan: 2 to 300°/sec Tilt: 0.2 to 170°/sec |
Movement Range | Pan: 340° (-170 to 170°) Tilt: 130° (-30 to 100°) |
Tally Light | Yes |
Supported Control Protocols | Canon XC IR RS-422 VISCA |
Interface |
|
Video I/O | 1 x BNC (6G-SDI) Output 1 x HDMI Output 1 x RJ45 (NDI) Output |
Other I/O | 1 x BNC (Genlock) Input 1 x RJ45 (RS-422, VISCA) Input |
Built-In Microphone Type | Stereo |
Built-In Speaker | No |
Power |
|
PoE Support | PoE+ 802.3at |
Power I/O | 1 x Barrel (12VDC) Input |
Power Consumption | PoE: 40 W Power Supply: 12 VDC 40 W |
Environmental |
|
Operating Temperature | 5 to 104°F / -15 to 40°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
General |
|
Material of Construction | Aluminum |
IP Rating | IP65 |
Environmental Protection | Advertised as Weather Resistant *Manufacturer Testing: IP65 |
OS Compatibility | Windows 10 (64-Bit Only) macOS 11 *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
Mobile App Compatible | Yes: Android & iOS Functionality: Adjust Settings *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
Sound Level | NC45 (at Full Speed) |
Dimensions (W x H x D) | 12.24 x 8.54 x 8.54" / 31.09 x 21.69 x 21.69 cm 8.54 x 12.24 x 8.54" / 21.69 x 31.09 x 21.69 cm |
Weight | 15.4 lb / 7 kg |
Canon CR-X300 Specification Imaging |
|
Image Sensor | 1/2.3"-Type CMOS |
Sensor Resolution | Actual: 21.14 Megapixel Effective: 8.29 Megapixel (3840 x 2160) |
IR Cut Filter | Yes |
Built-In ND Filter | Mechanical Filter Wheel with 3-Stop (1/8), 5-Stop (1/32) ND Filters |
Image Stabilization | Optical in Integrated Lens |
Focus Control | Autofocus Manual Focus |
Exposure Control |
|
Shutter Type | Electronic Rolling Shutter |
Shutter Speed | 1/2000 to 1/6 Second |
Gain | 0 to 36 dB |
Precise Scan Rate Control | No |
Minimum Illumination | 3 Lux at 1/60 Shutter Speed |
Flip / Mirror Support | Image Flip |
White Balance | 2000 to 15,000K Presets: AWB, Manual, Set A, Set B |
Lens |
|
Focal Length | 3.7 to 73.4mm (35mm Equivalent: 30.5 to 627mm) |
Optical Zoom Ratio | 20x |
Max Digital Zoom | 20x |
Field of View | Horizontal: 65.6 to 3.6° Vertical: 39.8 to 2° |
Maximum Aperture | f/1.8 to 2.8 |
Minimum Focus Distance | Wide: 0.4" / 1.0 cm Telephoto: 23.6" / 60.0 cm |
Video Capture |
|
External Recording Modes | 4:2:2 10-Bit via HDMI 3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:2 10-Bit via SDI/BNC 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:0 8-Bit via RJ45 3840 x 2160 at 5/6/12/12.50/15/23.98/25/29.97 fps 1920 x 1080p at 5/6/12/12.50/15/23.98/25/29.97/50/59.94 fps 1280 x 720 at 5/6/12/12.50/15/23.98/25/29.97/50/59.94 fps 640 x 360 at 5/6/12/12.50/15/23.98/25/29.97/50/59.94 fps |
Embedded Audio | SDI |
Broadcast Output | NTSC/PAL |
Gamma Curve | Rec709, Rec2020 |
IP Streaming | NDI|HX, RTMP, RTMPS, RTP, RTSP 3840 x 2160 1920 x 1080 1280 x 720 640 x 360 |
Control |
|
Presets | 100 via IP, VISCA |
Move Speed | Pan: 0.3 to 60°/sec Tilt: 0.3 to 60°/sec |
Movement Range | Pan: 360° (-180 to 180°) Tilt: 130° (-40 to 215°) |
Tally Light | Yes |
Supported Control Protocols | Canon XC IP RS-422 VISCA |
Interface |
|
Video I/O | 1 x BNC (6G-SDI) Output 1 x HDMI Output 1 x RJ45 (NDI) Output |
Other I/O | 1 x BNC (Genlock) Input 1 x RJ45 (RS-422, VISCA) Input |
Built-In Microphone Type | Stereo |
Built-In Speaker | No |
Power |
|
PoE Support | PoE+ 802.3at |
Power I/O | 1 x Barrel (12VDC) Input |
Power Consumption | PoE: 40 W Power Supply: 12 VDC 40 W |
Environmental |
|
Operating Temperature | 5 to 104°F / -15 to 40°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
General |
|
Material of Construction | Aluminum |
IP Rating | IP65 |
Environmental Protection | Advertised as Weather Resistant *Manufacturer Testing: IP65 |
OS Compatibility | Windows 10 (64-Bit Only) macOS 11 *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
Mobile App Compatible | Yes: Android & iOS Functionality: Adjust Settings *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
Sound Level | NC45 (at Full Speed) |
Dimensions (W x H x D) | 12.24 x 8.54 x 8.54" / 31.09 x 21.69 x 21.69 cm 8.54 x 12.24 x 8.54" / 21.69 x 31.09 x 21.69 cm |
Weight | 15.4 lb / 7 kg |
- Canon CR-X300 Outdoor 4K PTZ Camera with 20x Zoom (Titanium White)
- Connector Cover
- Power Cable
- Limited 3-Year Manufacturer Warranty
