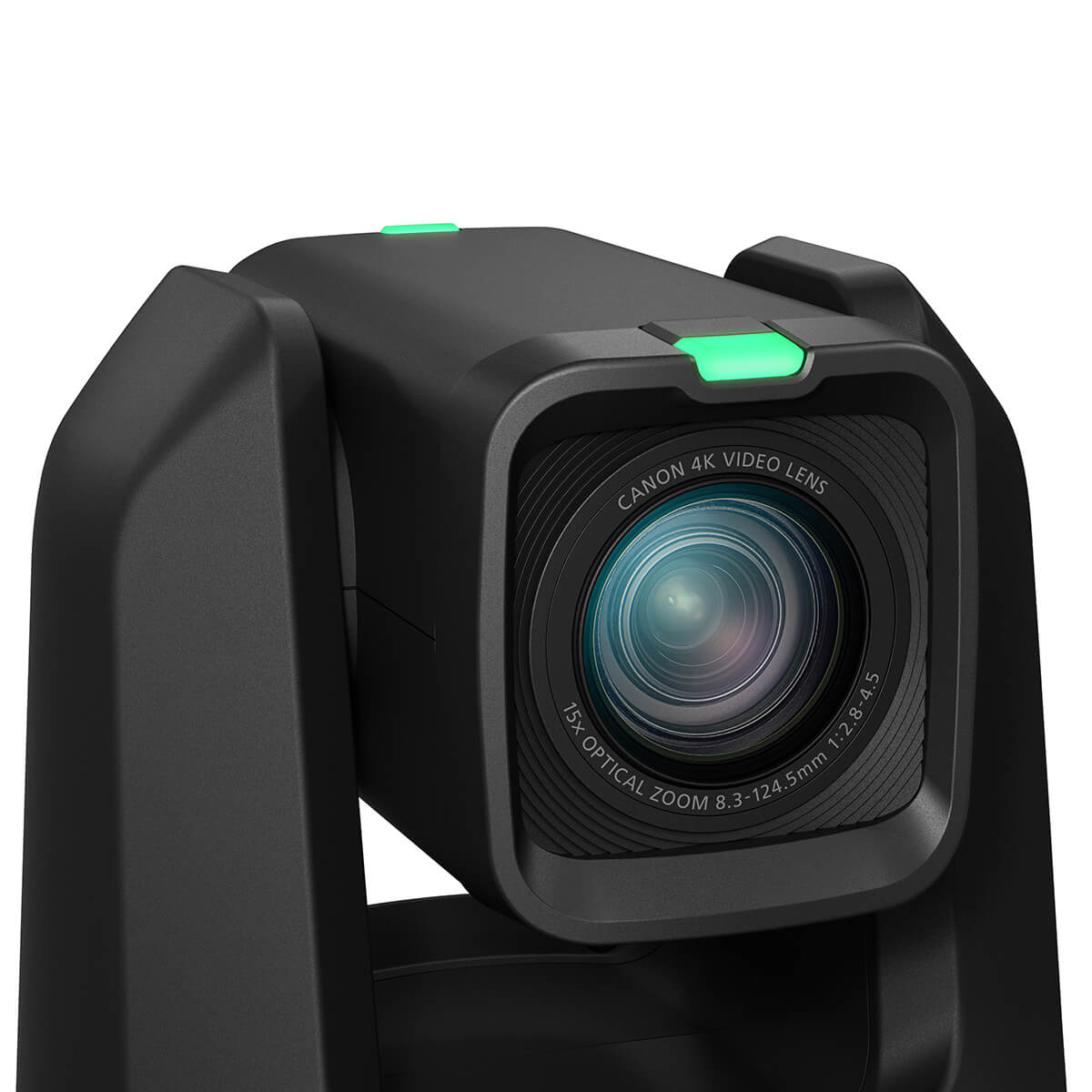

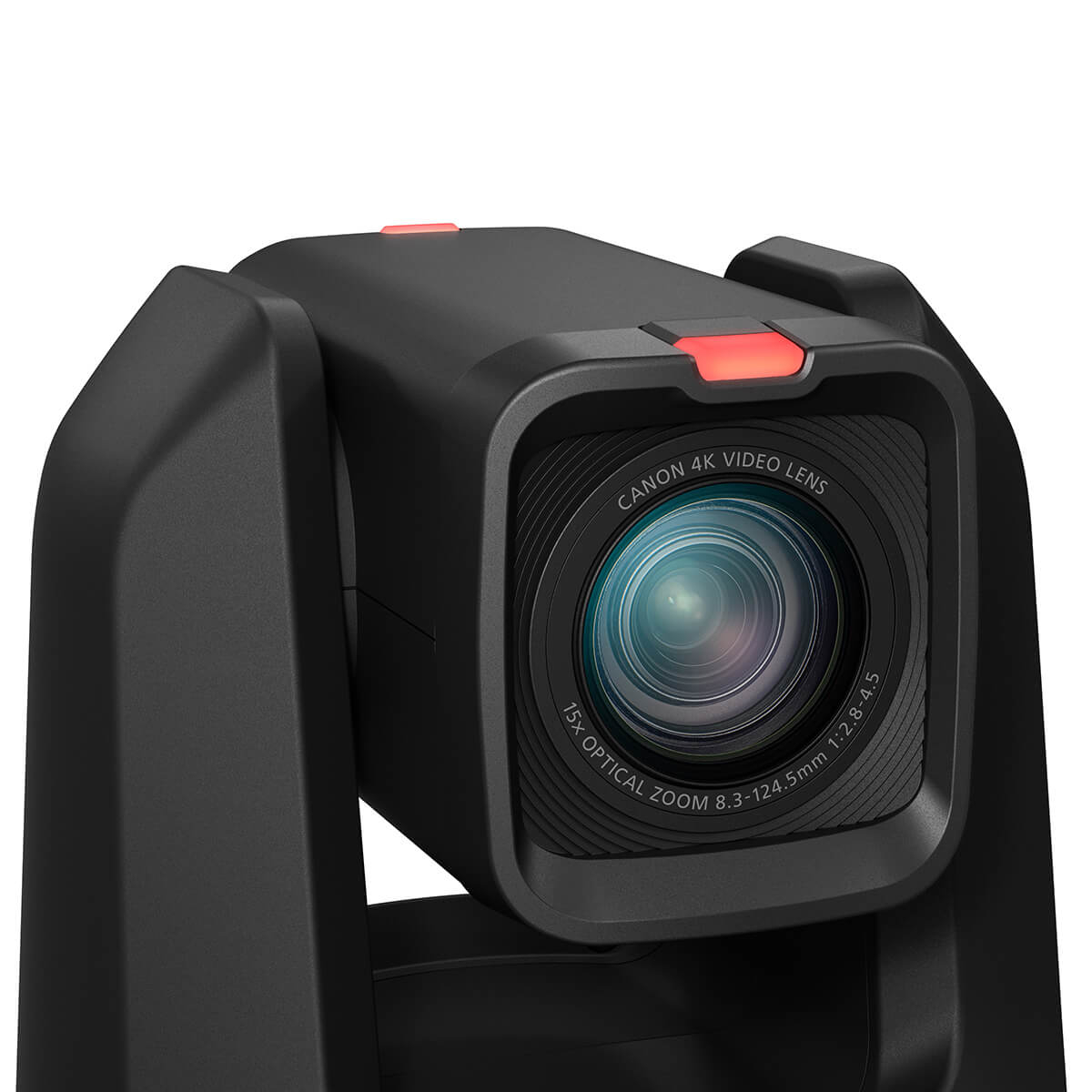

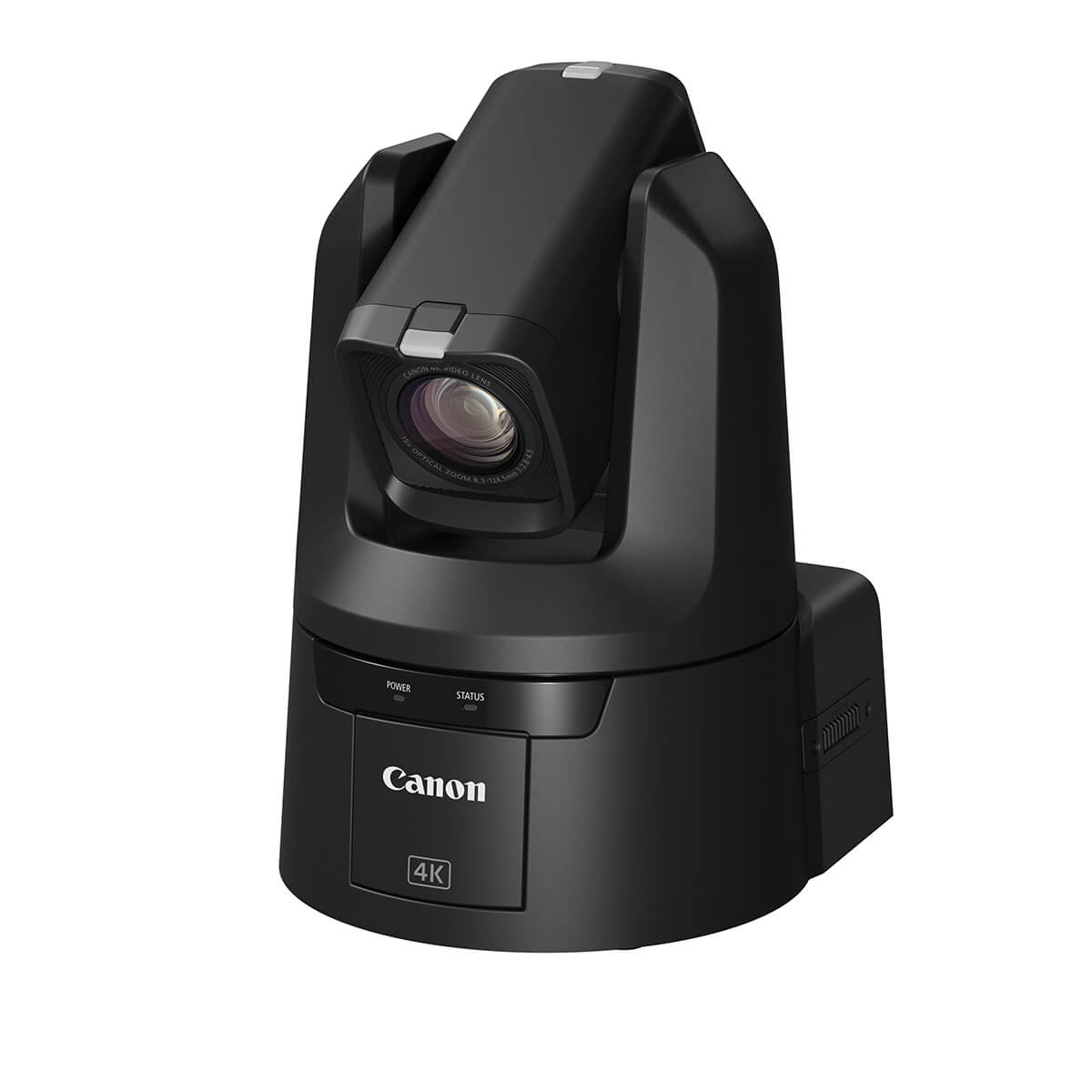

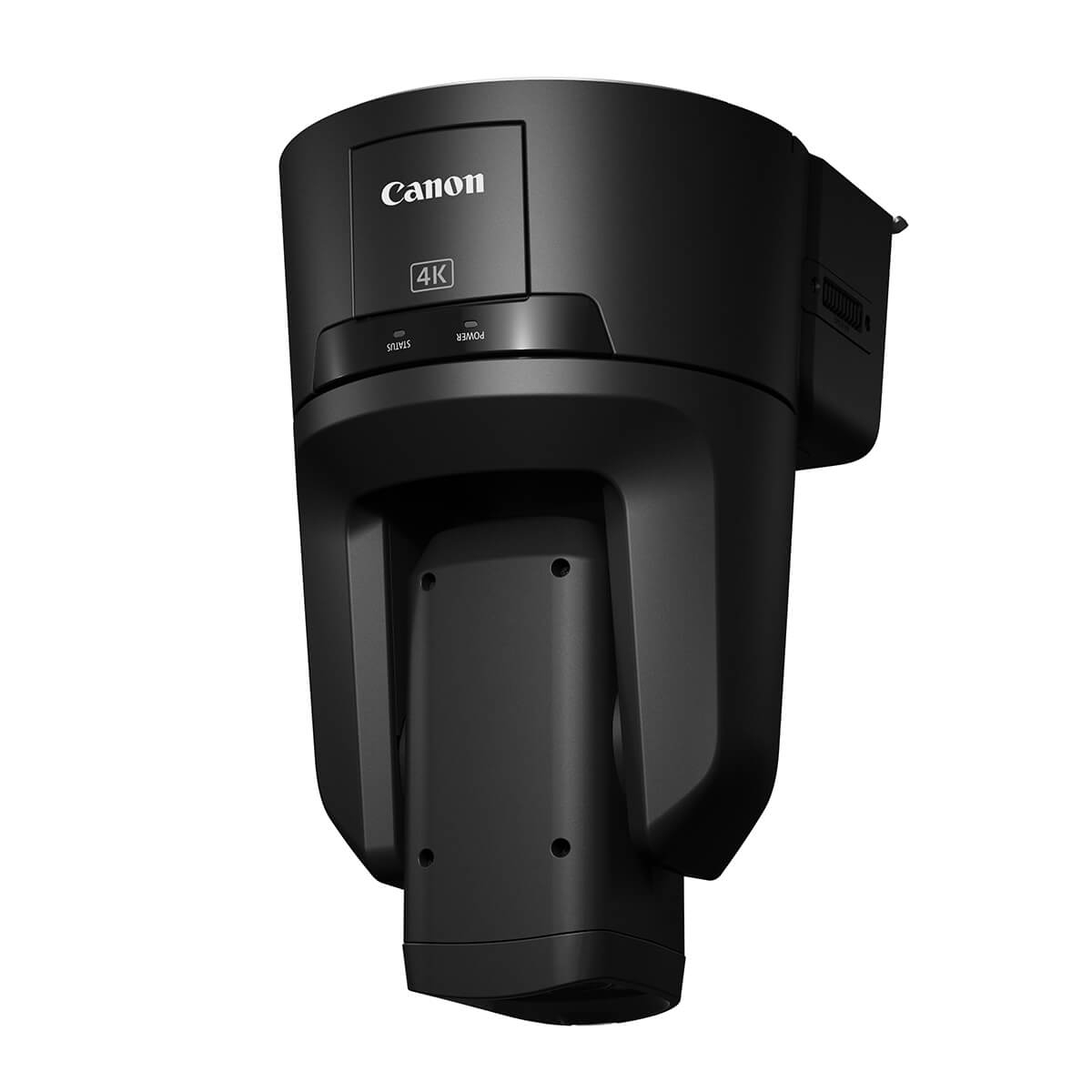

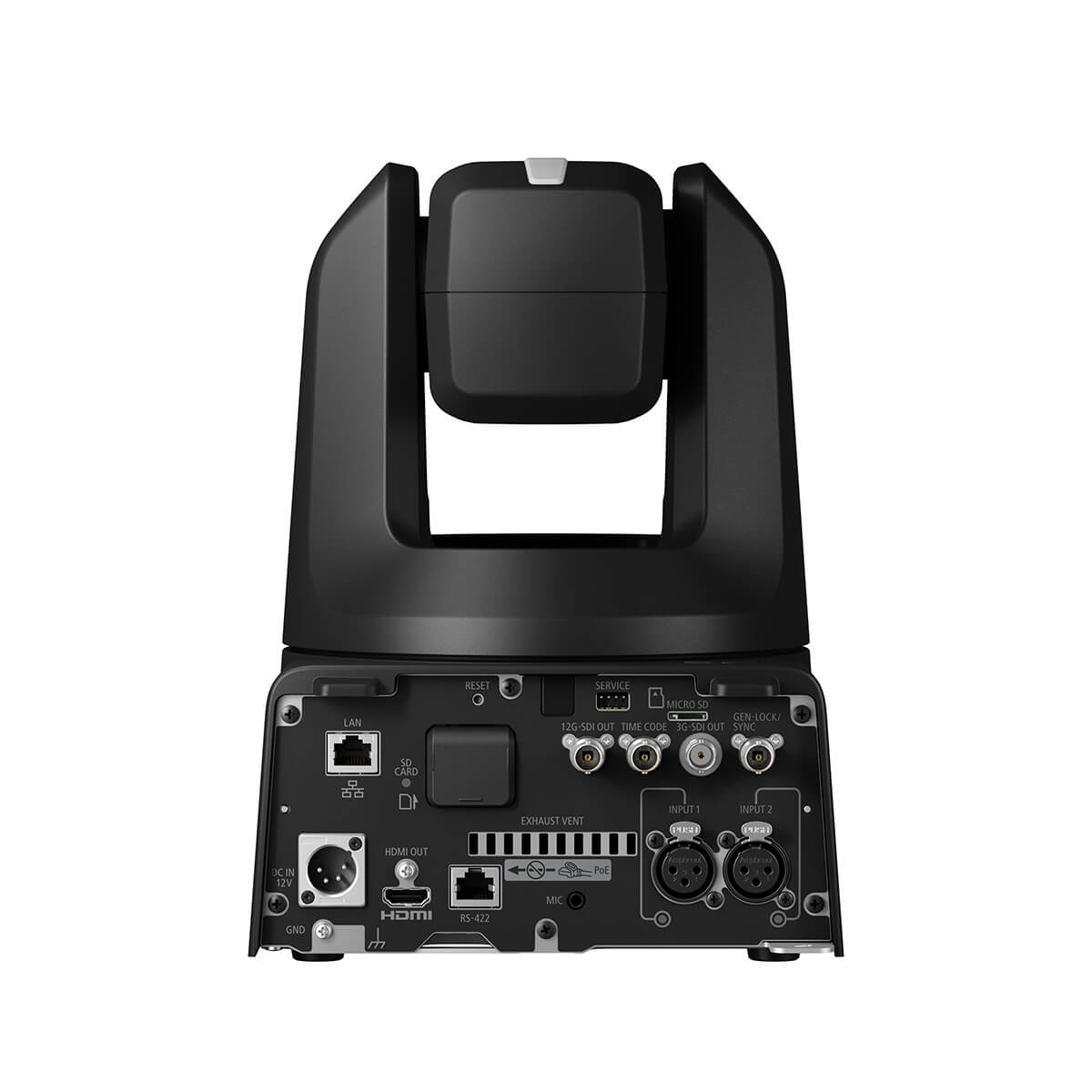

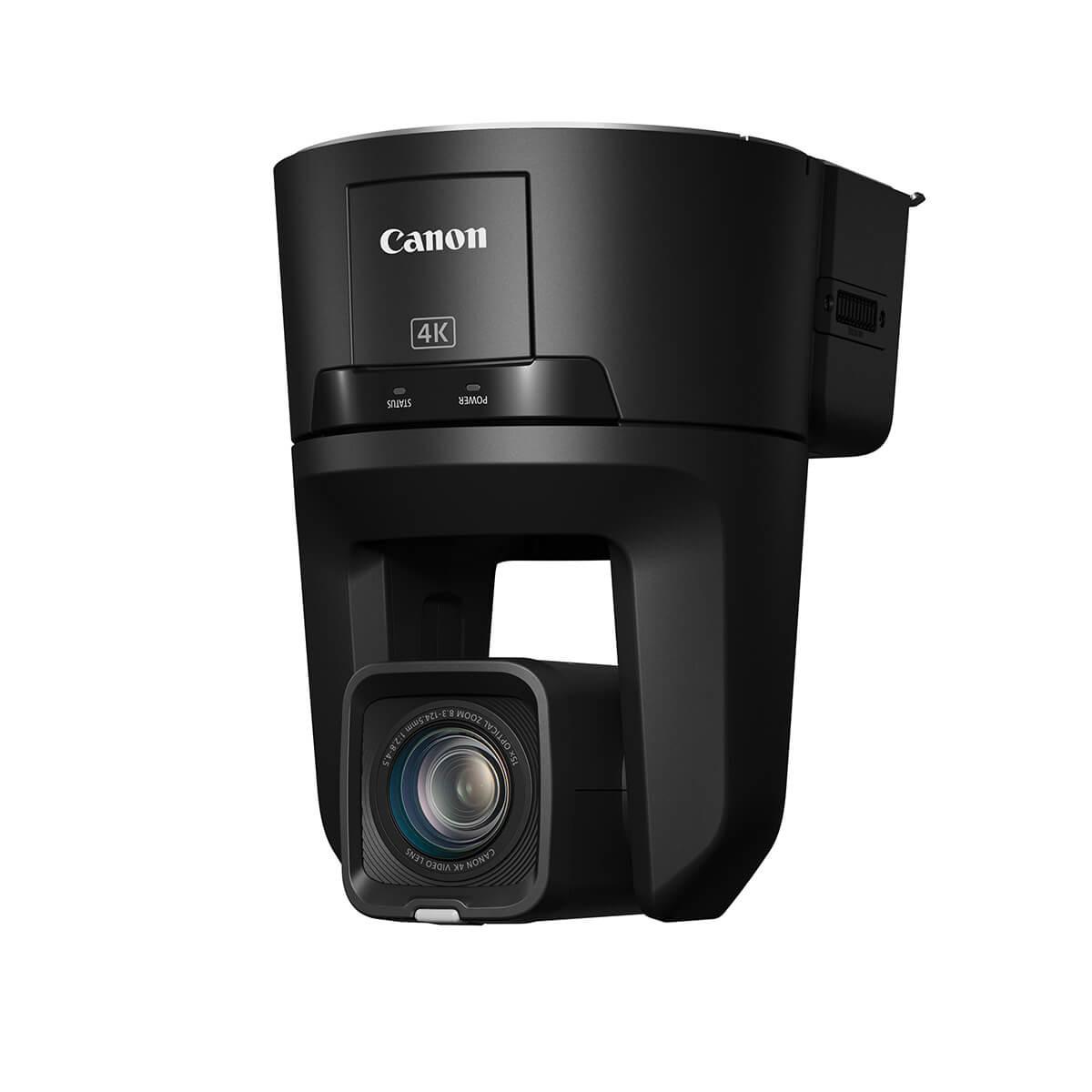

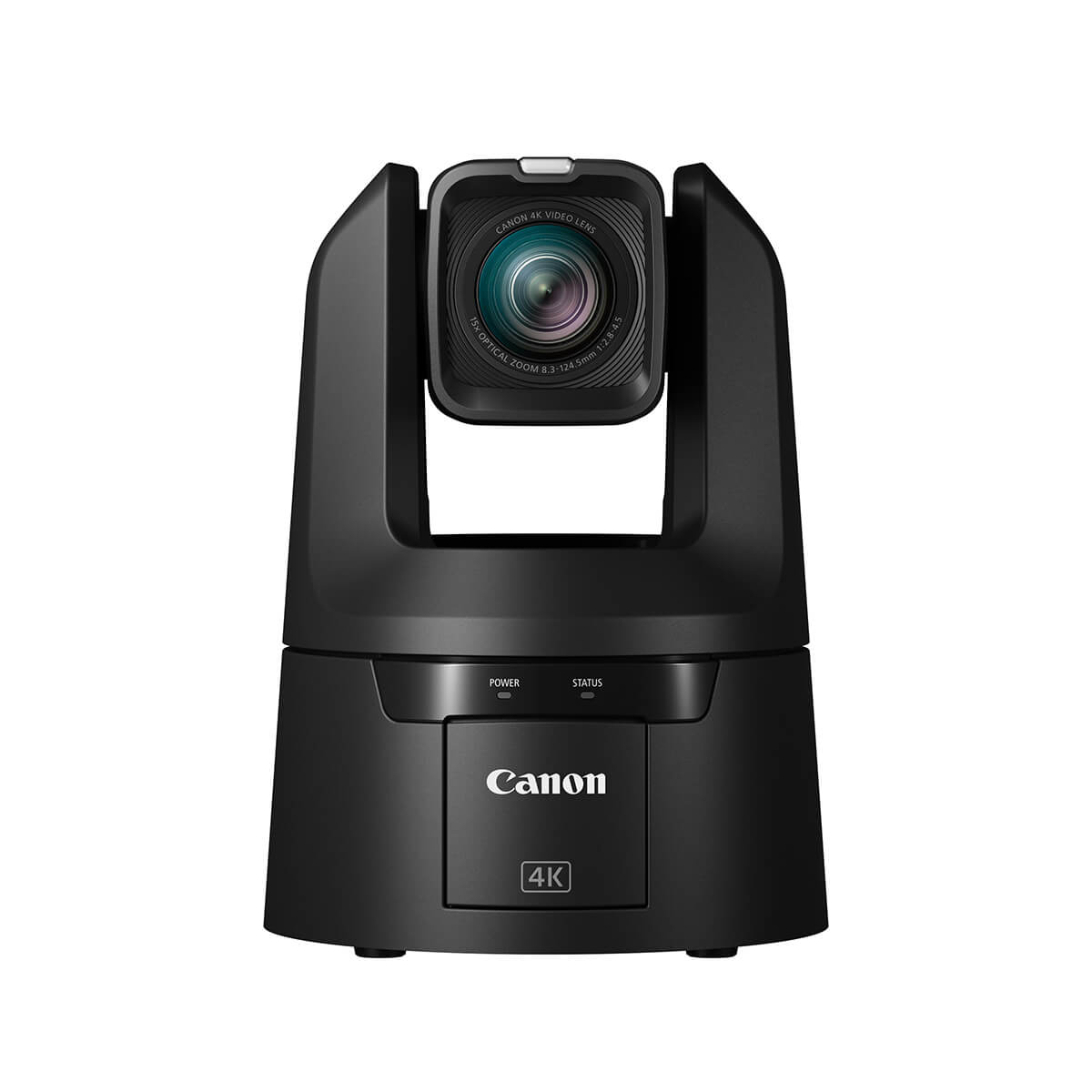

Capture exceptional 4K imaging in a PTZ form using the satin black CR-N700 4K PTZ Camera from Canon. Ideal for high-end broadcast, TV studio, and live event use, the compact CR-N700 supports up to UHD 4K60p 4:2:2 10-bit HDR video. The CR-N700 shares several features with high-resolution, cine-style Canon cameras like a 1" type CMOS sensor, a Canon DIG!C DV7 image processor, Dual Pixel CMOS AF with EOS iTR AF X (autofocus), and a 15x optical/20x digital zoom with a 30x Advanced Zoom in HD.

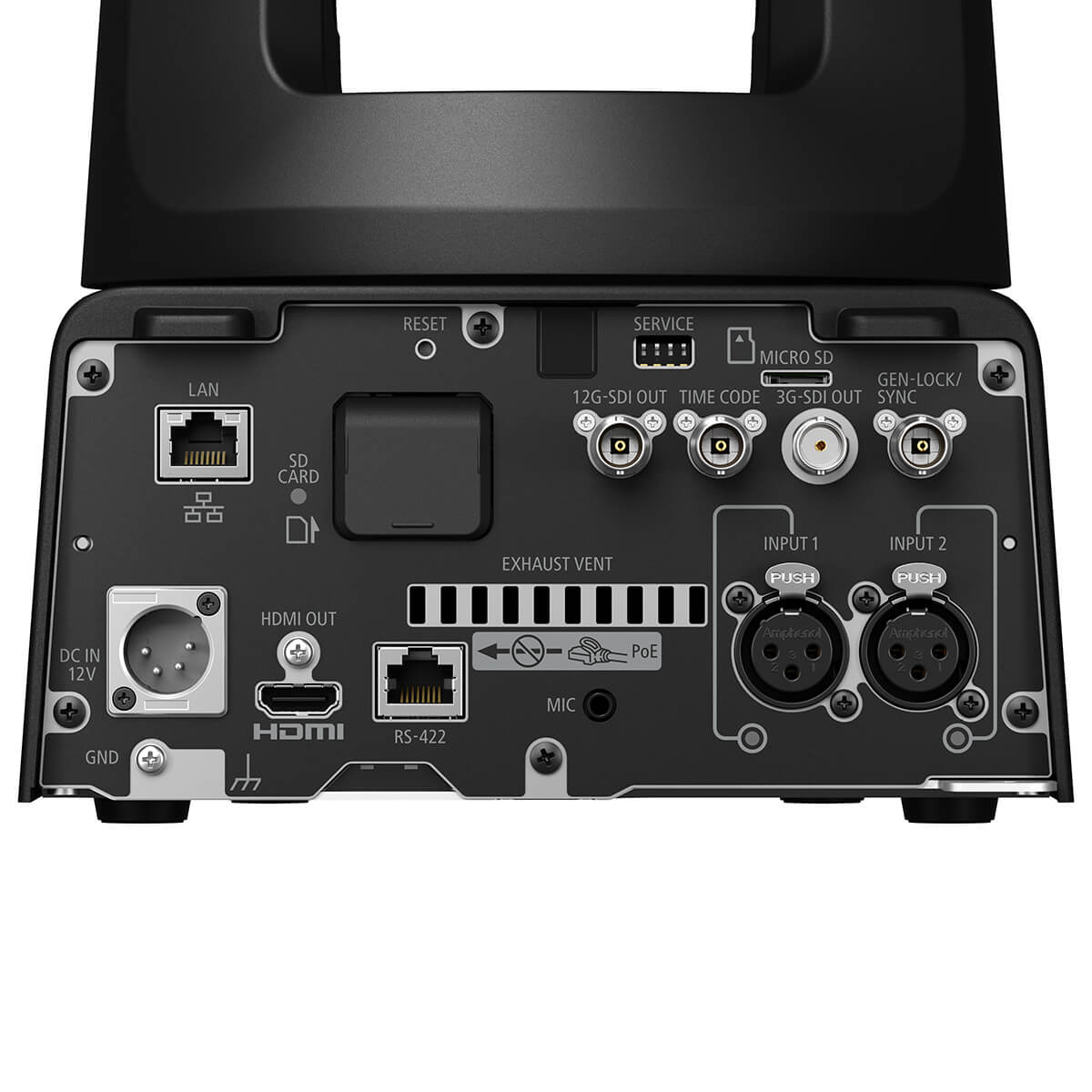

The CR-N700 PTZ camera's additional features include "deep learning" auto focus, 12G-SDI connectivity, flexible connectivity, and compatibility with multiple streaming and control protocols. Region of interest (ROI) crop capabilities enable you to highlight areas within your 4K image.
|
Canon CR-N700 Specification |
|
| Sensor Resolution | Actual: 13.4 Megapixel Effective: 8.29 Megapixel |
| Shutter Speed | 1/3 to 1/2000 Second |
| Max Digital Zoom | 30x ( in 1080p) |
| Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
|
Lens |
|
| Focal Length | 8.3 to 124.5mm (35mm Equivalent: 25.5 to 382.5mm) |
| Optical Zoom Ratio | 15x |
| Field of View | Horizontal: 73 to 5.7° Vertical: 45.2 to 3.2° |
| Focus Control | Autofocus Manual Focus |
| Embedded Audio | HDMI/SDI |
|
Control |
|
| Presets | 100 |
| Move Speed | Pan: 0.1 to 100°/sec Tilt: 0.1 to 100°/sec |
| Movement Range | Pan: 34° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP NDI VISCA |
|
Power |
|
| PoE Support | PoE++ 802.3bt |
|
Environmental |
|
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Humidity | 10 to 90% |
- Canon CR-N700 4K PTZ Camera with 15x Zoom (Satin Black)
- Ceiling Plate
- Ceiling Plate Screw
- Safety Cable
- Camera-to-Mount Safety Cable
- IR Remote Control
- Battery for Remote Control
- Limited 1-Year Manufacturer Warranty
