If you have a professional production that requires remotely controlled cameras with minimal crew and a high-resolution output, the satin black CR-N300 4K NDI PTZ Camera with 20x Zoom from Canon will fit right into your house of worship, corporate conference room, government application, courtroom, broadcast streaming production, event space, or even add an extra camera to your documentary shoot. The CR-N300 sports many features of a Canon camcorder, such as a 1/2.3" dual-pixel CMOS sensor, Hybrid AF, the Canon DIG!C DV6 image processor, scene modes, 20x optical zoom, 20x digital zoom, microphone input, and video capture and output up to UHD 4K. The camera also includes NDI|HX support without requiring a separate license, allowing you to drop the camera into your existing NDI network with minimal configuration.
Canon CR-N300 Specification Imaging |
|
Image Sensor | 1/2.3"-Type CMOS |
Sensor Resolution | Actual: 21.14 Megapixel Effective: 8.29 Megapixel (3840 x 2160) |
IR Cut Filter | No |
Built-In ND Filter | Mechanical Filter Wheel with Clear, Graduated 3-Stop (1/8) ND Filters |
Image Stabilization | Optical in Integrated Lens |
Focus Control | Autofocus Manual Focus |
Exposure Control |
|
Shutter Type | Electronic Rolling Shutter |
Shutter Speed | 1/2000 to 1/6 Second |
Gain | 0 to 36 dB |
Minimum Illumination | 1.5 Lux at 1/30 Shutter Speed |
Flip / Mirror Support | Image Flip, Mirror (Vertical) |
White Balance | 2000 to 15,000K Presets: AWB, Manual, Set A, Set B |
Lens |
|

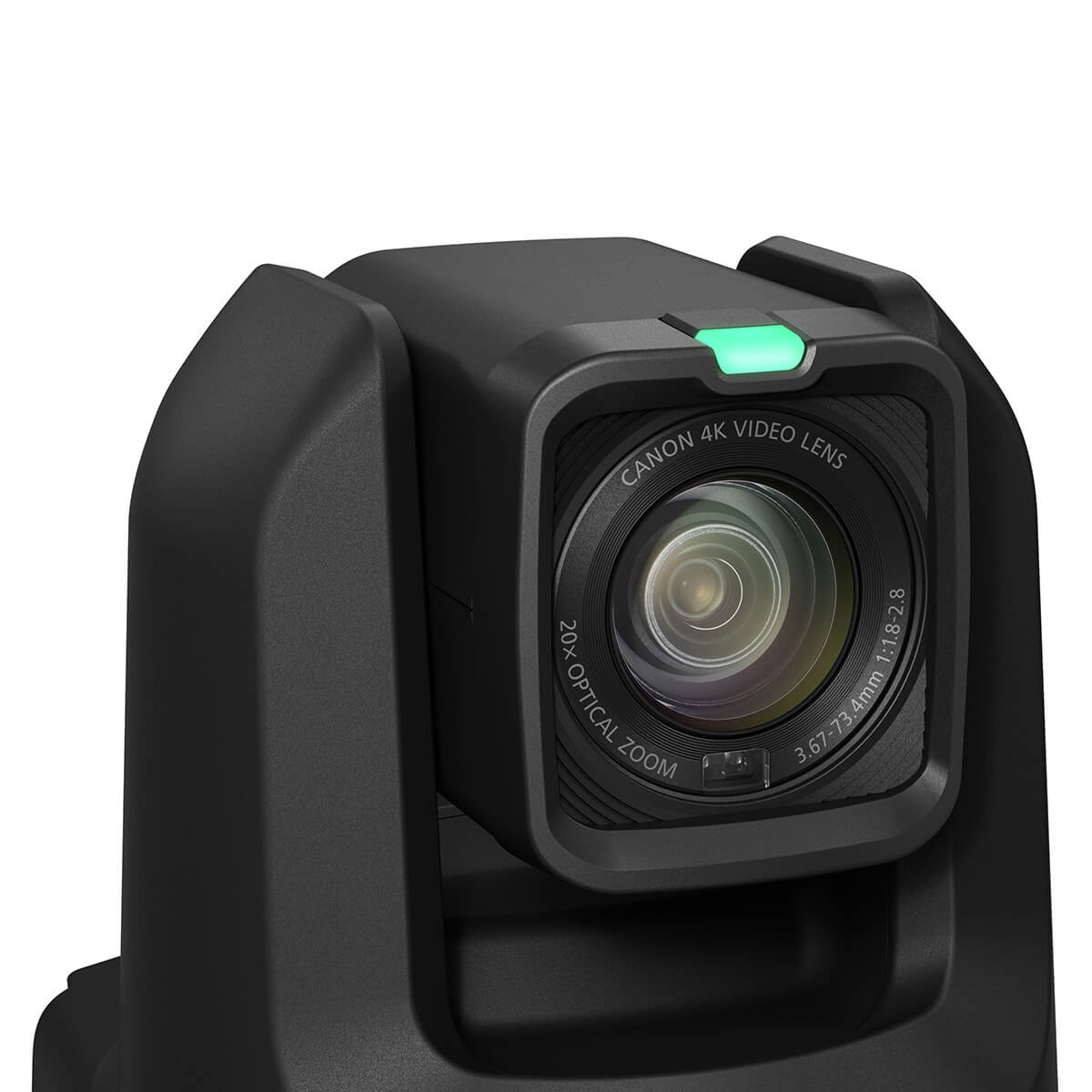

Focal Length | 3.7 to 73.4mm (35mm Equivalent: 29.3 to 601mm) |
Optical Zoom Ratio | 20x |
Max Digital Zoom | 20x |
Field of View | Horizontal: 65.6 to 3.6° Vertical: 39.8 to 2° |
Maximum Aperture | f/1.8 to 2.8 |
Minimum Focus Distance | Wide: 0.4" / 1.0 cm Telephoto: 23.6" / 60.0 cm |
Video Capture |
|
External Recording Modes | 4:2:2 10-Bit via HDMI 3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:2 10-Bit via SDI/BNC 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:0 8-Bit via RJ45 3840 x 2160 at 5/14.99/29.97 fps 1920 x 1080p at 5/14.99/29.97/59.94 fps 1280 x 720 at 5/14.99/29.97/59.94 fps 640 x 360 at 5/14.99/29.97/59.94 fps USB HD (1920 x 1080p) at 5/12 fps HD (1280 x 720) at 5/12 fps 640 x 360 at 5/12 fps |
Embedded Audio | SDI |
Broadcast Output | NTSC/PAL |
Gamma Curve | Rec709, Standard |
IP Streaming | H.264, NDI|HX, RTMP, RTMPS, RTP, RTSP, SRT 3840 x 2160 at 5.00p, 14.99p, 29.97p 1920 x 1080 at 5.00p, 14.99p, 29.97p, 59.94p 1280 x 720 at 5.00p, 14.99p, 29.97p, 59.94p 640 x 360 at 5.00p, 14.99p, 29.97p, 59.94p |
Control |
|
Presets | 100 via IP, VISCA |
Move Speed | Pan: 2 to 300°/sec Tilt: 0.2 to 170°/sec |
Movement Range | Pan: 340° (-170 to 170°) Tilt: 130° (-30 to 100°) |
Tally Light | Yes |
Supported Control Protocols | Canon XC IR RS-422 VISCA |
Interface |
|

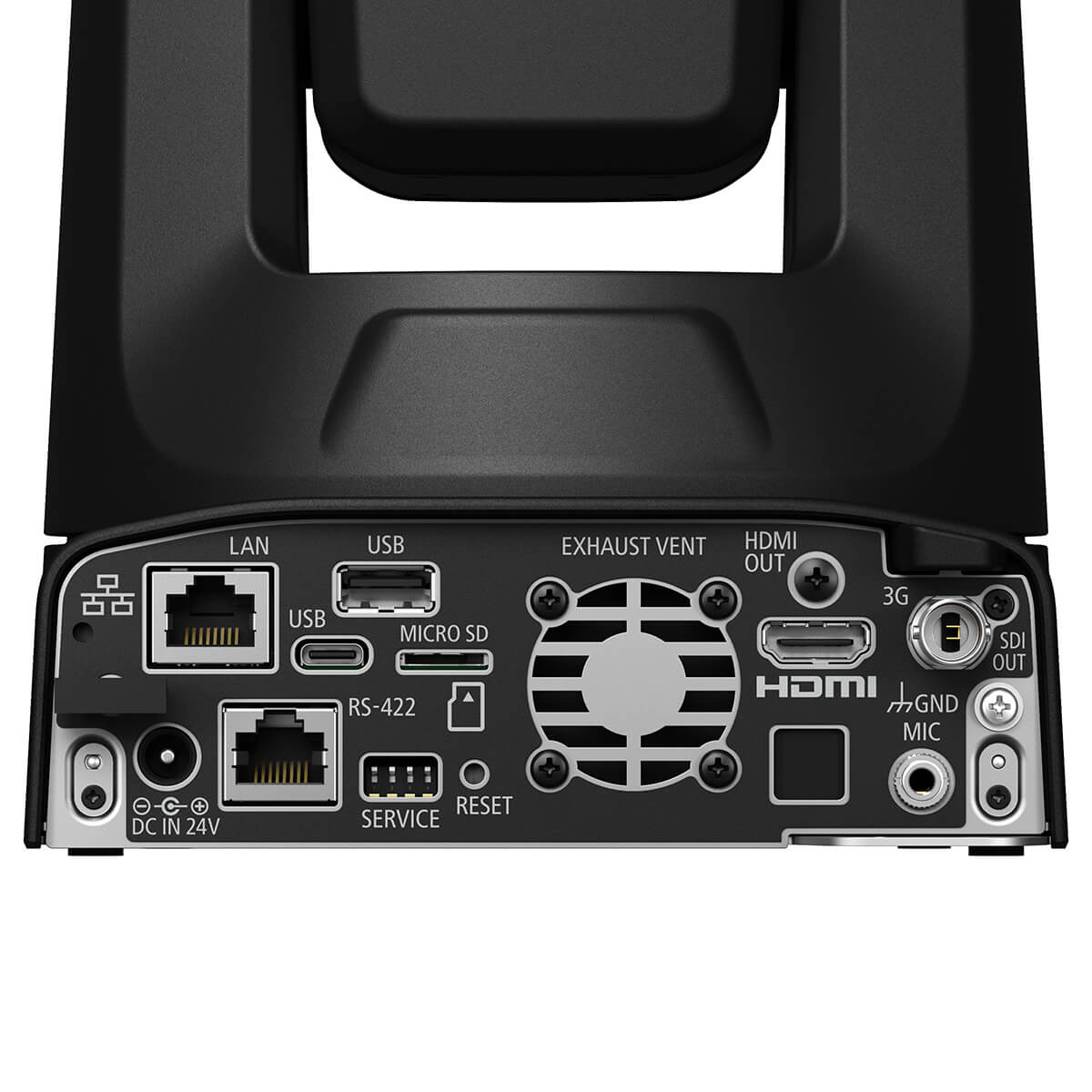

Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x RJ45 (NDI) Output 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input |
Other I/O | 1 x RJ45 (RS-422, VISCA) Input 1 x USB-A Input |
Built-In Speaker | No |
Power |
|
PoE Support | PoE+ 802.3at |
Power I/O | 1 x Barrel (24VDC) Input |
Power Consumption | PoE: 16.2 W Power Supply: 24 VDC 15 W |
Environmental |
|
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 10 to 90% |
Storage Humidity | 10 to 90% |
General |
|
Mounting | 1 x 1/4"-20 Female for Tripod |
OS Compatibility | Windows 10 (64-Bit Only) macOS 11 *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
Mobile App Compatible | Yes: Android & iOS Functionality: Adjust Settings, Remote Control, Setup *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
Dimensions (W x H x D) | 6.1 x 7 x 6.5" / 154 x 178 x 164 mm (Without Protrusions) |
Weight | 4.9 lb / 2.2 kg |
- Canon CR-N300 4K NDI PTZ Camera with 20x Zoom (Satin Black)
- IR Remote Control
- Remote Battery
- Safety Wire
- Ceiling Plate
- Safety Wire with Screw
- AC Adapter
- Power Cable
- Limited 3-Year Manufacturer Warranty
