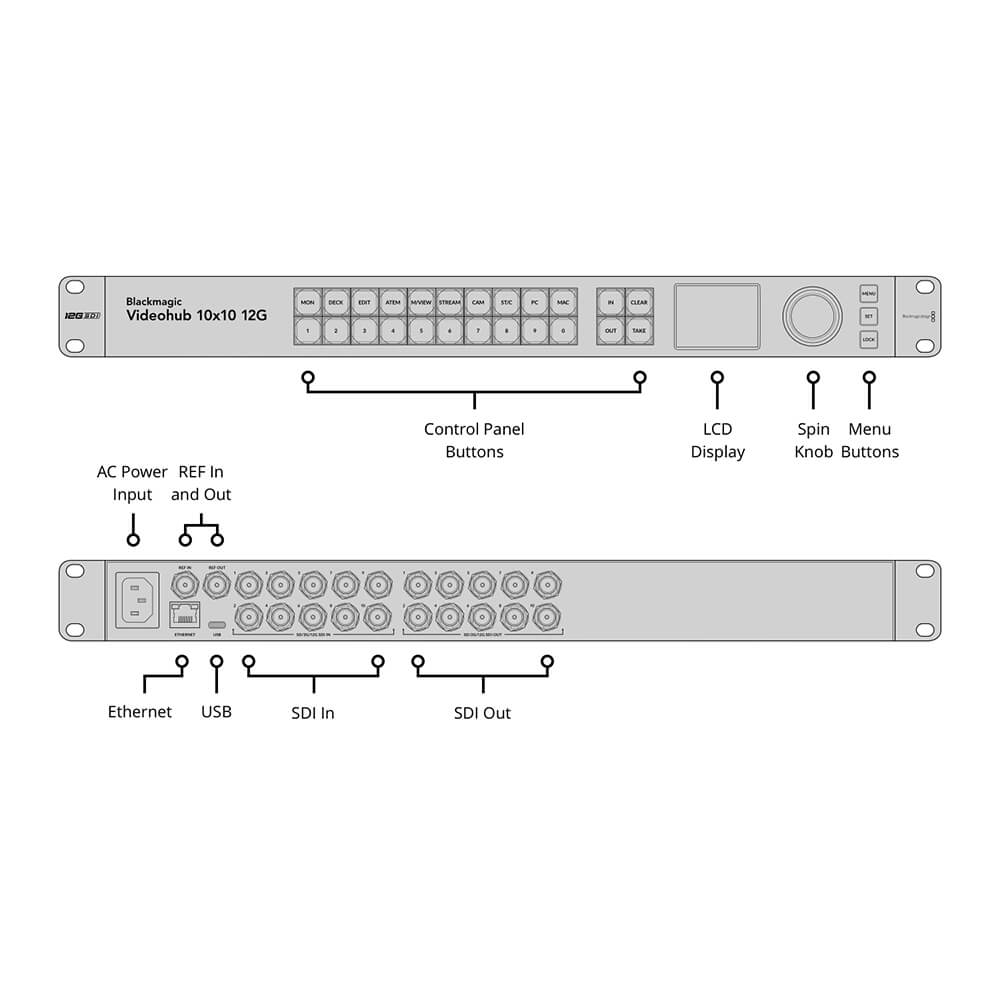

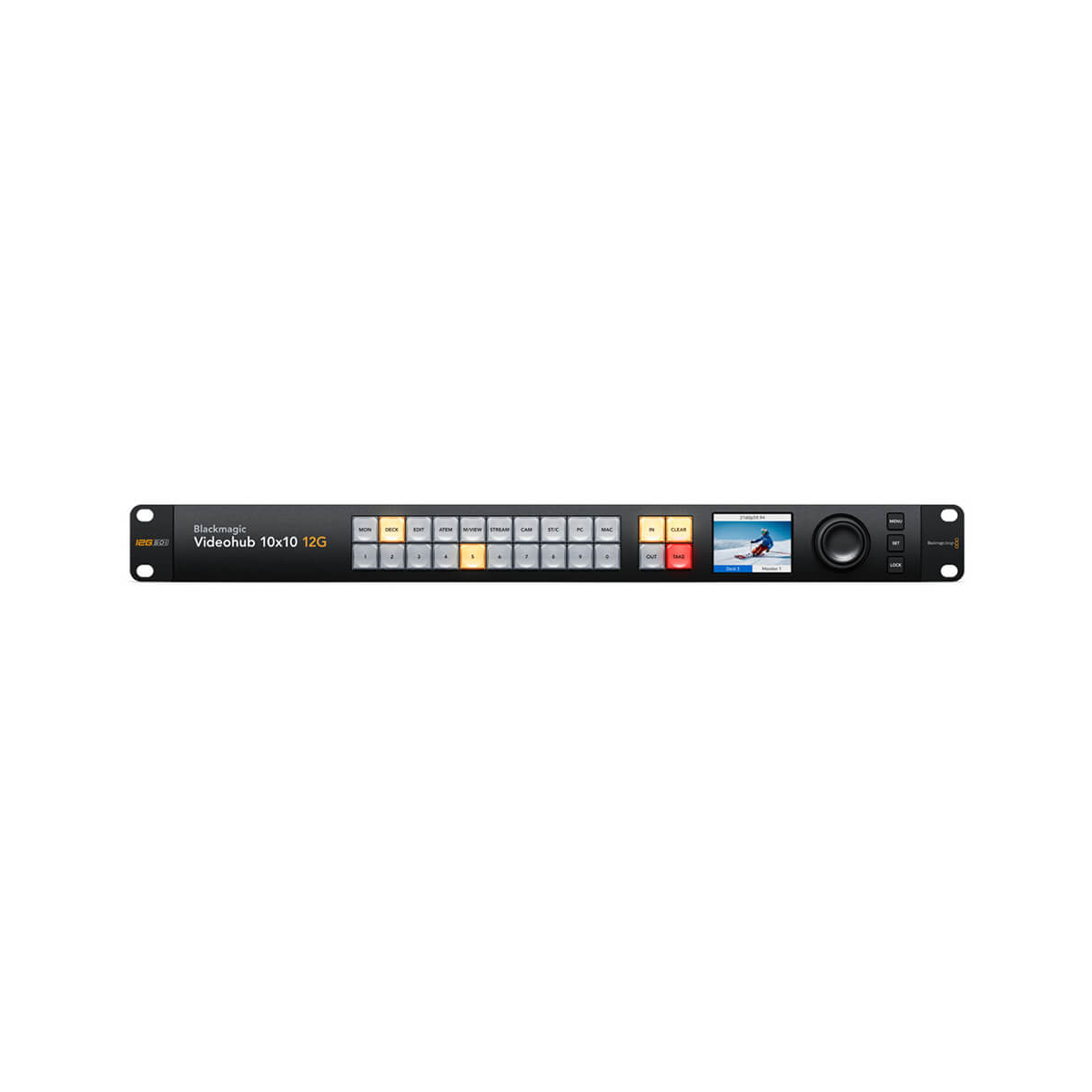

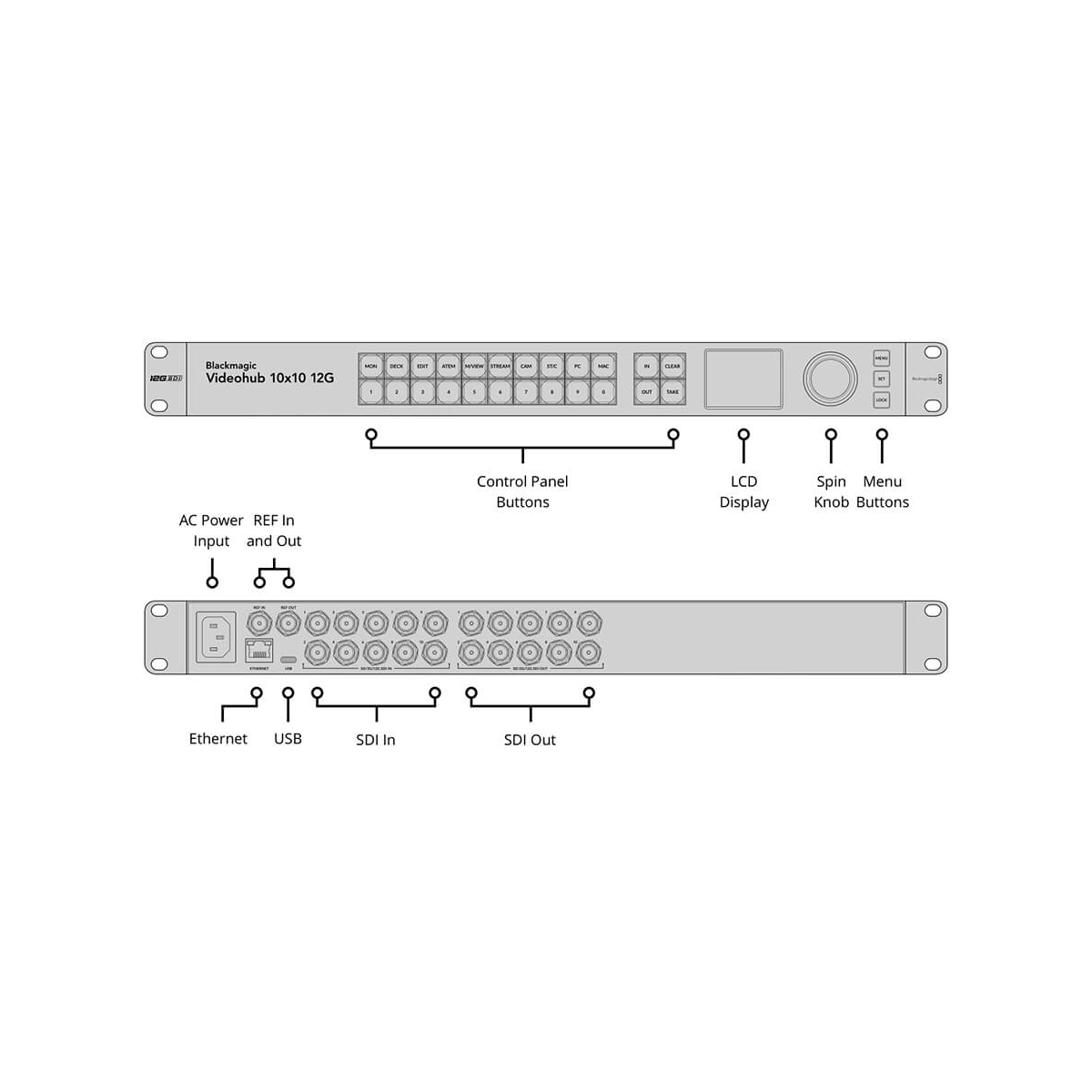

Support a mix of multiple video formats using the Videohub 10x10 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 10 12G-SDI inputs and ten 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 10x10 12G centralizes all your SDI cables in one hub, enabling you to connect any video input to any video output or even a single video input to multiple video outputs while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering to route video to multiple streaming processors for all your broadcast platforms or add extra inputs to an ATEM switcher.
Blackmagic Design 10x10 Specification Processing |
|
Switching Type | Pushbutton, Software |
Processing Resolution | DCI 4K at 60 |
Color Processing | 8-Bit 4:2:2 10-Bit 4:2:2 12-Bit 4:4:4 |
Audio Processing | 48 kHz / 24-Bit |
Input |
|
Video Inputs | 10 x BNC (12G-SDI) |
Input Video Format | SDI (10/12-Bit 4:4:4 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
Embedded Audio Input | SDI |
Output |
|
Video Outputs | 10 x BNC (12G-SDI) |
Output Video Format | SDI (10/12-Bit 4:4:4 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
Embedded Audio Output | SDI |
Connectivity |
|
Other I/O | 1 x RJ45 LAN 1 x USB-C |
Video Standard Compliance | SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10 ITU -R BT.601/BT.656 |
Display |
|
Display Size | 2.2" |
Hardware |
|
OS Compatibility | macOS 12.0 macOS 13.0 or Later Windows 10 (64-Bit Only) Windows 11 *As of April, 2023: Check with manufacturer for the most up-to-date compatibility |
Wi-Fi | None |
Bluetooth | None |
Power I/O | 1 x IEC C14 (100 to 240 VAC) Input |
Power Consumption | 20.8 W |
Environmental |
|
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
General |
|
Rack Form Factor | 1 RU |

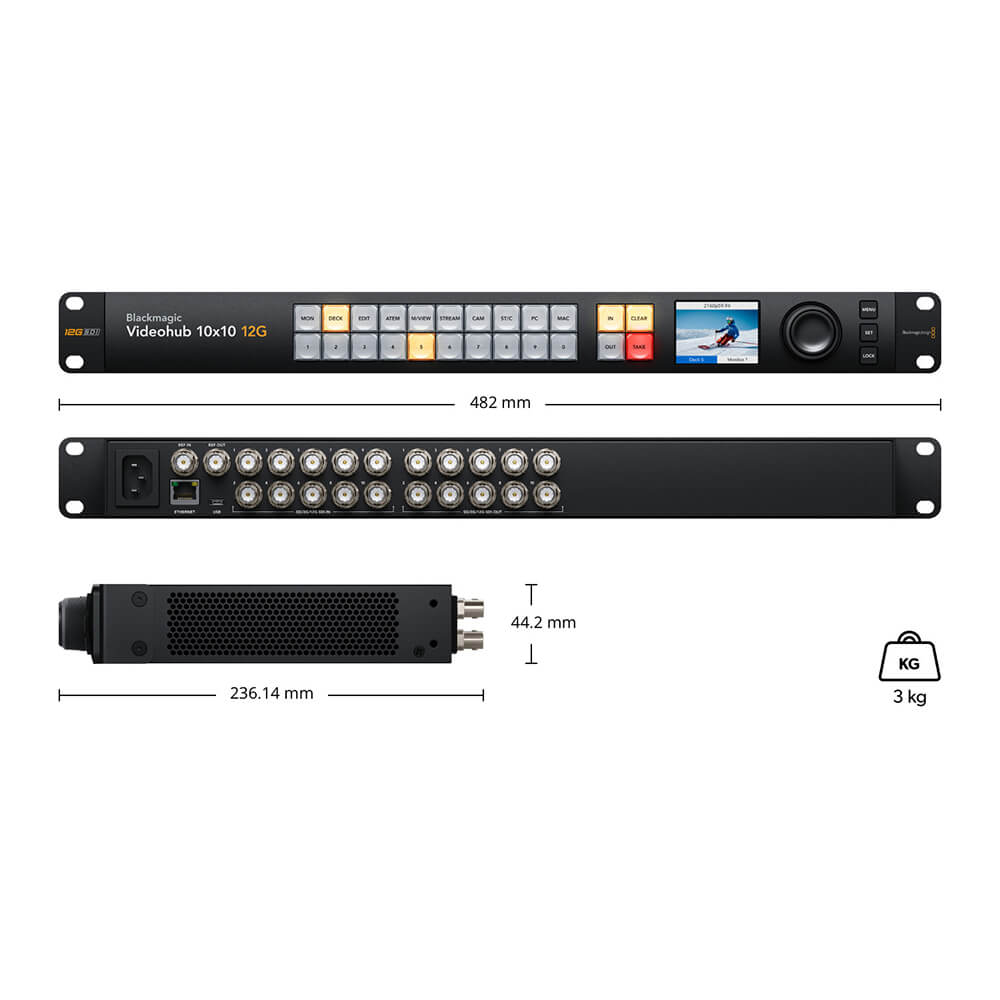

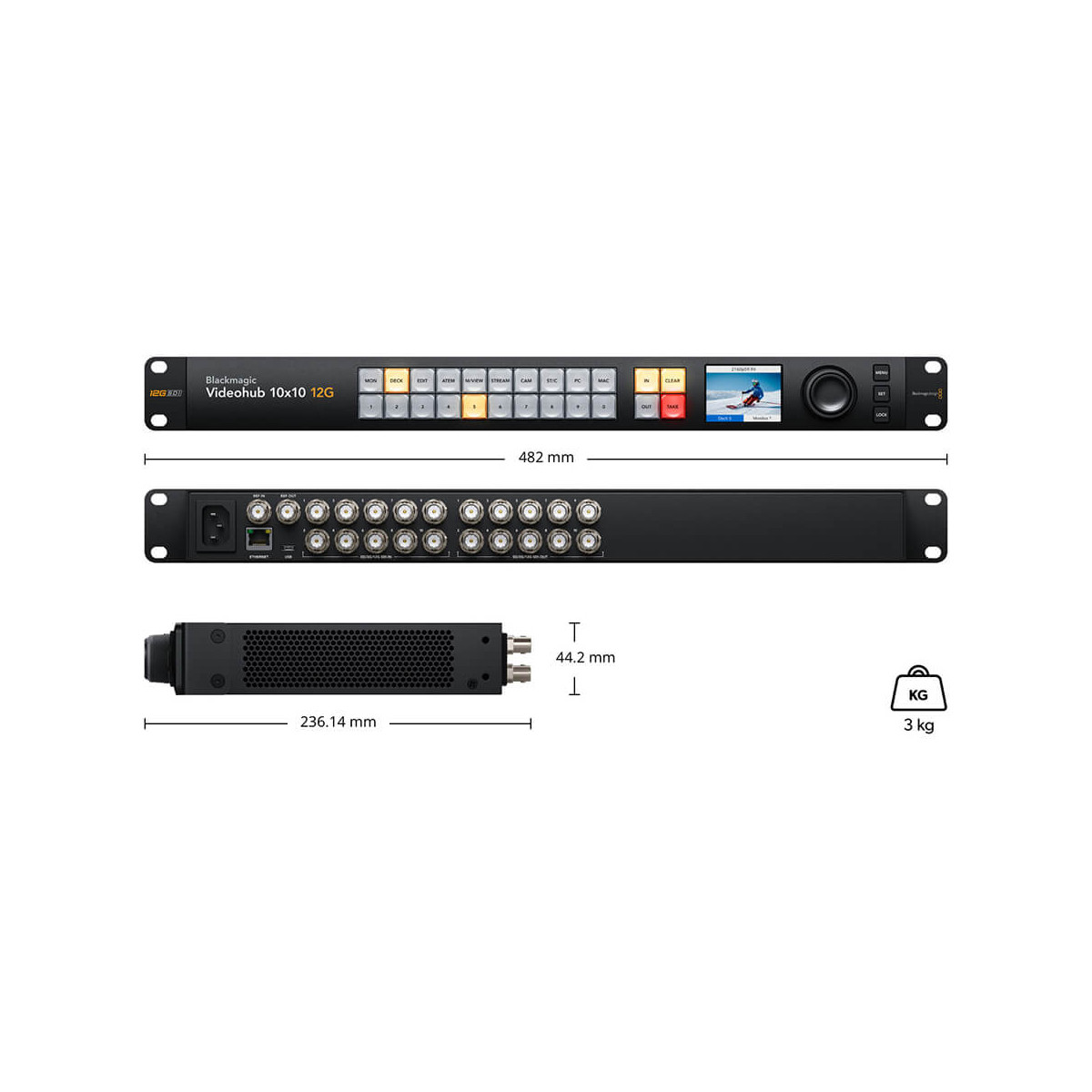

Dimensions | 19 x 9.3 x 1.74" / 48.3 x 23.6 x 4.42 cm |
Weight | 6.64 lb / 3.01 kg |
