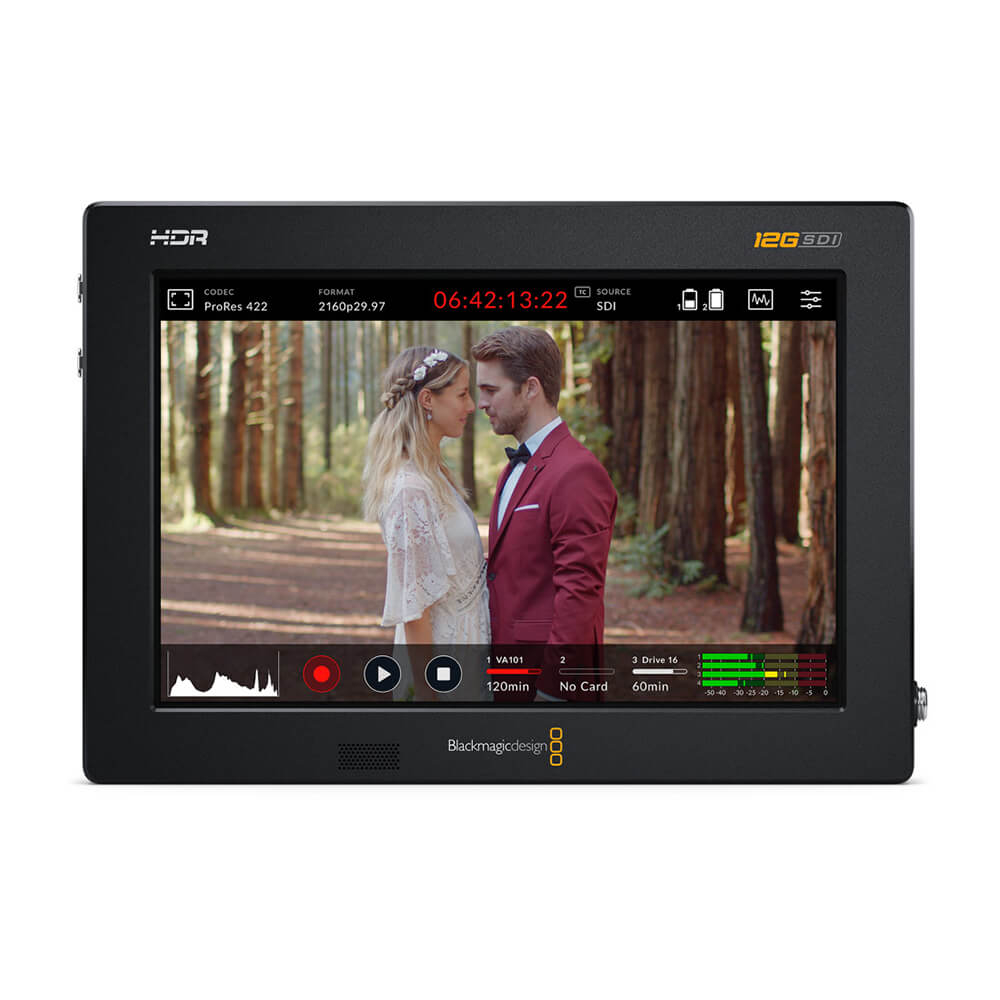

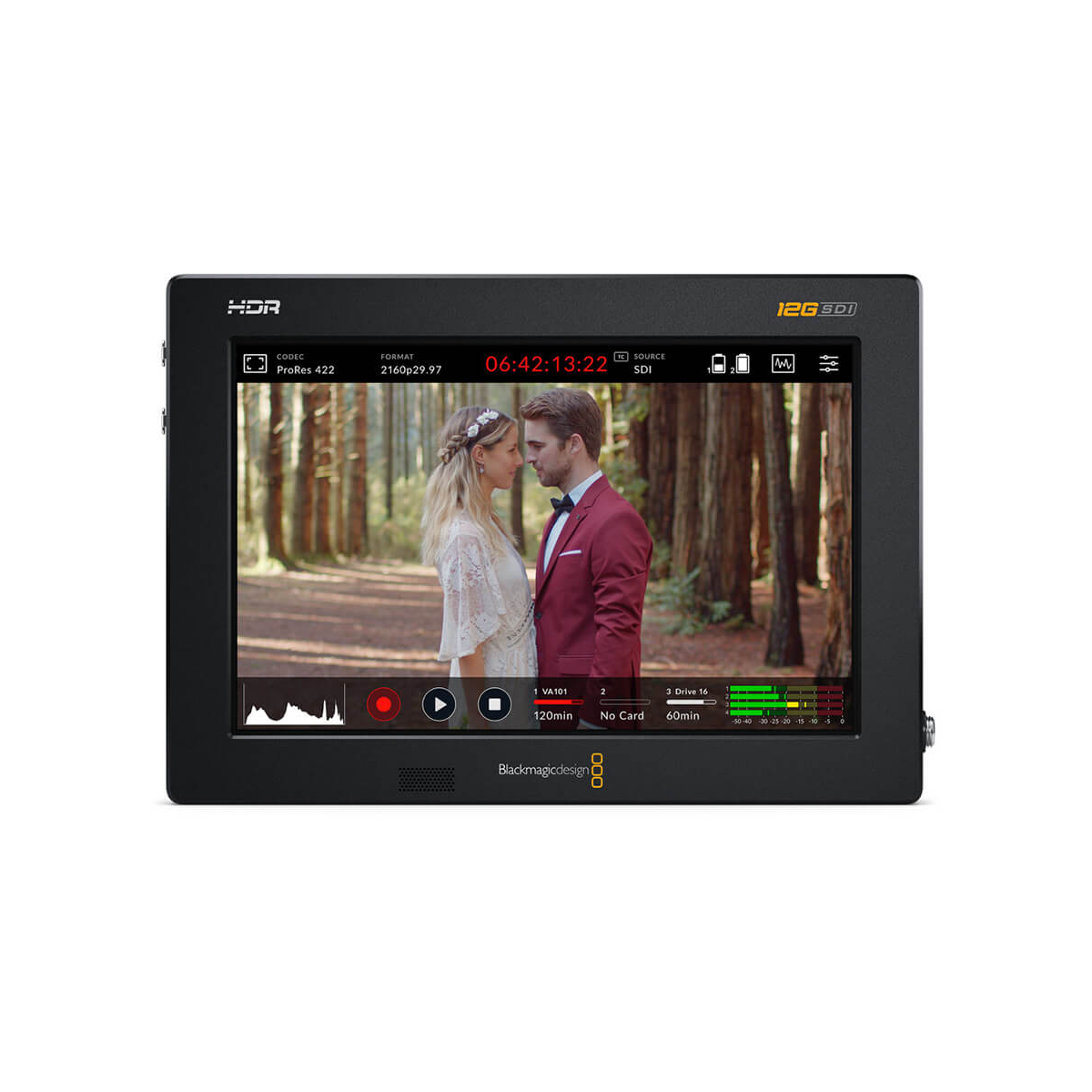

Add professional monitoring and high-quality recording to virtually any camera with the Video Assist 7" 12G-SDI/HDMI HDR Recording Monitor from Blackmagic Design. It features a bright 7", 1920 x 1200 display with 2500 cd/m² brightness to help you frame and focus your shots and provides 12G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. The monitor also features two balanced 3-pin mini-XLR inputs with 48V phantom power support for crisp audio recording. You can monitor and record HDR video up to DCI 4K, UHD 4K, 2K, or HD 10-bit 4:2:2, and up to 16 channels of embedded 24-bit 48 kHz audio. Blackmagic Raw recording is available for select Canon, FUJIFILM, Nikon, Panasonic, and SIGMA cameras.
The Video Assist records using dual high-speed UHS-II SD slots to SDHC/XC memory cards. You can also use the USB 3.1 Gen 1 Type-C port to record to an external drive, as well as use it for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD and DNxHR codecs.
Blackmagic Design Video Assist 12G HDR Specification Display |
|
Panel Type | TFT LCD |
Display Size | 7.0" / 17.8 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:10 |
Touchscreen | Yes |
Maximum Brightness | 2500 nits / cd/m2 |
Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
HDR Compatibility | HDR10, Hybrid Log Gamma |
Pixels Per Inch (ppi) | 323 ppi |
Color Gamut | 100% Rec. 709 100% Rec. 2020 |
Real-Time LUT Monitoring | SDR, HDR |
Image Controls | Histogram, Picture-in-Picture, RGB Parade, Vectorscope, Waveform |

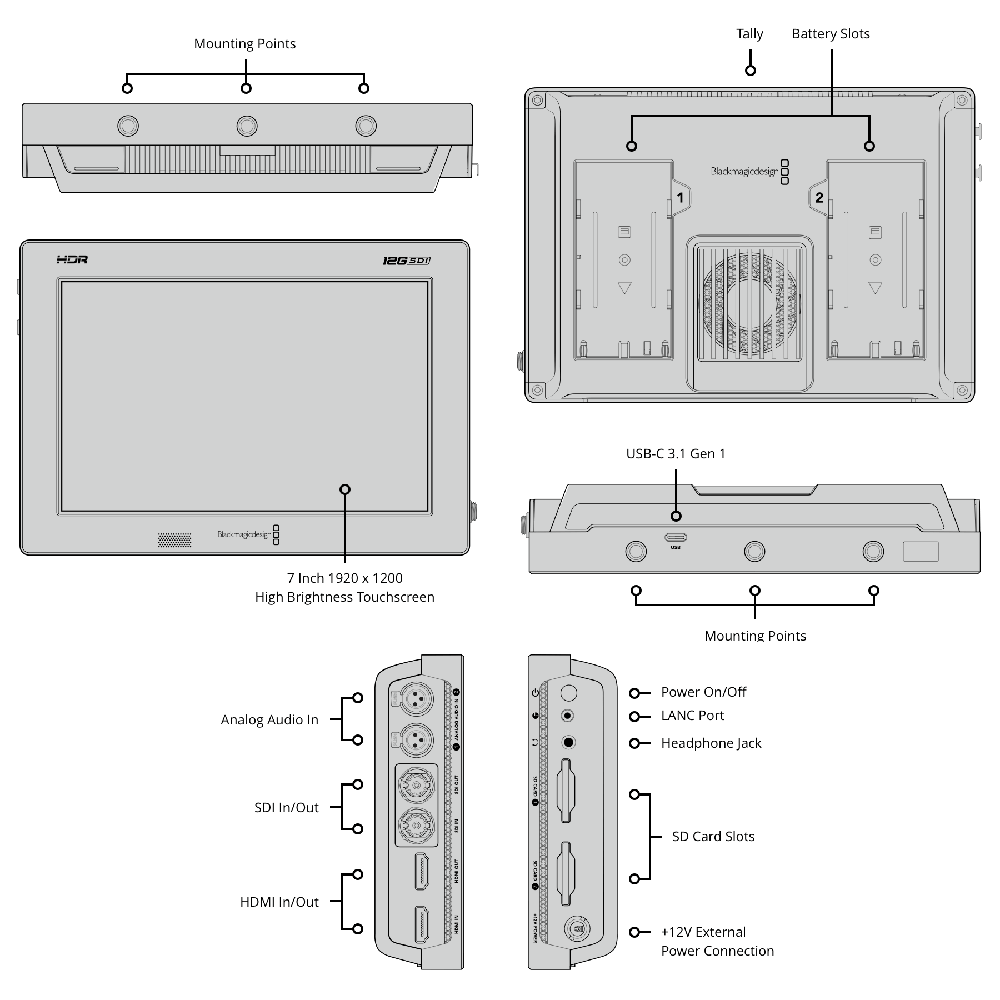

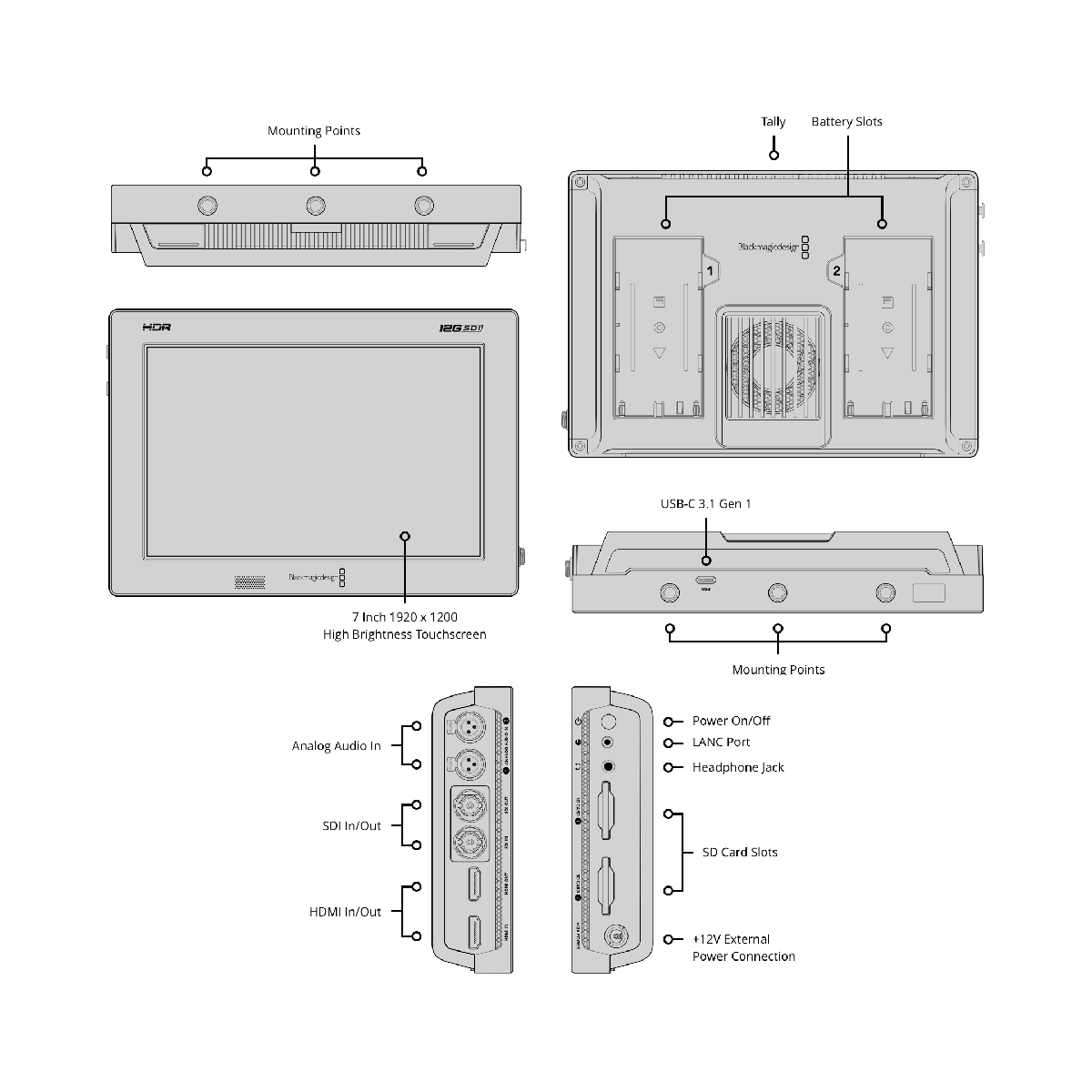

Inputs / Outputs |
|
Video I/O | 1 x HDMI 2.0a Input 1 x BNC (12G-SDI) Input 1 x HDMI 2.0a Output 1 x BNC (12G-SDI) Output |
HDCP Support | No |
Embedded Audio | HDMI: 8-Channel SDI: 16-Channel |
Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output 2 x Mini-XLR Mic/Line Input |
Built-In Speaker | 1 |
Power I/O | 1 x Barrel (12 VDC) Input |
Other I/O | 1 x USB-C 1 x 2.5 mm (LANC) |
Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-II) |
Wi-Fi | None |
Bluetooth | None |
Mobile App Compatible | No *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
Format Support |
|
Video Format | SDI (10-Bit 4:2:2 RGB) DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 25/24/23.98 DCI 2K PsF: 25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 |
Gamma Curve | HDR-HLG, Rec709, Rec2020 |
Timecode Support | Yes |
Recording |
|
Camera Trigger | None |
Encoding Formats | Up to 4096 x 2160 Blackmagic Raw ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD HQX, LB, LB MXF, SQ, SQ MXF 10-Bit 4:2:2 at up to 60 fps |
Maximum Audio Tracks | 16 |
Phantom Power | +48 V |
Power |
|
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 12 VDC |
Built-In Battery | None |
Battery Type | 2 x L-Series |
Power Consumption | 36 W |
Environmental |
|
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General |
|

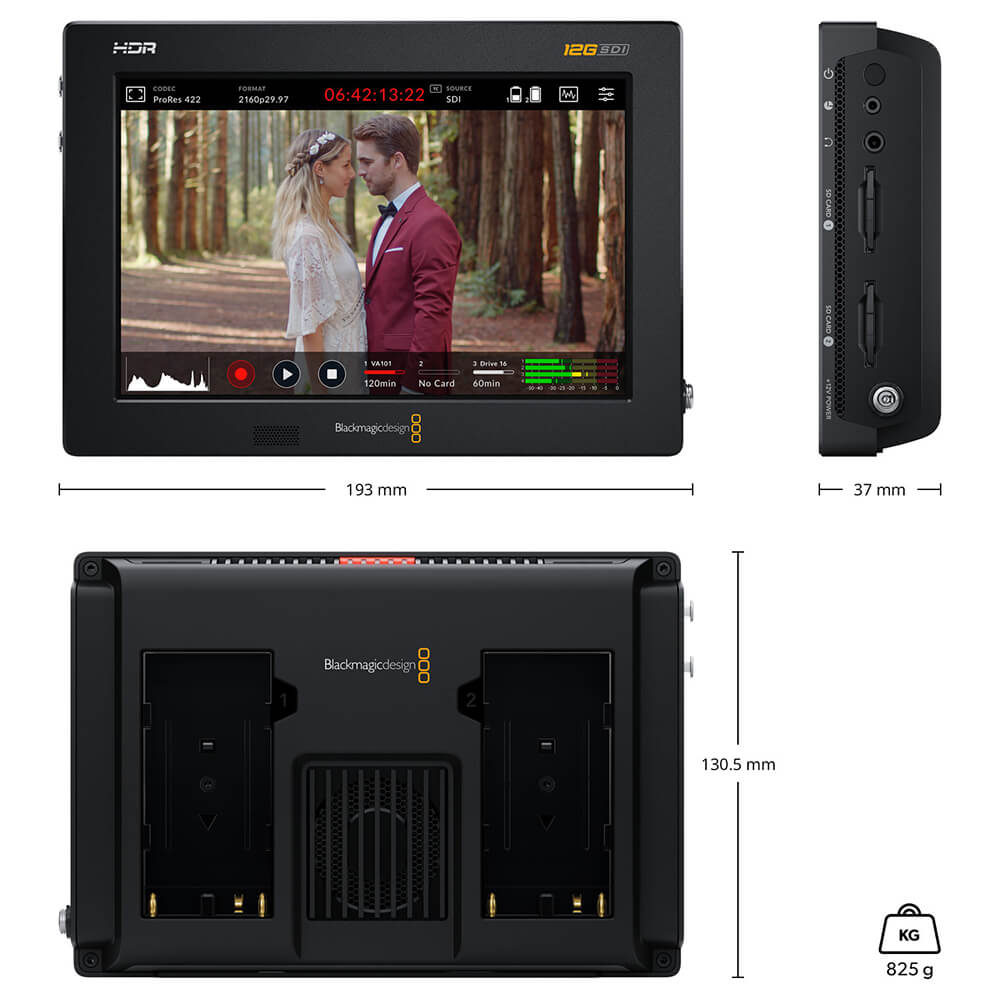

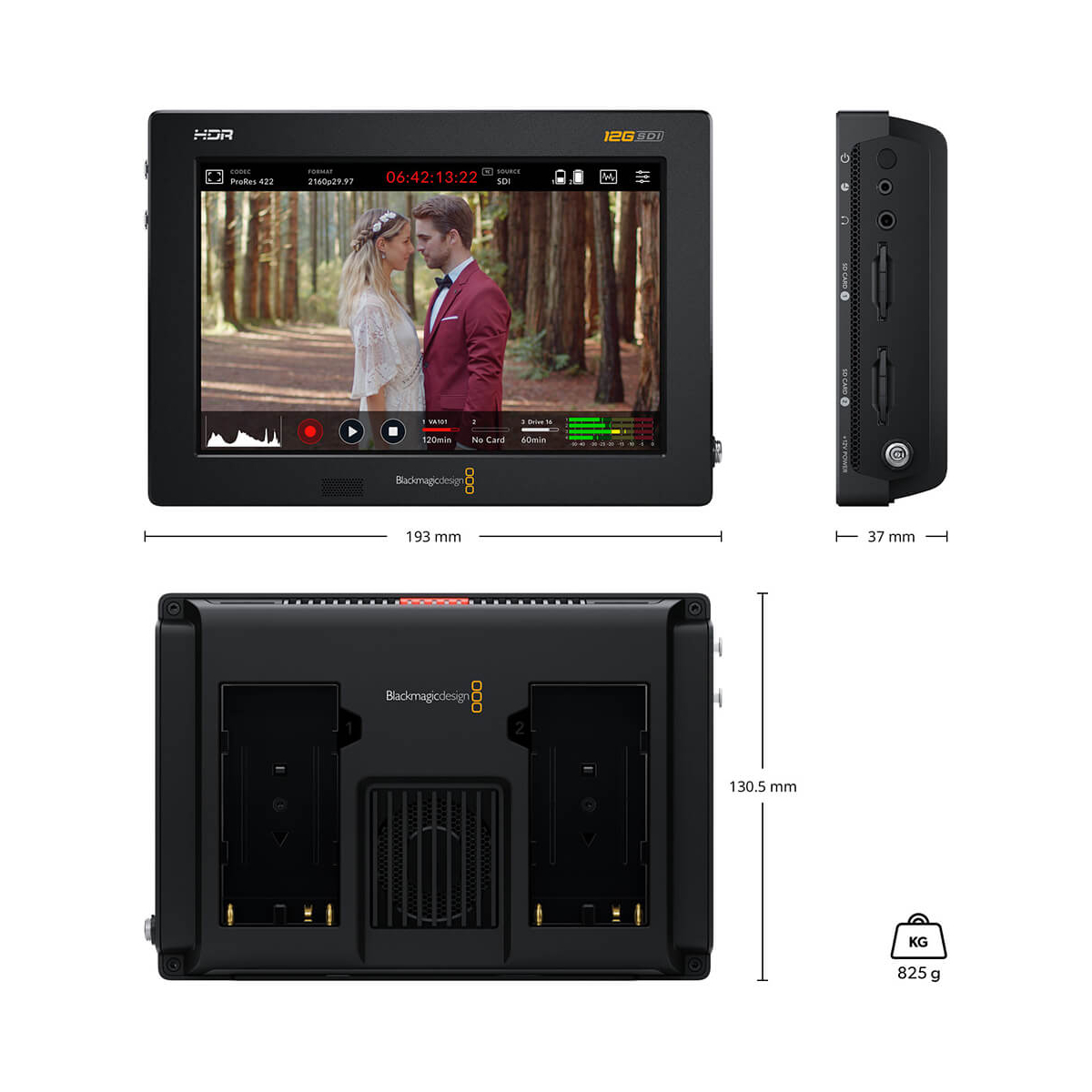

Dimensions | 7.6 x 5.14 x 1.45" / 19.3 x 13.06 x 3.68 cm |
Weight | 29.1 oz / 824.99 g |
