【Blackmagic Design】Video Assist 5" 12G HDR

  • 5" 1920 x 1080 Touchscreen LCD
  • Record up to DCI or UHD 4K HDR Video
  • HDMI and 12G-SDI Video Inputs & Outputs
  • 10-Bit, 4:2:2 ProRes & DNxHD Encoding
  • Blackmagic Raw with Select Cameras
  • 3D LUTs, 2500 cd/m² Brightness
  • Stores to Single SDHC/XC Memory Slot
  • Histogram, Waveform, Vectorscope
  • Dual L-Series Battery Slots, AC Adapter

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
HYPERD/AVIDA12/5HDR
Write Your Own Review
You're reviewing:【Blackmagic Design】Video Assist 5" 12G HDR
Your Rating

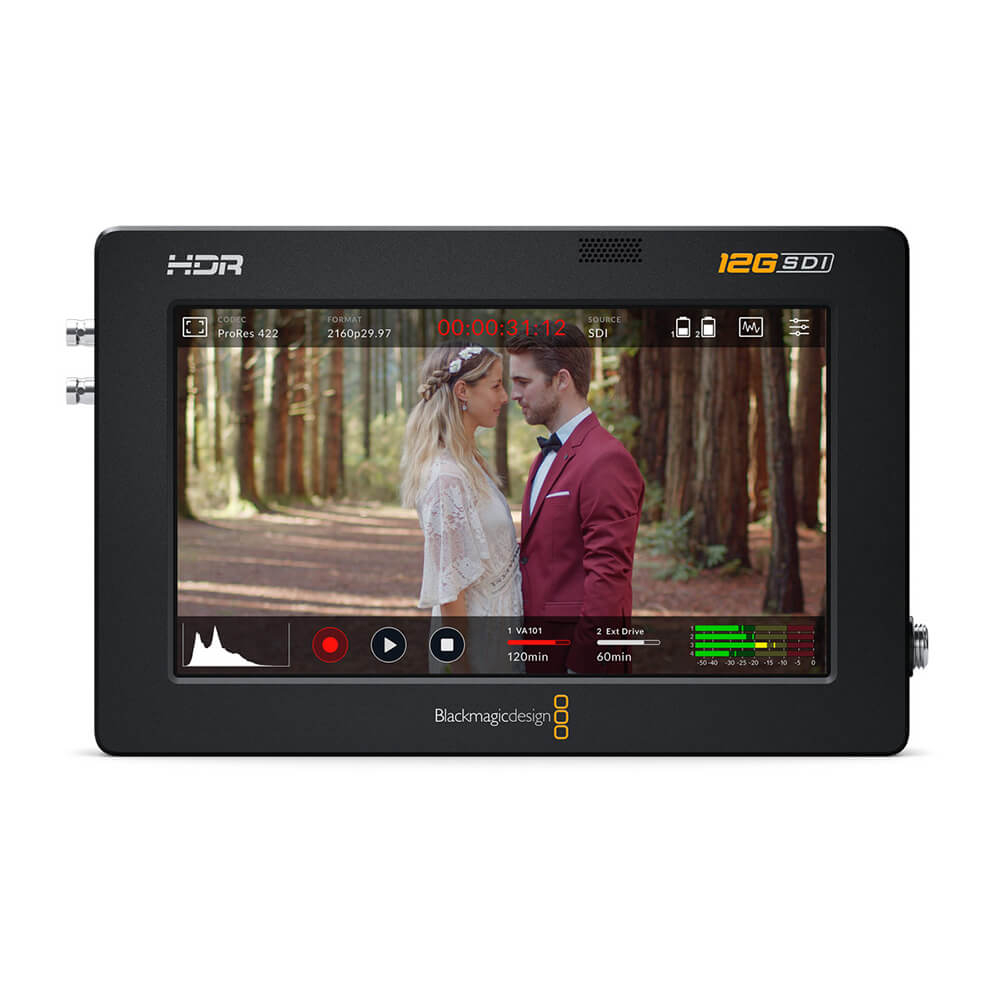

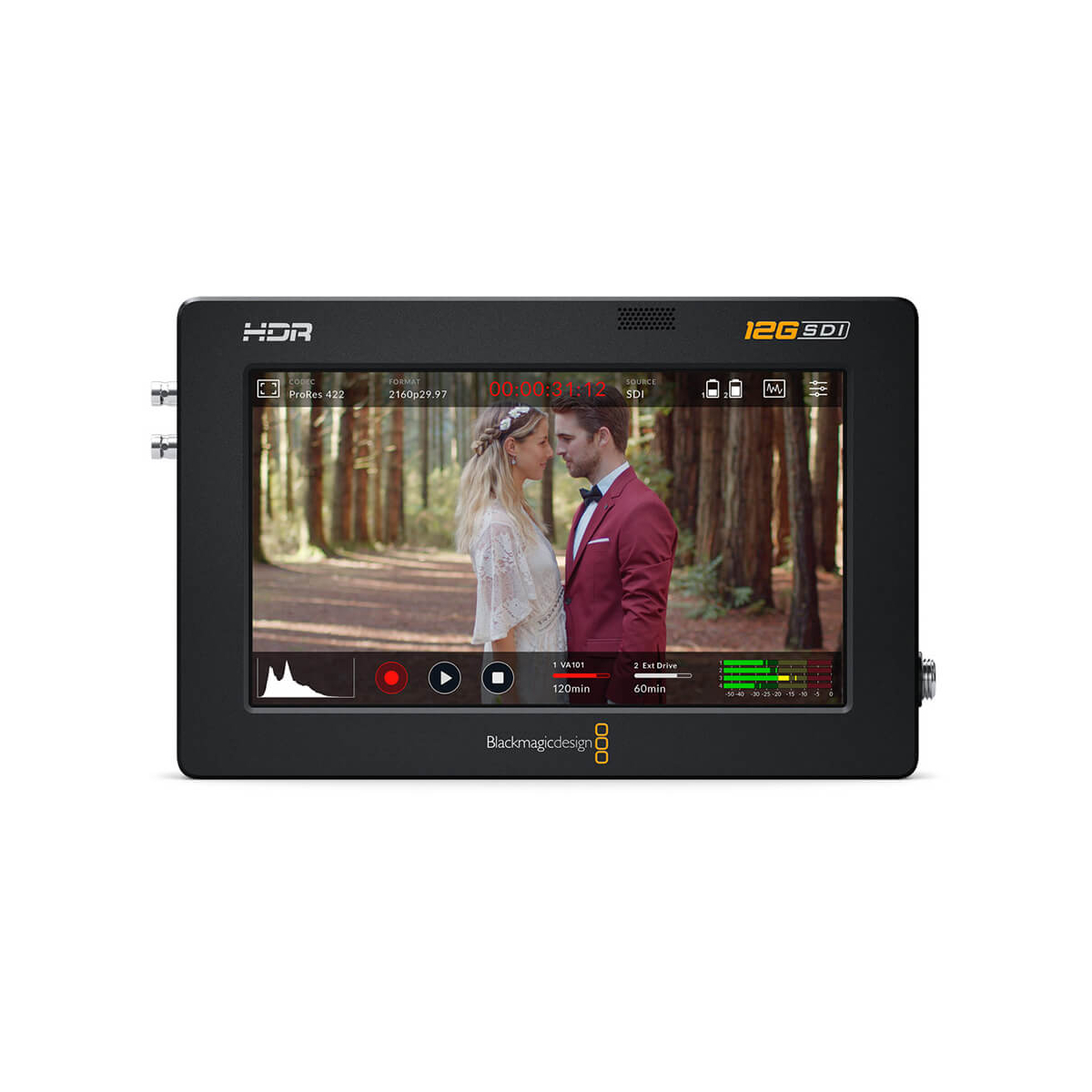

Add professional monitoring and high-quality recording to virtually any camera with the Video Assist 5" 12G-SDI/HDMI HDR Recording Monitor from Blackmagic Design. It features a bright 5", 1920 x 1080 display with 2500 cd/m² brightness to help you frame and focus your shots and provides 12G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record HDR video up to DCI 4K, UHD 4K, 2K, or HD 10-bit 4:2:2, and up to 16 channels of embedded 24-bit 48 kHz audio. Blackmagic Raw recording is available for select Canon, FUJIFILM, Nikon, Panasonic, and SIGMA cameras.

The Video Assist records using a single high-speed UHS-II SD slot to SDHC/XC memory cards. You can also use the USB 3.1 Gen 1 Type-C port to record to an external drive, as well as use it for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD and DNxHR codecs.

Blackmagic Design Video Assist 12G HDR Specification

Display

Panel Type TFT LCD
Display Size 5.0" / 12.7 cm
Resolution 1920 x 1080
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 2500 nits / cd/m2
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
HDR Compatibility HDR10, Hybrid Log Gamma
Pixels Per Inch (ppi) 440 ppi
Color Gamut 100% Rec. 709
100% Rec. 2020
Real-Time LUT Monitoring SDR, HDR
Image Controls Histogram, Picture-in-Picture, RGB Parade, Vectorscope, Waveform

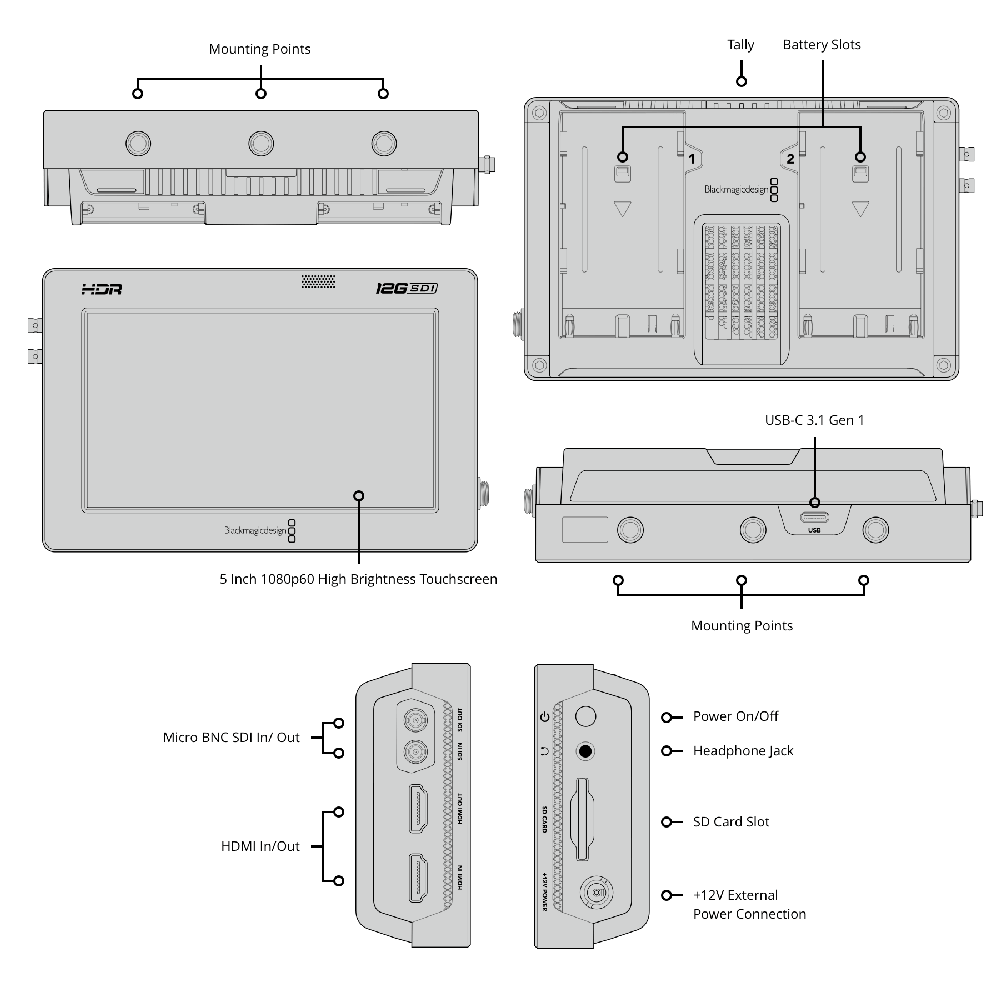

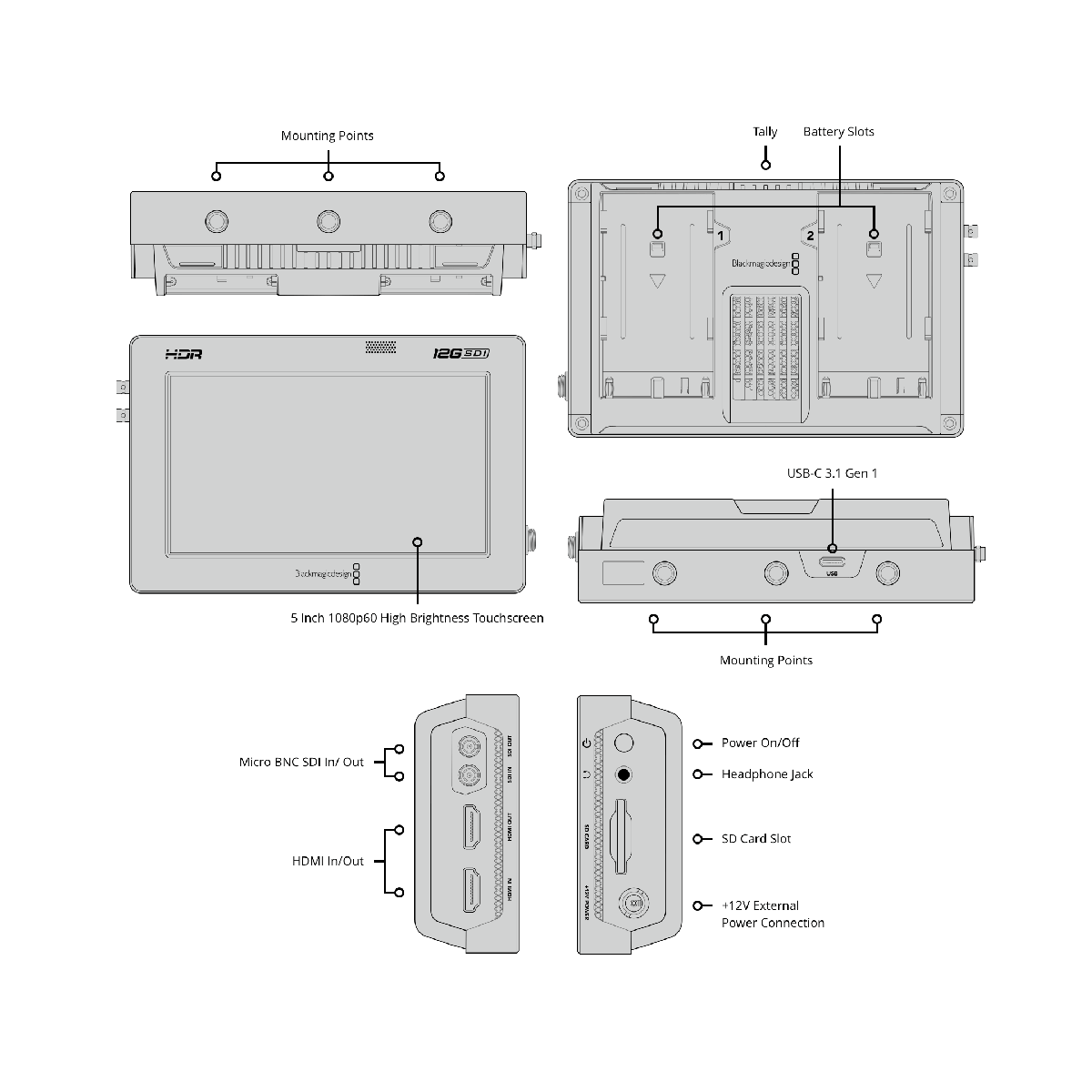

Inputs / Outputs

Video I/O 1 x HDMI 2.0a Input
1 x Micro BNC (12G-SDI) Input
1 x HDMI 2.0a Output
1 x Micro BNC (12G-SDI) Output
HDCP Support No
Embedded Audio HDMI: 8-Channel
SDI: 16-Channel
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker 1
Power I/O 1 x Barrel (12 VDC) Input
Other I/O 1 x USB-C
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC (UHS-II)
Wi-Fi None
Bluetooth None
Mobile App Compatible No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility

Format Support

Video Format SDI (10-Bit 4:2:2 RGB)
DCI 4K: 25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2K: 25/24/23.98
DCI 2K PsF: 25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
HDMI (10-Bit)
DCI 4K: 25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
Gamma Curve HDR-HLG, Rec709, Rec2020
Timecode Support Yes

Recording

Pre-Roll Record None
Encoding Formats Up to 4096 x 2160
Blackmagic Raw
ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps
DNxHD HQX, LB, LB MXF, SQ, SQ MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks 16

Power

AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 12 VDC
Built-In Battery None
Battery Type 2 x L-Series
Power Consumption 36 W

Environmental

Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90%

General

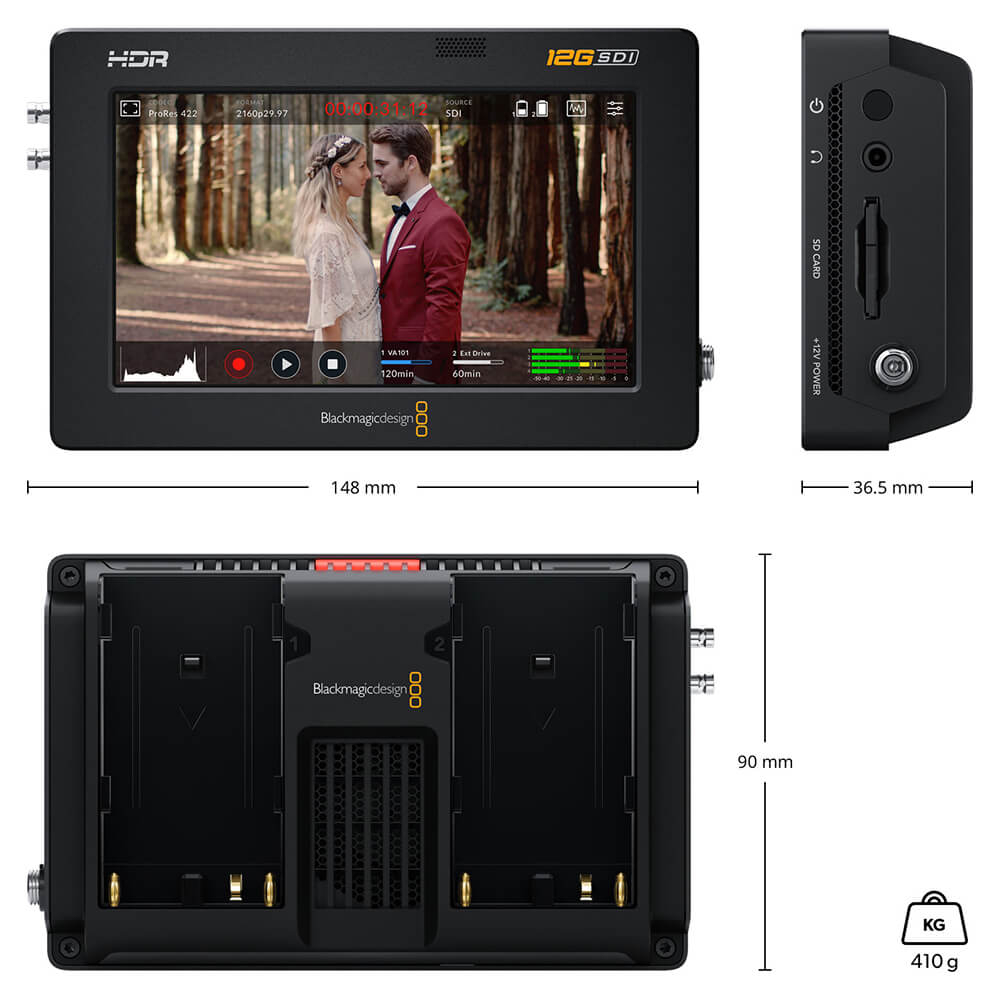

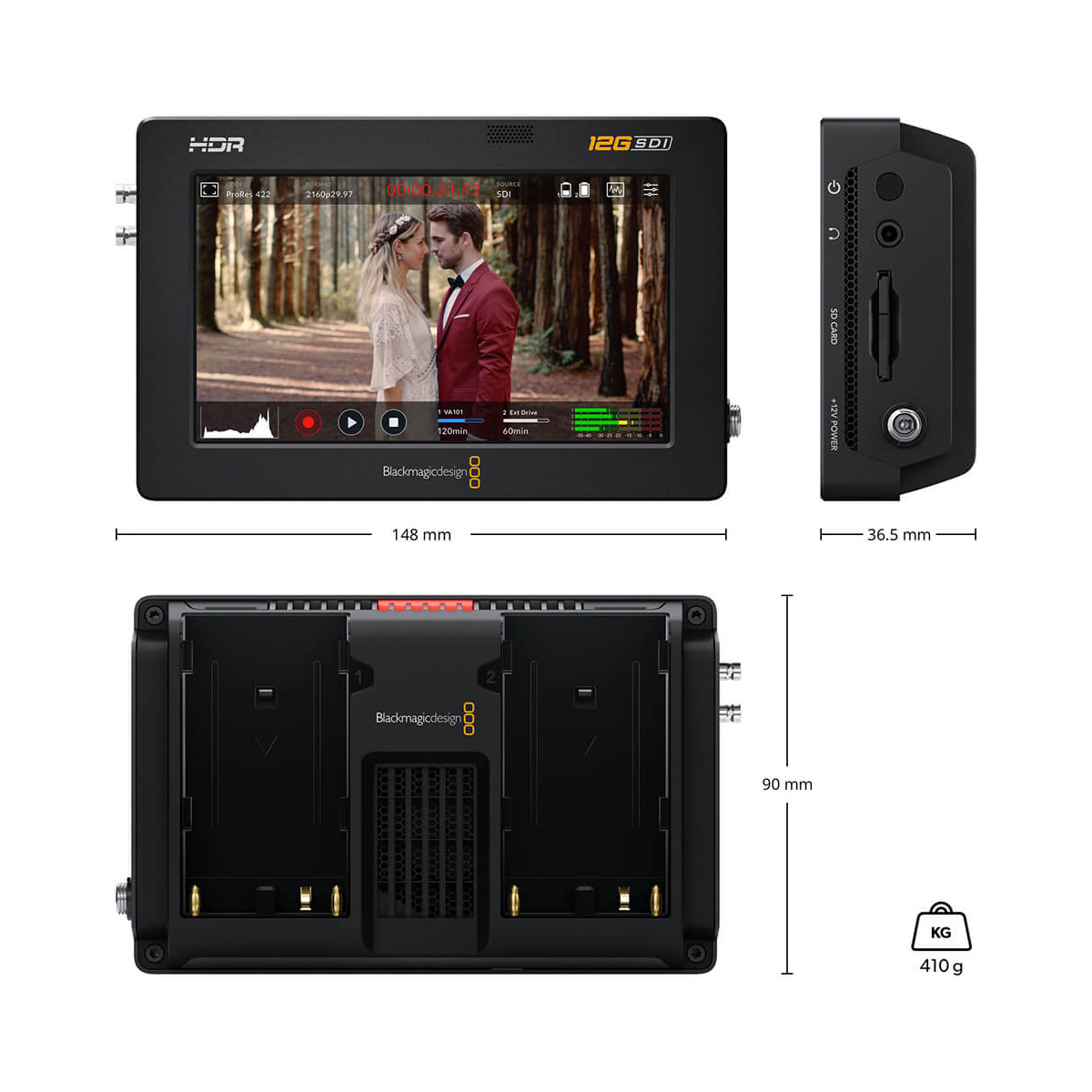

Dimensions  5.83 x 3.54 x 1.44" / 14.81 x 8.99 x 3.66 cm
Weight 14.46 oz / 409.94 g
