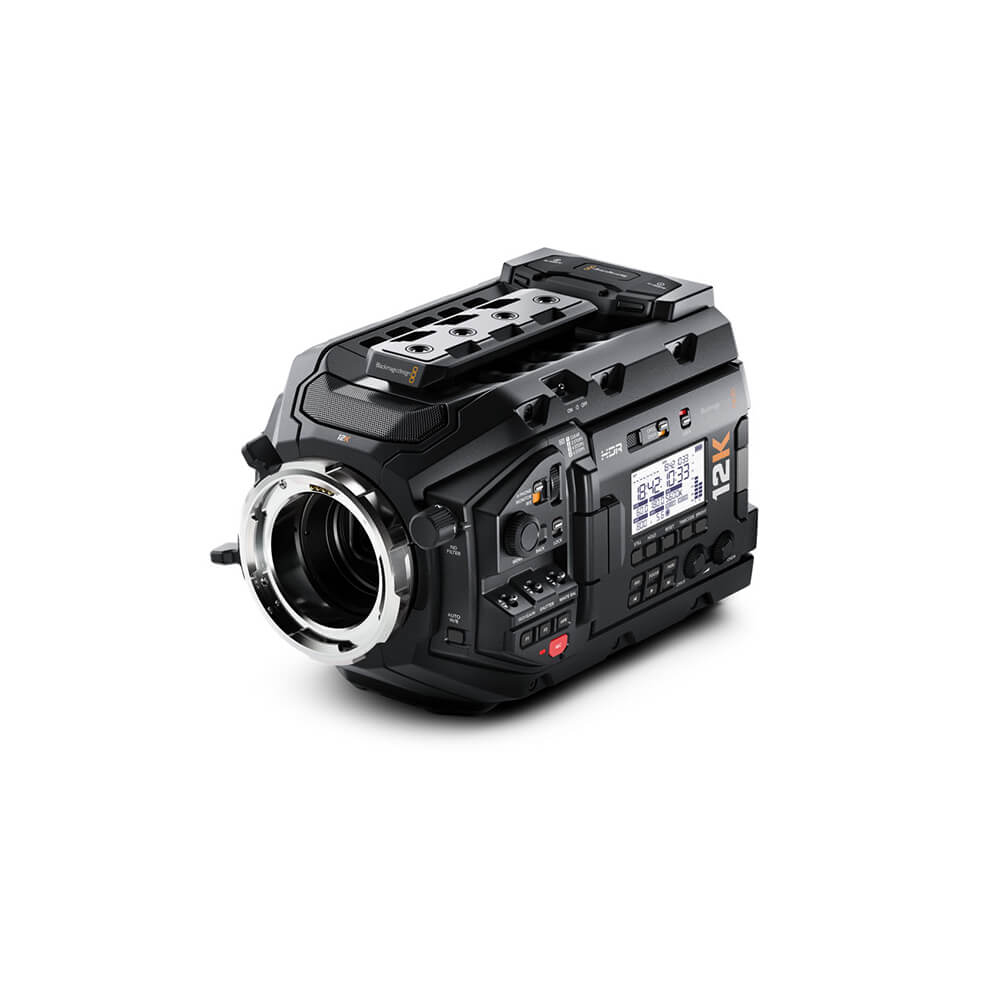

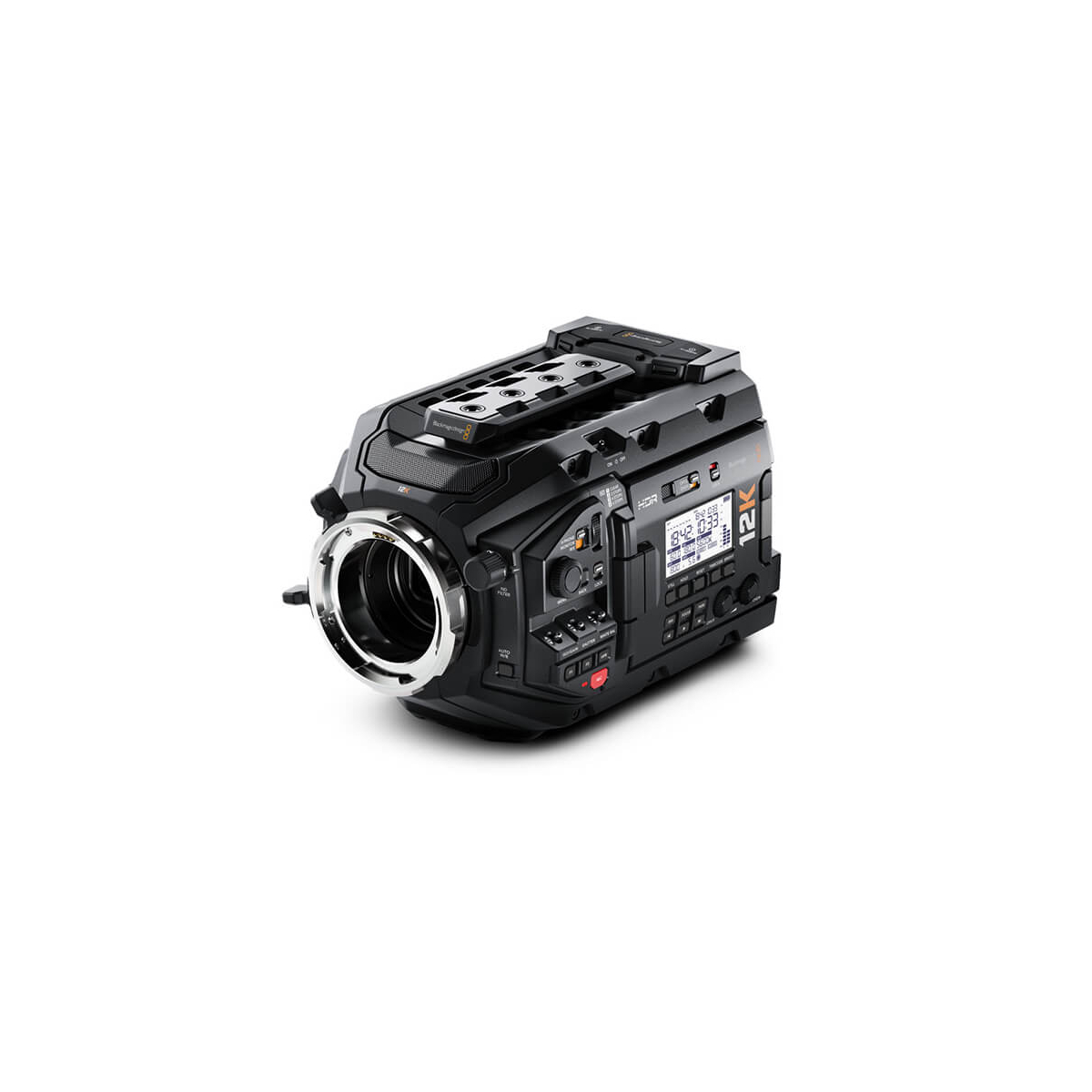

Step your cine-style video recording up to 12K with the URSA Mini Pro 12K Digital Cinema Camera from Blackmagic Design. This pro video camera uses a 12,288 x 6480 12K Super35 sensor, a new color science, and up to 14 stops of dynamic range to produce extraordinarily detailed images. The URSA Mini Pro 12K records up to 80MP per frame in Blackmagic Raw and offers flexible recording options that include dual CFast 2.0 card capture and high-speed USB Type-C output. Recording rates include up to 60 fps in 12K 17:9 full sensor, up to 75 fps in 12K 2.4:1, 120 fps in 8K, and up to 240 fps in 4K Super16
Blackmagic Design URSA Mini Pro 12K Specification |
|
Lens Mount | ARRI PL |
Lens Communication | Yes |
Sensor Resolution | Effective: 79.6 Megapixel (12,288 x 6480) |
Image Sensor | 27.03 x 14.25 mm (Super35) CMOS |
Image Stabilization | None |

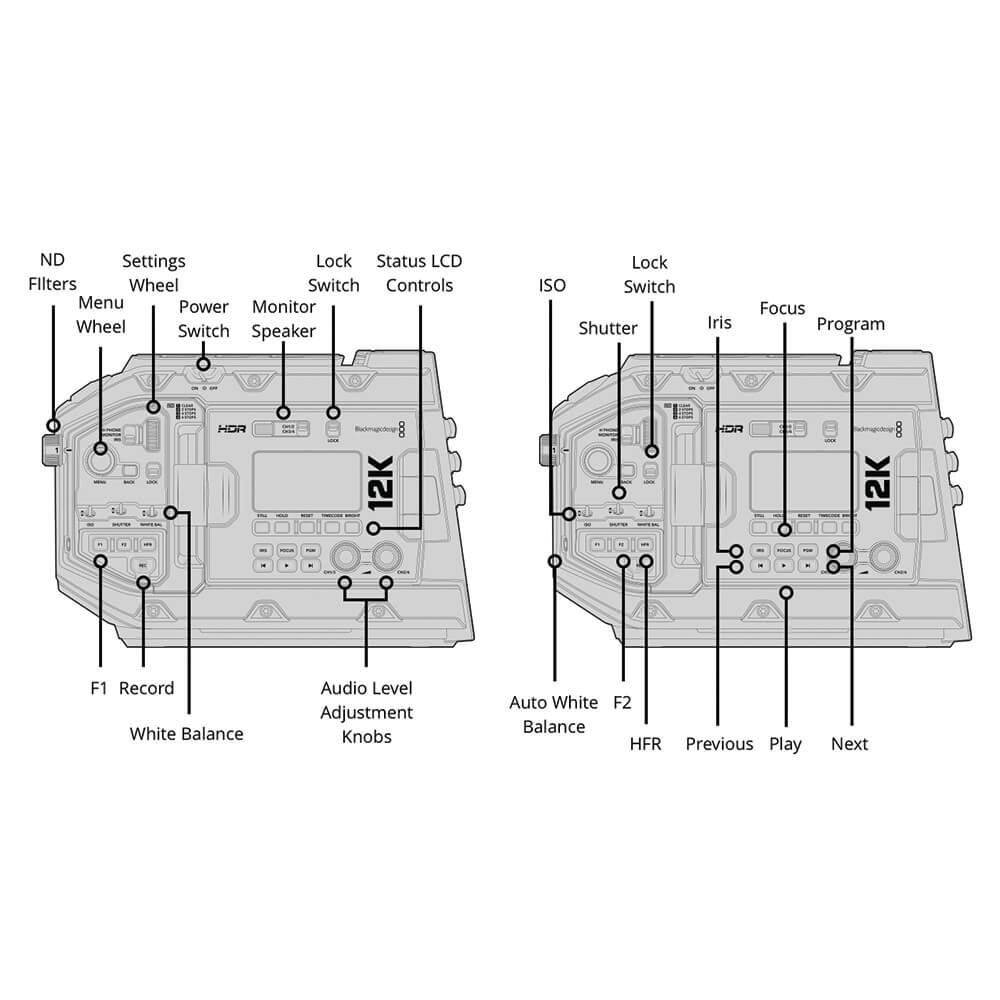

Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
Capture Type | Stills & Video |
Exposure Control |
|
Shutter Type | Electronic Rolling Shutter |
ISO Sensitivity | 125 to 3200 |
Advertised Dynamic Range | 14 Stops |
Video Capture |
|
Internal Recording Modes | Blackmagic RAW 12-Bit 12288 x 6480 up to 60.00 fps [72 to 578 Mb/s] 11520 x 6480 up to 60.00 fps 12288 x 5112 up to 75 fps 7680 x 6408 8192 x 4320 [32 to 258 Mb/s] 7680 x 4320 8192 x 3408 up to 160 fps 5120 x 4272 up to 160 fps 6144 x 3240 [18 to 145 Mb/s] 4096 x 2160 up to 240 fps [8 to 65 Mb/s] 3840 x 2160 4096 x 1704 up to 160 fps 2560 x 2136 up to 160 fps |
External Recording Modes | Raw via USB 12288 x 6480 8192 x 4320 6144 x 3240 4096 x 2160 |
Sensor Crop Modes |
Super35 / APS-C |
Fast-/Slow-Motion Support | Yes |
Broadcast Output | NTSC/PAL |
Built-In Microphone Type | Stereo |
Audio Recording | 2-Channel 24-Bit 48 kHz |
IP Streaming | None |
Still Image Capture |
|
Aspect Ratio | 1:1, 2:1, 4:3, 4:5, 16:9 |
Image File Format | Raw |
Interface |
|
Media/Memory Card Slot | Dual Slot: CFast (CFast 2.0) Dual Slot: SD/SDHC/SDXC (UHS-II) |

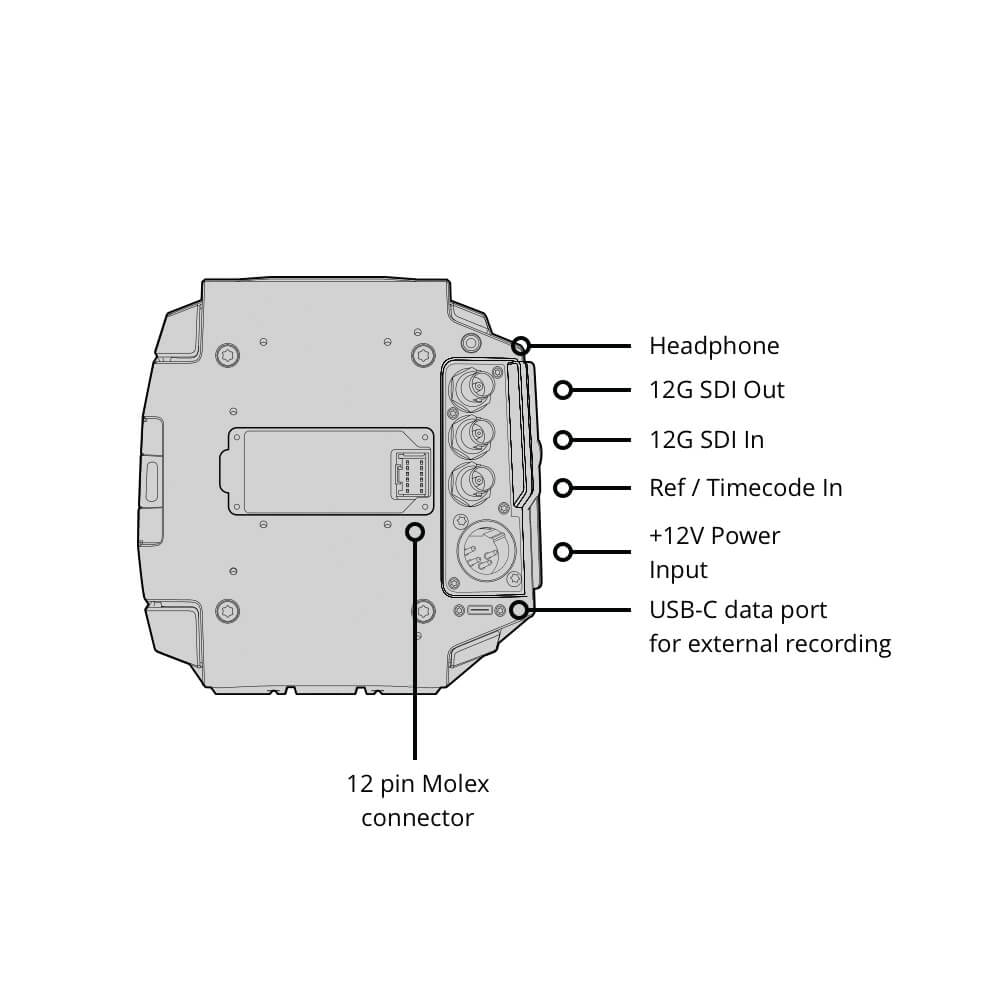

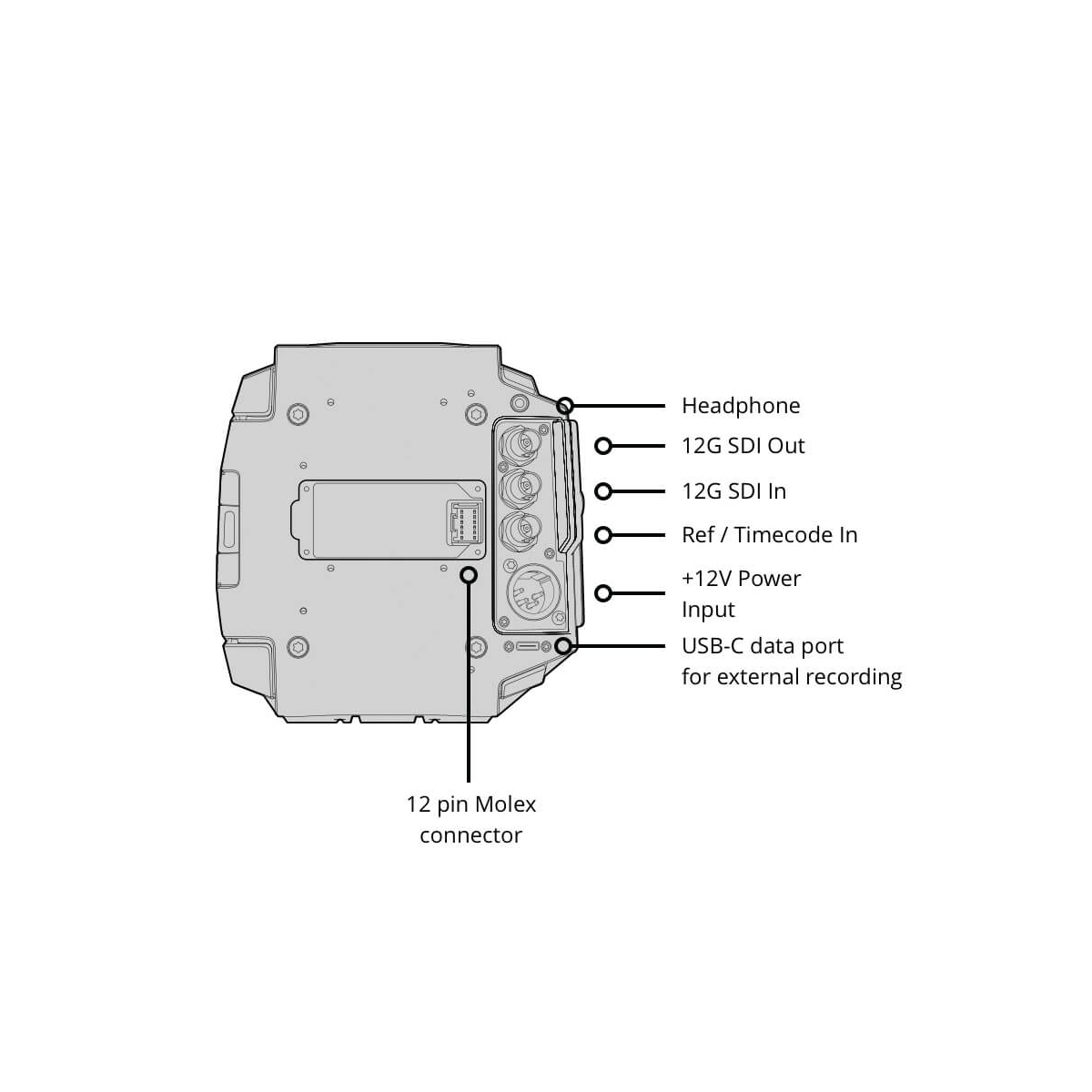

Video I/O | 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Output |
Audio I/O | 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Output 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output |

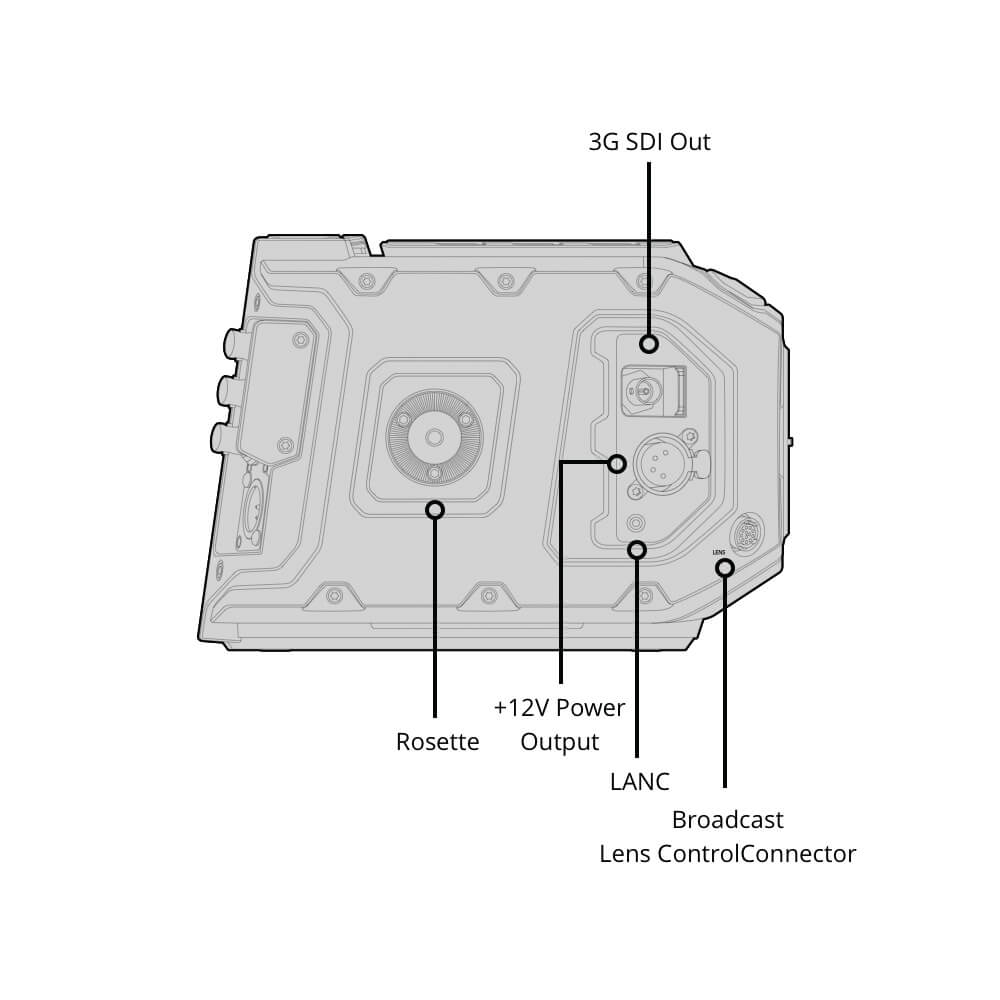

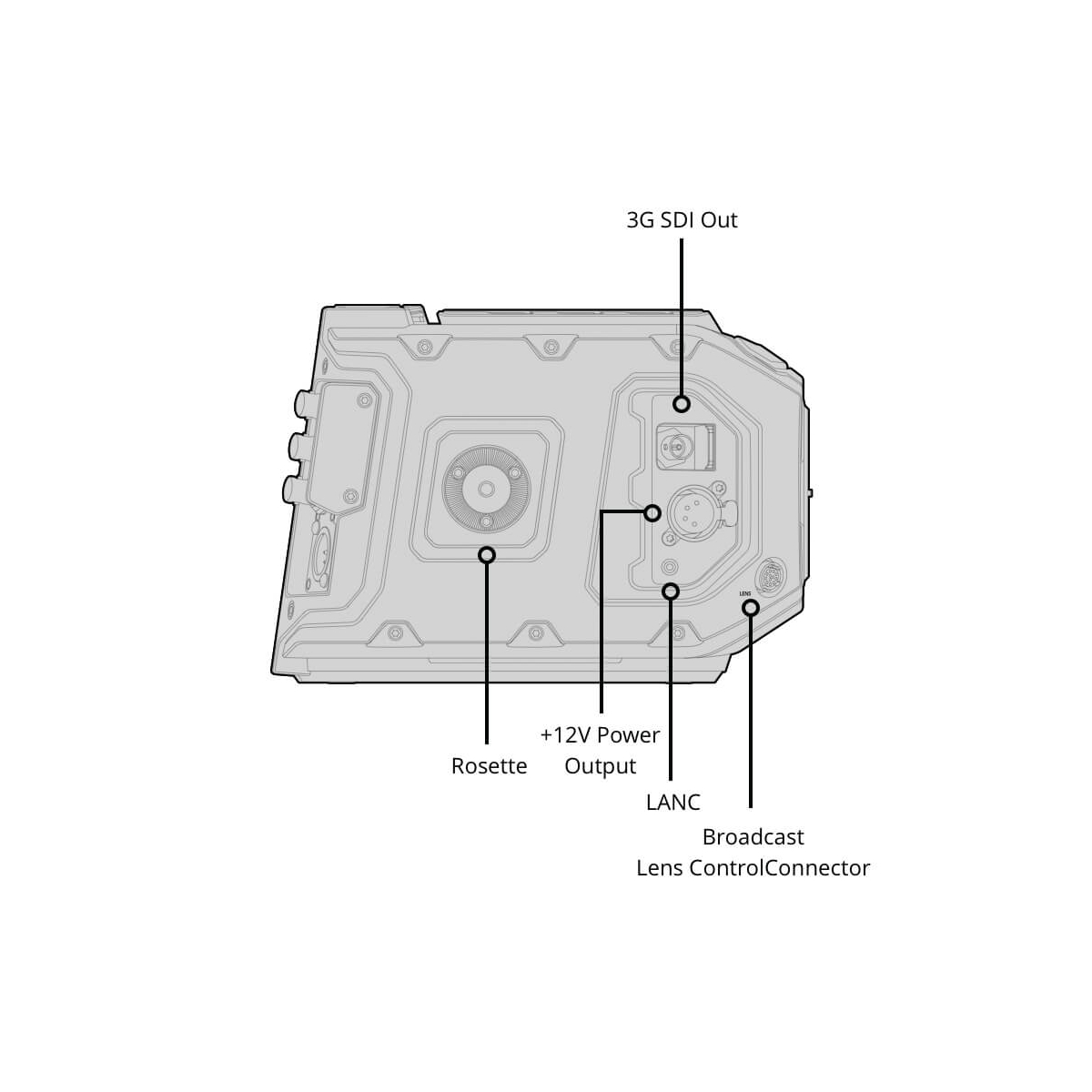

Power I/O | 1 x XLR 4-Pin Input 1 x Molex 12-Pin Input/Output 1 x XLR 4-Pin (12VDC) Output |
Other I/O | 1 x USB-C (USB 3.2 / 3.1 Gen 2) 1 x USB-C Data Input |
Wireless | None |
Mobile App Compatible | Yes *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Global Positioning (GPS, GLONASS, etc.) | None |
Monitor |
|
Size | 4.0" |
Display Type | Articulating Touchscreen LCD |
Secondary Display | Side: Status Display |
Viewfinder |
|
Type | Optional, Not Included |
Focus |
|
Focus Type | Auto and Manual Focus |
Focus Mode | Automatic, Manual Focus |
Environmental |
|
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General |
|

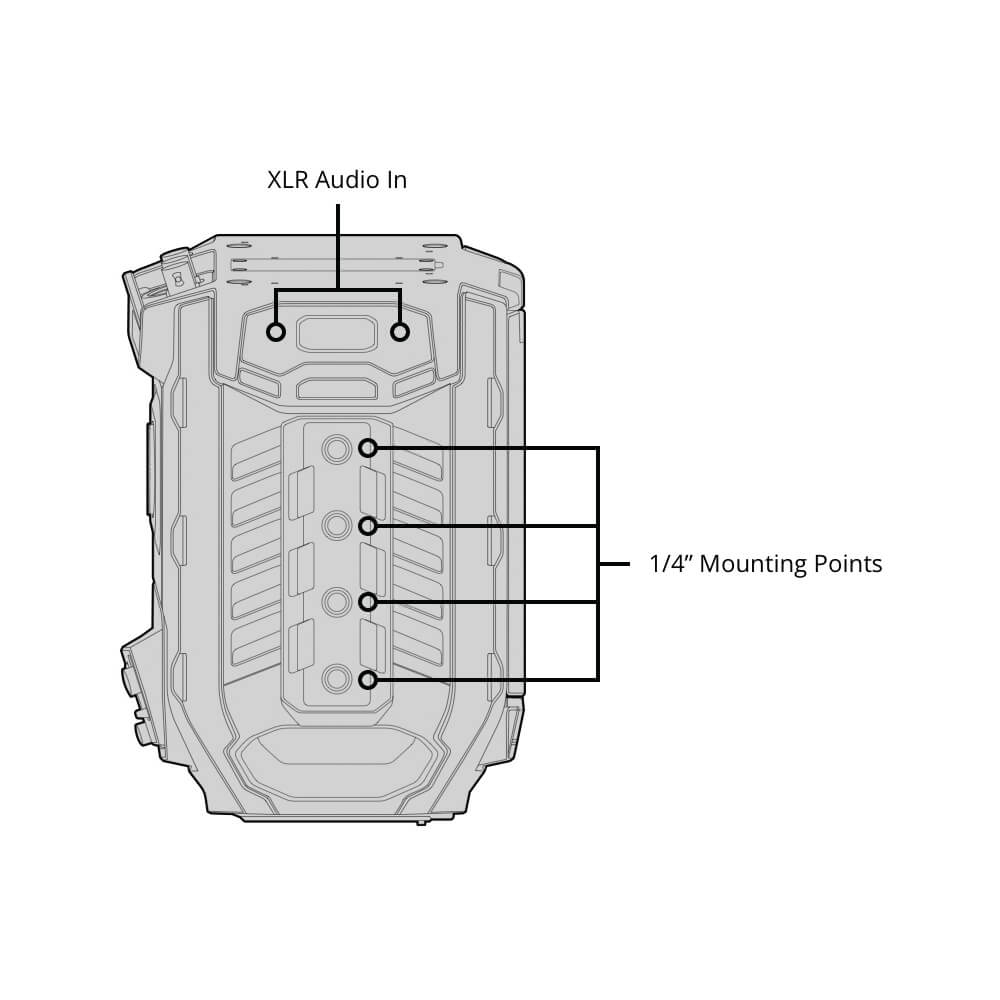

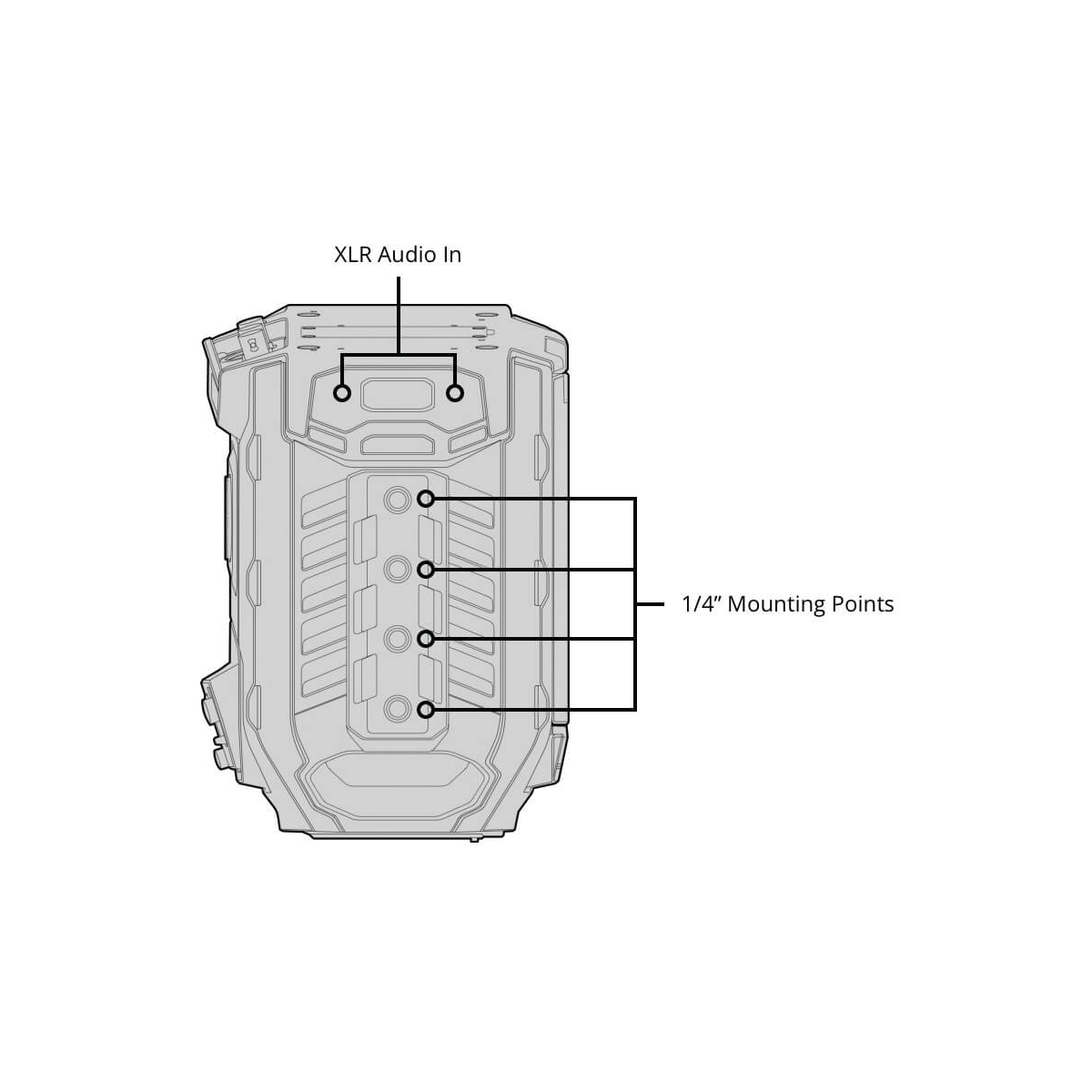

Accessory Mount | 4 x 1/4"-20 Female 1 x ARRI/Hirth Rosette |

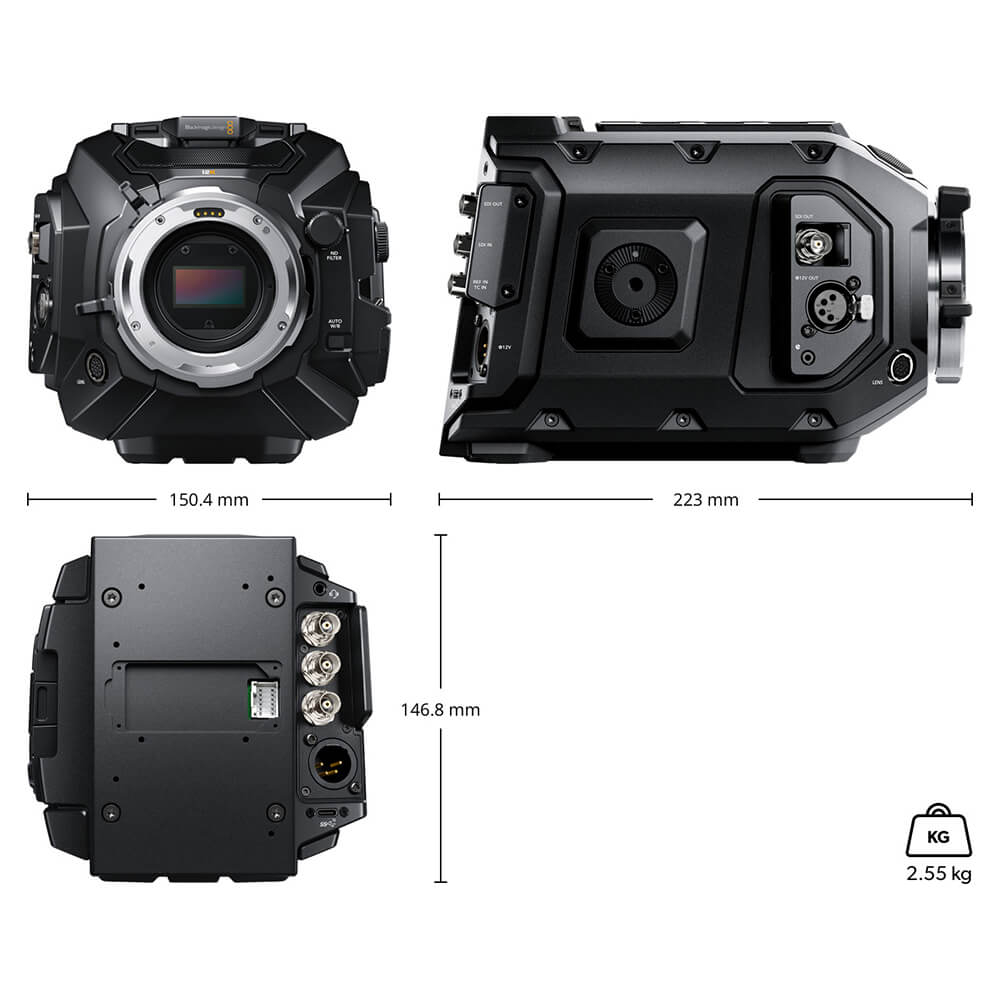

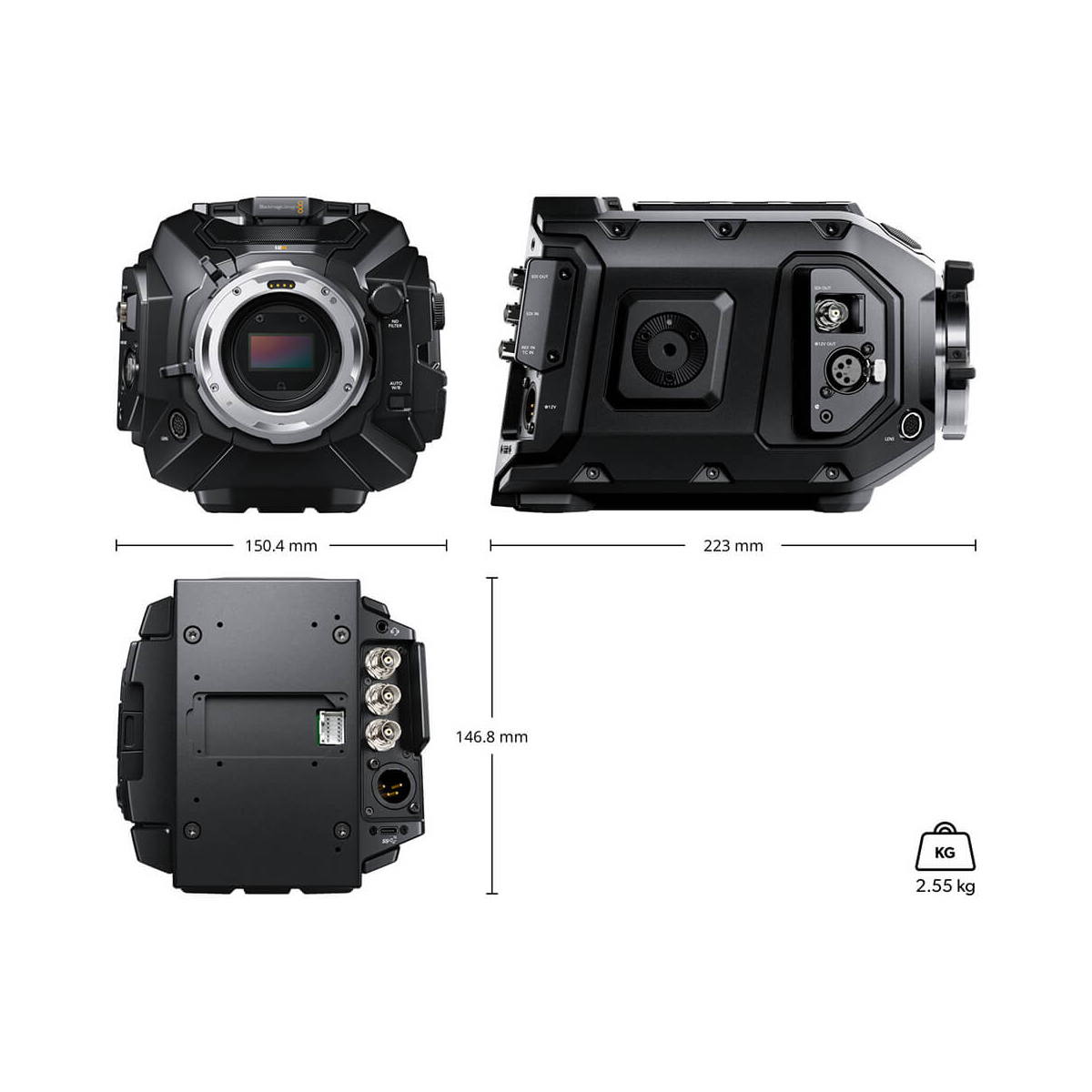

Dimensions (W x H x D) | 9.2 x 5.92 x 5.87" / 23.4 x 15.04 x 14.91 cm |
Weight | 5.62 lb / 2.55 kg |
