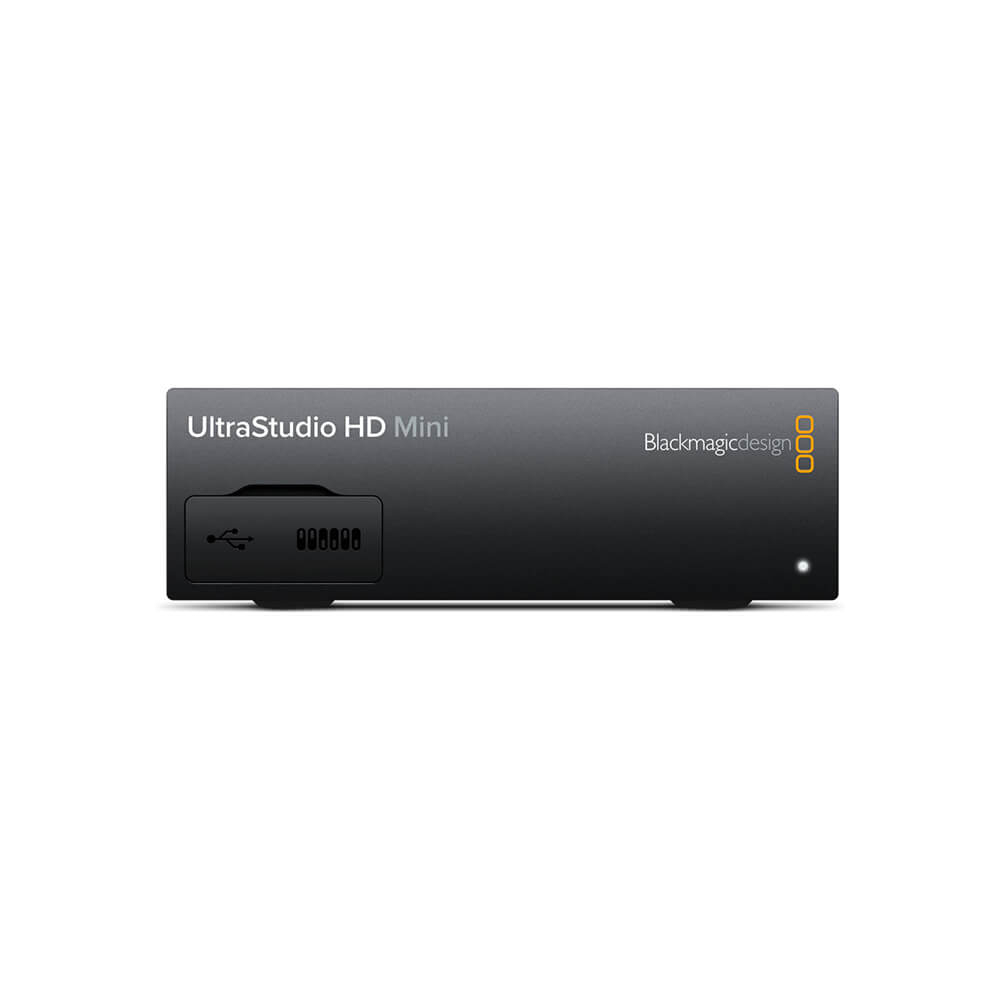

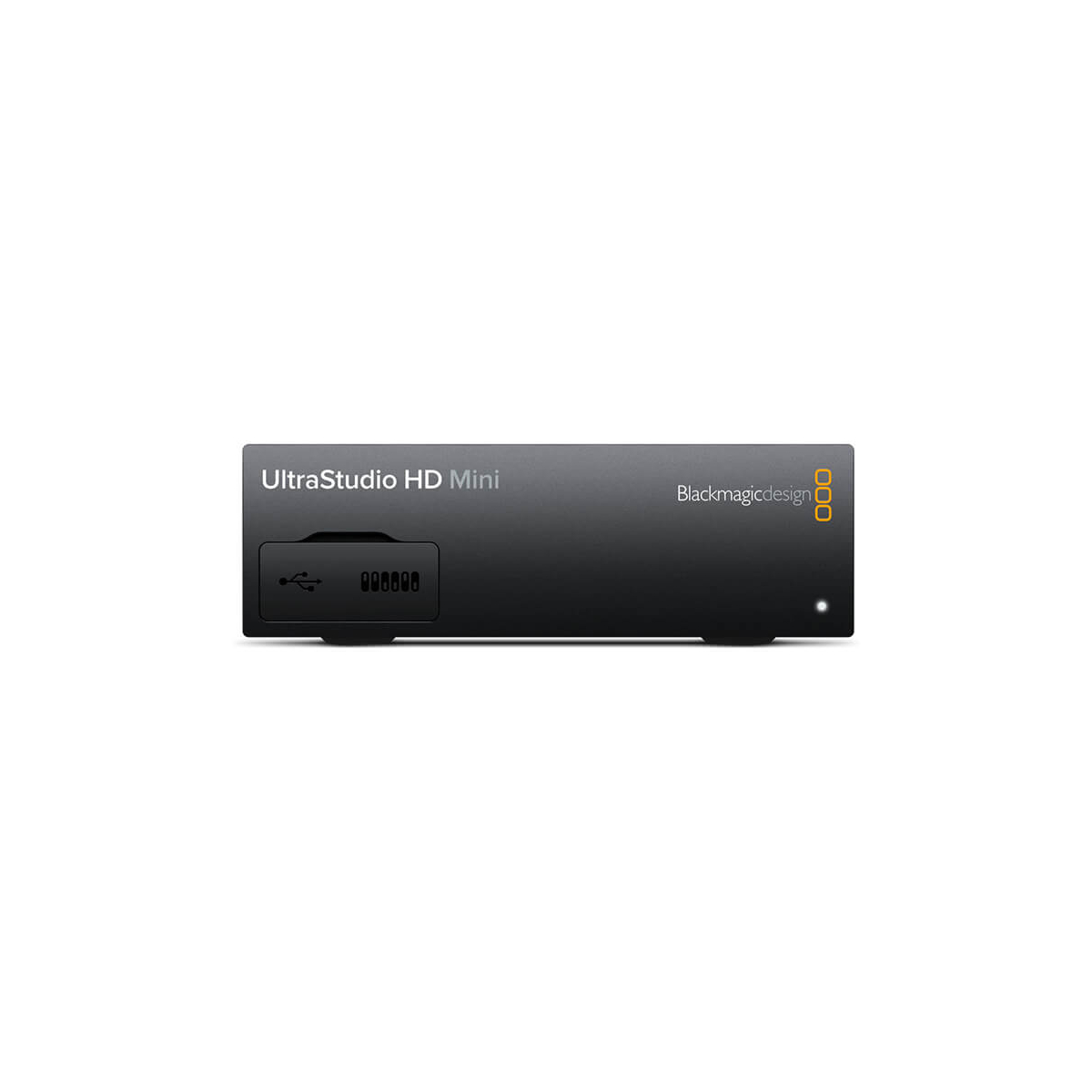

Perform footage acquisition from digital or analog sources straight into your NLE of choice with the Blackmagic Design UltraStudio HD Mini. SDI and analog video inputs can import video from modern or legacy professional video equipment. Using the versatile Thunderbolt 3 interface, the UltraStudio HD Mini can send and receive SD and HD video up to 1080p at 60 fps with up to 16 channels of embedded audio. Available outputs include dual SDI for fill and key, as well as an HDMI output for driving consumer displays. With the built-in RS-422 connection, the UltraStudio HD Mini can also interface with professional broadcast decks.

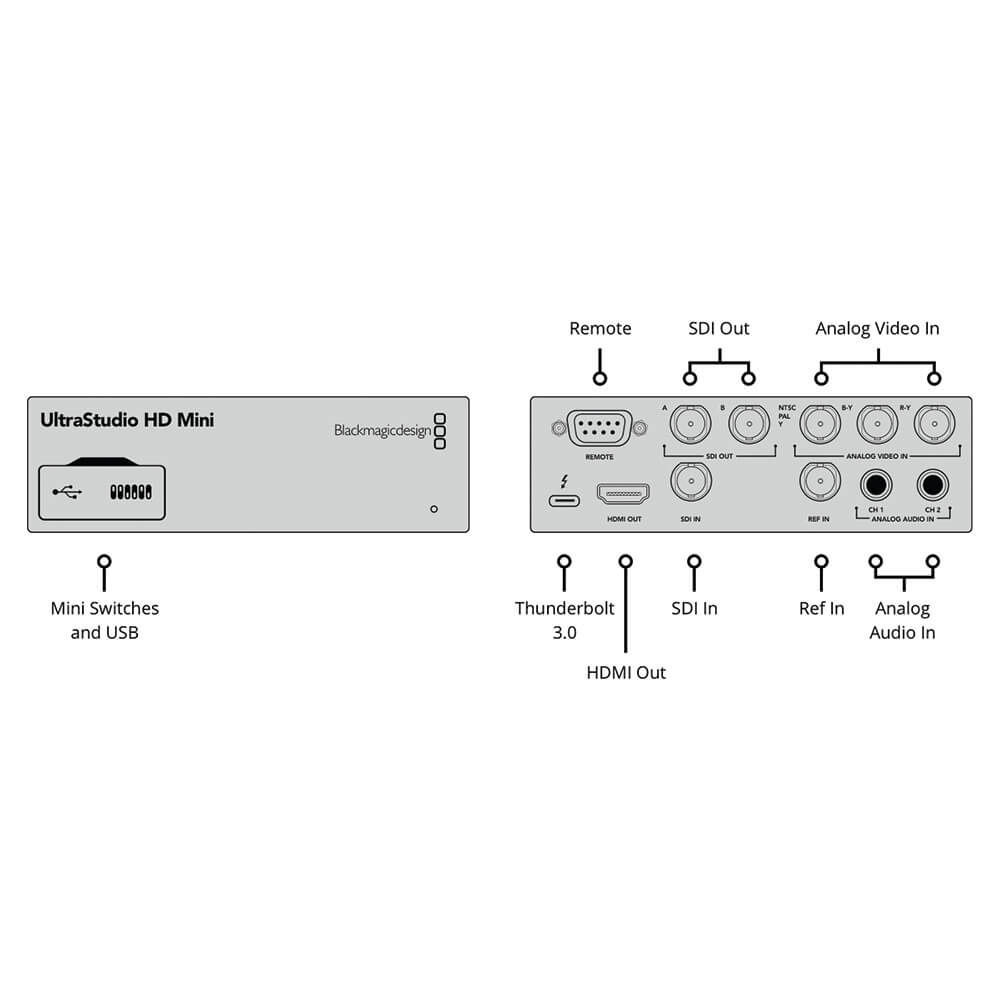

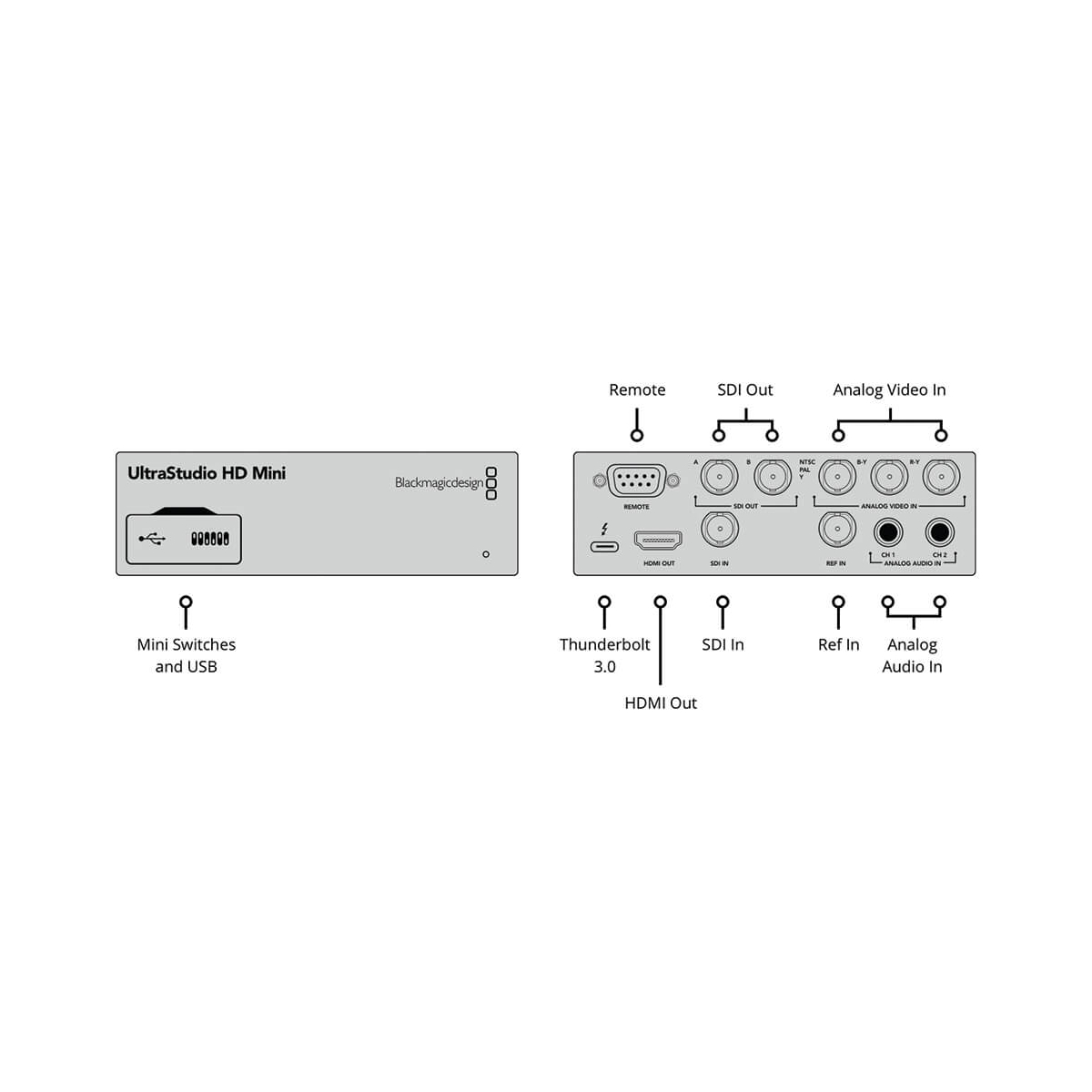

Blackmagic Design HD Mini Specification Inputs / Outputs |
|
System Connection | USB-C (Thunderbolt 3) |
Video Inputs | 1 x BNC (3G-SDI) Female 1 x 3BNC (Component/Composite) Female |
Audio Inputs | 2 x 1/4" TRS Analog Female |
Video Outputs | 2 x BNC (3G-SDI) Female 1 x HDMI (1.4b) Female |
Other I/O | 1 x DE-9/DB-9 RS-422 Input 1 x BNC Reference Input |
Format Support |
|
Input Video Format | SDI (10-Bit 4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 |
Output Video Format | HDMI (8-Bit 4:4:4 RGB) 1080p at 30 fps SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 30 fps |
Embedded Audio | SDI: 16-Channel HDMI: 2-Channel |
Standards |
|
Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M-A/425M-B |
HDR Compatibility | None |
Hardware |
|
OS Compatibility | Windows 10 or Later (64-Bit Only) Windows 11 macOS 11.1 or Later Linux *As of April, 2023: Check with manufacturer for the most up-to-date compatibility |
Power I/O | None |
Environmental |
|
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General |
|

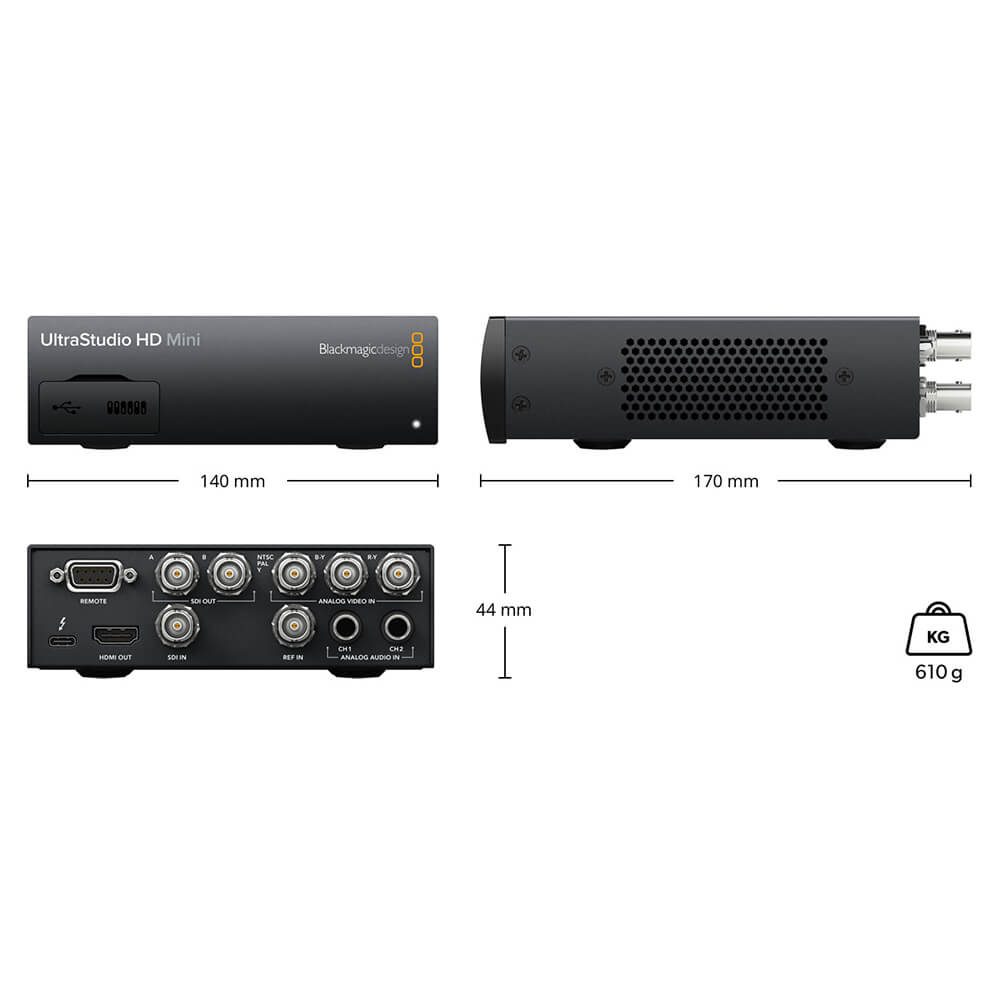

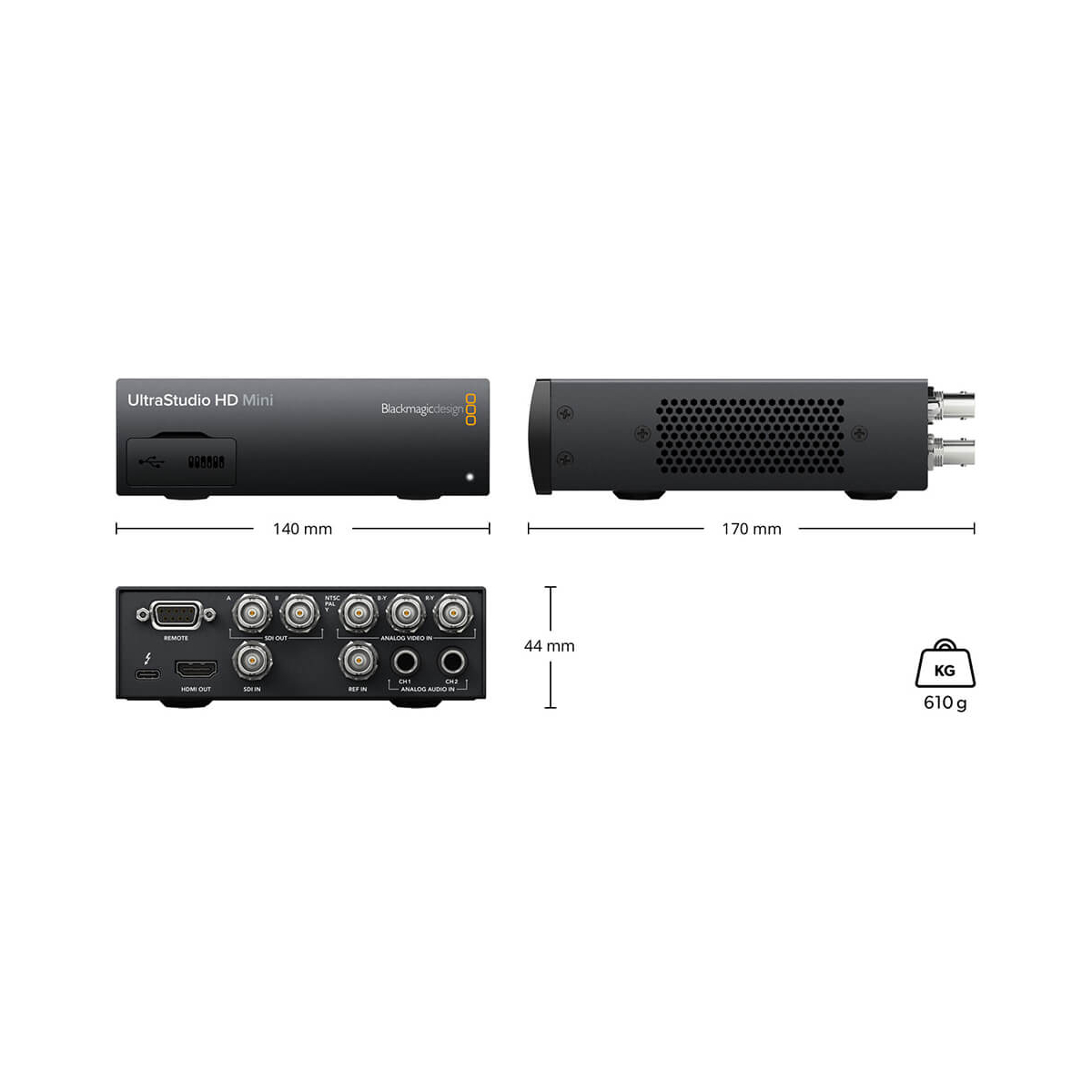

Dimensions | 6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm |
Weight | 1.34 lb / 608 g |
