A faster upgrade to its predecessor, the UltraStudio 4K Extreme, Blackmagic Design UltraStudio 4K Extreme 3 is built with a Thunderbolt 3 interface, which features a 40 Gbps transfer rate that better supports 4K ingest when working in RGB or stereoscopic formats. The super high speed of Thunderbolt 3 is fast enough for the highest bit depth HDR uncompressed RGB 4K and stereoscopic formats, such as those used for high end feature films. Like the previous model, UltraStudio 4K Extreme 3 still offers PCIe, 12G-SDI, HDMI 2.0, and analog connections, 4:4:4 sampling, and real-time H.265 encoding. It supports 4K DCI and UHD footage in up to 60 fps.

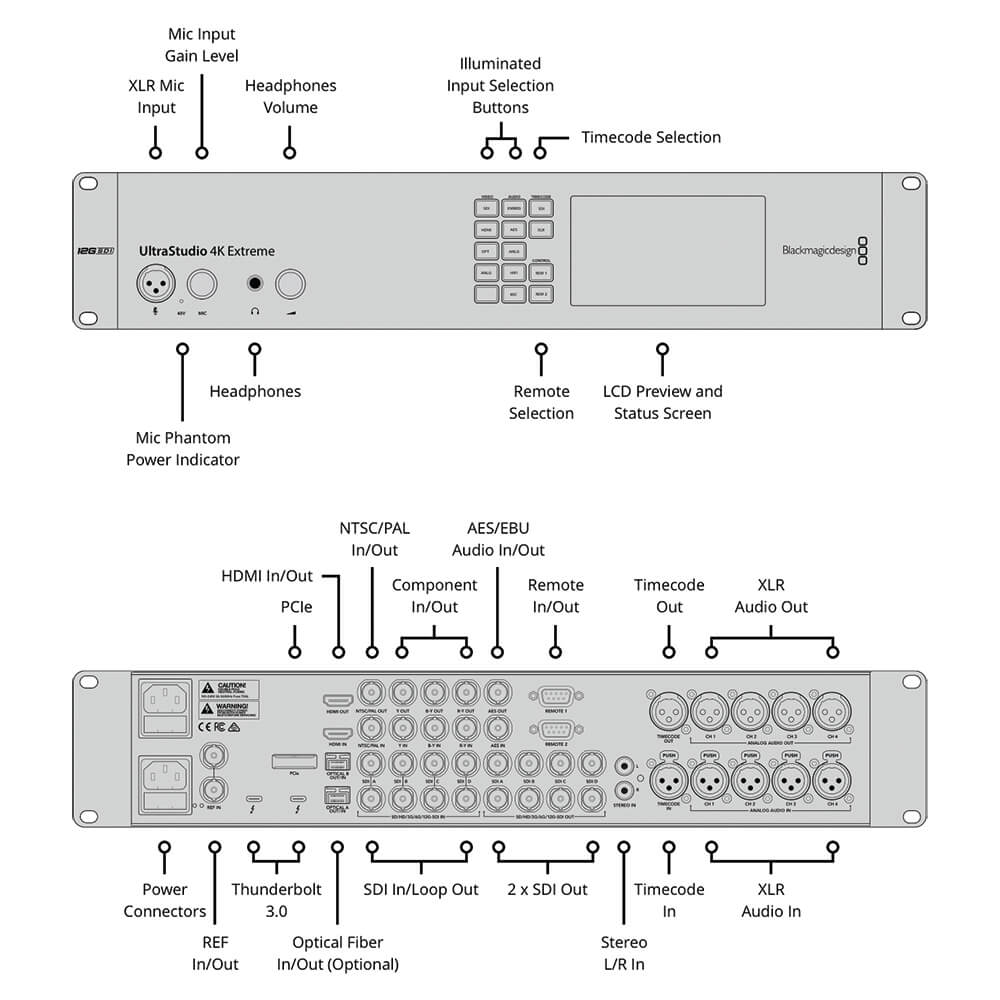

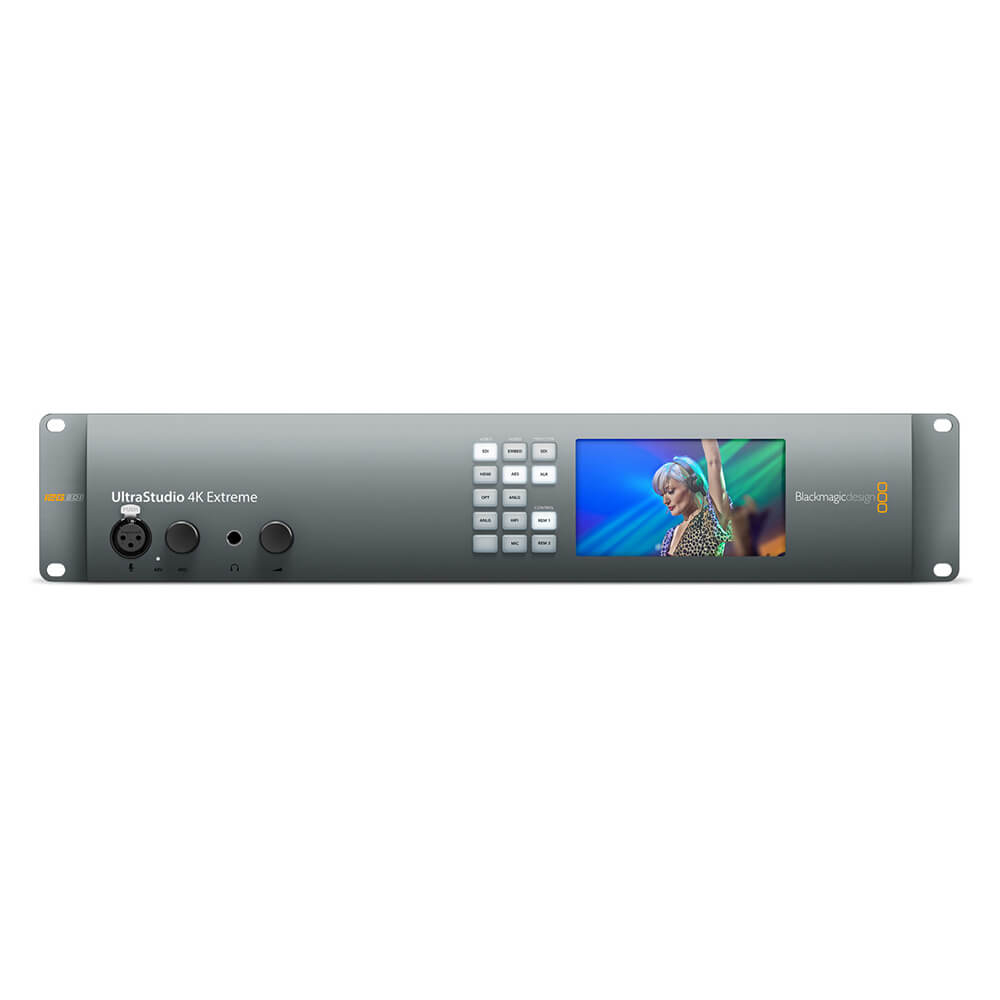

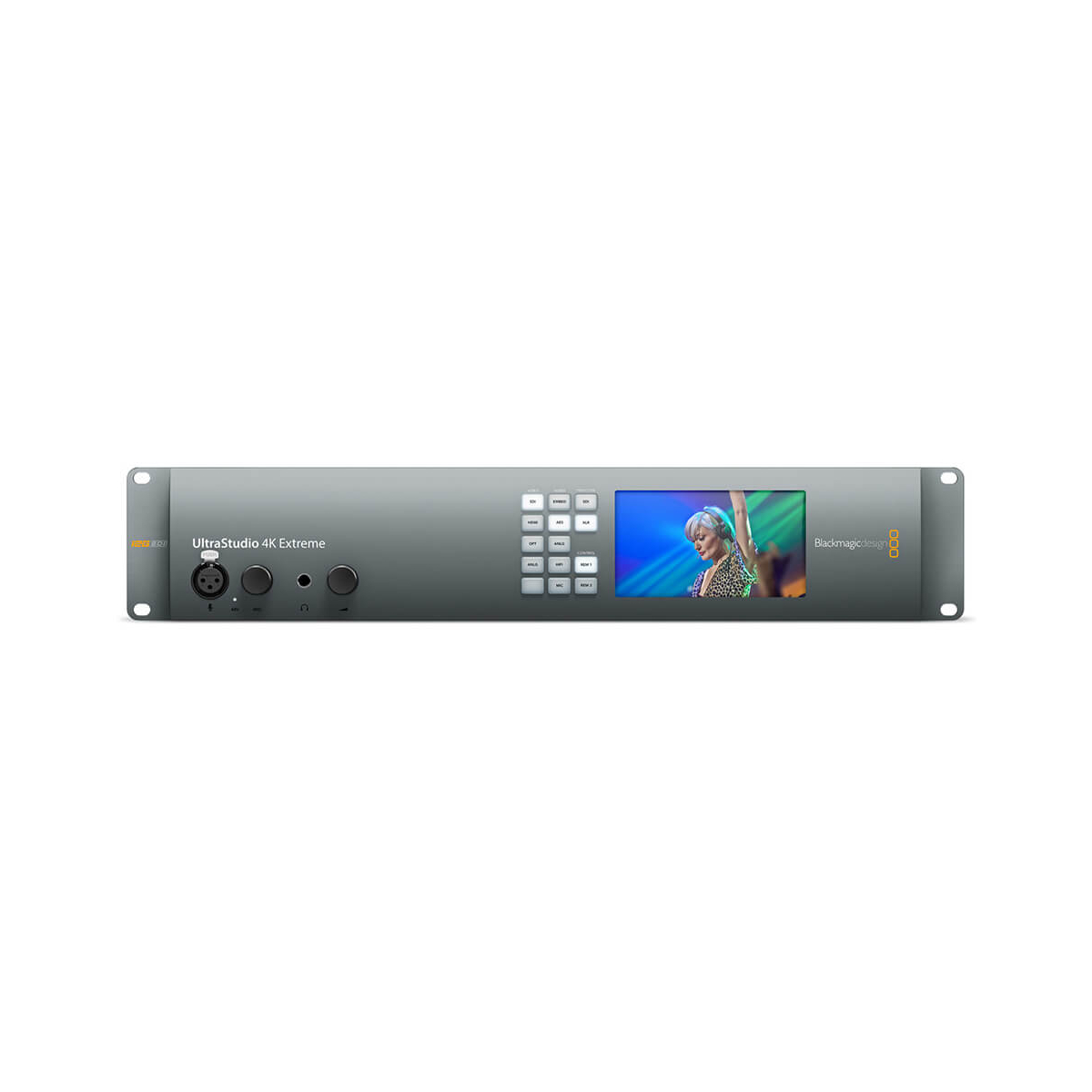

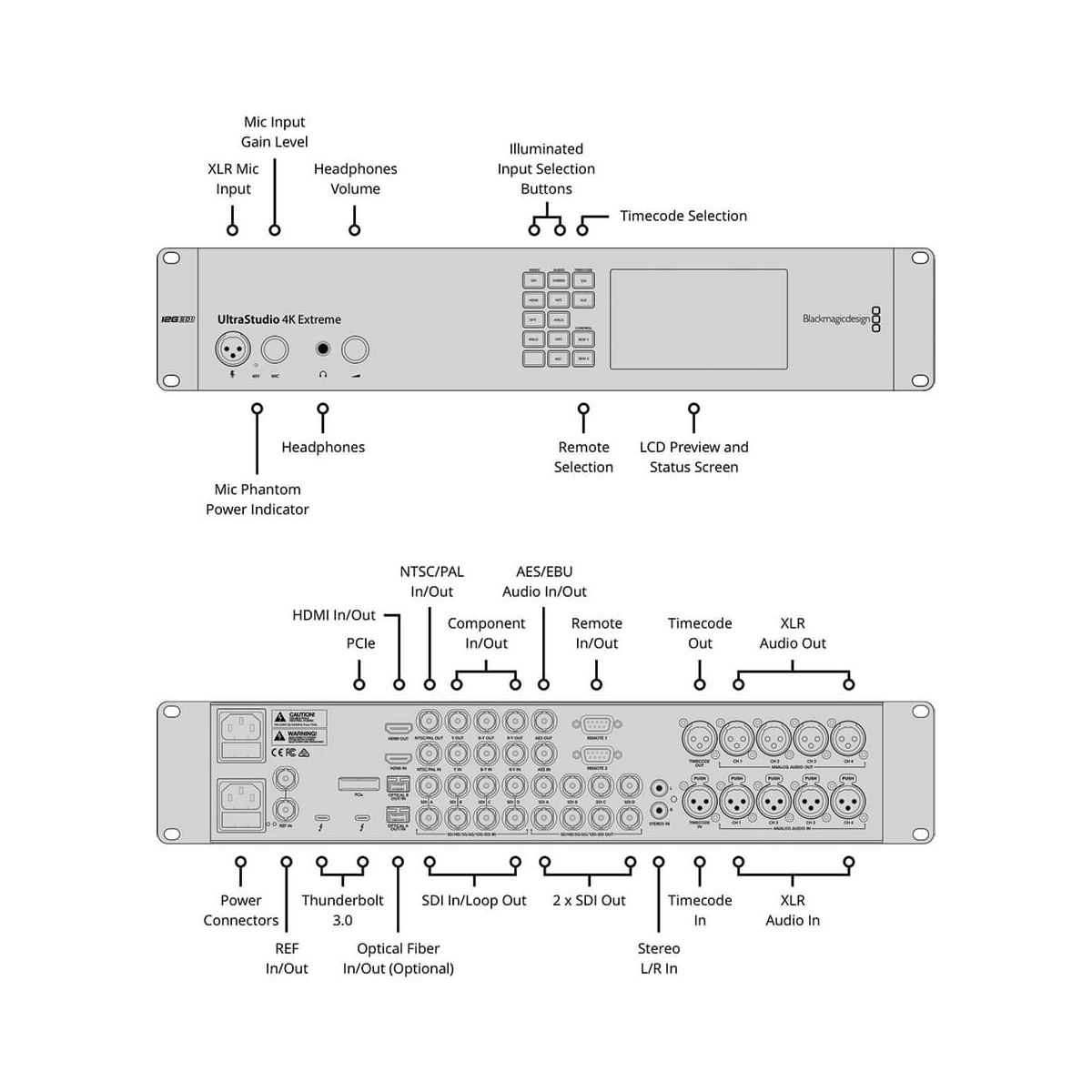

UltraStudio 4K Extreme 3 has a 2 RU rackmountable form factor with the primary connectivity on the back panel. For local monitoring, it offers an LCD preview screen and basic controls on the front panel.
UltraStudio 4K Extreme 3 can be useful for non-linear editing applications, on-set acquisition, VFX, audio post-production, live-streaming, color-grading, live-production applications, and more.
Two SD cards are included with the device that feature the following Blackmagic applications: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS X/Windows 7, 8, and 10/Linux, and DaVinci Resolve (formerly known as DaVinci Resolve Lite).
Blackmagic Design 4K Extreme 3 Specification |
|
SDI Video Inputs | 2 x 12 Gbps and 2 x 6 Gbps SD/HD/2K/4K Supports single/dual/quad link 4:2:2/4:4:4 2D/3D switchable |
SDI Video Loop | 4 x reclocked SD/HD/2K/4K linked to corresponding inputs |
SDI Video Output | 2 x 12 Gbps and 2 x 6 Gbps SD/HD/2K/4K Supports single/dual/quad link 4:2:2/4:4:4 2D/3D switchable |
SDI Video Repeated Output | 2 x 12 Gbps and 2 x 6 Gbps SD/HD/2K/4K Supports single/dual/quad link 4:2:2/4:4:4 2D/3D switchable |
Optical Fiber Input/Output | Upgradeable to optional 2 x 12 Gbps Optical Fiber |
HDMI Video Input | HDMI 2.0 type A connector with support for 2160p60 |
HDMI Video Output | HDMI 2.0 type A connector with support for 2160p60 |
Analog Video Input | 1 x Component YUV on 3 BNCs, 1 x Composite NTSC/PAL on 1 BNC |
Analog Video Output | 1 x Component YUV on 3 BNCs, 1 x Composite NTSC/PAL on 1 BNC |
SDI Audio Input | 16 channels embedded in SD/HD/2K/4K |
SDI Audio Output | 16 channels embedded in SD/HD/2K/4K |
HDMI Audio Input | 8 channels embedded in SD/HD/4K |
HDMI Audio Output | 8 channels embedded in SD/HD/4K |
Analog Audio Input |
4 channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors |
Analog Audio Output | 4 channels of professional balanced analog audio via XLR connectors |
AES/EBU Audio Input | 2 channels unbalanced with sample rate converter on BNC connector |
AES/EBU Audio Output | 2 channels unbalanced on BNC connector |
Mic Input | 1 x 48 V microphone input via XLR connector Phantom power switchable via software control |
Timecode Input | 1 x XLR input |
Timecode Output | 1 x XLR output |
Sync Input | 1 x Reference input Blackburst in SD or Tri-Sync in HD |
Sync Output | 1 x Reference loop output Blackburst in SD or Tri-Sync in HD |
Device Control | 2 x Sony compatible RS-422 deck control ports Serial ports TxRx direction reversible under software control |
Computer Interface | Thunderbolt 3, PCI Express |
Power | 2 x built-in international AC power supply with IEC C14 inlet 120-240 VAC, 50-60 Hz |
Codecs | Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4 |
Internal Software Upgrade | Firmware built into software driver Software driver loads upgrades at system start or via updater software |
SD Format Support |
SDI: HDMI: |
HD Format Support |
SDI: HDMI: |
2K Format Support | SDI: 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25 |
Ultra HD Format Support |
SDI: HDMI: |
4K Format Support |
SDI: HDMI: |
SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M level A, SMPTE 425M level B, ITU-R BT.656, and ITU-R BT.601 |
SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
SDI Video Sampling | 4:2:2, 4:4:4, and 4:4:4:4 |
SDI Color Precision | 8, 10-bit YUV 4:2:2 and 8, 10, 12-bit RGB 4:4:4. |
SDI Color Space | REC 601, REC 709 |
SDI Configuration | SDI output is configurable for Quad Link 3 Gbps via Blackmagic Desktop Video Utility. When using single link 12 Gbps on SDI A or dual link 6 Gbps on SDI A and B, SDI C and D will output down-converted HD. |
SDI Metadata Support | HD RP188 Closed captioning |
HDMI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
HDMI Video Sampling | 4:2:2 and 4:4:4 |
HDMI Color Precision | 10-bit RGB in HD, 10-bit YUV in 4K |
HDMI Configuration | HDMI 2.0 supports Deep Color and automatically configures to connected display |
Multiple Rate Support | HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analog video connections are switchable between SD and HD. |
Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
Encoding | Hardware based real time H.265 encoder |
Colorspace Conversion | Hardware based real time |
3D Processing | Dual stream and frame packed capture and playback |
Ultra HD Down Conversion | Built-in, high quality hardware down converter outputs Ultra HD to HD with down-converted signal on SDI outputs C and D |
HD to SD Down Conversion | Built-in, high quality hardware down converter outputs HD to SD with down-converted signal on SDI output B, Component, and Composite NTSC/PAL. SD output selectable between letterbox, anamorphic 16:9, and center cut 4:3. |
HD Up Conversion | Built-in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom, and 16:9 zoom. |
HD Cross Conversion | Built-in, high quality hardware cross conversion from 720p to 1080i and 1080i to 720p on playback. |
Real Time Effects | DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. |
Physical Installation | Requires computer with either a Thunderbolt port or available PCIe slot. PCIe cable and interface card available separately. Please check support pages to see the full system requirement. |
Operating Systems | Mac OS X 10.9 Mavericks, 10.10 Yosemite, 10.11 El Capitan or later Windows 8.1 or Windows 10 |
Power Requirements | 2 x built-in international AC power supply with IEC C14 inlet 120-240 V, 50-60 Hz |
Operating Temperature | 41 to 104°F (5 to 40°C) |
Storage Temperature | -4 to 113°F (-20 to 45°C) |
Relative Humidity | 0 to 90% non-condensing |

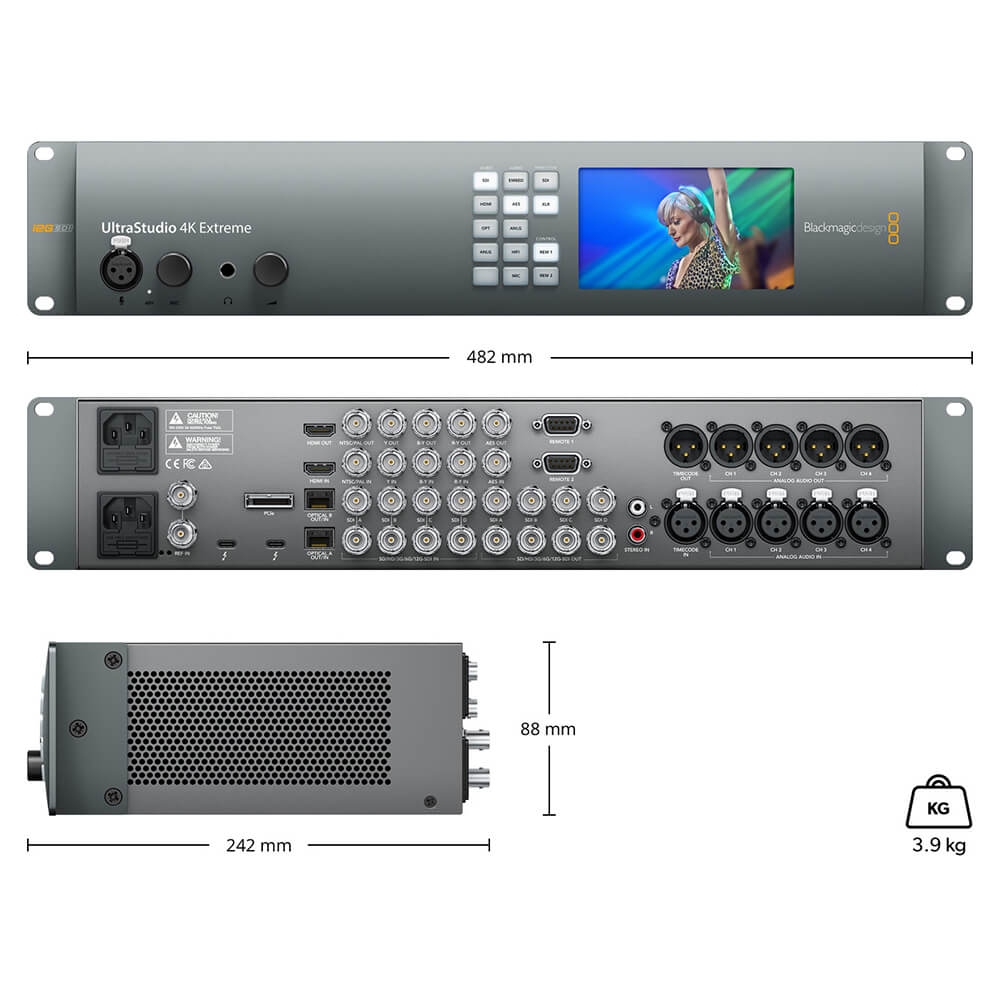

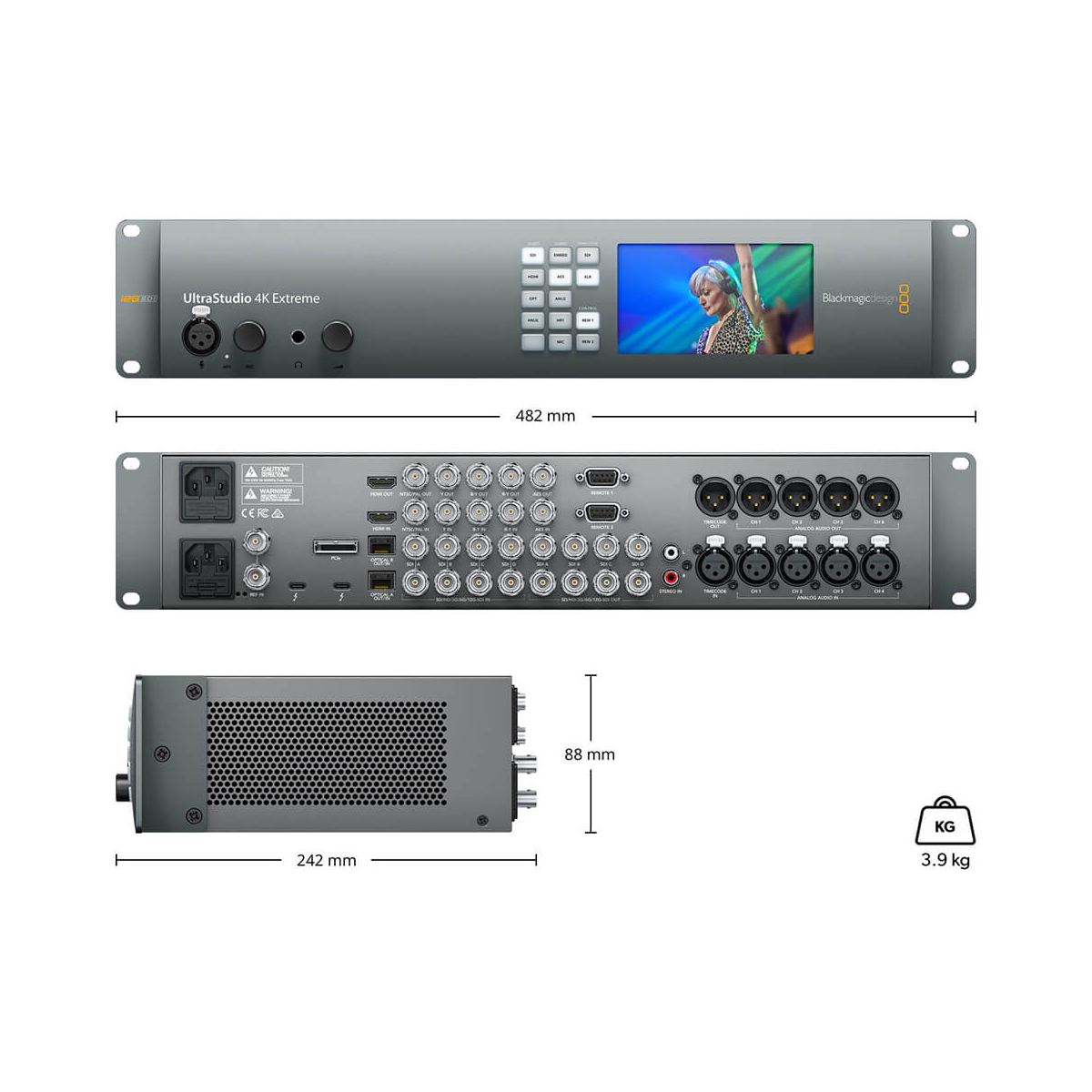

Dimensions | 19 x 9.5 x 3.5" (48.3 x 24.1 x 8.9 cm) |
Weight | 8.6 lb (3.9 kg) |
