Windows 10, 64-bit.

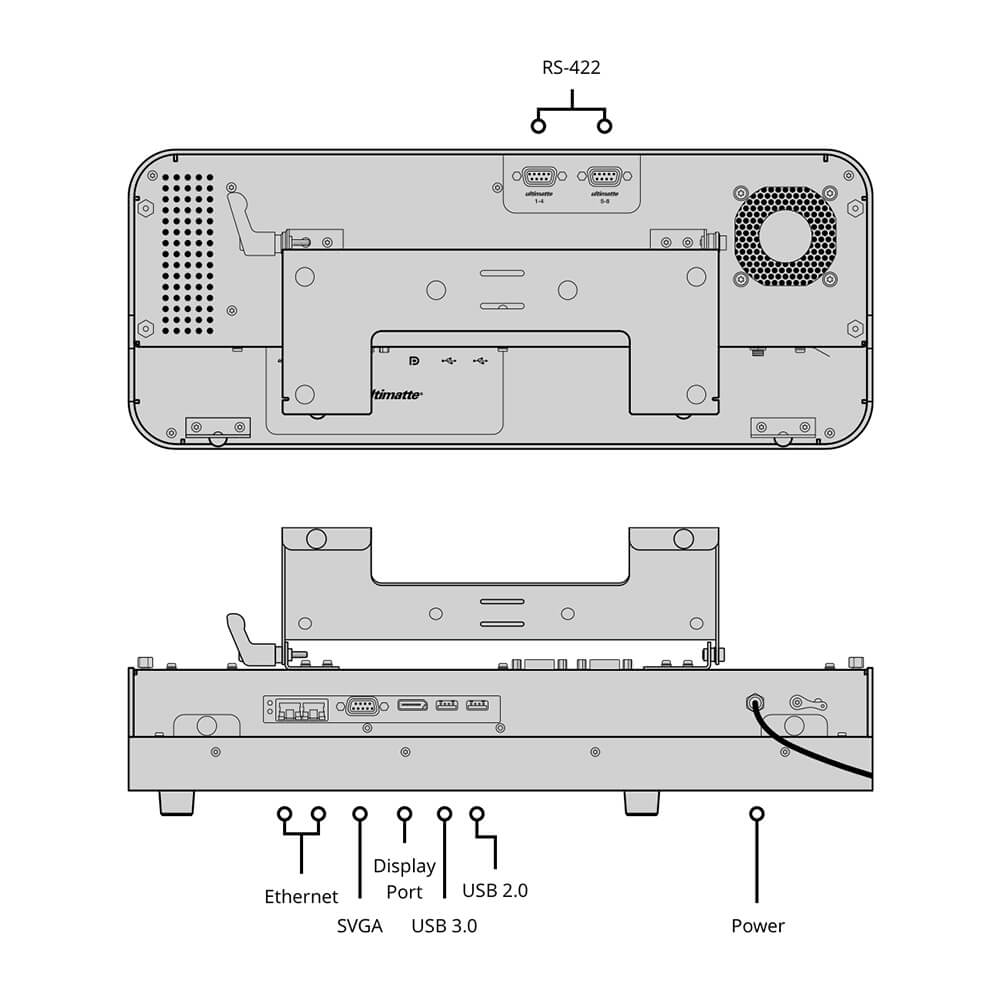

Connections
Software Updates
2 x USB 2.0 and 1 x USB 3.0 for software updates.
SVGA and Display Port Outputs
SVGA and Display Port outputs allows for graphics to be viewed on an external monitor.
Ethernet
2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12.
RS-422
2 x for controlling Ultimatte 11.
Product Specifics

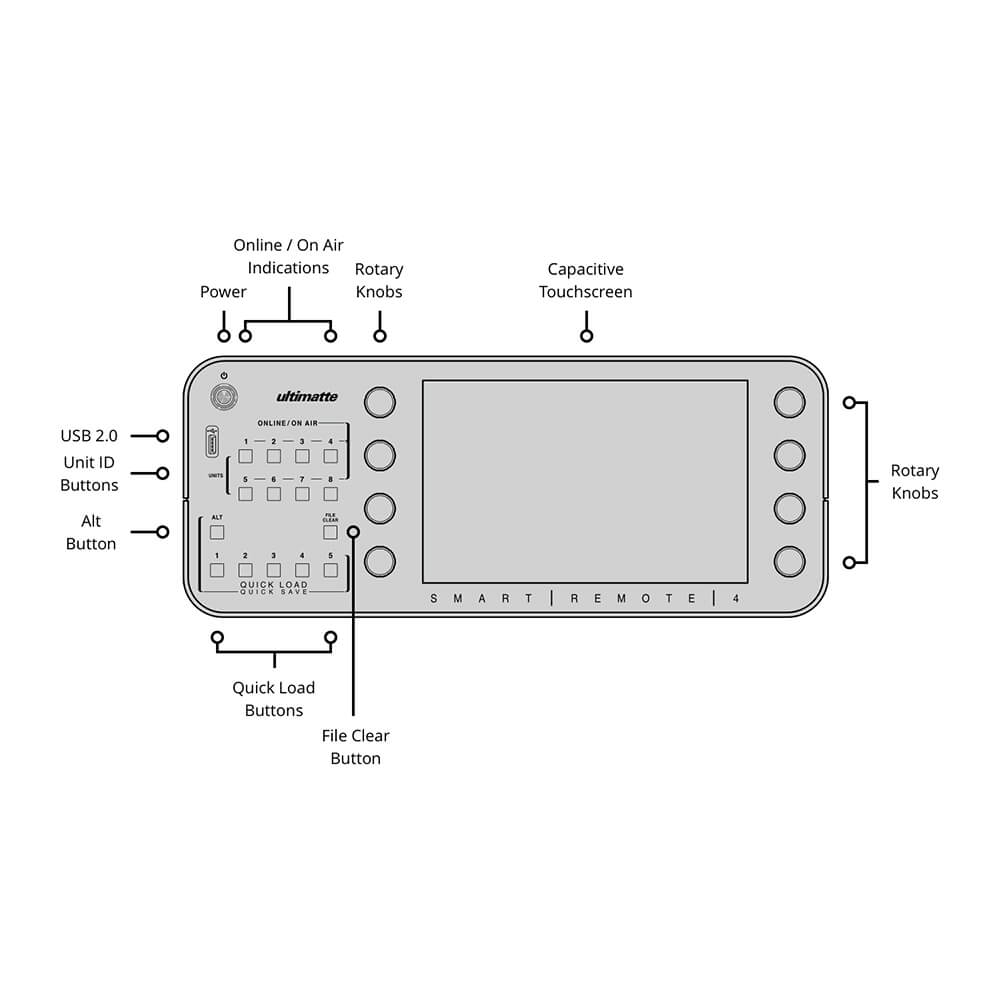

Rotary Knobs
8 x rotary knobs for adjusting parameters.
Unit ID Buttons
8 x buttons. Illuminated blue for active.
Unit ID LED Indicators
Illuminated green for online and red for on air.
Alt + Quick Load/Save Buttons
Alt button plus 5 buttons for saving presets.
Quick Load/Save Buttons
5 x buttons for loading presets.
File Clear Button
1 x button for Auto Key.
Alt + File Clear
Alt button plus file clear button for Auto Key using some user defined presets.
Customizable Menus
4 x menus for building your own menu with your most used controls.
LED Control
User adjustable brightness control for LEDs.
Fan Speed Control
User adjustable.
Software
Software updates via USB to load Smart Remote utility.
Control
Touchscreen
10.1 inch 1280 x 800 colour display panel. Integrated capacitive touchscreen with onscreen controls for settings and navigating menus.
Operating Systems
-
Ultimatte Smart Remote 4
-
Welcome wallet with QR code for software download
- 12 Month Limited Manufacturer's Warranty.
