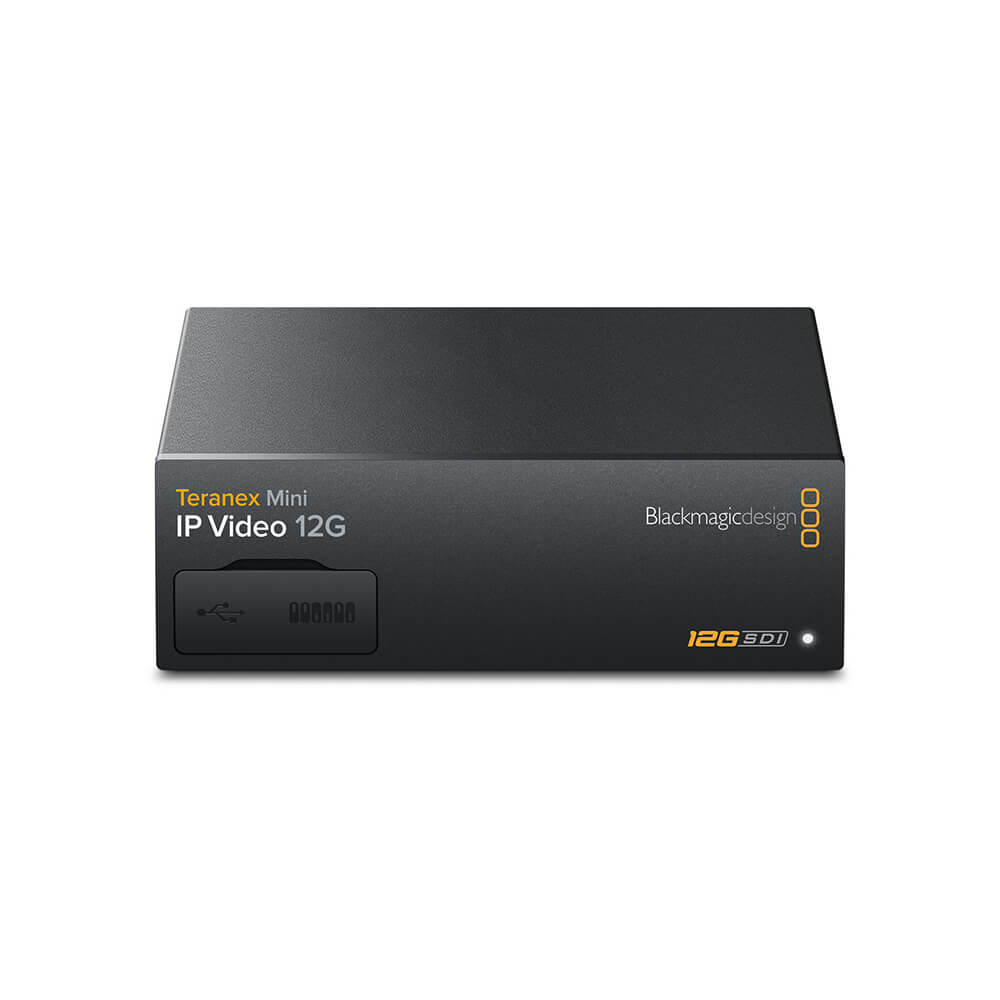

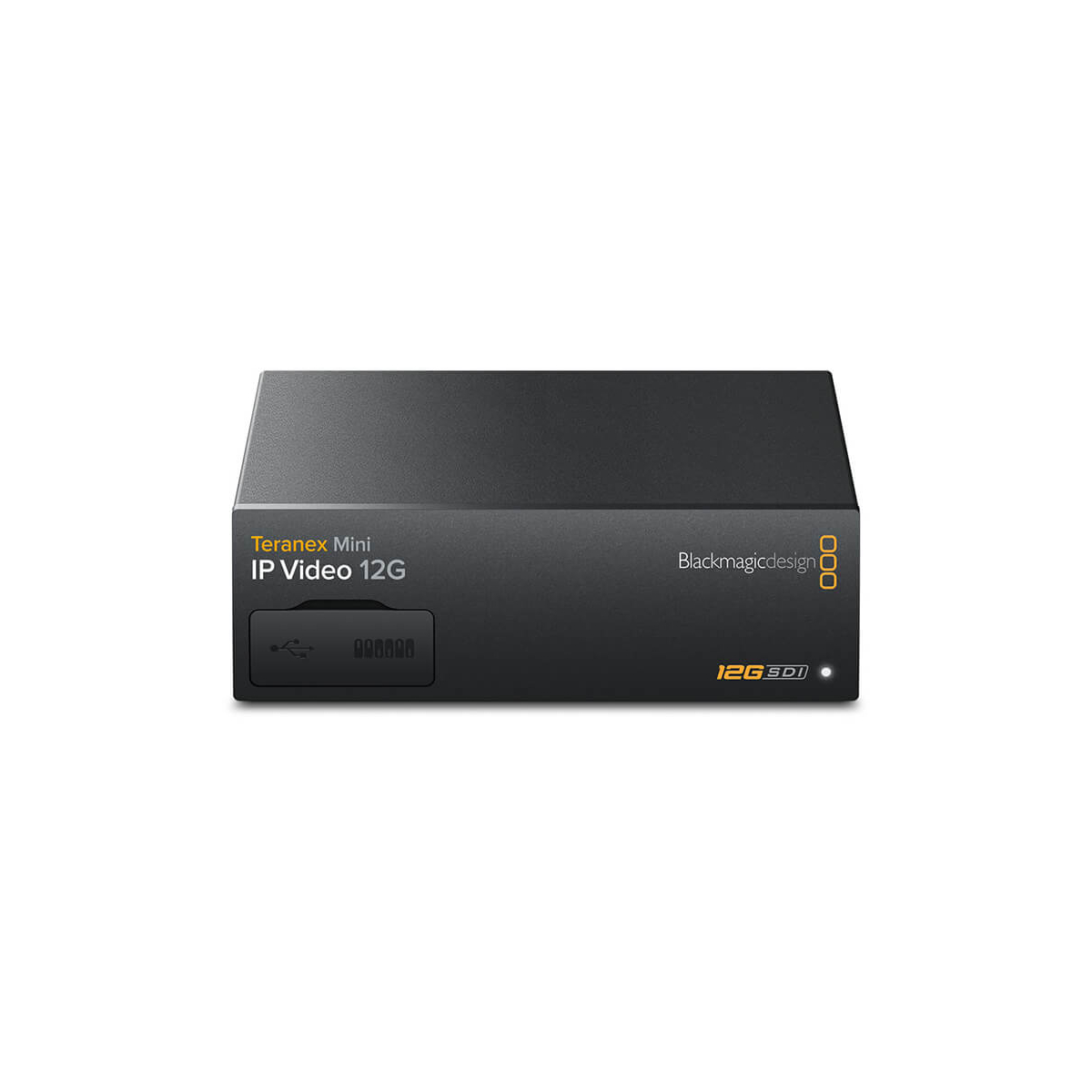

Supporting up to 12G-SDI data rates, the Teranex Mini IP Video 12G from Blackmagic Design is a 12G-SDI/Ethernet encoder/decoder that supports TICO encoding for high-quaity video over Ethernet transmission. The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. One unit is required at each end—multiple units can be used on the same network—controlled by a Mac or Windows computer using the included Blackmagic Video Hub software.

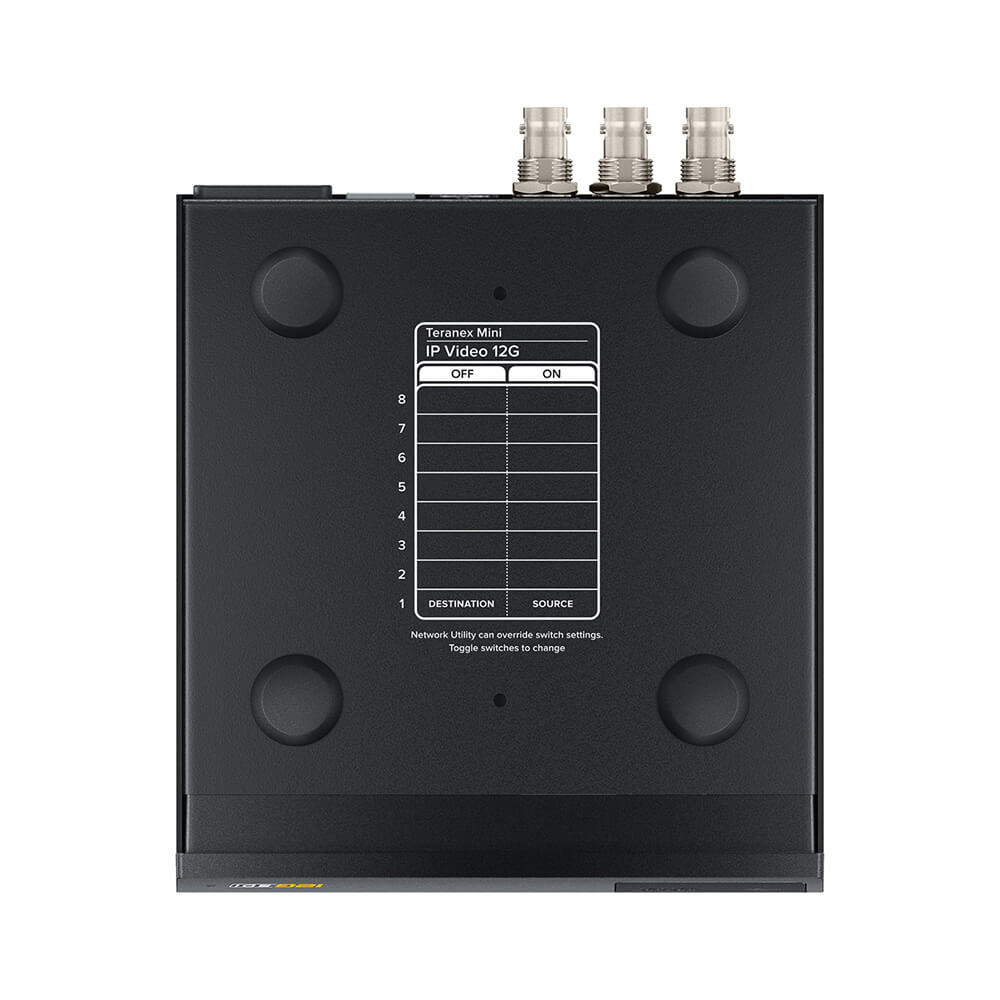

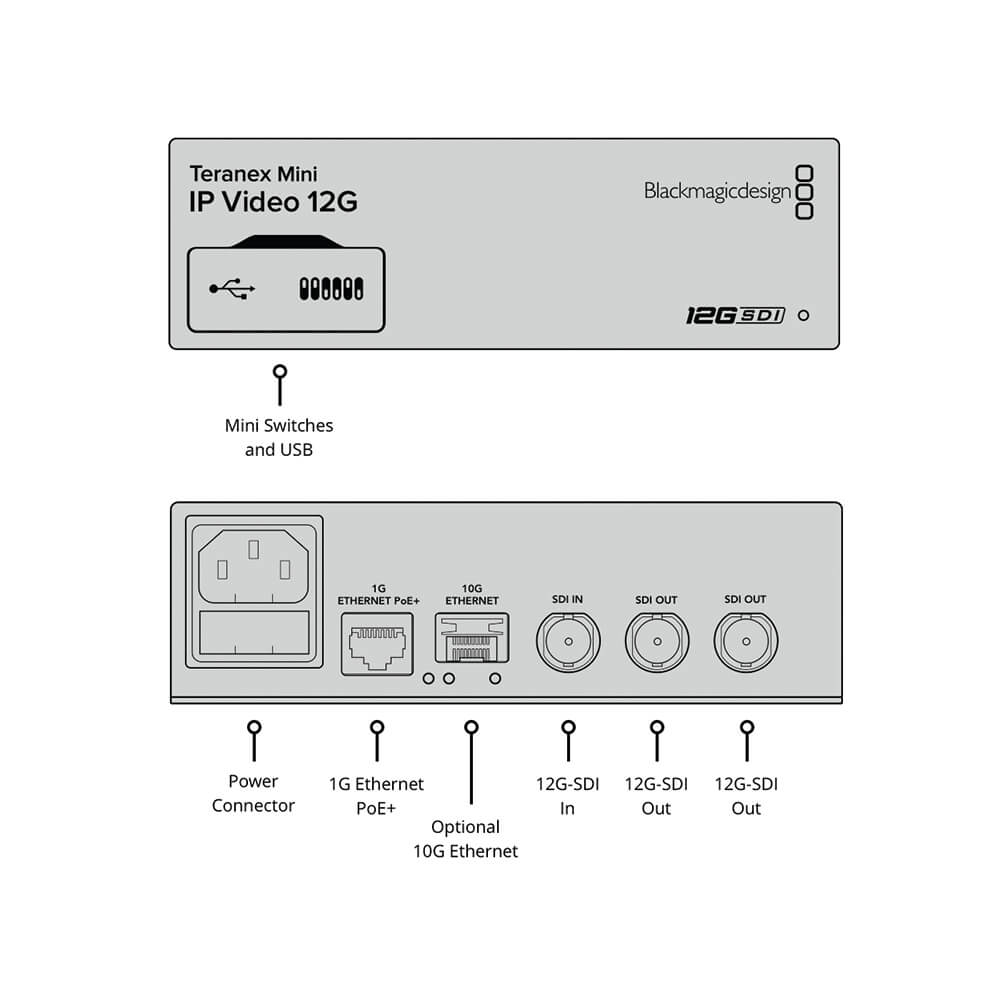

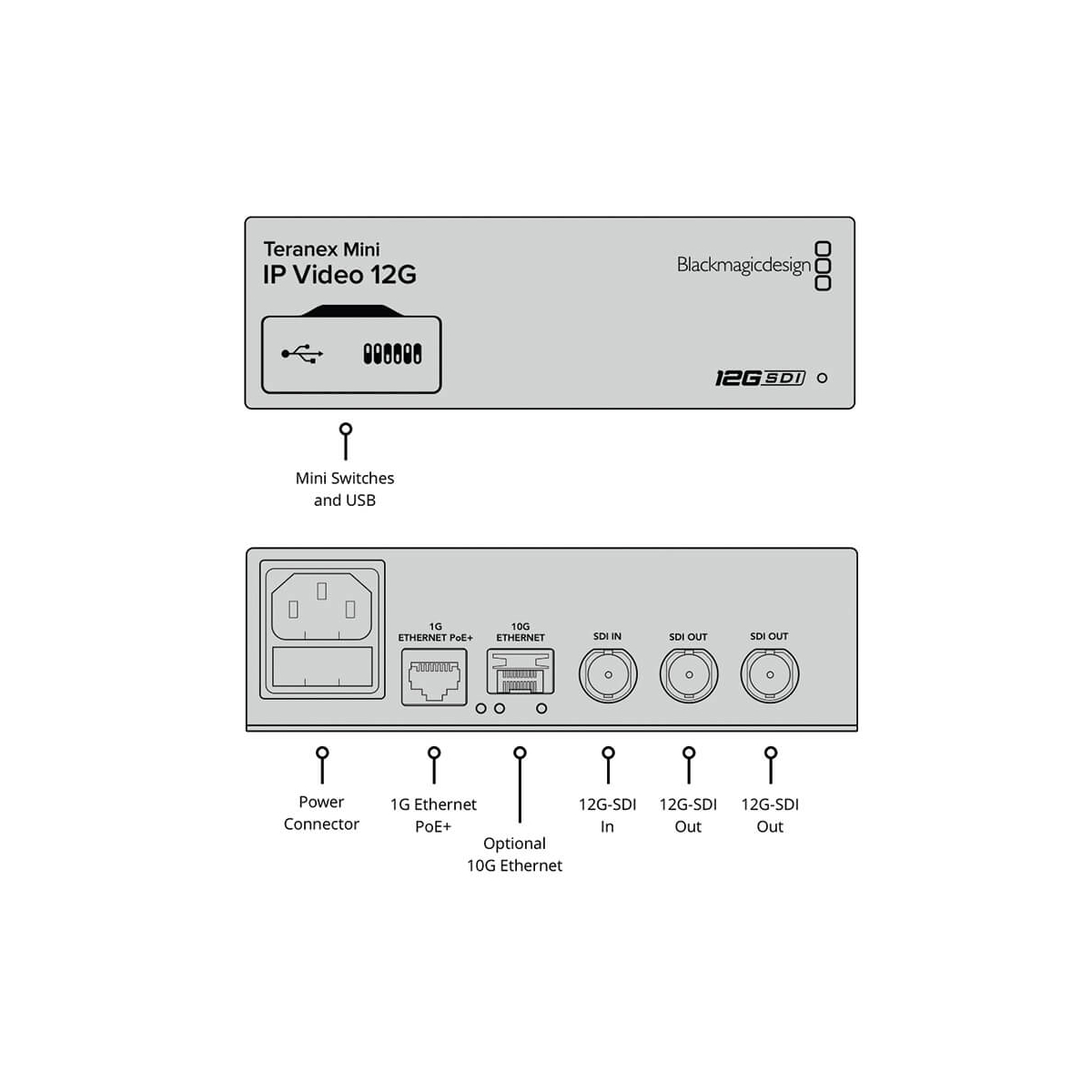

The unit supports up to 1080p60 over a Gigabit Ethernet LAN with higher data rates supported by using an optional 10G optical Ethernet connector. The Mini IP Video 12G has a single 12G-SDI input and two 12G-SDI outputs in addition to the Gigabit Ethernet connector and a slot for an optional 10G SFP. An optional Smart Front Panel with a built-in LCD display provides local setup and control and replaces the standard panel with DIP switch setup that comes with the unit. Up to three units can be easily installed in an optional 1 RU 19" rack tray, and it features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.
Blackmagic Design Teranex Mini Specification |
|
Video Inputs | 1 x BNC (12G-SDI) |
Video Outputs | 2 x BNC (12G-SDI) |
Other I/O | 1 x RJ45 Input/Output |
Expansion Slots | 1 x SFP Slot |
Input Video Format | SDI (10-Bit 4:4:4/4:2:2 RGB, YUV) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Output Video Format | SDI (10-Bit 4:4:4/4:2:2 YUV) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Embedded Audio | SDI/LAN (RJ45) |
Standards |
|
Video Standard Compliance | SMPTE 259M/292M/296M/310M/425M ITU -R BT.601/BT.656 |
IP Streaming |
|
Video IP Encoding | TICO: 4096 x 2160 |
Video IP Decoding | TICO: 4096 x 2160 |
Hardware |
|
Media Card Reader | 1 x SD (Unspecified Type) |
Wi-Fi | Yes |
OS Compatibility | macOS Windows *As of August, 2019: Check with manufacturer for the most up-to-date compatibility |
Power |
|
Power I/O | 1 x RJ45 (48 VDC) Input 1 x IEC C14 Input |
Power Consumption | Device: 90 to 240 VAC (16 W) |
Environmental |
|
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -20 to 140°F / -28 to 60°C |
Operating Humidity | 0 to 90% |
General |
|

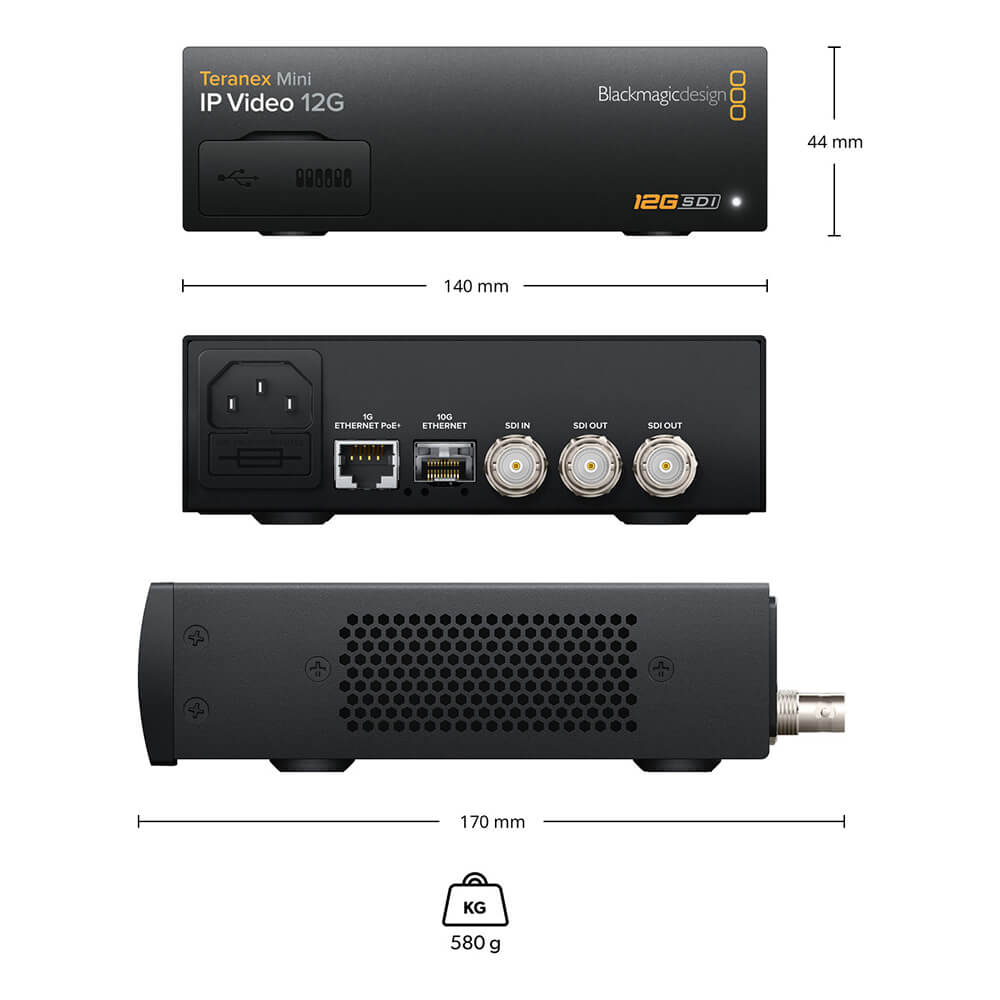

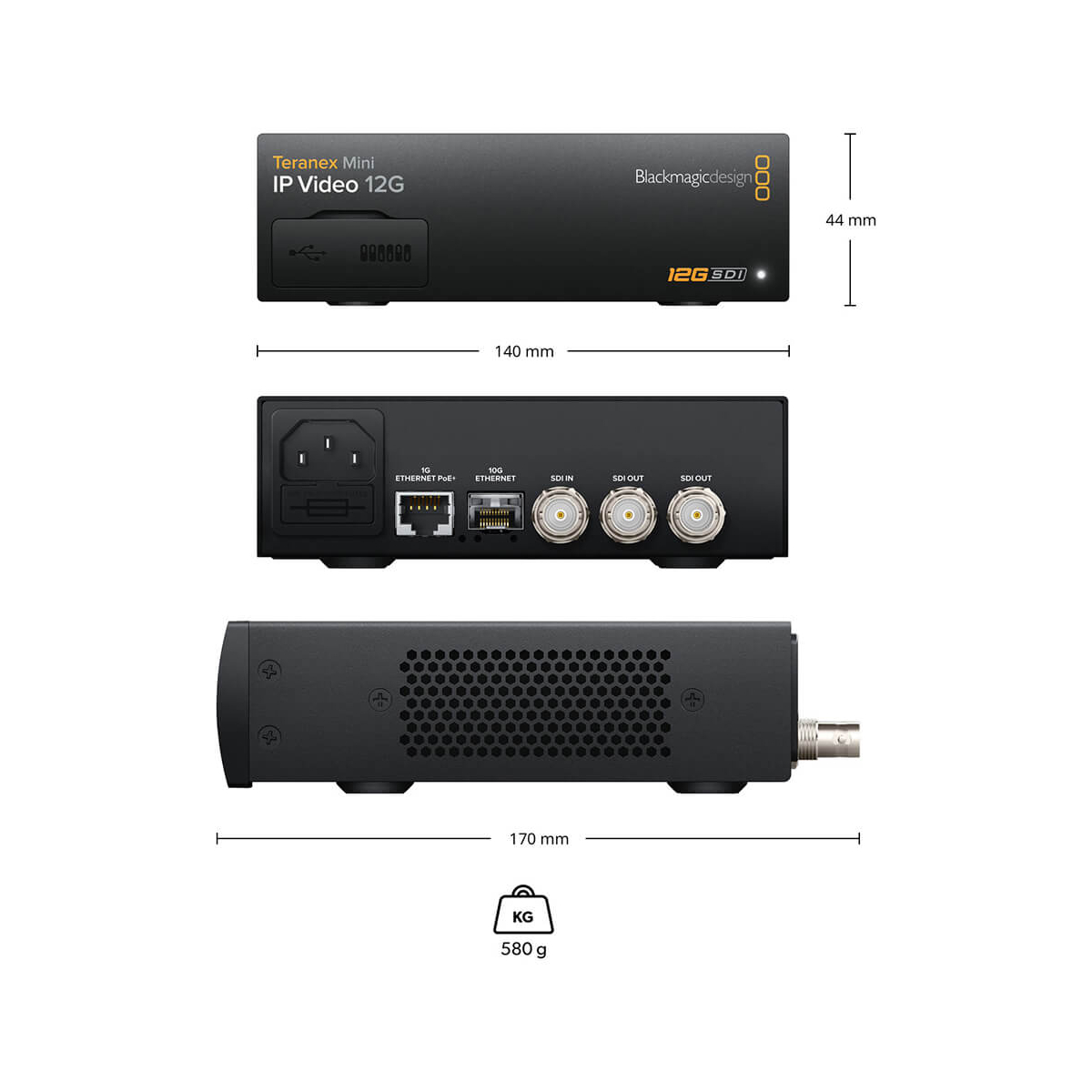

Dimensions | 6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm |
Weight | 1.28 lb / 581 g |
