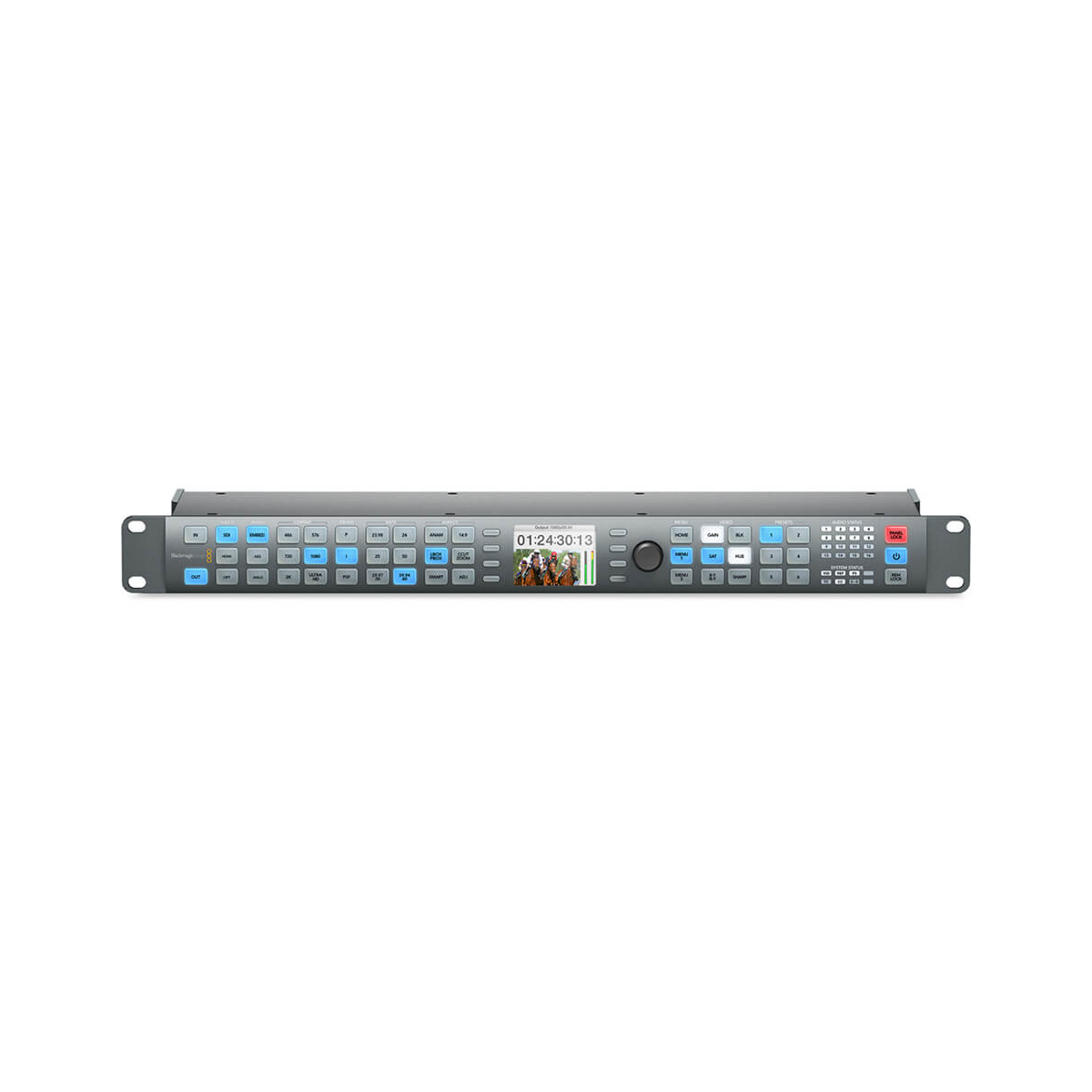

Built with professional A/V installations and live events in mind, the Blackmagic Design Teranex AV enjoys 1089 up, down, cross, and standards conversions for formats ranging from NTSC and PAL to 2K and UHD 4K video. Regardless of conversion, all processing is done in real-time with minimal latency of approximately two frames.

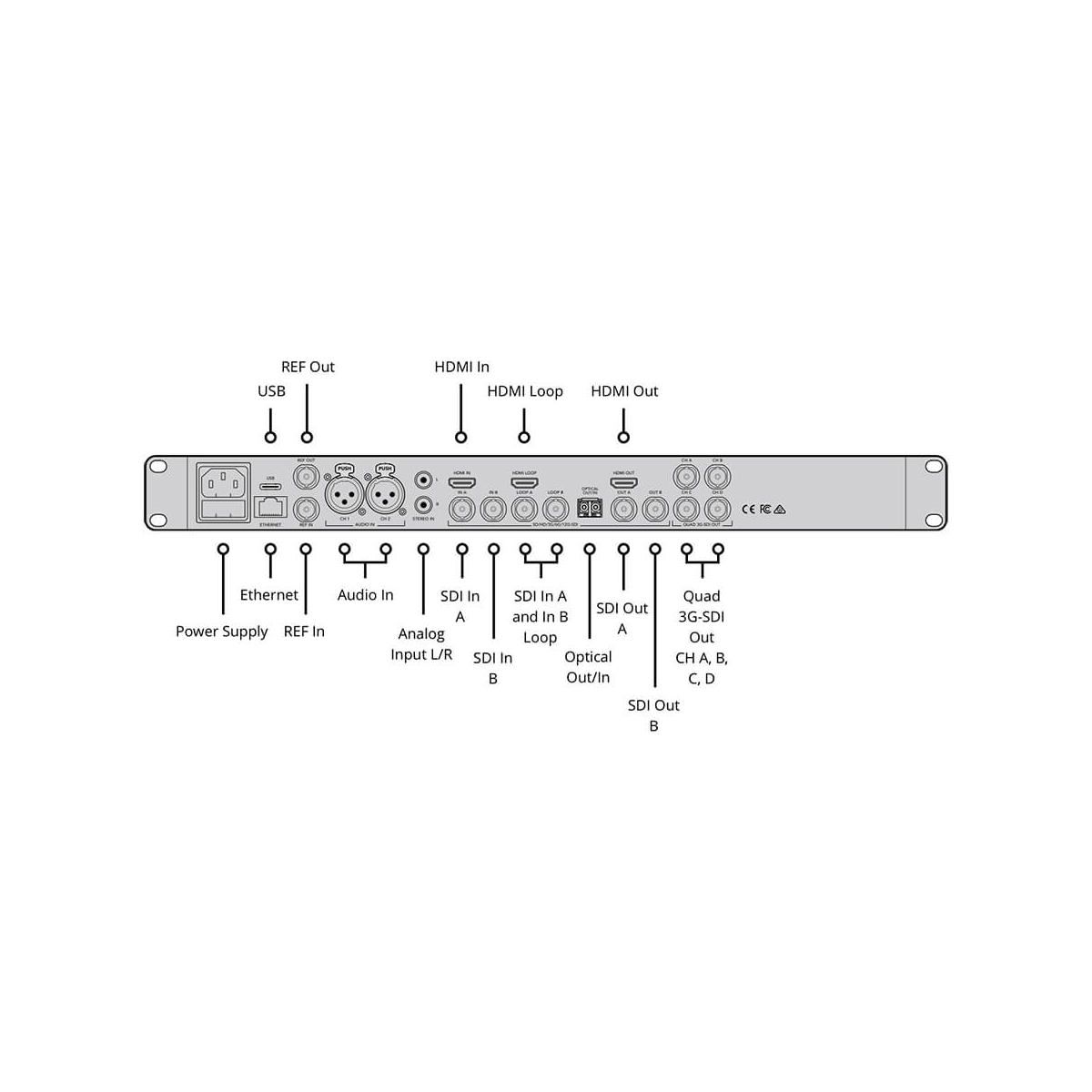

A bevy of input and output options are available for dealing with professional and consumer sources. SDI inputs accept SD, HD, 3G, 6G, and 12G-SDI, while the HDMI input is v2.0 compliant. An optional fiber connection can be populated by a separately available SFP cage. Embedded audio is accepted, as well as analog audio via XLR and RCA stereo inputs. Video outputs include SDI and HDMI as well as four extra SDI output for quad-link 4K output or four mirrored outputs. All conversions can be controlled via the comprehensive front panel buttons and menu navigation, or through Ethernet, if part of an installation.
Blackmagic Design Teranex AV Specification |
|
Inputs | 2 x BNC, SD/HD/3G/6G/12G-SDI (inputs can be separate or unified for dual-link functionality) 1 x HDMI Type A, v2.0 1 x Optical fiber (optional) 1 x Stereo RCA, analog audio 2 x XLR, balanced analog audio, AES/EBU digital audio 1 x BNC, reference 1 x USB-C 1 x RJ45, Ethernet |
Outputs | 2 x BNC, SD/HD/3G/6G/12G-SDI (outputs can be separate or unified for dual-link functionality) 4 x BNC, SD/HD/3G-SDI (quad-link 4K output or replicated SDI output option) 1 x HDMI Type A, v2.0 1 x Optical fiber (optional, not available with dual-link operation) 1 x BNC, reference output |
Format Support | 3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60 2048 x 1080p: 23.98/24 2048 x 1080PsF: 23.98/24 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 50/59.94/60 NTSC PAL |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M |
SDI Metadata Support | VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M. |
Audio Sampling | HD: 24-bit, 48 kHz SD: 20-bit, 48 kHz |
Video Sampling | 4:2:2 |
Color Depth | 10-bit |
Color Space | REC 601, REC 709 |
Compatible Operating Systems | Mac OS X 10.10 or later Windows 8.1, 10 |
Power Input | 1 x IEC, 100-240 VAC, 50-60 Hz |
Environmental | Operating Temperature: 41 to 122°F / 5 to 50°C Storage Temperature: -4 to 113°F / -20 to 45°C Relative Humidity: 0-90%, non-condensing |

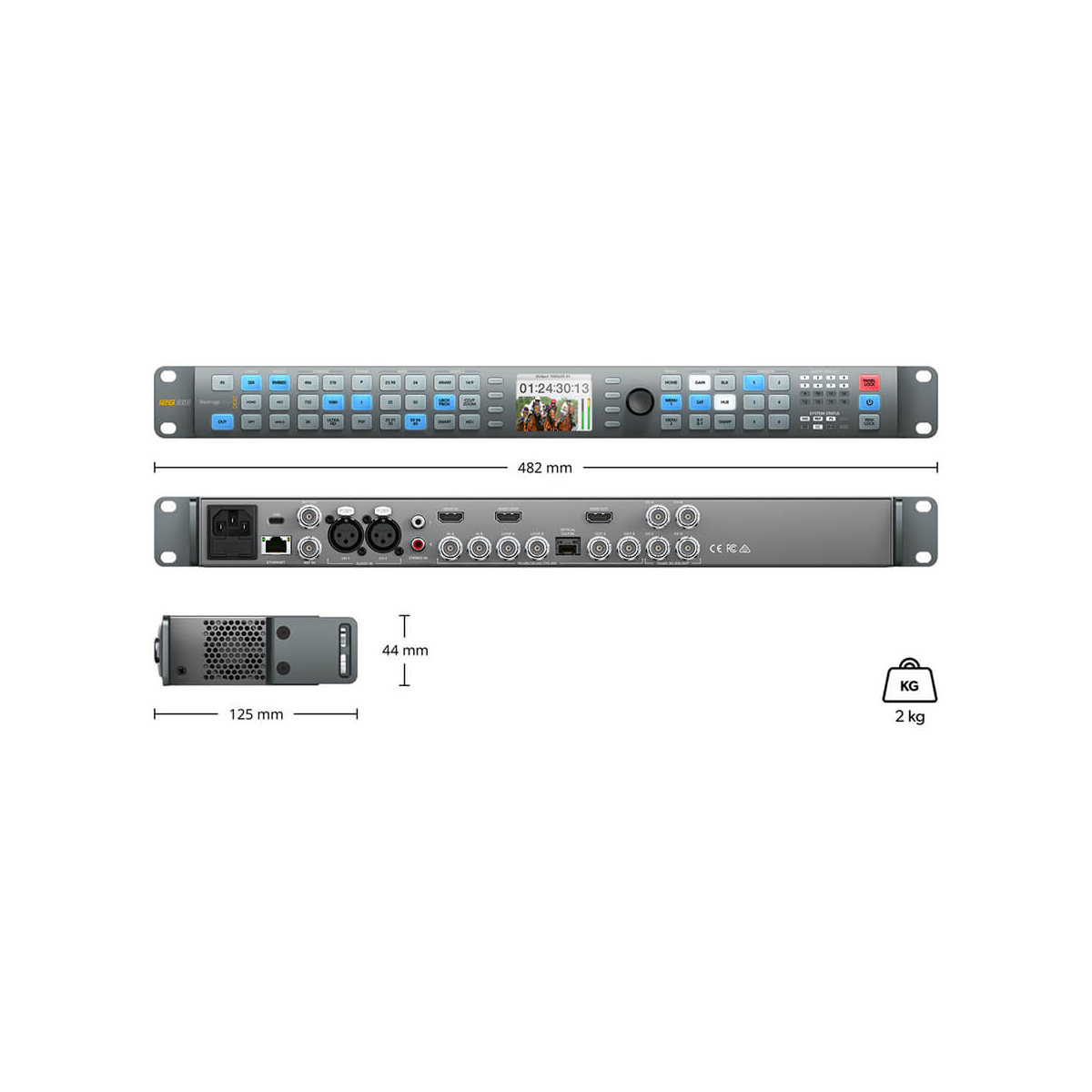

Dimensions | 19 x 1.75 x 5" / 48.3 x 4.4 x 12.7 cm |
Weight | 4.4 lb / 2 kg |
