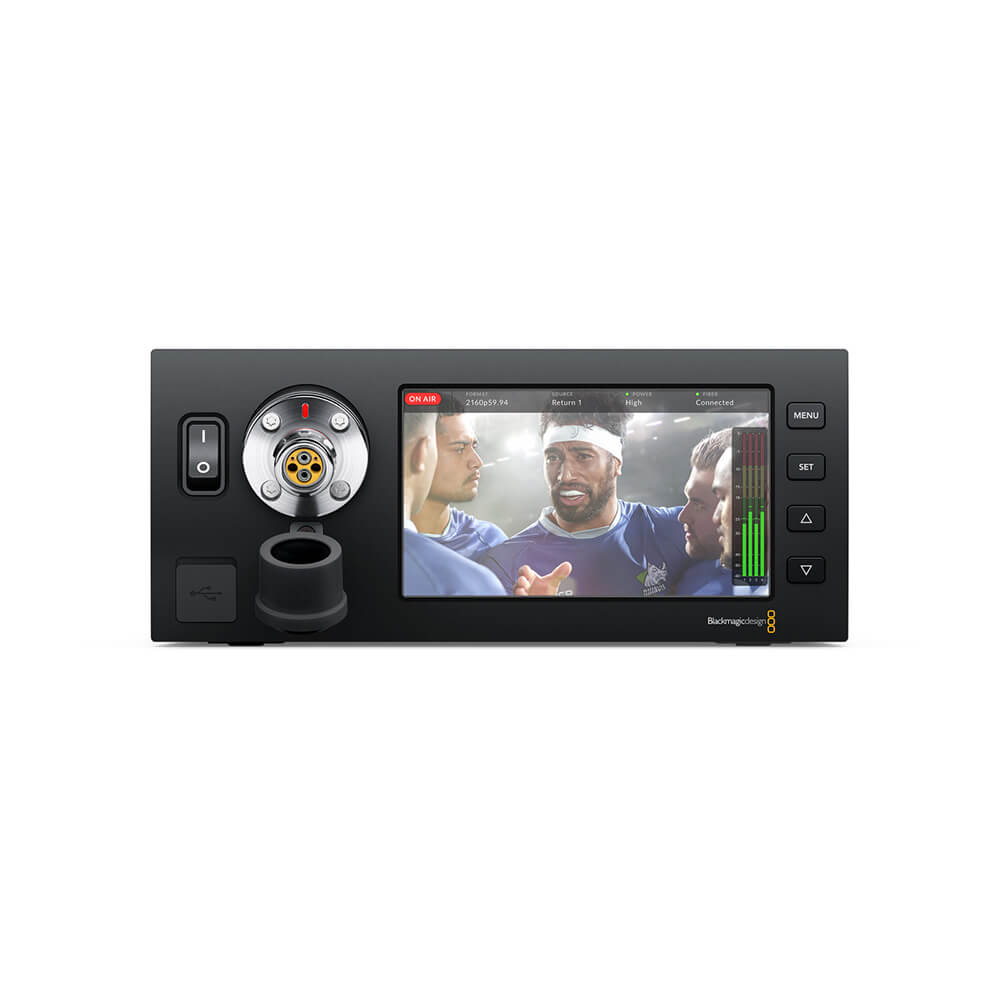

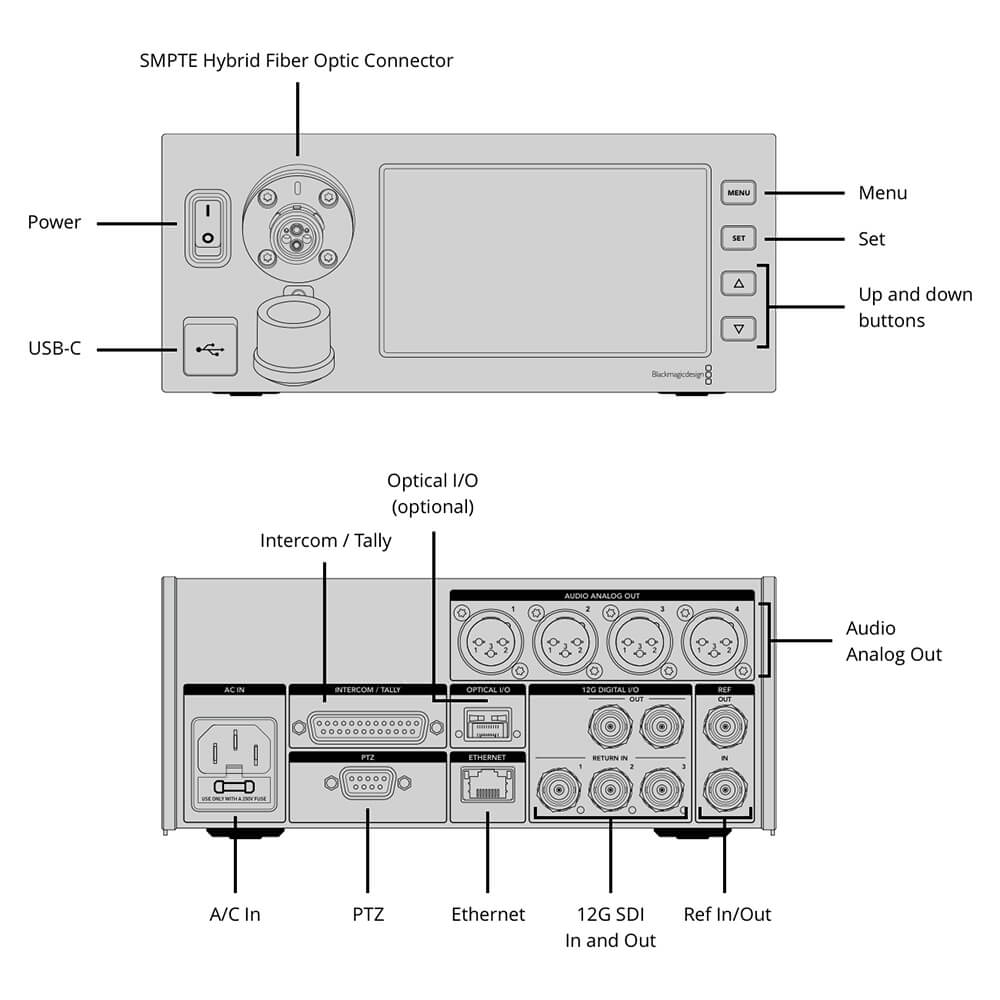

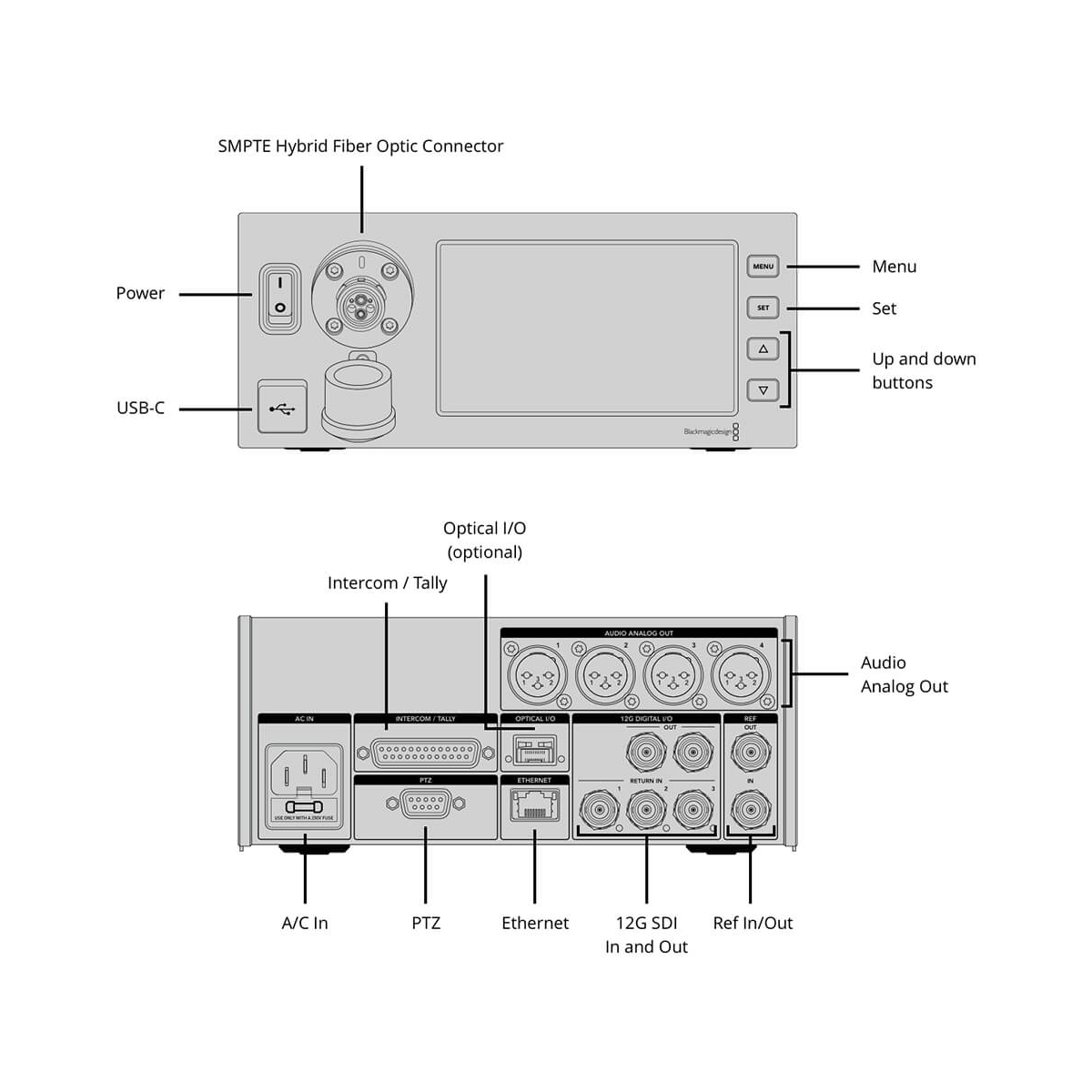

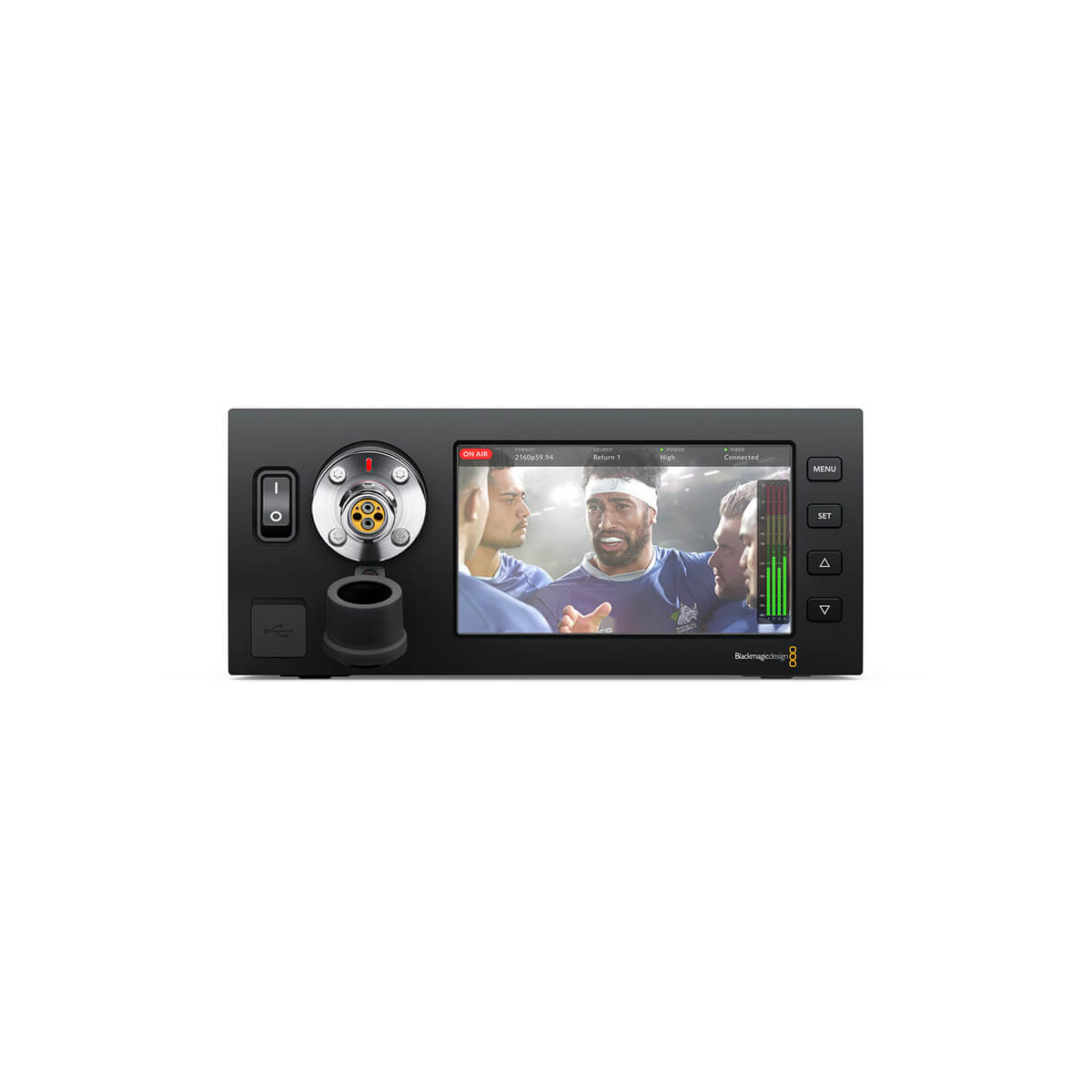

The Blackmagic Design Studio Fiber Converter is a bi-directional fiber optic interface for the Blackmagic Camera Fiber Converter. Able to communicate with a Camera Fiber Converter up to 1.6 miles away, the Studio Fiber Converter can be implemented in OB vans, television studios, and large venues to carry video, audio, communication, and control signals over a single SMPTE fiber connection. On the rear panel, SDI connections for HD or UHD 4K video and HD return feeds are available. Audio breaks out from the four XLR connections. Additional connections include reference in and out, PTZ and intercom/tally on D connectors, Ethernet, and SFP fiber (requires separately available SFP cage). The front panel features a lone SMPTE fiber connector for the Camera Fiber Converter and a 5" display.
Blackmagic Design CINEURSANWFRSTUD Specification |
|
Connections | SMPTE Optical Fiber: 1 x SMPTE 304 12G-SDI Input: 3 x BNC 12G-SDI Output: 2 x BNC Analog Audio Output: 4 x XLR Optical Fiber Output: 1 x SFP Computer: 1 x USB Type-C |
Video Standards | 3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.9 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
SDI Standards | SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M |
Audio Sampling | 24-bit, 48 kHz |
Video Sampling | 4:2:2 |
Bit Depth | 10-bit |
Color Space | REC 709, REC 2020 |
Power | 110 - 240 VAC |
Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -4 to 113°F / -20 to 45°C Relative Humidity: 0-90%, non-condensing |

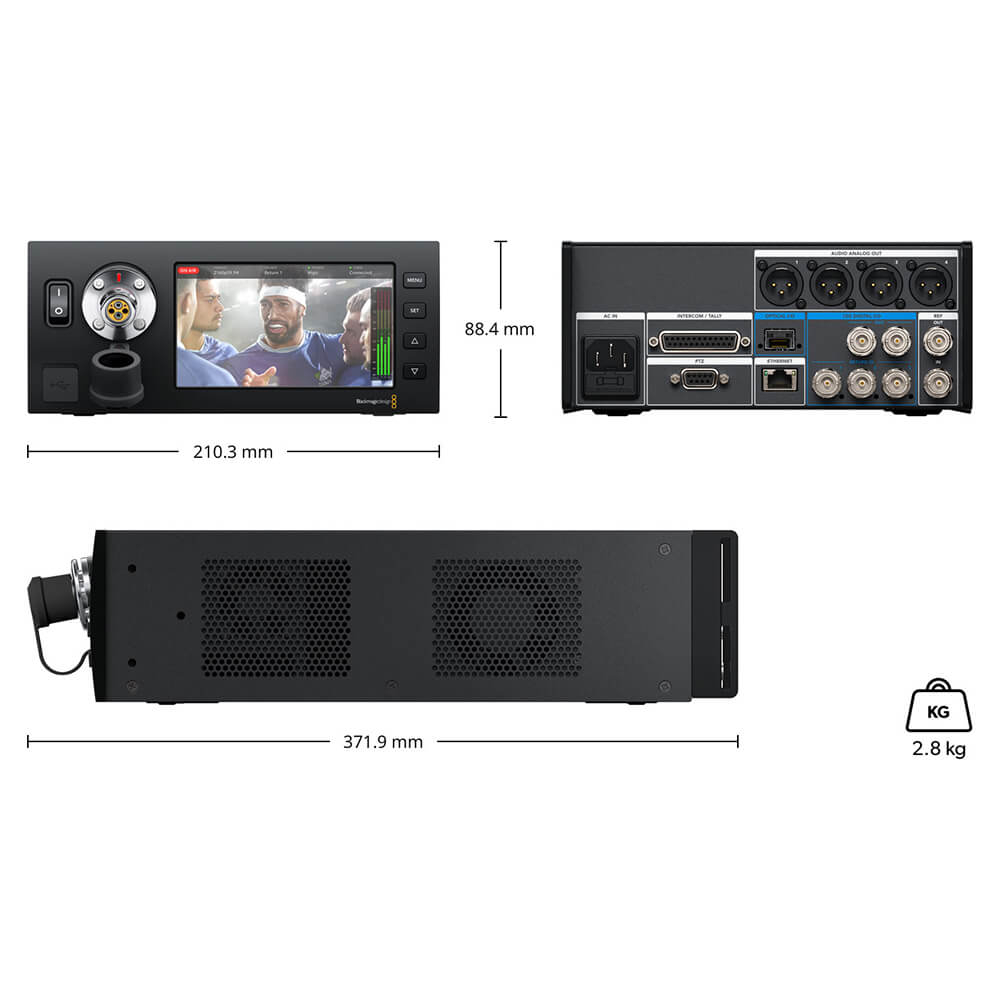

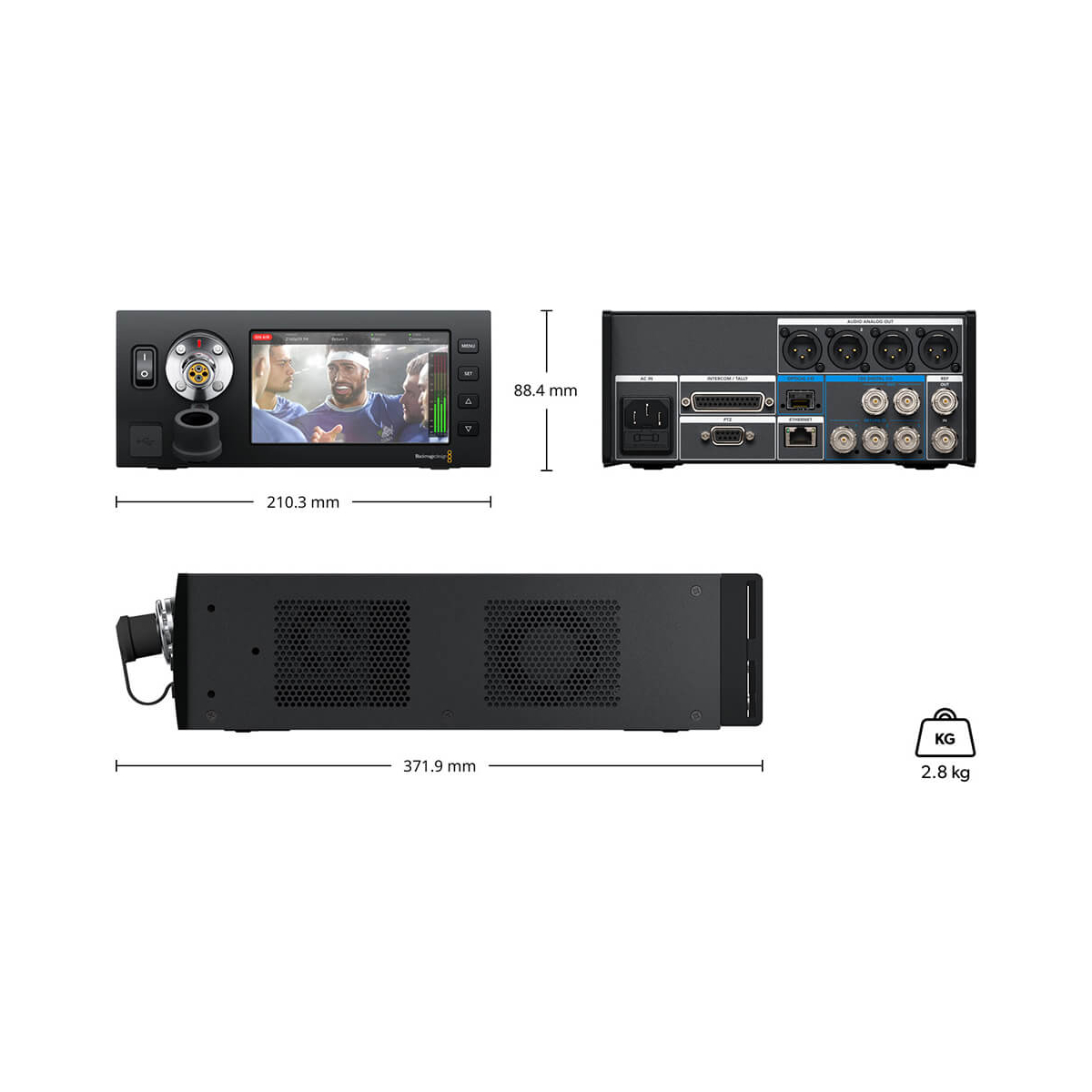

Dimensions | 8.3 x 3.5 x 14.6" / 21 x 8.8 x 37.2 cm |
Weight | 6.2 lb / 2.8 kg |
