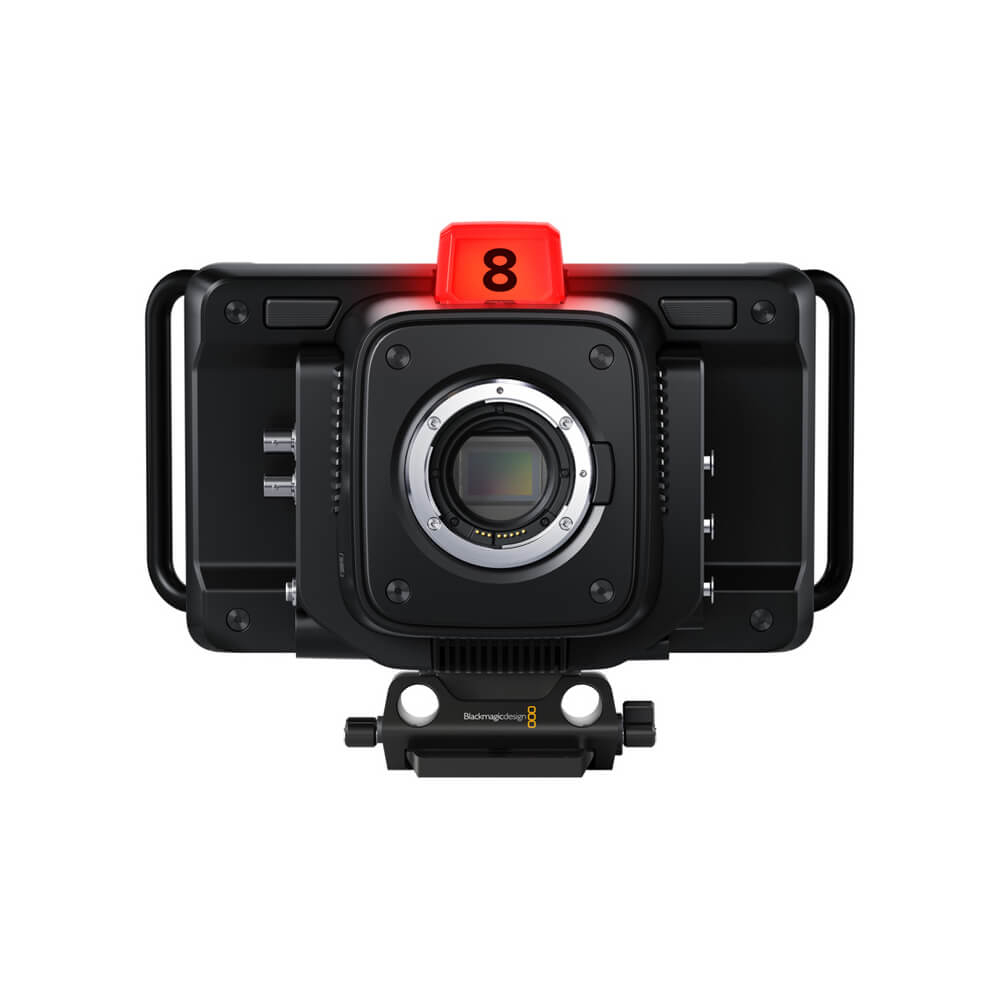

Boost your studio recording with cinematic images using the Blackmagic Design Studio Camera 6K Pro. This latest model of the Studio Camera not only boasts a 6K sensor for greater resolution and full RGB color, it also features an active Canon EF mount—providing compatibility with a large array of affordable EF-mount cine-style and still lenses. The Studio Camera 6K Pro now offers live streaming while retaining the talkback, tally, color correction, and raw recording to USB disks of the original 6K version. Built-in, electronically controllable ND filters let you quickly adapt to changing light conditions and a host of both broadcast and consumer interfaces makes it a snap to connect the 6K Pro to your studio setup.
Blackmagic Design Studio Camera 6K Pro Specification Imaging |
|
Image Sensor | 23.1 x 12.99 mm (Super35) CMOS |
Sensor Resolution | Not Specified by Manufacturer |
ISO Sensitivity | 100 to 25,600 |
Gain | 0 to 18 dB |
Sensitivity | f/11 at 2000 lux 89.9% Reflectance (UHD 4K60) f/12 at 2000 lux 89.9% Reflectance (UHD 4K60) |
Signal-to-Noise Ratio | 63 dB |
Camera |
|
Lens Mount | Canon EF Mount |
Shutter Speed | 1/5000 to 1/24 Second |
Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |

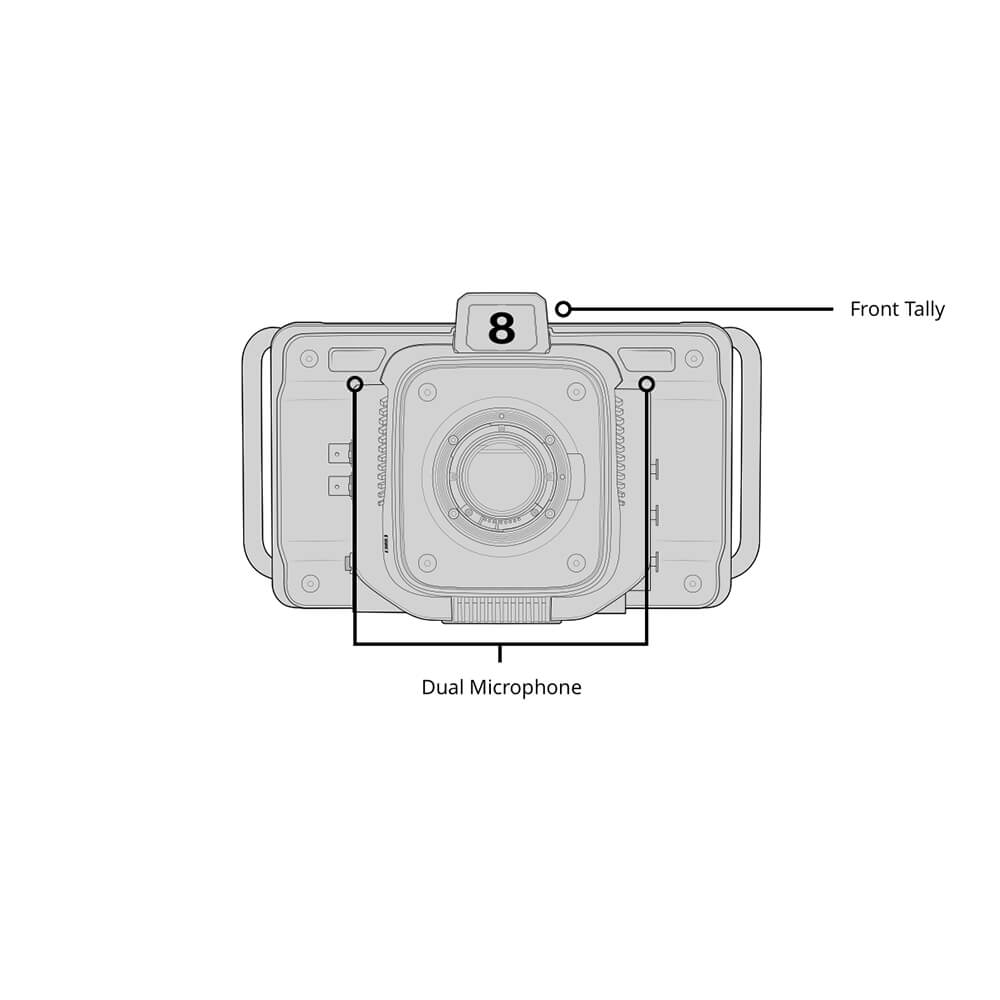

Built-In Microphone Type | Stereo |
Broadcast System Compatibility | NTSC, PAL |
Interfaces |
|
CCU I/O | None |

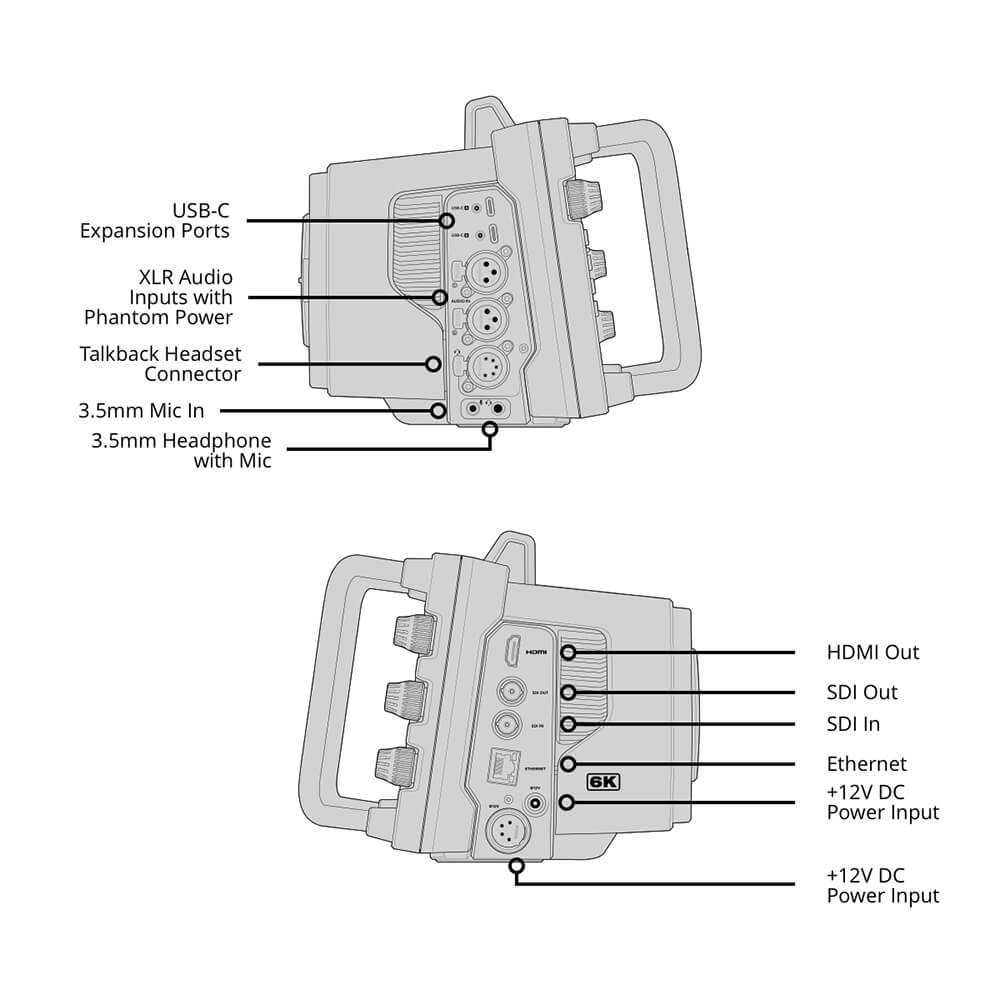

Video I/O | 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output 1 x HDMI Output |
Audio I/O | 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output 1 x XLR 5-Pin Intercom Input/Output |
Other I/O | 1 x RJ45 (10 Gigabit Ethernet) Control/Data/Monitor/Video Input/Output 2 x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output |
Recording |
|
Raw Recording | Blackmagic RAW 10-Bit 6144 x 3456 up to 50 fps 5376 x 3024 up to 60 fps 3840 x 2160 up to 60 fps |
Audio Recording | ProRes: 2-Channel 24-Bit 48 kHz LPCM Audio |
Display |
|

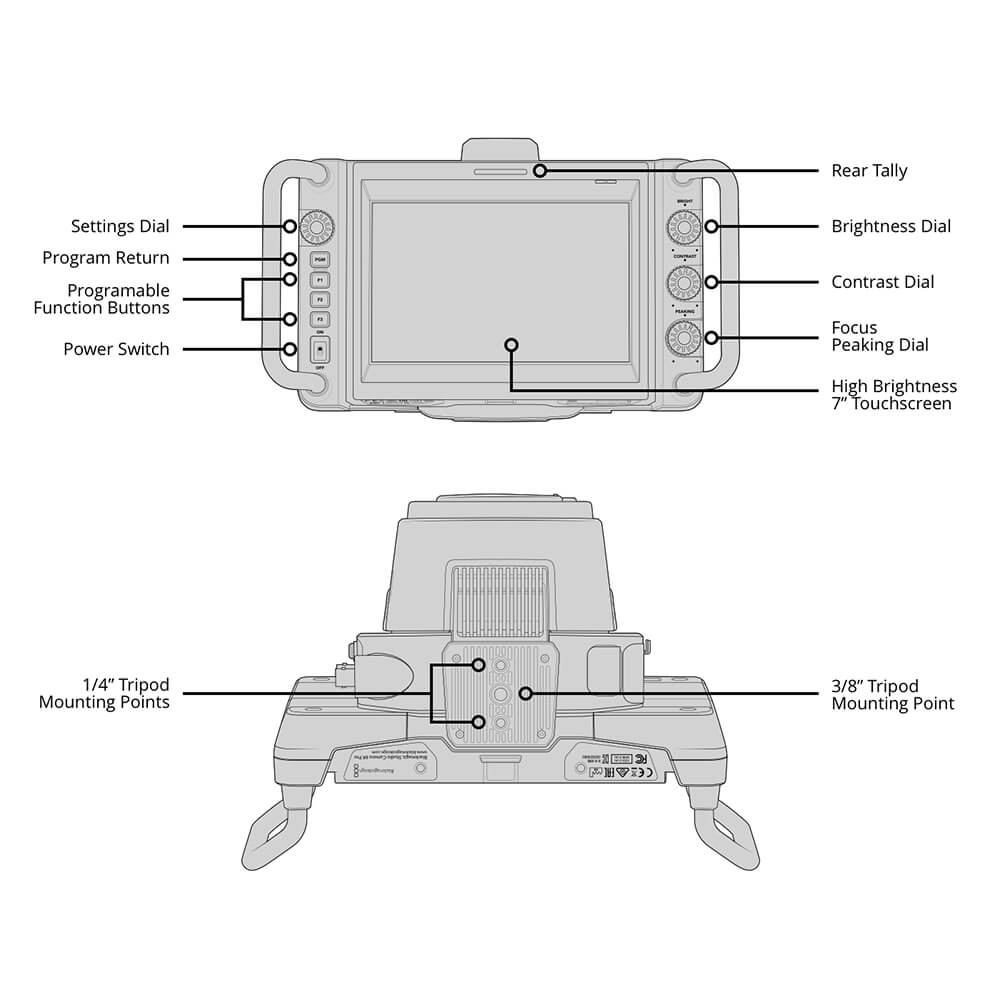

Display Type | Fixed Touchscreen LCD |
Size | 7" |
Resolution | 1920 x 1200 |
Power |
|
Power I/O | 1 x XLR 4-Pin (12VDC) Input 1 x Barrel (12VDC) Input |
Power Consumption | 59 W |
Environmental |
|
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General |
|
Accessory Mount | 2 x 1/4"-20 Female |
Tripod Mount | 3/8"-16 Female |

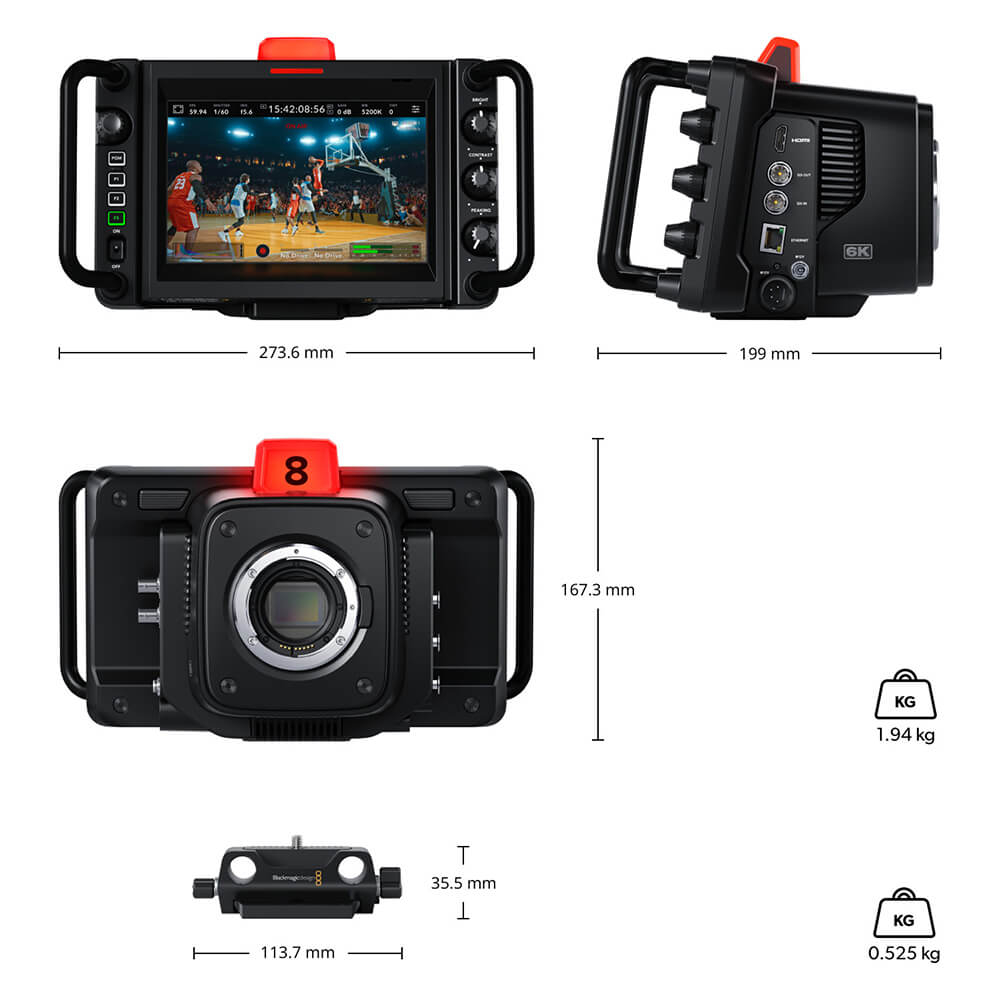

Dimensions (W x H x D) | 10.77 x 7.83 x 6.59" / 27.36 x 19.89 x 16.74 cm (Without Protrusions) |
Weight | 4.28 lb / 1.94 kg |
