Made to work seamlessly with powerful SDI video switchers, the Blackmagic Design Studio Camera 4K Pro G2 now offers live streaming plus pro connections like 12G-SDI and 10GbE Ethernet. The Ethernet connection enables you to set up a SMPTE-style workflow using a more affordable single-cable setup with PoE (power over ethernet) and the 12G-SDI output and program return provides camera control, talkback, and tally functions. This latest 4K Pro model retains features like a 7" touchscreen monitor, HDMI output, Blackmagic Raw recording, HDR support, XLR audio, and Micro Four Thirds lens mount from its predecessor.
|
Blackmagic Design Studio Camera 4K Pro G2 Specification Imaging |
|
| Image Sensor | 17.78 x 10 mm (Four Thirds) CMOS |
| Sensor Resolution | Not Specified by Manufacturer |
| ISO Sensitivity | 100 to 25,600 |
| Gain | 0 to 18 dB |
| Sensitivity | f/11 at 2000 lux 89.9% Reflectance (UHD 4K60) f/12 at 2000 lux 89.9% Reflectance (UHD 4K60) |
| Signal-to-Noise Ratio | 63 dB |
|
Camera |
|
| Lens Mount | Micro Four Thirds |
| Shutter Speed | 1/5000 to 1/24 Second |
| Built-In ND Filter | None |
| Built-In Microphone Type | Stereo |
| Broadcast System Compatibility | NTSC, PAL |
|
Interfaces |
|
| CCU I/O | None |

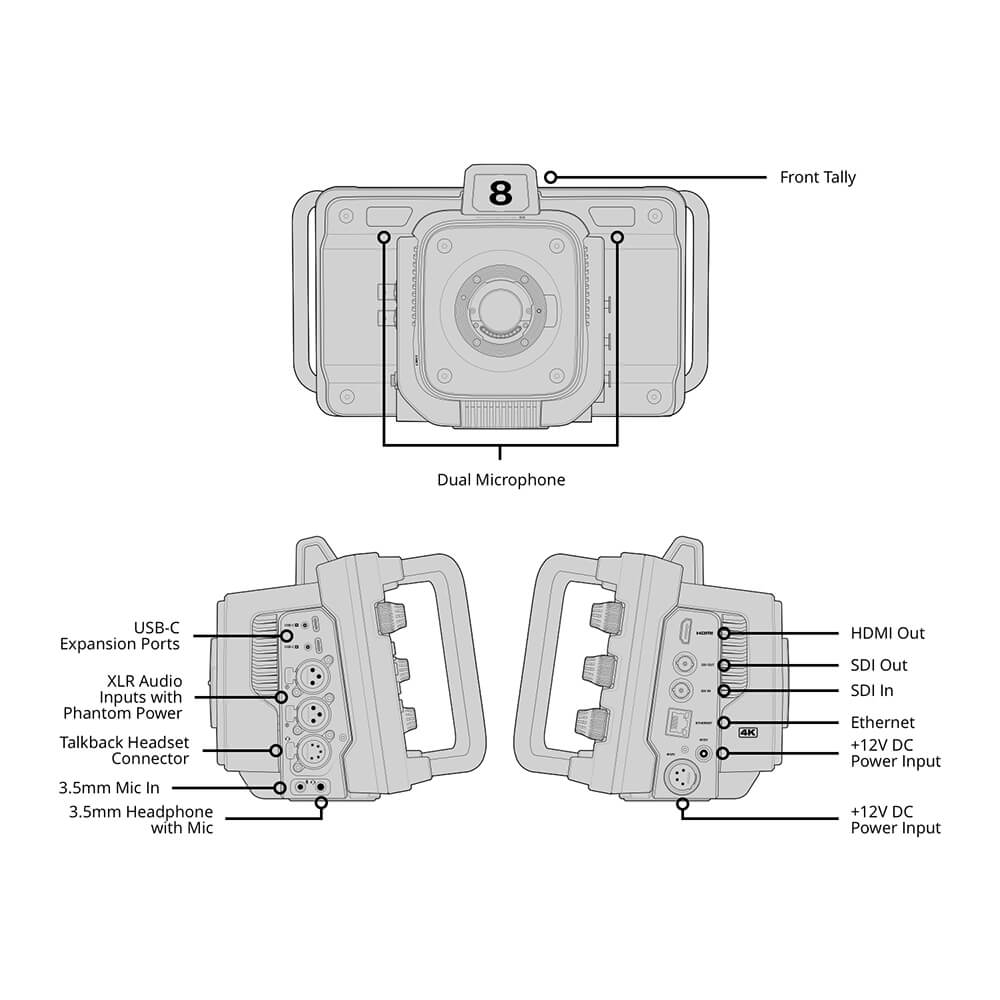

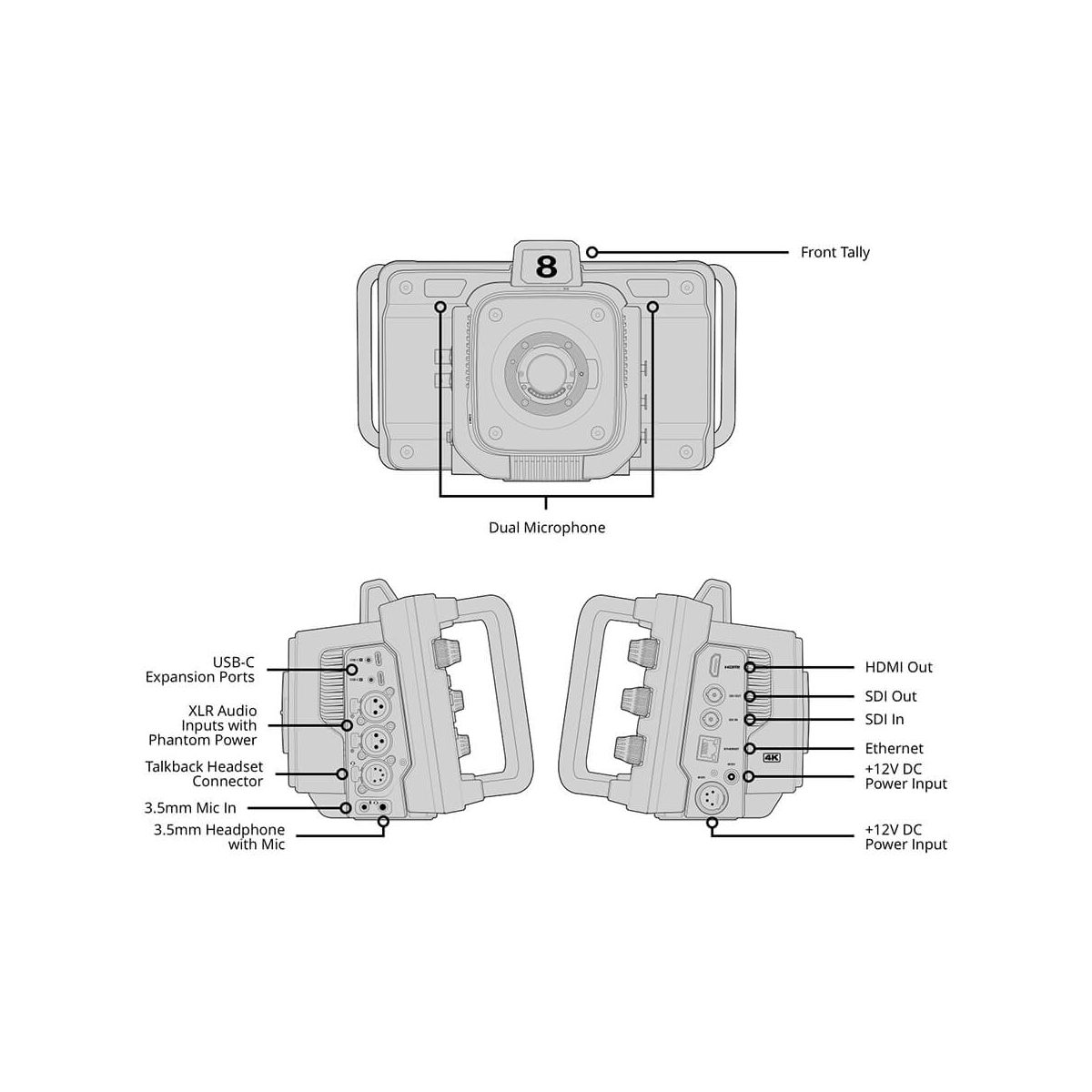

| Video I/O | 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output 1 x HDMI Output |
| Audio I/O | 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output 1 x XLR 5-Pin Intercom Input/Output |
| Other I/O | 1 x RJ45 (10 Gigabit Ethernet) Control/Data/Monitor/Video Input/Output 2 x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output |
|
Recording |
|
| Raw Recording | Blackmagic RAW 10-Bit 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s] |
| Audio Recording | ProRes: 2-Channel 24-Bit 48 kHz LPCM Audio |
|
Display |
|
| Display Type | Fixed Touchscreen LCD |
| Size | 7" |
| Resolution | 1920 x 1200 |
|
Power |
|
| Power I/O | 1 x XLR 4-Pin (12VDC) Input 1 x Barrel (12VDC) Input |
| Power Consumption | 46 W |
|
Environmental |
|
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
|
General |
|
| Accessory Mount | 2 x 1/4"-20 Female |
| Tripod Mount | 3/8"-16 Female |

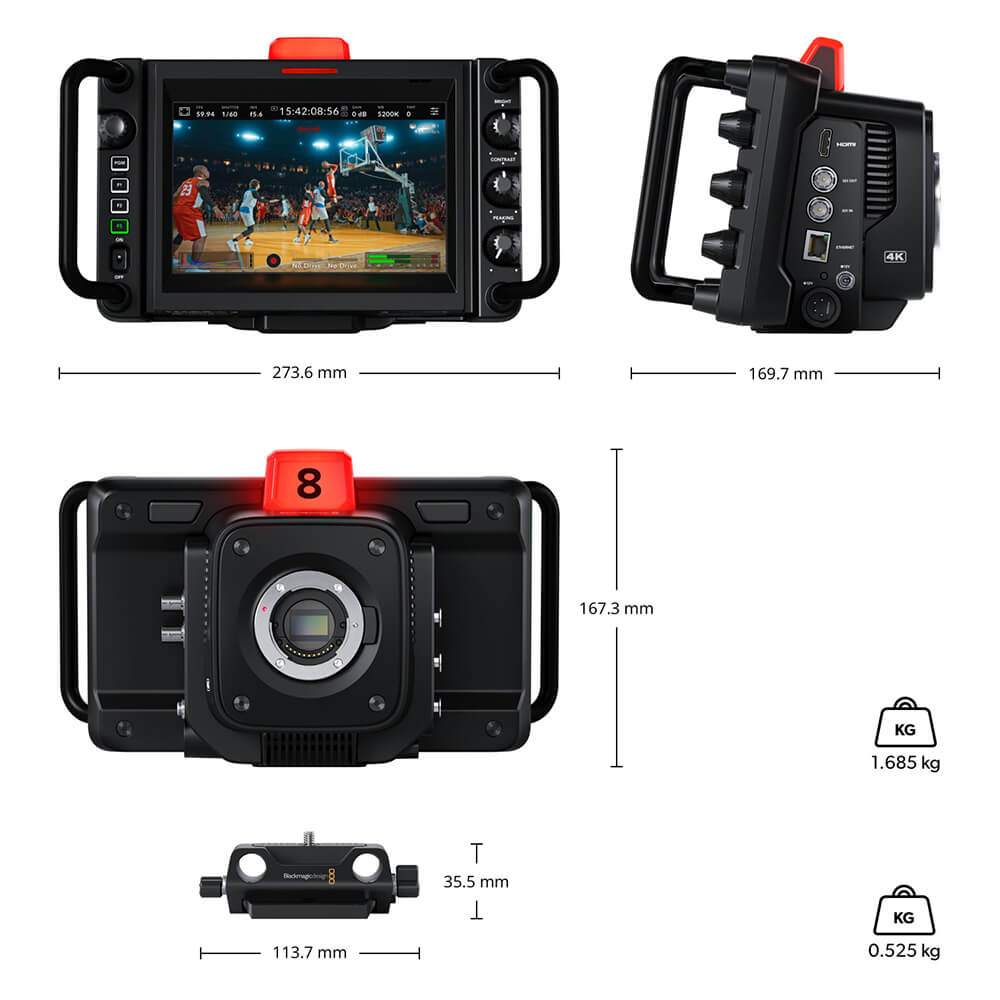

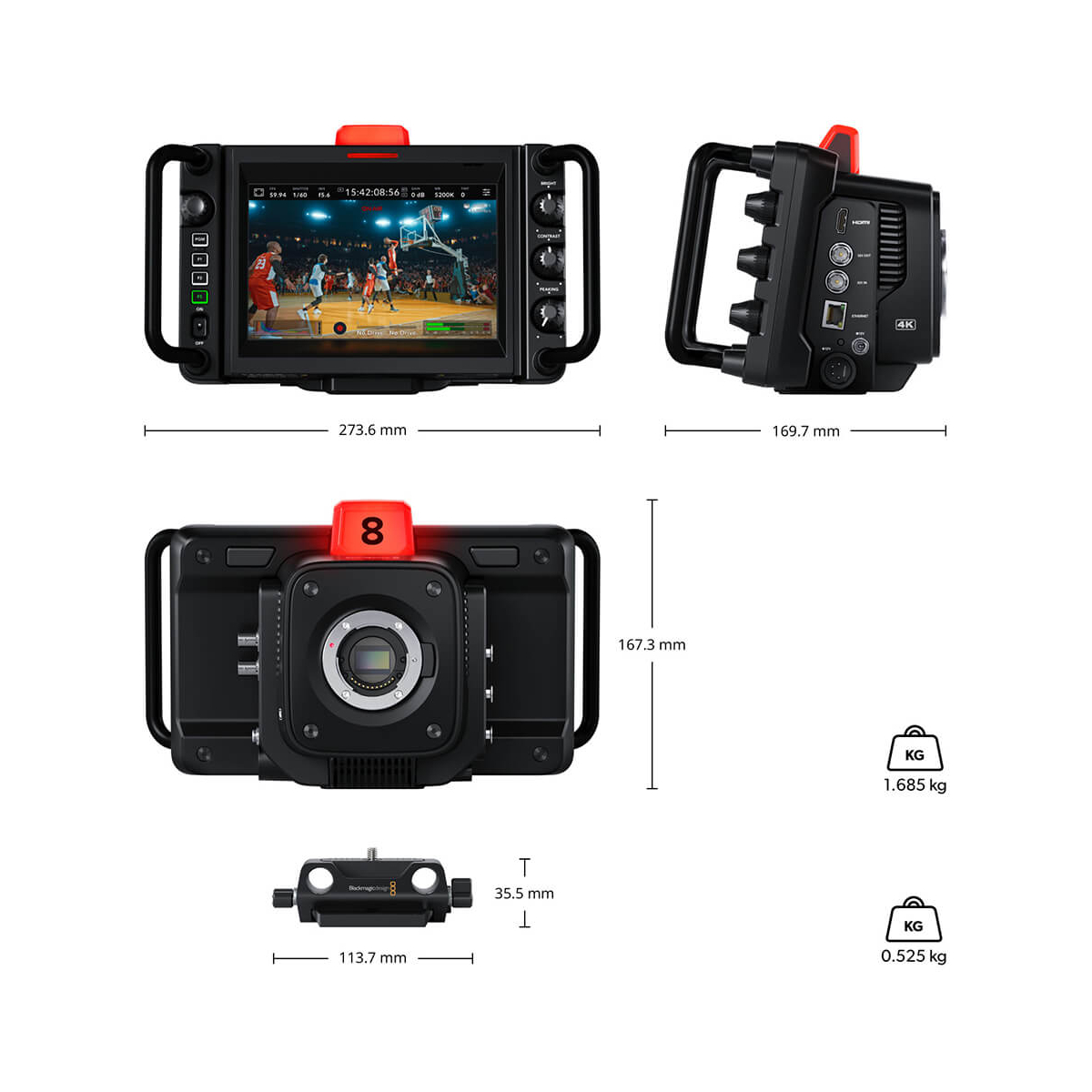

| Dimensions (W x H x D) | 10.77 x 6.68 x 6.59" / 27.36 x 16.97 x 16.74 cm (Without Protrusions) |
| Weight | 3.71 lb / 1.68 kg |
