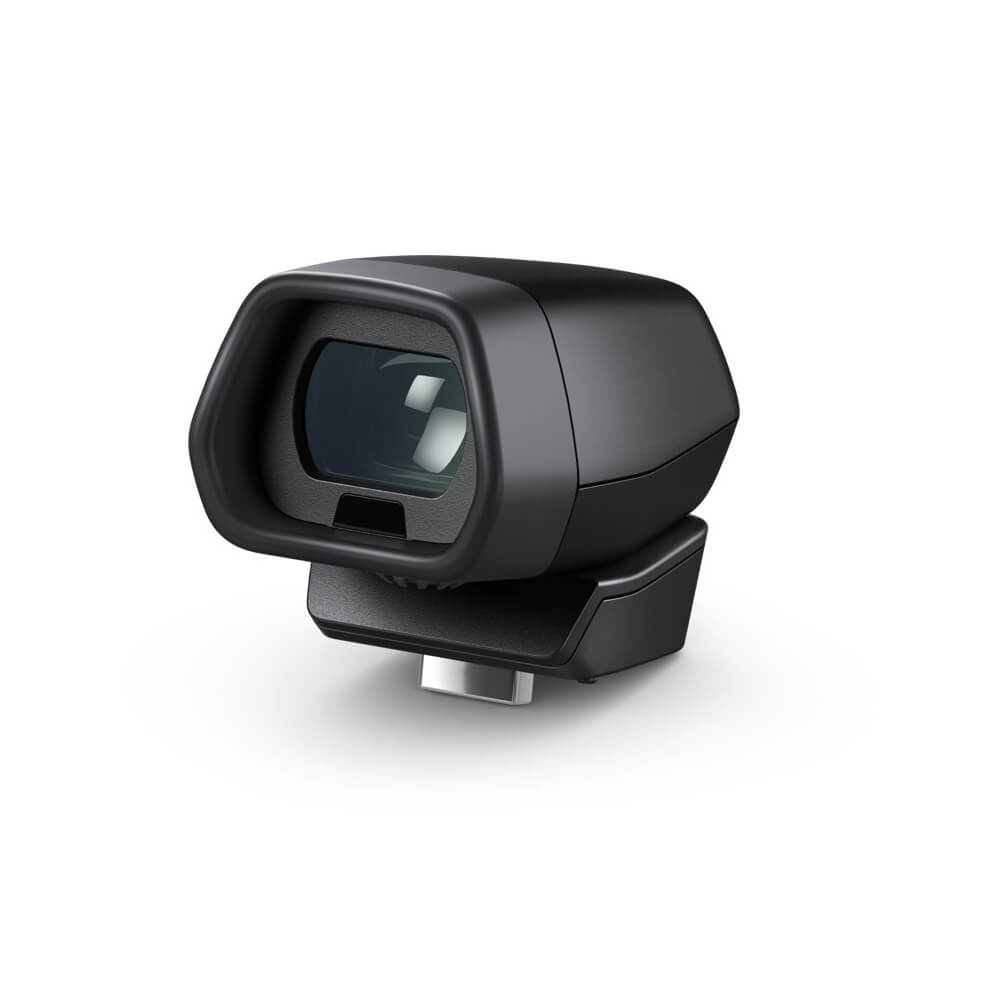

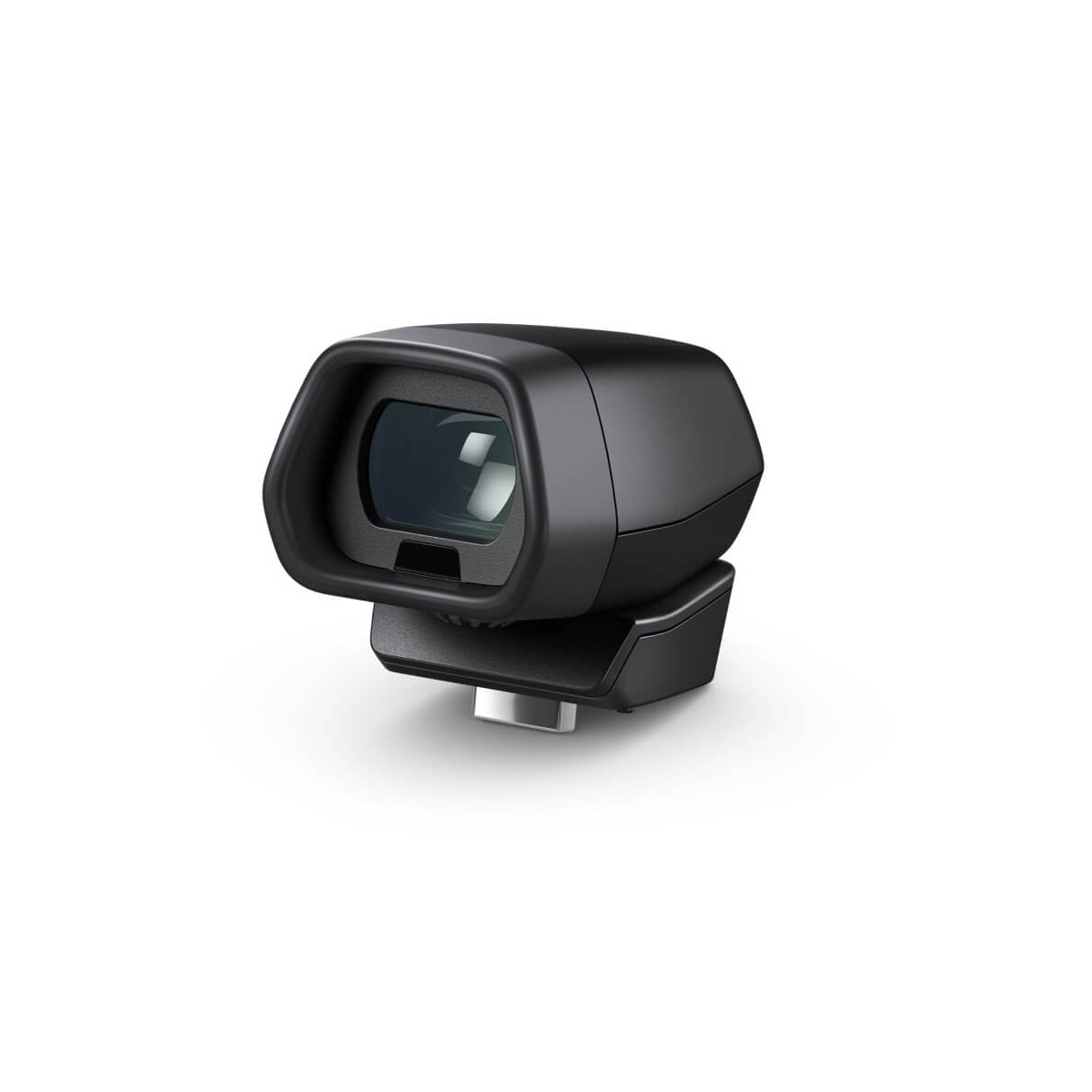

Add a compact viewfinder to your Pocket Cinema Camera 6K Pro with this Pocket Cinema Camera Pro EVF from Blackmagic Design. The EVF is designed specifically to fit into the EVF slot on the 6K Pro, and it locks using an integrated M4 screw. When in use, it turns off the built-in touchscreen LCD, so you don't accidentally change settings while using the EVF. The display provides a 1280 x 960 resolution image on its crisp micro-OLED display.
The display provides a variety of overlays such as status, meters, and settings in the blank areas above and below the camera image. It accepts input frame rates up to 60 fps and 24-bit RGB color for a clear representation of your image. Its glass diopter features -4 to +4 adjustment, and the display also features a digital focus chart. It can swivel up to 70°, and a set of four eyecups are included and provide compact, medium, cinematic left eye, and cinematic right eye configurations.
Blackmagic Design CINECAMPOCHDMFTEVF Specification Display |
|
Color/Monochrome | Color |
Panel Type | OLED |
Screen Resolution | 1280 x 960 |
Touchscreen | No |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
Optics |
|
Diopter Correction | -4.0 to +4.0 |
Environmental |
|
Operating Humidity | 0 to 90% |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General |
|
Mounting | 1 x M4 Male |

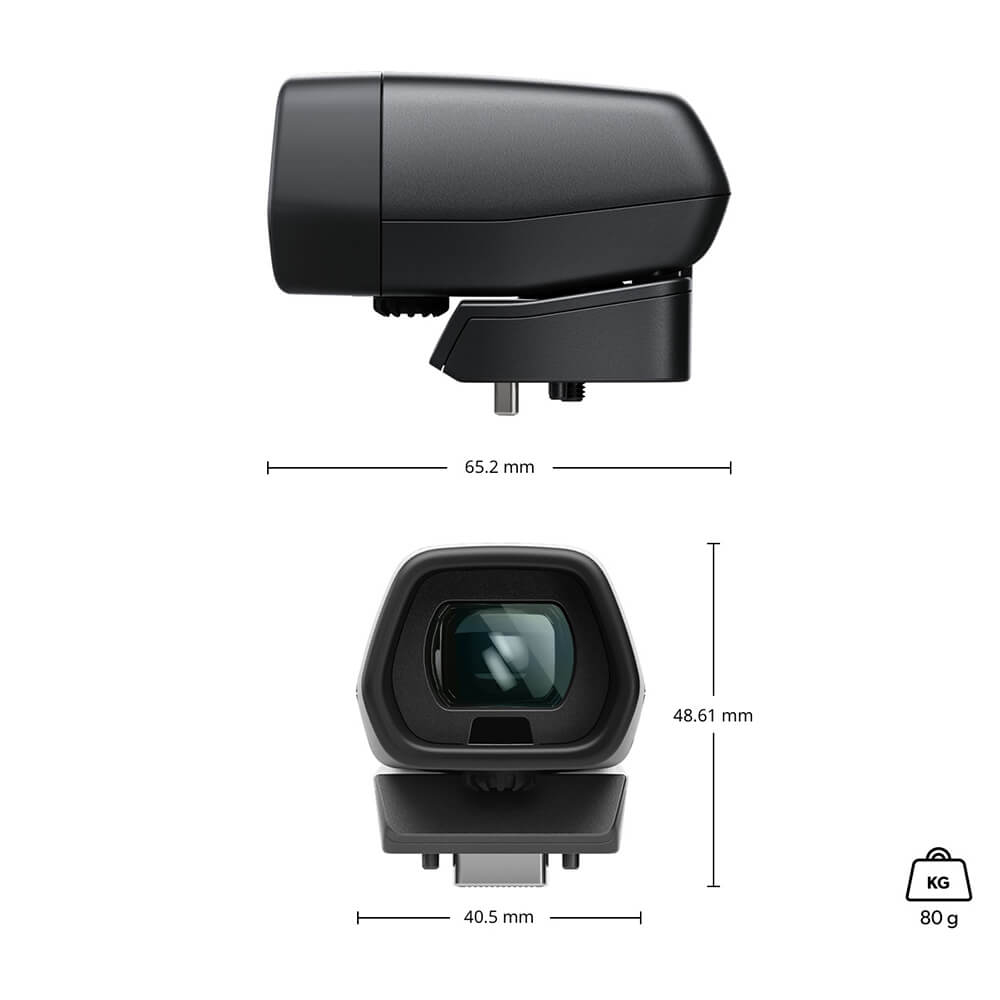

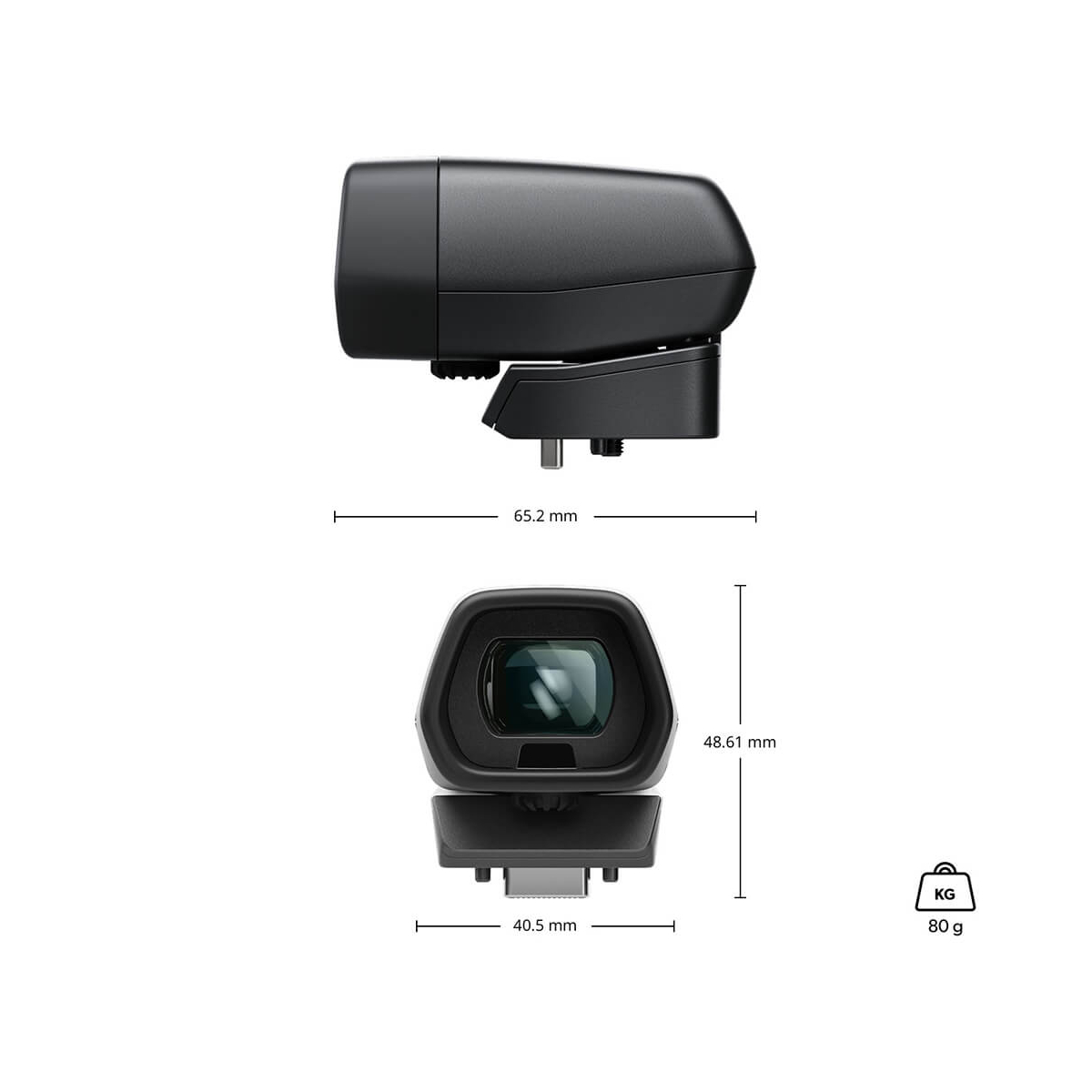

Dimensions | 2.56 x 1.91 x 1.59" / 6.5 x 4.85 x 4.04 cm |
Weight | 2.82 oz / 80 g |
