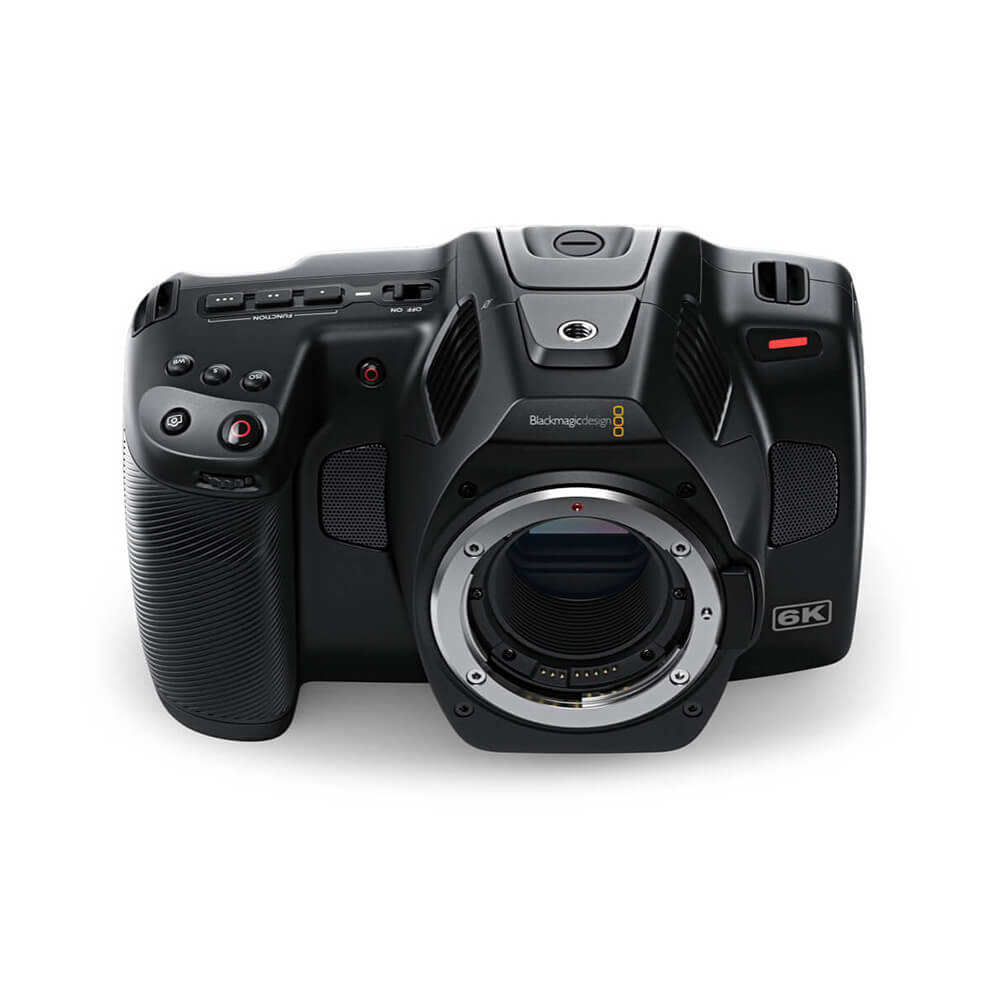

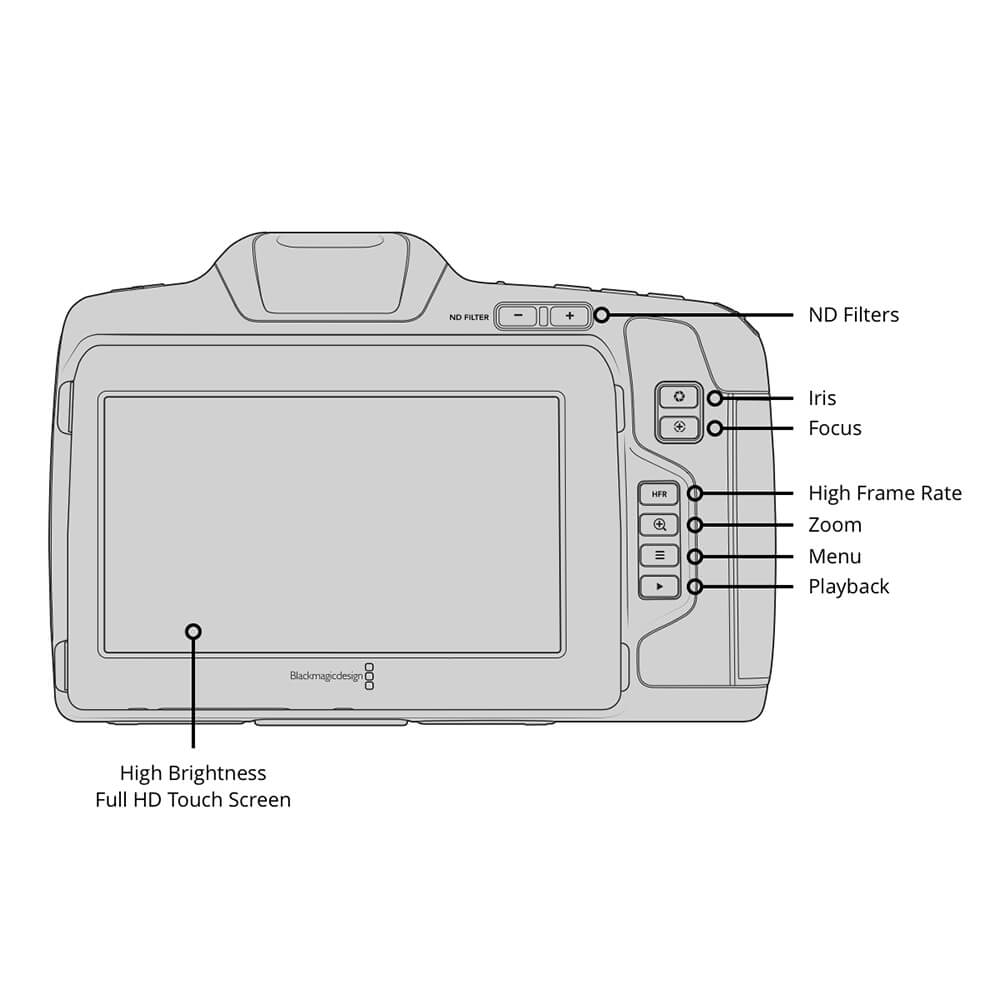

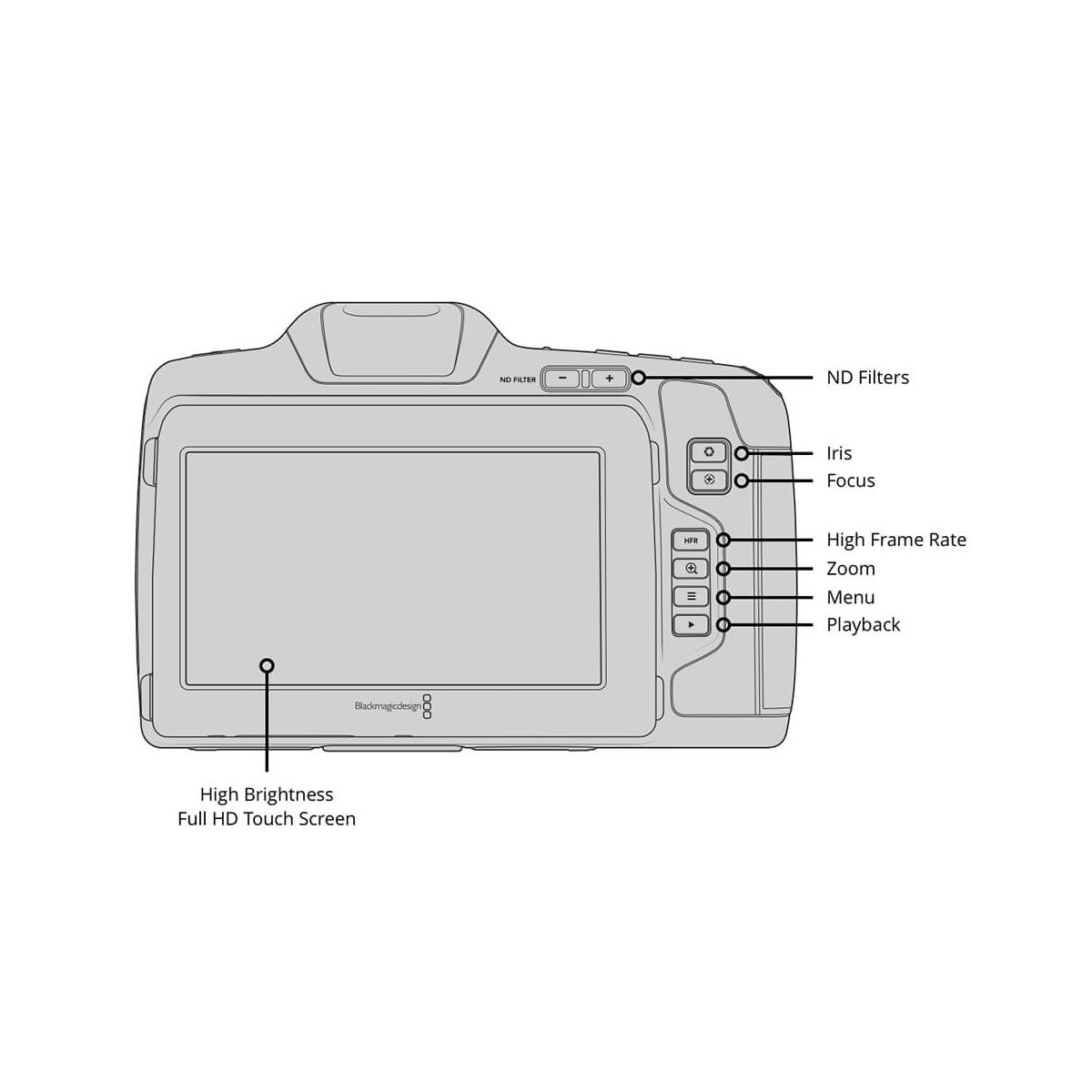

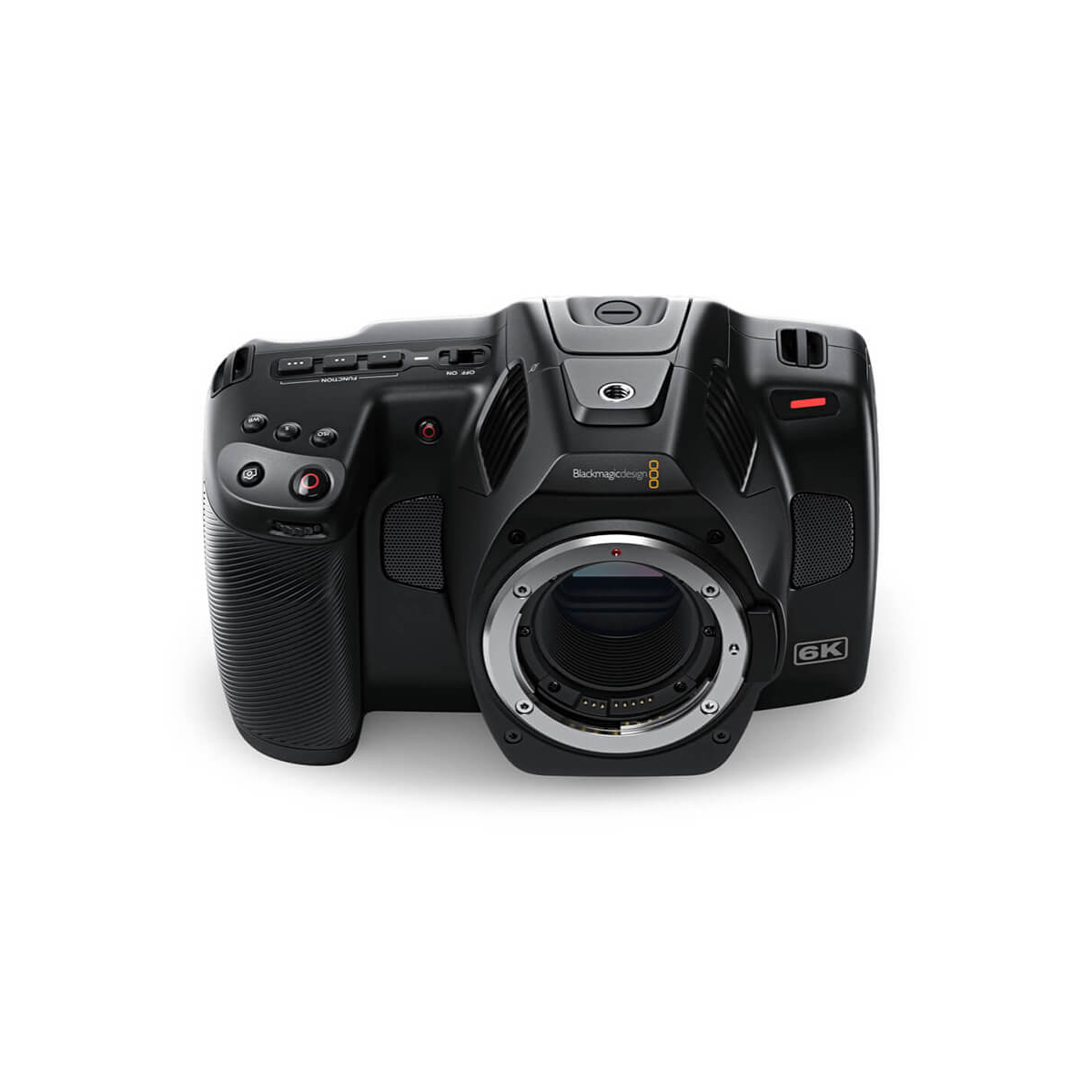

To top their previous achievement with the Pocket Cinema Camera 6K, Blackmagic Design adds an even more full-featured, compact Super35 camera to their cine-style line with the Pocket Cinema Camera 6K Pro. The 6K Pro features all the recording features, sensor, dynamic range, buttons, and ports as its predecessor, and adds a variety of important new features such as a 5" tilting HDR capacitive touchscreen LCD with 1500 cd/m² brightness, a Pro EVF option, built-in clear/2/4/6-stop ND filters, dual mini-XLR inputs, an accurate timecode clock, an NP-F570 L-series battery slot, and updated Gen 5 color science.
With only a slightly larger form factor than the 6L, the 6K Pro records the same resolutions up to 50 fps 6144 x 3456 video, and it retains the valuable active Canon EF mount, letting users take advantage of the expansive array of EF/EF-S mount lenses available. The EF mount supports iris, autofocus, and zoom functions using electronic communication when using compatible lenses.
The 6K Pro can turn one frame into two by cropping a second shot from one frame, upscaling to 8K, or simply capturing rich, detailed footage with your favorite EF/EF-S-mount lens. The updated Gen 5 internal color processing makes it easy to intercut 6K Pro, 6K, and BMPCC 4K footage. Record using the internal CFast 2.0 and SD/UHS-II card slots or via the full-size HDMI port to an optional ATEM Mini switcher for live streaming, or output via the USB Type-C port to capture longer clips to an external SSD. The 6K Pro includes a DaVinci Resolve Studio license and supports Blackmagic Raw capture from the sensor. Using the Raw format with the sensor's metadata simplifies editing to suit any project and makes editing easier with DaVinci Resolve.

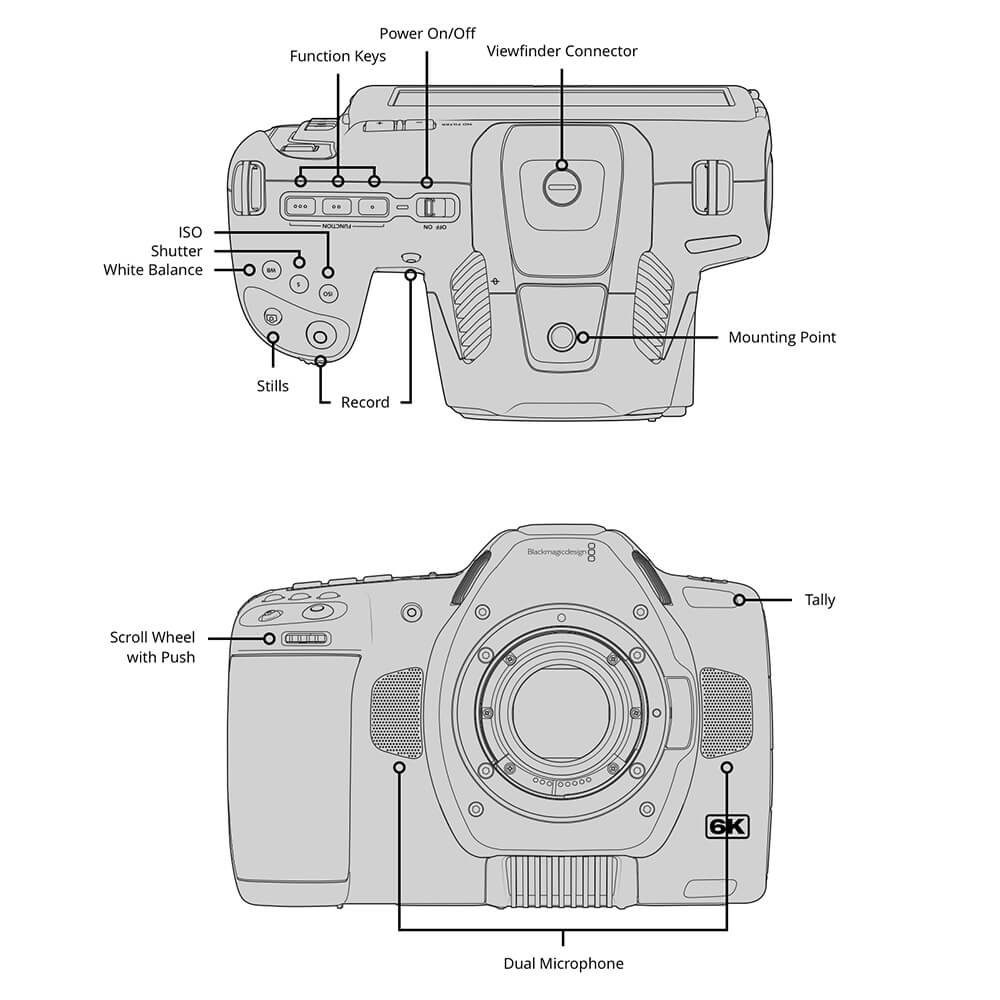

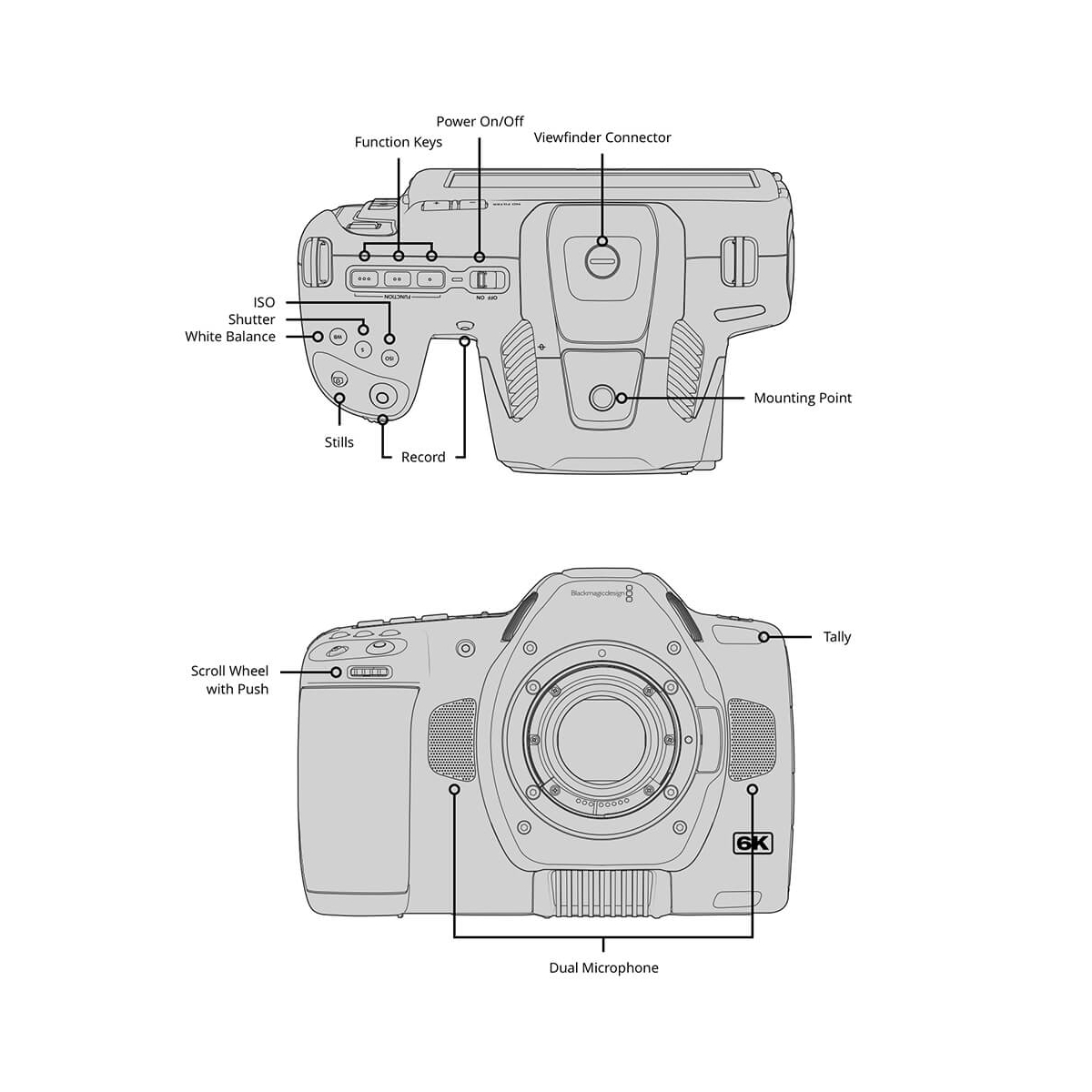

The compact 6K Pro retains the familiar controls and menu layout of the 6K model, such as ISO support up to 25,600, 13 stops of dynamic range, and 1920 x 1080 HDR monitor output. Professional audio support now includes two mini XLR inputs with phantom +48V power, a 3.5mm stereo input, a mono speaker, a headphone output, and a built-in stereo mic system.
|
Blackmagic Design Pocket Cinema Camera 6K Pro Specification Imaging |
|
| Lens Mount | Canon EF |
| Lens Communication | Yes, with Autofocus Support |
| Sensor Resolution | Effective: 21.2 Megapixel (6144 x 3456) |
| Image Sensor | 23.1 x 12.99 mm (Super35) CMOS |
| Image Stabilization | None |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Internal Filter Holder | No |
| Capture Type | Stills & Video |
|
Exposure Control |
|
| Shutter Type | Electronic Rolling Shutter |
| ISO Sensitivity | 100 to 25,600 |
| Shutter Angle | 5 to 360° |
| Advertised Dynamic Range | 13 Stops |
|
Video Capture |
|
| Internal Recording Modes | ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT DCI 4K (4096 x 2160) up to 59.94 fps [24.25 to 117.88 MB/s] UHD 4K (3840 x 2160) up to 59.94 fps [22.4 to 110 MB/s] 1920 x 1080p up to 120 fps [5.6 to 27.5 MB/s] Blackmagic RAW 6144 x 3456 up to 50 fps [49 to 483 MB/s] 6144 x 2560 up to 59.94 fps [37 to 359 MB/s] 5744 x 3024 up to 59.94 fps [40 to 395 MB/s] 4096 x 2160 up to 59.94 fps [28 to 163 MB/s] 3728 x 3104 up to 59.94 fps [36 to 265 MB/s] 2880 x 1512 up to 120 fps [14 to 101 MB/s] |
| External Recording Modes | 4:2:2 10-Bit via HDMI 1920 x 1080p Raw via USB 6144 x 3456 at 23.98/24.00/25/29.97/50 fps 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps |
| Sensor Crop While Recording | 6K (6144 x 2560) in 2.4:1 When Recording in Raw 5744 x 3024 When Recording in Raw 4K (4096 x 2160) When Recording in Raw 3728 x 3104 When Recording in Raw 2868 x 1512 When Recording in Raw |
| Fast-/Slow-Motion Support | Yes |
| Built-In Microphone Type | Stereo |
| VIDEO INTERFACES | Yes |
|
Still Image Capture |
|
| Image File Format | DNG |
|
Interface |
|
| Media/Memory Card Slot | Slot 1: SD/SDHC/SDXC (UHS-II) Slot 2: CFast |
| Video I/O | 1 x HDMI Output |

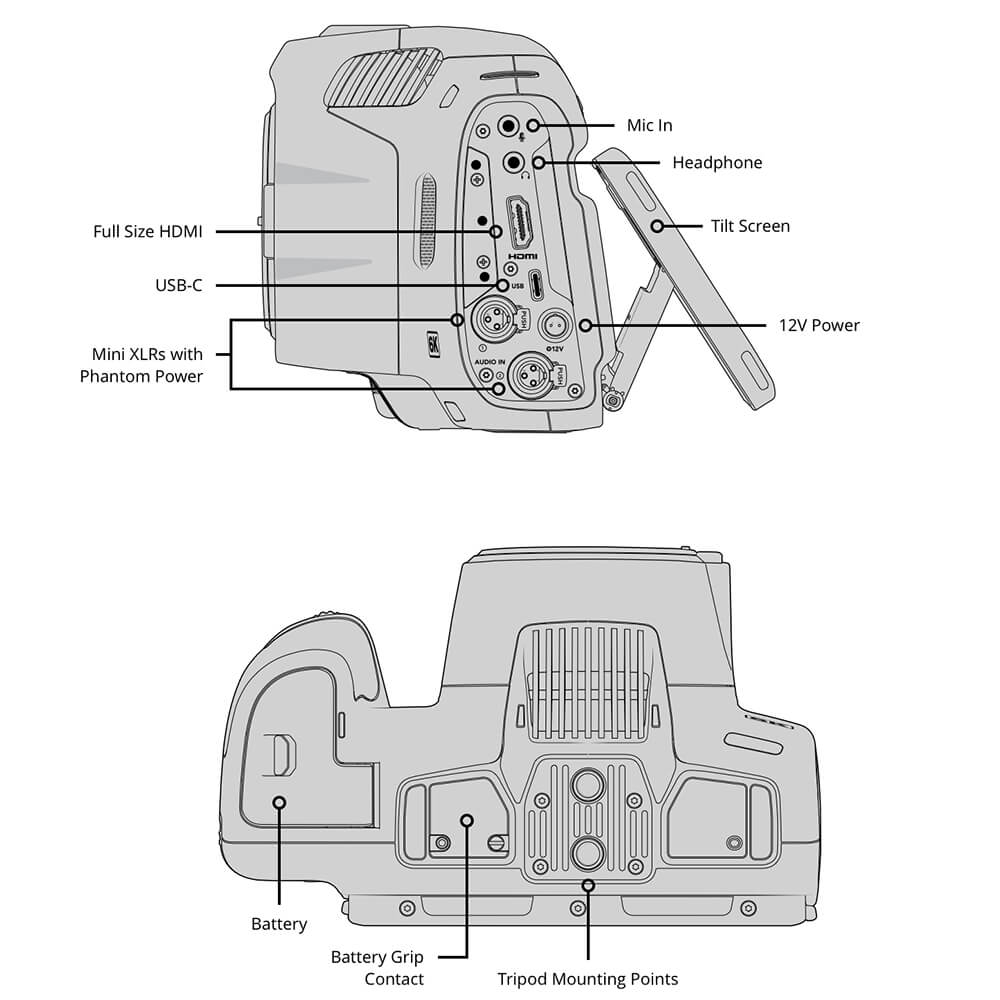

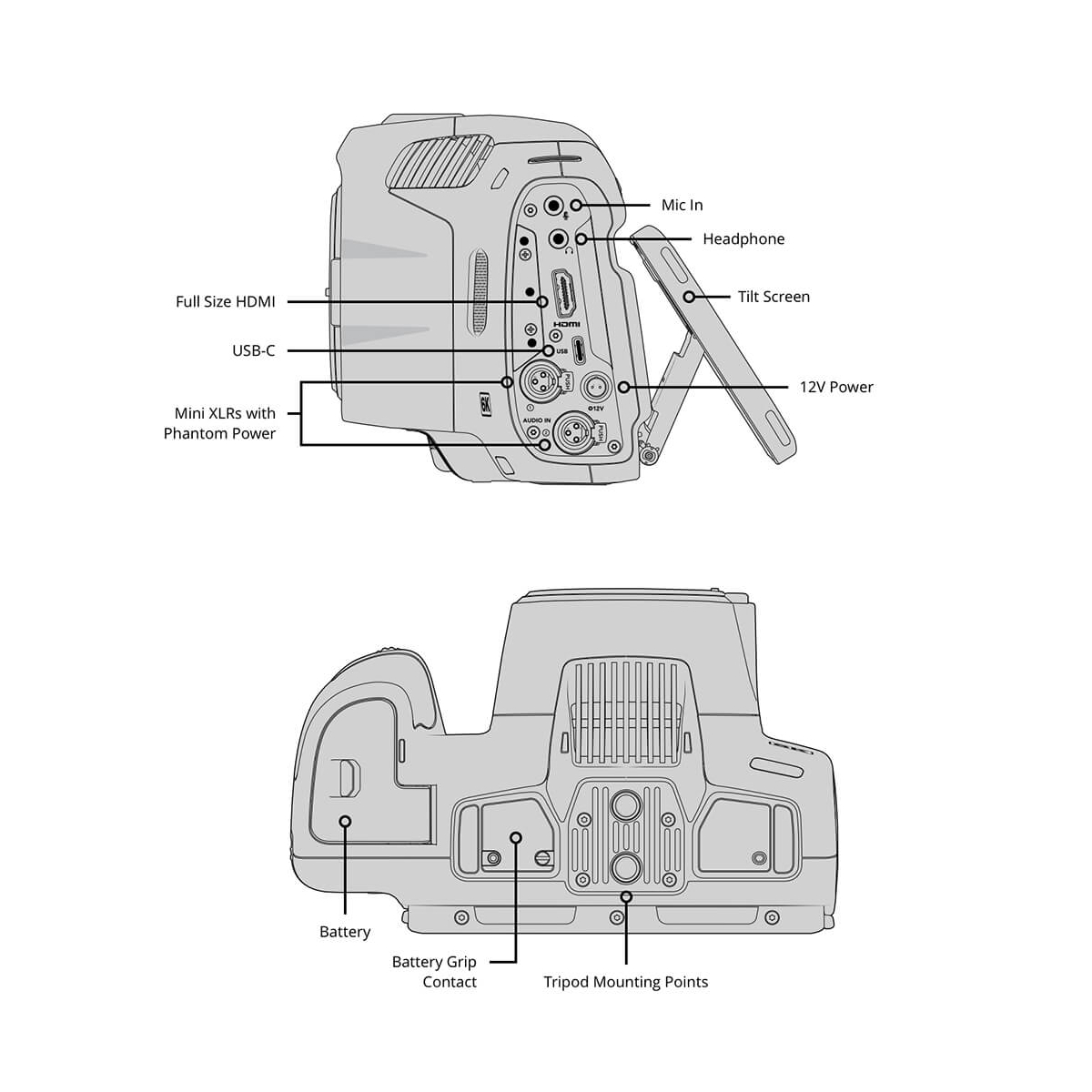

| Audio I/O | 2 x Mini XLR Mic/Line (+48 V Phantom Power) Input 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1 x Weipu SF610/S2 (12 to 20VDC) Input |
| Other I/O | 1 x USB-C (USB 3.2 / 3.1 Gen 1) Control/Video Output 1 x 1/8" / 3.5 mm (Timecode) Input (Shared with Mic/Line Input) |
| Wireless | Bluetooth Control |
| Mobile App Compatible | Yes |
| Global Positioning (GPS, GLONASS, etc.) | None |
|
Monitor |
|
| Size | 5" |
| Resolution | 1920 x 1080 |
| Display Type | Tilting Touchscreen LCD |
| Type | Optional, Not Included |
|
Focus |
|
| Focus Type | Auto and Manual Focus |
|
Environmental |
|
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
|
General |
|
| Battery Type | Sony L-Series |
| Tripod Mounting Thread | 2 x 1/4"-20 Female |
| Accessory Mount | 1 x 1/4"-20 Female |
| Material of Construction | Carbon Fiber |

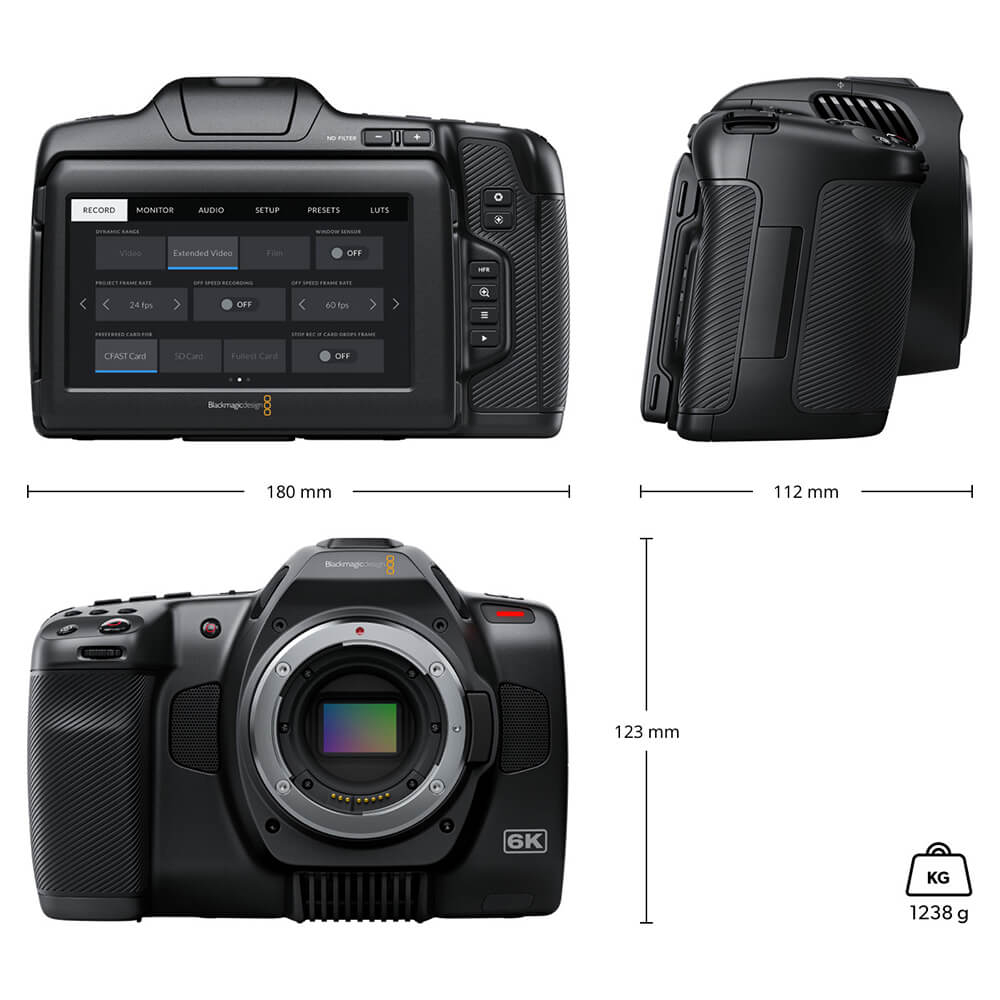

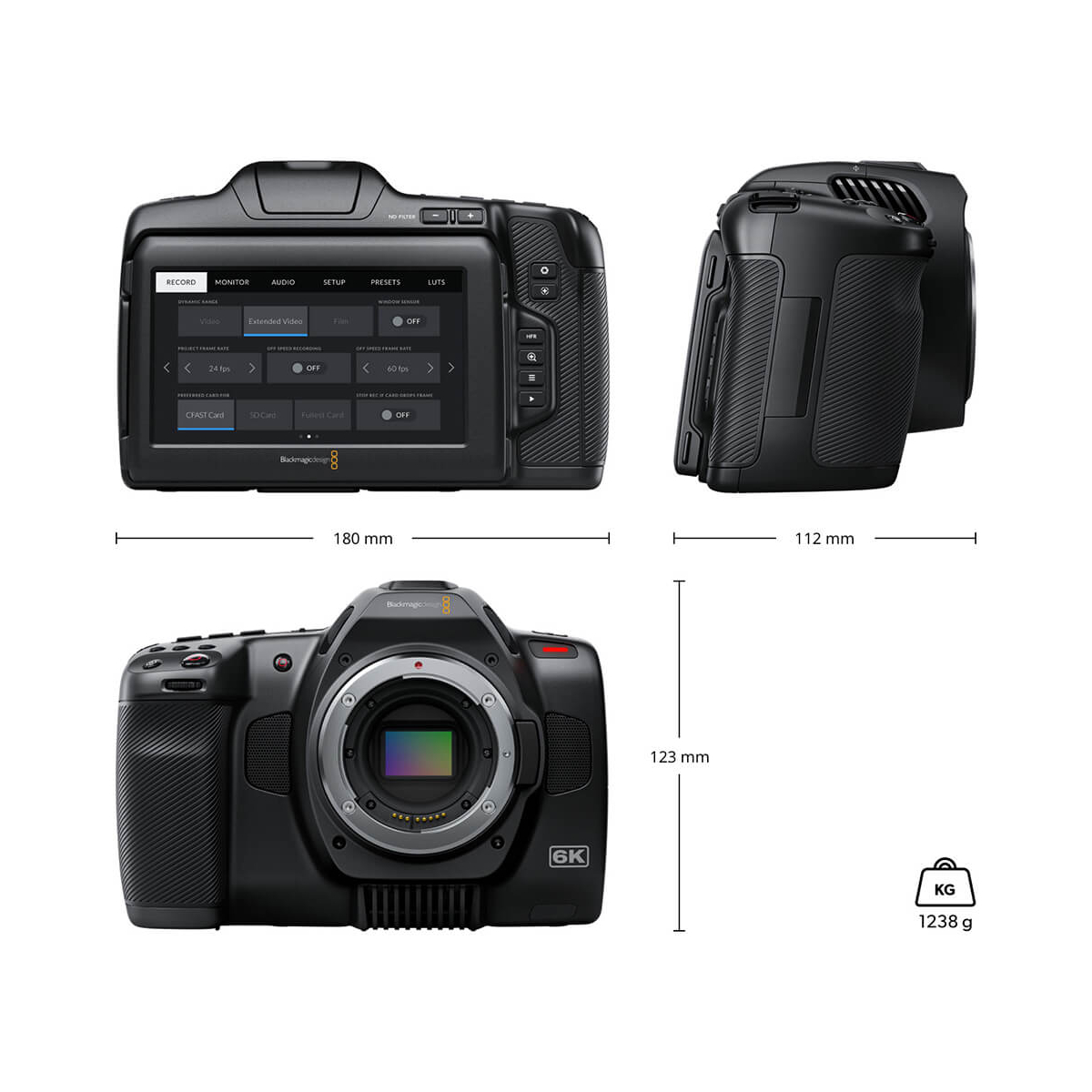

| Dimensions (W x H x D) | 7.08 x 4.41 x 4.84" / 179.83 x 112.01 x 122.94 mm |
| Weight | 2.73 lb / 1.24 kg |
