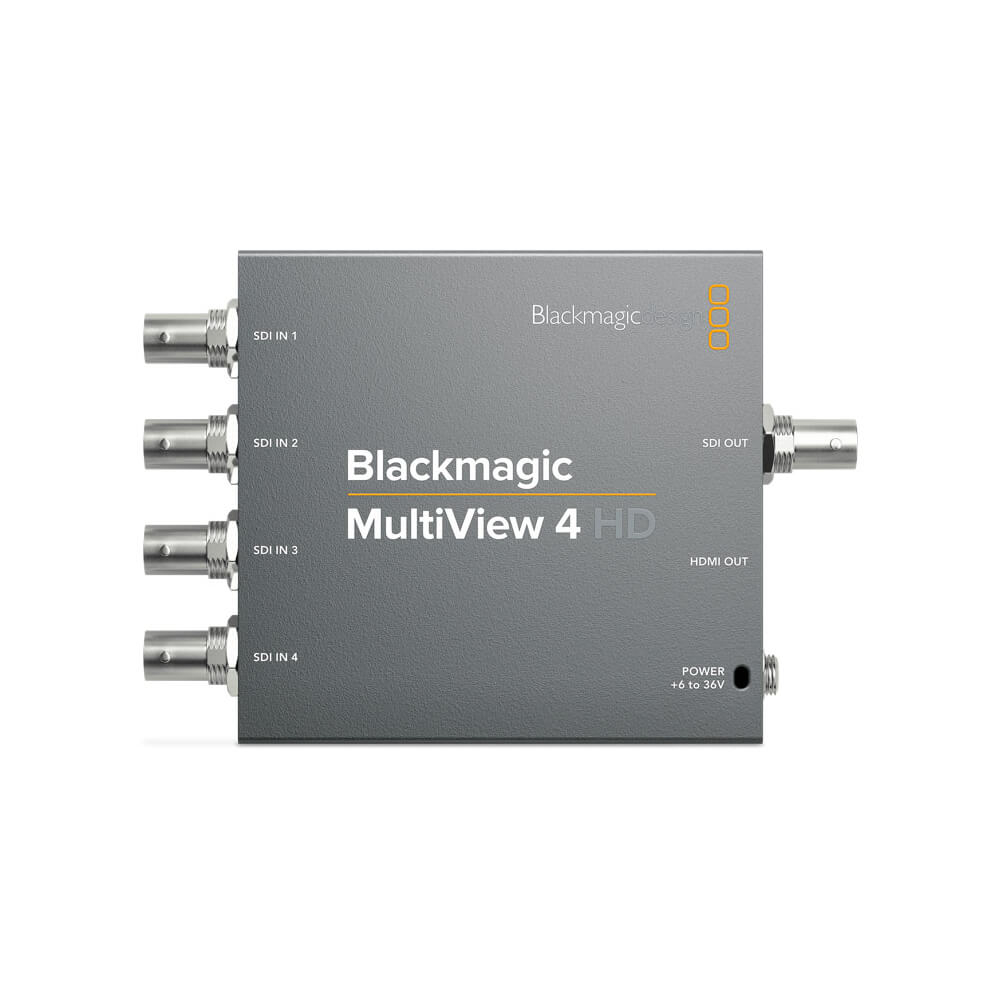

The Blackmagic Design MultiView 4 HD is a compact mini-converter that enables you to display up to four separate SDI streams via its HDMI or 10-bit SDI multiview outputs. This unit supports SD/HD/3G-SDI formats, and features automatic signal detection, SDI re-clocking, and monitor EDID support.
Each view can display custom overlays like labels and audio meters, and the integrated USB 2.0 interface can be used for updates. The MultiView 4 HD's metal housing measures approximately 5.3 x 3.6", and it includes a power supply with international adapters.
Features
-

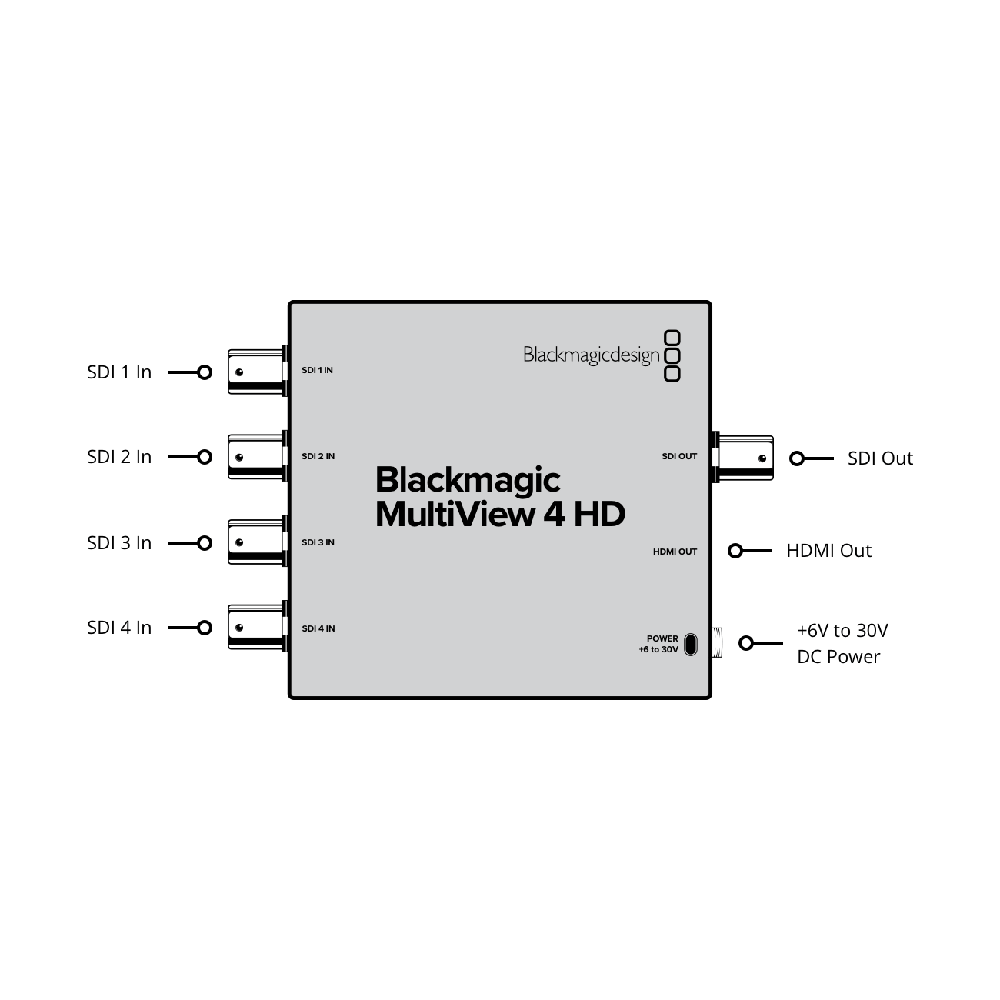

Four SDI inputs output to one SDI and one HDMI multiview
-
Automatic signal detection, SDI output re-clocking
-
Monitor any combination of HD or SD formats, and frame rates
-
Display custom labels, audio metering, and more on each view
|
Blackmagic Design MultiView 4 HD Specification Interfaces |
|
| Input | 4 x BNC (3G-SDI) |
| Output | 1 x BNC (3G-SDI) 1 x HDMI |
|
Standards |
|
| Video Standard Compliance | SMPTE 259M/292M/296M/310M/425M-B ITU -R BT.601/BT.656 |
| Reclocking | No |
| HDR Compatibility | None |
| HDCP Support | None |
| EDID Support | None |
| Audio Decoding | None |
|
Transmission |
|
| Video Format | SDI (10-Bit 4:4:4/4:2:2 RGB, YUV) DCI 2K 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
|
CPU |
|
| OS Compatibility | macOS 10.15 macOS 11.1 or Later Windows 10 or Later (64-Bit Only) *As of July, 2020: Check with manufacturer for the most up-to-date compatibility |
|
Power |
|
| Power Connector | 1 x Barrel Input |
| Power Consumption | 6 to 36 VDC (5.5 W) |
|
Environmental |
|
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
|
General |
|
| LED Indicators | No |
| Dimensions | 4.8 x 3.1 x 1.2" / 123.0 x 79.5 x 29.5 mm |
| Weight | 8.53 oz / 0.24 kg |
