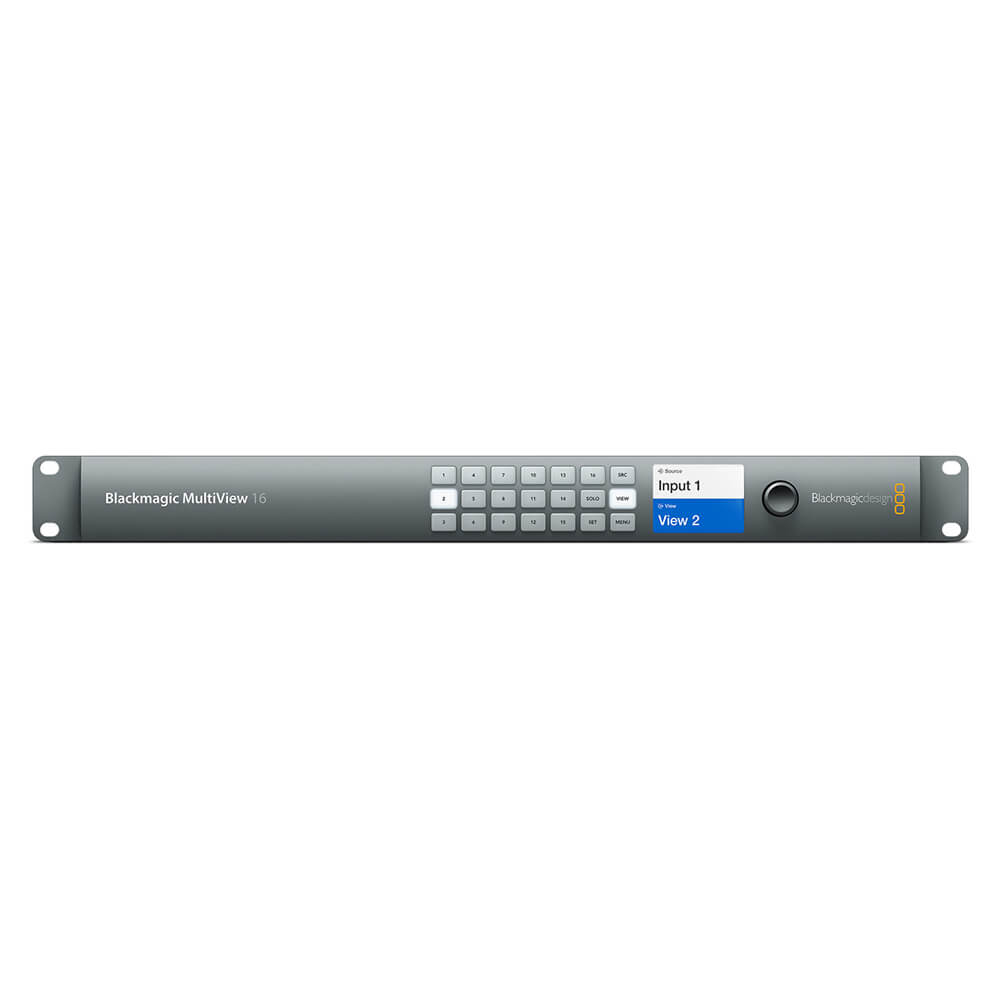

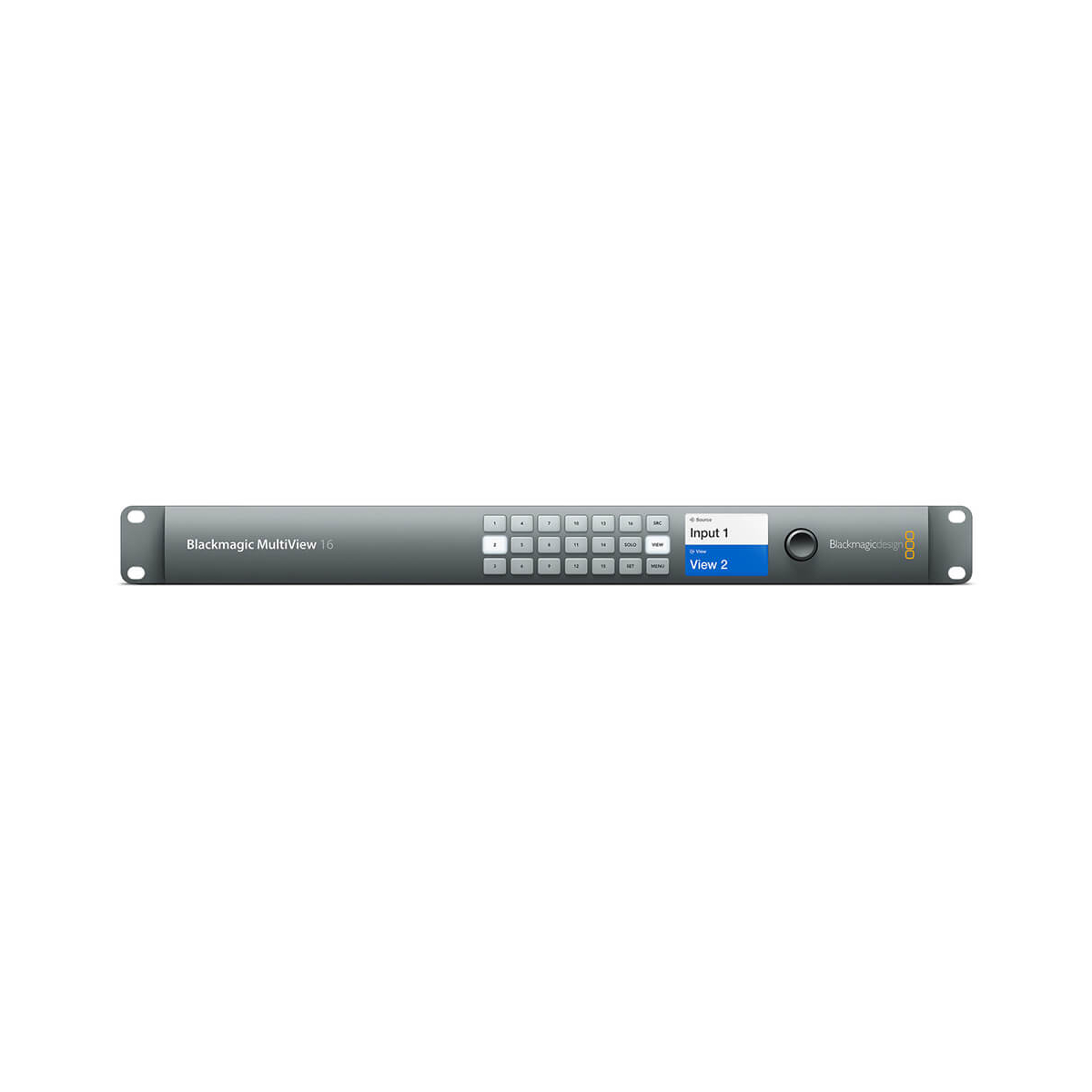

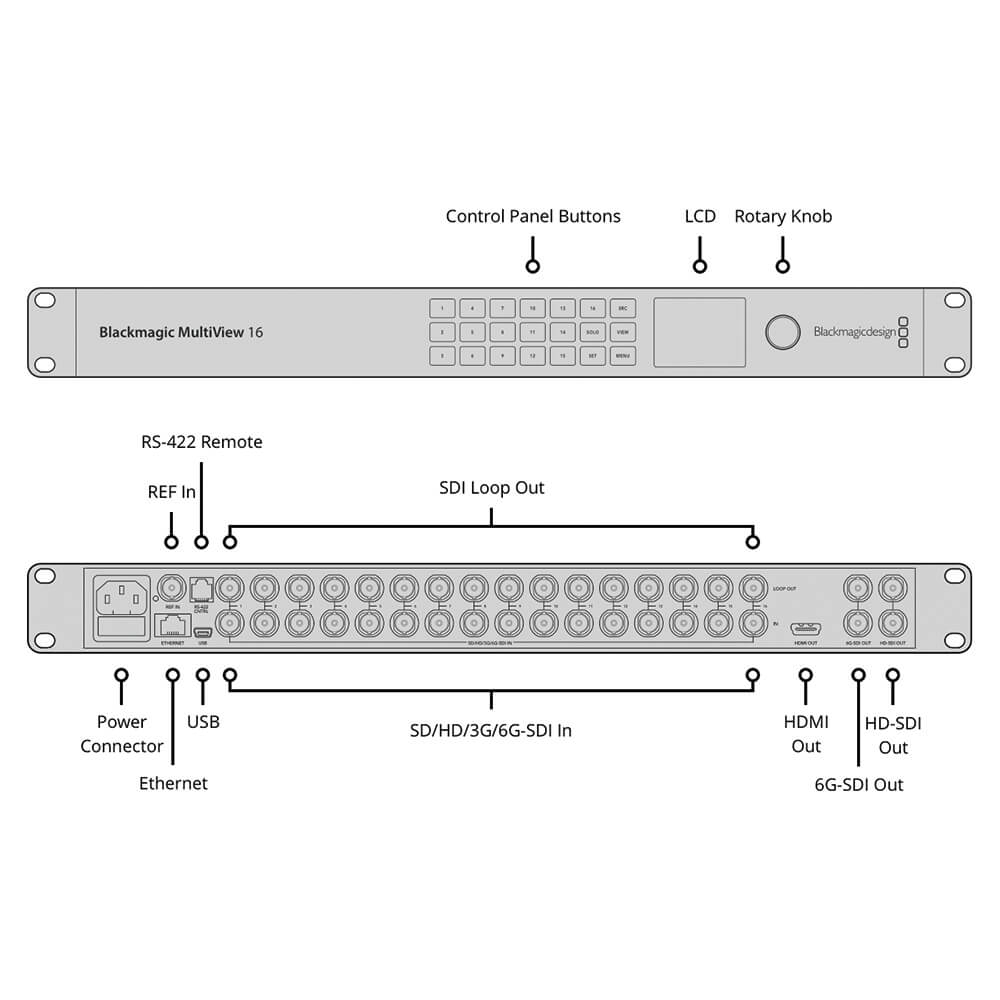

The Blackmagic Design MultiView 16 features sixteen 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of the high-resolution displays to view each source with increased clarity. The MultiView 16 allows for 4, 9, or 19 views to be selected, with each input fully re-synchronized. Two HD-SDI, two 6G-SDI, and one HDMI multi-view outputs are provided as well as a loop output for each 6G-SDI input for passing the signals to additional devices.

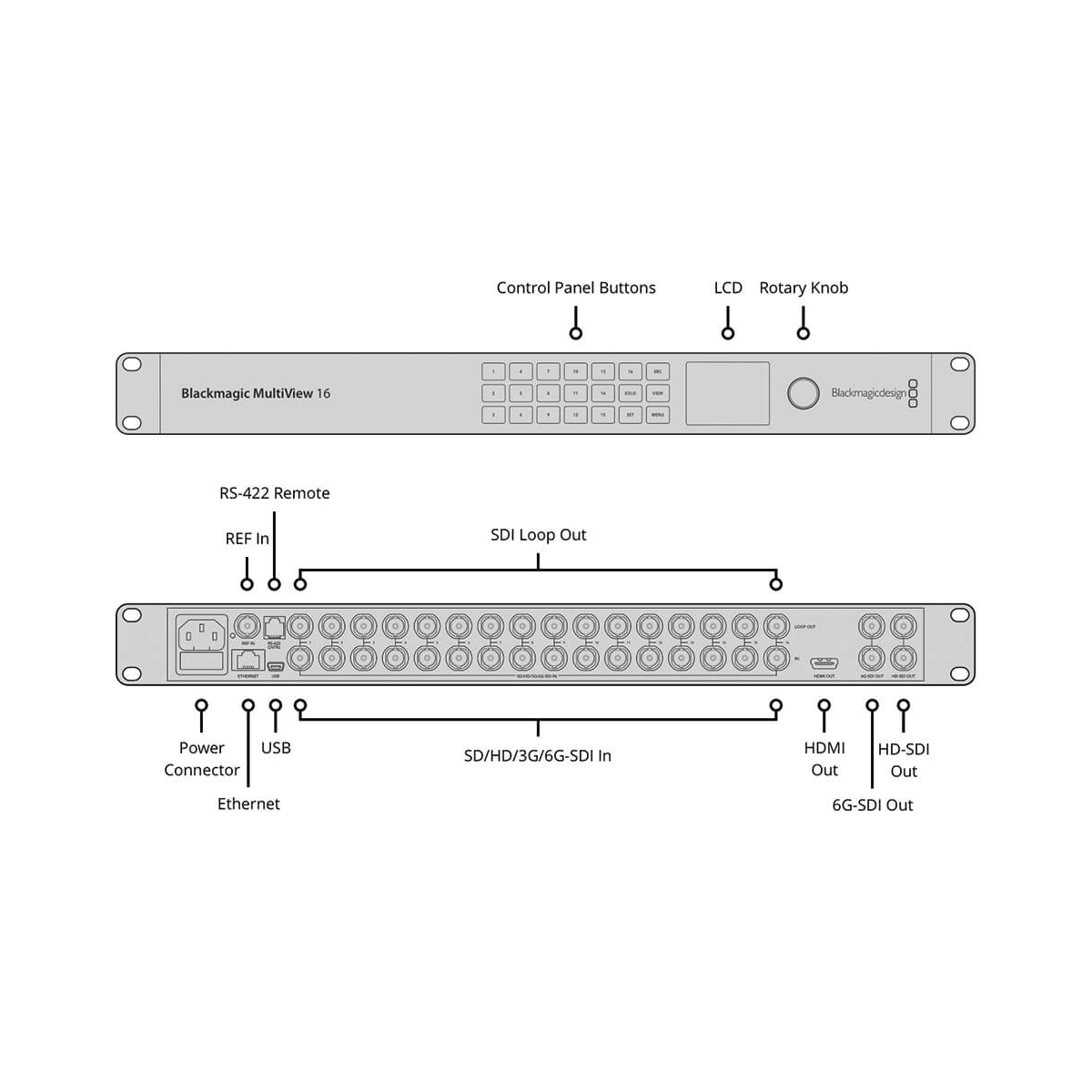

Housed in a 1 RU machined aluminum frame, the MultiView 16 is ready for use in the studio, broadcast truck, or even on location. It can be controlled using the illuminated buttons, spin knob, and 1.5" LCD screen on the front panel, or with the included control software via the Ethernet port. A SOLO button lets instantly full screen a single source. For easy integration into any facility, a built-in multi-voltage power supply supports 100 to 240 VAC.
Blackmagic Design MultiView 16 Specification Interfaces |
|
Input | 16 x BNC (3G-SDI / 6G-SDI / HD-SDI) |
Embedded Audio | SDI |
Output | 16 x BNC (6G-SDI / HD-SDI / SD-SDI, Looping) 2 x BNC (6G-SDI) 2 x BNC (HD-SDI) 1 x HDMI |
Other I/O | 1 x RJ45 (RS-422) 1 x RJ45 (10/100 Mbps Ethernet) 1 x Mini-USB 2.0 |
Standards |
|
Video Standard Compliance | SMPTE 259M/292M/296M/425M-B ITU -R BT.601/BT.656 |
Reclocking | Yes |
HDR Compatibility | None |
HDCP Support | Yes |
EDID Support | Yes |
Transmission |
|
Video Format | SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K: 24 fps UHD 4K: 23.98/24/25/29.97/30 fps DCI 2KPsF: 23.98/24/25 fps DCI 2K: 23.98/24/25 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps |
Maximum Sampling Rate | 48 kHz / 24-Bit |
Maximum Data Rate | 6 Gb/s |
CPU |
|
OS Compatibility | macOS 10.15 to 11.1 or Later Windows 10 (64-Bit Only) *As of August, 2022: Check with manufacturer for the most up-to-date compatibility |
Power |
|
Power Connector | 1 x IEC C14 Input |
Power Consumption | 90 to 240 VAC (45 W) |
Environmental |
|
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General |
|
Rack Form Factor | 1 RU |
Certifications | FCC Class A *as per Manufacturer |
Maximum Multiple Display Configuration | 4 x 4 |
Material of Construction | Metal |

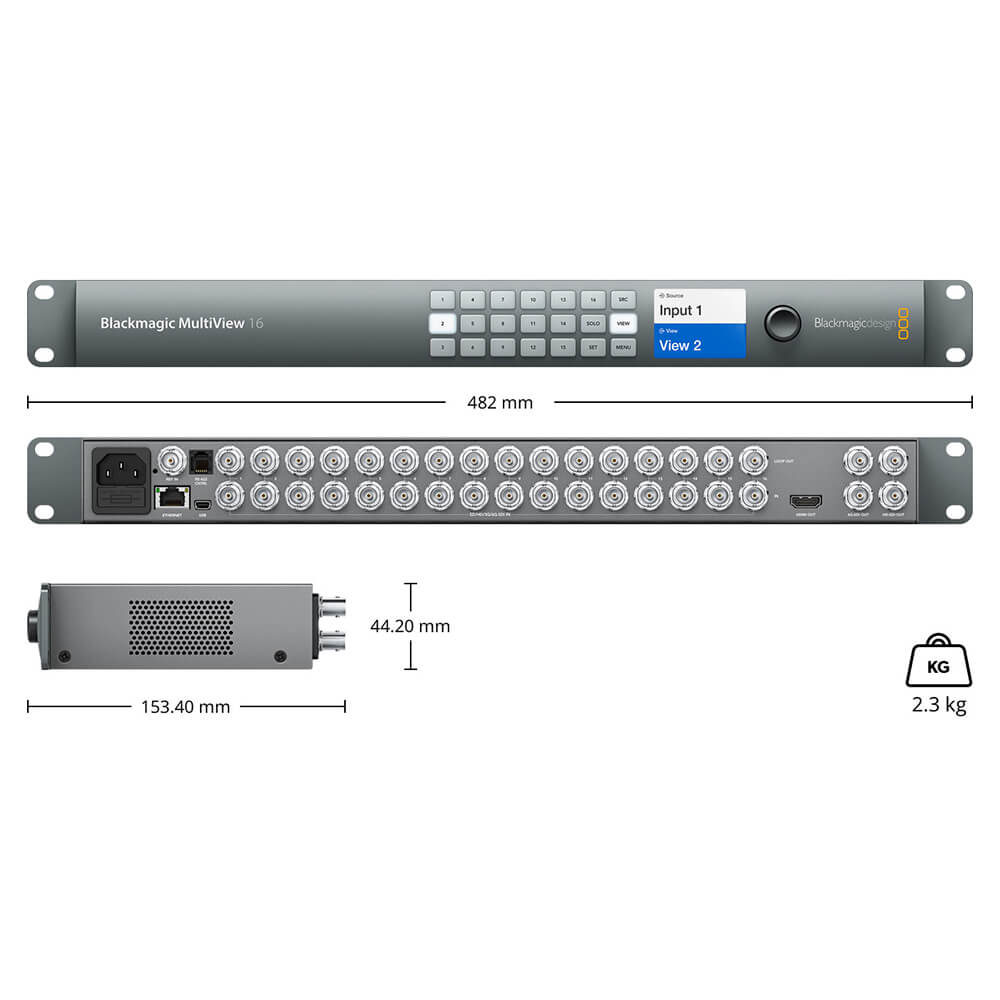

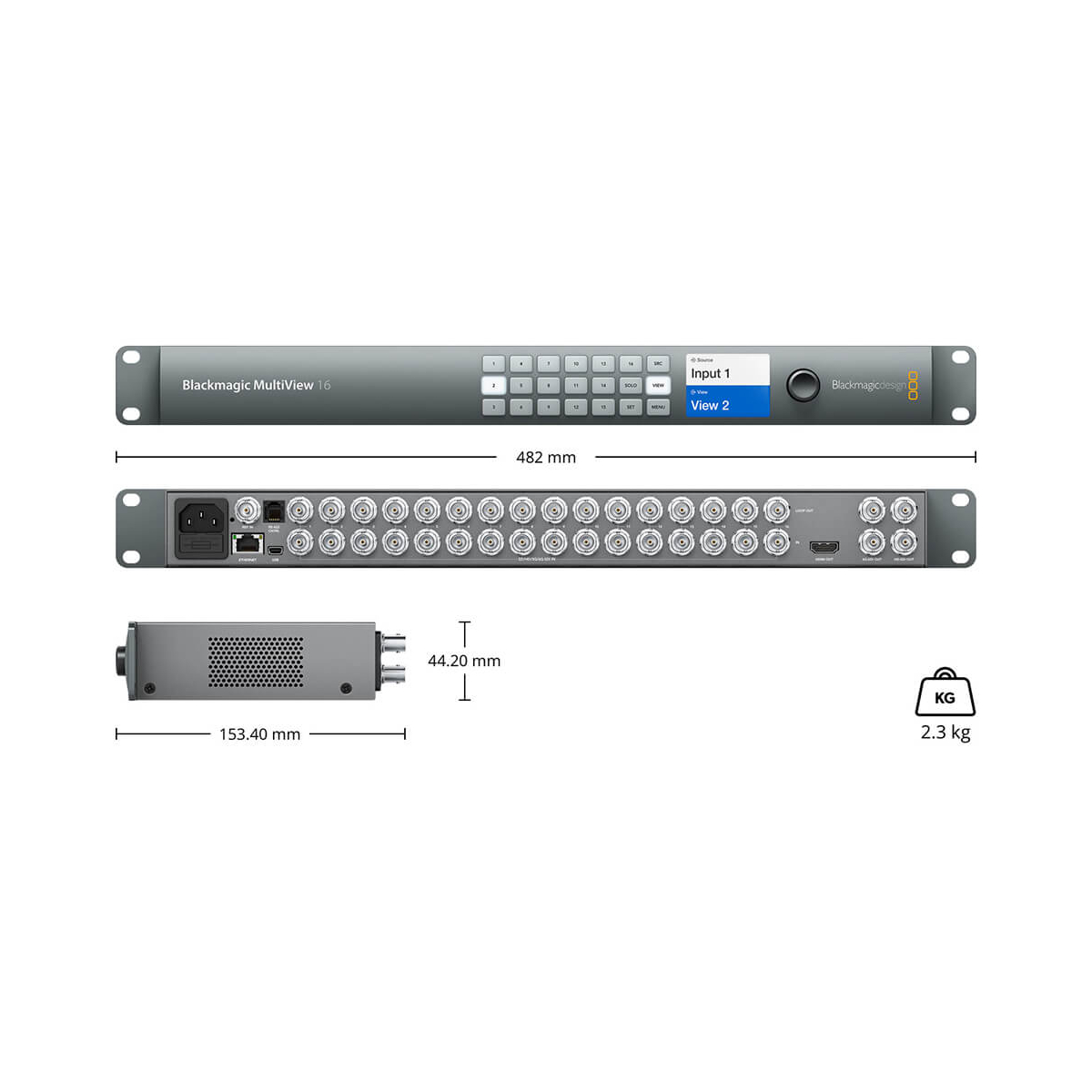

Dimensions | 19.0 x 6.0 x 1.7" / 482.6 x 152.4 x 43.2 mm |
Weight | 5.07 lb / 2.3 kg |
