The Blackmagic Design SDI to HDMI 6G Mini Converter converts SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p to HDMI. This is useful for connecting consumer devices that require HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

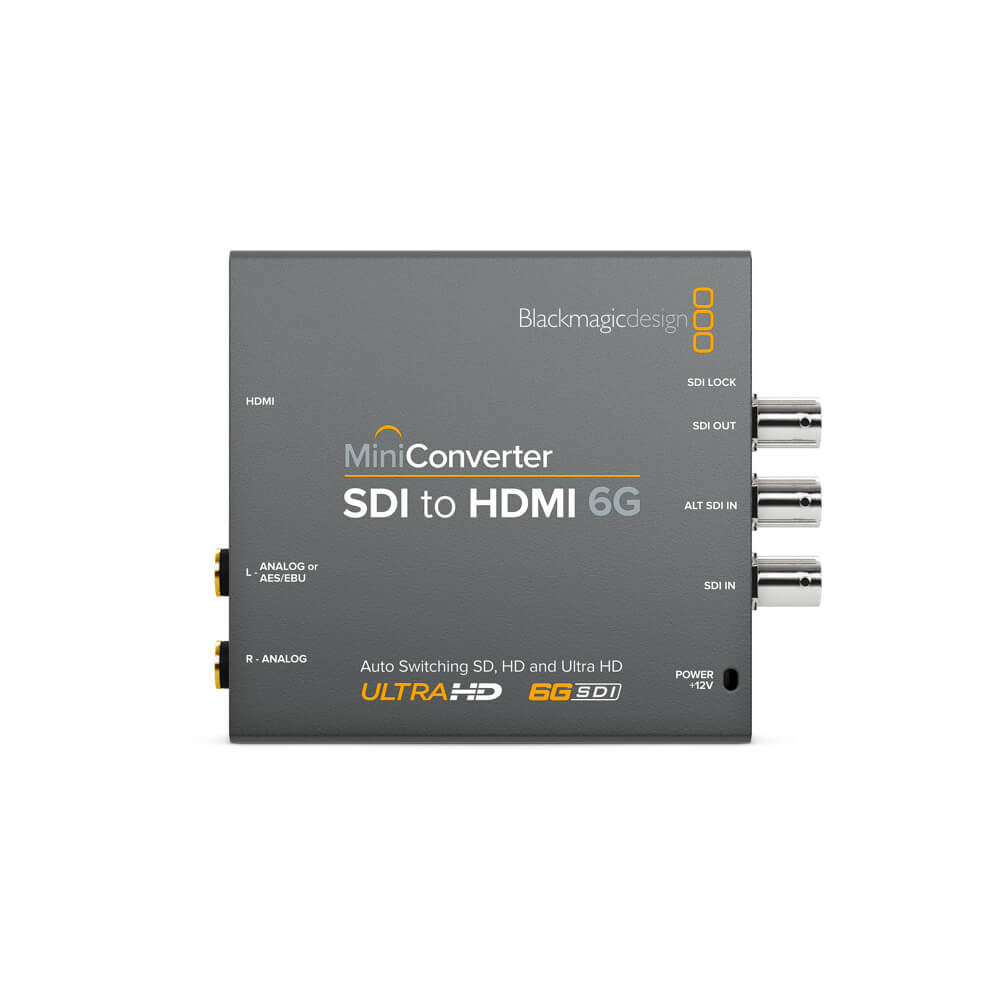

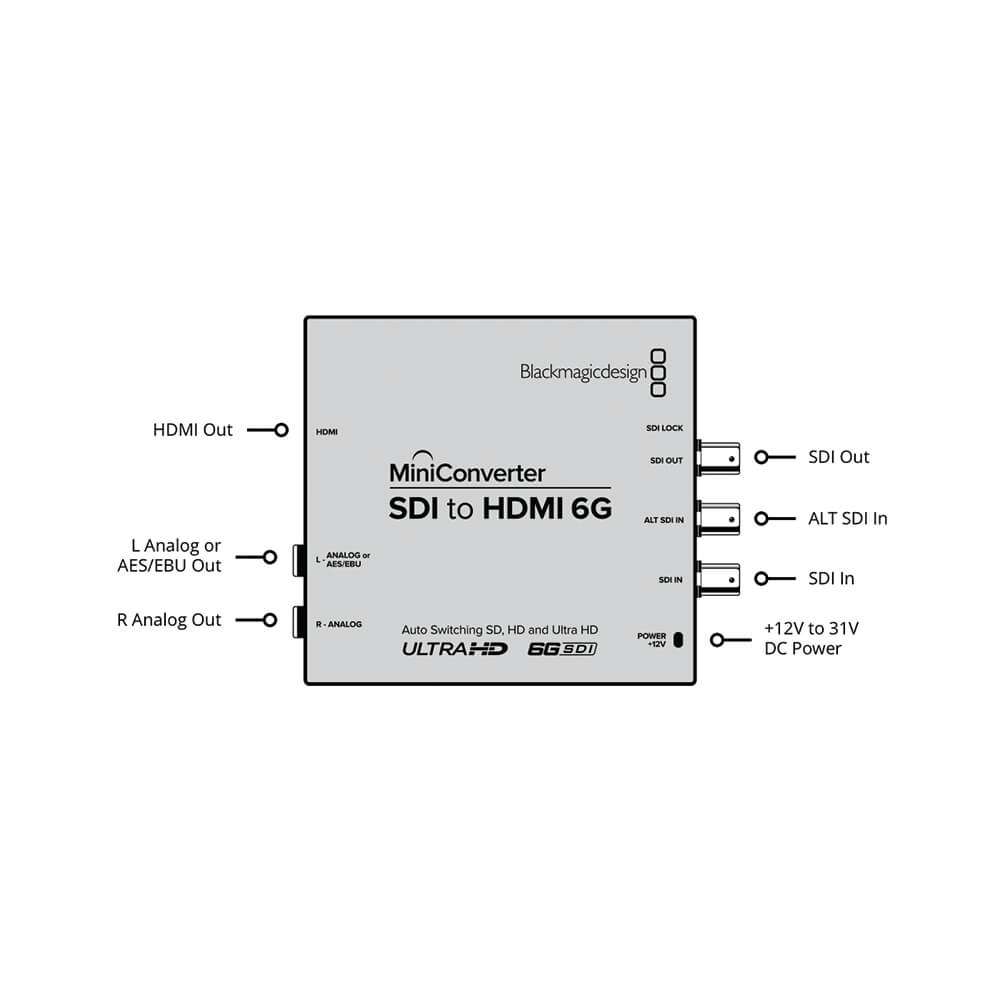

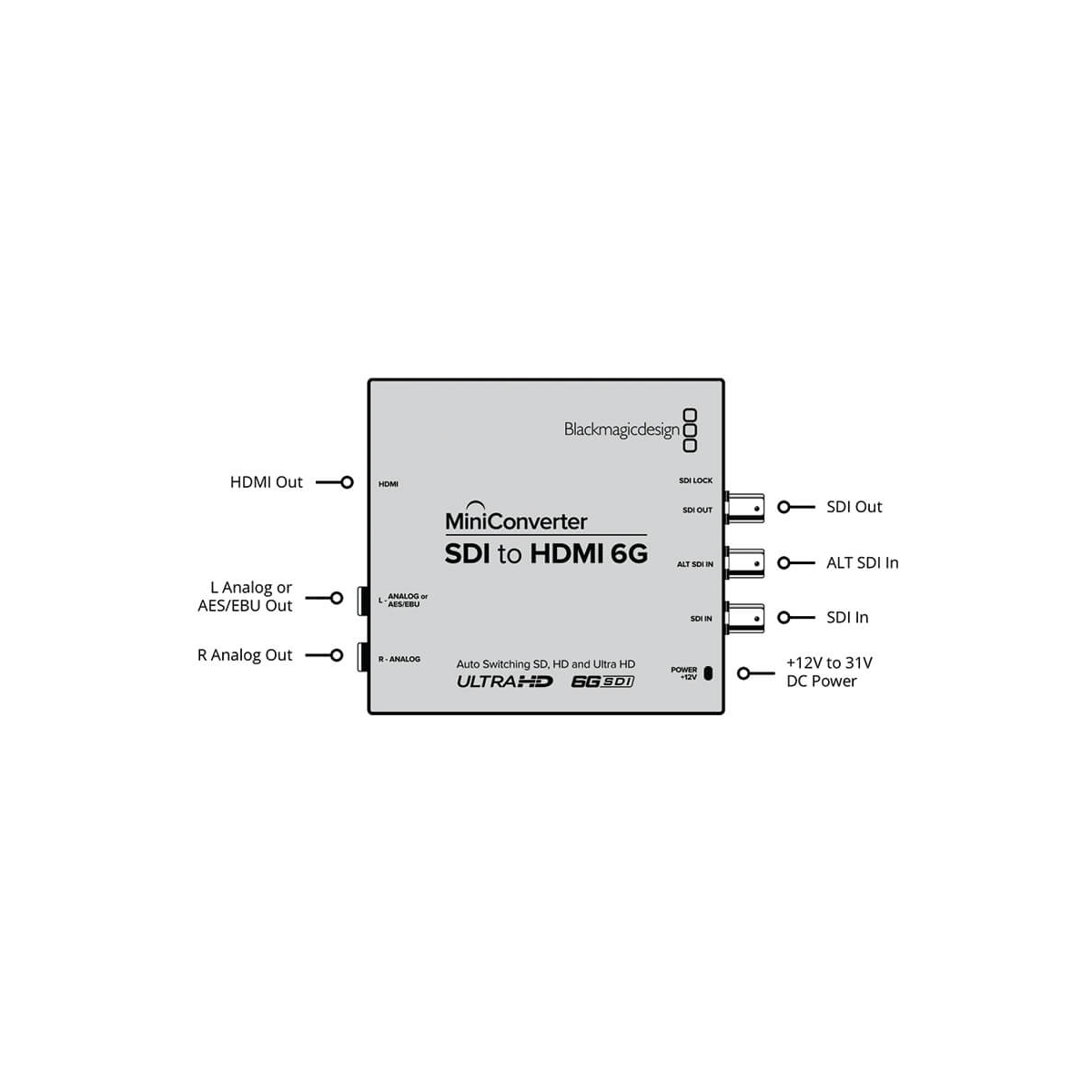

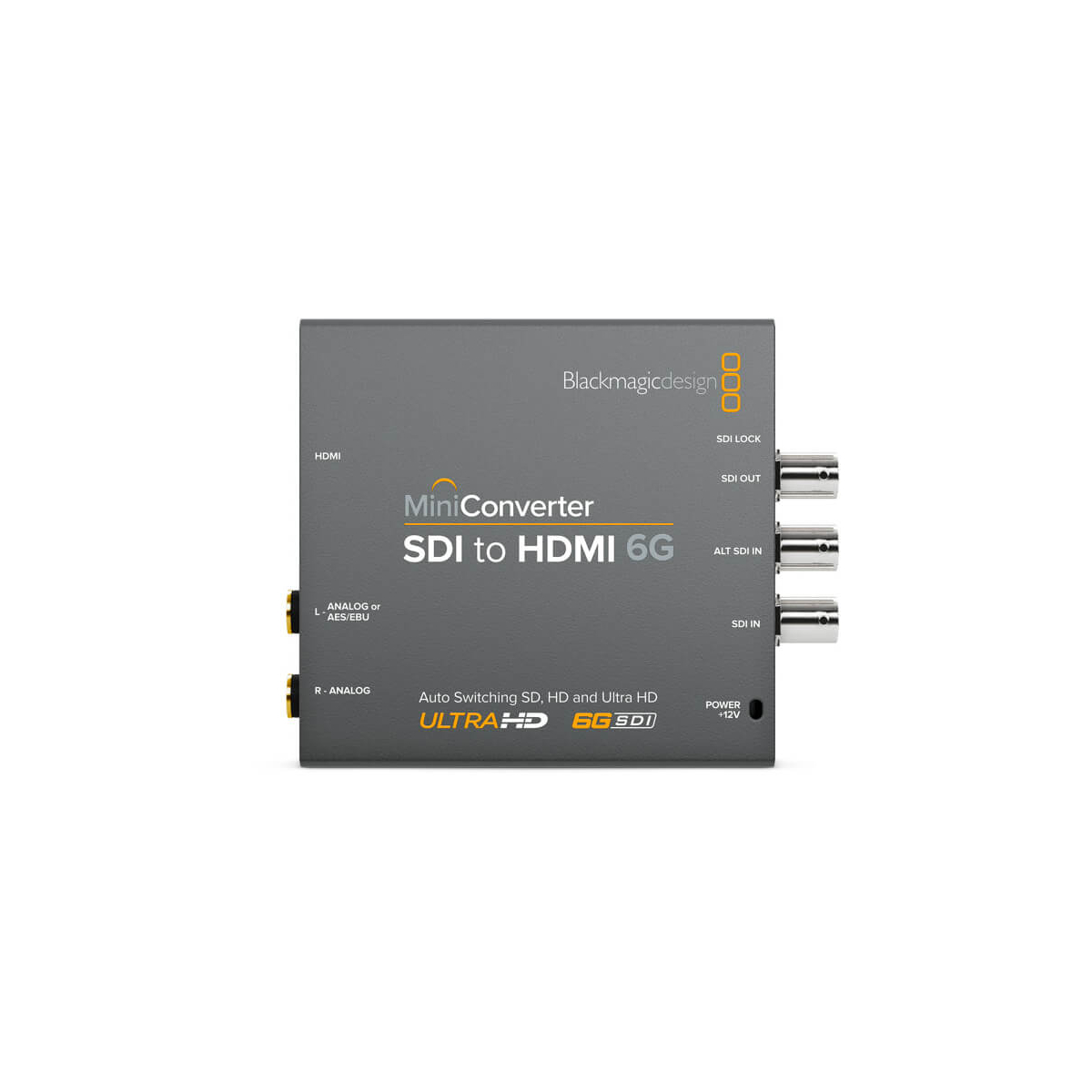

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. Featuring two SDI inputs, and both an SDI and HDMI output, the unit will automatically switch from the main SDI input to the alternate input if the main input fails. Audio is de-embedded from the SDI input and available in the HDMI output as well as the AES/EBU or analog audio output.

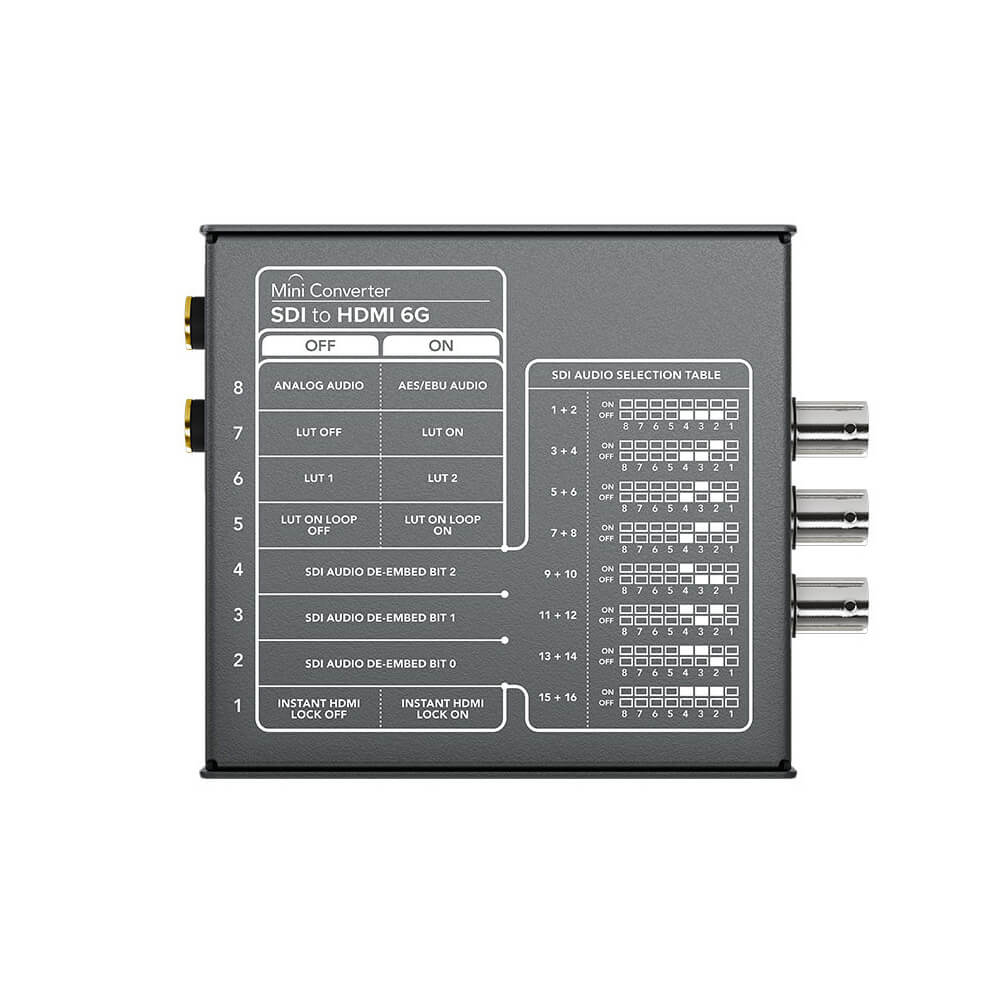

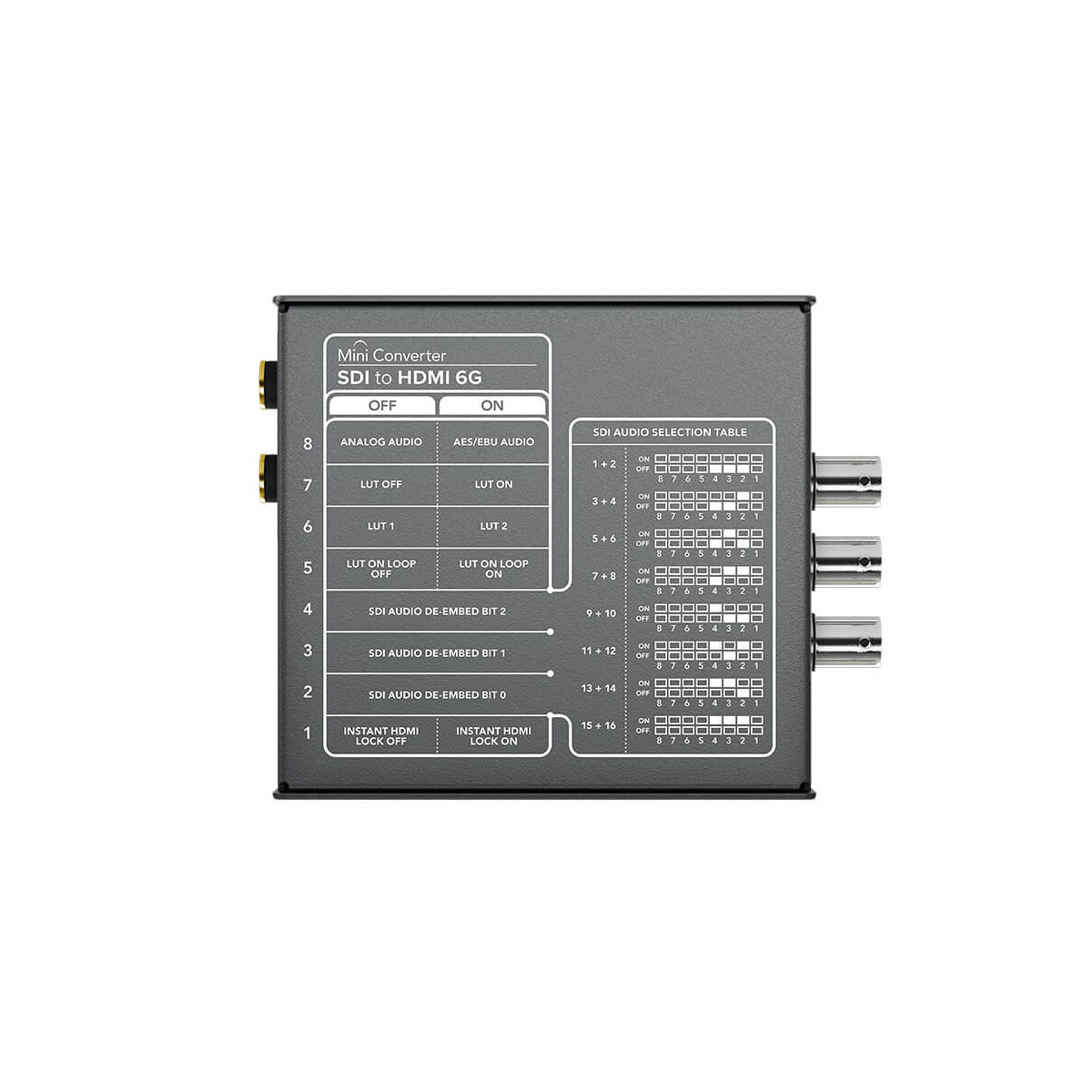

The Mini Converter's settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated.- The device is powered by an included 12V power supply and includes international socket adapters.
Blackmagic Design CONVMBSH Specification Inputs / Outputs |
|
Video Inputs | 2 x BNC (6G-SDI) |
Video Inputs | None |
Video Inputs | 1 x HDMI 1 x BNC (6G-SDI) |
Audio Outputs | 2 x 1/4" TRS Stereo Analog Female |
Expansion Slots | None |
Format Support |
|
Input Video Format | SDI DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 2K 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Output Video Format | HDMI (4:4:4/4:2:2 RGB, YUV) UHD 4K at 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 480i / 525 lines |
Embedded Audio | HDMI/SDI |
HDR Compatibility | Not Specified by Manufacturer |
Wireless | None |
Wi-Fi | None |
Power |
|
Power I/O | 1 x Barrel (12 to 31 VDC) Input |
Power Consumption | Device: 12 to 18 VDC (5.2 W) |
Environmental |
|
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
General |
|

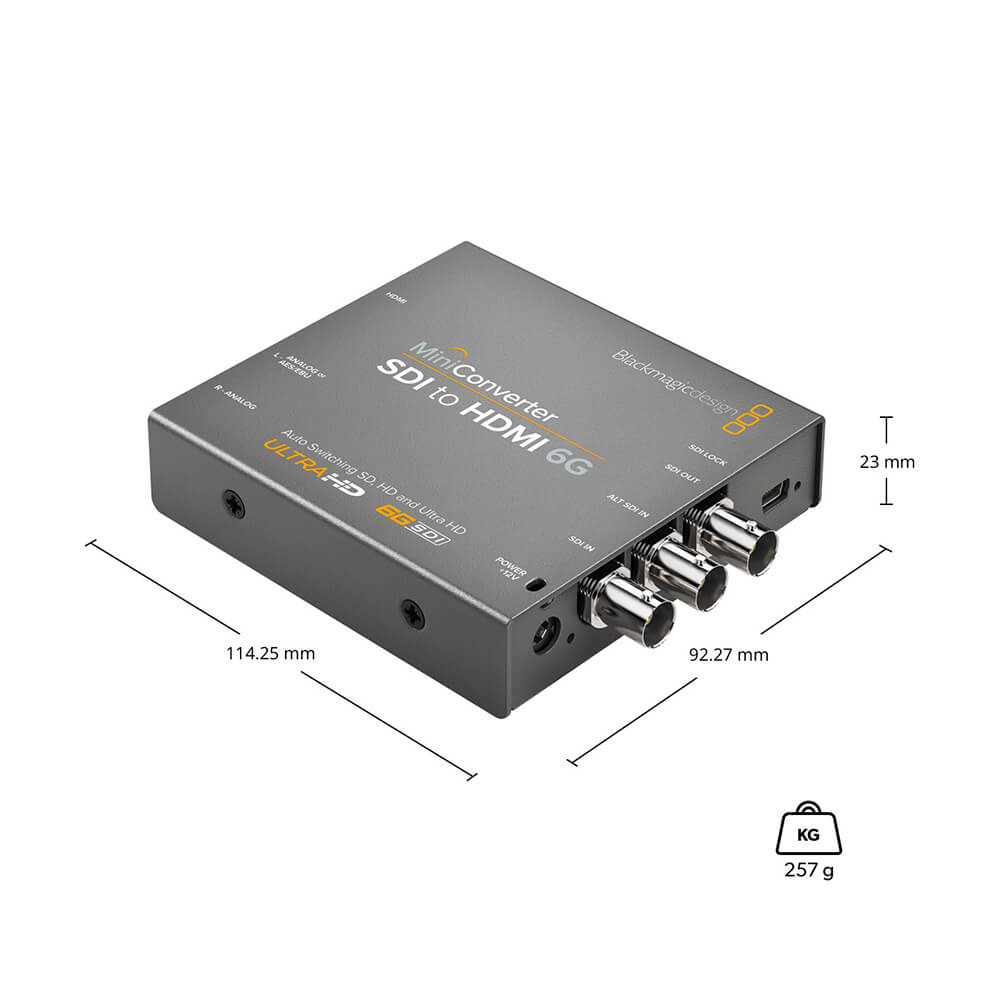

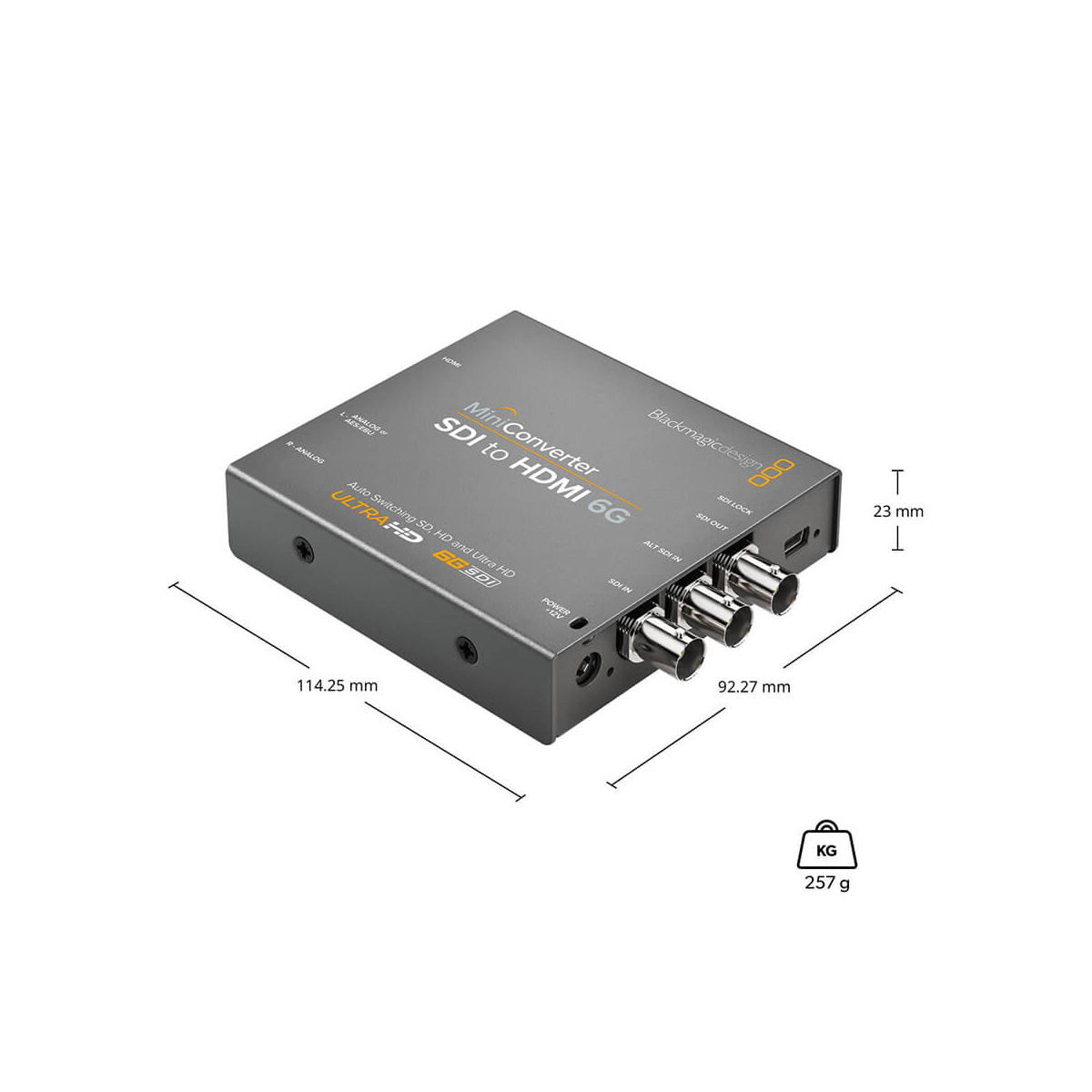

Dimensions | 0 to 90% (Non-Condensing) |
Weight | 9.06 oz / 257 g |
