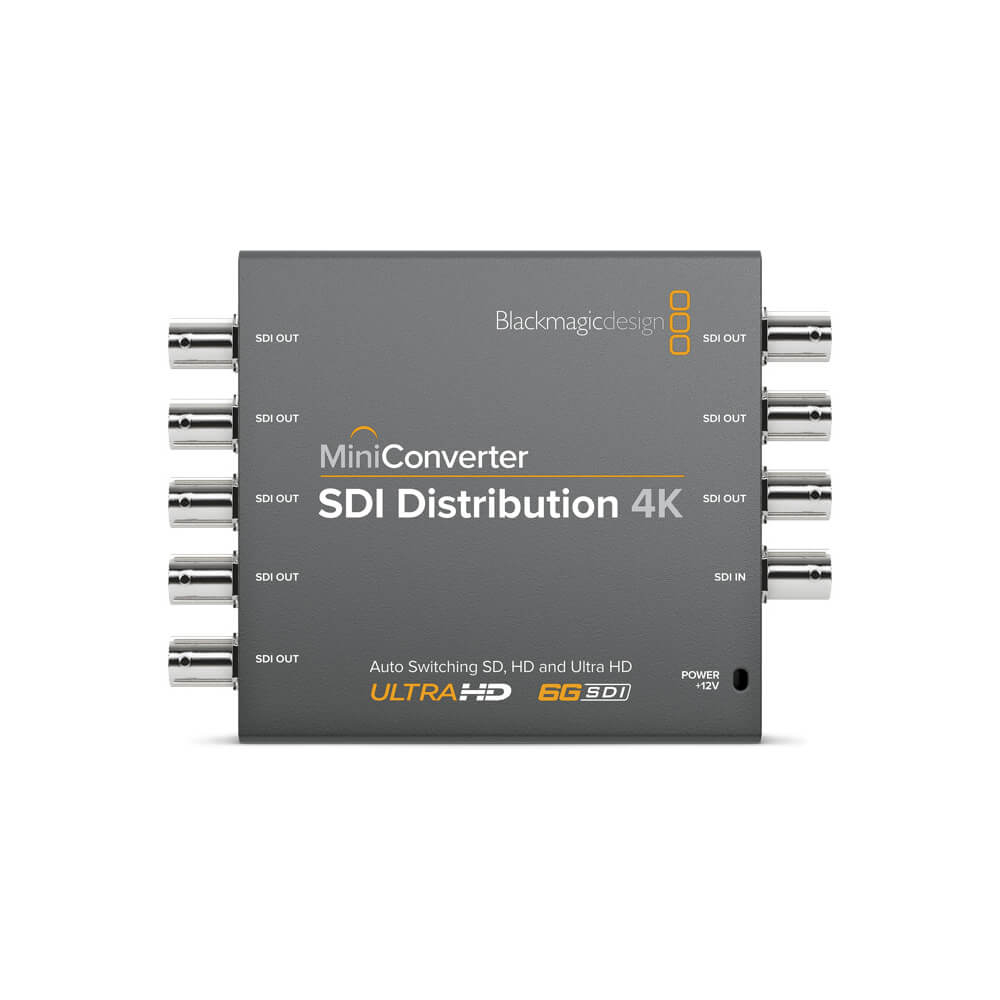

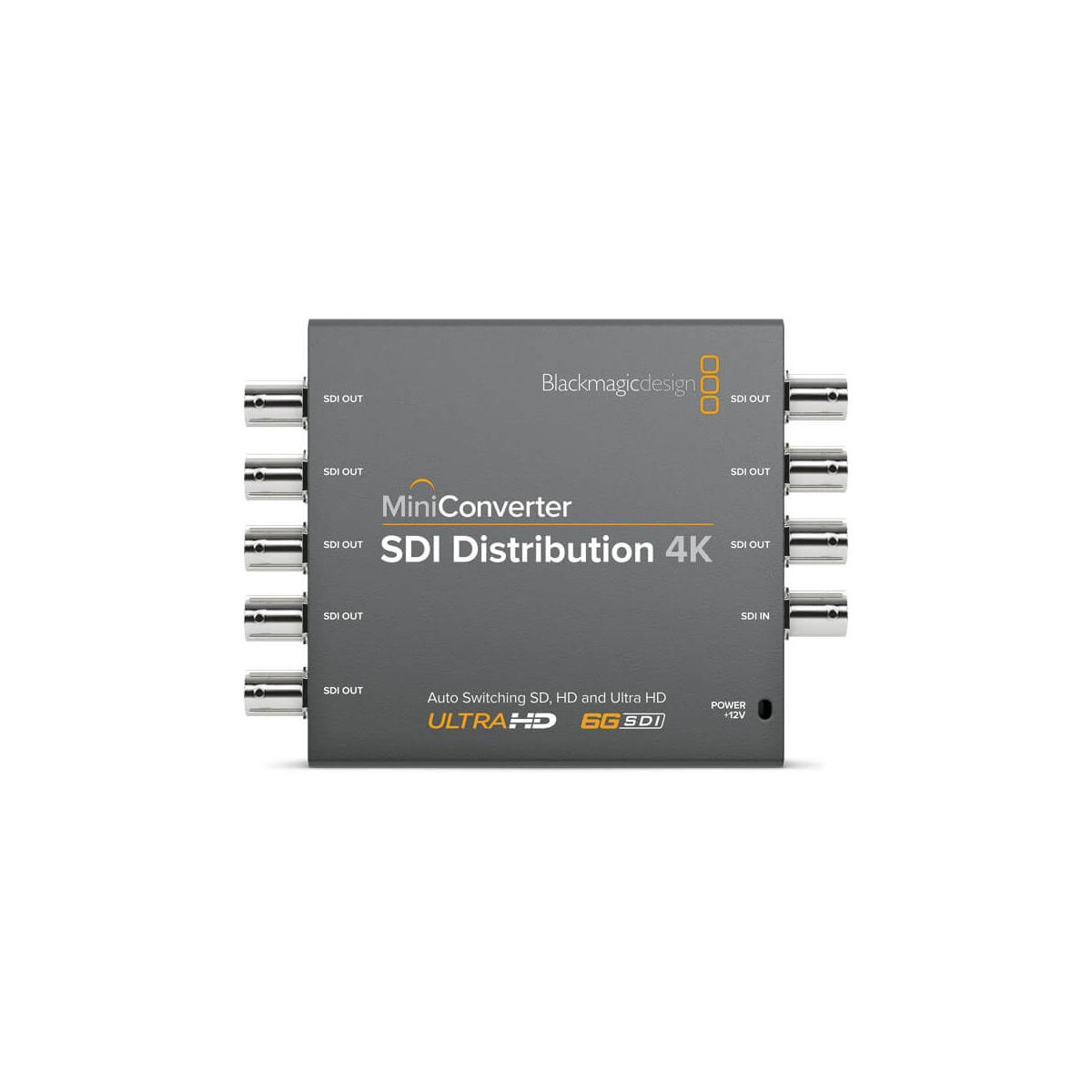

The Mini Converter SDI Distribution 4K from Blackmagic Design allows you to distribute a Single Link SD/HD/3G/6G-SDI signal to eight SDI devices simultaneously. It automatically detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI input video format. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.
Using 6G-SDI technology, the Mini Converter supports resolutions up to Ultra HD 4K (3840 x 2160) at up to 30 fps and DCI 4K (4096 x 2160) at 24 fps, as well as SD, HD, and 3G-SDI signals. It supports all SDI-related transmission features, including embedded audio, ancillary data, and even handles ASI signals - asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.
Additional Features
- 4:2:2 and 4:4:4 sampling and color precision
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M standards

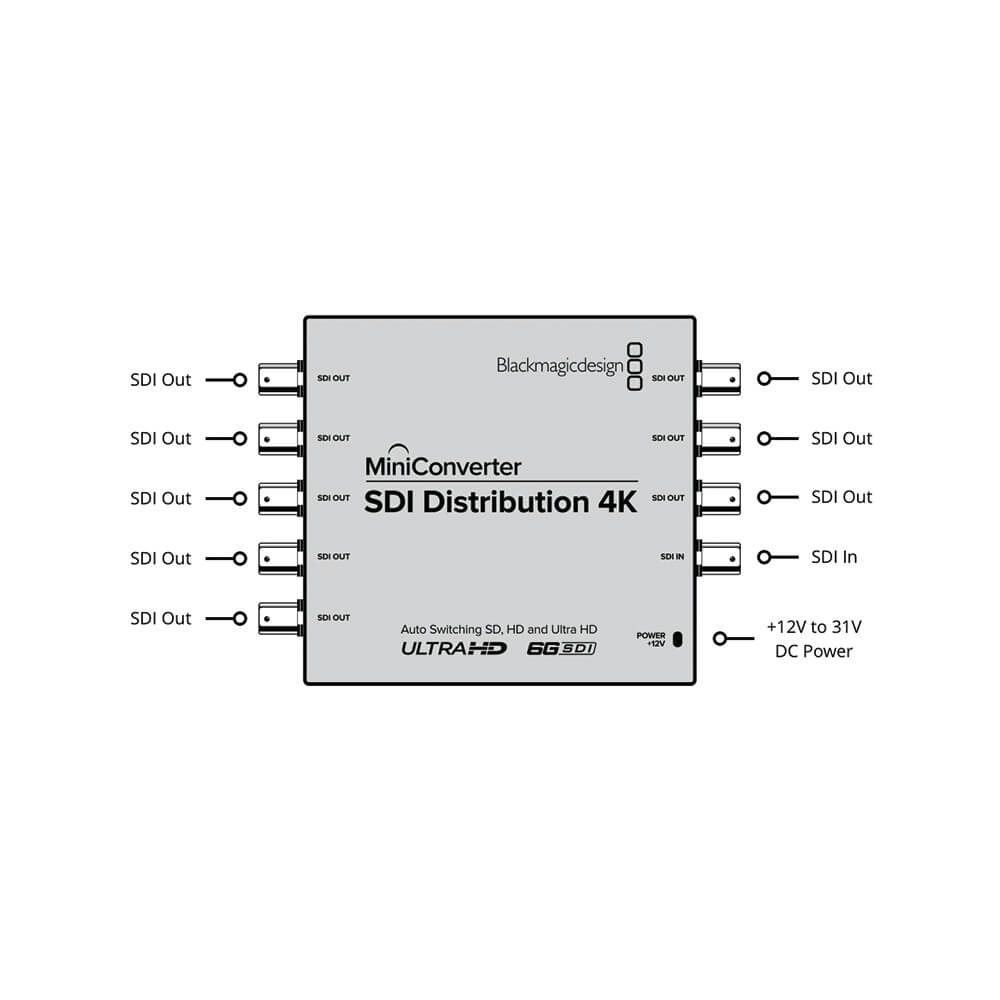

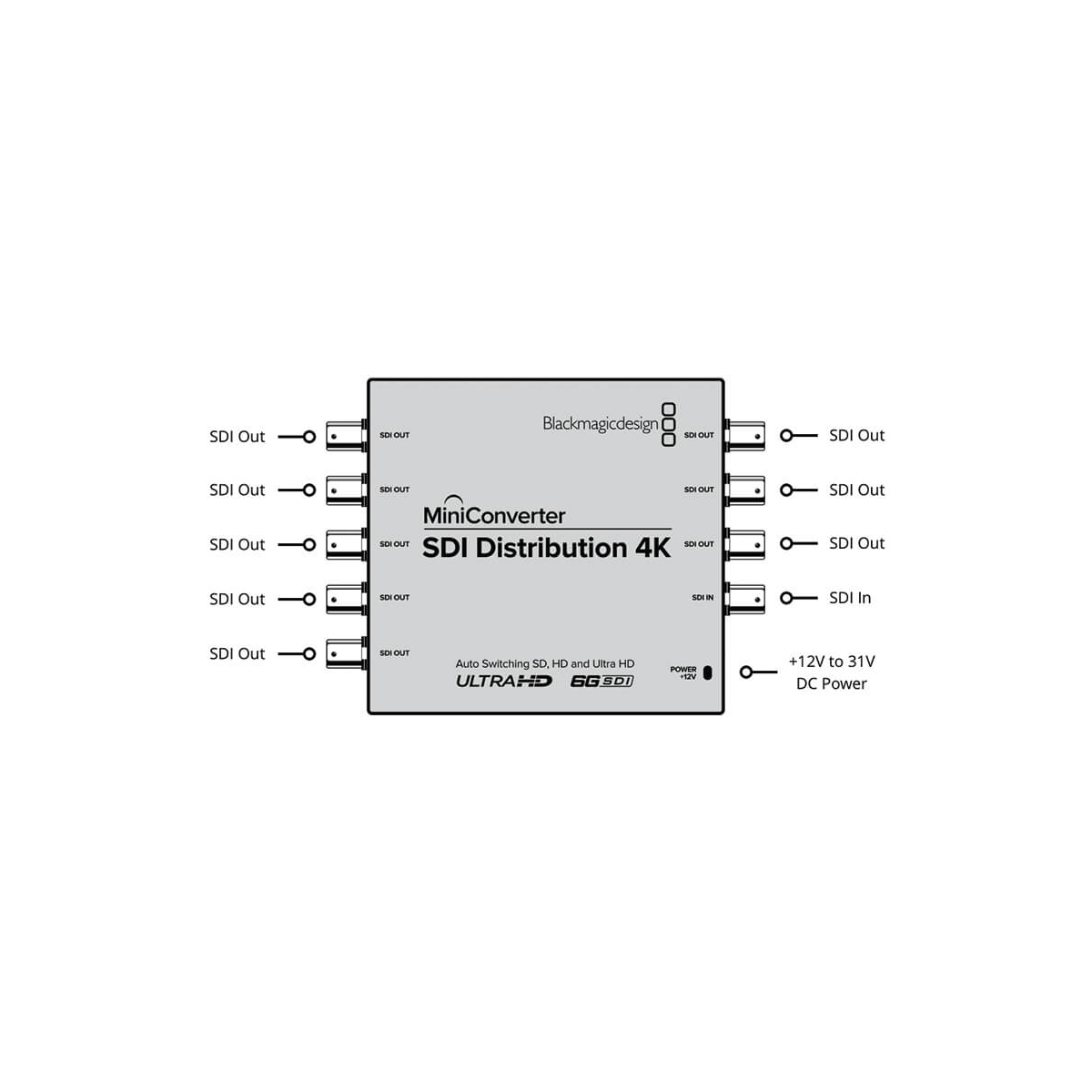

Blackmagic Design Mini Converter Specification Interfaces |
|
Input | 1 x BNC (6G-SDI) |
Output | 8 x BNC (6G-SDI) |
Other I/O | 1 x USB Type-A Firmware |
Standards |
|
Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M |
Reclocking | Yes |
Transmission |
|
Video Format | SDI (4:2:2 RGB, YUV) NTSC: 23.98/29.97 fps PAL: 25 fps 720p: 59.94/60 fps 1080i: 50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2KPsF: 23.98/24/25 fps DCI 2K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30 fps DCI 4K: 24 fps |
Maximum Sampling Rate | 48 kHz / 24-Bit |
Power |
|
Power Consumption | Power Supply: 12 to 30 VDC (4.8 W) |
Environmental |
|
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General |
|

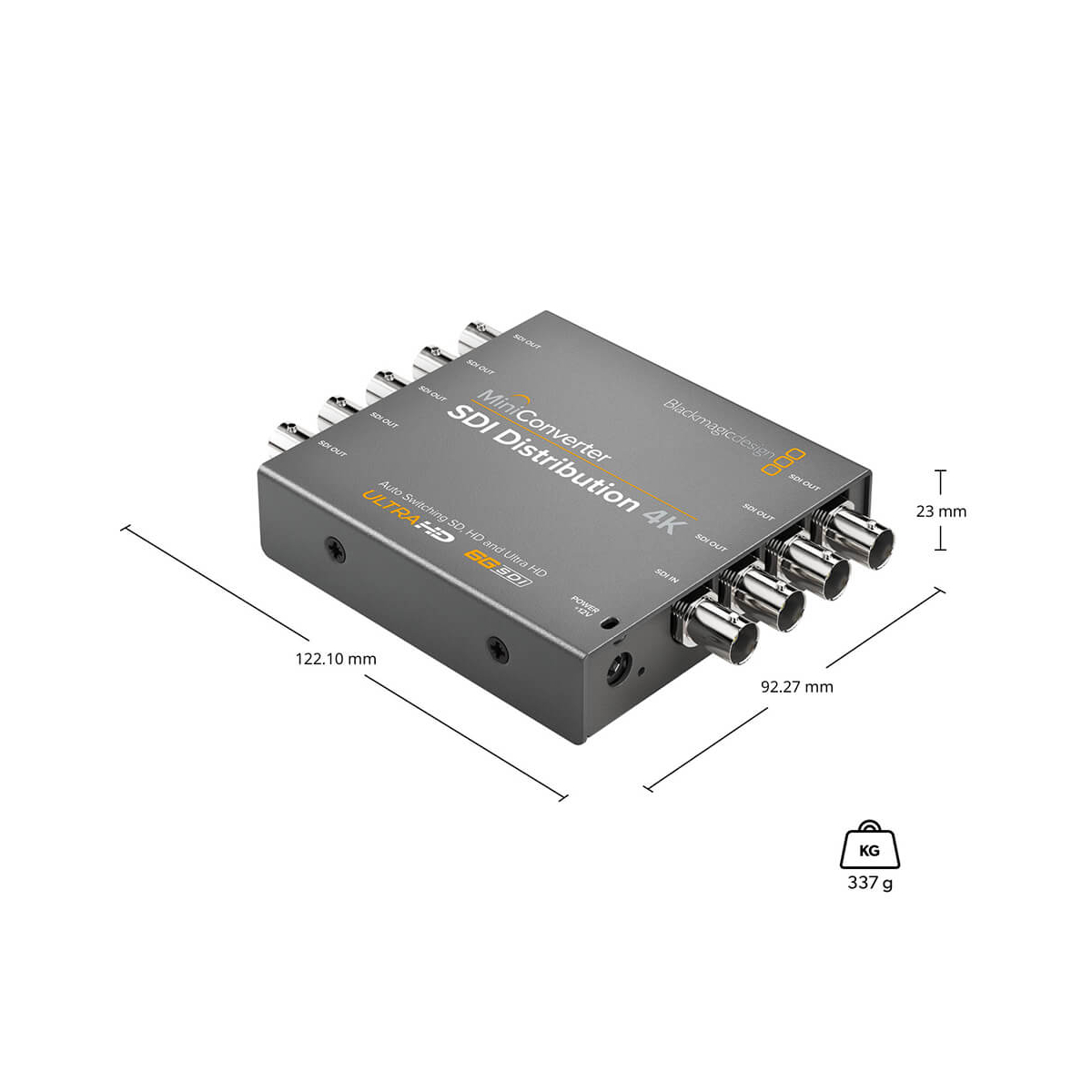

Dimensions | 4.8 x 3.6 x 0.9" / 12.2 x 9.2 x 2.3 cm |
Weight | 11.88 oz / 336.79 g |
