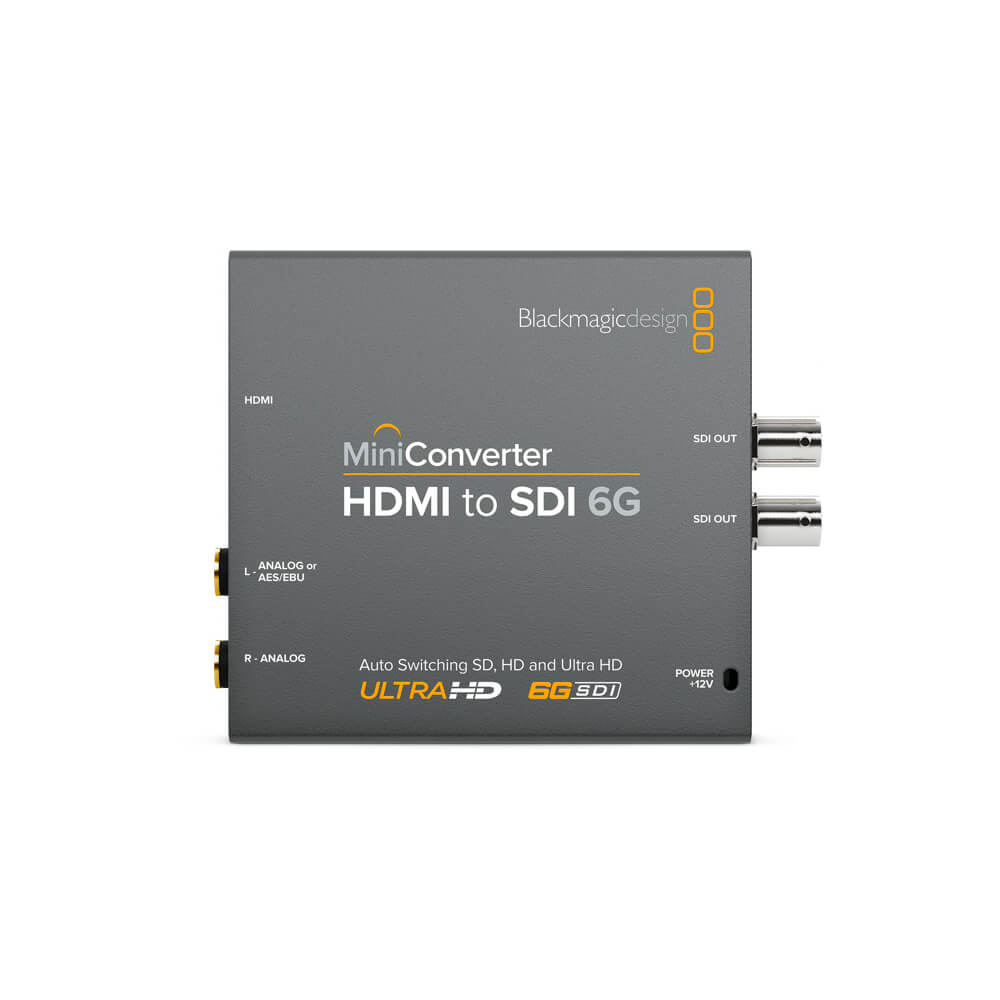

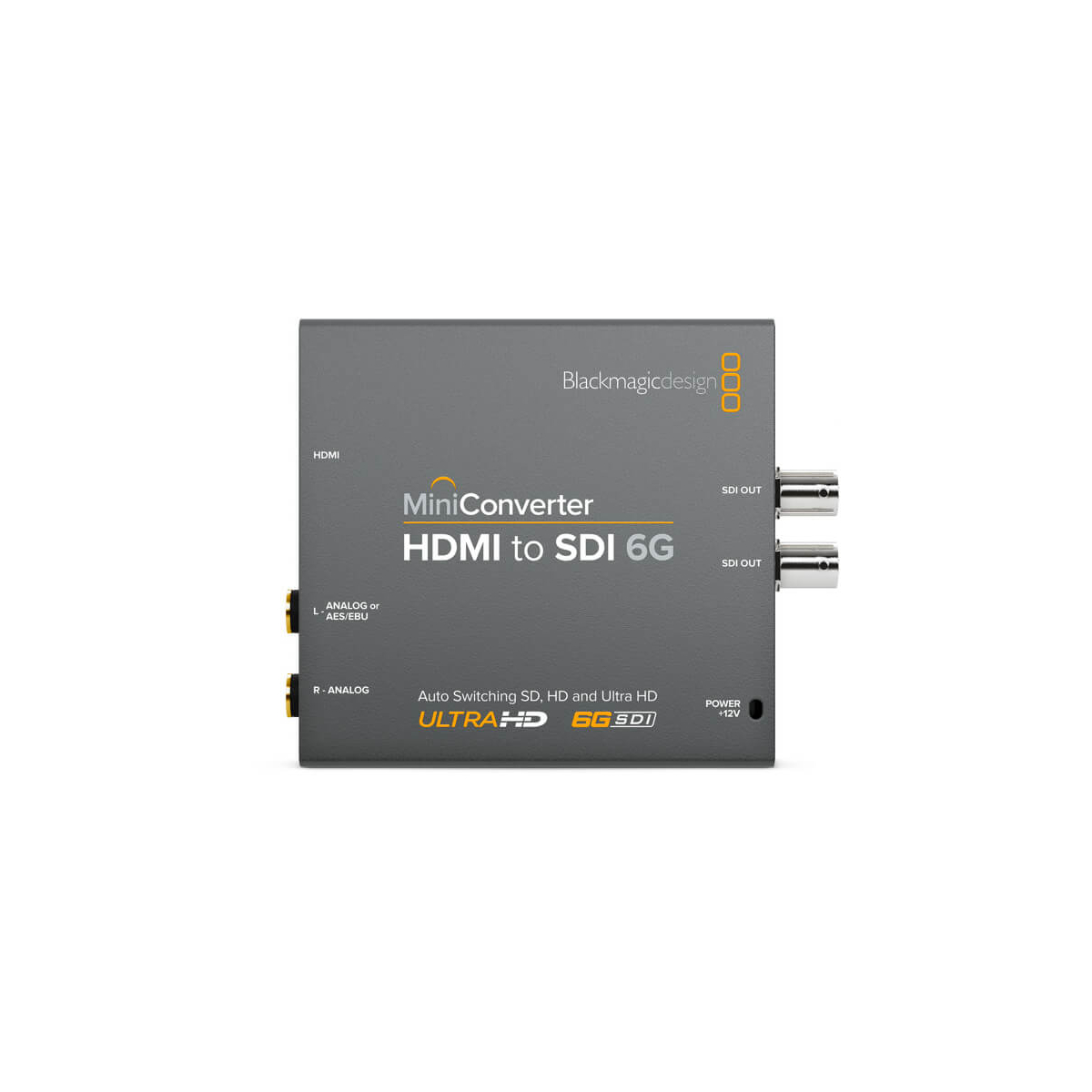

The Blackmagic Design HDMI to SDI 6G Mini Converter converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p. This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post-production, and professional AV applications.

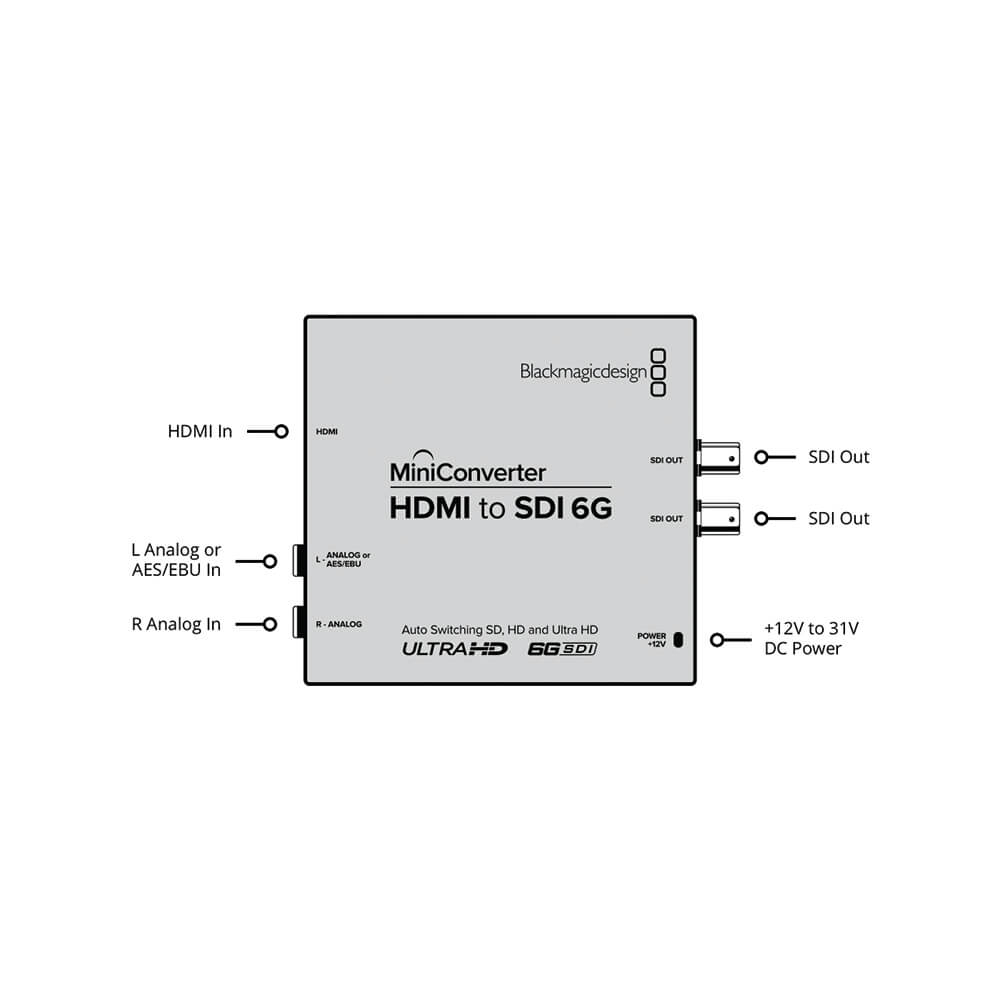

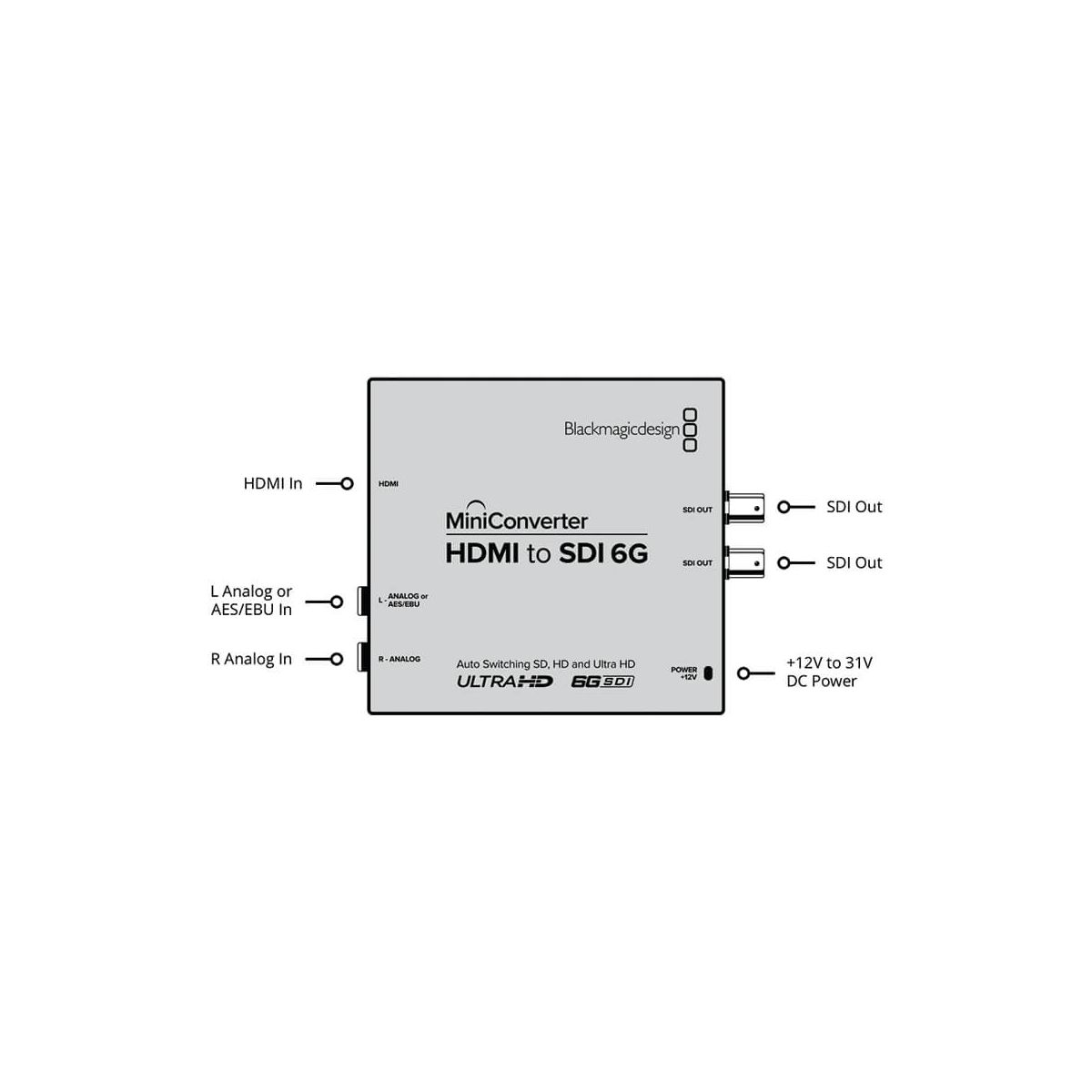

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4" input jacks which support four channels of AES/EBU digital audio or two channels of analog audio.

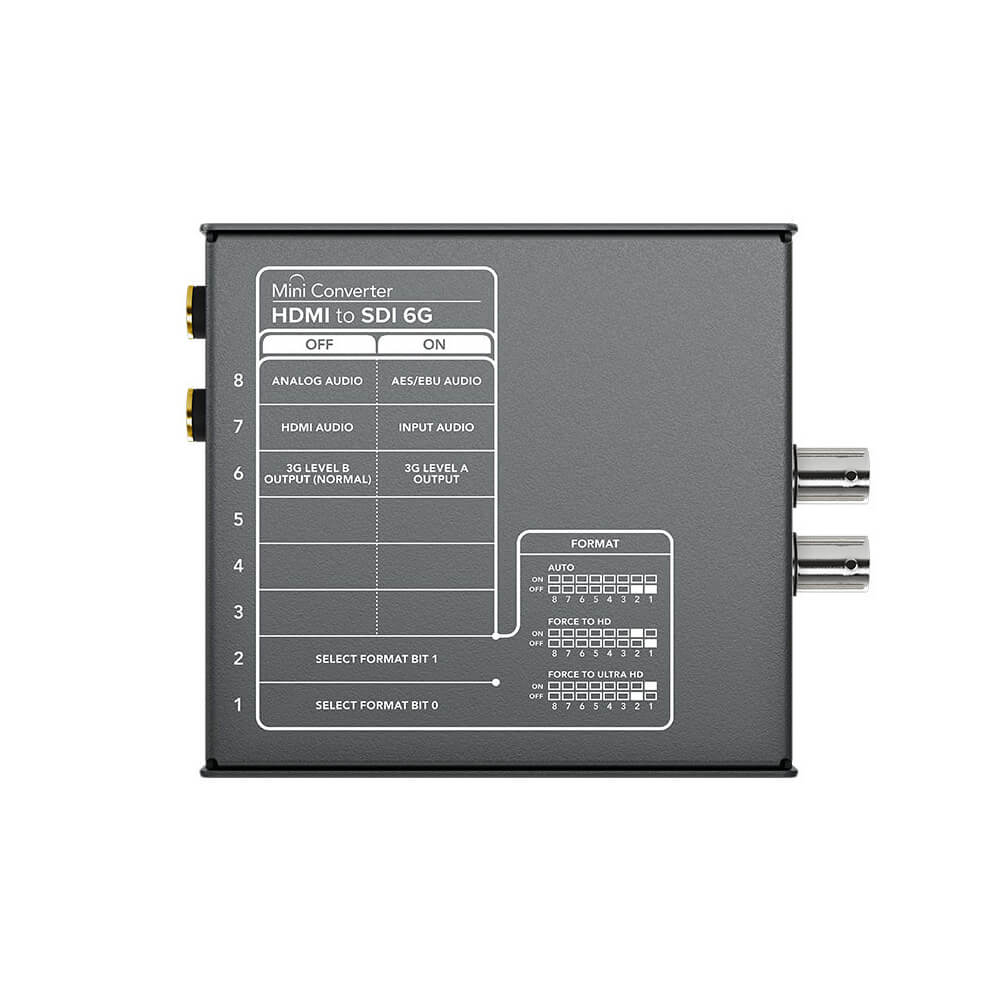

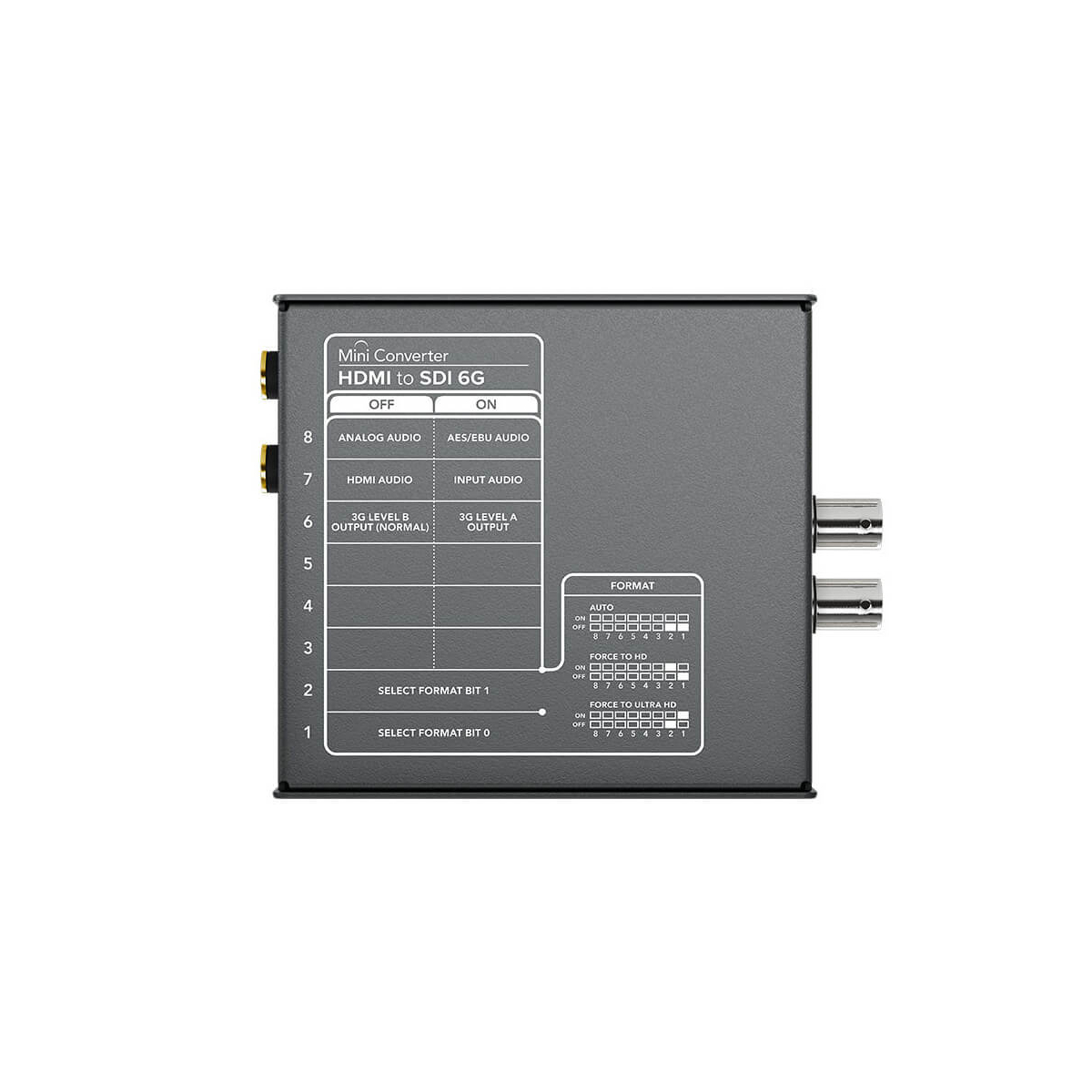

The Mini Converter's settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated.- The device is powered by an included 12V power supply and includes international socket adapters.
Blackmagic Design CONVMBHS Specification |
|
Video Input | 1 x HDMI, Type A |
Video Output | 2 x 6G-SDI |
Multi-Rate Support | Auto detection of SD, HD, 3G, or 6G-SDI signals |
Reclocking | Yes |
Audio Input | Analog: 2 channels with 1 x 1/4" jack per channel AES/EBU: 4 channels with 1 x 1/4" jack |
Format Support |
DCI 4K UHD 4K HD SD |
SDI Compliance | SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081 ITU-R BT.656 and ITU-R BT.601 |
SDI Video Rates | Switchable between SD, HD, Ultra HD and DCI 4K |
SDI Video Sampling | 4:2:2 |
SDI Color Precision | 4:2:2 |
SDI Color Space | YUV |
SDI Audio Sampling | 24-bit, 48 kHz |
SDI Auto Switching | Automatically detects SD, HD, or 6G-SDI |
HDMI Format Support |
UHD 4K HD SD |
HDMI Color Space | YUV and RGB |
HDMI Color Precision | 4:2:2 4:4:4 |
HDCP Compliance | No. HDMI input is unable to capture from copy-protected HDMI sources |
Format Conversion | HD down-conversion |
Settings Control | Mini switches or USB software |
Firmware Upgradeable | Via USB |
Power Supply | 12 VDC |
Power Consumption | 4.44 W |
Operational Voltage Range | 12 to 31 VDC |
Operating Temperature | 32 to 104°F / 0 to 40 °C |
Storage Temperature | -4 to 113°F / -20 to 45 °C |
Relative Humidity | 0 to 90% non-condensing |

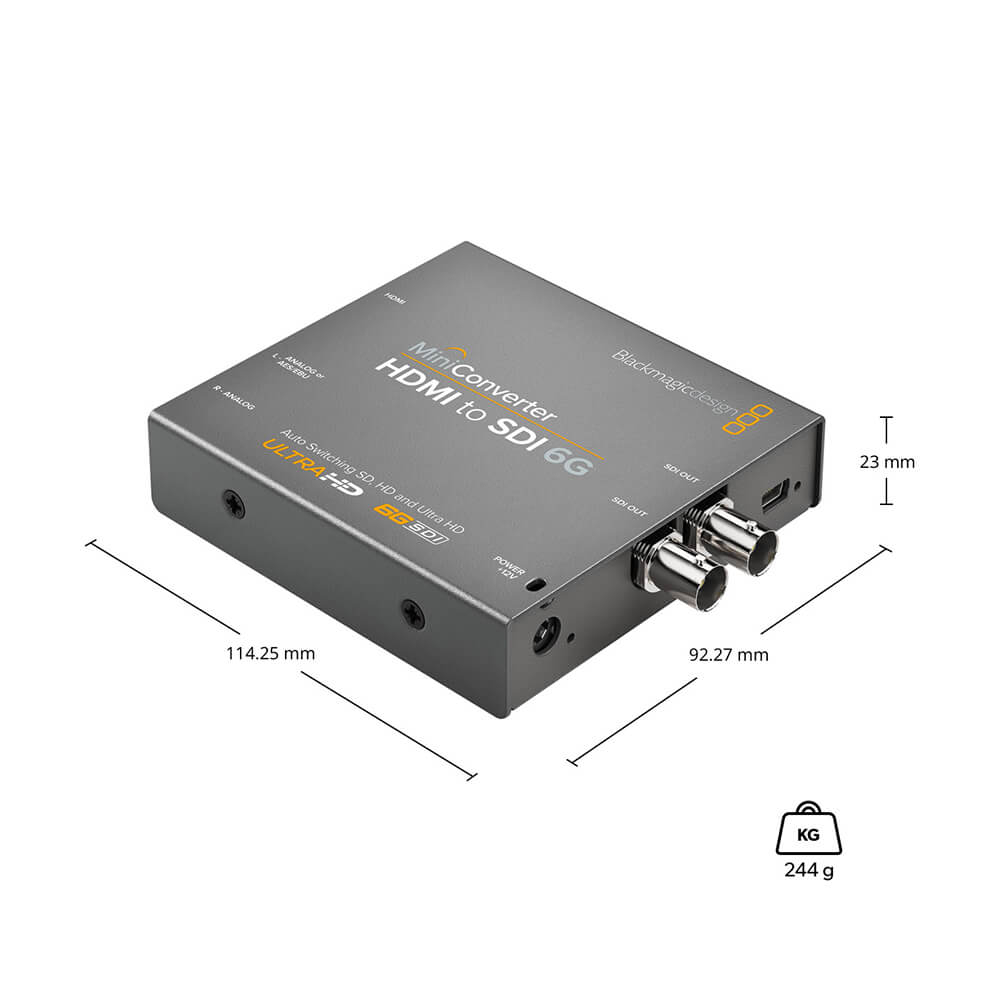

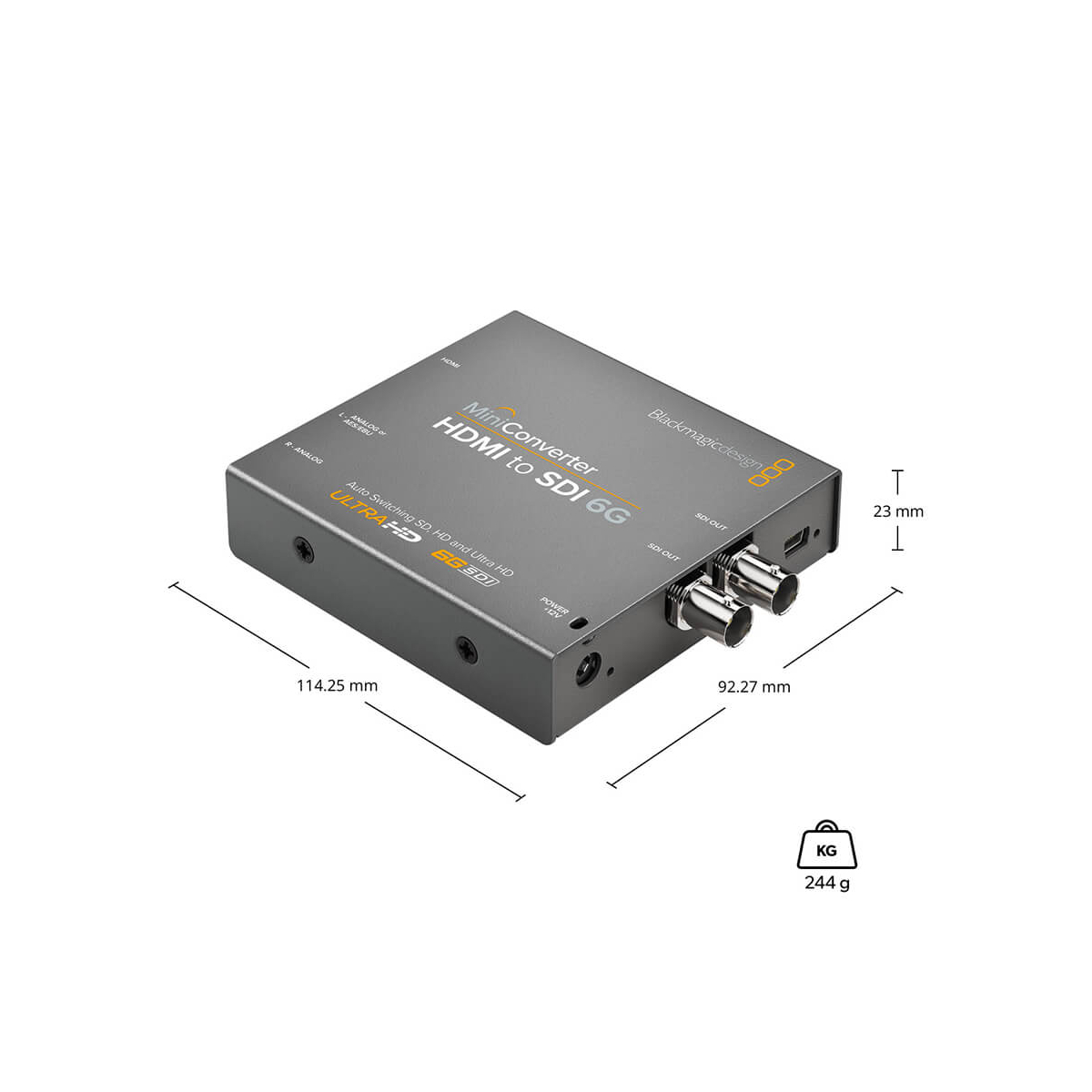

Dimensions | 4.49 x 3.63 x 0.90" / 11.40 x 9.22 x 2.29 cm |
Weight | 8.6 oz / 243.8 g |
