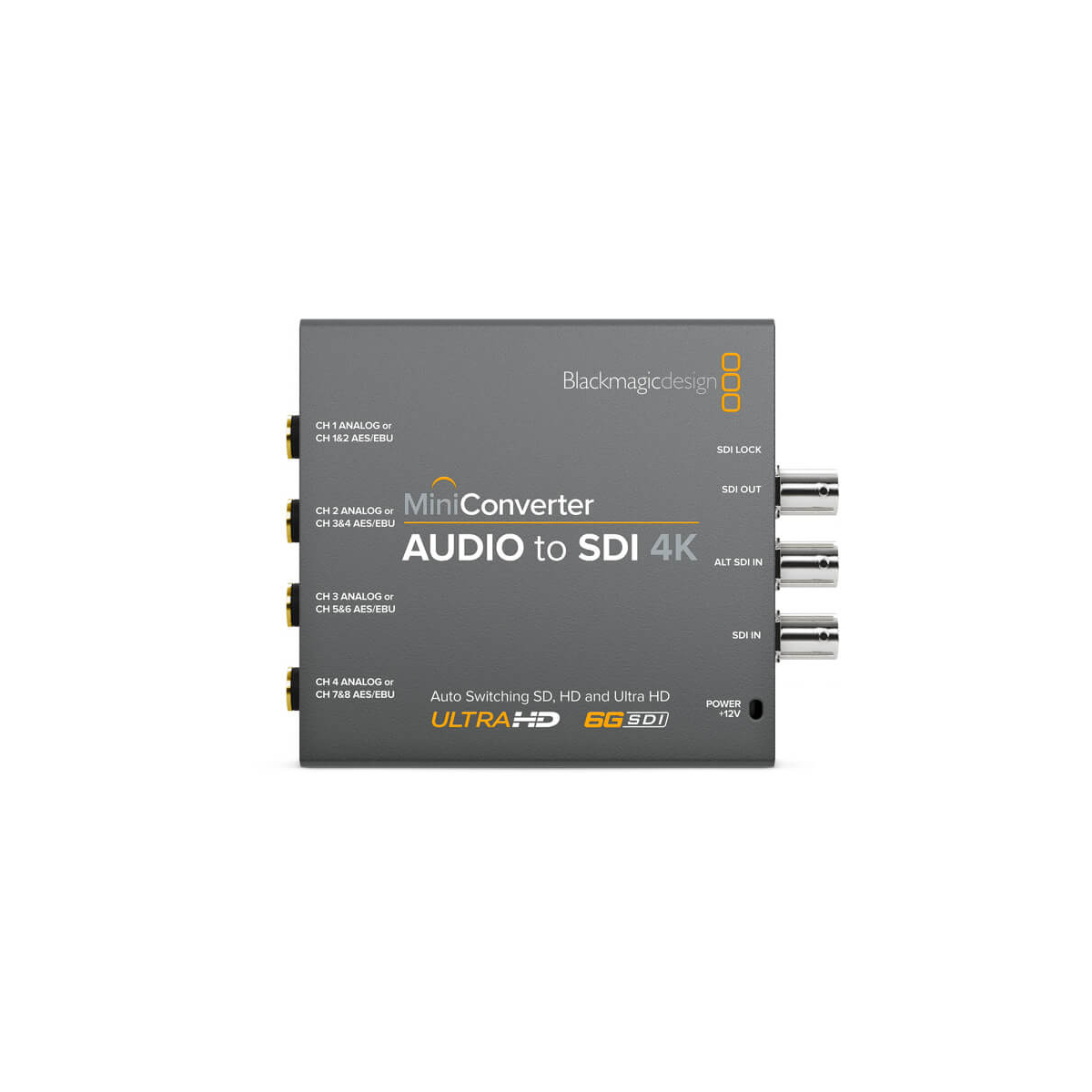

The Mini Converter Audio to SDI 4K from Blackmagic Design allows you to embed four channels of analog audio or eight channels of AES/EBU digital audio into any SDI video signal. It features a 6G-SDI input that accepts resolutions up to Ultra HD (3840x2160) and DCI 4K (4096x2160), and provides four 1/4" audio jack connectors for inputting and embedding your analog or digital audio channels. The SDI signal with embedded audio is output over a single 6G-SDI connector, with the resolution and frame rate matching the original input source.
Using 6G-SDI technology, the Mini Converter supports UHD and DCI 4K resolutions at up to 30 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals, automatically detecting and switching between the different formats. A redundant SDI input is provided as an optional back up; with the converter switching over if the main SDI input is lost.
The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12 VDC power supply is included with international socket adapters.
Additional Features
- 4:2:2 and 4:4:4 sampling and color precision
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656 and ITU-R BT.601
Blackmagic Design CONVMCAUDS Specification |
|
SDI Video Input | 1 x SD/HD/3G/6G-SDI 1 x SD/HD/3G/6G-SDI-SDI redundant input |
SDI Video Output | 1 x SD/HD/3G/6G-SDI |

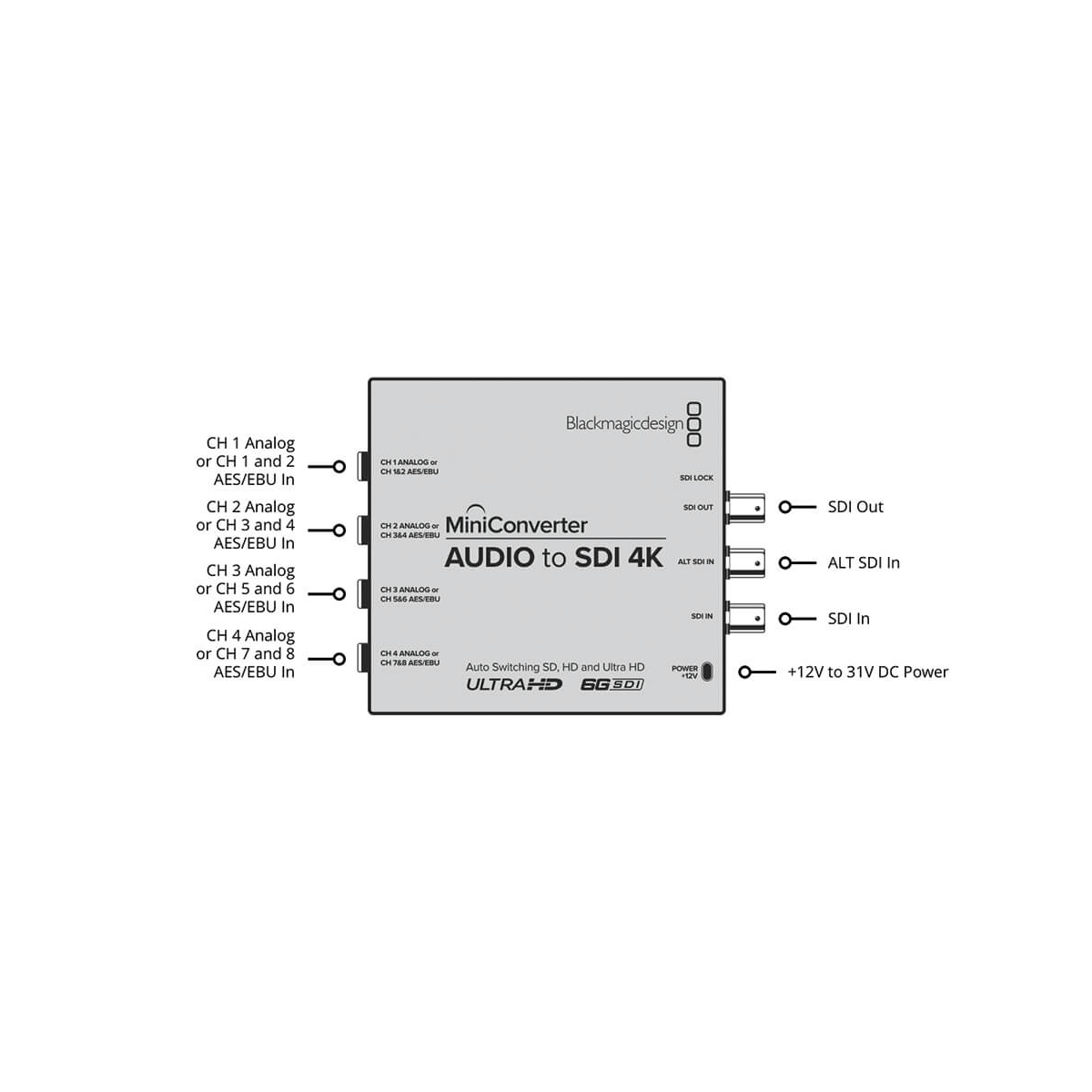

Audio Input | 4 x 1/4" jacks 4 channels of balanced analog audio, or 8 channels of AES/EBU balanced digital audio |
Multi-Rate Support | Auto detection of SD, HD, 2K, UHD, and 4K signals |
Reclocking | Yes |
Format Support |
SD: HD: 2K: UHD/4K |
SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656, and ITU-R BT.601 |
SDI Video Rates | Switchable between SD, HD, 3G, and 6G-SDI |
SDI Auto Switching | Automatically detects SD, HD, 3G, or 6G-SDI |
SDI Video Sampling | 4:2:2, 4:4:4 |
SDI Audio Sampling | 24-bit, 48 kHz |
SDI Color Precision | 4:2:2, 4:4:4 |
SDI Color Space | YUV, RGB |

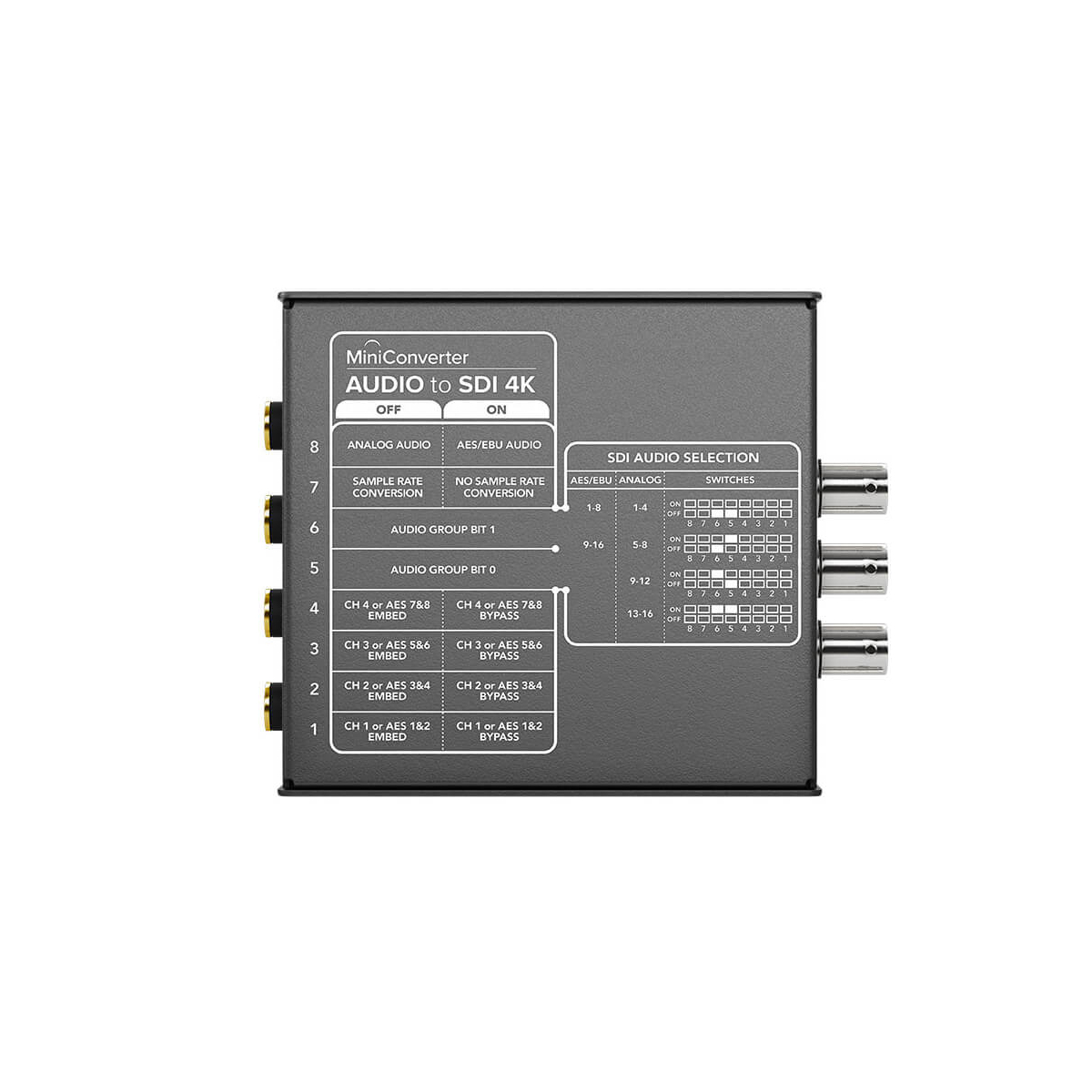

Settings Control | DIP switches or USB software for Mac OS X and Windows |
Firmware Upgradeable | Via USB 2.0 |
Power Supply | 12 VDC |
Power Consumption | 8.4 W |
Operational Voltage Range | 12 to 31 VDC |
Operating Temperature | 32 to 104° F (0 to 40 ° C) |
Storage Temperature | -4 to 113° F (-20 to 45 ° C) |
Relative Humidity | 0 to 90% non-condensing |

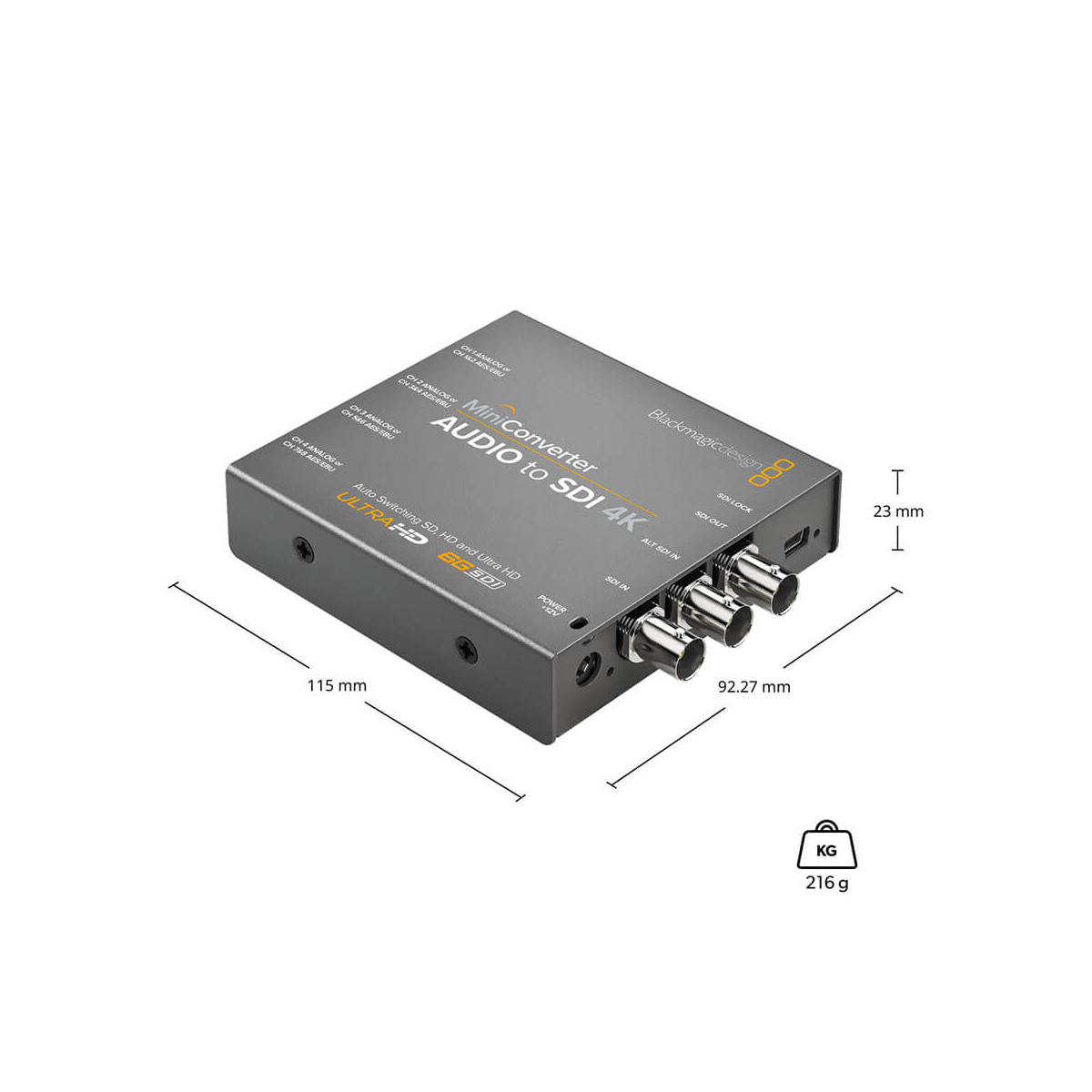

Dimensions | 4.52 x 3.63 x 0.90" (11.48 x 9.22 x 2.29 cm) |
Weight | 7.61 oz (215.74 g) |
