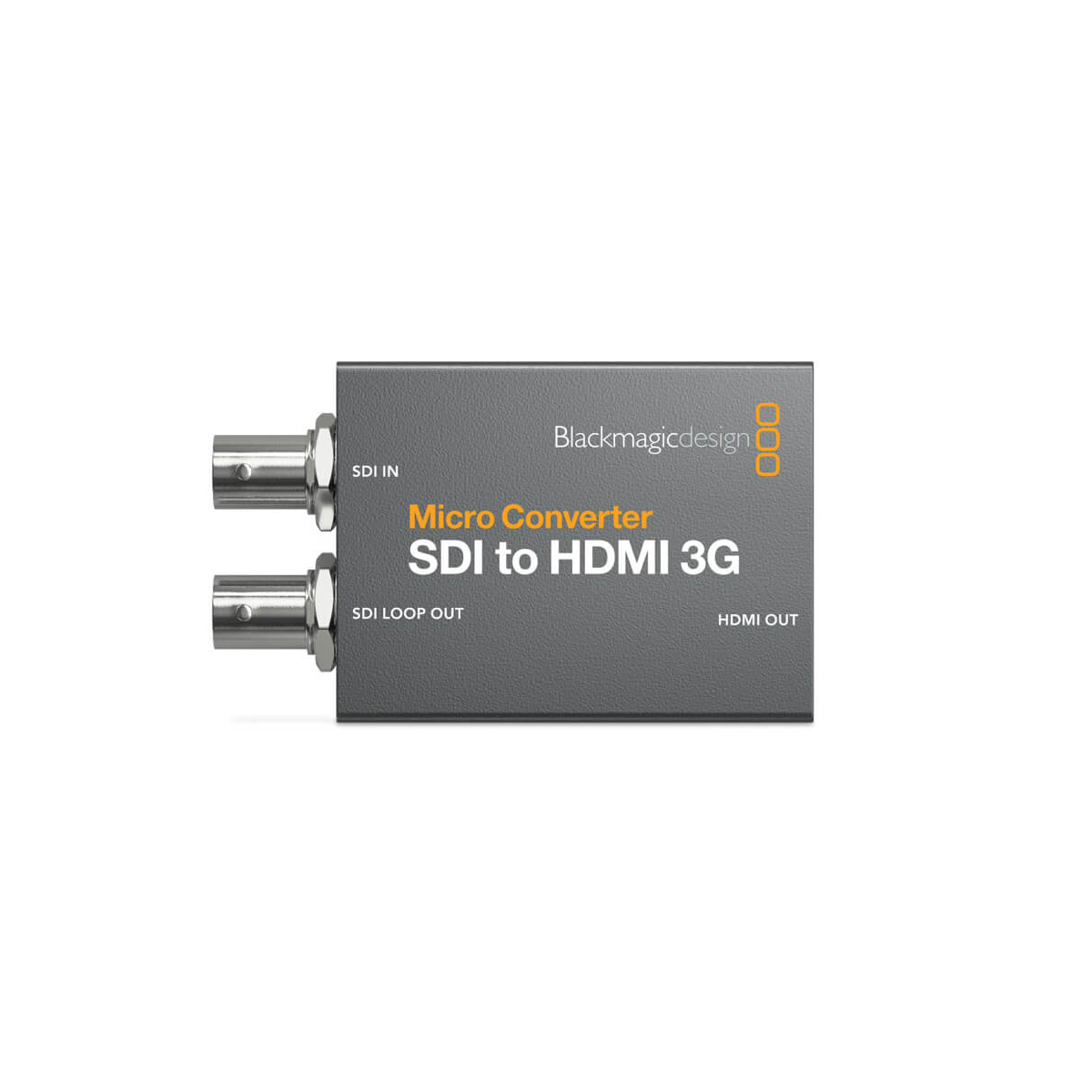

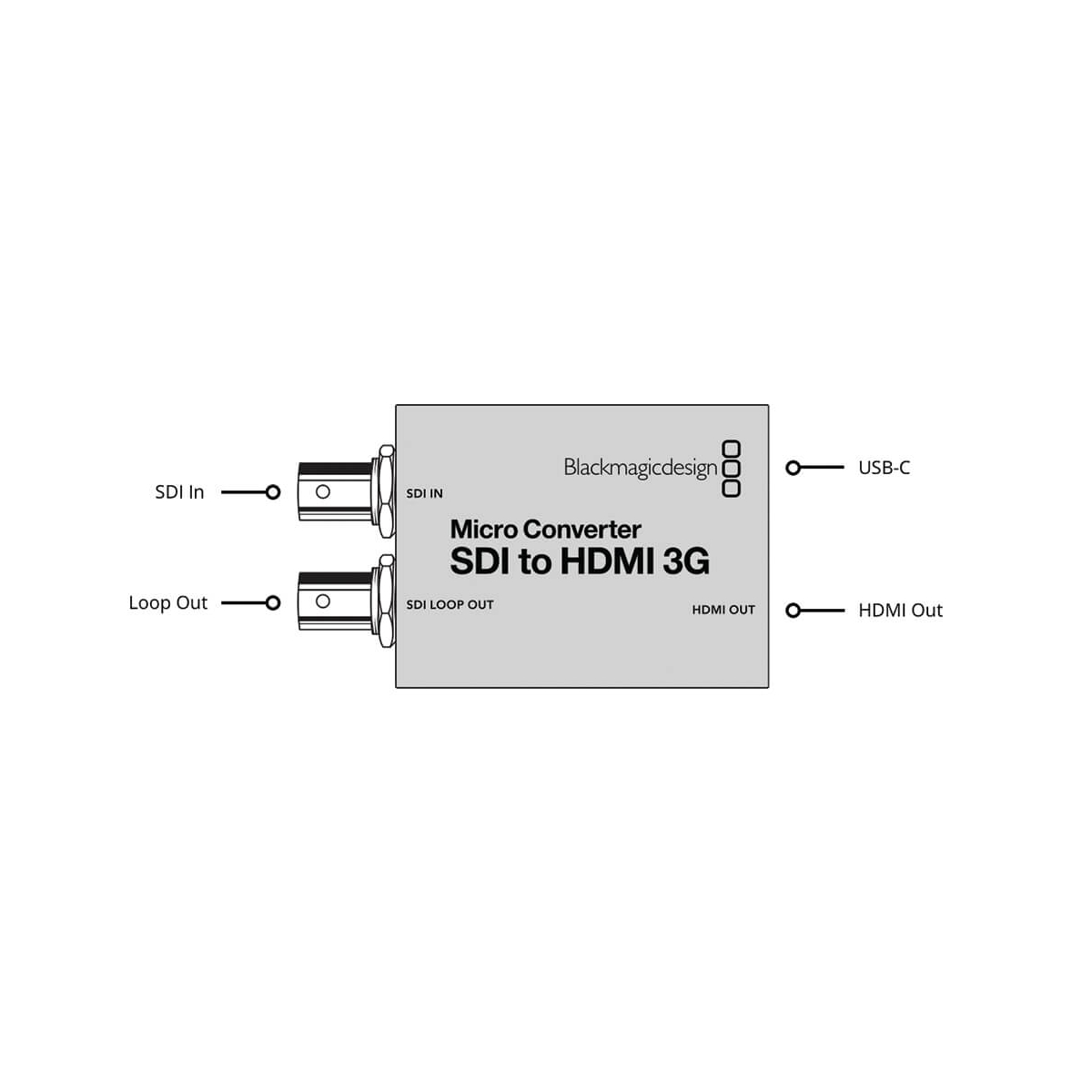

Super compact and rugged, the Micro Converter SDI to HDMI 3G from Blackmagic Design enables you to use HDMI-input monitors and televisions for production monitoring. This compact converter has one SD/HD/3G-SDI input, one HDMI output, and one SD/HD/3G-SDI loop output. It includes a 17-point 3D LUT that can be used to calibrate HDMI- or SDI-input monitors and it can output a LUT for viewing via the SDI loop output. The Micro Converter SDI to HDMI 3G also features automatic SD, HD, and Level A and B SDI detection and support for a wide range of pro broadcast resolutions including cine-style 48 fps.
This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the SDI to HDMI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.
Blackmagic Design Micro Converter Specification |
|
Video Inputs | 1 x BNC (3G-SDI) |
Audio Inputs | None |
Video Outputs | 1 x BNC (3G-SDI) (Loop Output) 1 x HDMI |
Audio Outputs | None |
Other I/O | 1 x USB-C Input |
Expansion Slots | None |
Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 59.94 fps 576i / 625 lines 50 fps |
Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
Embedded Audio | HDMI/SDI |
Standards |
|
Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
HDCP Support | Version 2.2 |
Hardware |
|
Tally Light | Yes |
Wi-Fi | None |
OS Compatibility | macOS 10.14.15 or Later Windows 10 *As of November, 2020: Check with manufacturer for the most up-to-date compatibility |
Power |
|
Power I/O | 1 x USB-C (4.4 to 5.2 VDC) Input |
Power Consumption | 2.5 W |
Environmental |
|
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% |
General |
|

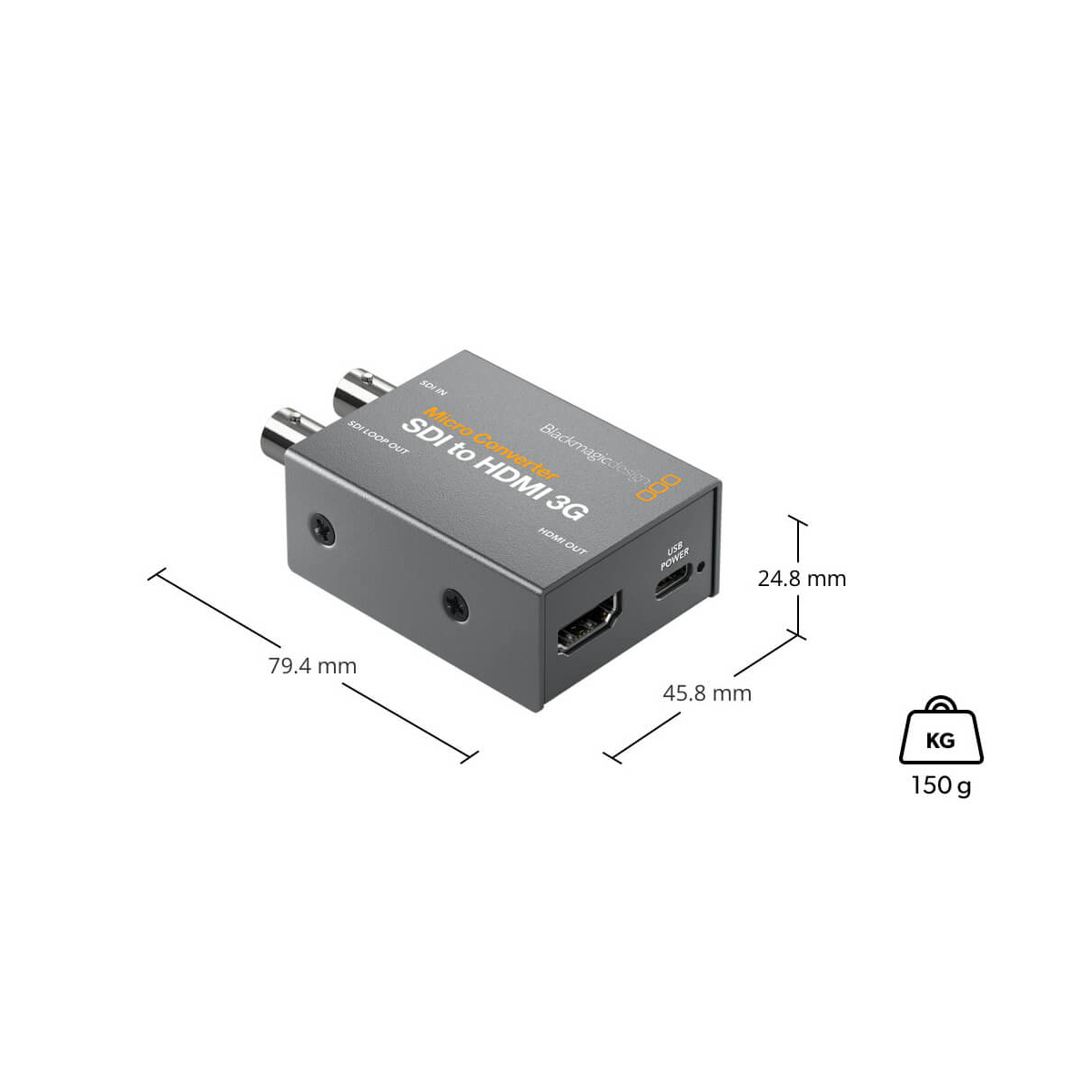

Dimensions | 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm |
Weight | 5.29 oz / 150 g |
