Super compact and rugged, the Micro Converter HDMI to SDI 3G from Blackmagic Design enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances using SDI cable. This compact converter has one HDMI input and two 3G-SD/HD/SDI outputs that can be set to Level A or B. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to 1080p60. The Micro Converter HDMI to SDI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

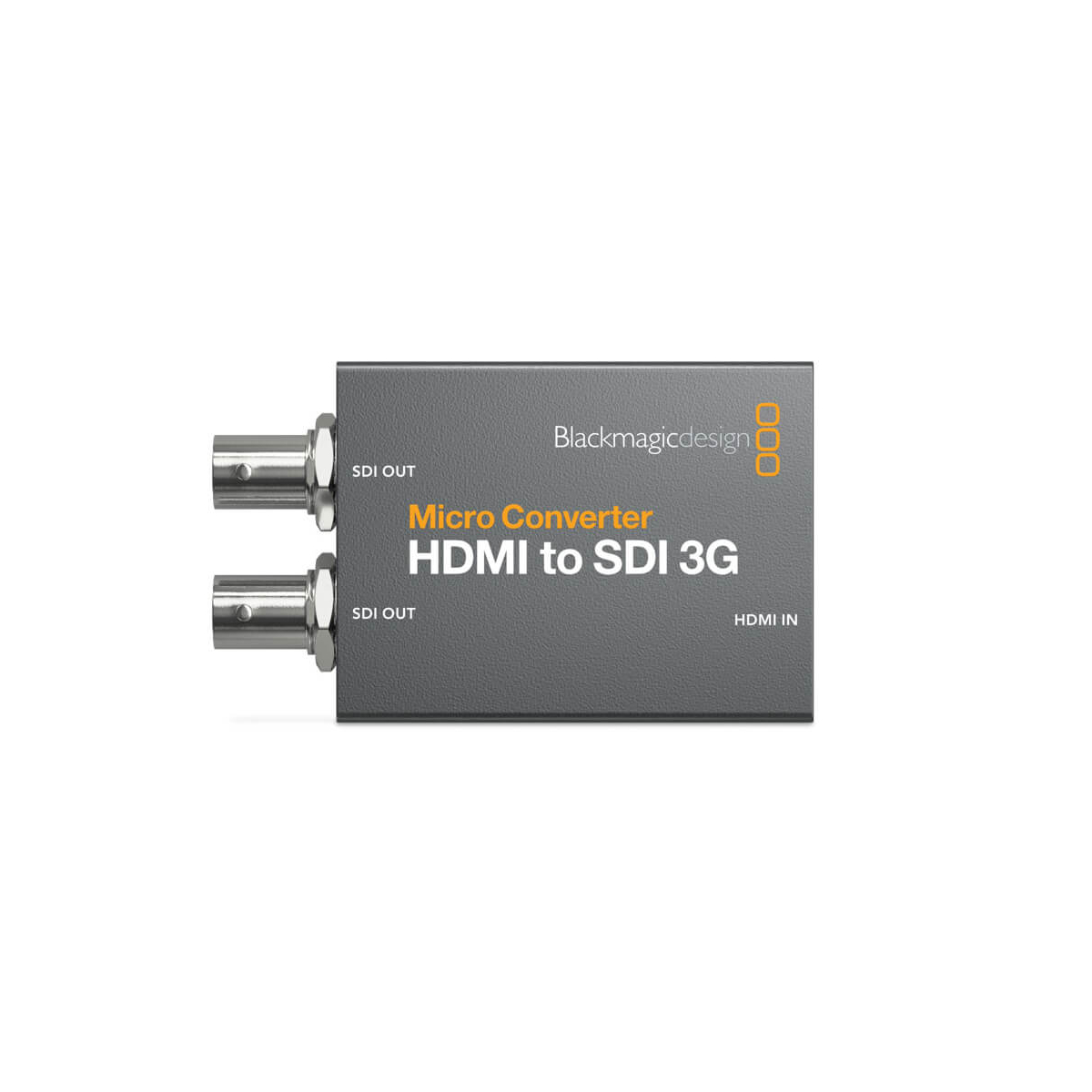

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the HDMI to SDI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.
Blackmagic Design Micro Converter Specification |
|

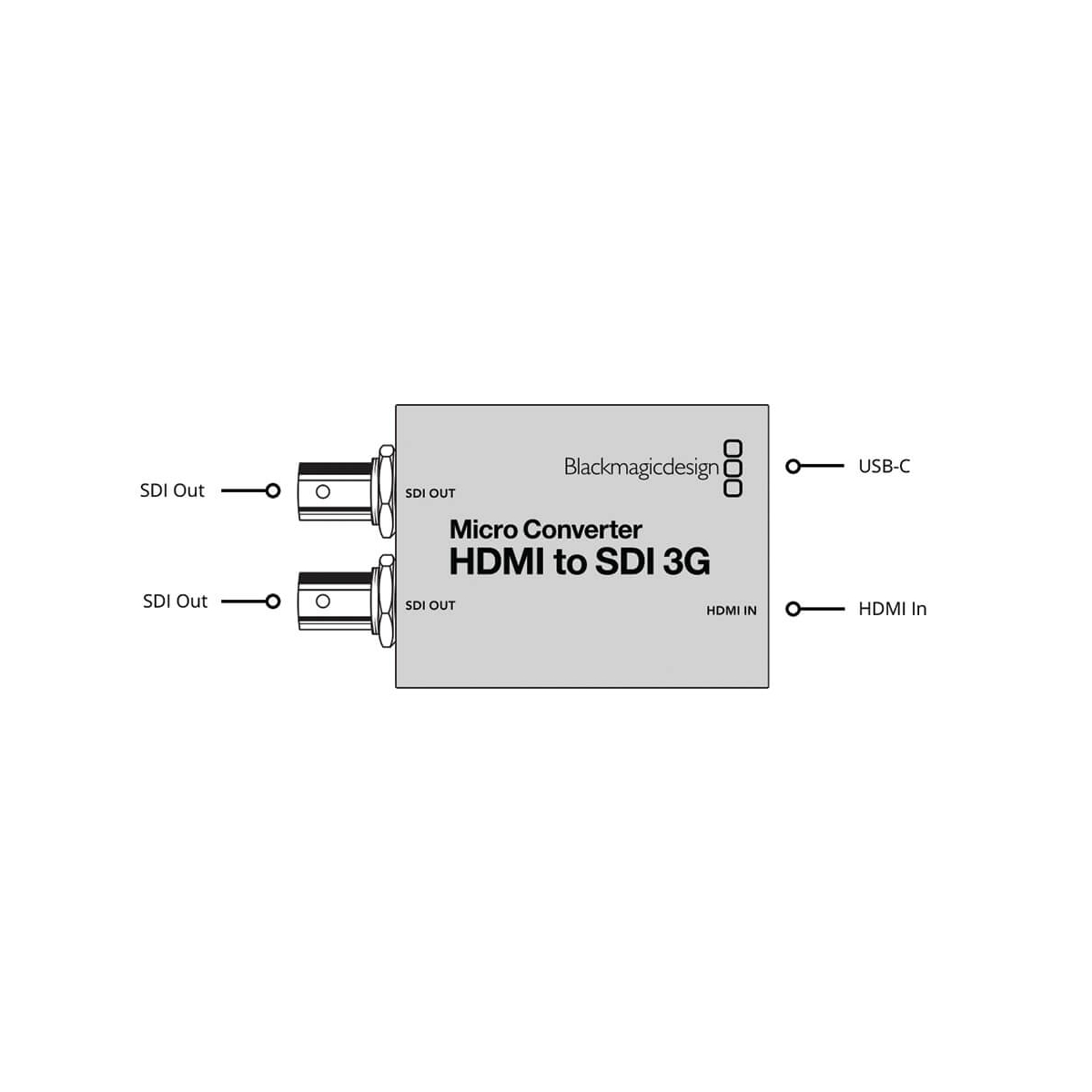

Video Inputs | 1 x HDMI (HDMI 2.0) |
Audio Inputs | None |
Video Outputs | 2 x BNC (3G-SDI) |
Audio Outputs | None |
Other I/O | 1 x USB-C Input |
Expansion Slots | None |
Input Video Format | HDMI (8/10-Bit 4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
Embedded Audio | HDMI/SDI |
Standards |
|
Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M |
HDCP Support | Version 2.2 |
Hardware |
|
Wi-Fi | None |
OS Compatibility | macOS 10.14.15 or Later Windows 10 *As of November, 2020: Check with manufacturer for the most up-to-date compatibility |
Power |
|
Power I/O | 1 x USB-C (4.4 to 5.2 VDC) Input |
Power Consumption | 2 W |
Environmental |
|
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% |
General |
|

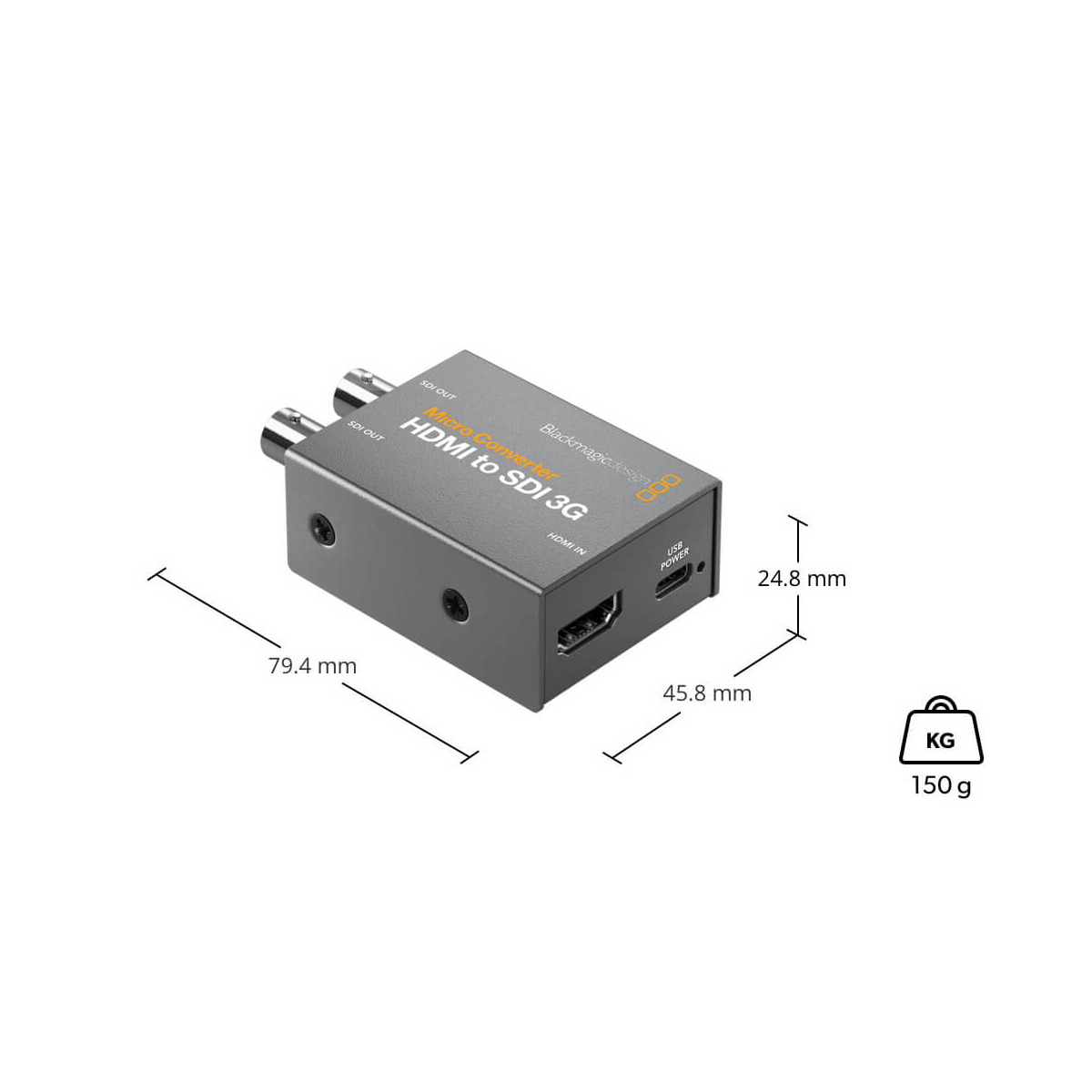

Dimensions | 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm |
Weight | 5.29 oz / 150 g |
