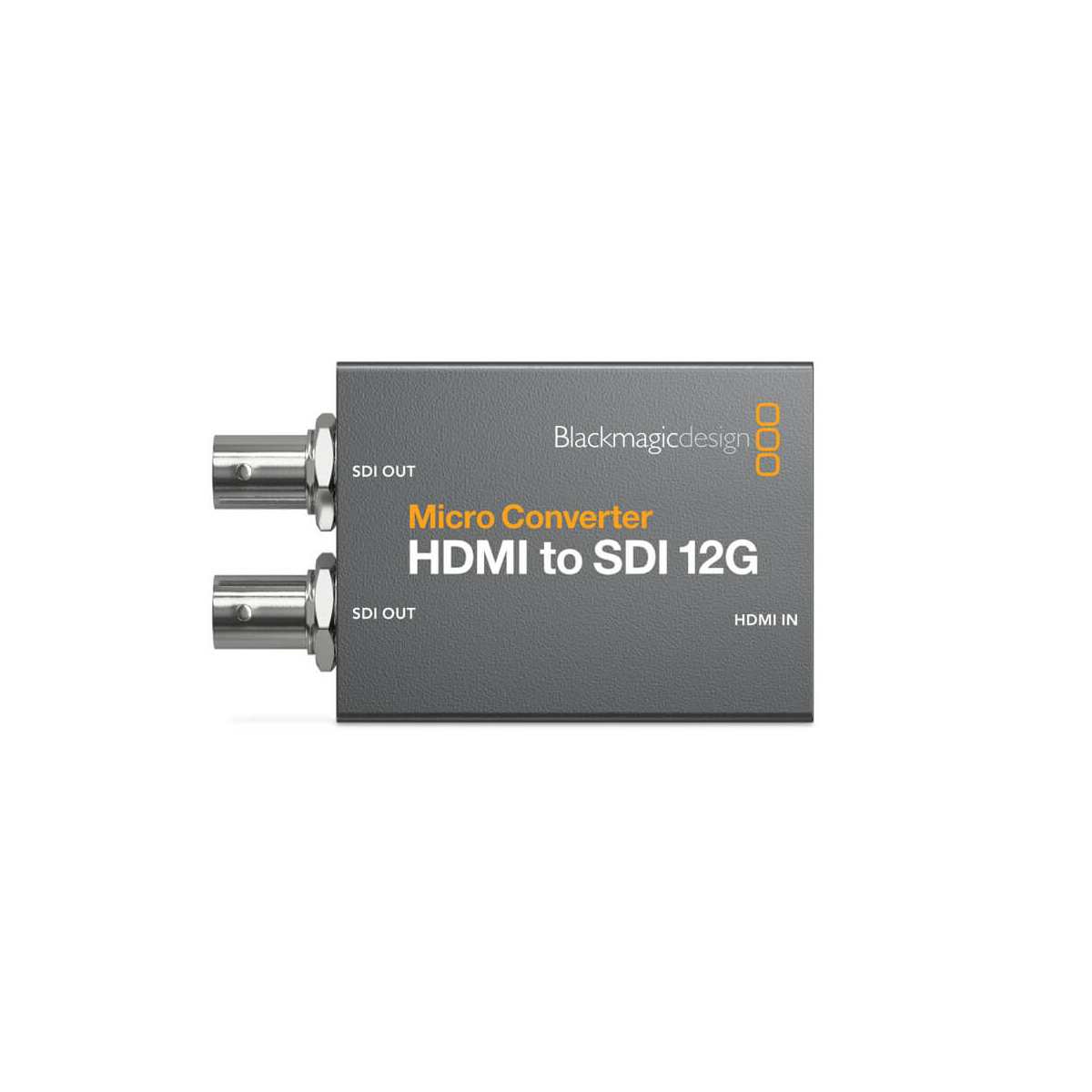

Super compact and rugged, the Micro Converter HDMI to SDI 12G from Blackmagic Design enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances, using an SDI cable. This compact converter has one HDMI input and two 12G-SDI outputs, and they can be set to Level A or B when using 3G-SDI. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to DCI/UHD 4K60.
The pocket-sized Micro Converter HDMI to SDI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, HDMI copy protection, and support for a wide range of pro broadcast resolutions, including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the HDMI to SDI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. A 5V power supply and an international plug adapter set is included with the converter.
Blackmagic Design Micro Converter Specification |
|

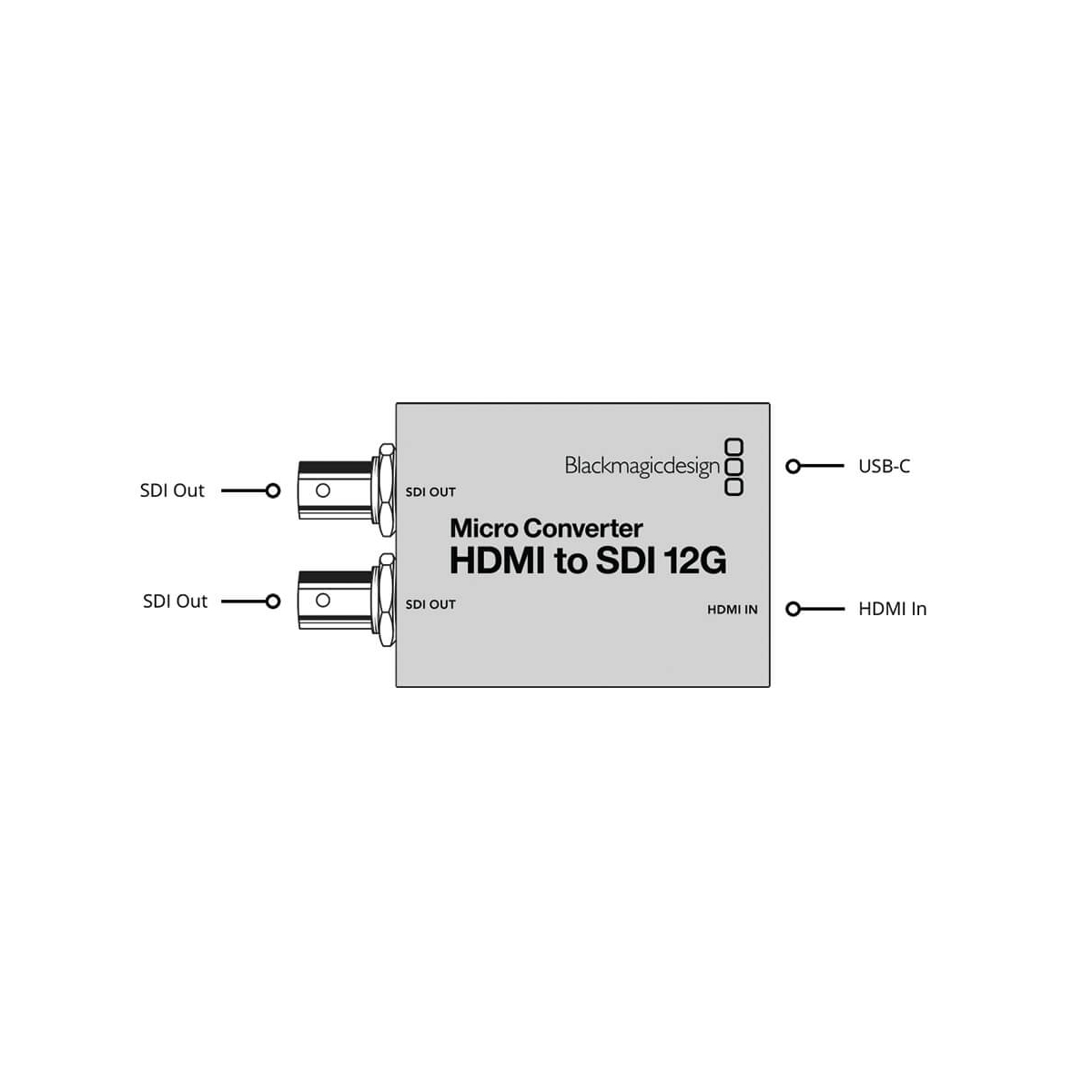

Video Inputs | 1 x HDMI (HDMI 2.0) Female |
Audio Inputs | None |
Video Outputs | 2 x BNC (12G-SDI) Female |
Audio Outputs | None |
Other I/O | 1 x USB-C Control, Service Input |
Expansion Slots | None |
Input Video Format | HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
Embedded Audio | HDMI/SDI |
Standards |
|
Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084 |
HDCP Support | Version 2.2 |
HDR Compatibility | Not Specified by Manufacturer |
Hardware |
|
Wi-Fi | None |
OS Compatibility | macOS 10.15.15 or Later macOS 11.1 or Later Windows 10 *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
Power |
|
Power I/O | 1 x USB-C (4.4 to 5.2 VDC) Input |
Power Consumption | Device: 4 W |
Environmental |
|
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
General |
|

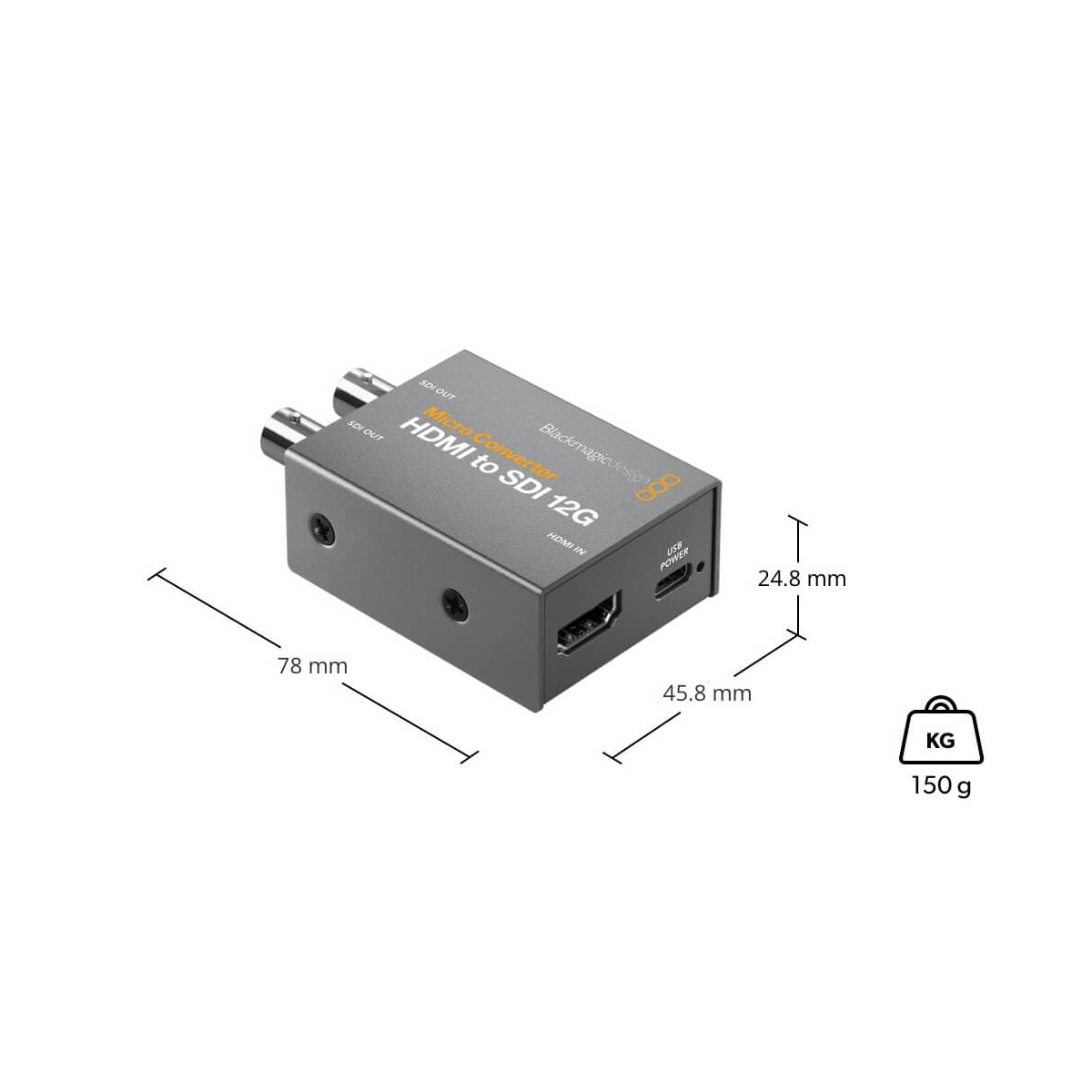

Dimensions | 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm |
Weight | 5.29 oz / 150 g |
