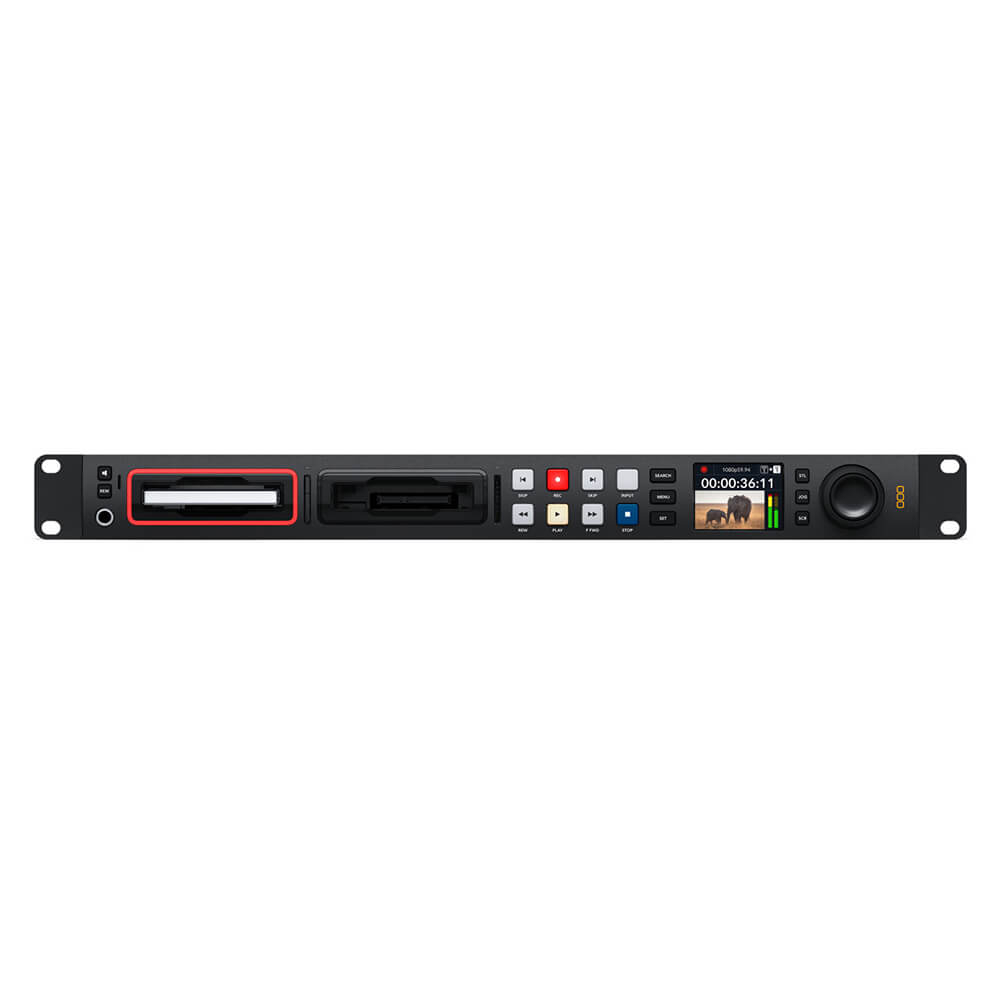

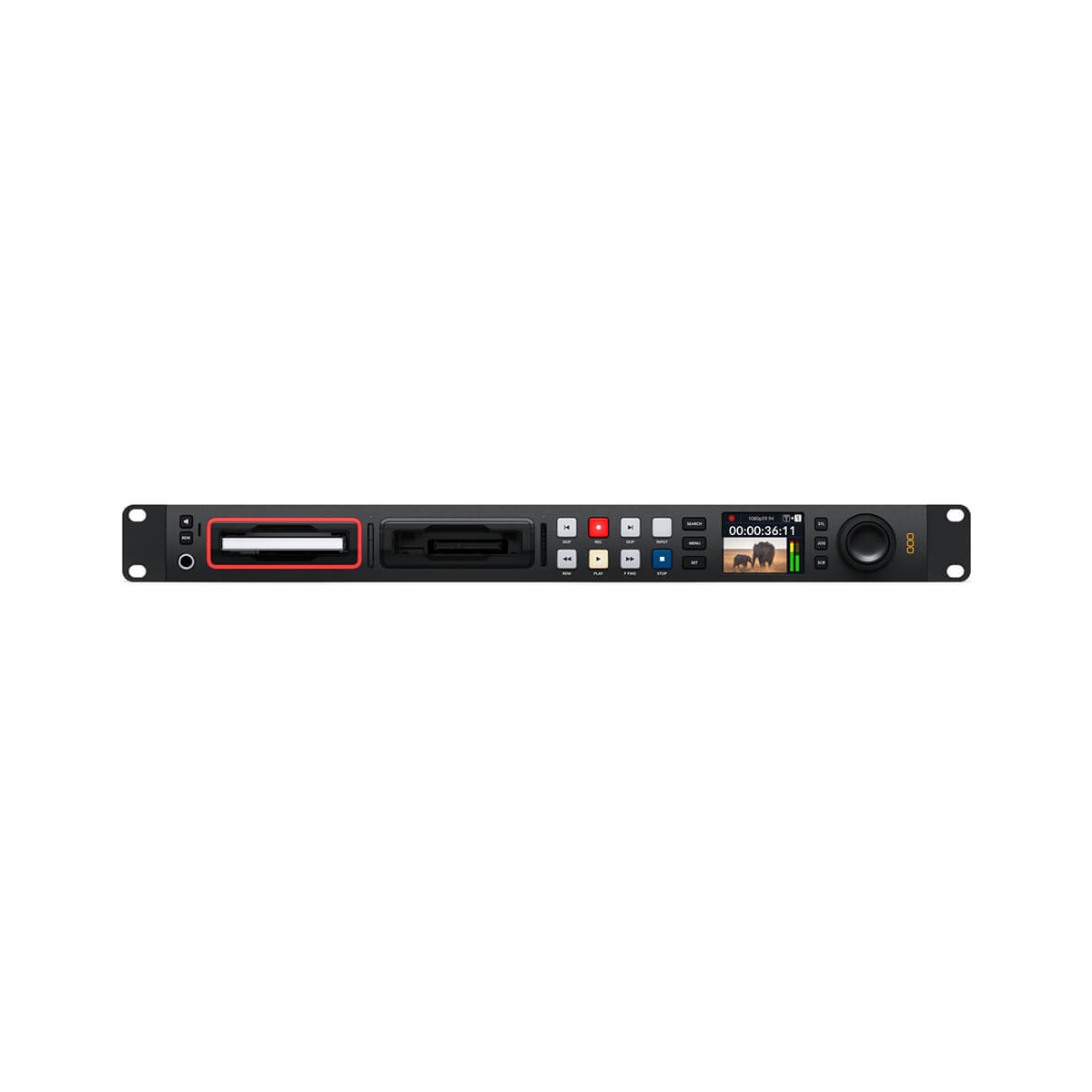

The Blackmagic Design HyperDeck Studio HD Pro is an updated 1 RU file-based deck that features the same functionality and control of professional tape decks in a digital design. This model updates the previous HyperDeck Studio models with several features including 6G-SDI support, two added SD card slots, USB Type-C recording output, timecode input and output, Ref input and output, a redesigned jog/shuttle wheel, Gigabit Ethernet, and a speaker on the front.
The Studio HD Pro records uncompressed video with 10-bit 4:2:2 color using either ProRes or DNxHD codecs, as well as the H.264 compression format. With two SSD slots and two SD card slots, you can record almost endlessly as one SSD becomes full, recording automatically continues on to the other, and the SD card slots are also hot-swappable. The Studio HD features one 6G-SDI input, two 6G-SDI outputs, a loop-through SDI output, a dedicated SDI monitor output, and there's also one HDMI input and one HDMI output that can all output up to DCI 4K. The ports autodetect the signal and will adjust to the SD, HD, or 6G-SDI format input. The 3-pin XLR timecode input and output allow you to sync timecode with other devices, and it also allows you to daisy-chain with other devices to create a timecode sync chain.

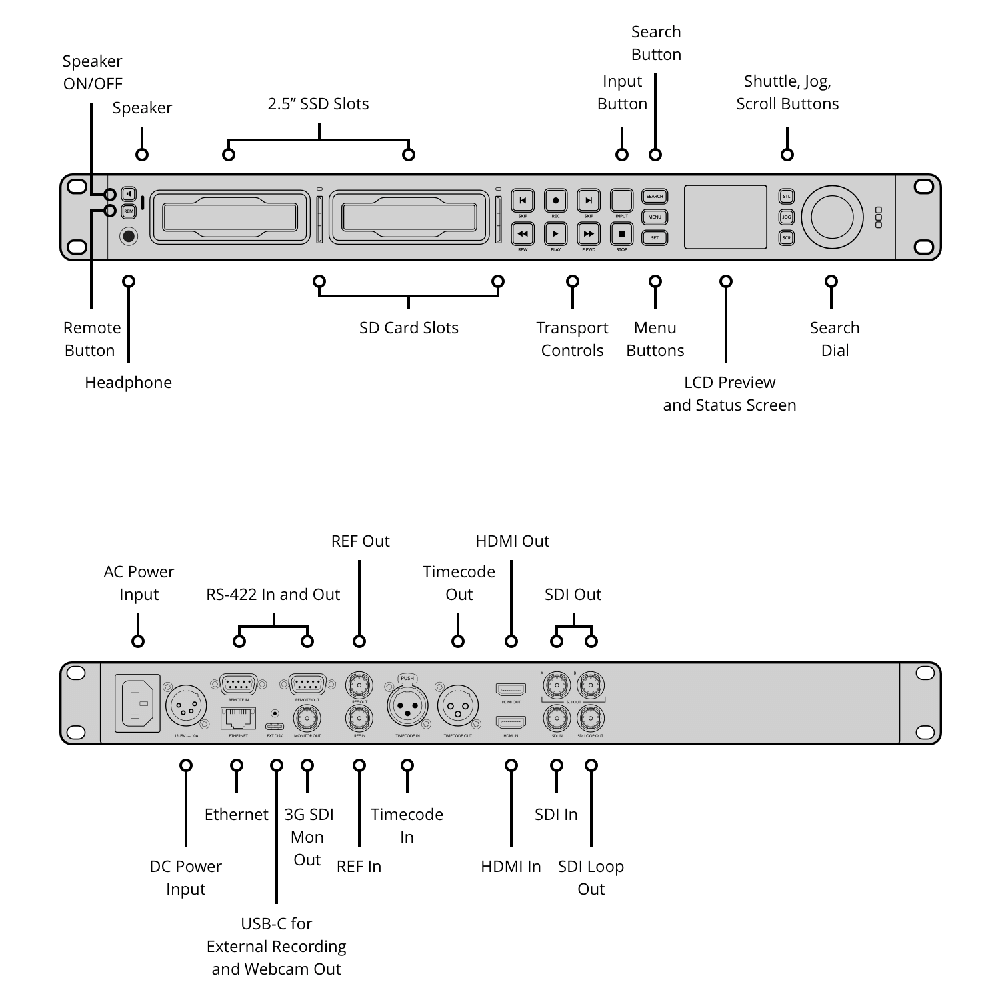

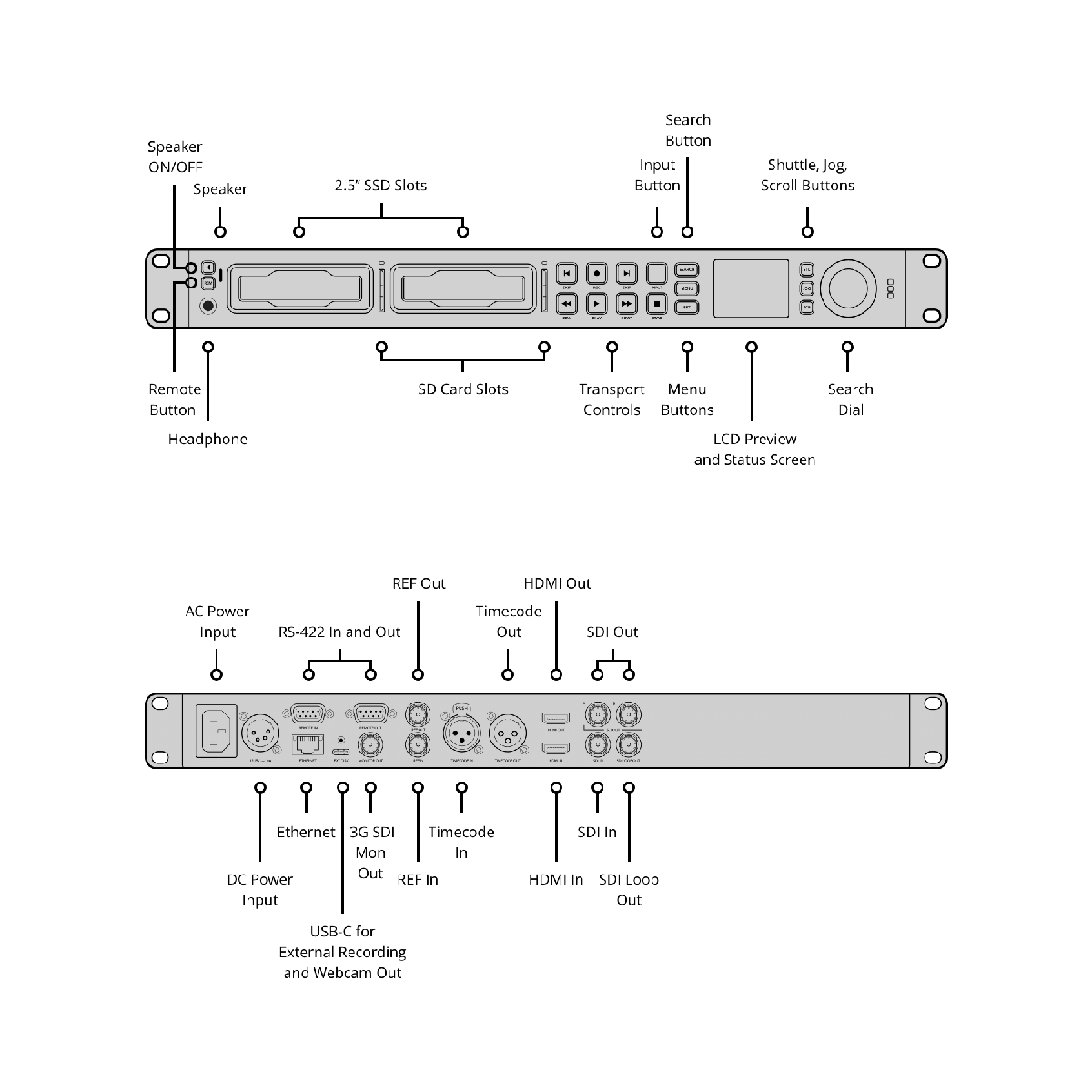

The Studio HD Pro is a 1 RU rack-mountable unit, with built-in rack mount ears. It features illuminated front panel button control and a heavy jog/shuttle wheel for analog scrubbing. RS-422 control is supported for external control using the Ref input and output ports. The USB Type-C port allows you to record to external disks, and you can also use it to plug into a computer to use as a source for a web stream. An integrated LCD on the front panel allows you to monitor the video and display timecode and transport information.
Blackmagic Design HyperDeck Studio HD Pro Specification |
|
Video Input | 1 x BNC 6G-SDI 1 x HDMI 2.0 |
Video Output | 1 x BNC SDI Loop-Through 2 x BNC 6G-SDI 1 x SDI Monitor Output 1 x HDMI 2.0 |
Embedded Audio |
Input: Output: |
Audio Output Connector | 1 x 1/4" Headphone Jack |
Network | 1 x RJ45 1 Gb/s |
SSD Interface | 2 x 2.5" SATA 3Gb/s |
Reference Input | 1 x BNC |
Reference Output | 1 x BNC |
Timecode Input | 1 x BNC |
Timecode Output | 1 x BNC |
Device Control | 1 x RS-422 Input 1 x RS-422 Output |
Display Size | 2.2" LCD |
Speaker | Mono |
Format Support |
DCI/UHD 4K 2160p: 30/29.97/25/24/23.98 2K 1440p: 30/29.97/25/24/23.98 |
Supported Operating Systems | macOS 10.15 Catalina macOS 11.1 Big Sur or Later Windows 10, 64-Bit |
Other Outputs | 1 x USB Type-C for External Recording or Webcam Use |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2084, and SMPTE 2108-1 |
SDI Metadata Support | HD RP188 and closed captioning CEA‑708 HDR Metadata supported on SDI |
Sampling | Video: 4:2:2 YUV Audio: 24-Bit, 48 kHz |
Color Precision | 10-Bit |
Color Space | REC 601, REC 709, REC 2020 3D LUTS can be Applied to SDI Monitor Out |
Multiple Rate Support | Auto-Detection of SD, HD and 6G-SDI |
HDR Support | Hybrid Log Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
Codecs Supported |
ProRes HQ QuickTime Playback only of: DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p Formats up to 30 fps H.264 SDI 4:2:2 10-Bit, H.264 High 4:2:0 8-Bit, H.264 Medium 4:2:0 8-Bit, H.264 Low 4:2:0 8-Bit for all Progressive Formats up to 1080p60 |
Media Slots | 2 x 2.5" SSD 2 x SD Card |
Rack Size | 1 RU |
Power Input | 1 x 110 to 240 VAC, 50/60 Hz Power Input 1 x 12 VDC, 4-Pin XLR Input |
Power Consumption | 100 W Maximum |
Operating Temperature | 32to 104°F/ 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Relative Humidity | 0 to 90% Non-Condensing |

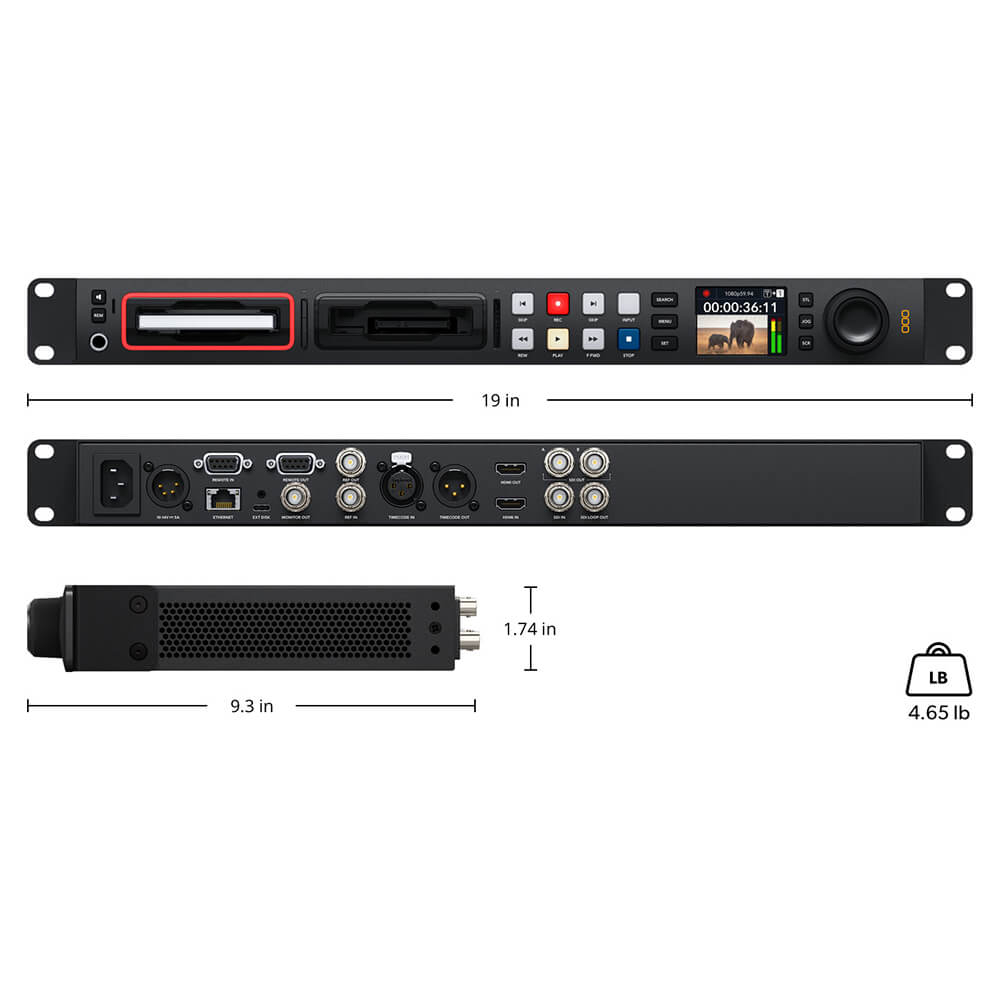

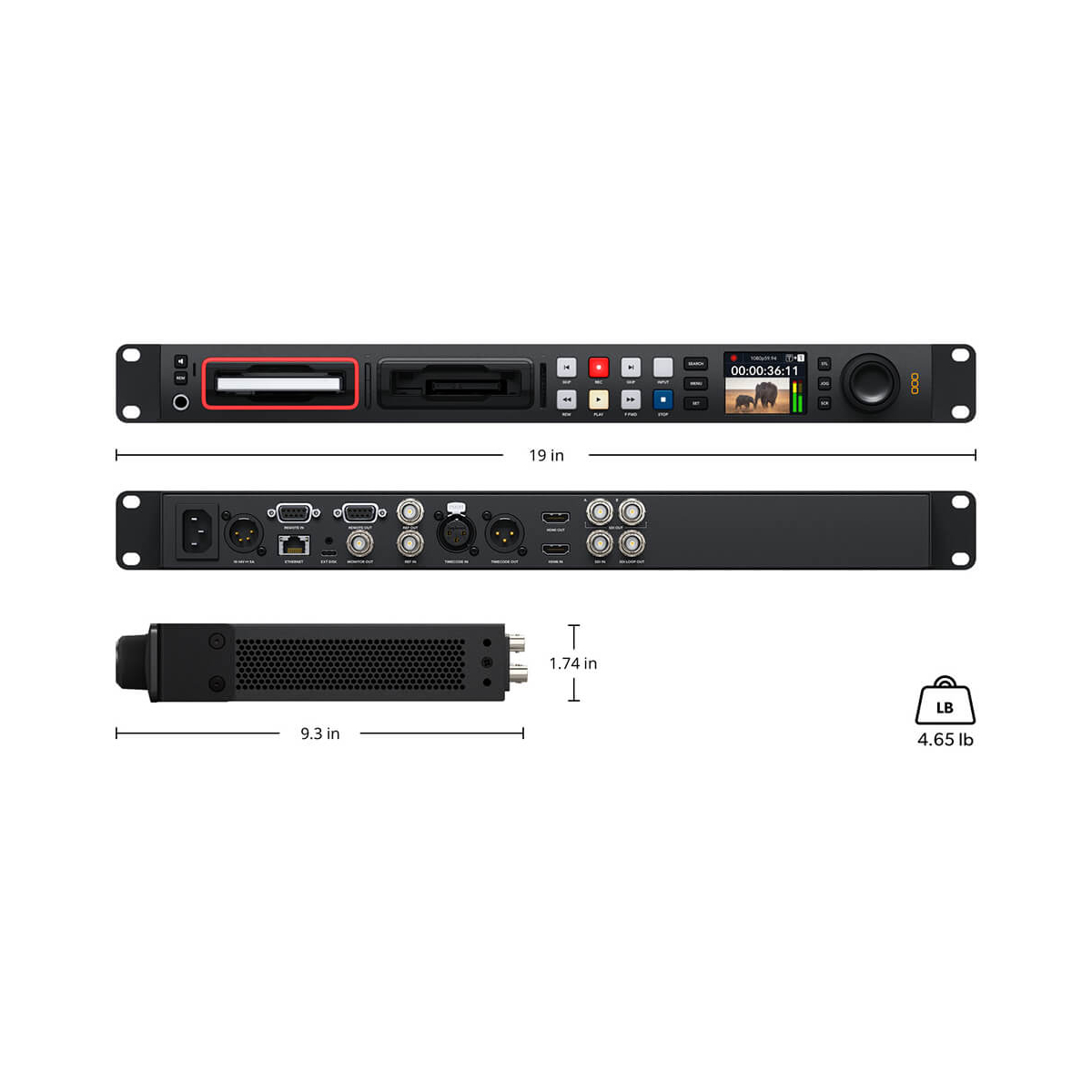

Dimensions | 19 x 9.3 x 1.74" / 48.3 x 23.6 x 4.4 cm |
Weight | 4.65 lb / 2.1 kg |
