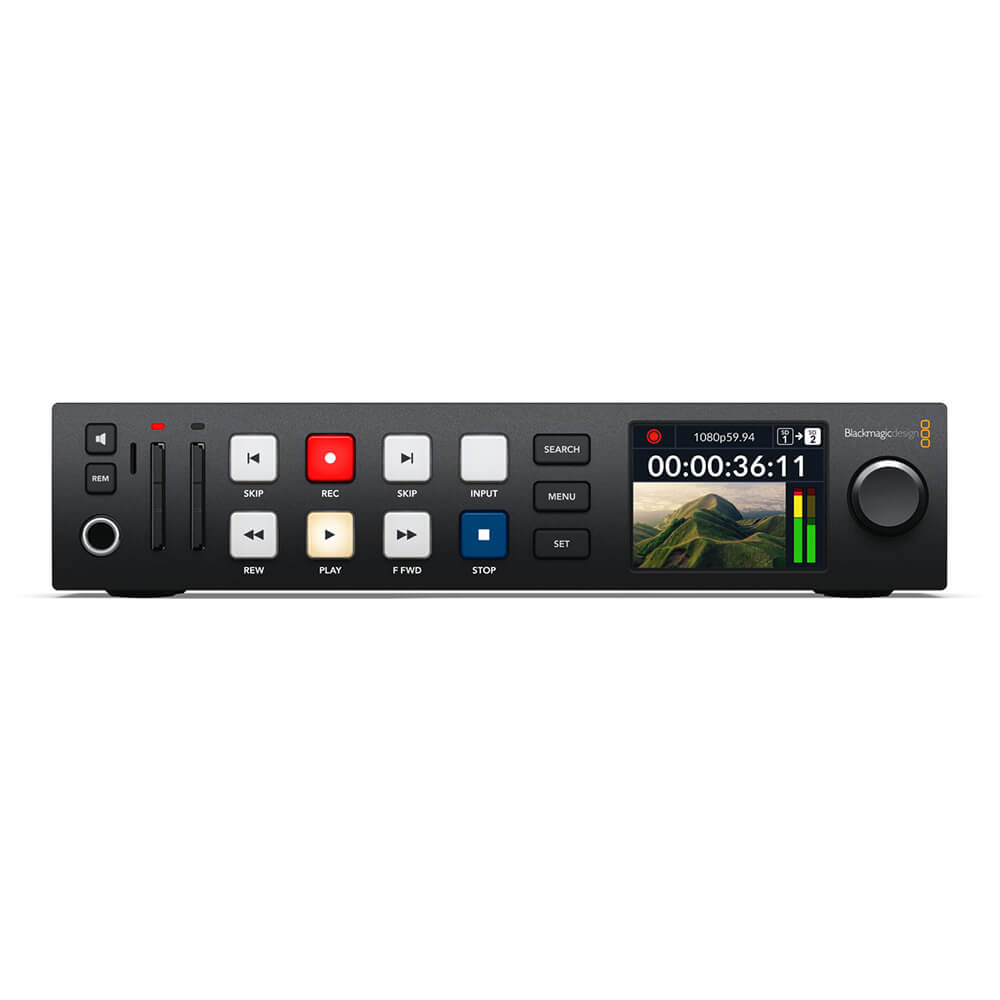

Take a compact broadcast-quality record/playback deck with you on location, in the studio, or built into a rack with the Blackmagic Design HyperDeck Studio HD Plus. The 1 RU tall recorder is 1/2 of a rack wide and powers from 100 to 240 VAC or via an optional 12 VDC power supply for portability. Featuring one 6G-SDI input, one HDMI 2.0 input, two 6G-SDI outputs, and one HDMI 2.0 output, this unit is a compact recording/playout powerhouse. A loop-through output and 3G-SDI monitor output as well as reference and timecode in/out, allow this device to fit into a broadcast environment.

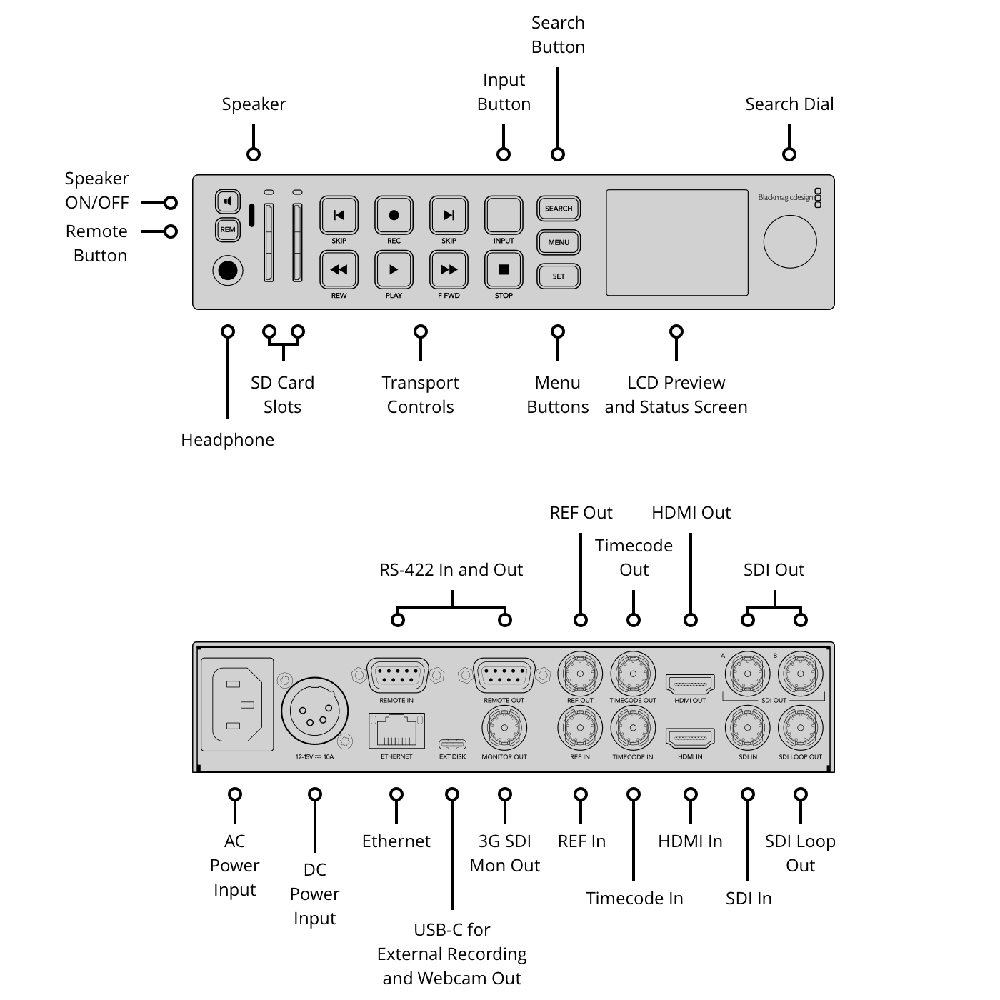

Two SD card slots allow you to capture with virtually unlimited record time, and the unit also supports recording to USB disks via the USB Type-C output port. The HyperDeck Studio HD Plus features a front-panel button control and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for external control, and you can also control the unit using either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video.
Blackmagic Design HyperDeck Studio HD Plus Specification Connectivity |
|
Video Input | 1 x BNC, 6G-SDI 1 x HDMI 2.0 Type A |
Video Output | 1 x BNC, 6G-SDI Loop-Out 2 x BNC, 6G-SDI 1 x HDMI Type A, 2.0 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI) 1 x BNC, 3G-SDI (Monitor Out) |
Timecode | In: 1 x BNC Out: 1 x BNC |
Reference | Tri-Sync or Black Burst Input Connector: 1 x BNC Output Connector: 1 x BNC |
Audio Input | None (Embedded Audio Only, 16 Channels) |
Audio Output | Headphone: 1 x 1/4" Phone |
Device Control | 2 x RS-422 Deck Control Port on DB9 Female |
Ethernet | 1 x RJ45 for Remote Operation |
Media Interface | 2 x SD Slots Media Type: UHS I and UHS II Format: ExFAT or HFS+ |
Standards |
|
Supported Resolutions |
4K 2K HD SD |
SDI Compliance | SMPTE 259M//292M/296M/372M/424M/425M Level A and B SMPTE 2084 SMPTE 2108‑1 |
SDI Metadata Support | HD RP188 and Closed Captioning CEA‑708 HDR Metadata Supported on SDI |
Video Sampling | 4:2:2 YUV |
Color Depth | 10-Bit |
Color Space | Rec. 601 Rec. 709 Rec. 2020 33-Point 3D LUTS Can Be Applied to SDI Monitor Out |
HDR Support | Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
Multi Rate Support | Autodetection of SD, HD, and 6G-SDI |
Audio Sampling | Television Standard 48 kHz, 24-Bit |
Supported Codecs |
ProRes DNxHD H.264 |
System Requirements |
|
Operating System | macOS: 10.15 (Catalina), 11.5 (Big Sur) or Later Windows: 10 64-Bit |
General |
|
Rack Height | 1 RU |
Power Supply |
AC DC Consumption |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Relative Humidity | 0 to 90% Non-Condensing |

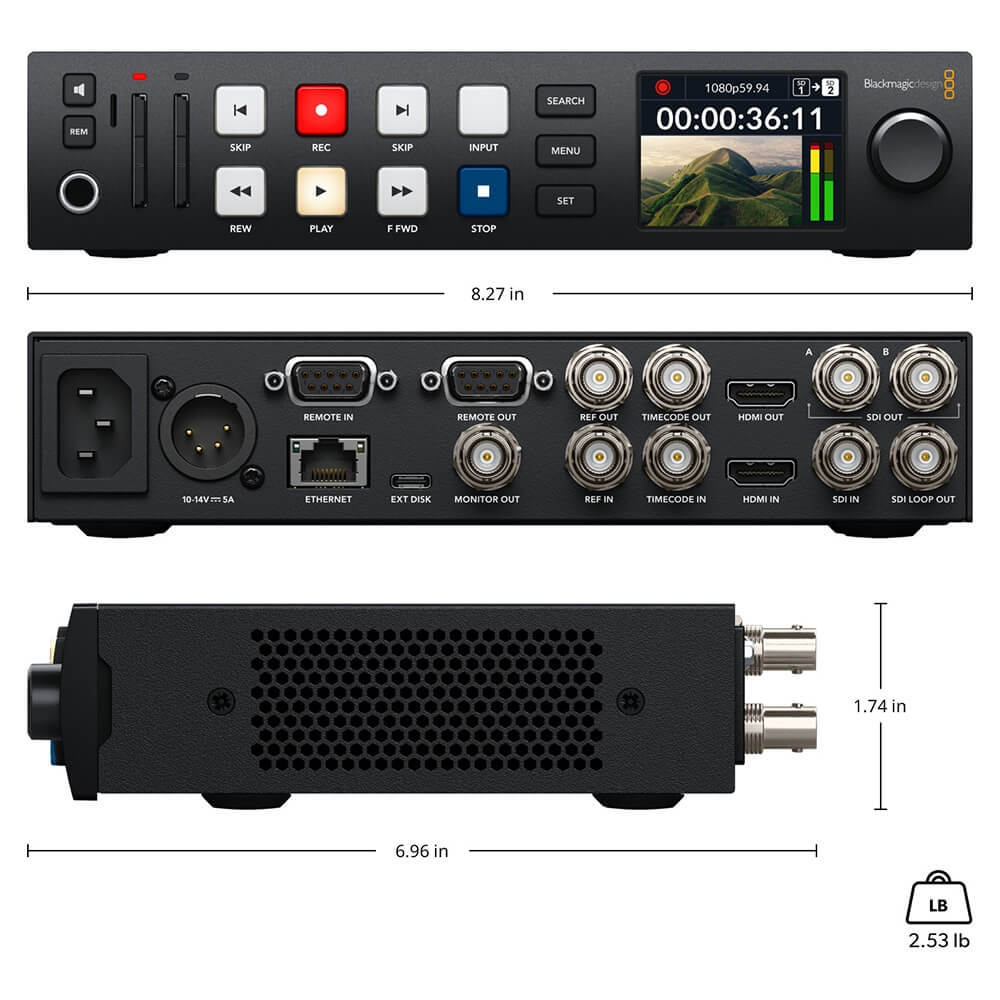

Dimensions | 8.27 x 6.96 x 1.74" / 21.01 x 17.68 x 4.42 cm |
Weight | 1.8 lb / 0.82 kg |
