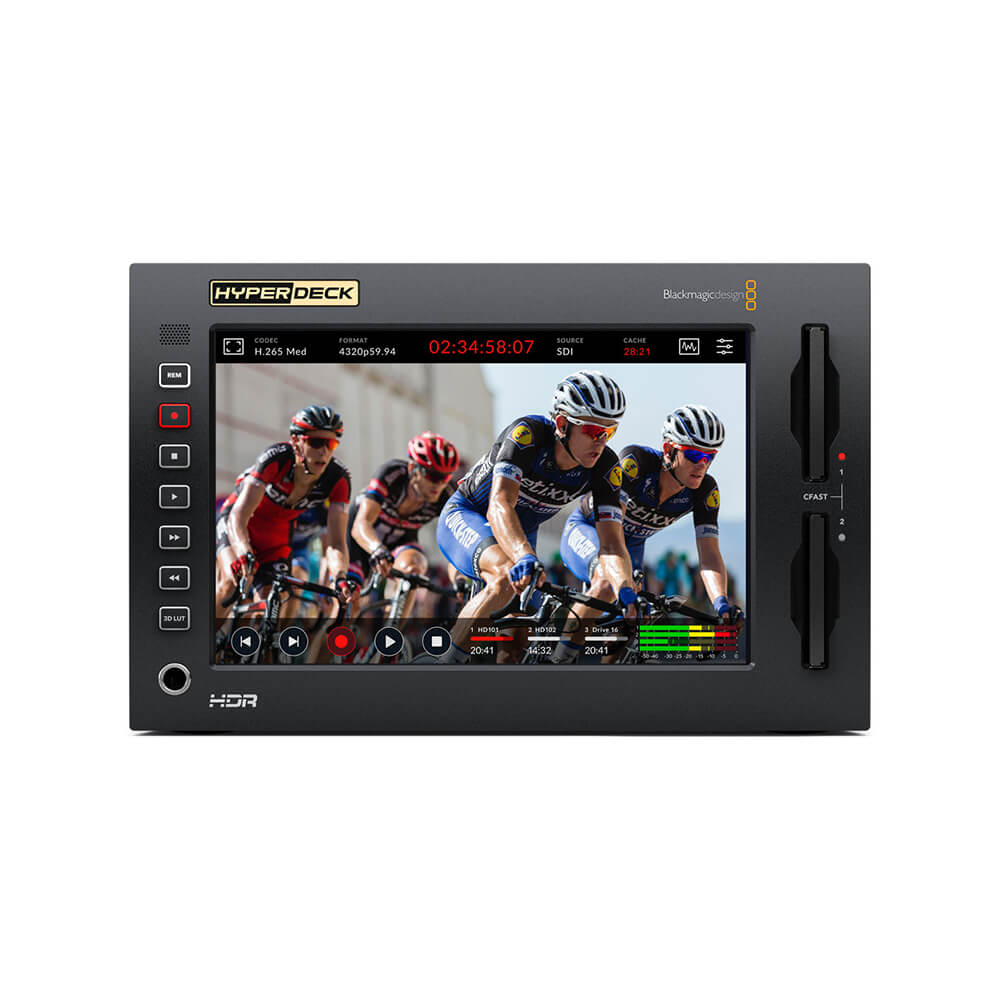

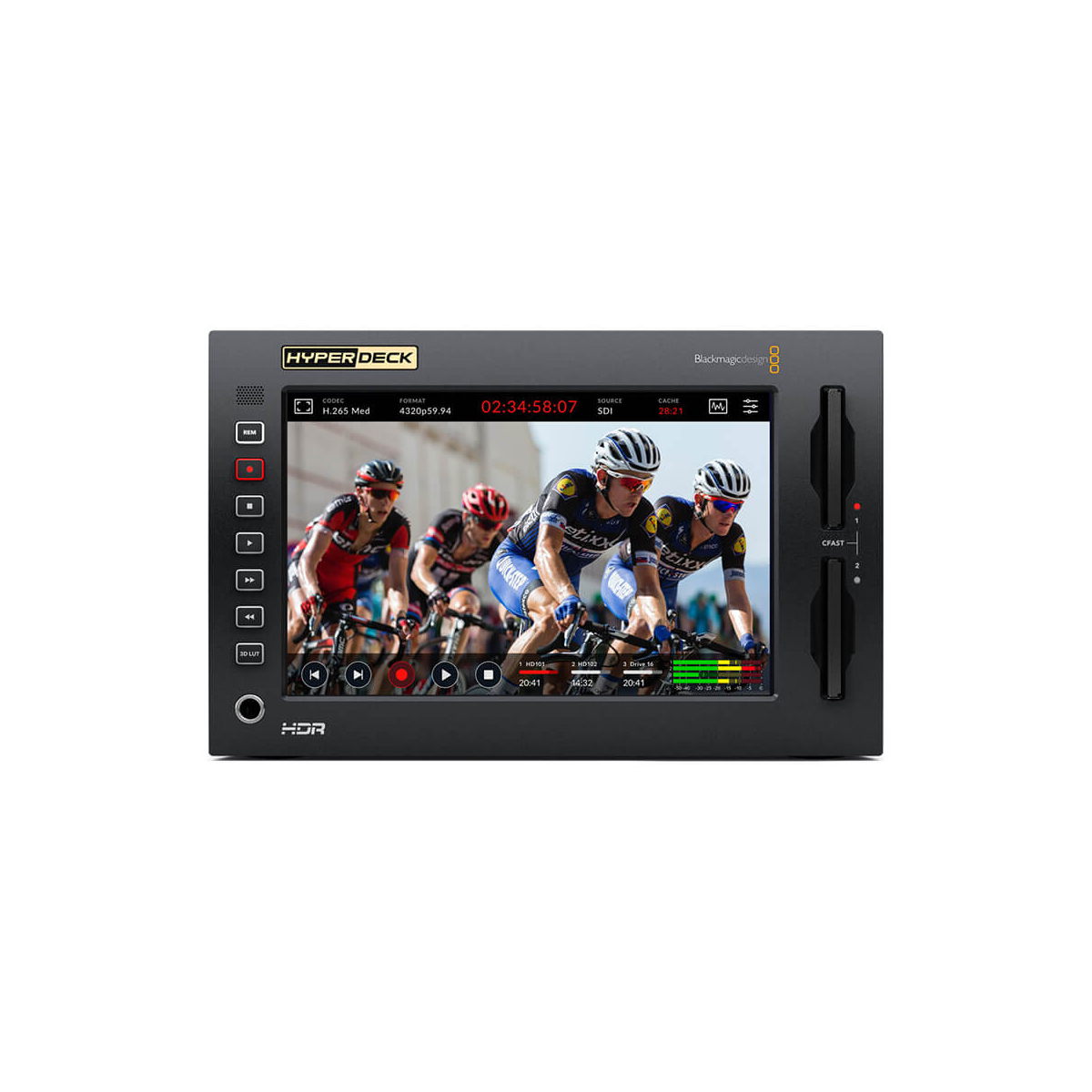

The HyperDeck Extreme 8K HDR from Blackmagic Design is an 8K recorder featuring a large display with standard touchscreen deck controls for viewing recordings. It also has physical deck controls on its left side and two CFast card slots on the right. Ideally, it would be used together with the optional HyperDeck Extreme Control deck, which provides traditional deck control features with a built-in editor for automating the ingest of legacy videotape-based programming. Both have the same 3 RU, half-rack width size and can be installed beside each other in a rack and combined into a traditional broadcast deck for a comprehensive workflow.

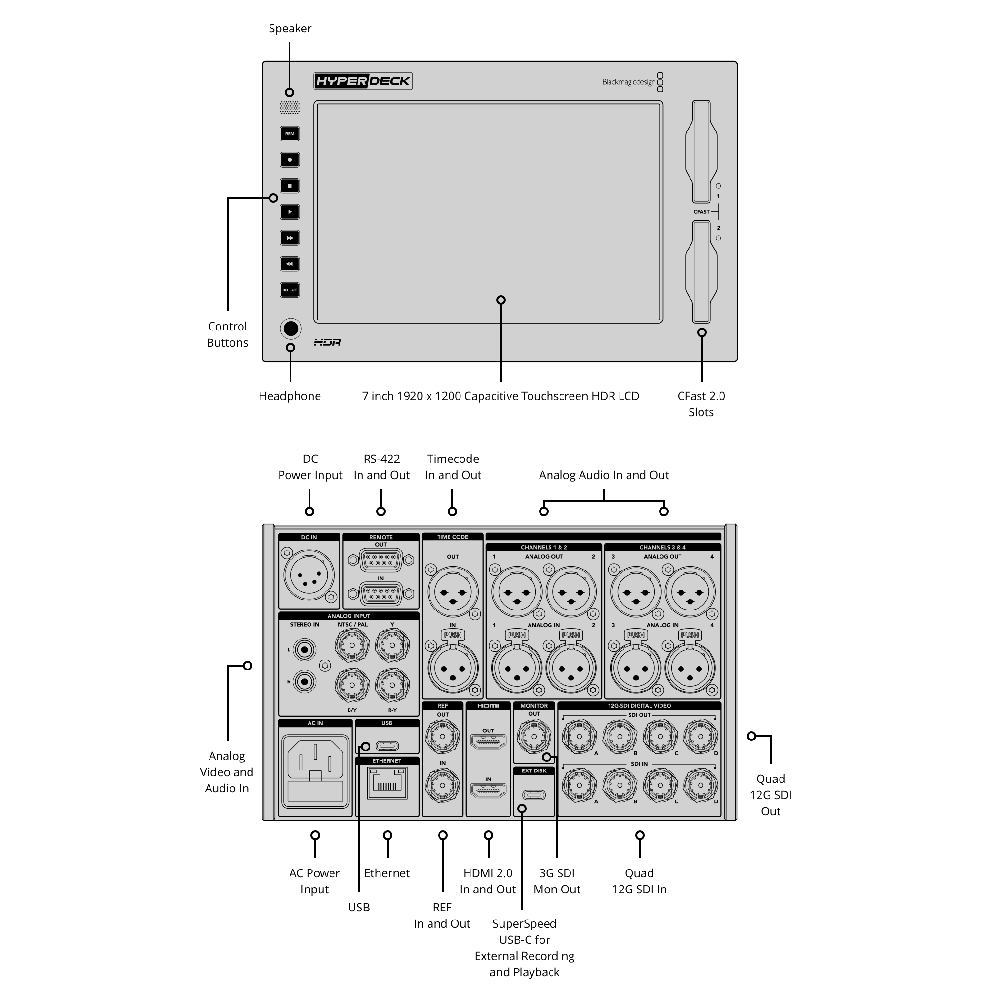

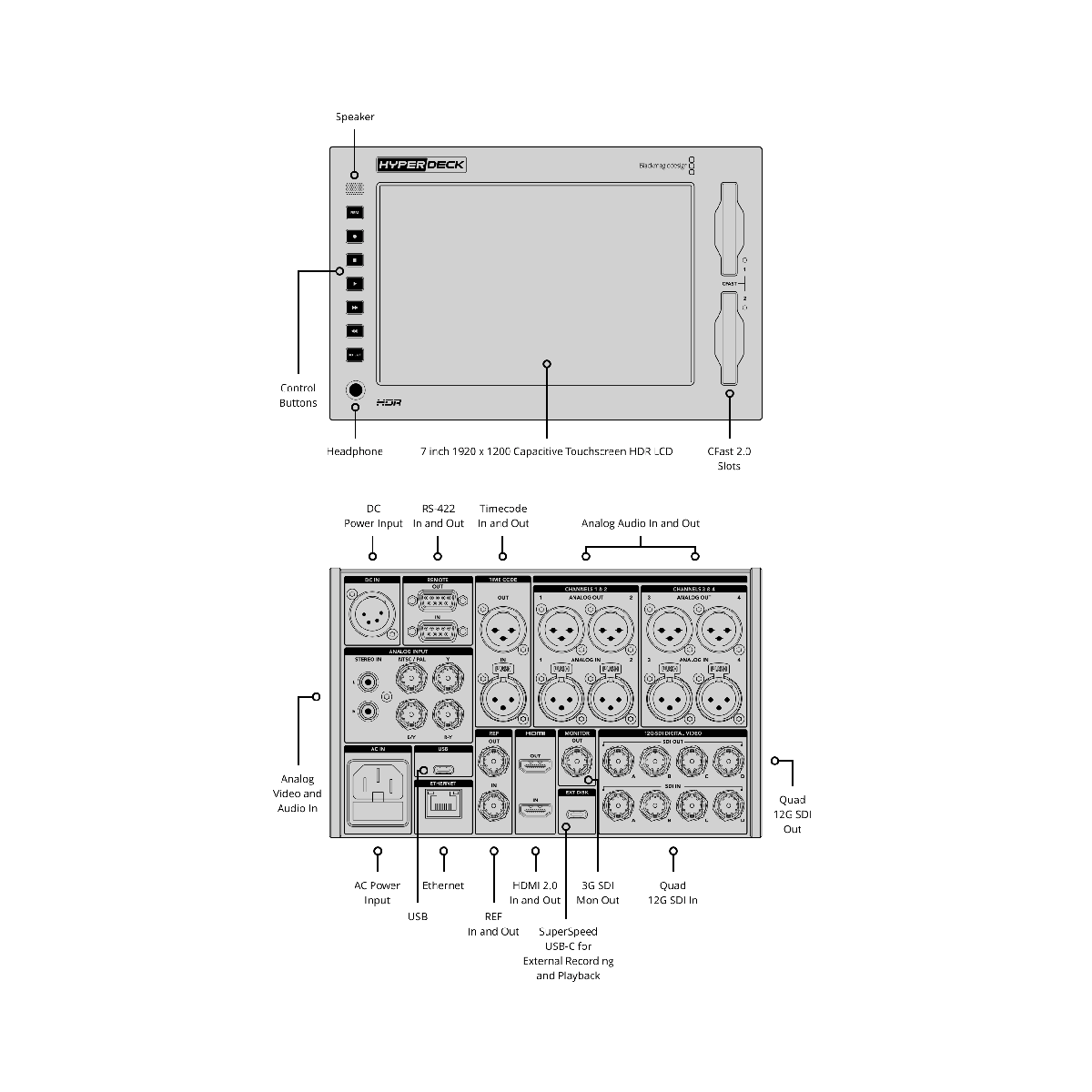

The HyperDeck Extreme 8K HDR features Quad 12G-SDI connectivity for 8K resolution, analog connections for archiving, and a USB Type-C External Disk port, which can be used to connect flash disks or entire disk systems such as the Blackmagic MultiDock 10G 4-slot SSD dock. There is also a slot for an optional M.2 PCIe NVMe cache card, which eliminates dropped frames if your media becomes full or runs too slow. The HyperDeck Extreme 8K HDR uses the space-saving H.265 codec but also supports ProRes 422 HQ, ProRes 422, ProRes 422 LT, and ProRes 4444. This means smaller file sizes plus compatibility with virtually all popular editing software.
HDR standards are supported and the display screen has a wide color gamut to match. The display offers built-in monitoring scopes, and these can be changed to HDR scopes when working in HDR formats. The HyperDeck Extreme 8K HDR tags files with the correct HDR information, and then SDI and HDMI inputs automatically detect HDR video standards. Static metadata PQ and HLG formats are handled according to the ST2084 standard. The bright LCD can handle both Rec. 2020 and Rec. 709 color spaces. Thanks to the wide color gamut, it can even handle 100% of the DCI-P3 format.
The HyperDeck Extreme 8K HDR features an internal 100-240 VAC power supply plus a 4-pin XLR 12V input for connecting an external power supply or battery, allowing for efficient studio or on-location use. Blackmagic HyperDeck Operating System and Blackmagic HyperDeck software are provided as free downloads with the HyperDeck Extreme 8K HDR.
Two HyperDeck Extreme 8K HDR units, or one unit plus one HyperDeck Extreme Control, can be installed in a rack or console using the optional HyperDeck Extreme Rack Kit.
Blackmagic Design HyperDeck Extreme 8K Specification |
|
SDI Video Inputs | 4 |
SDI Video Outputs | 5 (12G-SDI A, B, C, D, and 3G-SDI Monitor Out) |
SDI Data Rates | 270 MB/s, 1.5G, 3G, 6G, 12G |
HDMI Video Inputs | 1 x HDMI 2.0 Type A |
HDMI Video Outputs | 1 x HDMI 2.0 Type A |
Analog Video Inputs | 1 x Component YUV on 3 BNCs 1 x Composite NTSC/PAL on 1 BNC |
Analog Video Outputs | None |
Analog Audio Inputs | 4 Channels of Professional Balanced Analog Audio via XLR Connectors 2 Channels of Consumer Unbalanced via RCA connectors |
Speaker | Built-In Mono Speaker |
Display | 7" with 1920 x 1200 Resolution, 2000 cd/m², DCI-P3 100% HDR LCD |
Timecode Input & Output | 1 x XLR Input 1 x XLR Output |
Reference Input | Tri-Sync or Black Burst |
SDI Audio Inputs | 16 Channels of Embedded Audio |
SDI Audio Outputs | 16 Channels of Embedded Audio |
HDMI Audio Inputs | 8 Channels of Embedded Audio |
HDMI Audio Outputs | 8 Channels of Embedded Audio |
Remote Control | 1 x RS-422 Input 1 x RS-422 Output |
Recorder Configuration | Via User Interface or Blackmagic HyperDeck Ethernet Protocol |
Ethernet | 10 Gb/s |
External Recording Output | 1 x USB Type-C 3.1 Gen 2 (up to 10 Gb/s) for External Disk Recording |
Computer Interface | 1 x USB Type-C for Software Updates |
SD Video Standards | 525i: 59.94 NTSC 625i: 50 PAL |
HD Video Standards | 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1080PsF: 30, 29.97, 25, 24, 23.98 1080i: 60, 59.94, 50 720p: 60, 59.94, 50 |
2K DCI Video Standards | 1080p: 25, 24, 23.98 1080PsF: 25, 24, 23.98 |
UHD Video Standards | 2160: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 |
4K DCI Video Standards | 2160p: 25, 24, 23.98 |
8K Video Standards | 4320: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 |
8K DCI Video Standards | 4320p: 25, 24, 23.98 |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 |
SDI Metadata Support | HD RP188 and Closed Captioning CEA-708, HDR Metadata Supported on SDI |
Audio Sampling | Television Standard 24-Bit, 48 kHz Sample Rate |
Video Sampling | 4:2:2 YUV |
Color Precision | 10-Bit |
Color Space | Rec. 601, Rec. 709, Rec. 2020. 33-Point 3D LUTs Can Be Applied via the LUT Menu Tab. |
Multi Rate Support | Autodetection of SD, HD, 6G-SDI, 12G-SDI, 2SI Quad-Link 12G-SDI. |
Copy Protection | HDMI Input is Unable to Capture from Copy Protected HDMI Sources. Always Confirm Copyright Ownership Before Capture or Distribution of Content. |
Cache Recording | Slot for Optional M.2 PCIe NVMe Card for Cache Recording up to 16 GB/s. 60, 80, and 110 mm Supported. |
Media | 2 x CFast 2.0 Card Slots and 1 x USB Type-C 3.1 Gen 2 Expansion Port for External Recording of SD, HD, UHD, and 8K. |
Media Type | CFast Card and External USB Type-C Flash Drives |
Media Format | Can Format Media to ExFAT (Windows/Mac) or HFS+ (Mac) File Systems |
Supported Codecs | ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for All Formats up to 4320p60. H.265 High, H.265 Medium, H.265 Low for All Progressive Formats up to 4320p60. |
Scopes | Waveform, RGB Parade, Vector, and Histogram Scopes in Broadcast-Quality 10-Bit |
Viewing Modes | Picture-in-Picture; Picture Overlay with Opacity Control. Waveform and RGB Parade with Standard and HDR Graticules; Vector with Zoom. |
Control Panel | Integrated Capacitive Touchscreen LCD with On-Screen Controls for Settings and Navigating Menus. |
External Control | RS-422 Deck Control, SDI Start/Stop, Timecode Run. Includes Blackmagic HyperDeck Ethernet Protocol. |
Internal Software Upgrade | Loaded at System Start or via Blackmagic HyperDeck Setup Using USB Port |
Supported Operating Systems | Mac 10.13 High Sierra, 10.14 Mojave, or Later Windows 8.1 or 10 |
Power Supply | 1 x Internal 100-240 VAC 1 x 4-Pin XLR 12 VDC Input for External Power or Battery Use |
Rack Compatibility | 3 RU, Half-Rack Width |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 60°C |
Relative Humidity | 0 to 90% Non-Condensing |

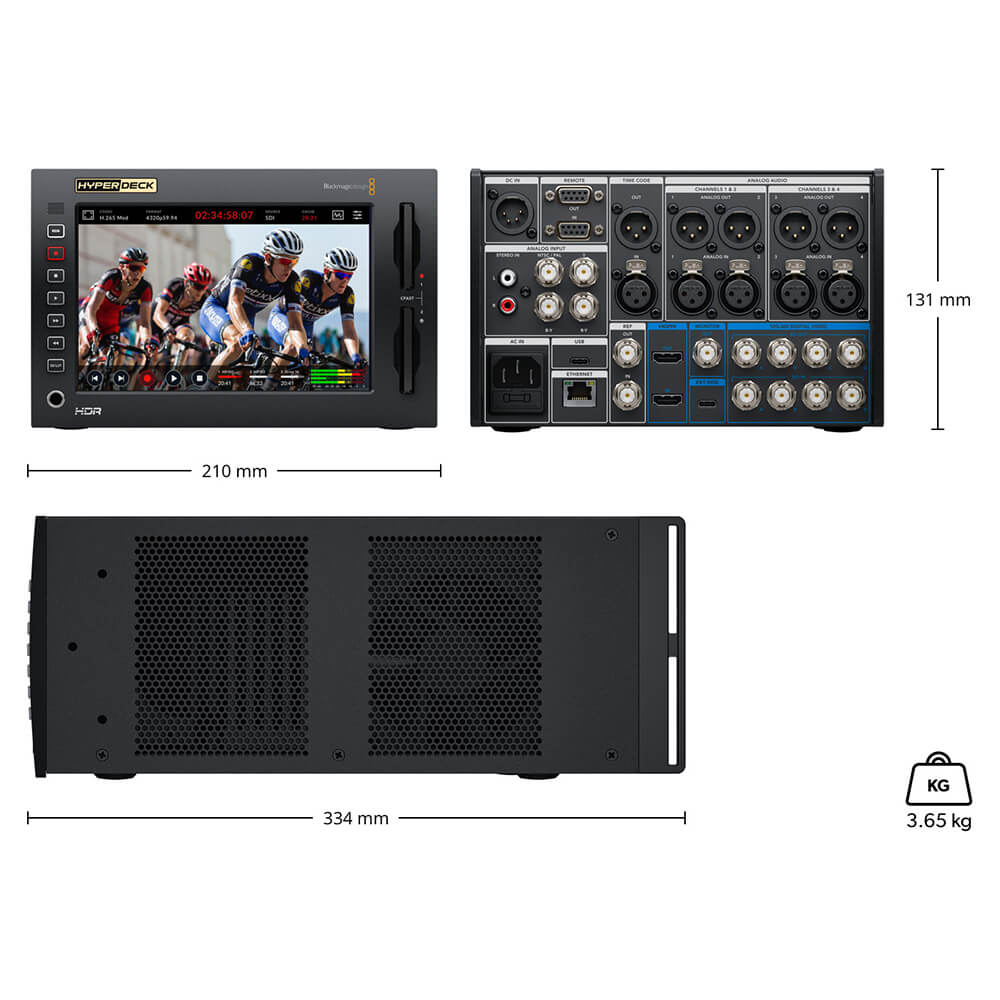

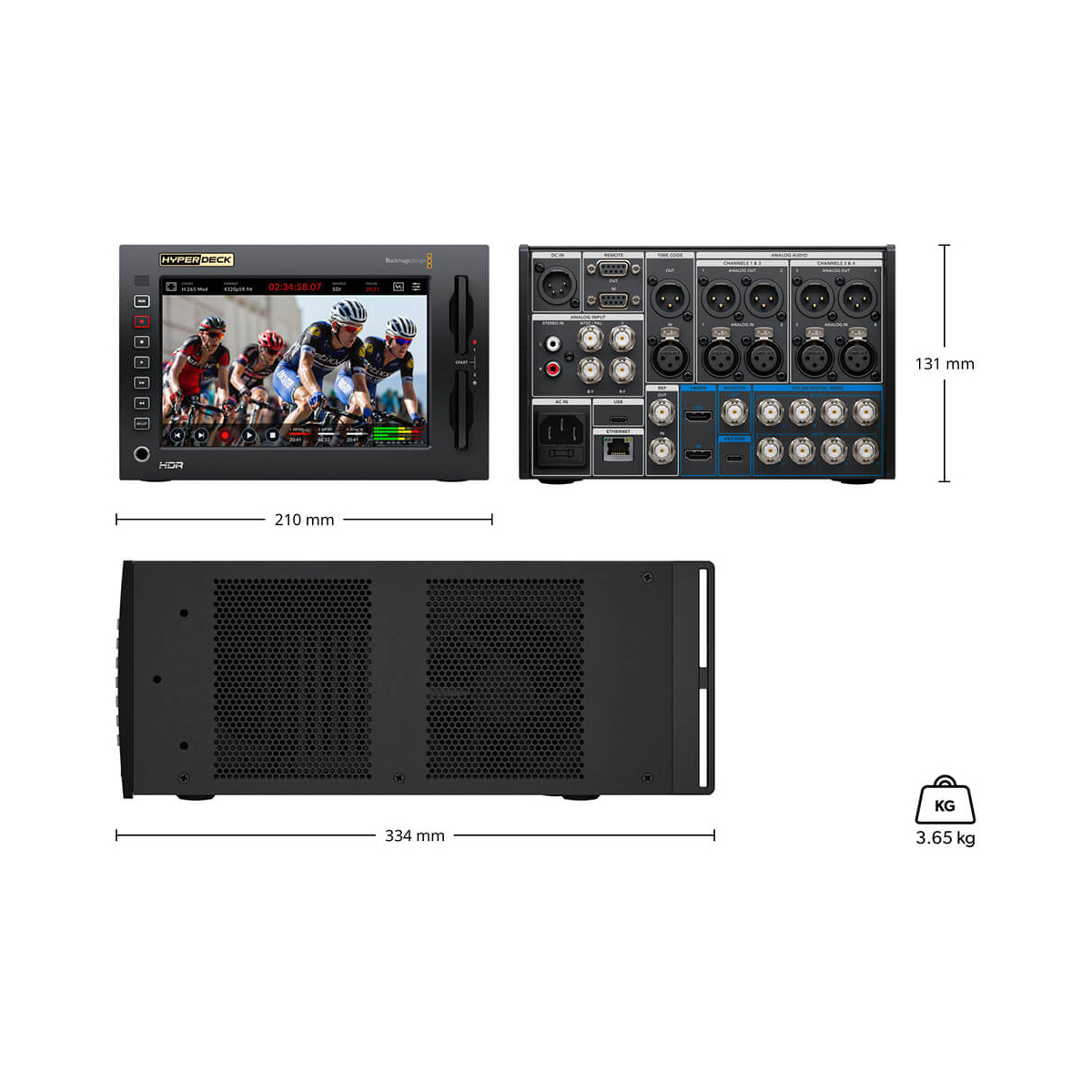

Dimensions | 8.3 x 5.1 x 13.2" / 21 x 13 x 33.5 cm |
Weight | 8 lb / 3.6 kg |
